Pacote de Bateria de Lítio LiFePO4 12V 100Ah para Sistema Solar Off-Grid/Energia de Reserva Residencial, Células de Lítio 3.2V 100Ah 280Ah para Sistema de Armazenamento de Energia 24V 48V DIY

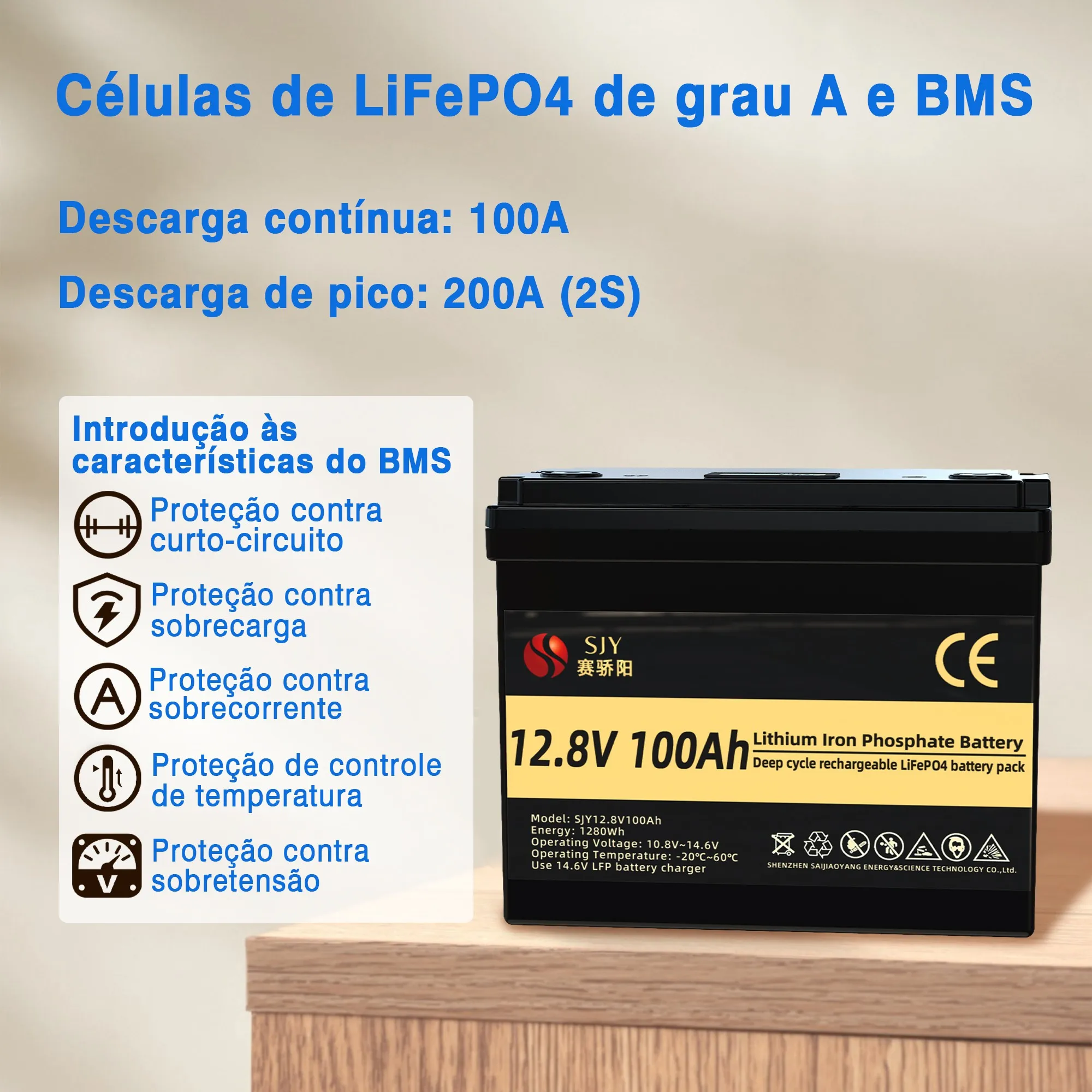

Lithium iron phosphate battery 12.8V 100Ah

Product Features:

1) Made of Class A prismatic cells
2) Professional 100A battery management system

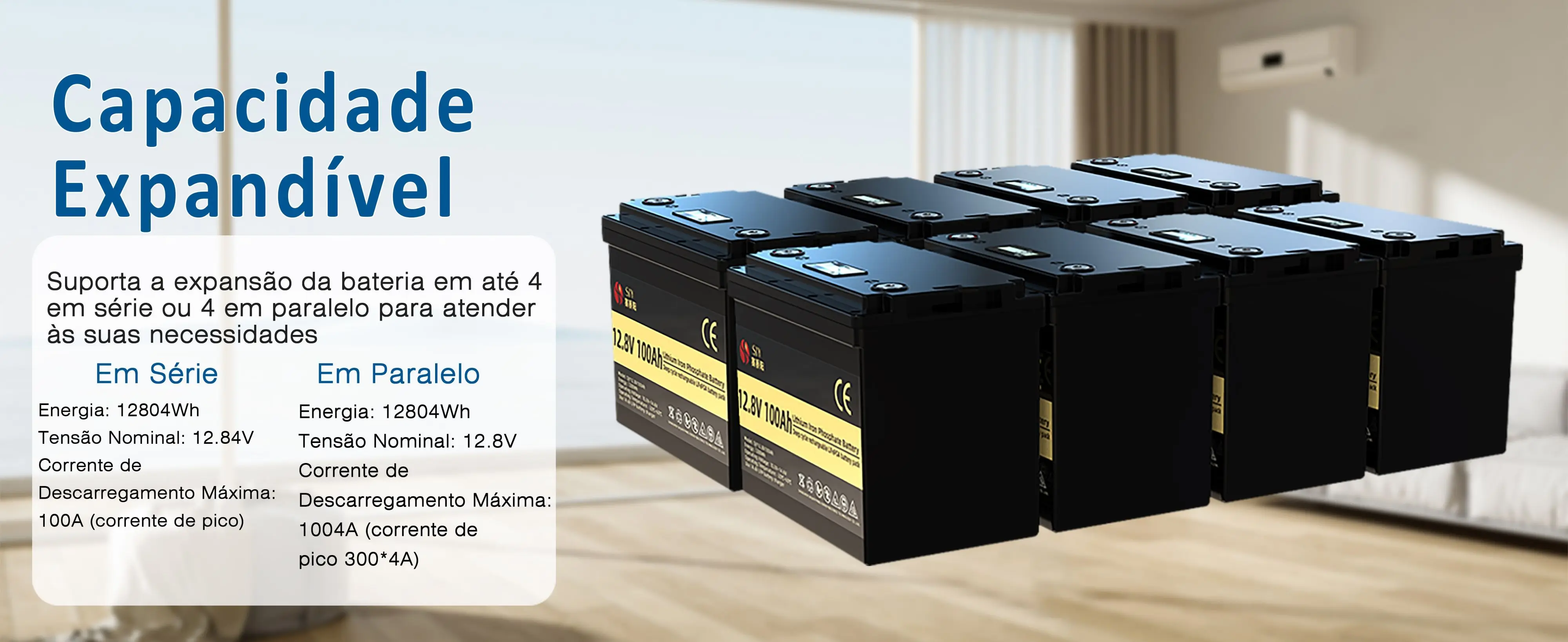

3) Supports 4S4P (51.2V 400Ah)
4) Voltmeter (LCD)
5) Removable battery housing
6) More convenient (260 x 167 x 210 mm and 9.5 kg)

Battery specifications

Rated Capacity (0.2C): 100 Ah / 1280 Wh
Lifespan: Over 6000 cycles at 80% Depth of Discharge
Rated Voltage: 12.8 V
Charging Voltage: 14.6 V
Depth of Discharge (DoD): 100%
Standard Charge Current: 10~30 A
Charging Time: Approximately 3~9 hours
Maximum Continuous Charge Current: 50 A
Maximum Continuous Discharge Current: 100 A
Peak Discharge Current: 200 A (Duration: Less than 2 seconds)
Operating Temperatures:
Charging 0°C~50°C (32°F~122°F)
Discharging -20°C~60°C (-4°F~140°F)
Storage -10°C~50°C (14°F~122°F)
Impedance: ≤ 20 mΩ
Brand: SaiJiaoYang

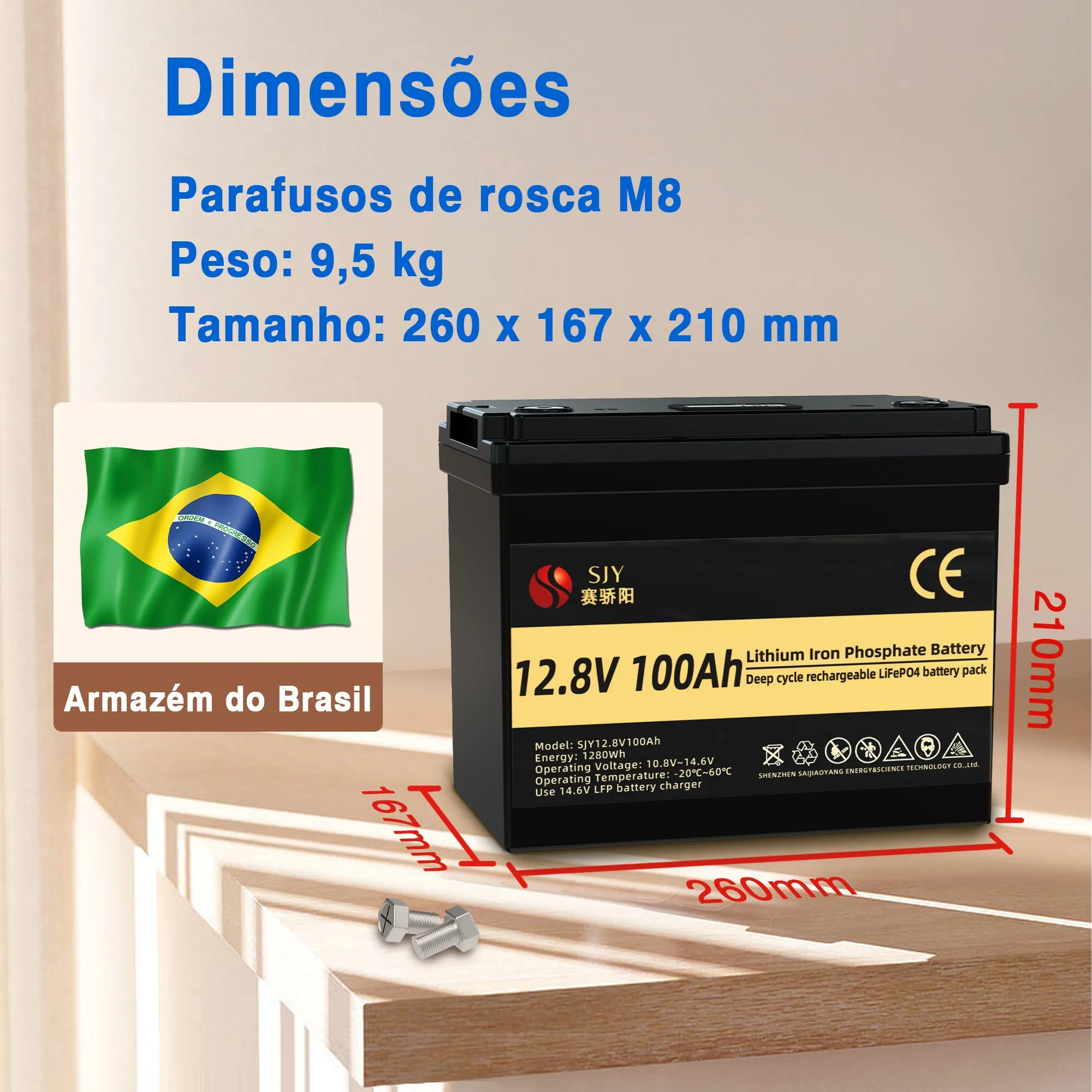

Dimensions: 260*167*210 mm (10.24*6.57*8.27 in)
Weight: 9.5 kg (20.94 lbs)

Efficient battery management system

12V100AH – 100A BMS

Our Advantage

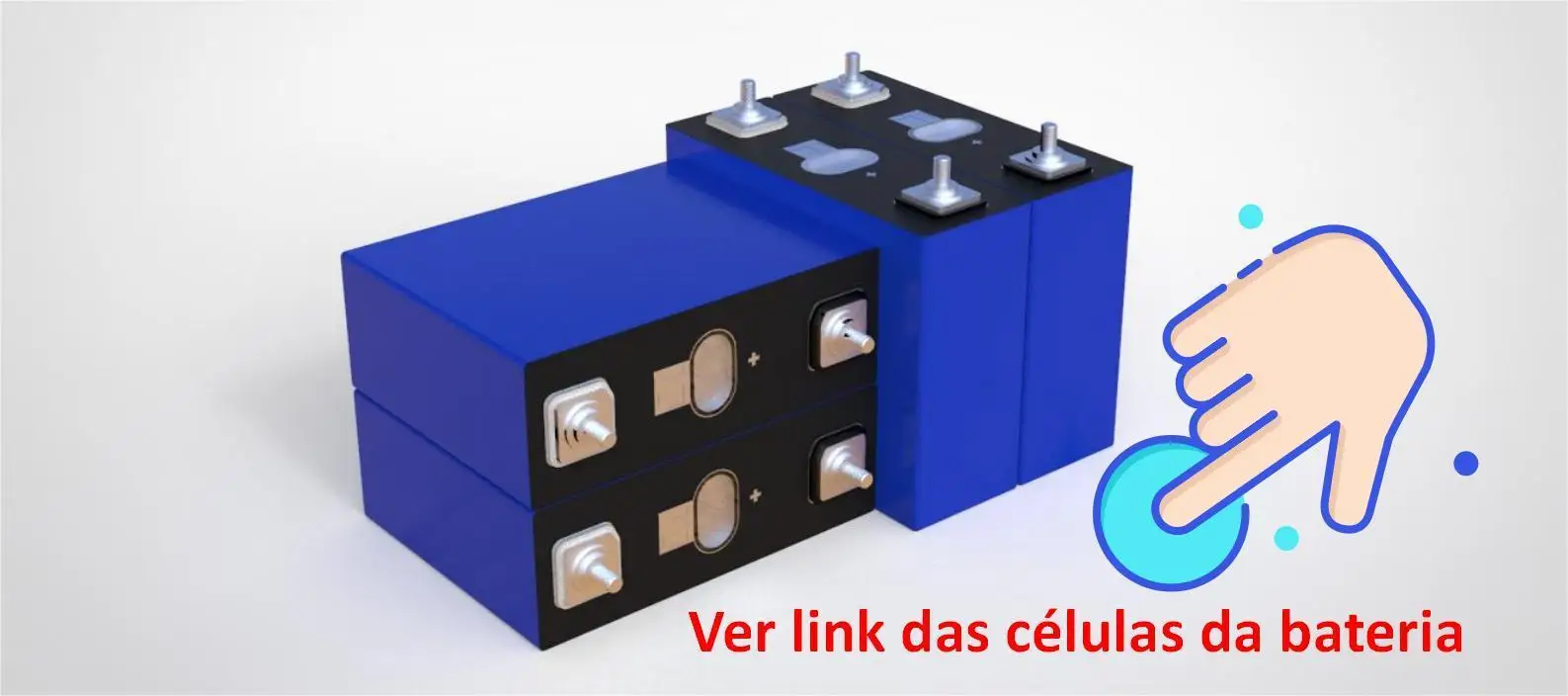

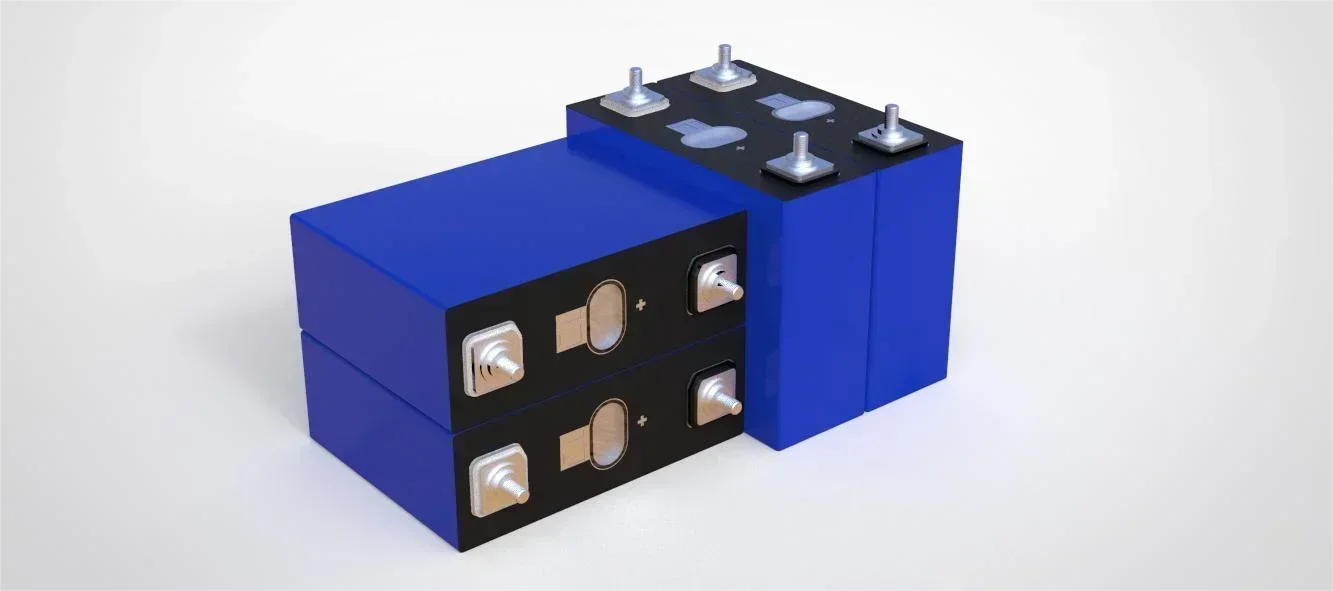

1) Use LiFePO4 Prismatic Cell

Prismatic cell advantage:
Longer lifespan
High safety
Lighter

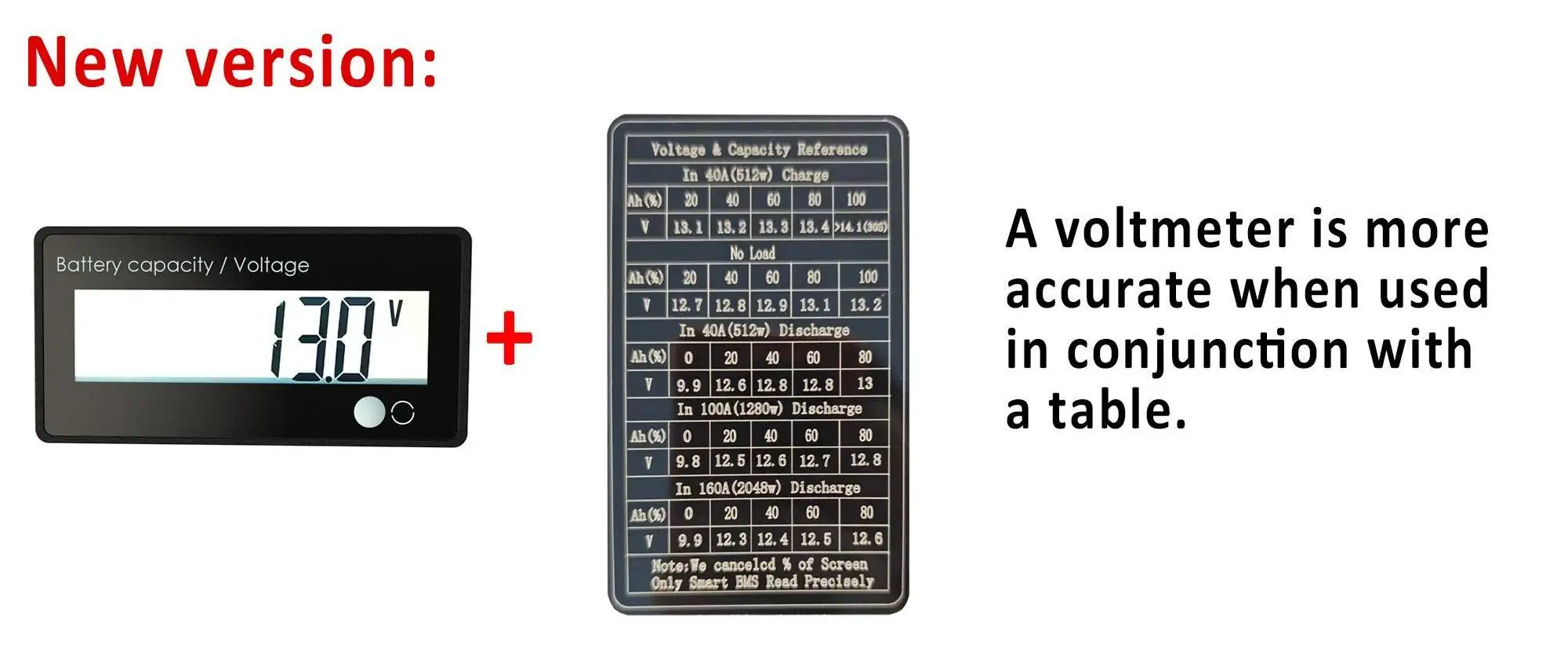

2) Visual LCD Display

This version of the LCD display is a voltage meter.
To verify proper operation, refer to the battery test data sheet.

3) Professional 100A BMS

a) BMS protection function
b) 100A continuous discharge current
c) Passive equalization function
d) Supports series or parallel battery connections

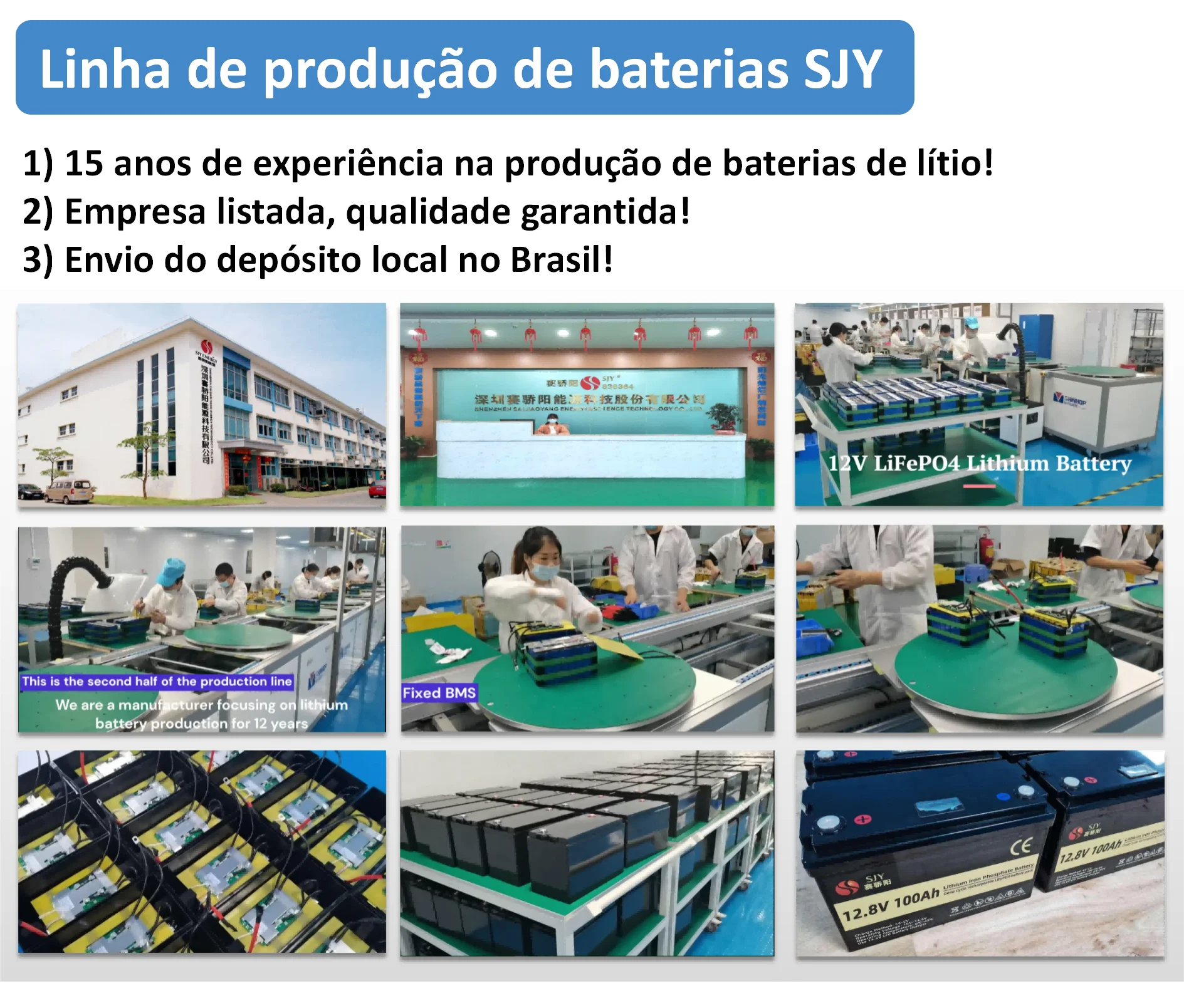

4) Factory-operated Stores

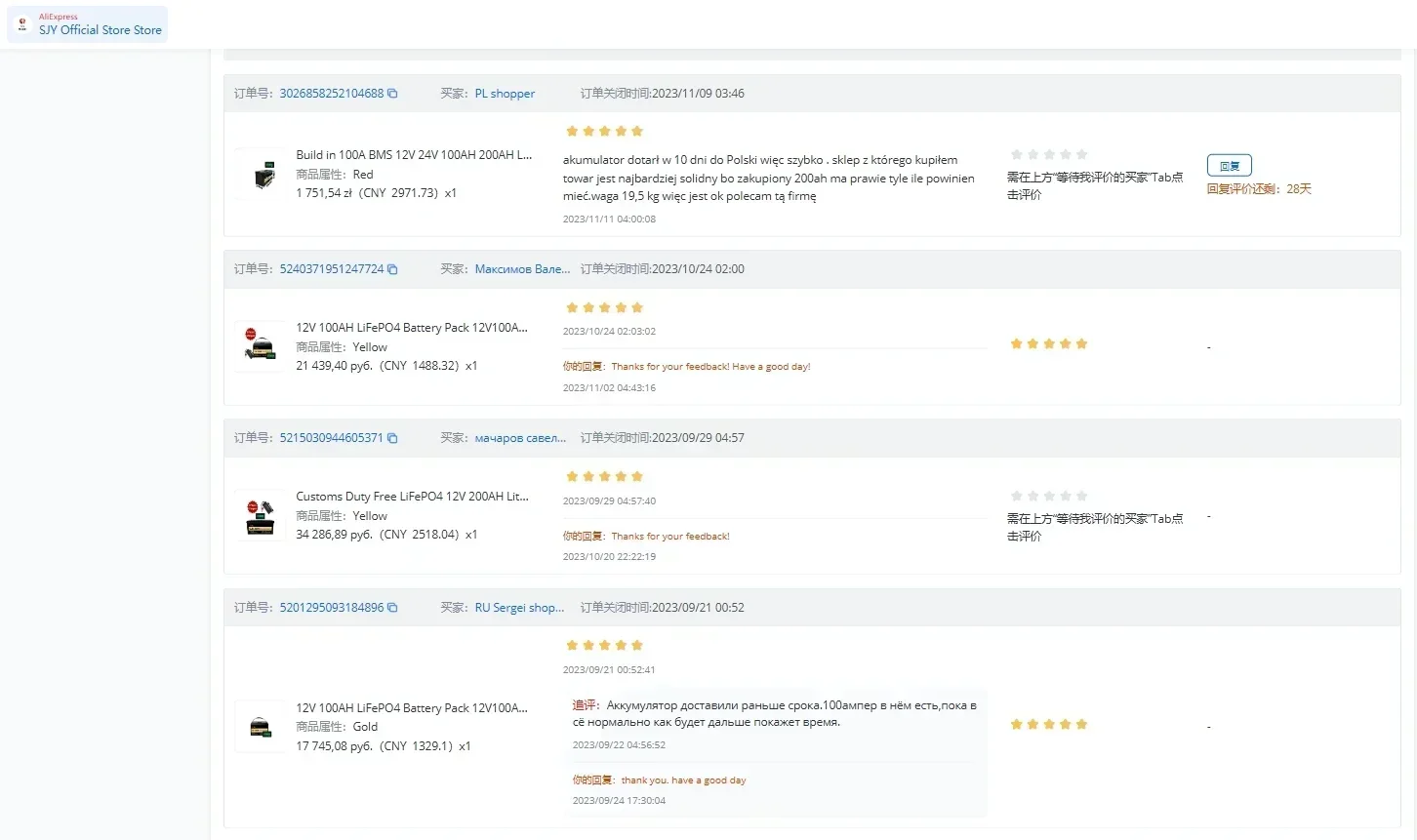

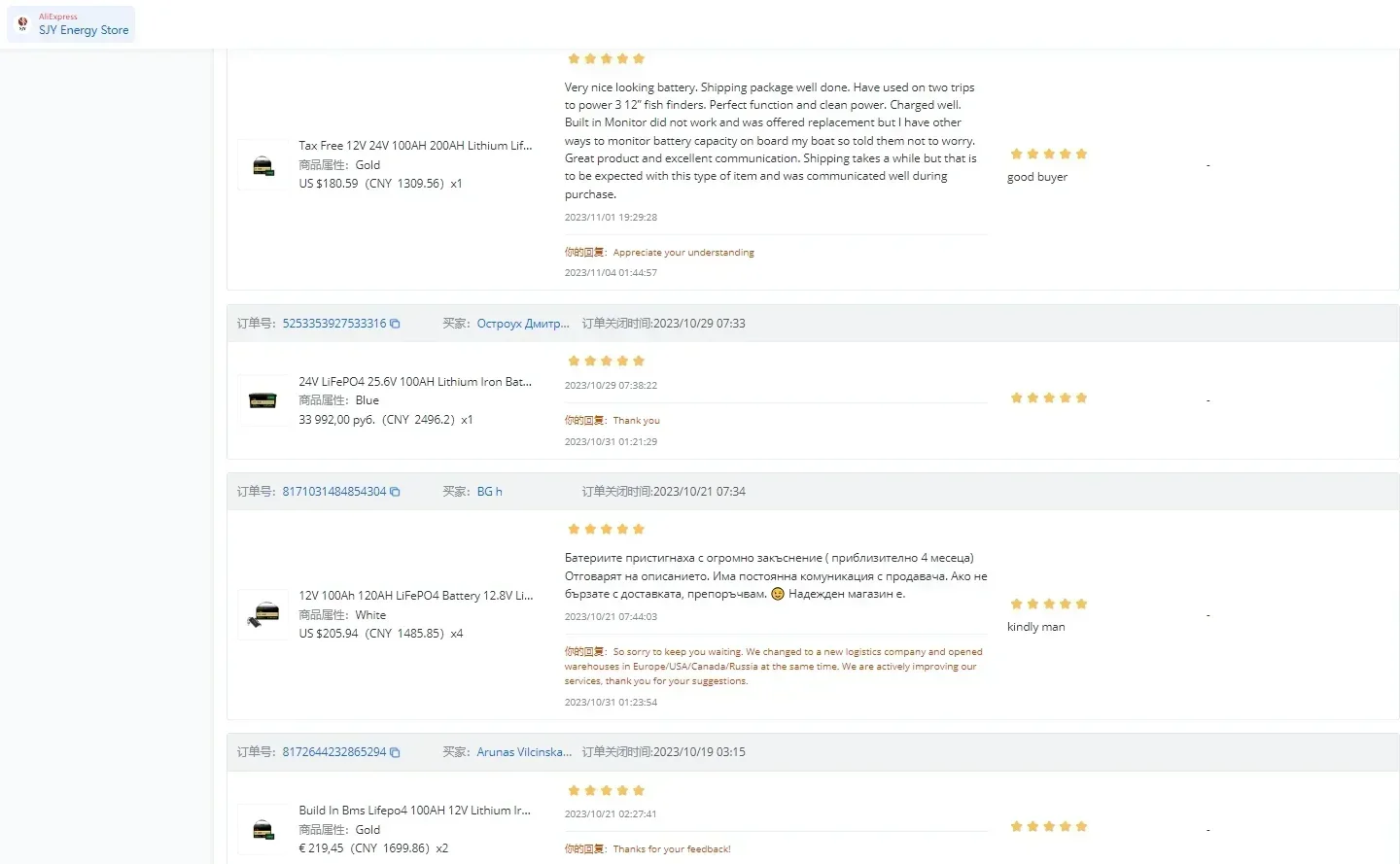

Excellent feedback

Application

1. Home Energy Storage
Solar Backup Power: 12V 100Ah LiFePO4 battery can store solar energy to provide backup power for the home.
Emergency Power: Power key devices in the home, such as refrigerators, routers, LED lights, etc., during power outages.
2. Off-grid and Micro Homes
Small off-grid homes: Power energy-saving refrigerators, LED lighting, laptops, etc. in off-grid homes.
Camping and RVs: Provide power support for electrical devices in RVs, such as LED lights, small refrigerators, water pumps, etc.
3. Ships and Water Activities
Small ships: Power fish finders, navigation lights, bilge pumps, audio equipment on board.
Fishing and leisure boats: Provide stable power support for electronic equipment on board.
4. Transportation
Electric vehicles: LiFePO4 batteries are used in electric buses and some electric passenger cars because of their safety and long cycle life.
Power tools and equipment: such as electric forklifts, electric lawn mowers, etc.
