Descrição
- Gearing Arrangement: Helical
- Brand Name: XMSJ
- Origin: Mainland China
- Warranty: 1 year, 1 Year
- Customized support: OEM
- Gearing Arrangement: Planetary
- Output Torque: 10-2160Nm
- Input Speed: based on motor speed
- Output Speed: based on ratio
- Place of Origin: Jiangsu, China
- Brand Name: 3F Famed
- Product name: PAB planetary gearbox
- Ratio: 3-100
- Precision: 1~9arcmin
- Color: blue with gold or black with gold
- Output Form: shaft outpur
- Certificate: CE Certificate
- Packing: carton or wooden box
- Efficiency: 94%~97%
- Monting direction: any direction

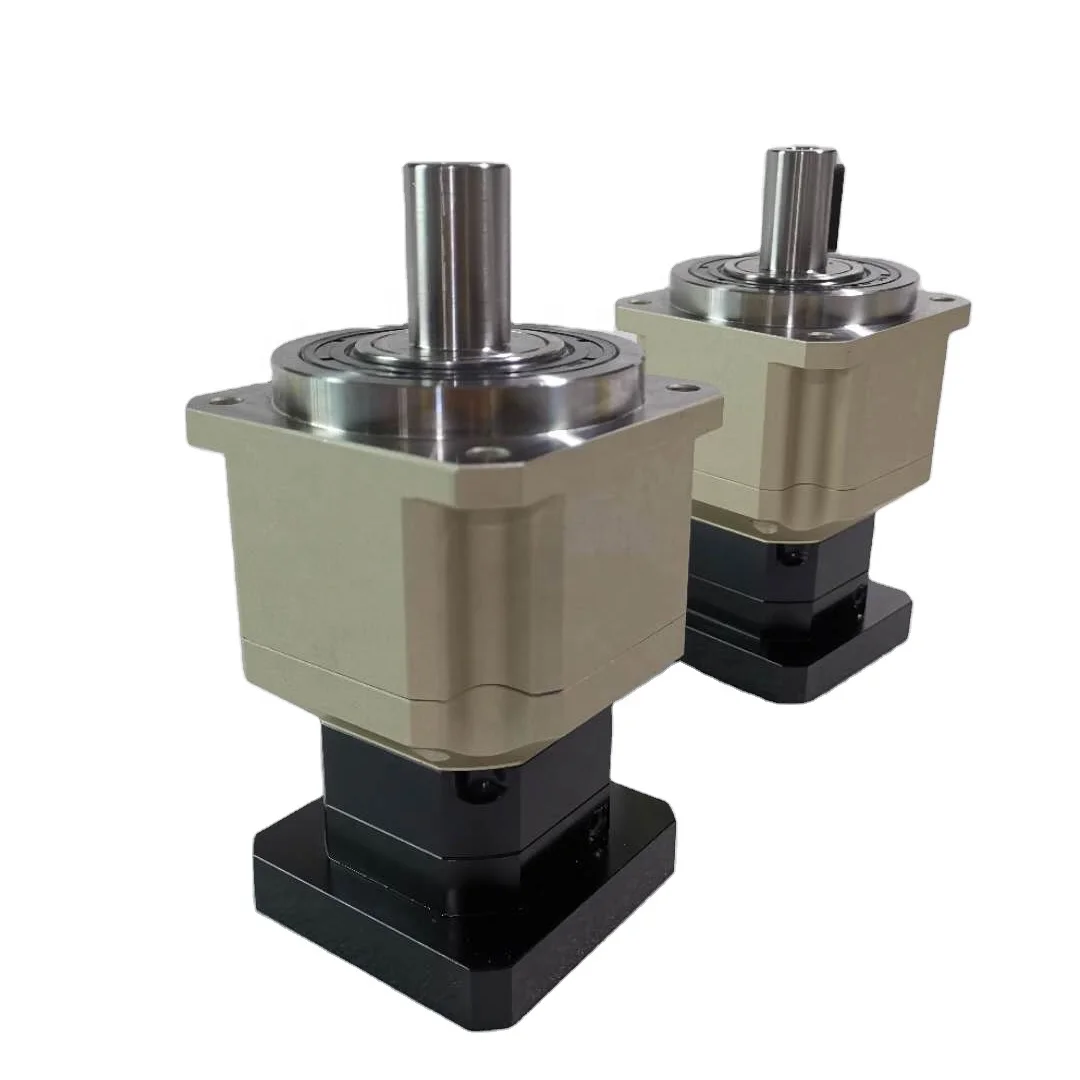

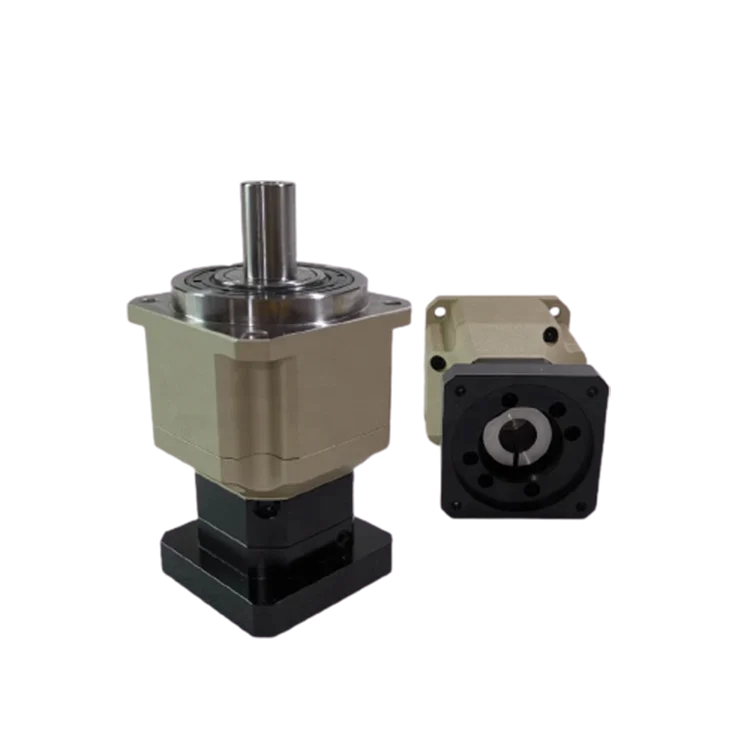

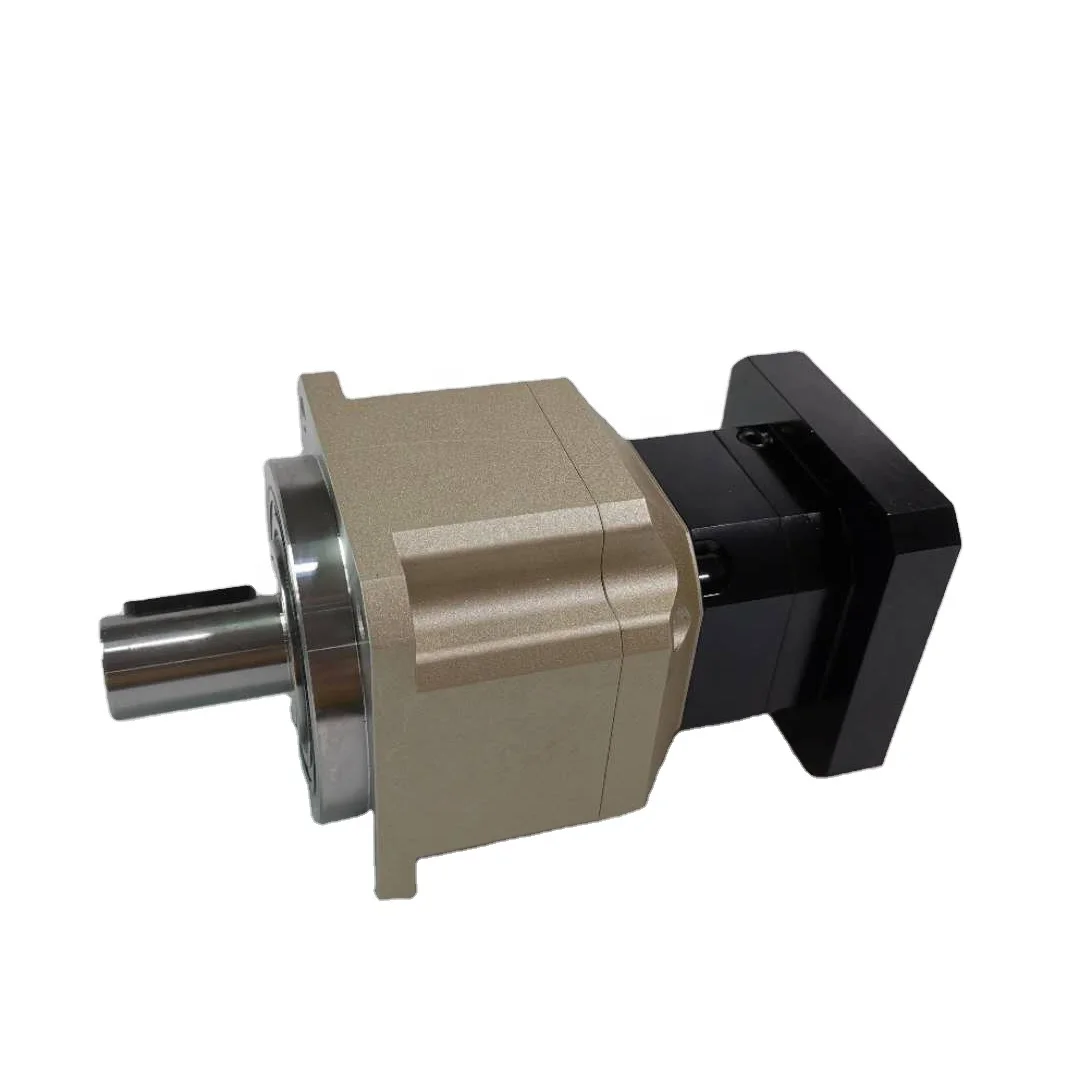

Product Description
PAB series is the main product of 3F helical gear precision planetary gearboxes,it is with high precision(P0 and P1 backlash),and the backlash can be to 1 arcmin.PAB planetary reduction planet gear is supported by both ends of the full needle roller bearing, which enhances the torsion stiffness.Output shaft of PAB planetary gearbox reducer is supported by two taper rollers on both ends to achieve greater bearing capacity. PAB inline precision planetary gearbox is a direct connection type with square body,shortening the positioning time of starting and stopping.It is with shaft output..The Self aligning input flange makes PAB planetary gearbox connect fast with any motor output shaft. With the compact structure,PAB helical gear speed reducer is with lower backlash and high precision than other similar models,it is with long service time.FHT helical gear precision gearbox can be dimension customized according to different types of motors.
|

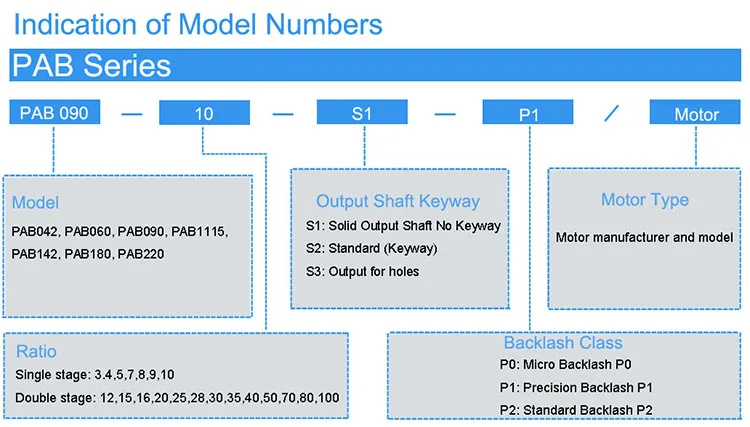

Model
|
PAB042, PAB060, PAB090, PAB115, PAB142, PAB180, PAB220
|
|
Ratio
|
1:3~1:100
|
|
Precision
|
P2: L1 ≤ 7arcmin ; L2 ≤ 9arcmin
P1: L1 ≤ 3arcmin ; L2 ≤ 5arcmin
P0: L1 ≤ 1arcmin ; L2 ≤ 3arcmin
|
|
Torque
|
10~2160Nm
|
|
Using Life
|
21000h
|
|
Efficiency
|
94%~97%
|
*High torque and high dynamic.
*Shorten the positioning time of starting and stopping
*The structure that planet carrier and output shaft is integrated guarantee the maximum torque stiffness and stability.
*High efficiency of 95%
*Life time lubrication.
*High efficiency of 95%
*Life time lubrication.

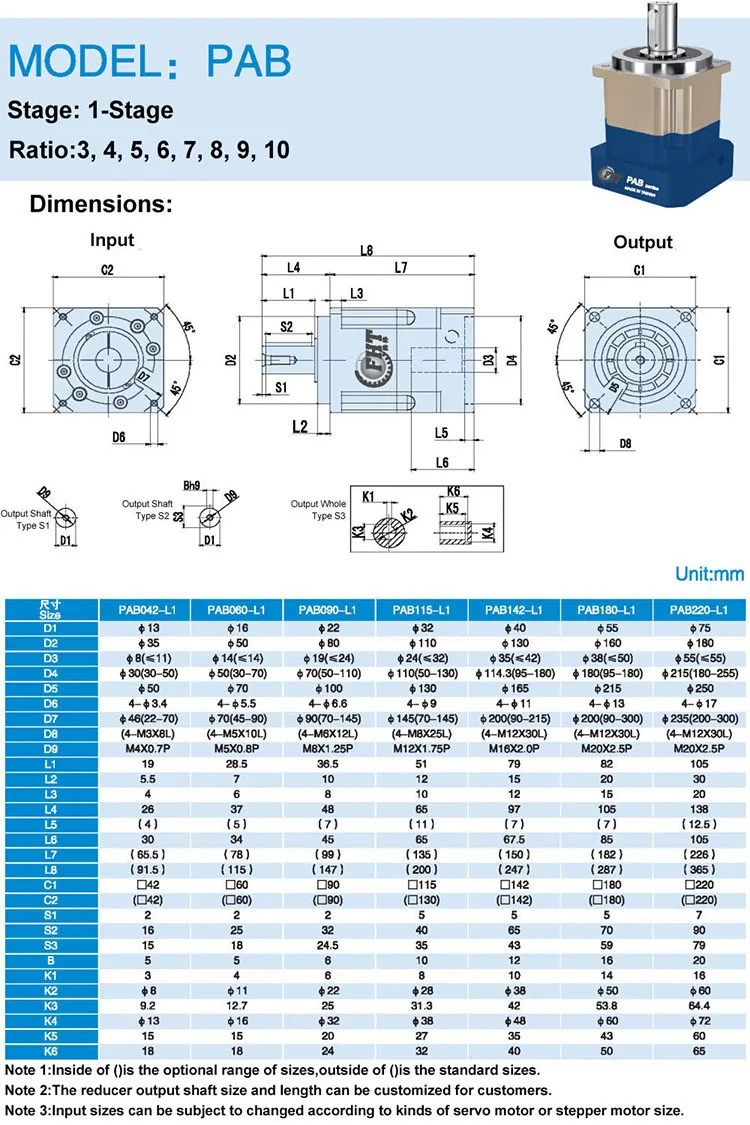

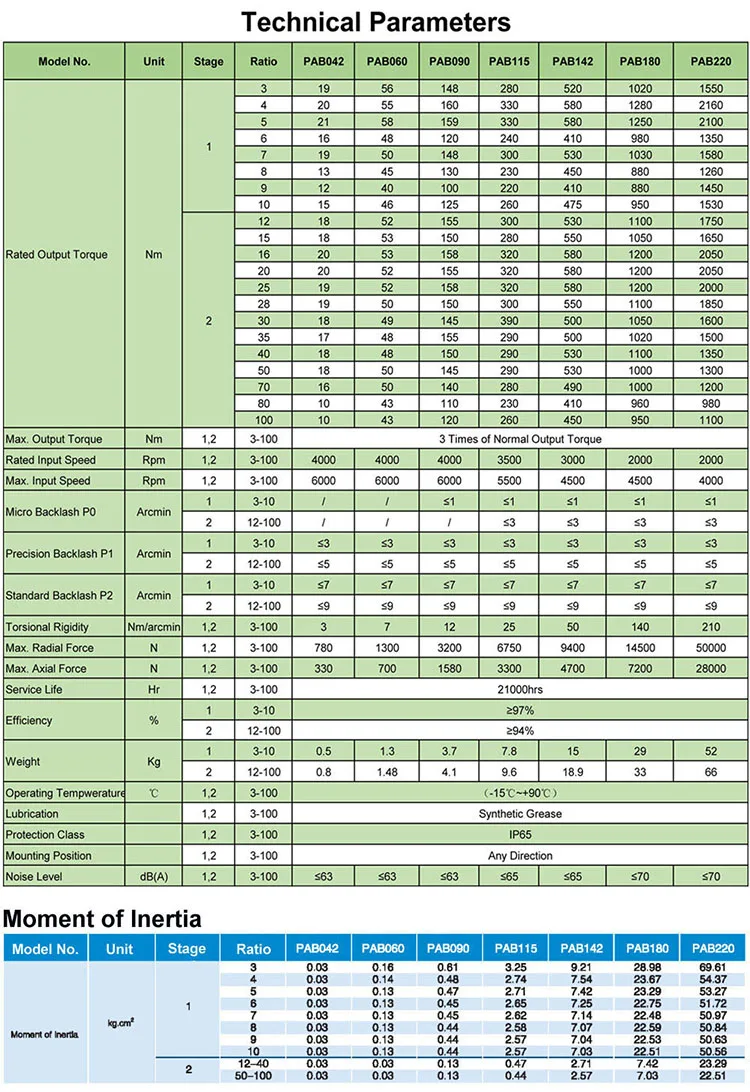

Technical Parameters

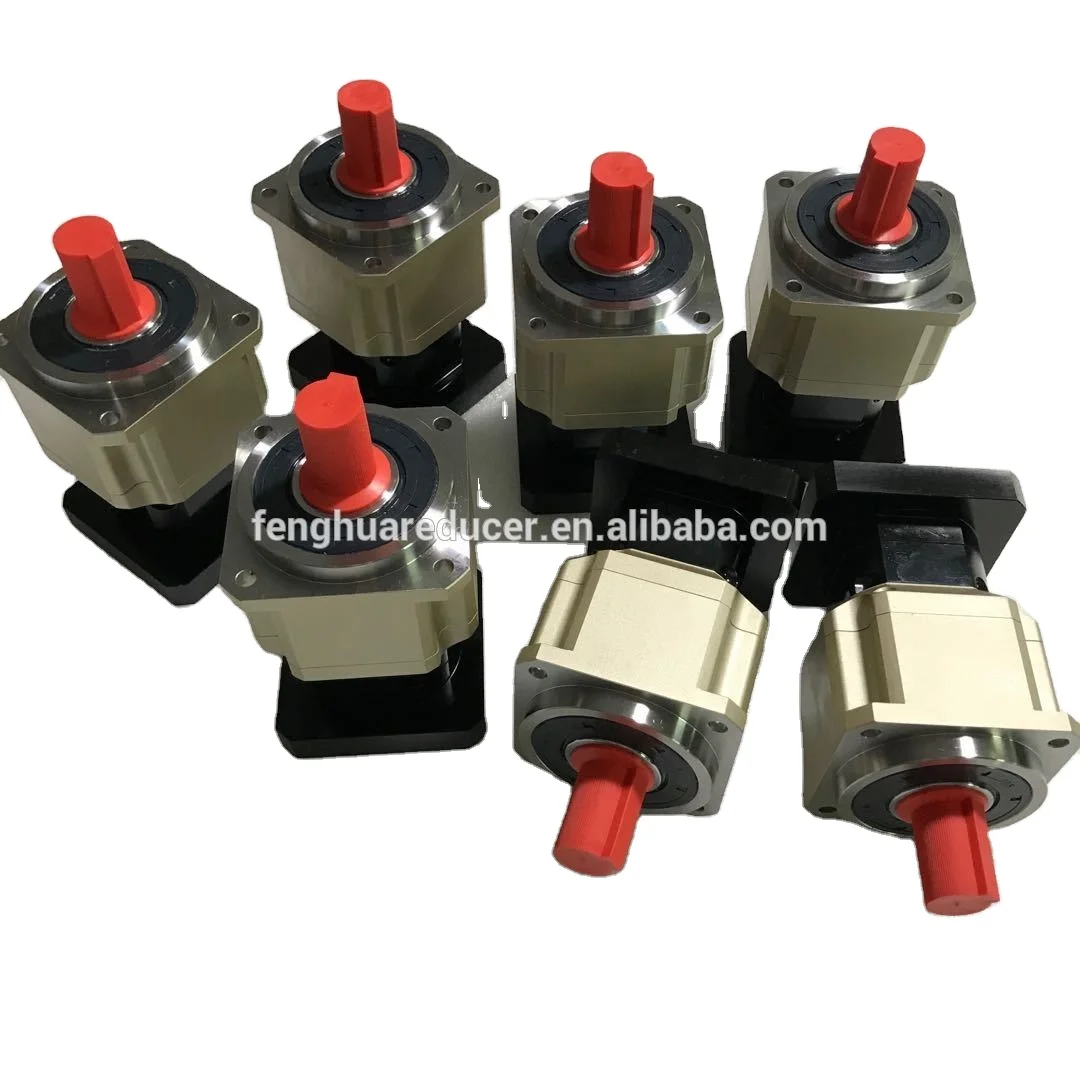

Detailed Images
Related Products

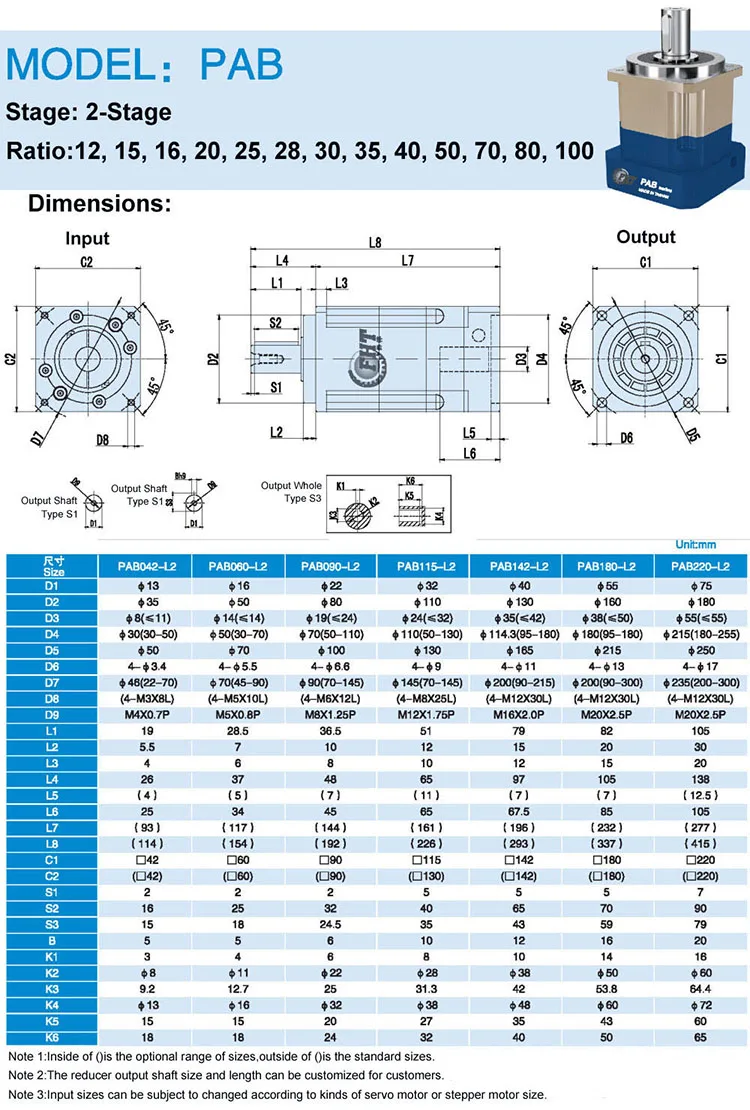

Size Information
Why Choose Us
(1) Factory directly supply, advantage price, short delivery time, professional technical service.
(2) The complete range of products can provide customers with complete transmission solutions,
which saves customers time and effort in purchasing
(3) Can match any brands of servo motors, stepper motors and brushless DC motors, so it can replace
all brands of relevant reducers on the market.
(4) OEM and product customized service is available, meet your customized requirements.
(2) The complete range of products can provide customers with complete transmission solutions,
which saves customers time and effort in purchasing
(3) Can match any brands of servo motors, stepper motors and brushless DC motors, so it can replace
all brands of relevant reducers on the market.
(4) OEM and product customized service is available, meet your customized requirements.

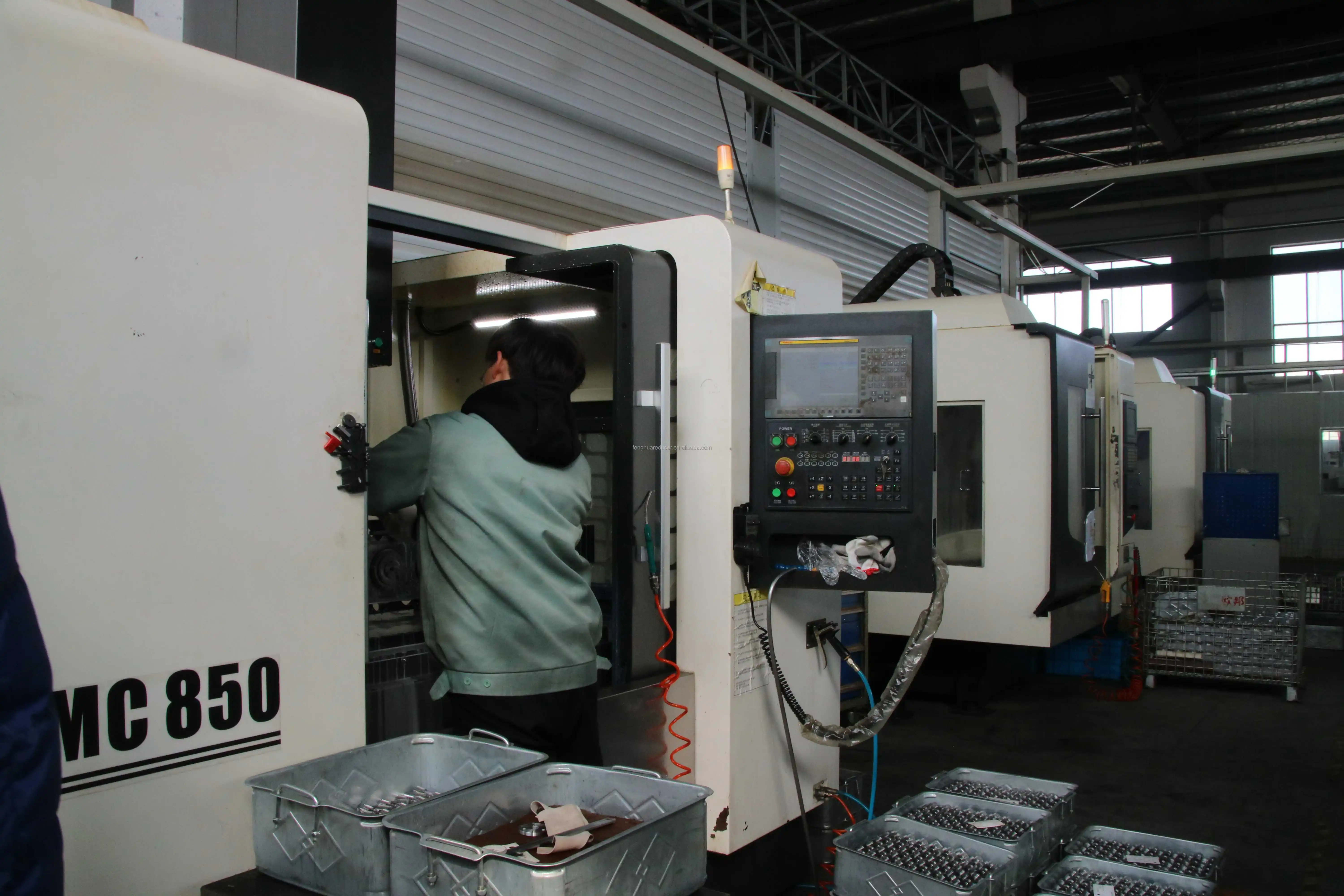

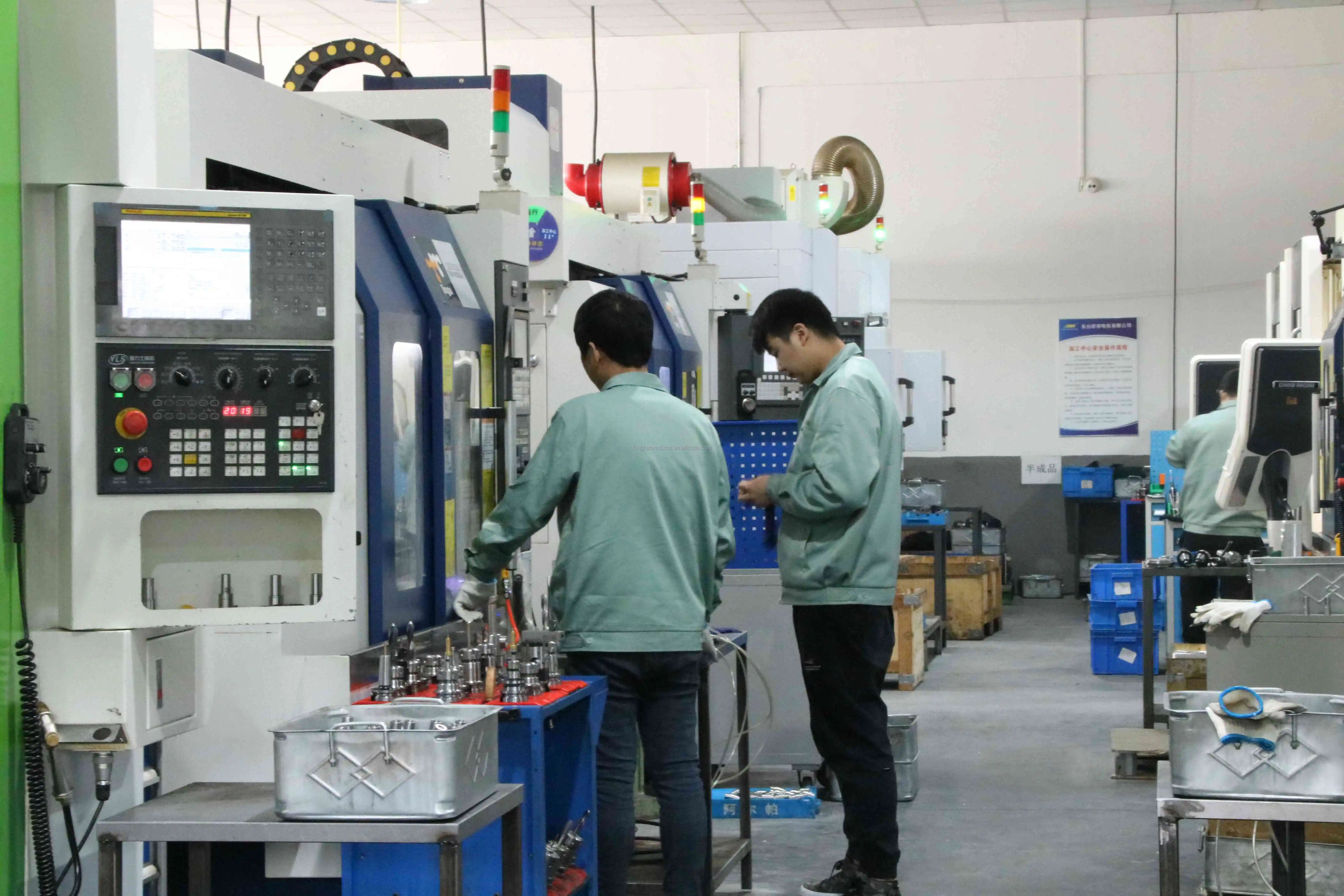

Company Profile
