Descrição
- Model Number: SR4
- Type: Hand Tool Parts
- Origin: Mainland China
- Warranty: 12 months, 12 months
- Place of Origin: Guangdong, China
- Brand Name: MOONS
- Product name: MOONS hybrid stepp motor drive SR4
- Voltage Range: 24-48VDC
- Current range: 1.0-4.5A
- Under Voltage Protection: 20VDC
- Phase: 2 Phase
- Protection: Over voltage/under voltage/over temp/ over current/open winding

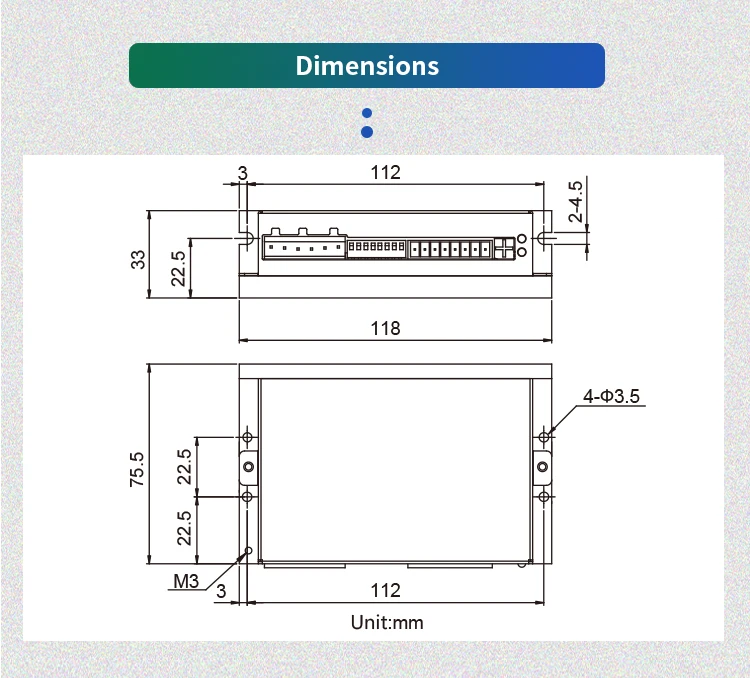

- Dimensions: 118mm*75.5mm*33mm
- Weight: 0.31kg
- Certification: CE RoHS

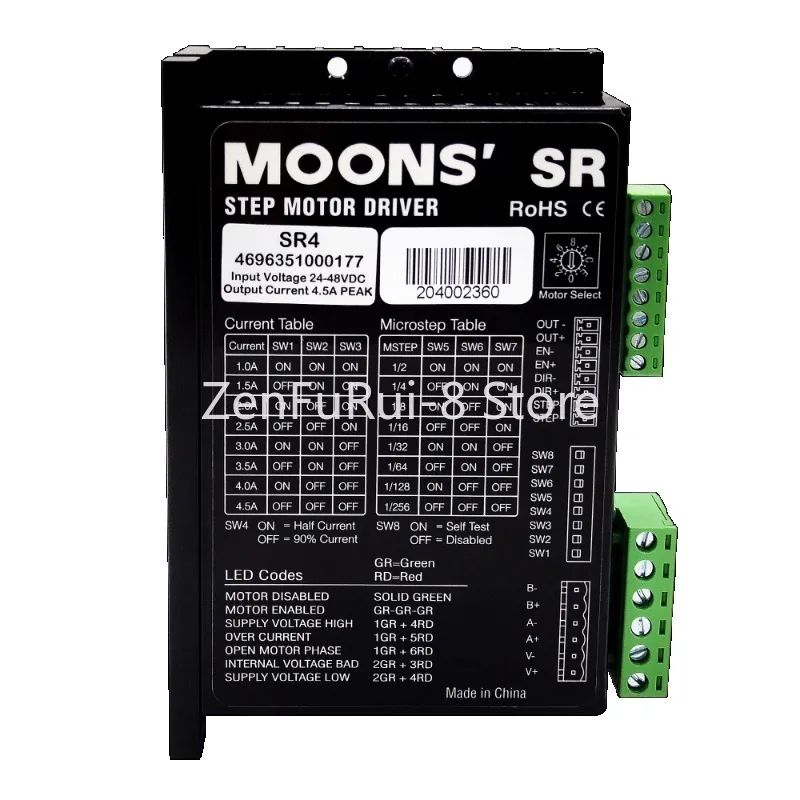

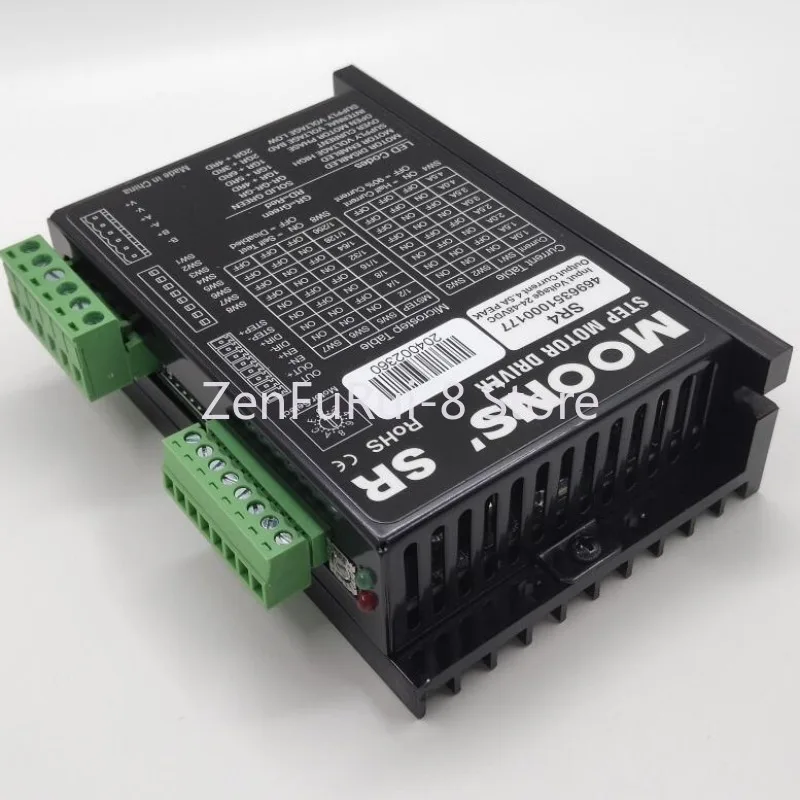

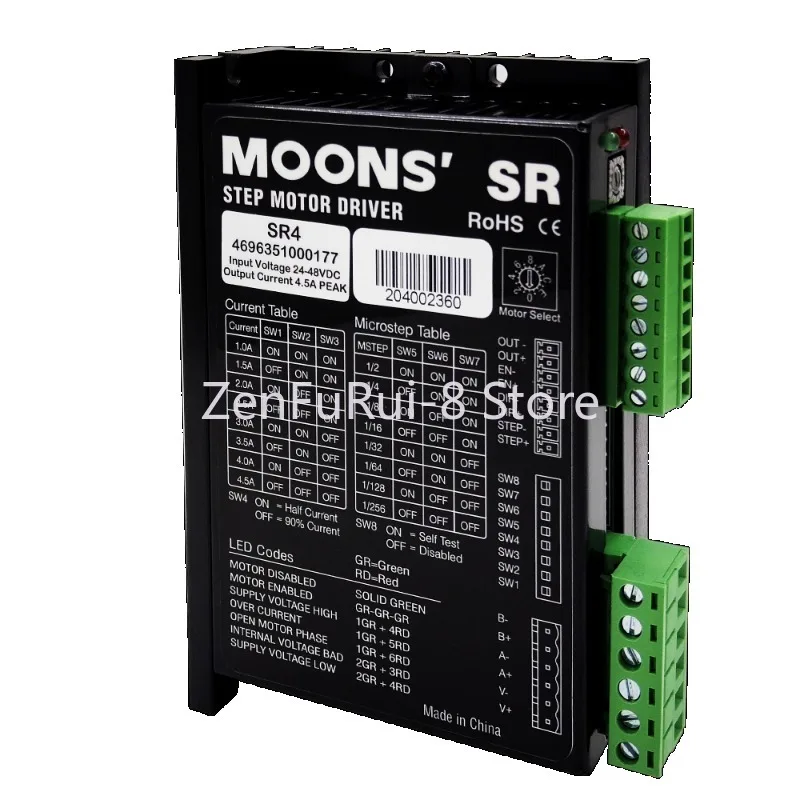

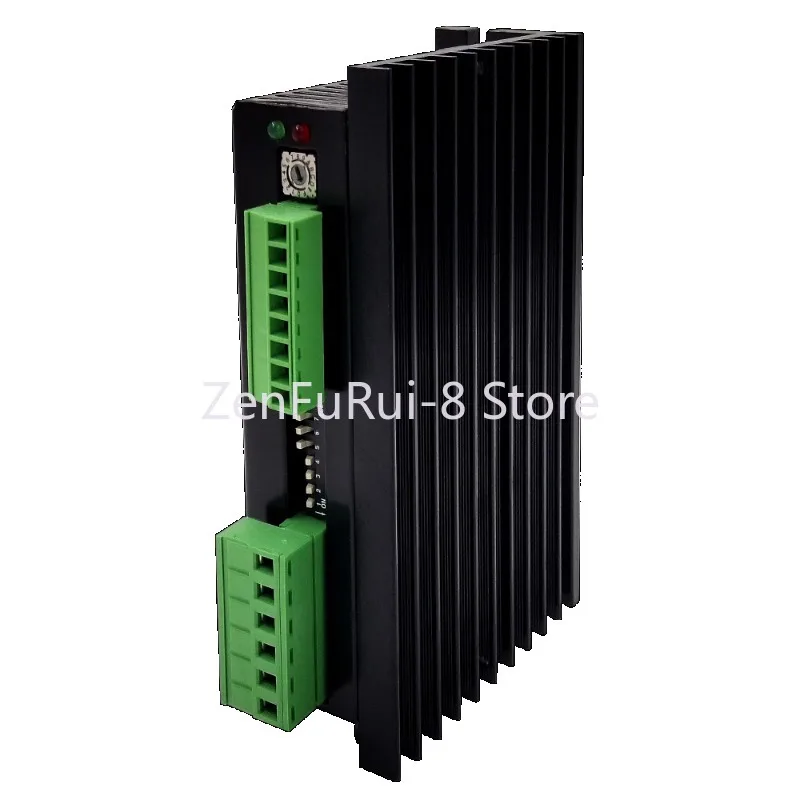

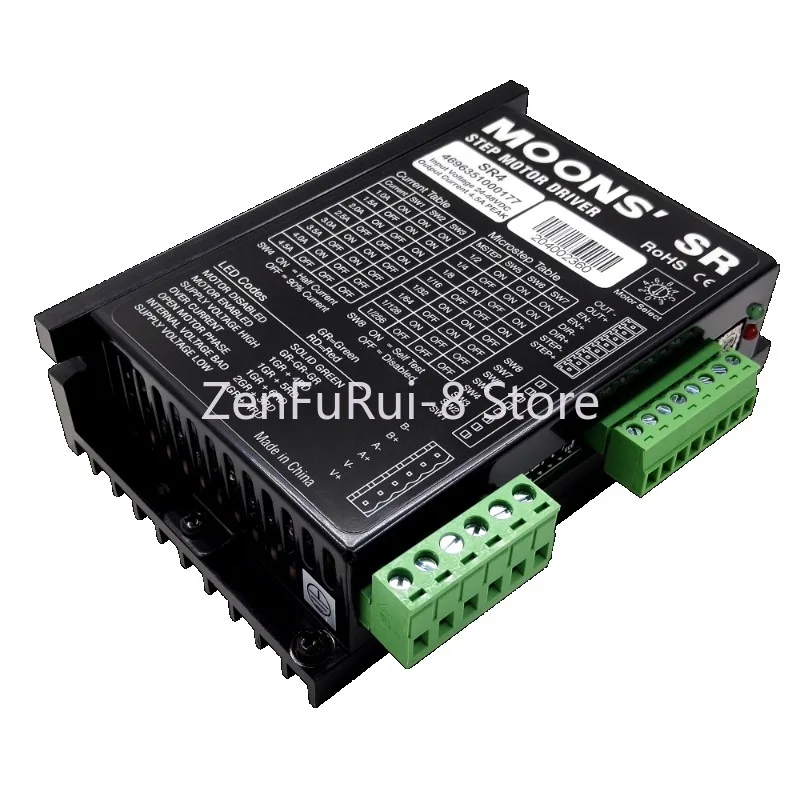

MOONS SR4 2-phase DC input stepper drive 4.5a micro step stepper motor drive for Nema 17 23 hybrid motor stepper
| Brand | MOONS |
| Model | SR4 |
| Driver Size | 118mm*75.5mm*33mm |
| Certification | CE RoHS |
Products detail

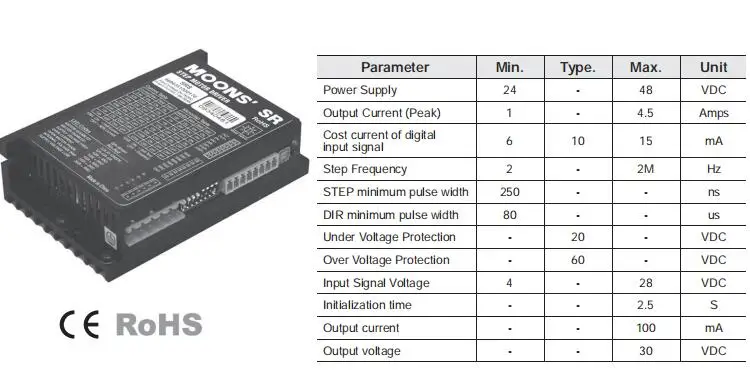

Drive Specifications
1. Input Voltage: 24-48VDC
2. Output Current: 4.5A(Peak)

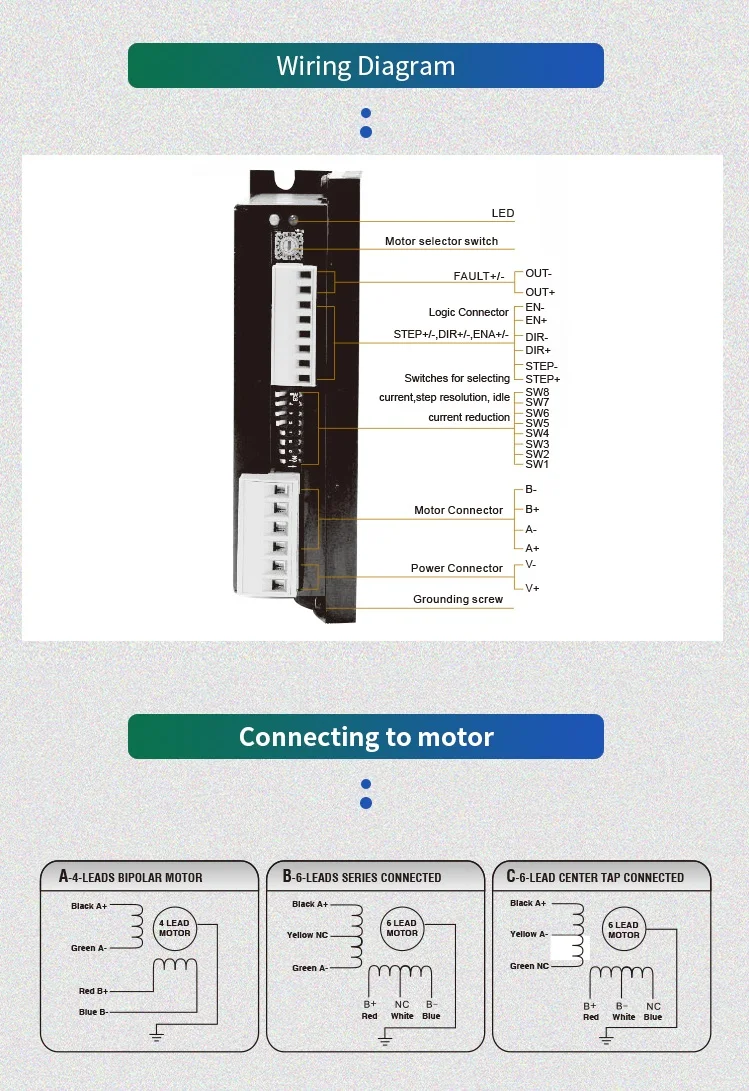

3. 3 Digital signal input, step/direction/enable, Optically isolated 5-24VDC
4. 1 Digital output: Fault Output
5. 8 different resolutions selectable via switches SW5-SW7(step/rev):400, 800, 1600, 3200, 6400, 12800, 25600, 51200
6. 8 different current levels selectable via switches SW1-SW3:1.0A, 1.5A, 2.0A, 2.5A, 3.0A, 3.5A, 4.0A, 4.5A
8. Rotary switch selects motor and load intertia for optimized current control
9. Idel Curent Reduction:50% or 90%, selectable via Dip switch SW4
10. Self Test, selectable via Dip switch SW8

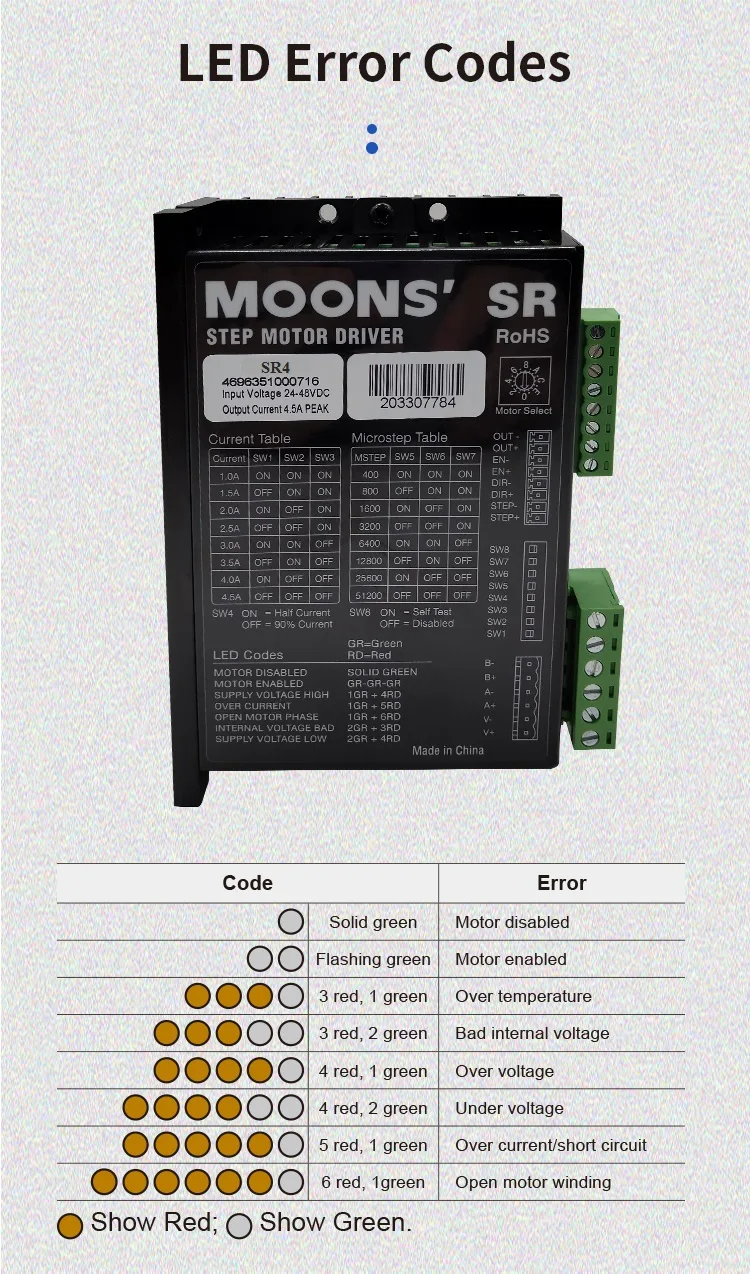

11. Protection: over voltage,under voltage,over current,open motor winding
12.Weight:0.31kg
Production Detail
