Descrição
- Origin: Mainland China
- Condition: New
- Type: Slant Bed Lathe
- Year: 2023
- Max. Length of Workpiece (mm): 1000
- Max. Spindle Speed (r.p.m): 4000 r.p.m
- Machining Capacity: Heavy Duty
- Spindle Bore(mm): 66
- Width of bed (mm): 400 mm
- Spindle Motor Power(kW): 7.5
- No. of Spindles: 2
- Number of Axes: 2
- Travel (X Axis)(mm): 320 mm
- Travel (Z Axis)(mm): 1050 mm
- Positioning Accuracy (mm): ±0.01
- Repeatability (X/Y/Z) (mm): ±0.003
- Place of Origin: Shandong, China
- Dimension(L*W*H): 3200*1900*1900
- Brand Name: YZ CNC
- Model Number: TCK 550
- Voltage: 220V/380V/415V
- CNC Control System: GSK
- Tool Post Stations: 12, 8
- Weight (KG): 4000
- Warranty: 1 Year
- Key Selling Points: High-accuracy
- Showroom Location: United States, Italy, France, Germany, Viet Nam, Philippines, Thailand
- Marketing Type: New Product 2023
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Gear, PLC
- Max.swing dia.over slide: 360mm
- Max.cutting dia. Of disc type parts: 550mm
- Max.cutting dia. Of axle type parts: 360mm
- X/Z Fast feed: 12000mm/min
- End face driven tool: ER25/3000RPM
- Side face driven tool: ER25/3000RPM
- Chuck: Hydraulic hollow chuck

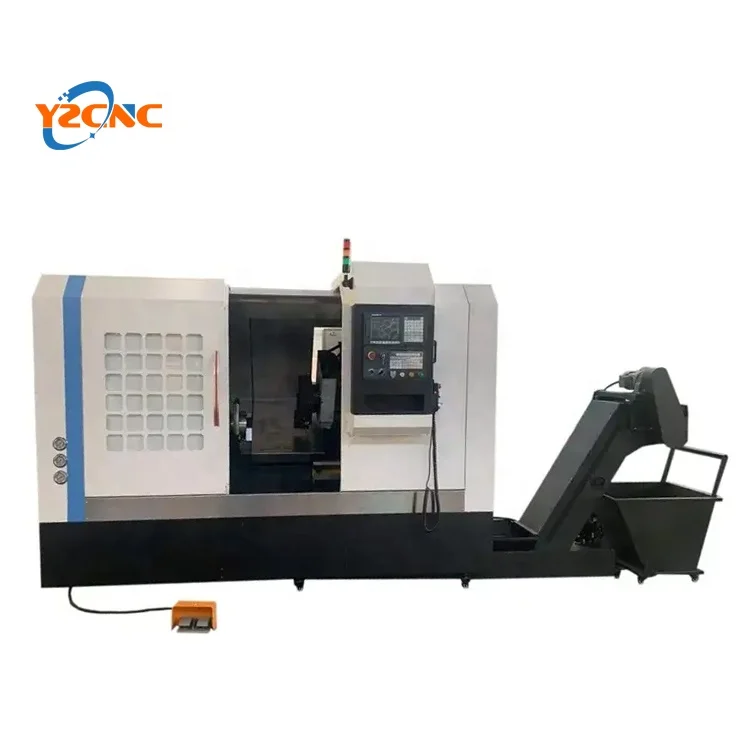

Slant Bed CNC Lathe Automatically Metal working CNC Machine Tool TCK550
Dear friends, the displayed shipping cost is not accurate, please communicate with our customer service staff about the specific shipping details and cost, we will provide you with the most suitable shipping method and the most favorable price according to your needs. If you need, our customer service personnel can also provide you with customs import procedures related to the consultation.Thanks.

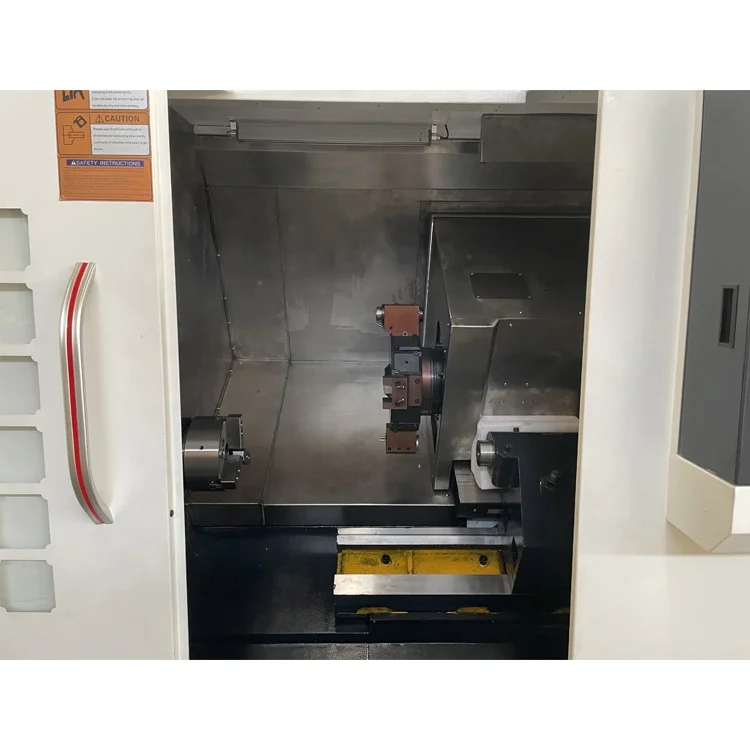

Details Display
Standard configuration :

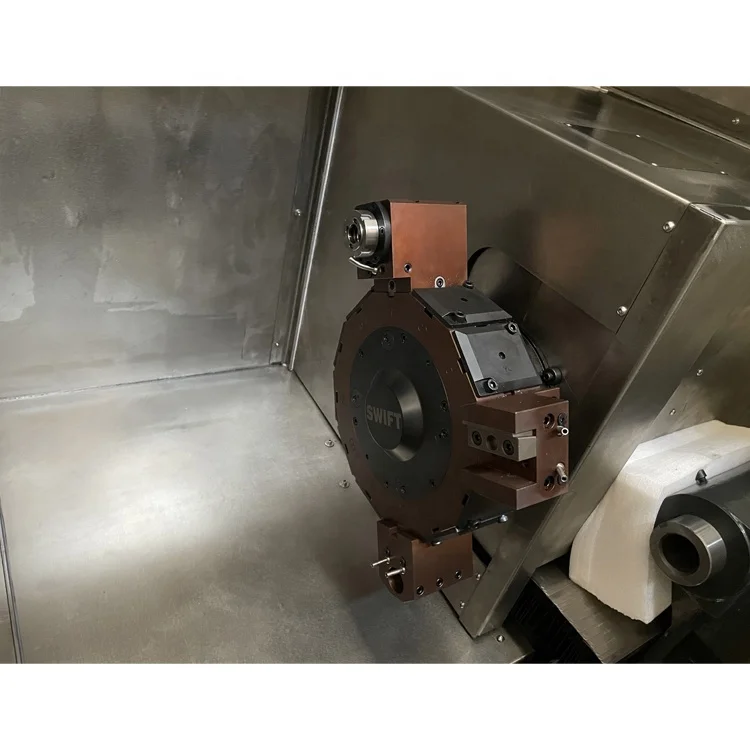

1.GSK980 controller 2.8/12 stations electric tool post 3.Linear guideways 4.hydraulic tail stock 5.8"/10'' hydraulic chuck 6.Light system, auto lubrication system, coolant system 7.Standard machine instruction manual
1.GSK980 controller 2.8/12 stations electric tool post 3.Linear guideways 4.hydraulic tail stock 5.8"/10'' hydraulic chuck 6.Light system, auto lubrication system, coolant system 7.Standard machine instruction manual
Optional accessories:
1.Fanuc0i-Tf SIEMENS, SYNTEC controller
2.Hydraulic turret
3.Power turret(include servo spindle motors and 2 power head)
4.Chip conveyor
2.Hydraulic turret
3.Power turret(include servo spindle motors and 2 power head)
4.Chip conveyor
Specifications
Item | Unit | TCK550 |
Max.swing dia.over bed | mm | 560 |
Max.swing dia.over slide | mm | 360 |
Max.cutting dia. Of disc type parts | mm | 550 |
Max.cutting dia. Of axle type parts | mm | 360 |
Xaxis travel | mm | 320 |
Z axis travel | mm | 1050 |
Max.processing lengh | mm | 1000 |
X Z Fast feed | mm/min | 12000 |
Spindle bore | mm | 66 |

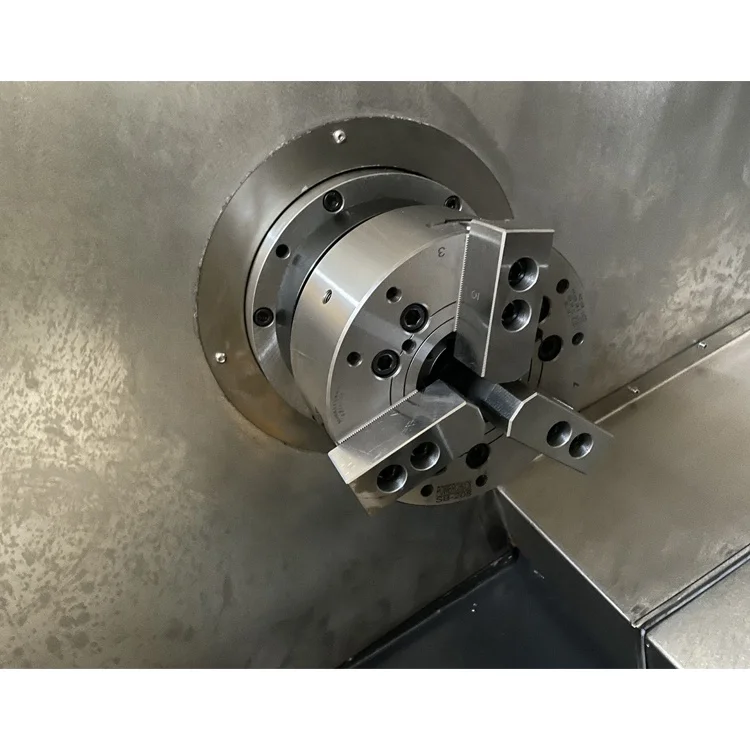

Chuck | - | 8''/10'' Hydraulic chuck |
Max.spindle speed | mm/min | 4000 |

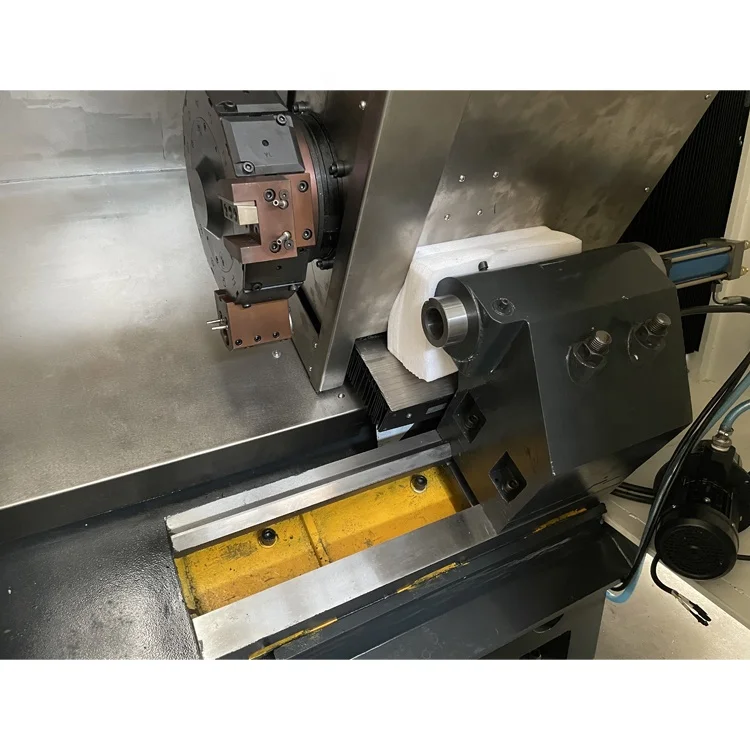

Tailstock | - | Hydraulic |
Tailstock Sleeve Diameter | mm | 75 |
Tailstock Taper | - | MT5 |
Positioning Accuracy | mm | 0.01 |
Repeat Positioning Accuracy | mm | 0.003 |
Bed slope | ° | 45 |
Net Weight | kg | 4000 |
Machine Size | mm | 3200x1900x1900 |
Company Profile
Taian Yuzhuo Machinery Manufacturing Co.,Ltd. is a professional manufacturing enterprise en-gaged in the research.development,production,sale and service of manual lathe machine and CNC machine.we have excellent design team,sales team and after-sales service team,and strictly control product quality and performance.Ourmain products are Horizontal lathe machine,Milling Machine,Drilling Machine,Vertical CNC lathe machine,Horizontal CNC Lathe Machine,Slant Bed CNC Lathe Machine,Wheel Repait CNC lathe Machine,Pipe Threading CNC Lathe Machine,CNC Machining center,All the above products have passed CE,SGS certificated, over 18 years experience supplying manual lathe machine and CNC machine tools to all over the world, especially to Southeast Asia,UK, US, Europe and Middle East countries, Yuzhuo Machinery is renowned for its value, quality and service.
Professional production equipment creates high-quality products
Main Products
Honorary Certificate
Customers

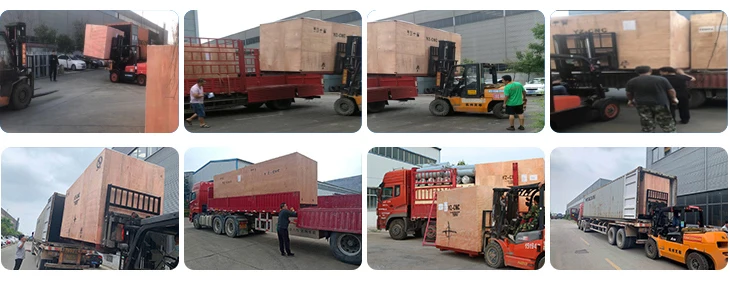

Packing & Delivery
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Taian City ,Shandong Province,271000 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Taian City ,Shandong Province,271000 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
