Product Description
Technical improvement
1. The machine adopts 220V/110V single-phase permanent magnet variable frequency brushless motor. There is no need to replace the carbon brush frequently, time-consuming and laborious, no carbon brush! Maintenance-free for life !

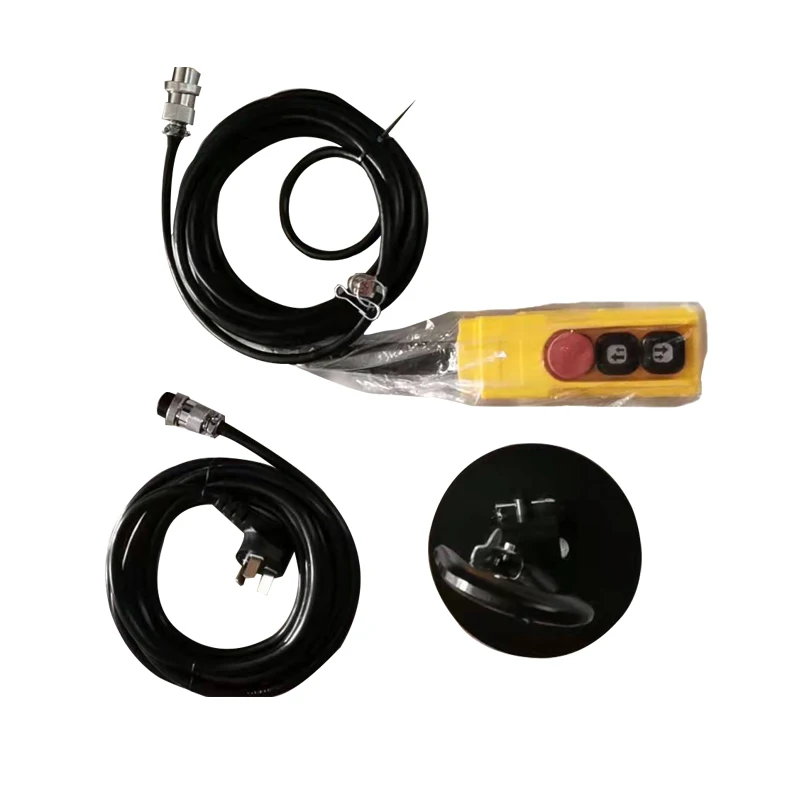

2. The manual switches are all 4V low-voltage output, which is safer, more reliable, and anti-electric shock than the 220V
2. The manual switches are all 4V low-voltage output, which is safer, more reliable, and anti-electric shock than the 220V
voltage output of traditional manual switches.
3. All models are two-speed lifting, and the speed can be adjusted at will according to the requirements of the use scene.
4. All motors have a soft start function to avoid the vibration of the suspended items when lifting.
5. The machines all use mechanical + electronic double brakes. Double insurance, more reliable.
6. The machine has a built-in temperature sensor for overheating protection. When the motor temperature is higher than the rated temperature, it will automatically stop to dissipate heat, and continue to work after the temperature recovers.
7. The machine has built-in overload protection device. When the working load of the hoist is higher than the rated load, the hoist will not be able to lift.
8. The motor saves more than 30% energy than the traditional brushed motor.
3. All models are two-speed lifting, and the speed can be adjusted at will according to the requirements of the use scene.
4. All motors have a soft start function to avoid the vibration of the suspended items when lifting.
5. The machines all use mechanical + electronic double brakes. Double insurance, more reliable.
6. The machine has a built-in temperature sensor for overheating protection. When the motor temperature is higher than the rated temperature, it will automatically stop to dissipate heat, and continue to work after the temperature recovers.
7. The machine has built-in overload protection device. When the working load of the hoist is higher than the rated load, the hoist will not be able to lift.
8. The motor saves more than 30% energy than the traditional brushed motor.
Specification
|
Model
|
Lifting capacity kg
|
Power kw
|
Lifting speed m/min
|
Lifting height m
|
Wire rope mm*m
|
Control line m
|
GW kg
|
Size cm
|
||
|
Low
|
High
|
|||||||||
|
100DS
|
100
|
|
18
|
32
|
|
|
6
|
|
|
|
|
160DS
|
160
|
15
|
25
|
|||||||
|
190DS
|
190
|
13
|
22
|
|||||||
|
250DS
|
250
|
10
|
18
|
|||||||
|
300DS
|
300
|
8
|
15
|
|||||||
|
280DS
|
280
|
|
15
|
25
|
49
|
5x50
|
|
55x33x31
|
||
|
360DS
|
360
|
12
|
20
|
|||||||
|
500DS
|
500
|
9
|
16
|
29
|
6x30
|
|||||
Packing & Delivery
Carton box with foam
Company Profile

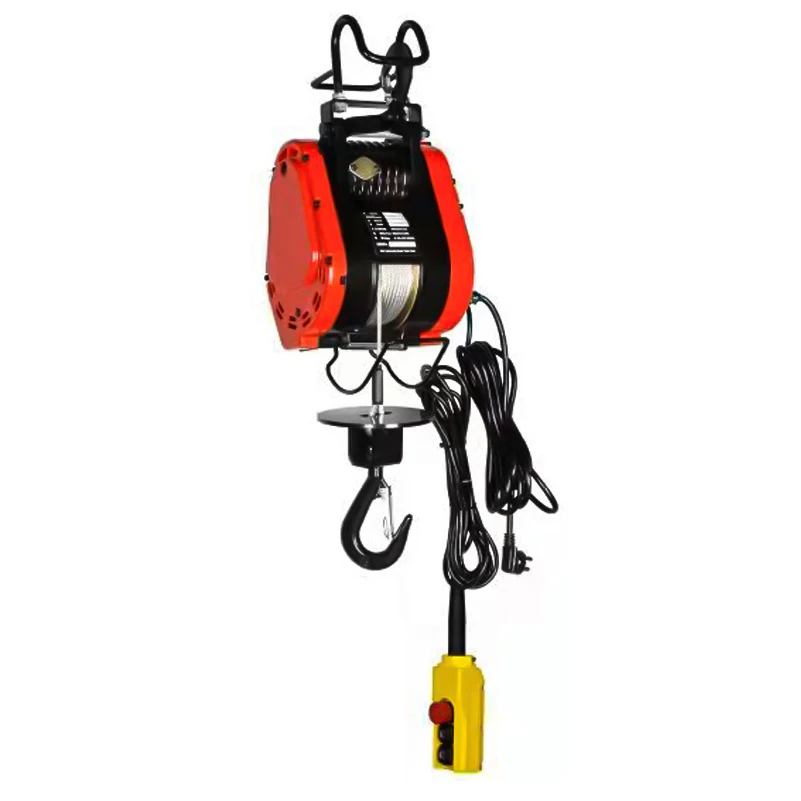

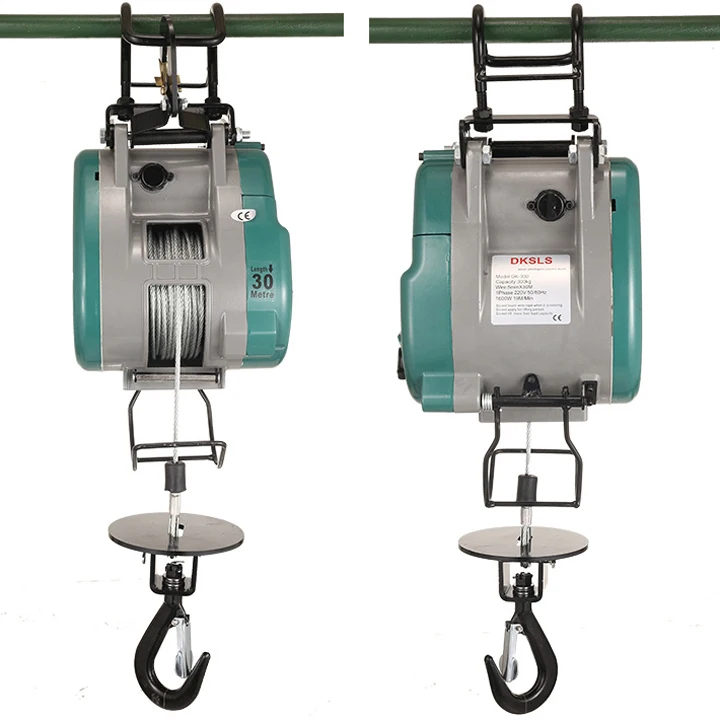

NEW 110v to 240v Brushless Motor Cable Wire Rope Electric Builders Hoist
