Descrição
- Químico Hign-em causa: Nenhum
- Nome da marca: TEHIGHAUTO
- Número do modelo: SXG80*126
- Largura ou Diâmetro da Guia: 15mm
- Origem: CN (Origem)
- Certificado: CE
- Effective Stroke: 50mm-1200mm Optional
- Total length: Effective Stroke+190mm
- Ballscrew type: SFU1605/SFU1610/SFU2005/SFU2010
- Horizontal load: 90KG (Max)
- Vertical load: 45KG (Max)
- Module material: Industrial Aluminum Profile
- Module width: 80*126mm
- Repeat positioning accuracy: ±0.03mm
- Ballscrew accuracy: C7
- Guide Type: 2*HGH15CA/2*HGR15
- product type 1: Aluminum Profile Table
- product type 2: CNC Workbench
- product type 3: XYZ Axis Table
- product type 4: CNC Table
- product type 6: Sliding Table Kit
- product type 7: Motor Linear Kit
- product type 8: Linear Guide Rail
- product type 9: Motor Linear Rail Kit
- product type 10: xyz stage
- product type 11: linear stage
1* Single track sliding table
1* 8mm to 8mm Coupling for Nema 23 Motor

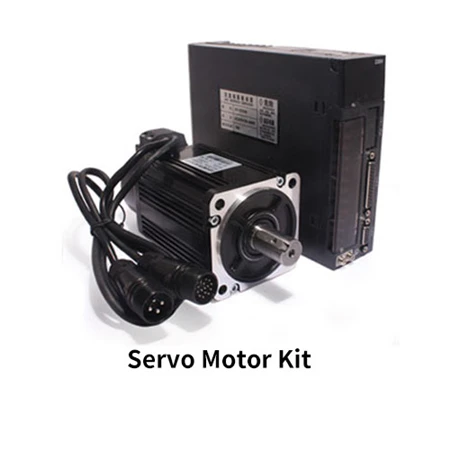

(If you need SFU1610/2005/2010 ball screw,60/80mm servo bracket,dust cover,please contact us)

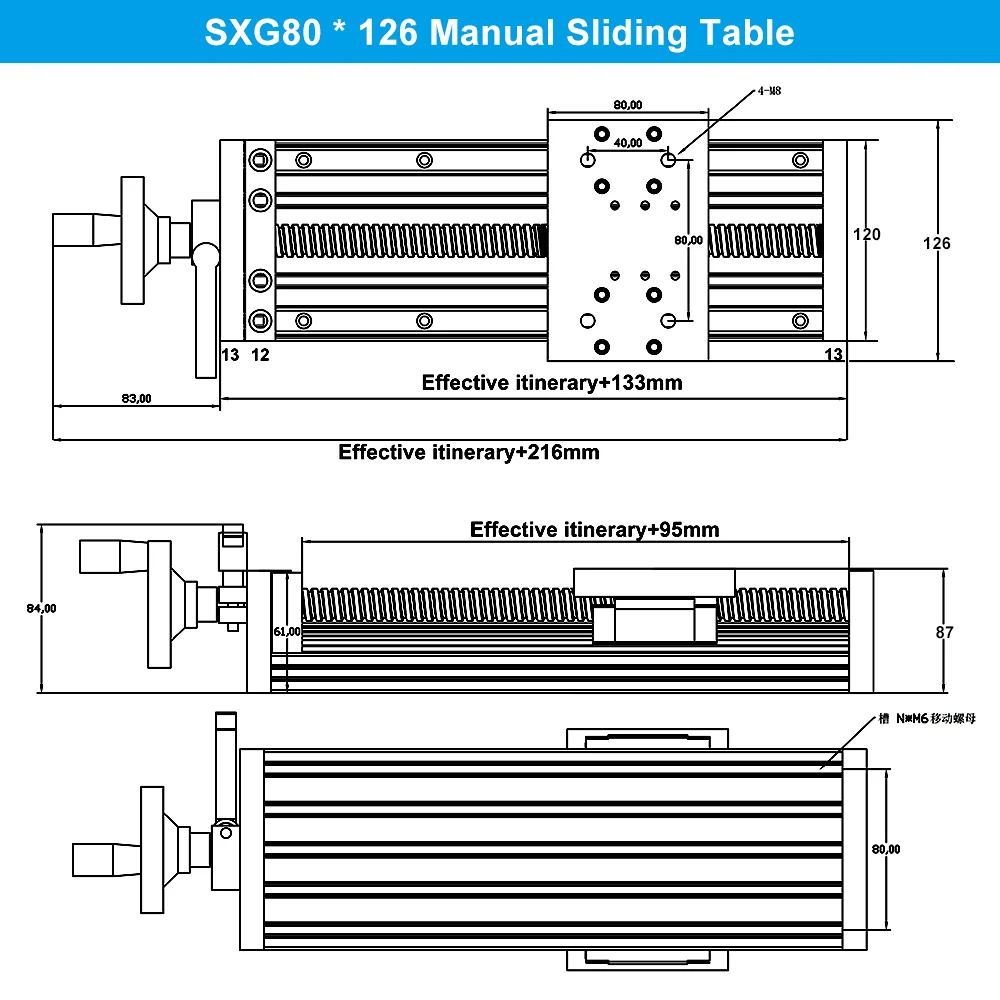

If you choose Manual Slide table:
1* Manual Slide table
If you choose 3Nm Motor kit:
1* Single rail sliding table

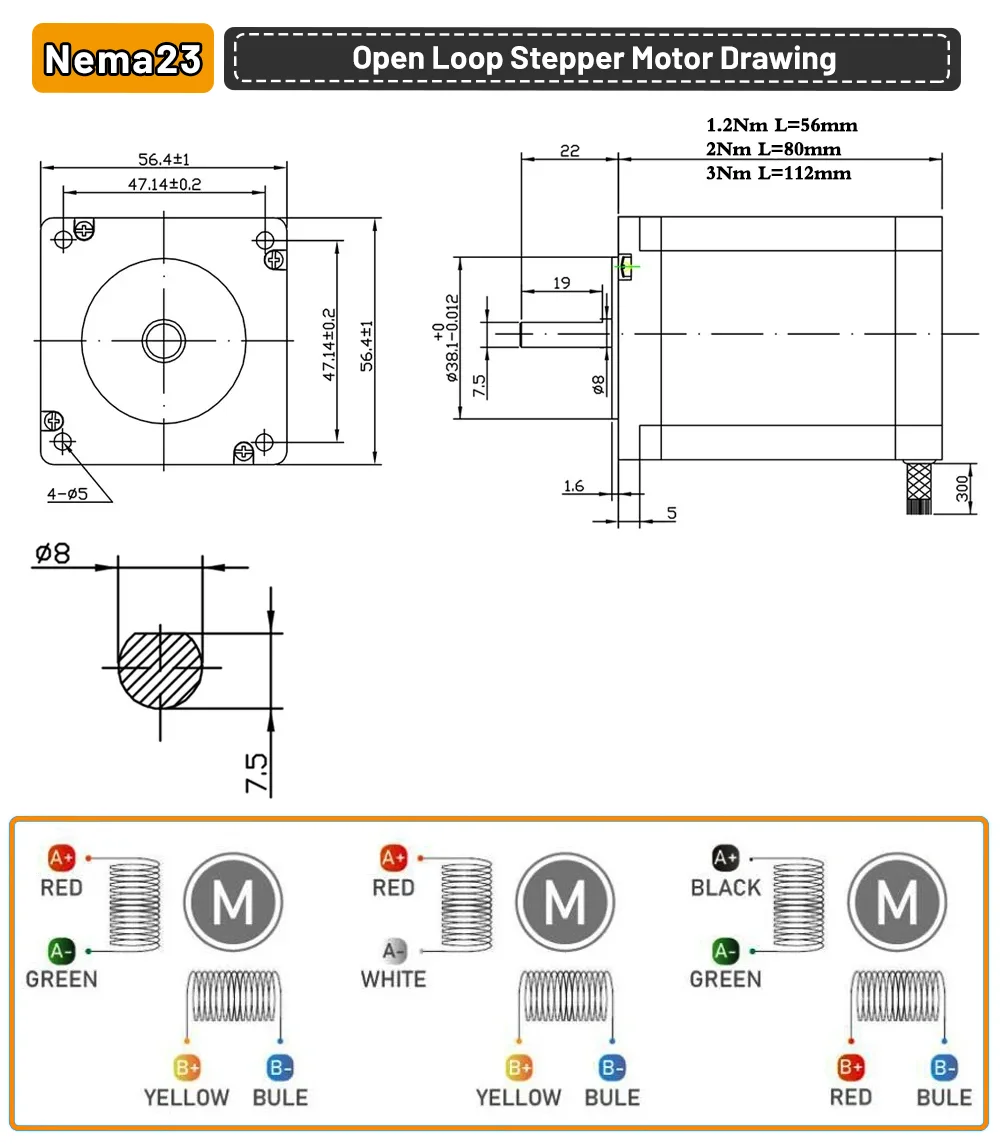

1* Nema 23 57mm Open-loop Stepper Motor
1* TB6600 Drive
1* 8mm to 8mm Coupling

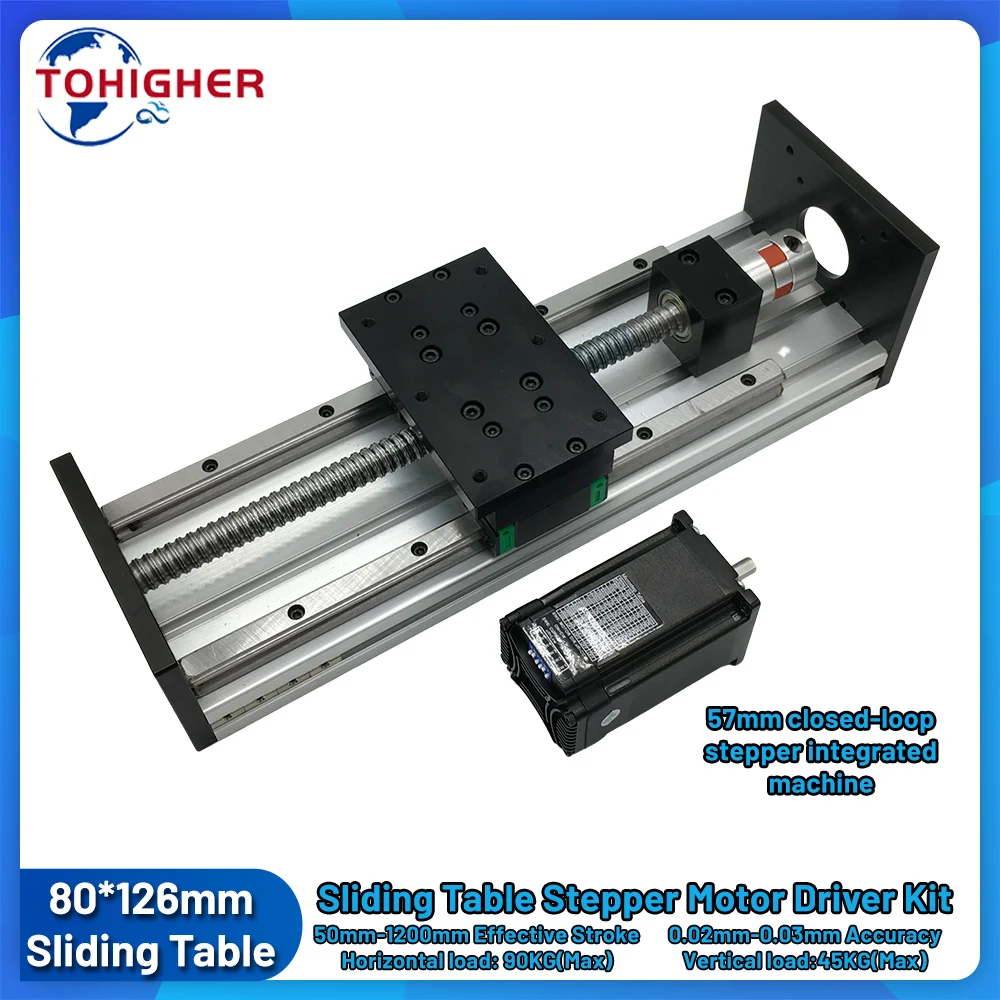

If you choose 3.2Nm All in one kit:
1* Single rail sliding table

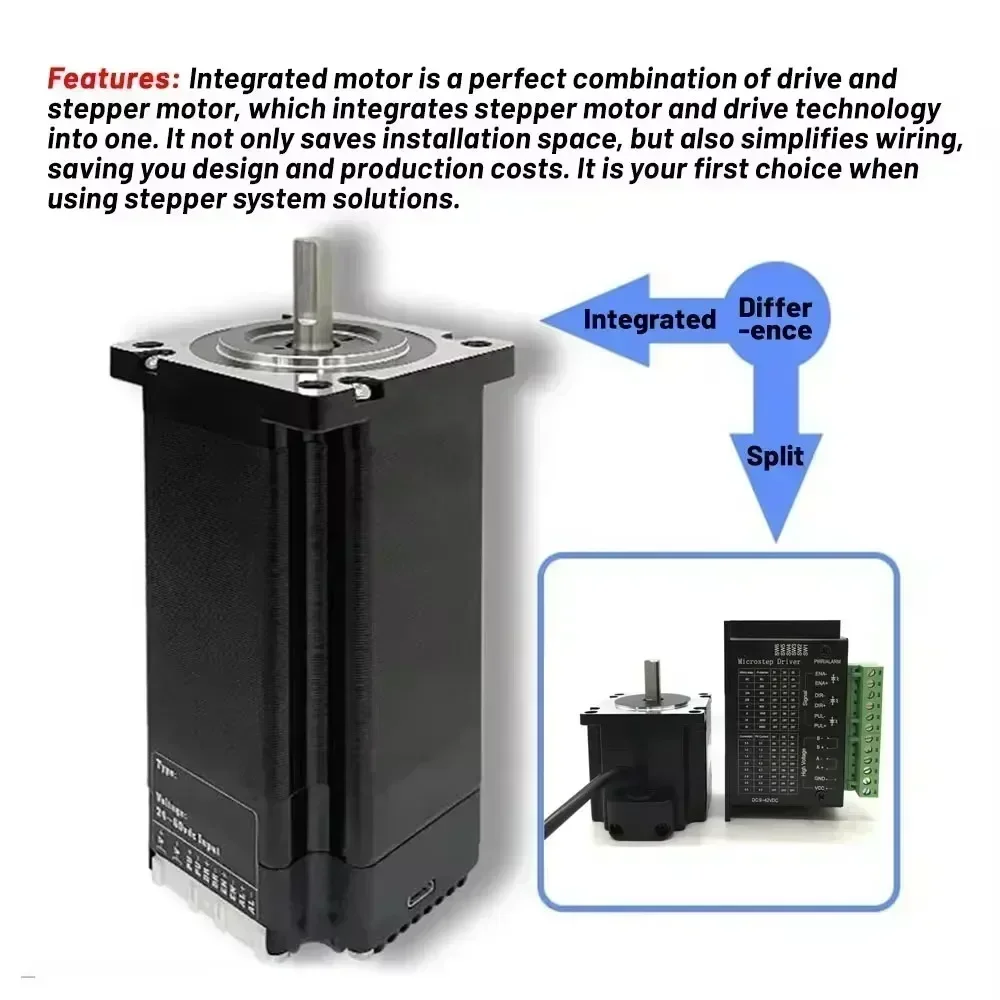

1* Nema 23 57mm Closed Loop Stepper Motor Drive All-in-one
1* 8mm to 8mm coupling

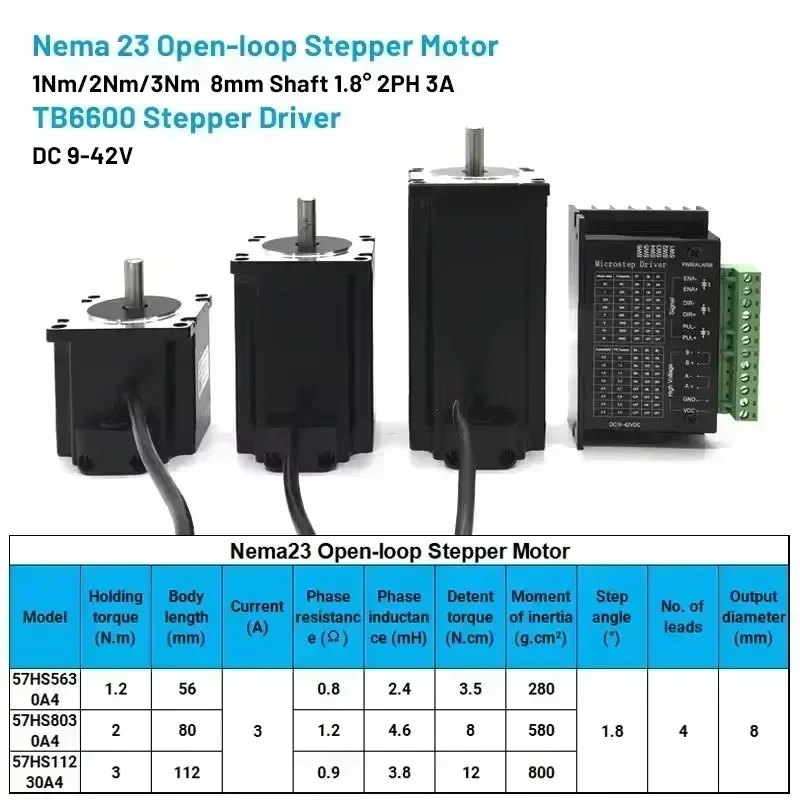

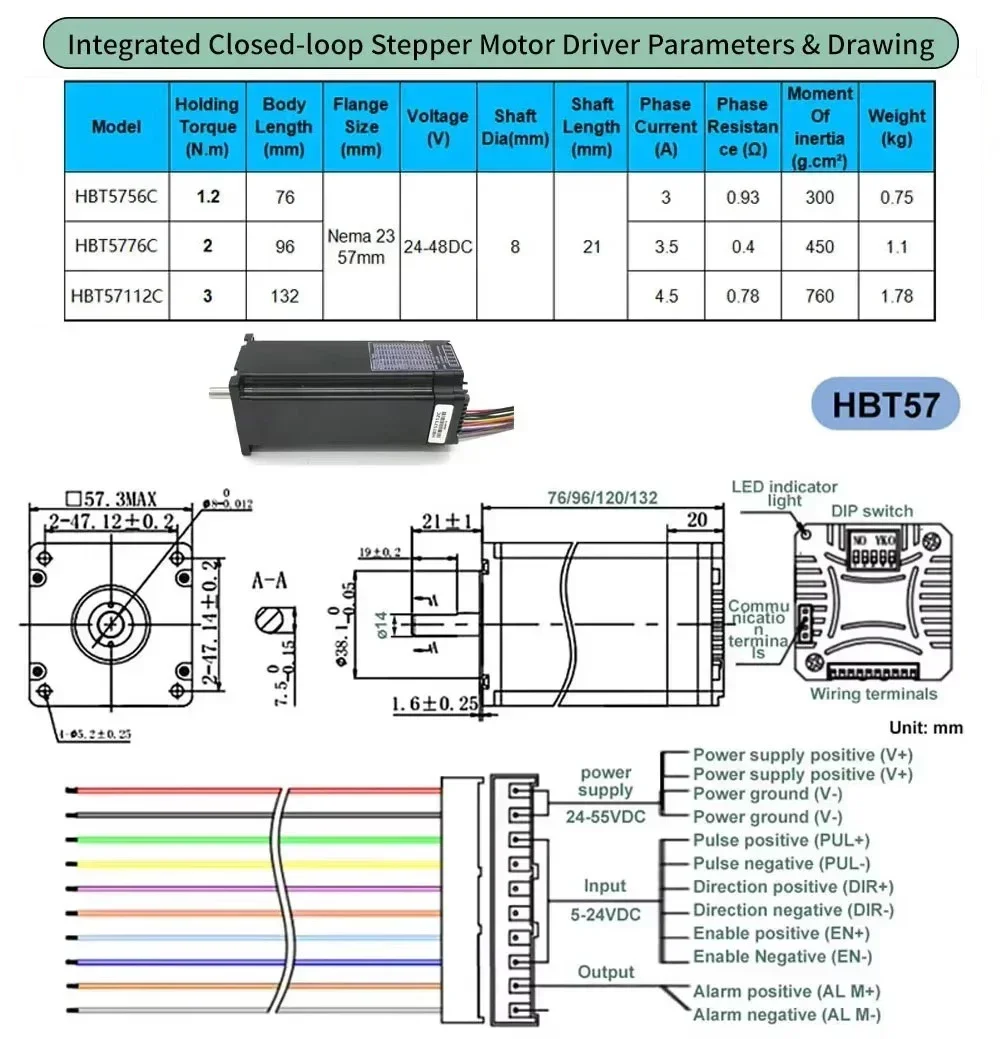

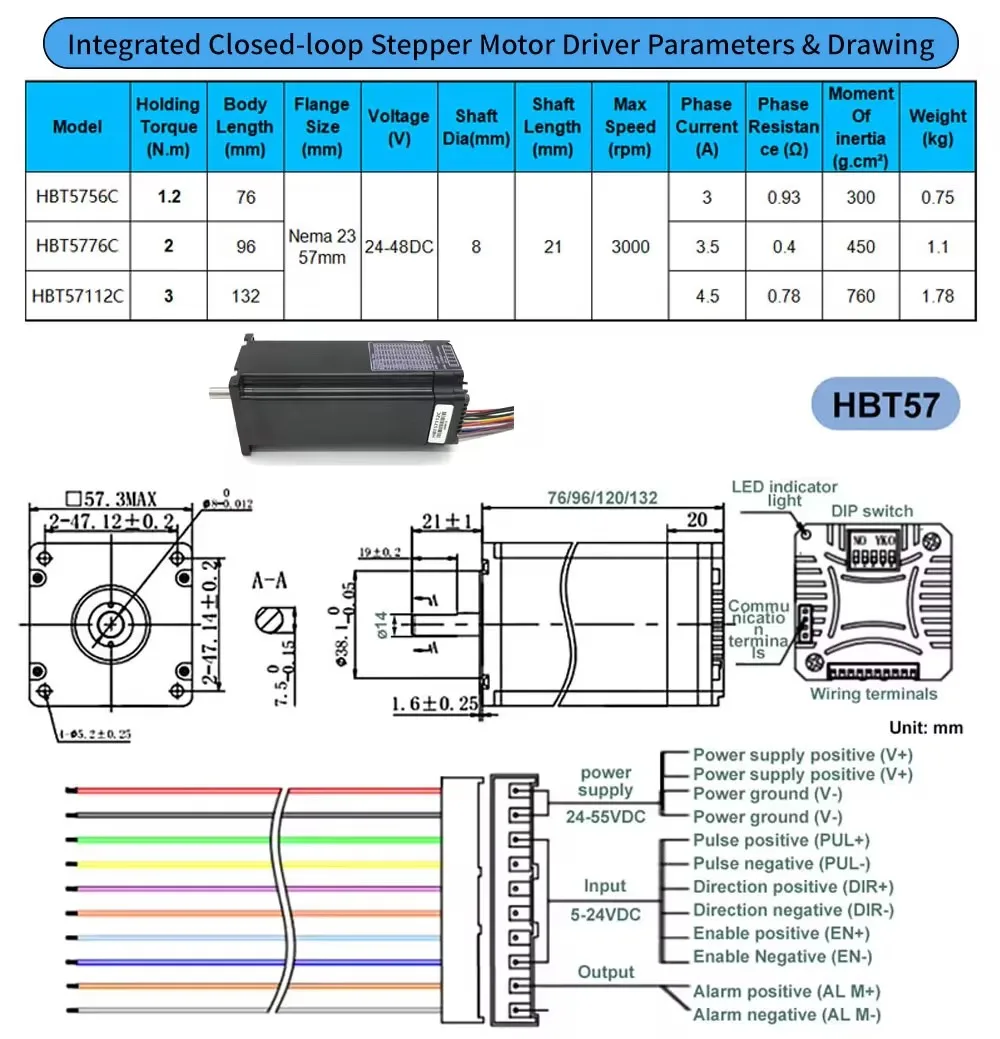

| Nema23 57mm Flange Stepper Motor and Closed-Loop Motor All-in-one | ||||||
| Model | Holding torque (N.m) |
Body length (mm) |
Current (A) |
Phase resistance (Ω) |
Moment of inertia (g.cm²) |
Output diameter (mm) |
| 57HS5630A4 | 1.2 | 56 | 3 | 0.8 | 280 | 8 |
| 57HS8030A4 | 2.0 | 80 | 3 | 1.2 | 580 | 8 |
| 57HS11230A4 | 3.0 | 112 | 3 | 1.6 | 800 | 8 |
| HBT5756C | 1.5 | 76 | 3 | 0.93 | 300 | 8 |
| HBT5776C | 2 | 96 | 3.5 | 0.4 | 450 | 8 |
| HBT57112C | 3.2 | 132 | 4.5 | 0.78 | 760 | 8 |

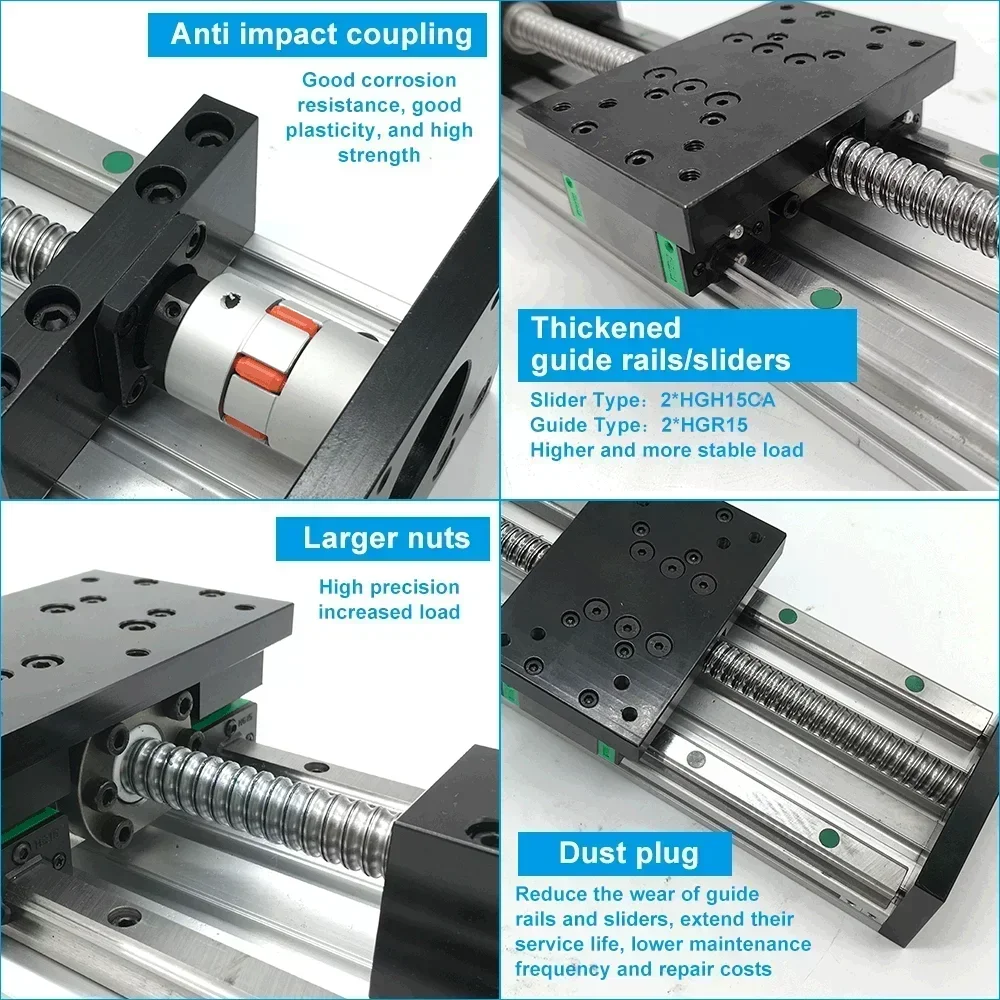

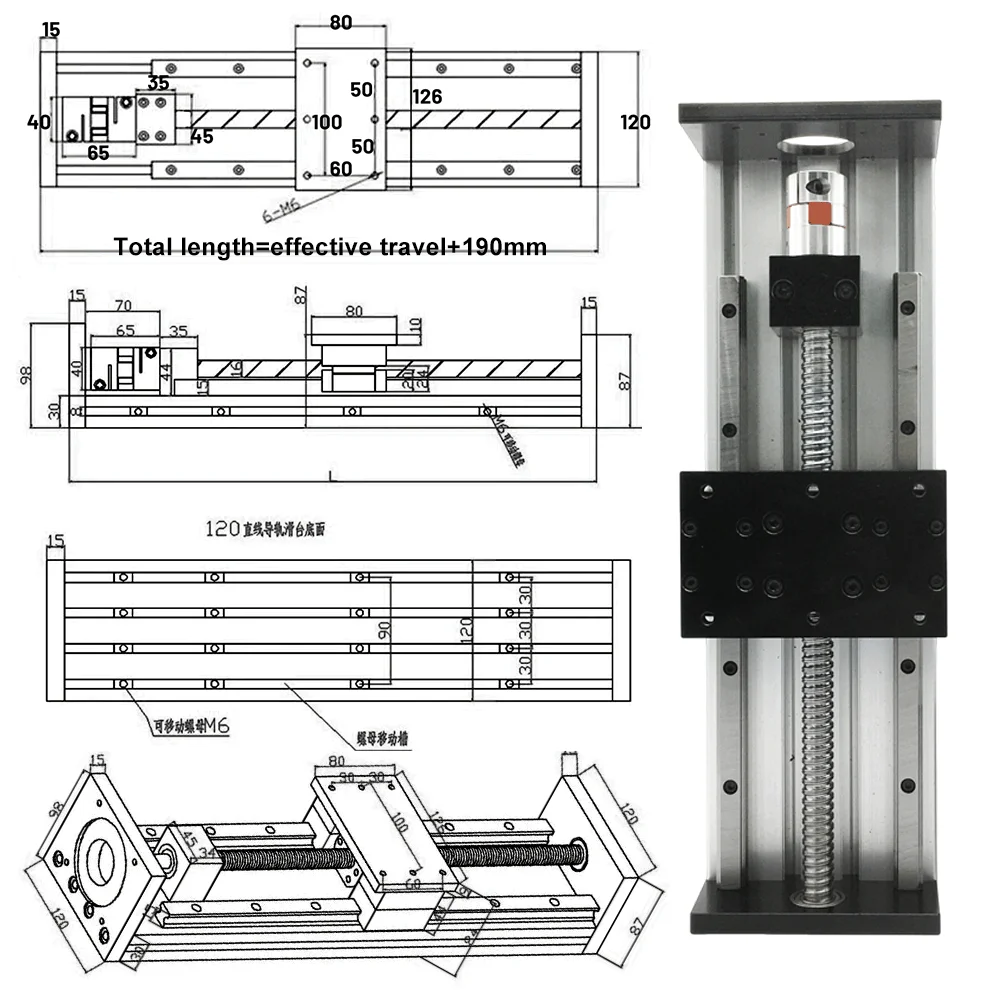

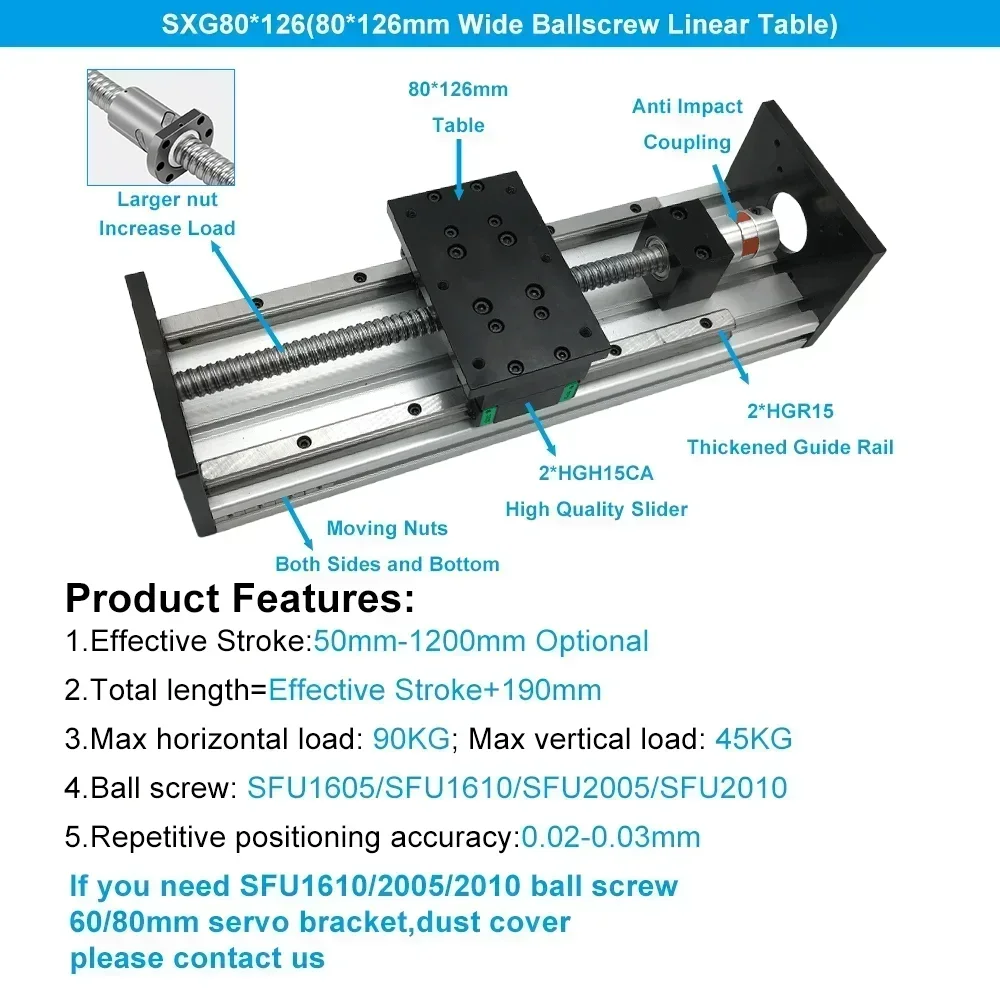

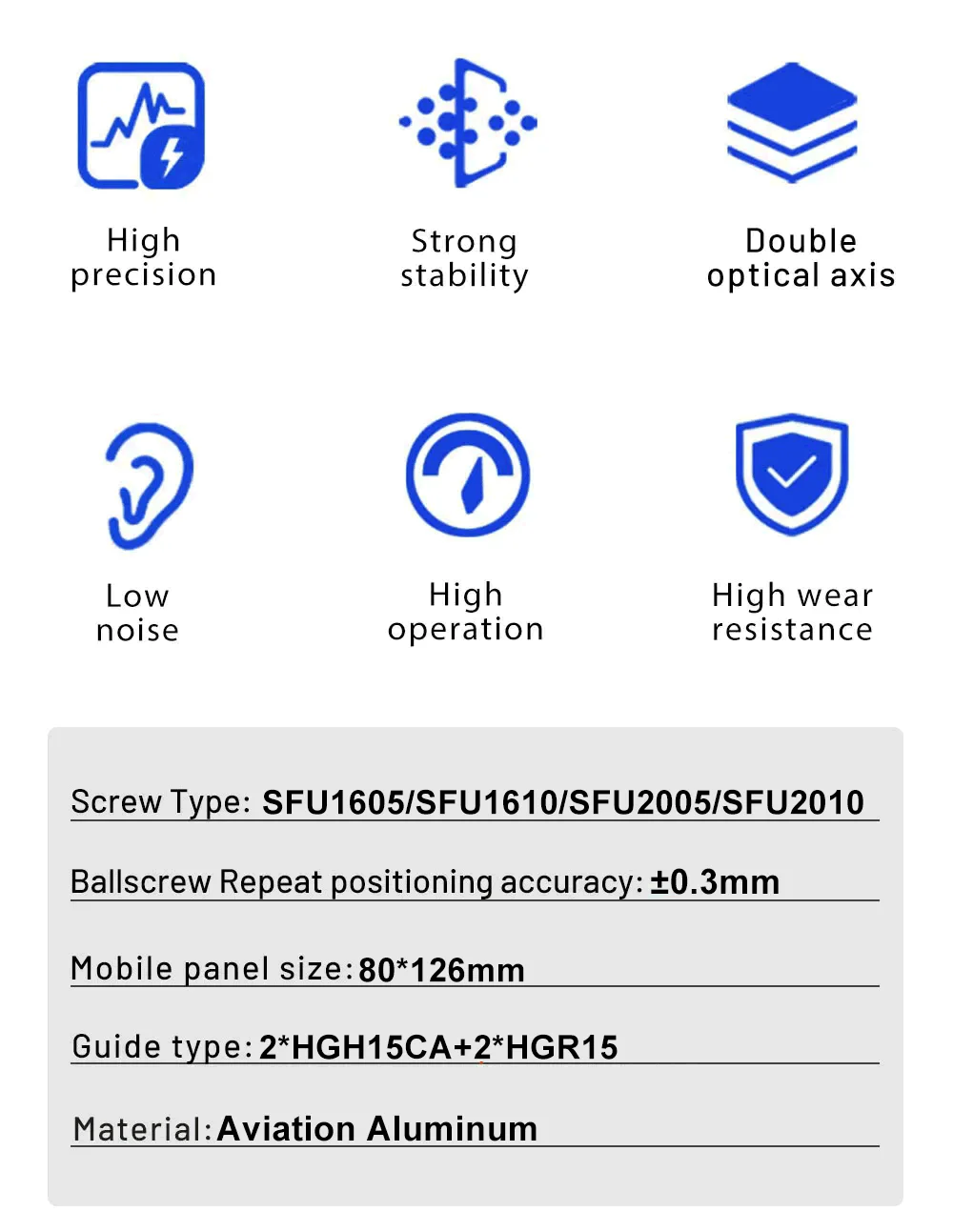

Sliding Table Technical Parameters:
Model: SXG80*126
Ballscrew type: SFU1605 / SFU1610 / SFU2005 / SFU2010
Ballscrew accuracy: C7 level
Effective stroke: 50mm-1200mm OptionalTotal length: Effective Stroke+190mm
Mobile panel size: 80*126mm
Guide Type: 2*HGH15CA+2*HGR15
Horizontal load: 90KG (Max)
Vertical load: 45KG(Max)
Ballscrew Repeat positioning accuracy: ±0.3mm
Material: Industrial Aluminum Profile
Drive Technical Parameters:
Model: TB6600 Manual: https://drive.google.com/open?id=1NHNwZy4P7mjvHdQcrkXWJ-gS2cBF_tMk
Input voltage: DC 9-42V
Input/ Output current: 0.5-3.5A
Maximum power: 150W
Subdivision: 1,2,4,8,16,32
Operating environment temperature: -10～45℃
Storage temperature: -40℃～70℃
