Descrição
- Certification: CCC,ROHS
- Brand Name: LanYuXuan
- Origin: Mainland China
- Place of Origin: Jiangsu, China
- Brand Name: DEVO
- Model Number: 57/86/11/130
- Phase: 3
- Type: Hybrid
- Current / Phase: 4.5
- Certification: CCC, ce, ISO
- Insulation class: B/F
- Motor Length: 156 mm
- Diameter: 12.7 mm & 14mm&15.8mm
- Temperature Rise: 80℃ MAX (Rated current, 2pahse power)
- Application: Machine
- Voltage: 12V/24V/48V
- Motor type: DC Step Motor
- Insulation Resistance: 100M Min . 500V DC
- Torque: 16Nm/20Nm
- Customized service: according to client

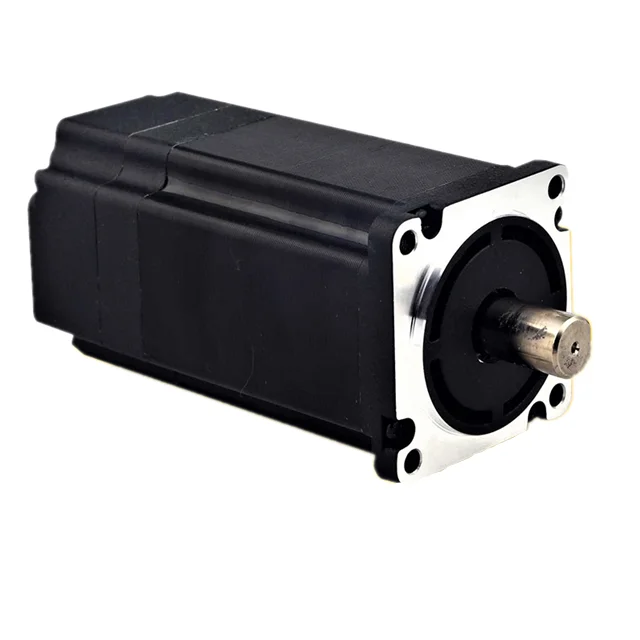

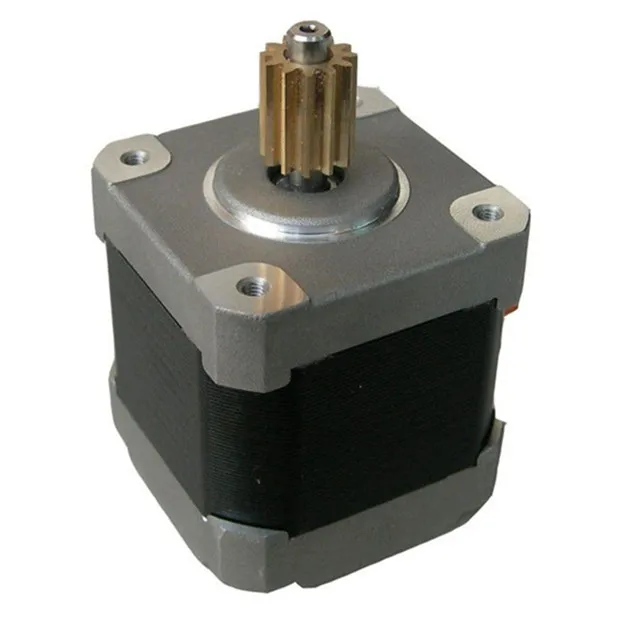

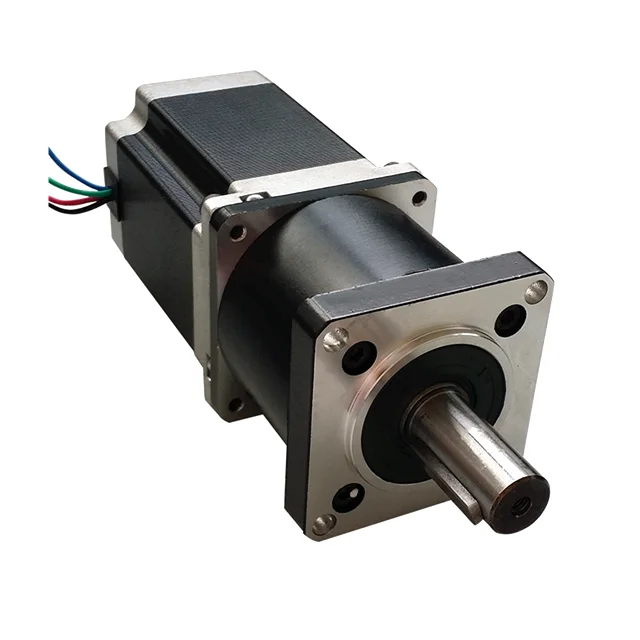

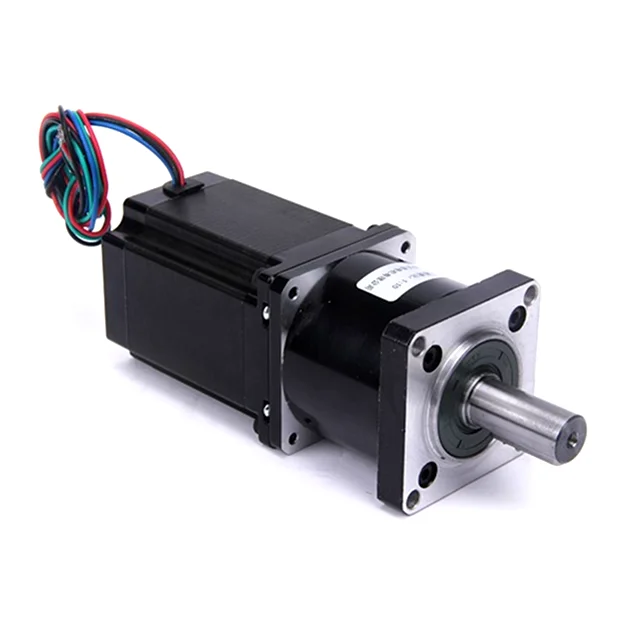

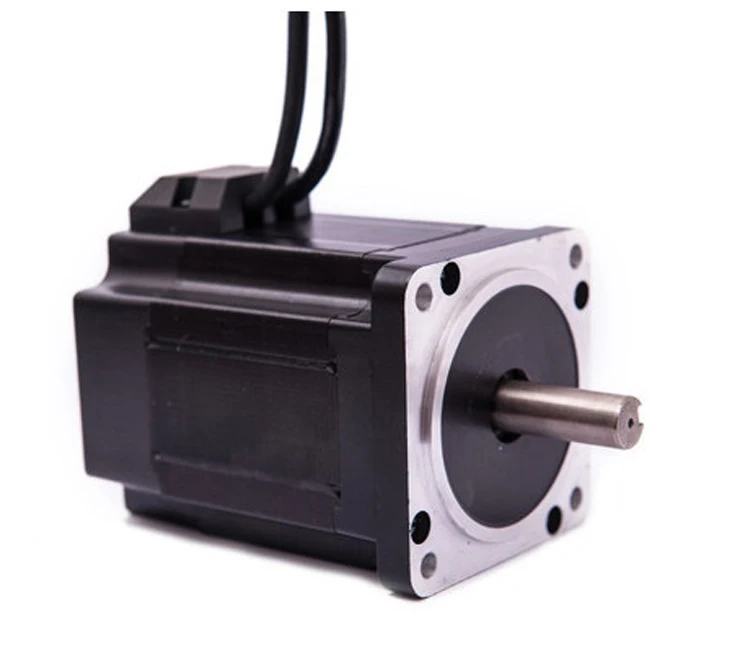

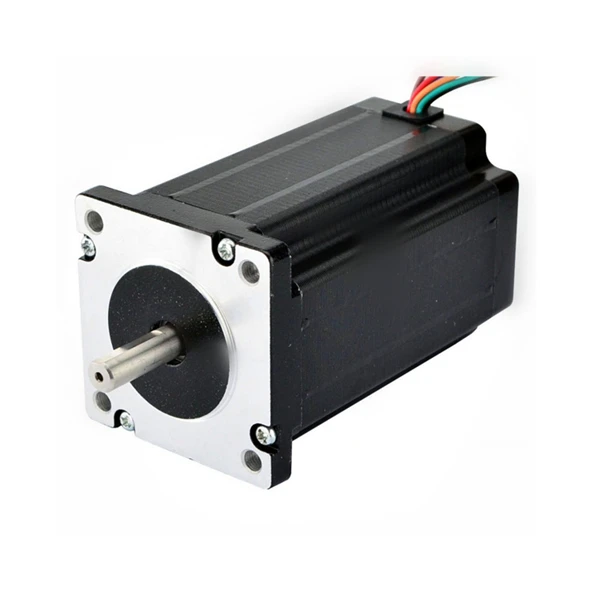

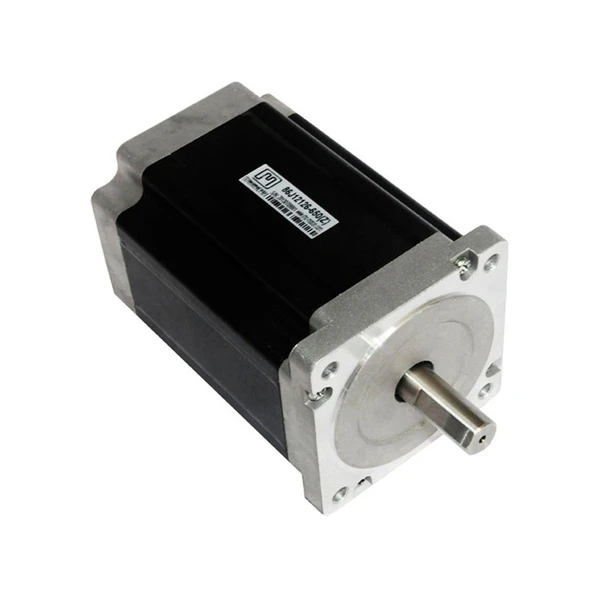

Stepper motor
time-sharing power supply, polyphase timing control current, using this current to power stepper motor.

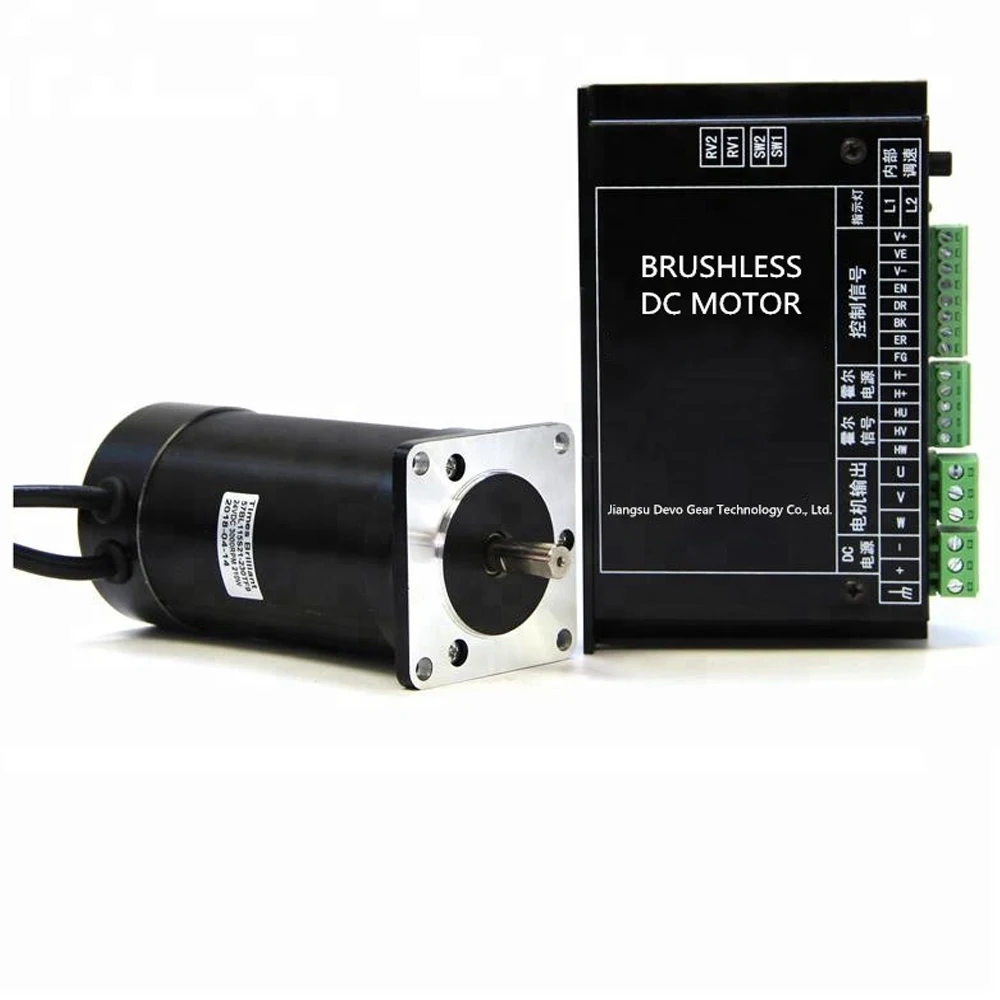

Normally, the driver is the time-sharing power supply for stepper motor, polyphase timing controller.
|
model
|
current
|
resistance
|
Static torque
|
weight
|
length
|
|
Single out shaft
|
A
|
Ω
|
N-m
|
Kg
|
mm
|
|
34H2060-30-4A
|
3
|
1.1
|
2.8
|
1.7
|
60
|
|
34H2060-45-4A
|
4.5
|
0.5
|
2.8
|
1.7
|
60
|
|
34H2060-60-4A
|
6
|
0.3
|
2.8
|
1.7
|
60
|
|
34H2080-30-4A
|
3
|
1.5
|
4.4
|
2.4
|
80
|
|
34H2080-45-4A
|
4.5
|
0.65
|
4.4
|
2.4
|
80
|
|
34H2080-60-4A
|
6
|
0.4
|
4.4
|
2.4
|
80
|
|
34H2120-30-4A
|
3
|
2.3
|
8.4
|
4
|
120
|
|
34H2120-45-4A
|
4.5
|
1
|
8.4
|
4
|
120
|
|
34H2120-60-4A
|
6
|
0.6
|
8.4
|
4
|
120
|
|
34H2160-40-4A
|
4
|
1.4
|
12
|
5.5
|
160
|
|
34H2160-60-4A
|
6
|
0.7
|
12
|
5.5
|
160
|
|
34H2160-80-4A
|
8
|
0.38
|
12
|
5.5
|
160
|
