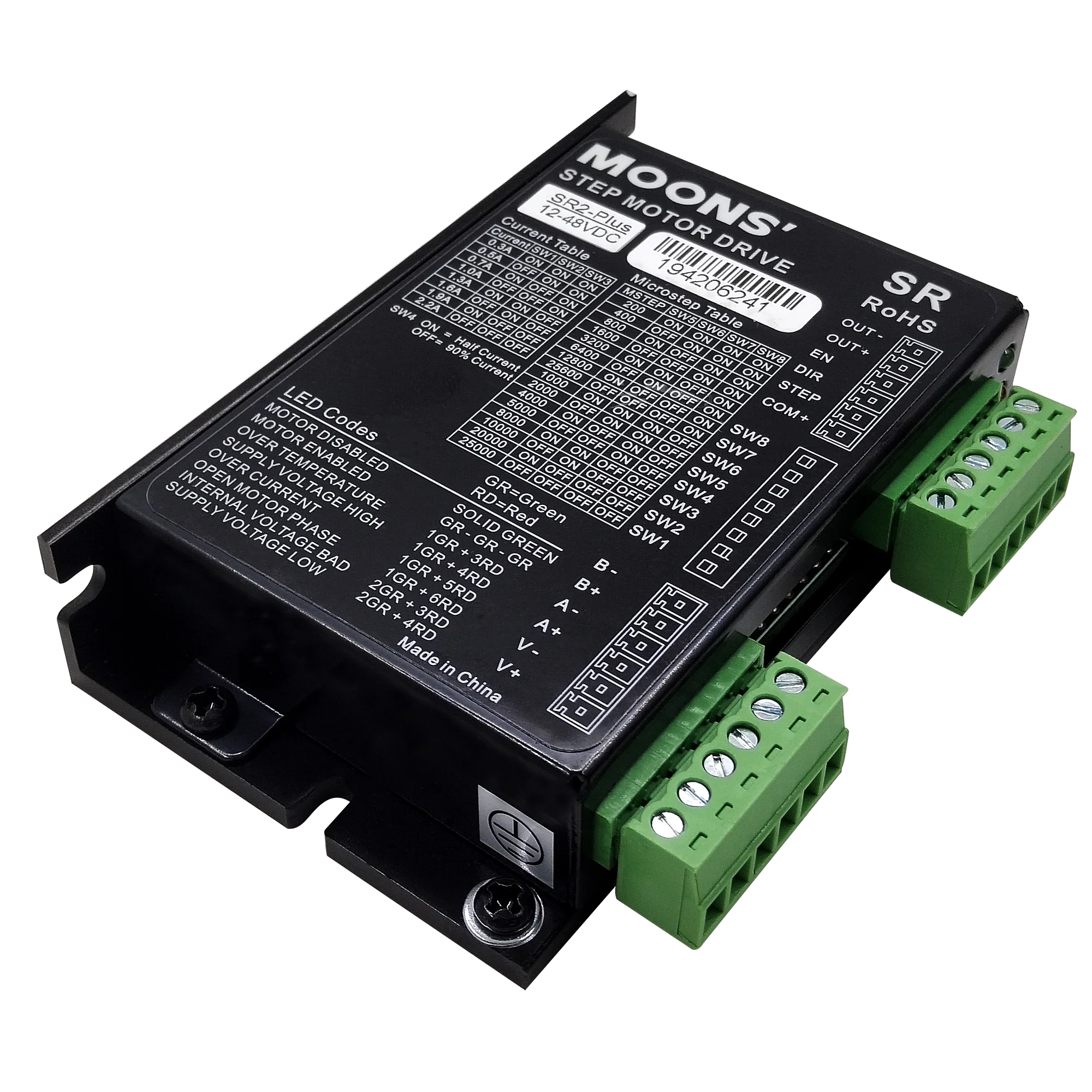

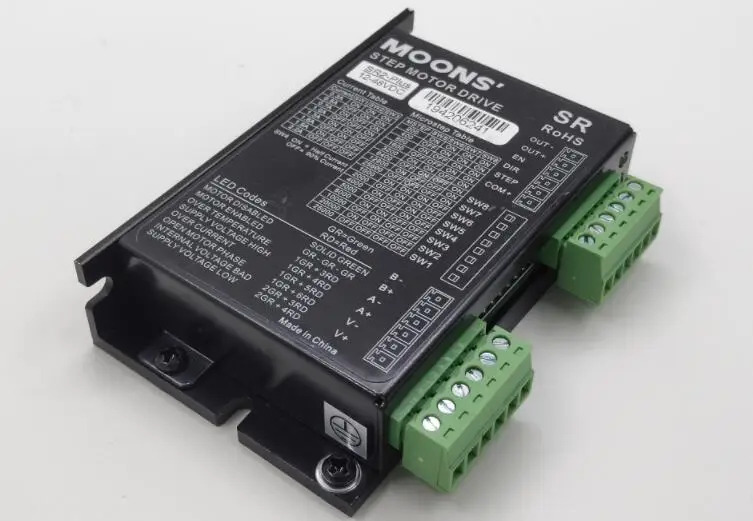

MOONS hybrid stepper driver SR2-Plus micro 12 48VDC promised high quality stepper motor driver for nema 8 11 14 17 stepper motor

, Author

R$ 540,00

1000 em stock

Up to 12 installments without cards through Mercado Pago. Learn more
Buy through Mercado Pago without cards and pay month by month
1
Add your product to the cart and, for the payment, select “Meses sin Tarjeta” or “Cuotas sin Tarjeta”.
2
Log in to Mercado Pago.
3
Choose the amount of installments that best suit you and you’re all set!

Credit subject to approval.

Any Questions? Check our Help.

REF: 1005003780723701

Descrição

  • Origin: Mainland China
  • Brand Name: LanYuXuan
  • Warranty: 12 months, 12 months
  • Place of Origin: Guangdong, China
  • Brand Name: MOONS
  • Model Number: SR2-Plus
  • Product name: MOONS MOONS hybrid stepper driver SR2-Plus
  • Voltage Range: 12-48VDC
  • Current range: 0.3-2.2A
  • Under Voltage Protection: 10VDC
  • Phase: 2 Phase

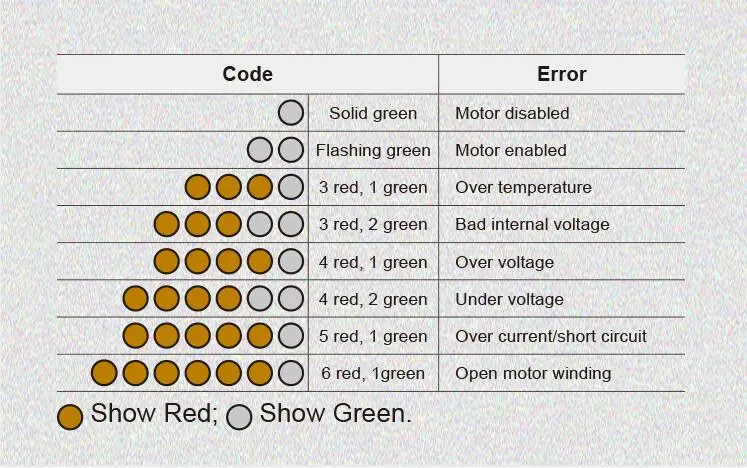

  • Protection: Over voltage/under voltage/over temp/ over current/open winding

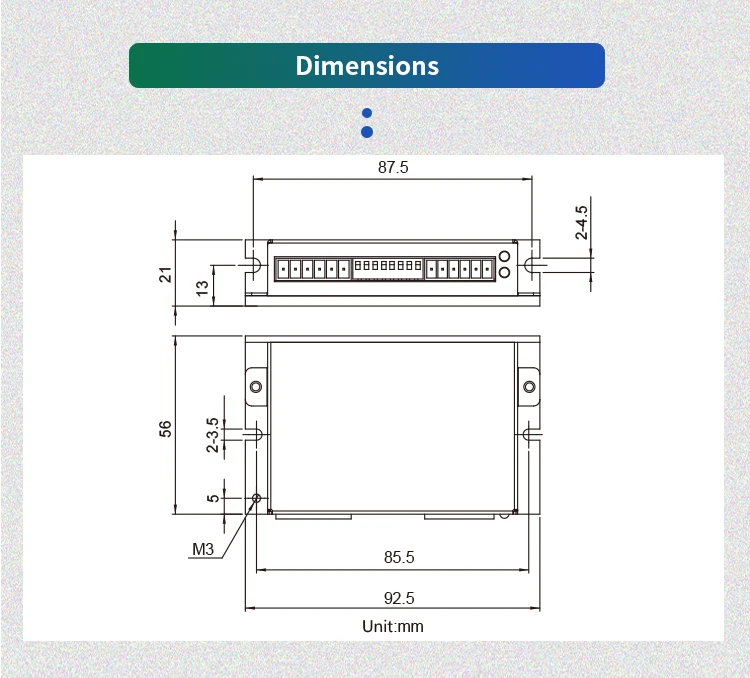

  • Dimensions: 92.5mm*56mm*21mm
  • Weight: 0.12kg
  • Certification: CE RoHS, CE ROHS

MOONS hybrid stepper driver SR2-Plus micro 12 48VDC promised high quality stepper motor driver for nema 8 11 14 17 stepper motor



Brand MOONS
Model SR2-Plus
Driver Size 92.5mm*56mm*21mm
Certification CE  RoHS

 Products detail

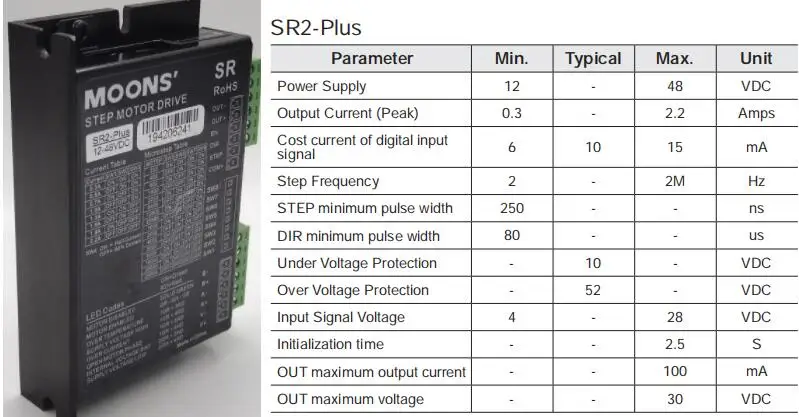

 Drive Specifications

1. Power Supply: 12-48VDC
2. Output Current : 0.3-2.2A
3. Cost current of digital input signal: 6-15A
4. Step Frequency:2-2MHz

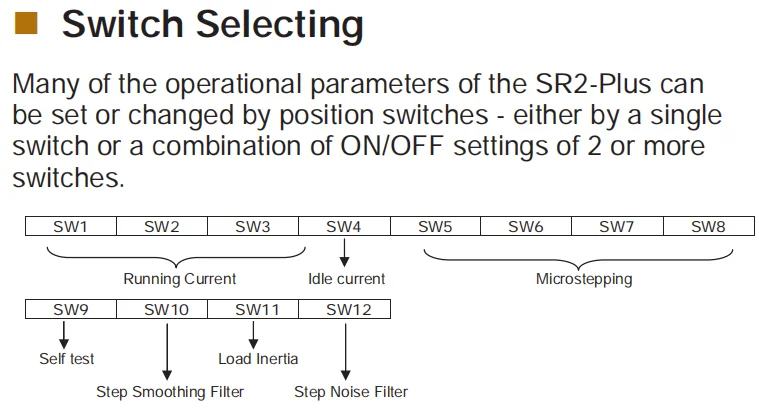

5. Idle Current: Automatic idle current reduction to reduce heat after motor stops moving for 1 second Dip switch selectable 50% or 90%
6. Anti-Resonance: Raises the system-damping ratio to eliminate midrange instability and allow stable operation throughout the speed range of the motor, dip switch selectable load inertia
7. Control Mode: Pulse input control Step&Dir
8. Inupt Signal Filter: Digital filters prevent position error from electrical noise on command signals, Dip switch selectable 2MHz or 150KHz
9. Microstep Emulation: Switch selectable microstep emulation provides smoother, more reliable motion
10 Motor Database: Rotary switch easily selects from many popular motors
11. Self Test : Switch selectable automatic self test, while self test, drive will rotate the motor back and forth, two turns in each direction
12. Fault output : Optically isolated,30VDC max, 100mA max
13. Operating Temperature : 0 - 40°C
14. Ambient Humidity : 90% or less(non-condensing)
 15. Vibration Resistance:  5.9m/s² maximum
16. Storage Temperature : -10 - 70°C
17. Mass:0.12kg
18. Certicification : RoHS, CE (EMC): EN 61800-3:2004

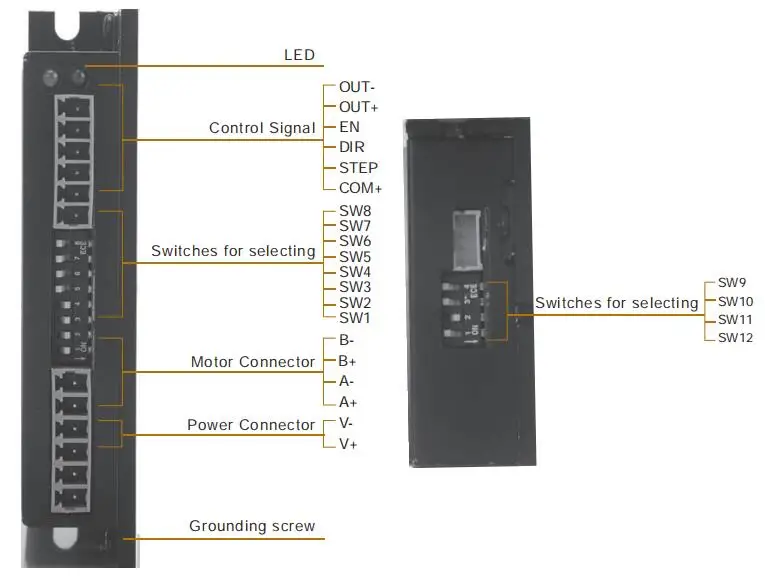

Production Detail















Certifications



Packaging & Shipping

Company Informtion



FAQ

1.Factory or Agent?
We are Agent, but have professional R&D team as introduced in company information.



2. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-20 days.



3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.



4. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished product inspection.



5. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.
