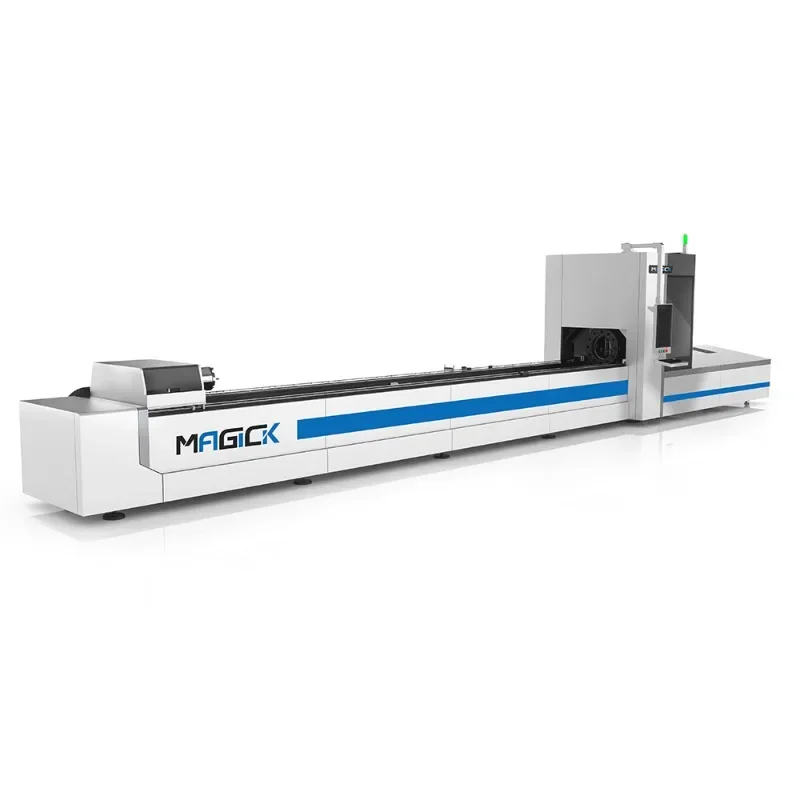

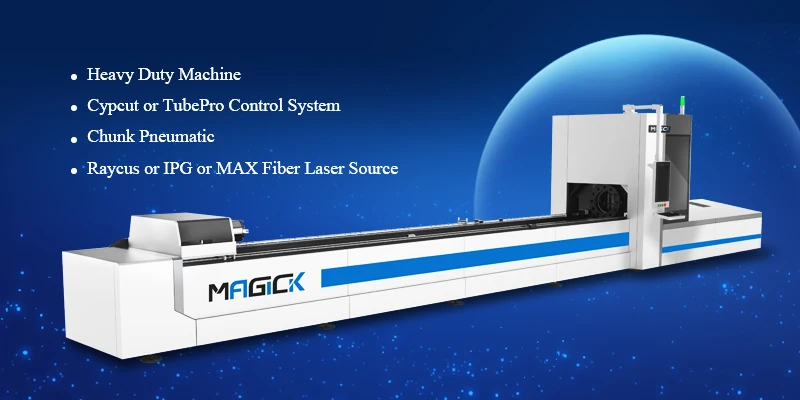

Name: MKLASER MK-6020T CNC Metal Tube Pipe Fiber Laser Cutting Machine Round Square Stainless Steel Carbon Aluminum
SKU: 1005006102497707
Availability: InStock

MKLASER MK-6020T CNC Metal Tube Pipe Fiber Laser Cutting Machine Round Square Stainless Steel Carbon Aluminum

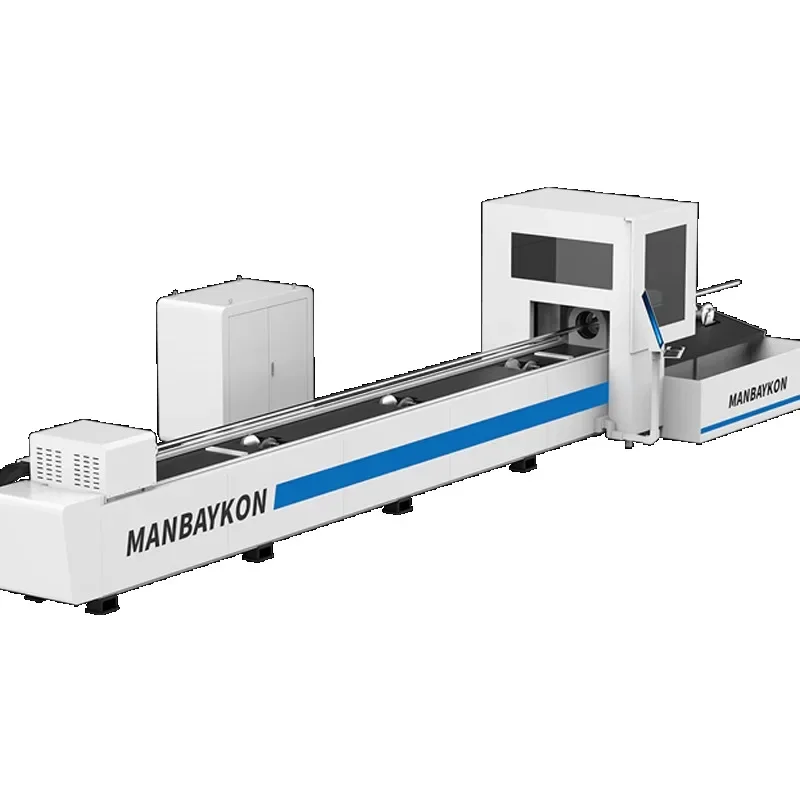

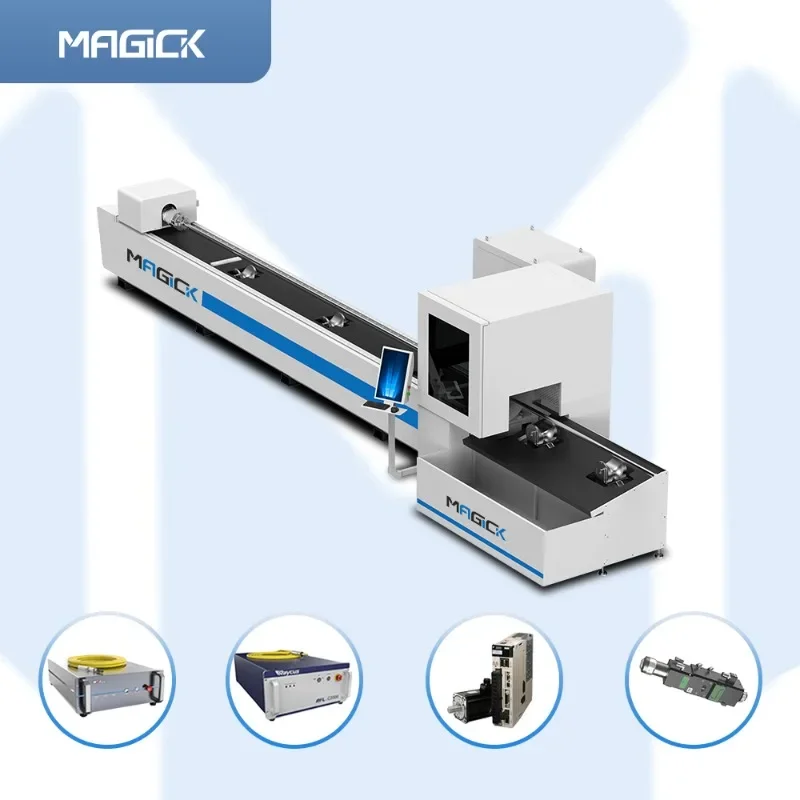

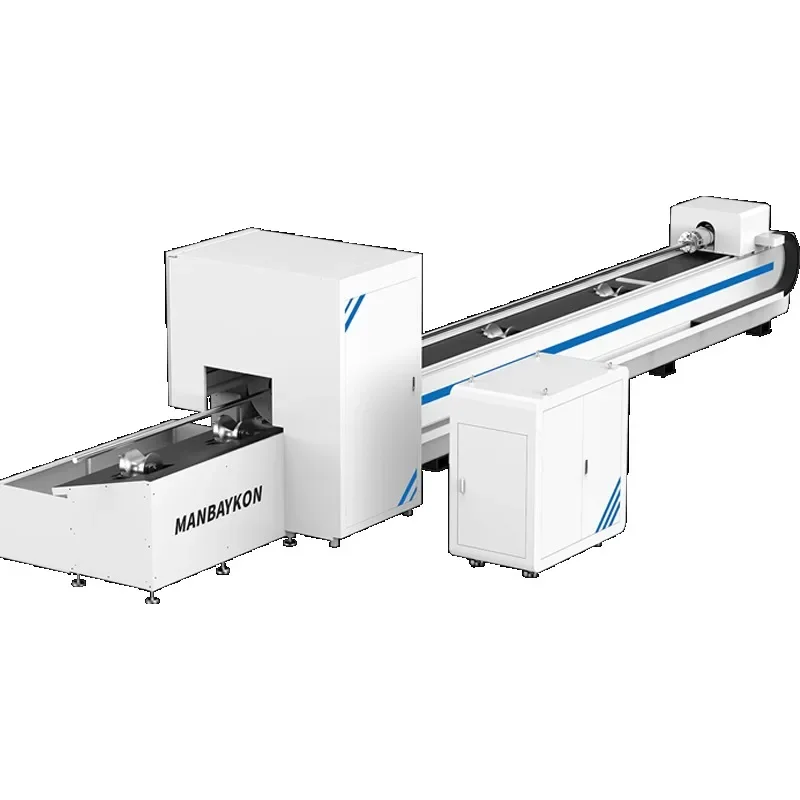

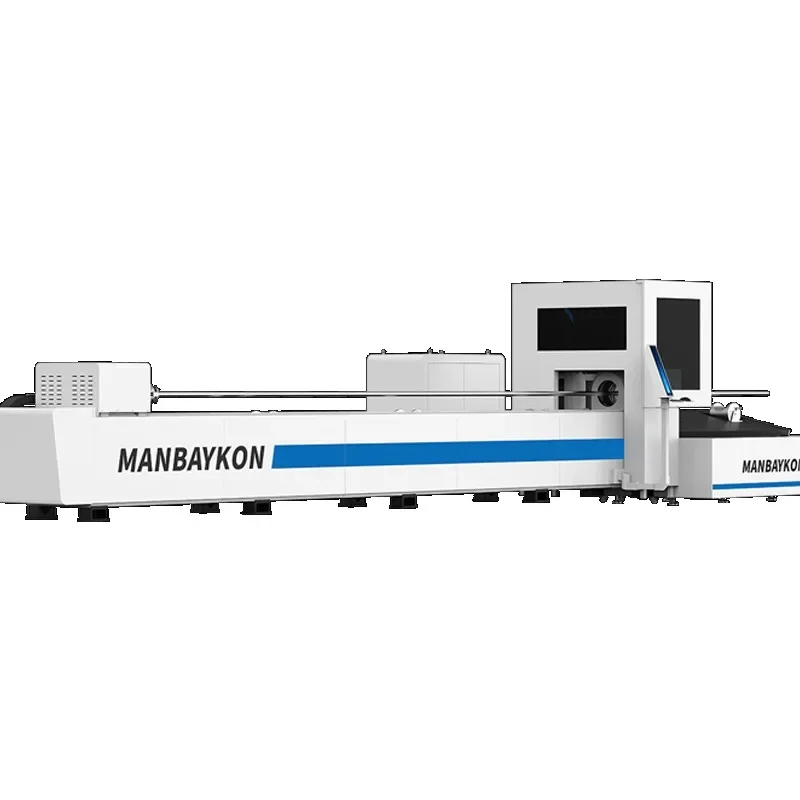

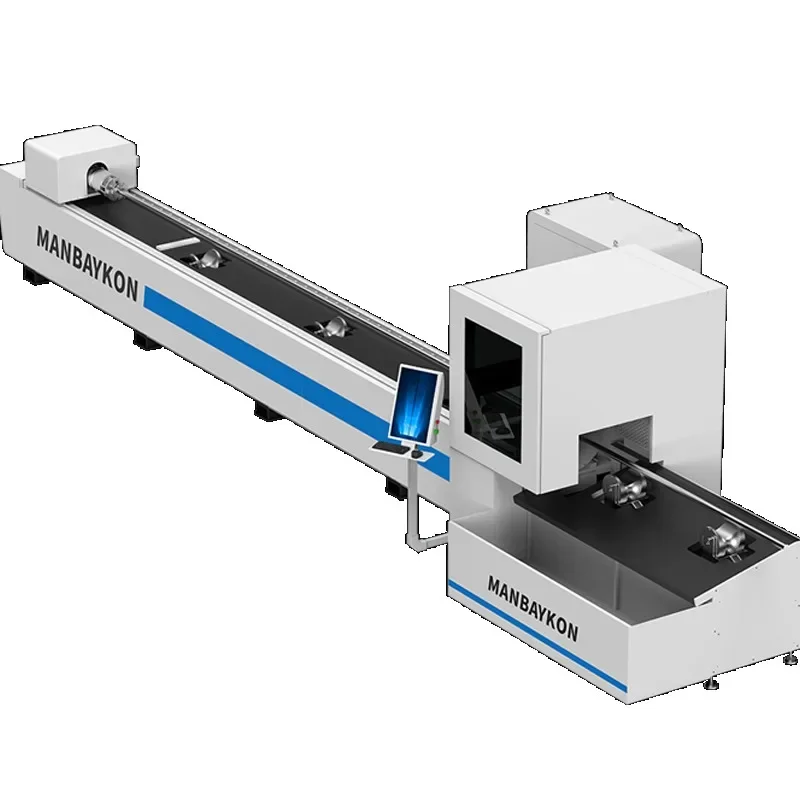

MKLASER MK-6020T CNC Metal Tube Pipe Fiber Laser Cutting Machine Round Square Stainless Steel Carbon Aluminum - Image 2

MKLASER MK-6020T CNC Metal Tube Pipe Fiber Laser Cutting Machine Round Square Stainless Steel Carbon Aluminum - Image 3

MKLASER MK-6020T CNC Metal Tube Pipe Fiber Laser Cutting Machine Round Square Stainless Steel Carbon Aluminum - Image 4

MKLASER MK-6020T CNC Metal Tube Pipe Fiber Laser Cutting Machine Round Square Stainless Steel Carbon Aluminum - Image 5

MKLASER MK-6020T CNC Metal Tube Pipe Fiber Laser Cutting Machine Round Square Stainless Steel Carbon Aluminum - Image 6

R$ 207.492,45

Ships From

Escolha uma opção

CHINA

Limpar

REF: 1005006102497707

Descrição

Descrição

Brand Name: XMSJ
Origin: Mainland China
Certification: CE
Application: LASER CUTTING
Applicable Material: Metal
Condition: New
Laser Type: Fiber Laser
Cutting Area: 1500mm*3000mm
Cutting Speed: 120m/min
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness: 6mm
CNC or Not: Yes
Cooling Mode: WATER COOLING
Control Software: cypcut
Place of Origin: Shandong, China
Brand Name: magick
Laser Source Brand: RAYCUS
Laser Head Brand: Raytools
Servo Motor Brand: Yaskawa
Guiderail Brand: HIWIN
Control System Brand: Cypcut
Weight (KG): 3000 KG
Key Selling Points: High Safety Level
Optical Lens Brand: Wavelength
Warranty: 2 years
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: Engine
Mode of Operation: continuous wave
Configuration: bench-top
Products handled: Tube
Feature: Automated Loading
Name: fiber laser tube cutting machine
Laser power: 1000W
Pipe Cutting Thickness: Depends on Material
Cutting speed: Max 0.8s/cut(Depending on material thickness)
Laser head: Raytools Cutting Head
Cooling system: Industry water chiller
Y axis single feeding length: 1200mm
Z axis adjustment range: 65mm
W axis adjustment range: 360°
Machine repeat positioning accuracy: ±0.05mm/1000mm

If you have any questions, Please contact our customer service:
WhatsApp: +86 15244291916
Email: 773875441@qq.com

MAGICK support custom models

Iterate and upgrade products continuously to empower the enterprise production.

1.The pipe clamping range is wide,Round tube φ10-φ10, and Square tube side length is 10 * 10mm-350mm * 350mm. Support the cutting of various shapes of pipe materials, such as I-beam, channel steel, angle steel, elliptical pipe, waist pipe, multi-deformed pipe,etc.
2.The unique industrial structure design gives it maximum stability and higher vibration resistance and damping quality. The compact spacing of 650mm ensures the agility of the chuck and the stability during high-speed driving.
3.Fixing the pipe effectively solves the deformation problem in the cutting operation of the long pipe.
4.The professional cutting software for processing various types of pipes. Through the collection and processing of various real-time information, it can achieve high-precision cutting and achieve higher efficiency processing.

5.Manually set the number and time interval of automatic lubrication according to the length of equipment use;Automatic lubrication of guide rails, sliders, gears, racks, and other components, recycling, and centralized processing of lubricating waste oil.

Specification

Model	MK-6020T			MK-4020S	MK-6025S
Positioning Accuracy	±0.05mm			4000*2000mm	6000*2500mm
Effective Cutting Diameter Of Round Tube	φ15mm-φ230mm
Effective Cutting Diameter Of Square Tube	□1515mm-□160160mm
Max running speed	140m/min
Laser Power	1kw-6kw
Laser Source	MAX / Raycus / IPG
Repeat Positioning Accuracy	±0.01mm
Maximum Acceleration	1G	7kw	8kw

Product Details

Double Chuck Clamping

Clamping round tube 10-160 mm. Servo Motor and reducer are driven synchronously to enssure processing accurcay Both front and rear chucks are pneumatically tightened

Gear Drive

High Transmission efficiency, high accuracy, stable and long service life.

Stable Machine Bed and Gantry Structure

Machine bed and the gantry structure adopt plate welding structure After heat treatment and annealing to remover stress, the structure is stable and the rigidity is good

Laser Source

Raycus/MAX/IPG, multiple choice
Different brands, different laser power are available. The higher power, the thicker cutting thickness.

Laser Cutting head

3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time.

Japan Shimpo

Dual cooling function

Real-time alarm

Machine protection

Taiwan - APEX

High precision Accurate instantaneous transmission ratio

High transmission efficiency; Long life

Applications Industry and Samples

Metal processing industry

Machinery processing

Aerospace industry

Medical instrument industry

Air conditioning industry

Kitchenware industry

Advertising industry

Garden decoration industry

Outdoor decoration industry

Company Profile

Magick Laser

Shandong Magick Intelligent Technology Co., Ltd. is a professional manufacturer of Industrial Laser Equipment. Our machines are widely used in metal processing industry. All of our products have passed

ISO, CE, RoHS,TUV, SGS, EAC, FDA, FCC,agency testing. We are a reliable supplier of laser equipment, providing 2-3 years of complete quality assurance services to ensure customer experience. We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world, We export to more than 100 countries.
