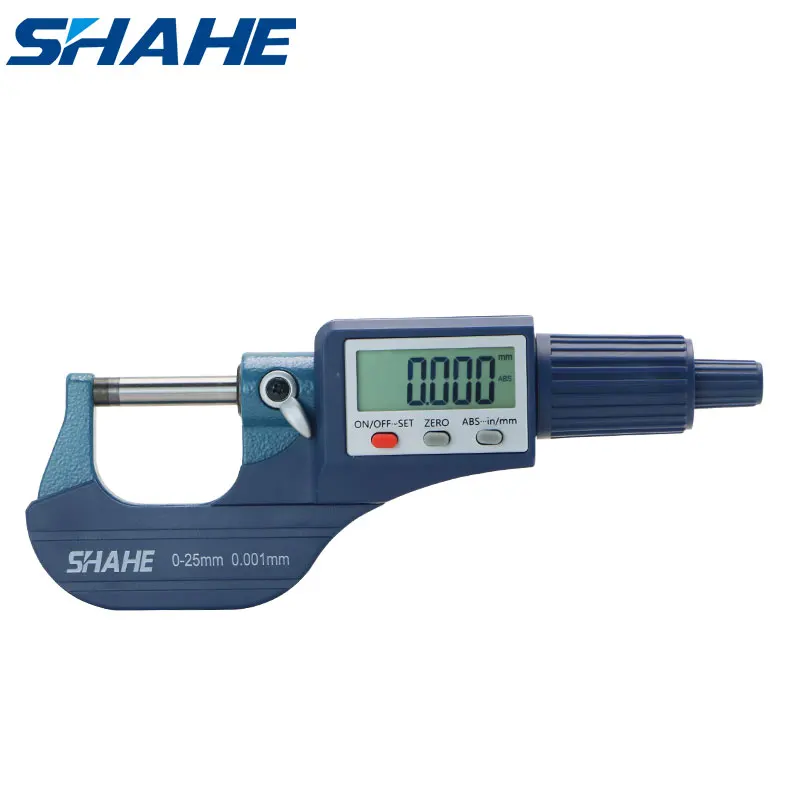

Micrômetro externo eletrônico de 0.001mm, 0-25mm com tela lcd extra grande, micrômetro digital eletrônico, medidor de paquímetro digital

Price range: R$ 74,57 through R$ 158,27

REF: 32820610883 Categoria:
  • Químico Hign-em causa: Nenhum
  • Número do modelo: 5202-25
  • Micrômetro Tipo: Fora Micrômetros
  • Tipo de exposição: DIGITAL
  • materiais de bricolage: Metalworking
  • Nome da marca: Shahe
  • Origem: CN (Origem)
  • Precisão: 0,01 mm
  • Certificado: NONE
  • Measuring Range: 0-25mm
  • Resolution: 0.001mm
  • Accuracy: -0.003mm
  • Measuring force: 5-10N
  • Power consumption: less than20uA
  • Storage temperature: 0-20-60degree
  • Operation temperature: 0-40degree
  • Battery: 3V CR2032 environmental lithium battery, battery life >1 year
  • Package: Plastic Box
  • Delivery: 1-2 business days after order confirmation

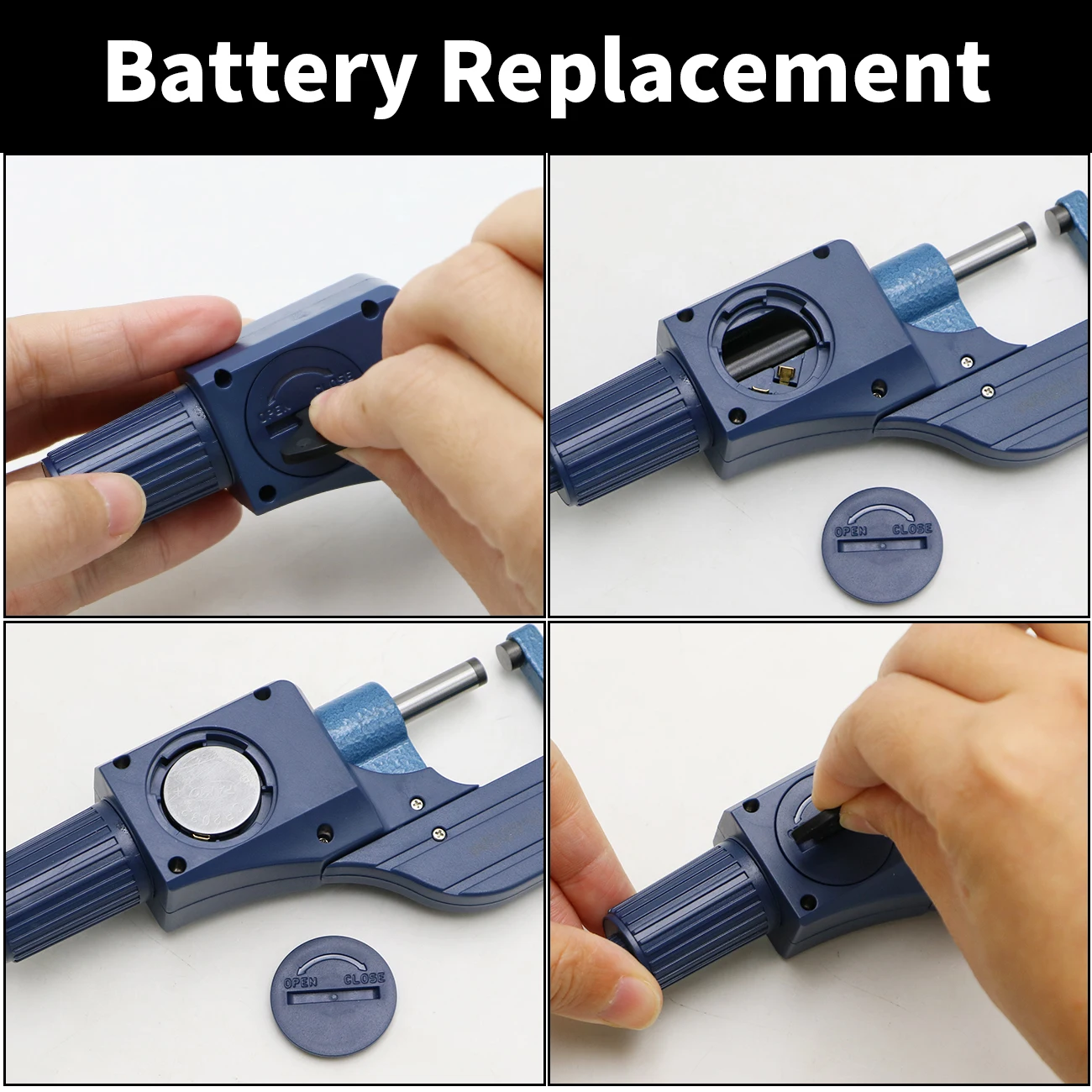

Note: The parcel will be sent without battery from China,battery type is one piece 3V CR2032 environmental Lithium battery

(ONLY order from RU/ES warehouse will be sent with batteries)




Characteristic and Function


1.Carbide anvil,durable
2.Large LCD display,clear display screen
3.Two Kinds of Measurement Units Optional: Metric or Inch, More Convenient for Daily Use
4.Relative/absolute measurement interchange at any position(ABS function)
5.Automatic power off  after 5 minutes inactivity


Specification


Measuring range : 0-25 mm
Resolution:0.001 mm
Accuracy:±0.003 mm

Measuring range : 25-50 mm
Resolution:0.001 mm
Accuracy:±0.003 mm

Measuring range : 50-75 mm
Resolution:0.001 mm
Accuracy:±0.004 mm

Measuring range : 75-100 mm
Resolution:0.001 mm
Accuracy:±0.004 mm

Battery: 3V CR2032
Measuring Force:5-10N
Power consumption :<=20uA
Storage temperature :-20-60°C
Operation temperature:0-40°C

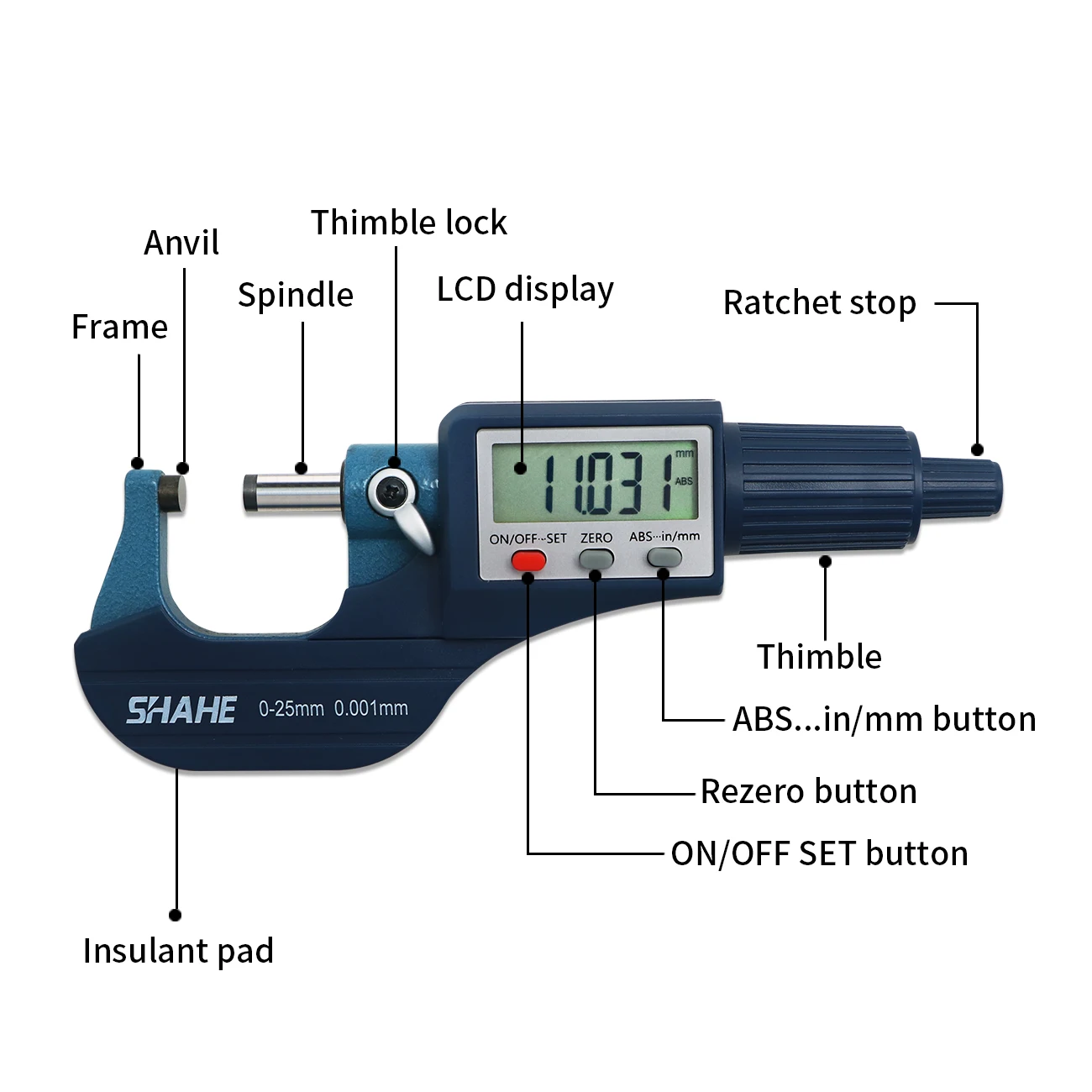

Button function

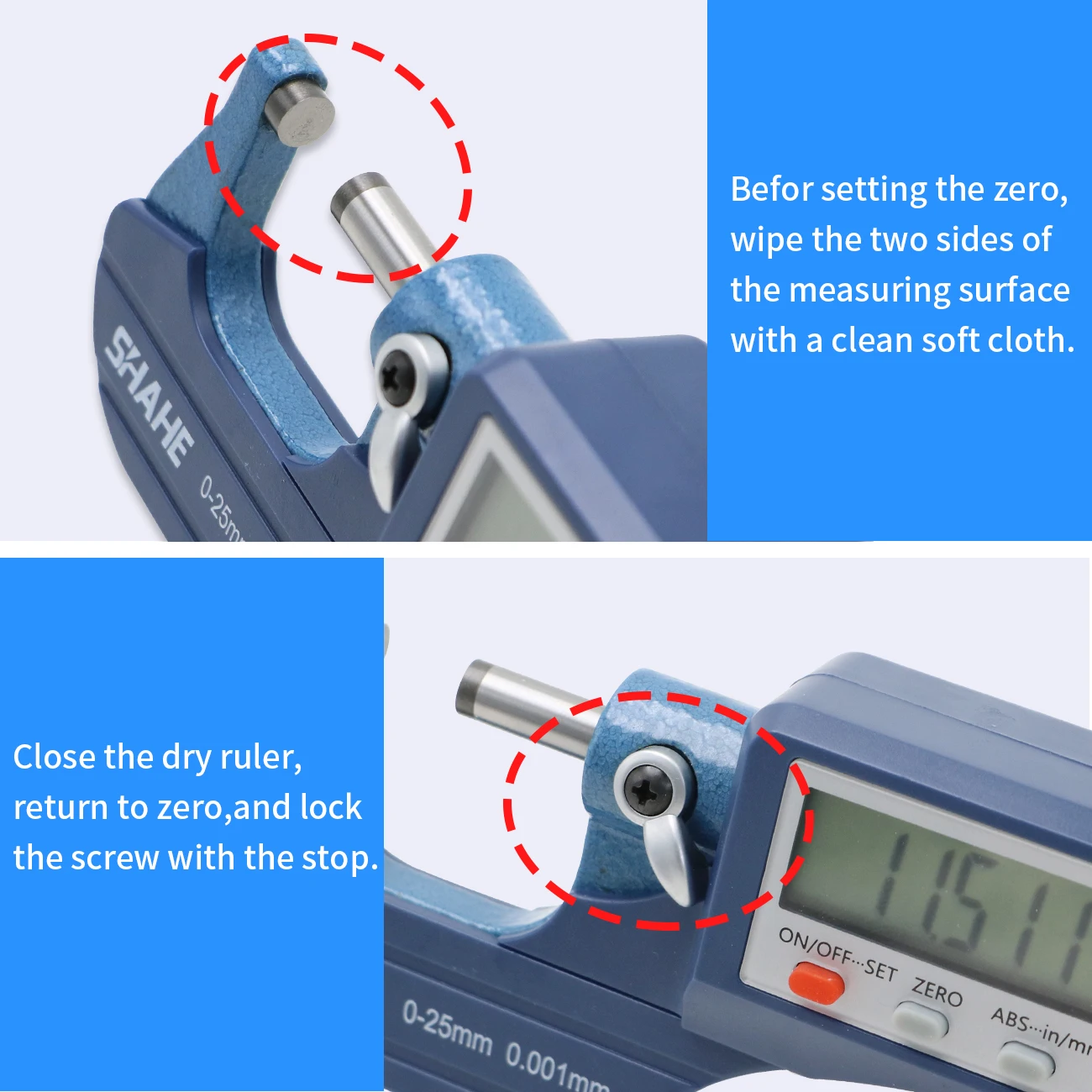

1. ON OFF SET: ONO FF and set button. Press the button briefly, switch the device on and off, press this button for a long time and set the zero to "0.25,50,75". "Hold down the button to alternately display several zero values Key when one of the zero values is displayed The zero value is the currently displayed value.

2. ZERO: Zero button. Press the button. The data will be used as default starting value (0.25,50,75).

3. ABS ... in / mm: Relative and absolute scale conversion key, metric and inch conversion key. Press this button briefly to perform the absolute measurement and the relative dimension conversion "In" and small font "5", it will be displayed in inches.
