Descrição
- Químico Hign-em causa: Nenhum
- Número do modelo: SXG80*126
- Largura ou Diâmetro da Guia: 15mm
- Origem: CN (Origem)
- Certificado: CE
- Effective Stroke: 50mm-1200mm Optional
- Total length: Effective Stroke+190mm
- Ballscrew type: SFU1605/SFU1610/SFU2005/SFU2010
- Horizontal load: 90KG (Max)
- Vertical load: 45KG (Max)
- Module width: 80*126mm
- Repeat positioning accuracy: ±0.03mm
- Ballscrew accuracy: C7
- Guide Type: 2*HGH15CA/2*HGR15
- product type 1: Aluminum slide table
- product type 2: CNC Workbench

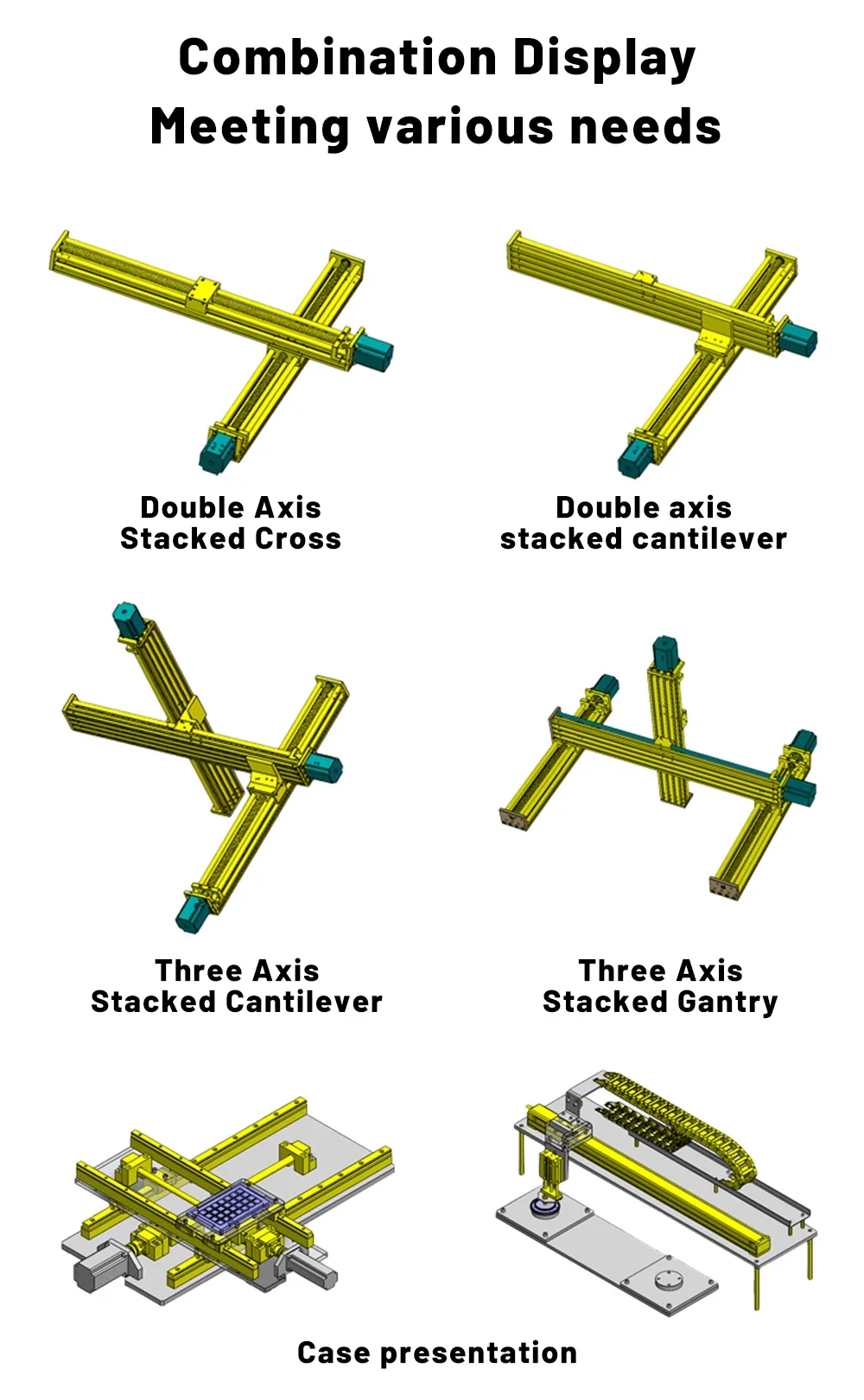

- product type 3: XYZ Axis Table
- product type 4: CNC slide table
- product type 6: Sliding Table Kit
- product type 7: Motor Linear Kit
- product type 8: Linear Guide Rail stage
- product type 9: Motor Linear Rail Kit
- product type 10: xyz stage
- product type 11: linear stage

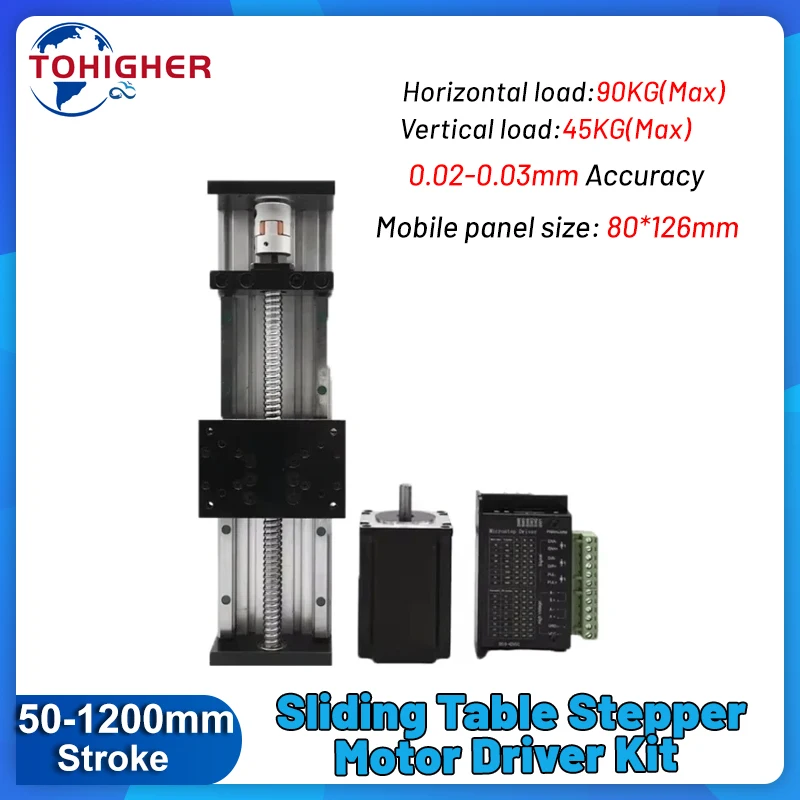

1* Double rail sliding table
1* 8mm to 8mm Coupling for Nema 23 Motor
(If you need SFU1610/2005/2010 ball screw,60/80mm servo bracket,dust cover,please contact us)

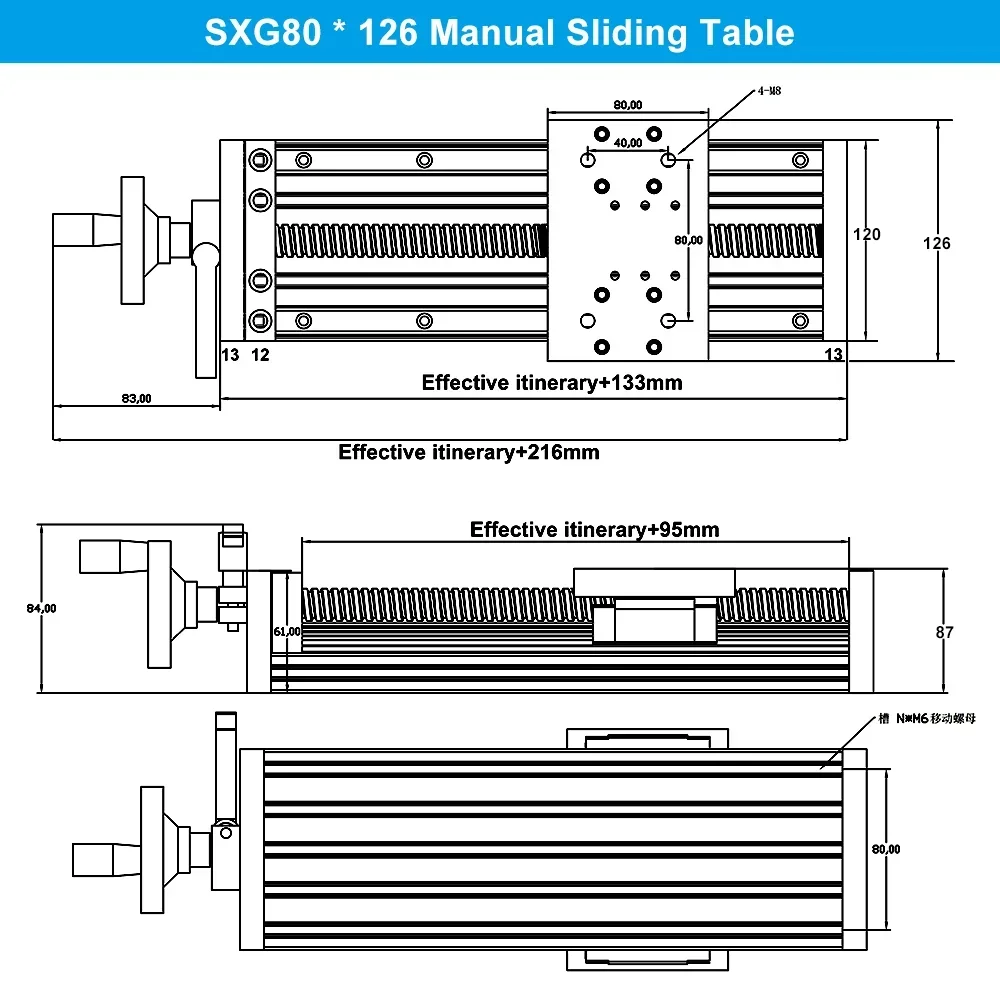

●If you choose Manual Slide table, you will get the follow products:
1* Manual Slide table
●If you choose 3Nm Motor kit, you will get the follow products:
1* Double rail sliding table
1* Nema 23 57mm Open-loop Stepper Motor
1* TB6600 Driver
1* 8mm to 8mm Coupling
●If you choose 3.2Nm All in one kit, you will get the follow products:
1* Double rail sliding table

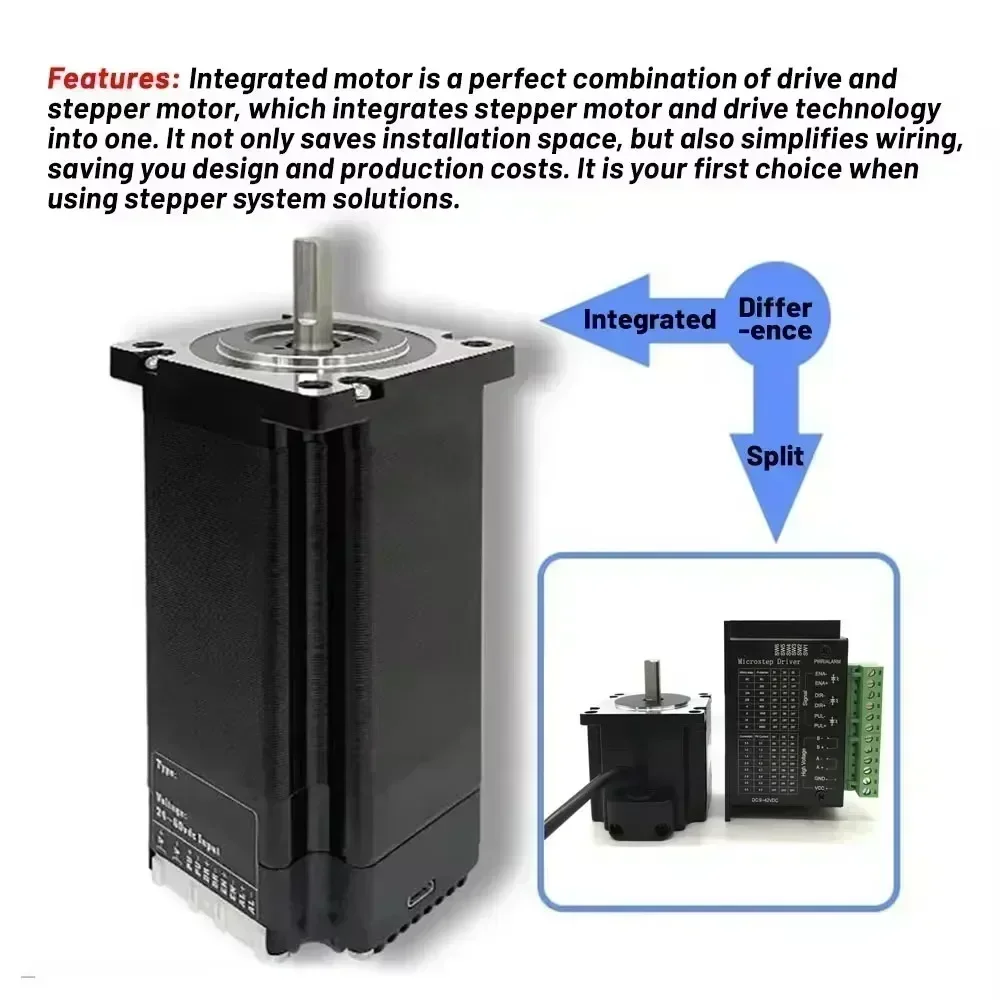

1* Nema 23 57mm Closed Loop Stepper Motor Driver All-in-one
1* 8mm to 8mm coupling

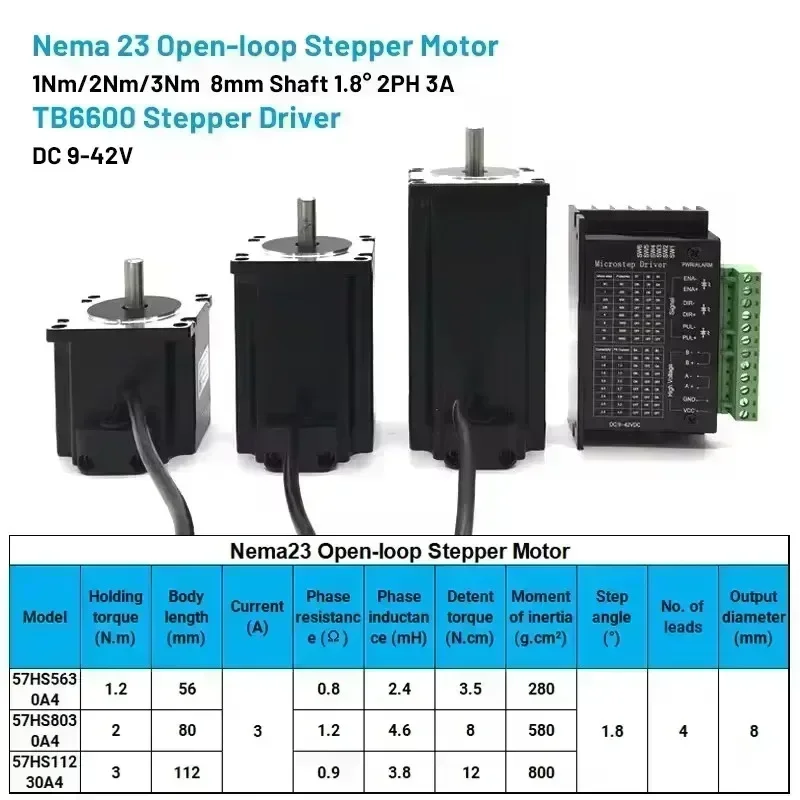

| Nema23 57mm Flange Stepper Motor Technical Parameters | |||||||||
| Model | Motor type | With/ without encoder | Holding torque (N.m) |
Body length (mm) |
Current (A) |
Phase resistance (Ω) |
Moment of inertia (g.cm²) |
Output diameter (mm) |
Driver |
| 57HS5630A4 | open-loop stepper motor | without | 1.2 | 56 | 3 | 0.8 | 280 | 8 | TB6600 |
| 57HS8030A4 | 2 | 80 | 3 | 1.2 | 580 | ||||
| 57HS11230A4 | 3 | 112 | 3 | 1.6 | 800 | ||||

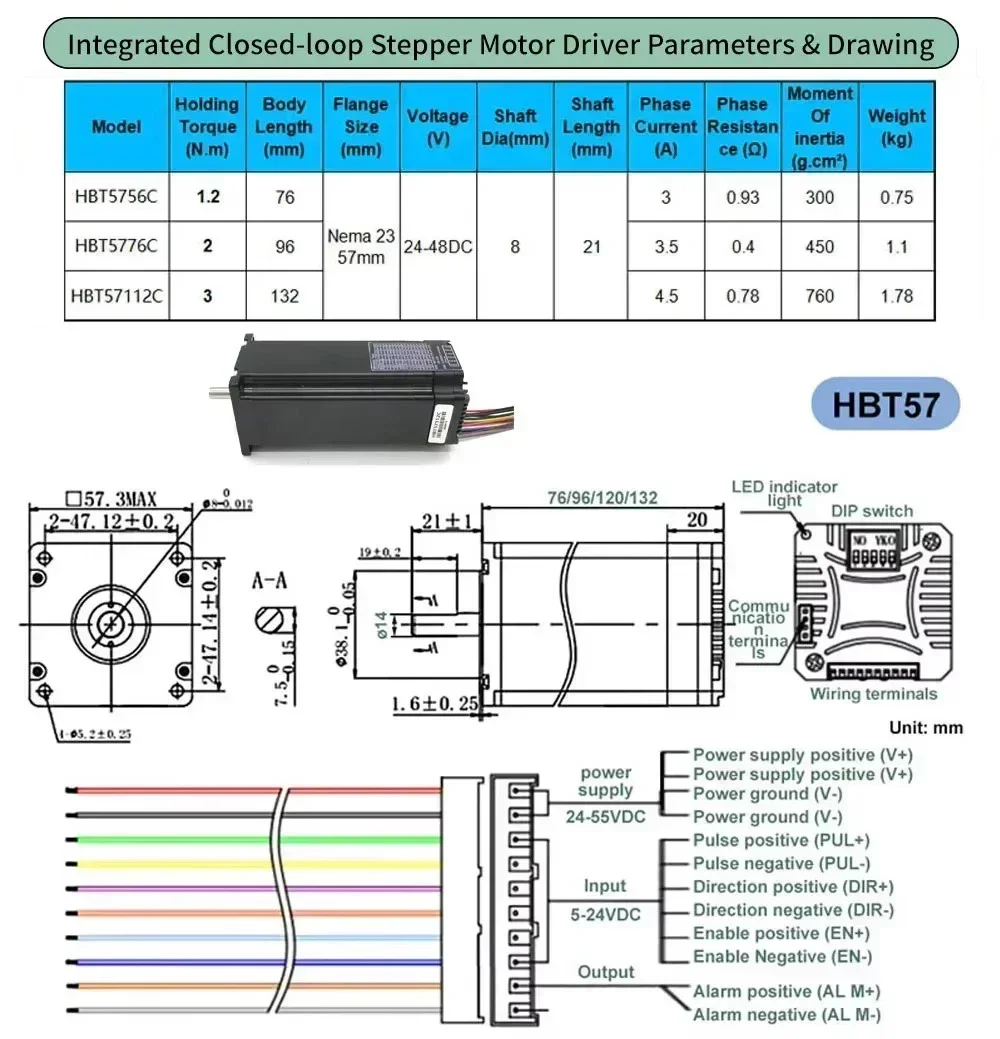

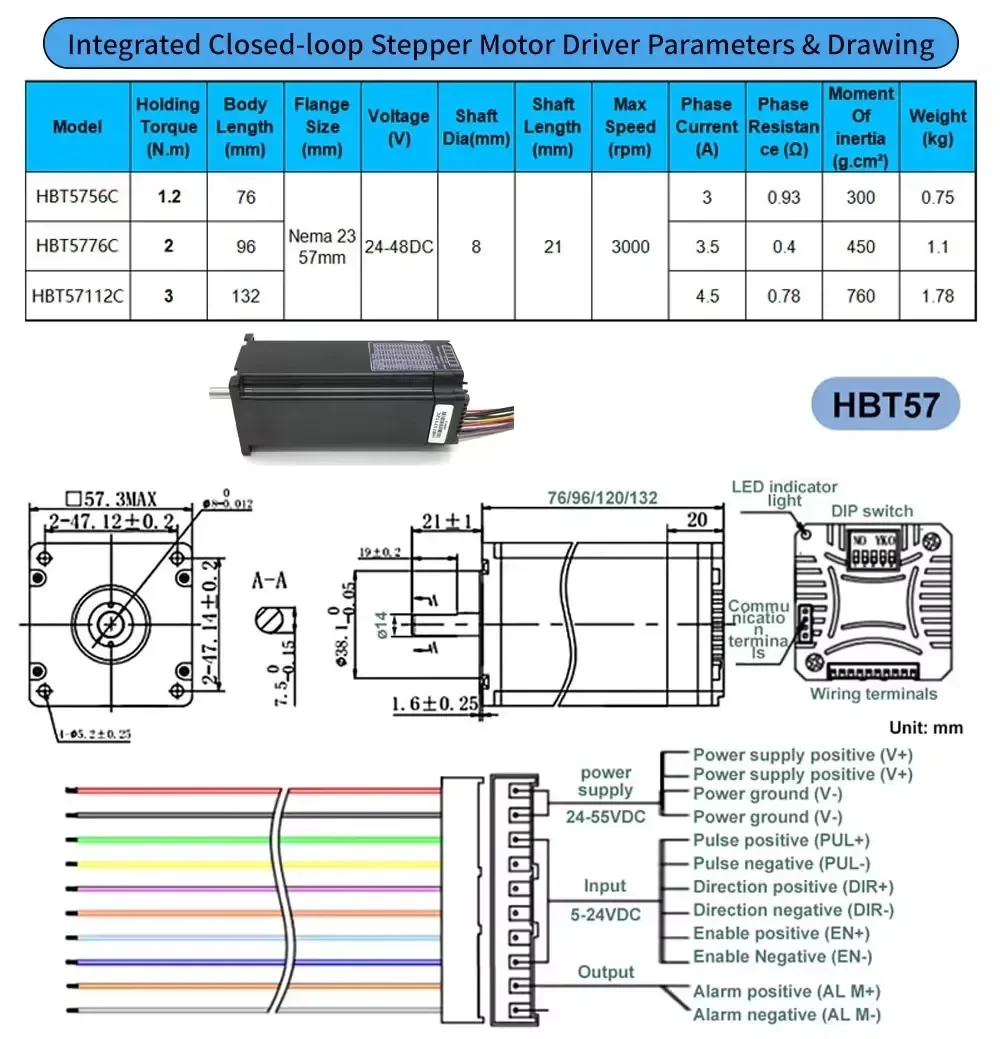

| HBT5756C | closed-loop stepper motor driver all-in-one | with | 1.5 | 76 | 3 | 0.93 | 300 | Built in | |
| HBT5776C | 2 | 96 | 3.5 | 0.4 | 450 | ||||
| HBT57112C | 3.2 | 132 | 4.5 | 0.78 | 760 | ||||

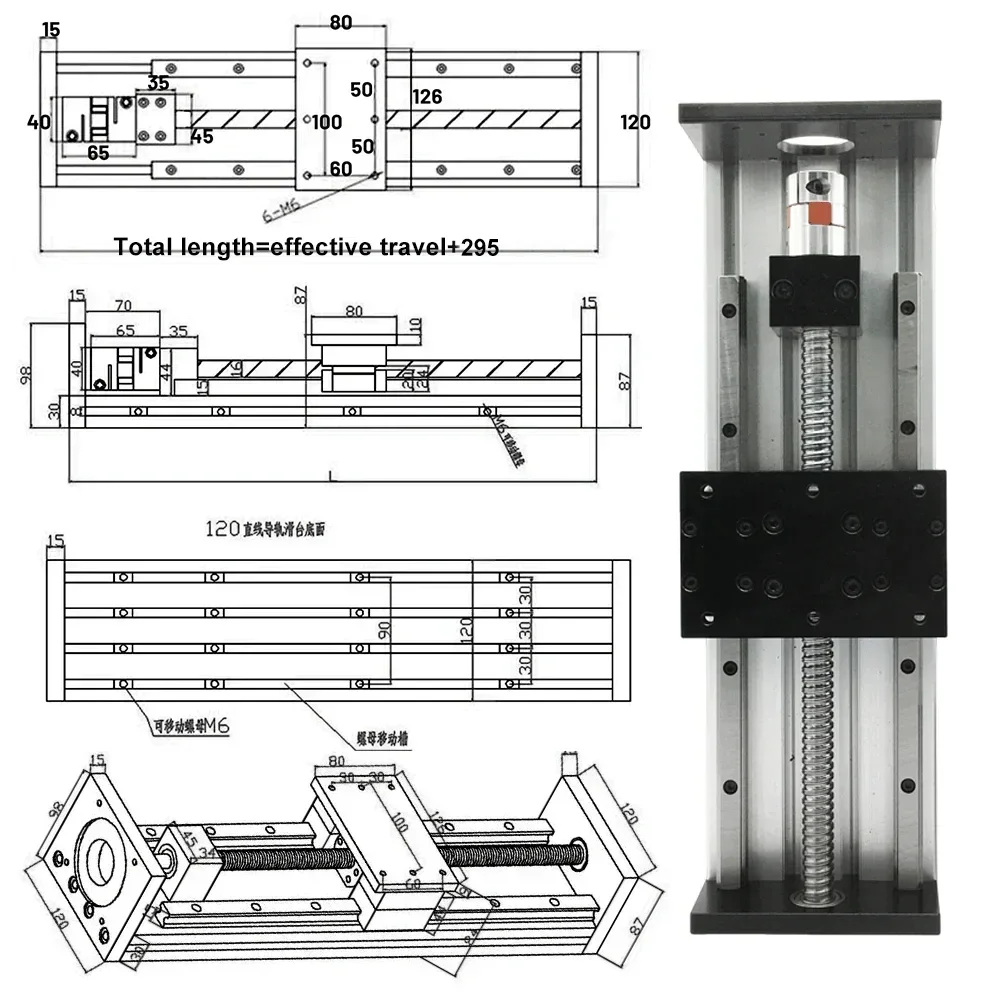

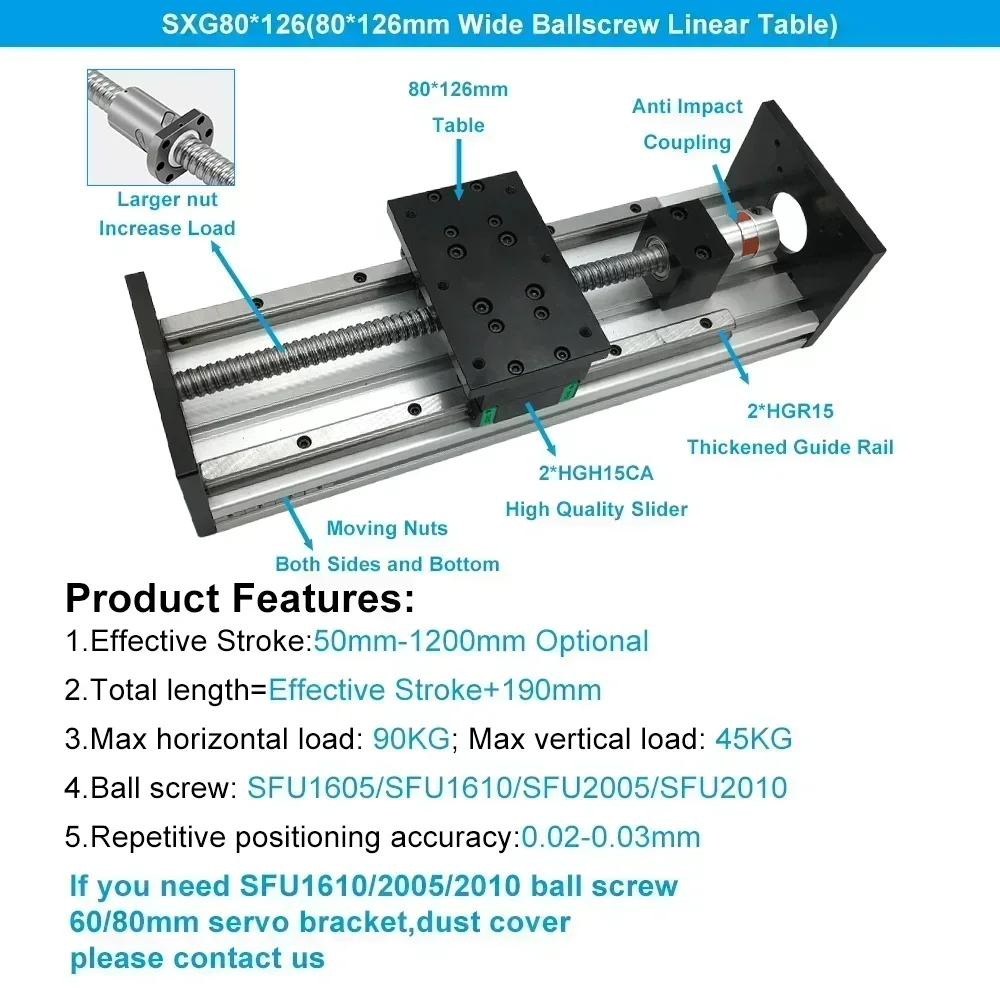

Sliding Table Technical Parameters:
●Model: SXG80*126
●Ballscrew type: SFU1605 / SFU1610 / SFU2005 / SFU2010
●Ballscrew accuracy: C7 level
●Effective stroke: 50mm-1200mm Optional●Total length: Effective Stroke+190mm
●Mobile panel size: 80*126mm

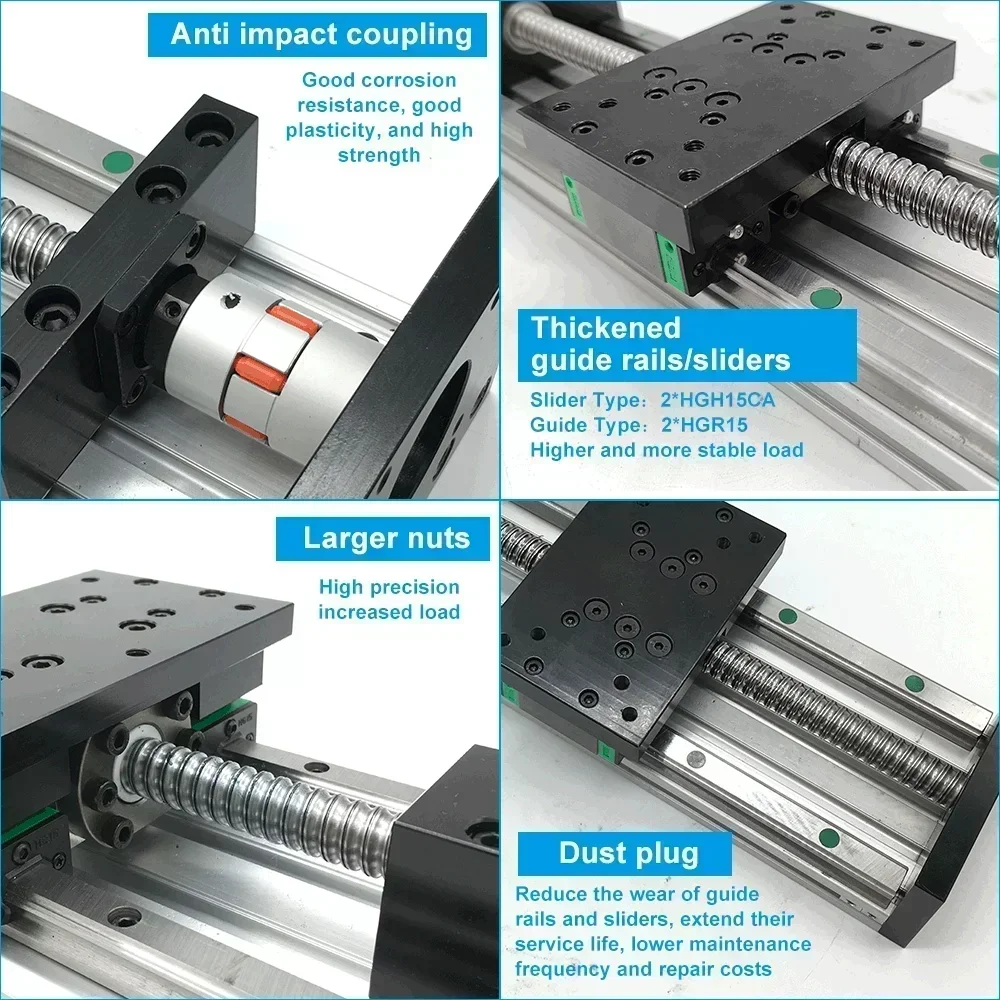

●Guide Type: 2*HGH15CA
●Slider Type: 2*HGR15
●Horizontal load: 90KG (Max)
●Vertical load: 45KG(Max)
●Ballscrew Repeat positioning accuracy: ±0.3mm
●Material: Industrial Aluminum Profile
Drive Technical Parameters:
●Model: TB6600 ●Manual: https://drive.google.com/open?id=1NHNwZy4P7mjvHdQcrkXWJ-gS2cBF_tMk
●Input voltage: DC 9-42V
●Input/ Output current: 0.5-3.5A
●Maximum power: 150W
●Subdivision: 1,2,4,8,16,32
●Operating environment temperature: -10～45℃
