Descrição
- Químico Hign-em causa: nenhum
- Nome da marca: TEHIGHAUTO
- Número do modelo: DXG6042
- Largura ou Diâmetro da Guia: 12mm
- Origem: CN (Origem)
- Certificado: CE

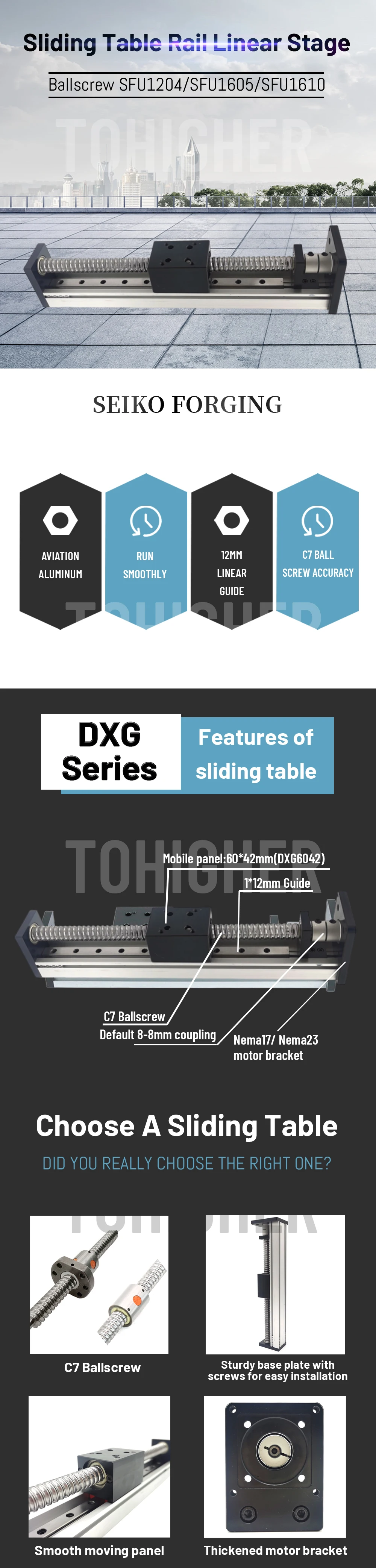

- Ballscrew type: SFU1605/SFU1204/SFU1610
- Ballscrew accuracy: C7 level
- Effective stroke: 50mm-1200mm Optional
- Slider Type: MGW12C
- Maximum speed: 500mm/s
- Repeat positioning accuracy: 0.02mm-0.03
- Horizontal load: 60KG (Max)
- Vertical load: 30KG(Max)
- Slide Material: Aviation aluminum
We will ship according to your choice:)

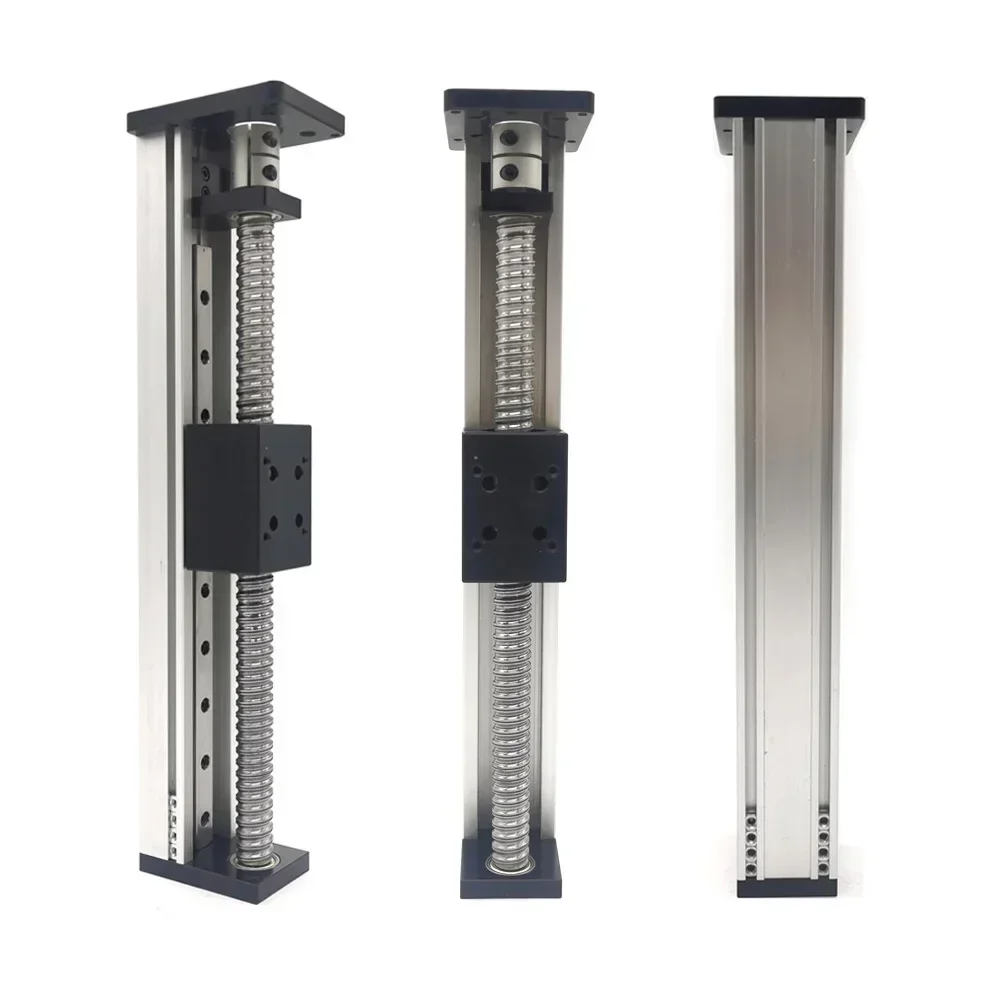

1* Electric Sliding Table
1* 5mm Coupling for Nema 17 stepper motor
or
1* Electric Sliding Table
1* 8mm Coupling for Nema 23 stepper motor
or

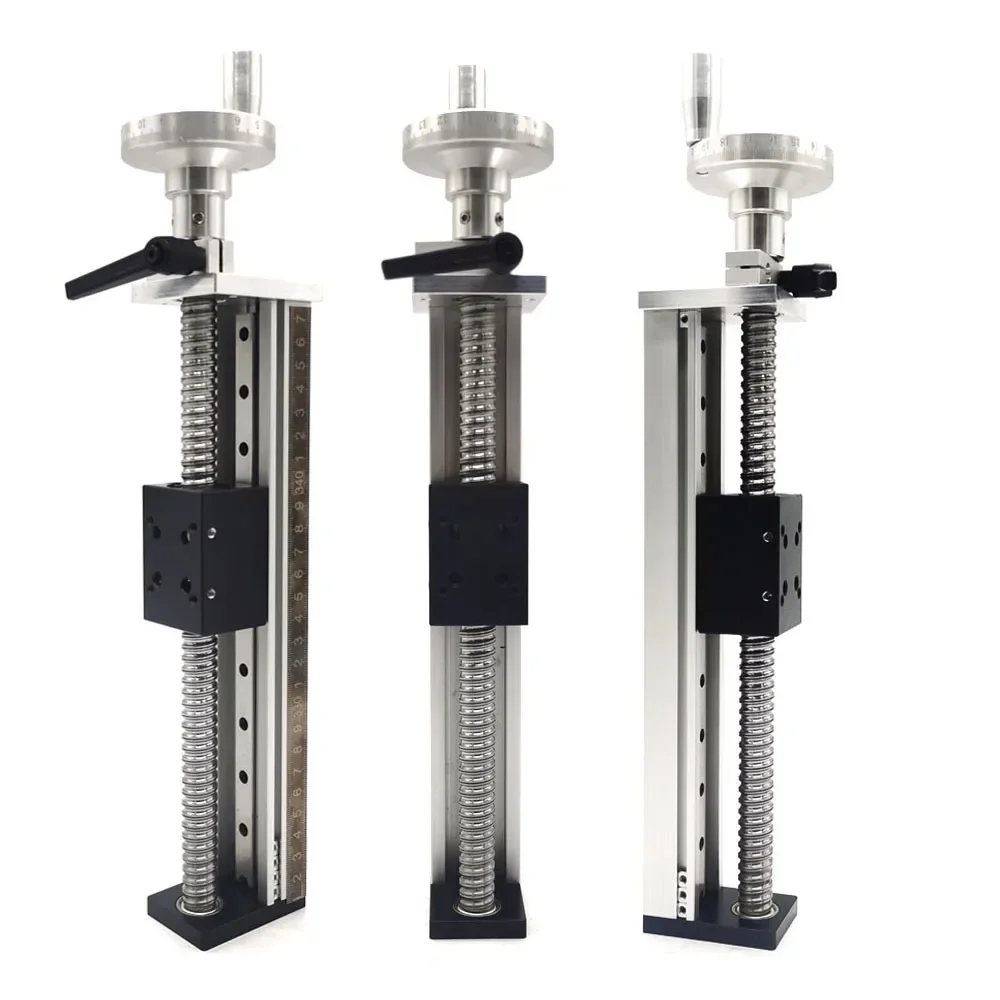

1* Manual Sliding Table

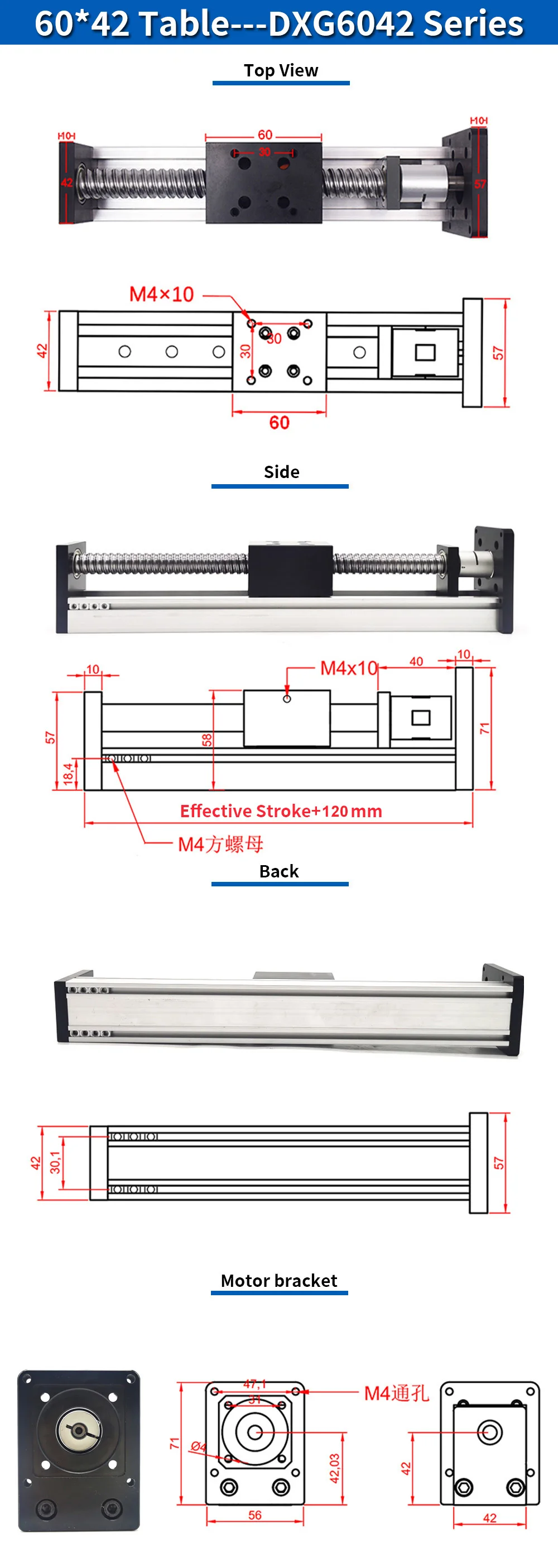

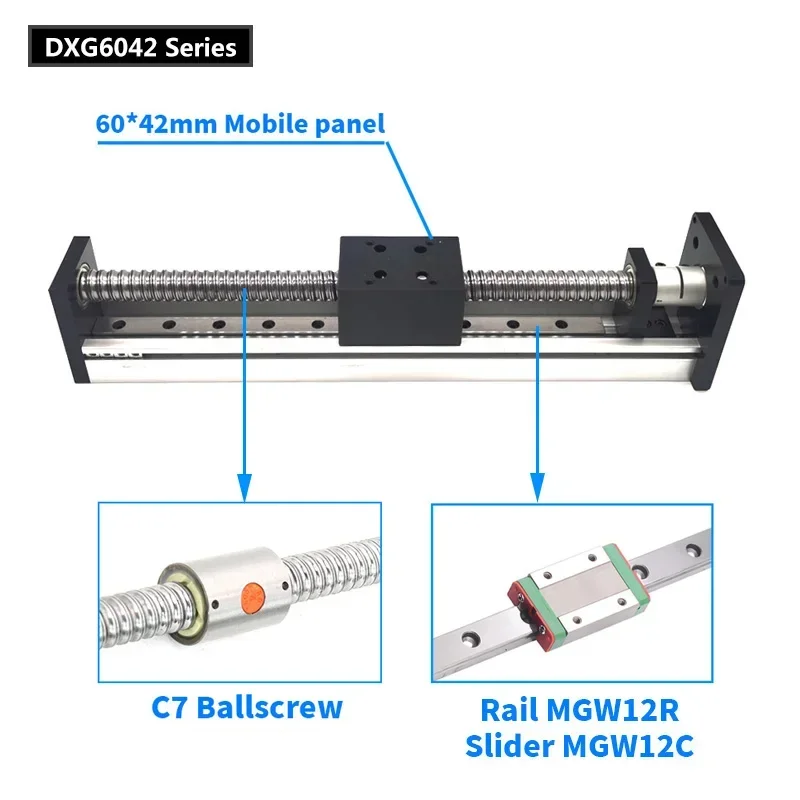

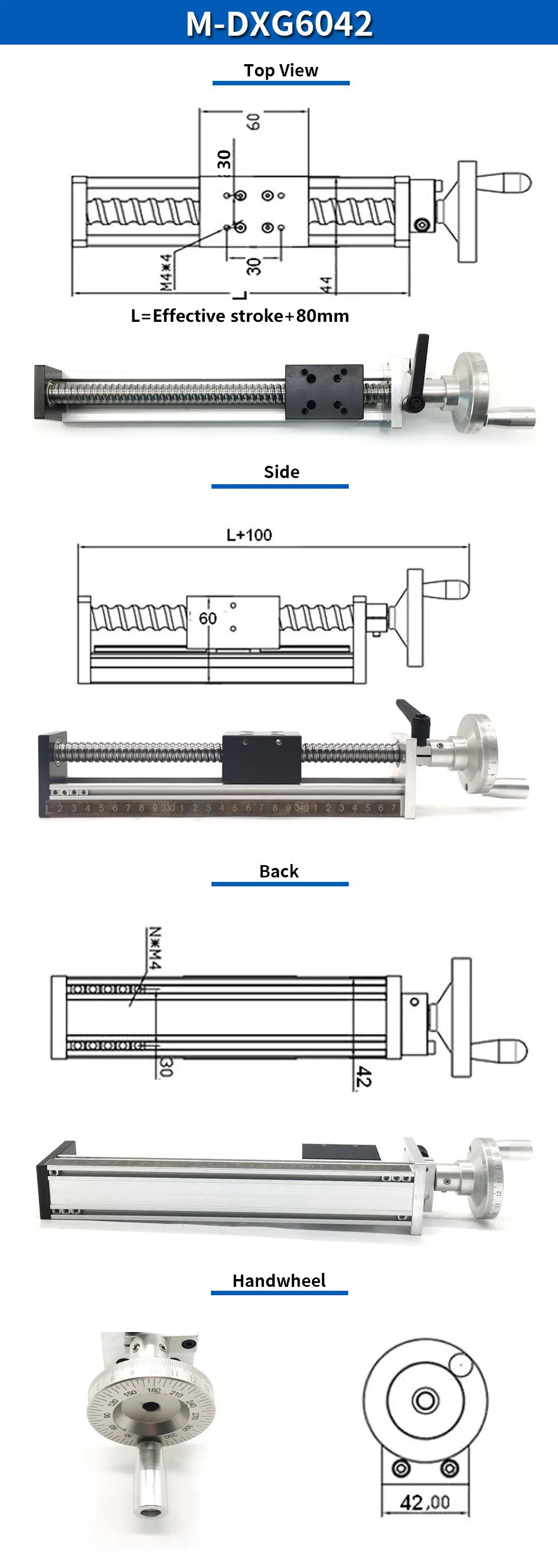

●Model: DXG6042
●Mobile panel size: 60mm*42mm
●Guide Type: 1*MGW12R
●Slider Type: 1*MGW12C
●Horizontal load: 60KG (Max)
●Vertical load: 30KG (Max)
●Maximum speed: 500mm/s
●Ballscrew Repeat positioning accuracy: 0.02-0.03mm
●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm) / SFU1204/ SFU1610
●Ballscrew accuracy: C7 level
●Motor bracket Matching type: Compatible with Nema 17/ Nema 23 Stepper motor
●Effective stroke: 50mm-1200mm Optional
●Total length of Electric: Effective Stroke+120mm
●Total length of Electric: Effective Stroke+180mm
●Guide diameter: 12mm
●Material: Industrial Aluminum Profile
