- Químico Hign-em causa: Nenhum
- Número do modelo: 20BDSENSORM
- Tipo de Item: sensor
- Nome da marca: Mellow
- Origem: CN (Origem)
Mellow work team
Thank you for coming to our shop. We are committed to developing 3D printer accessories that can be used on all 3D printers. We have 3 main product lines: NF Extruders, NF Hotends and FLY Motherboards and Electronics. We hope our products will bring you a better overall user experience. If you have any ideas (products, use, sales), please contact us. We look forward to hearing from you.
Description:
Faster leveling, realtime compensation, high accuracy.
No need to do probe points before every print, it will be automatically compensated for based on actual distance in real time.
You can do bed mesh leveling like a normal proximity sensor but much faster with this BDsensor-M.
Thanks for the distance value can be shown on the screen, you can do manual bed leveling more easily.

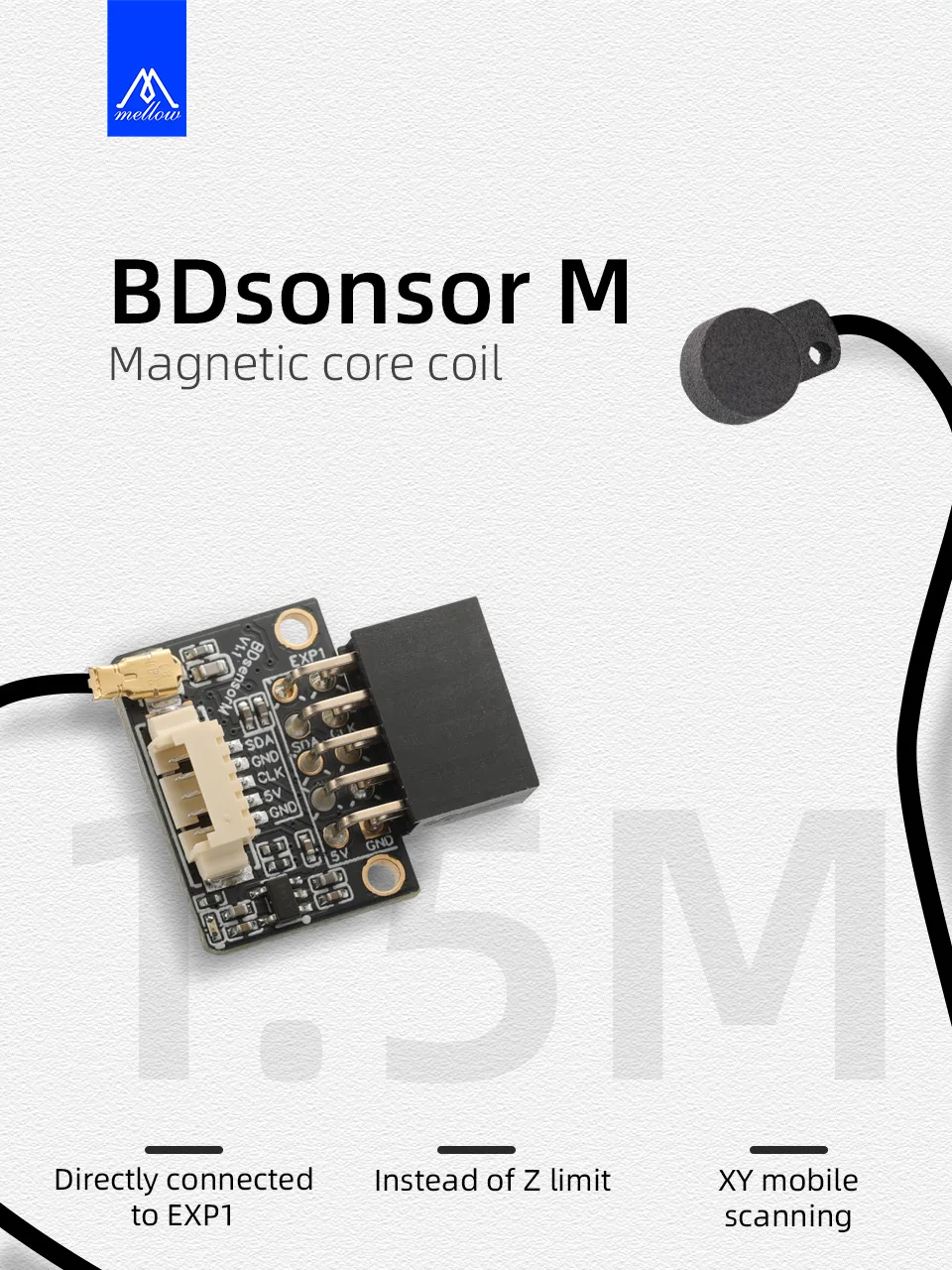

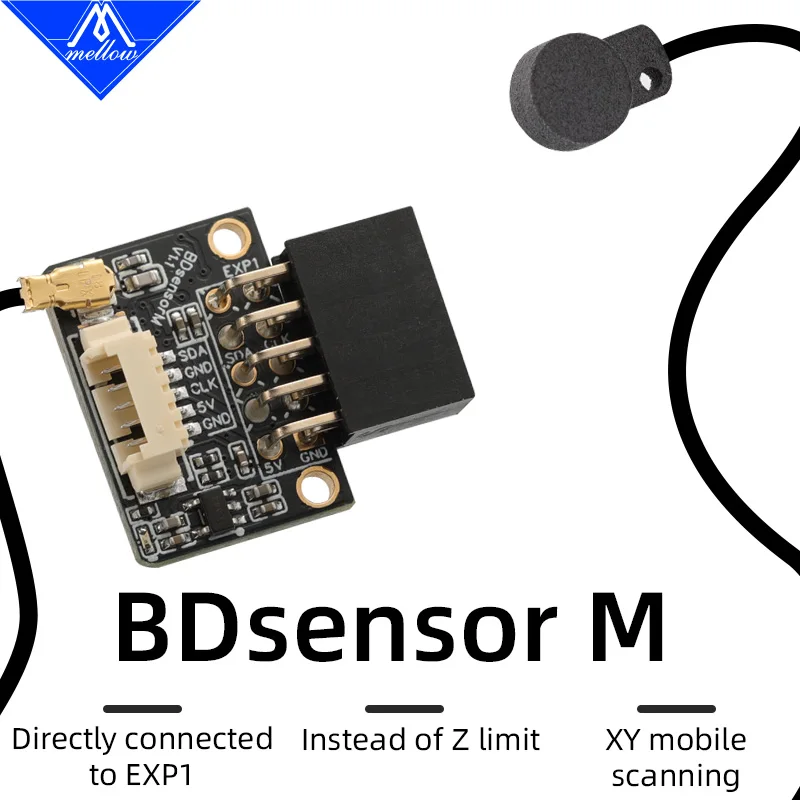

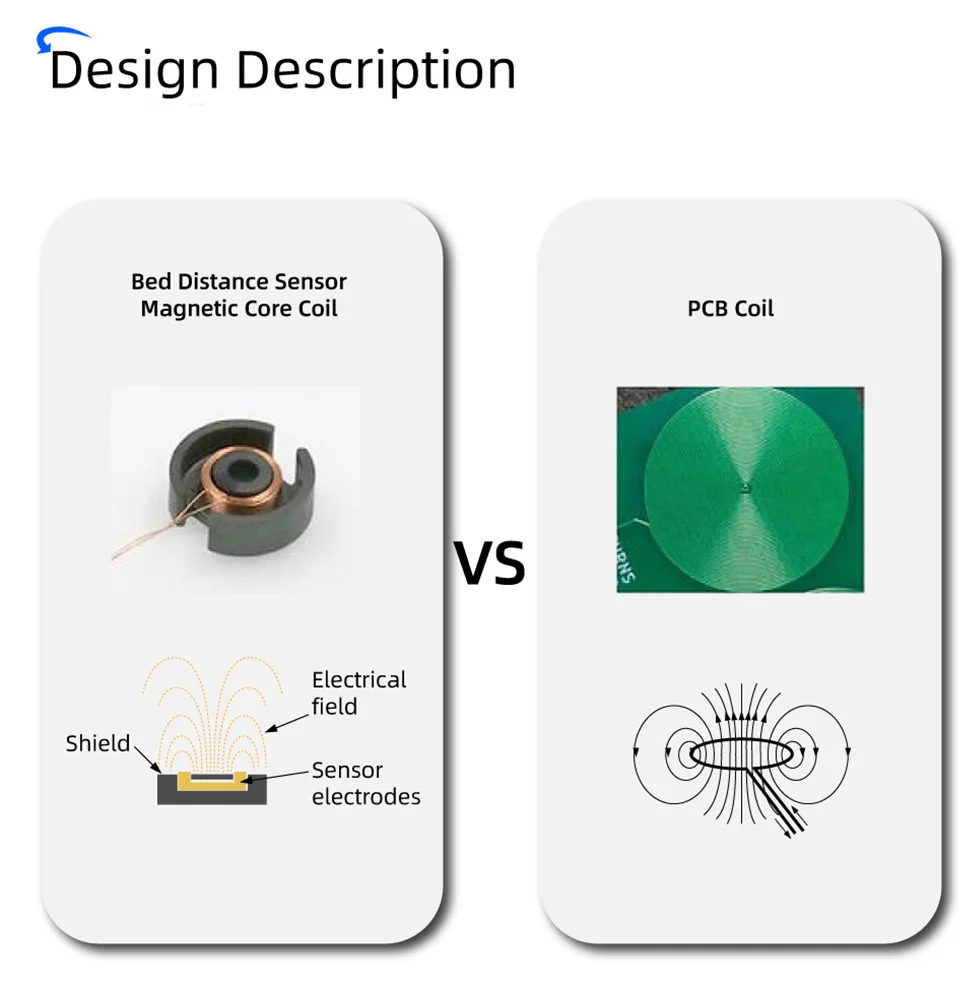

Sensor type: inductive, can only measure the metal plate.
Range: 4mm
Resolution:0.01mm

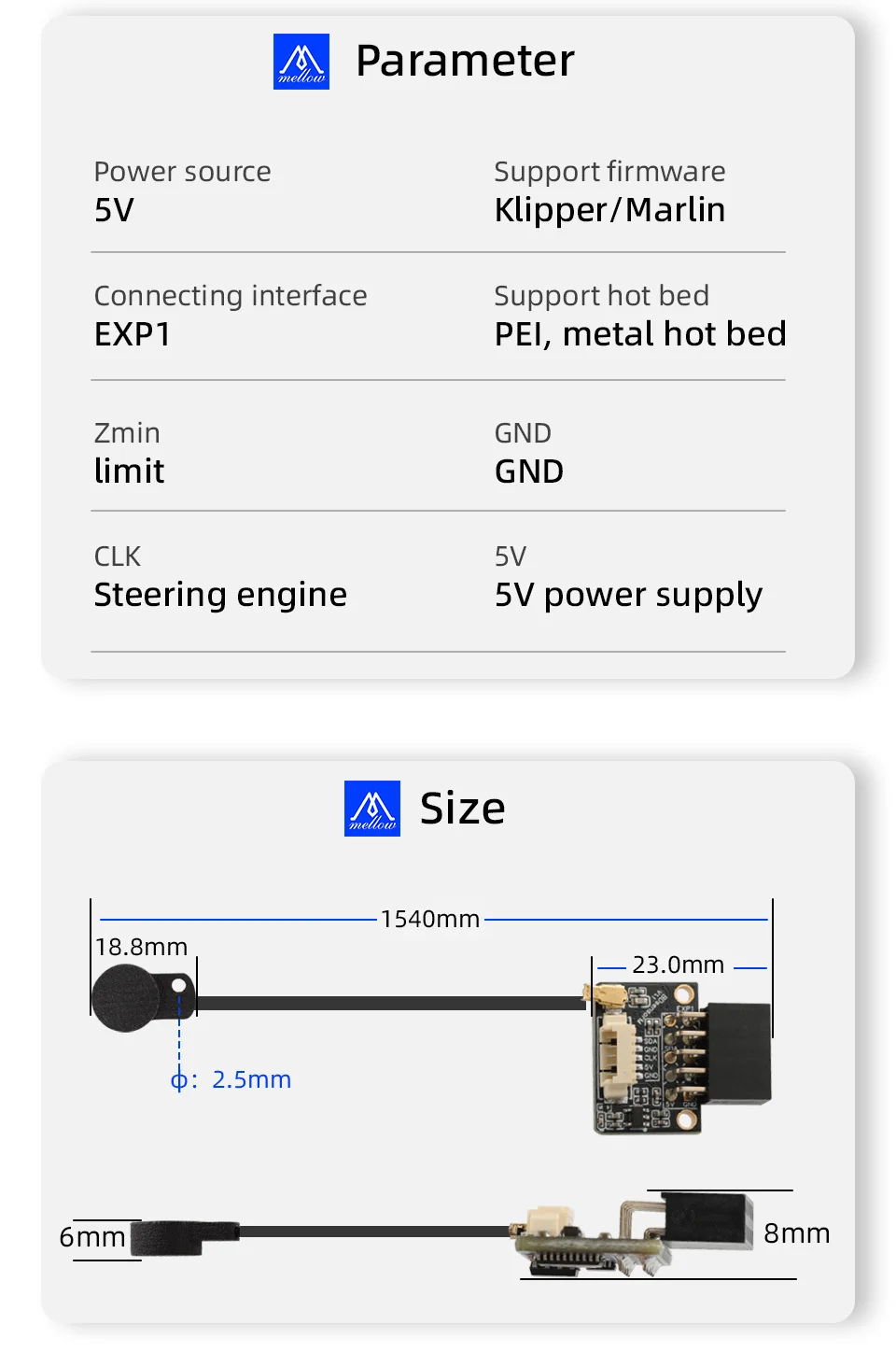

Hardware:
Support all the mainboards
- Power: 5V
- Firmware: Klipper/Marlin

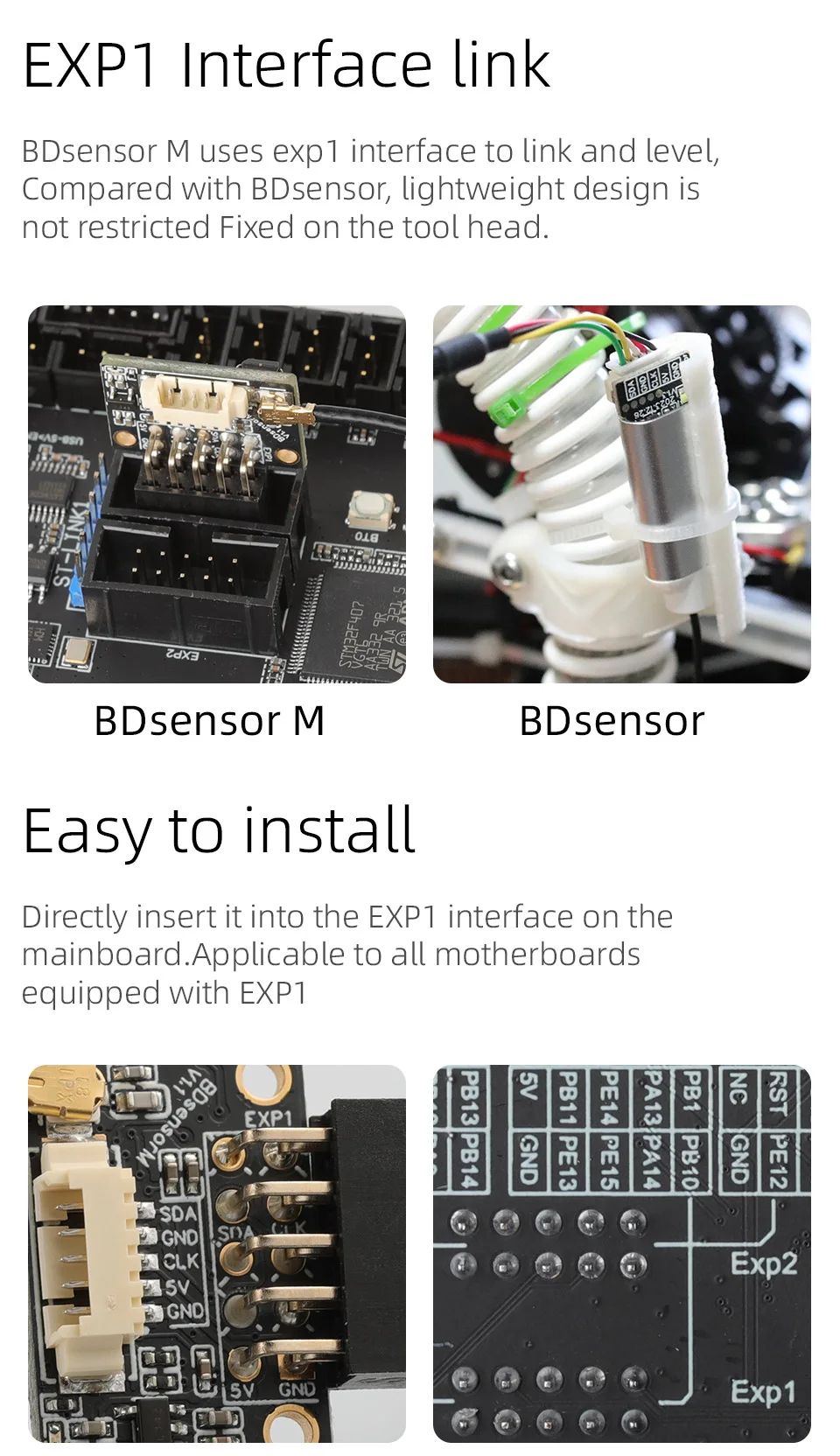

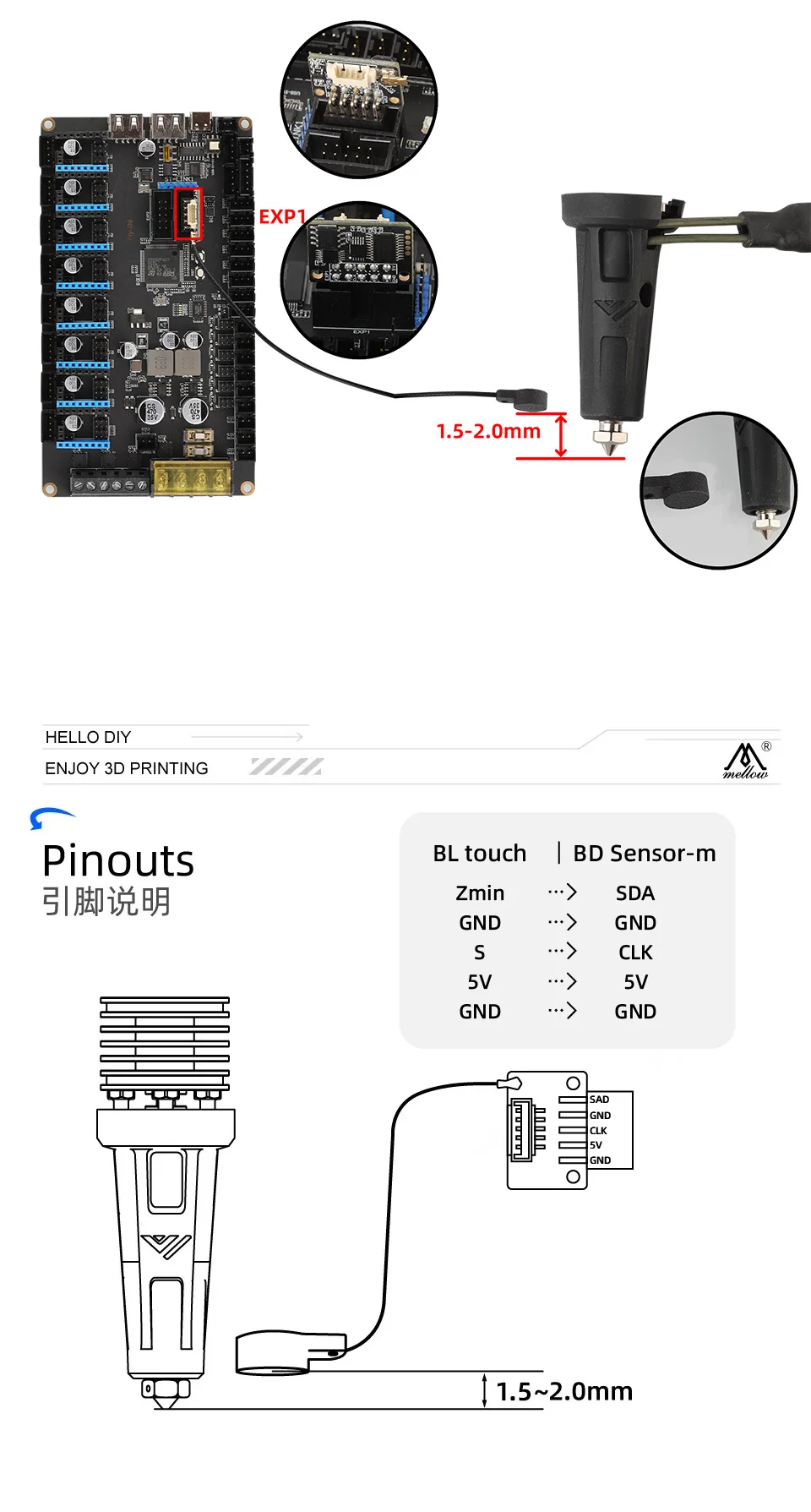

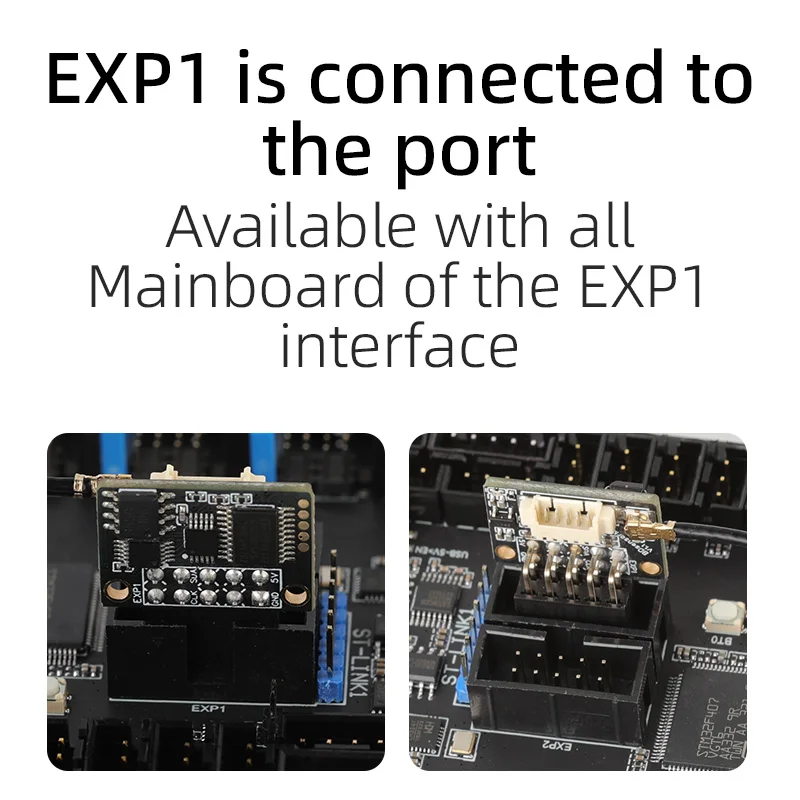

- Connection: Mainboard (BDsensor will use the exp1 interface of the mainboard)
- Heated Bed: Supports: regular PEI, aluminum plate heated beds, and other metal surface heated beds, does not support magnet perforated beds and non-metal surface heated beds

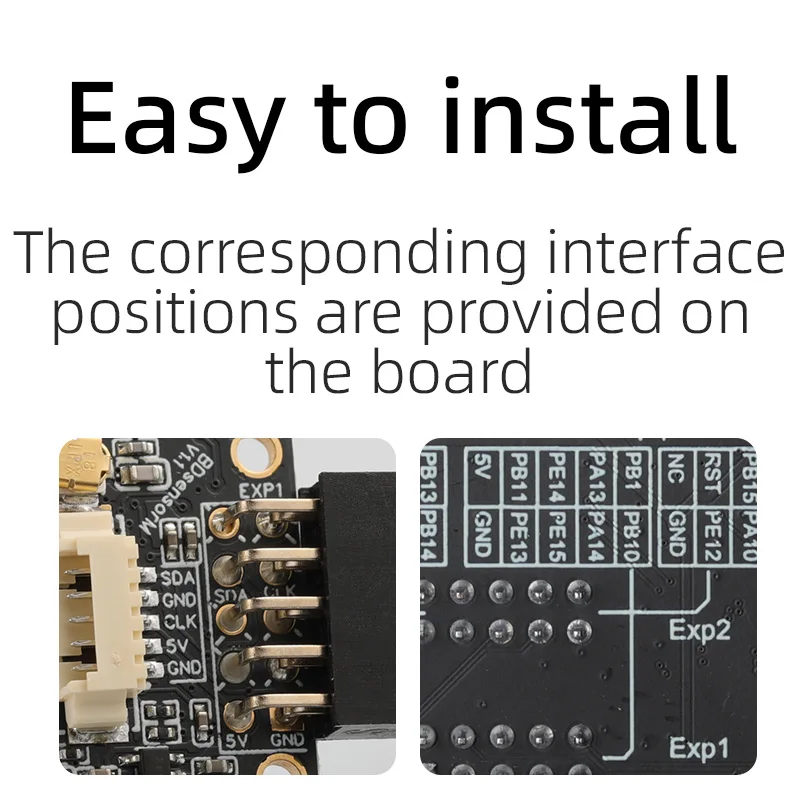

Easy to install:
small and light; can be installed anywhere, even surrounding metal above;no need to open the mainboard box as it is compatible with 3Dtouch connections.
Support Can bus module
Please refer to here:
Package:
1*BD-Sensor-M Kit
Realtime level

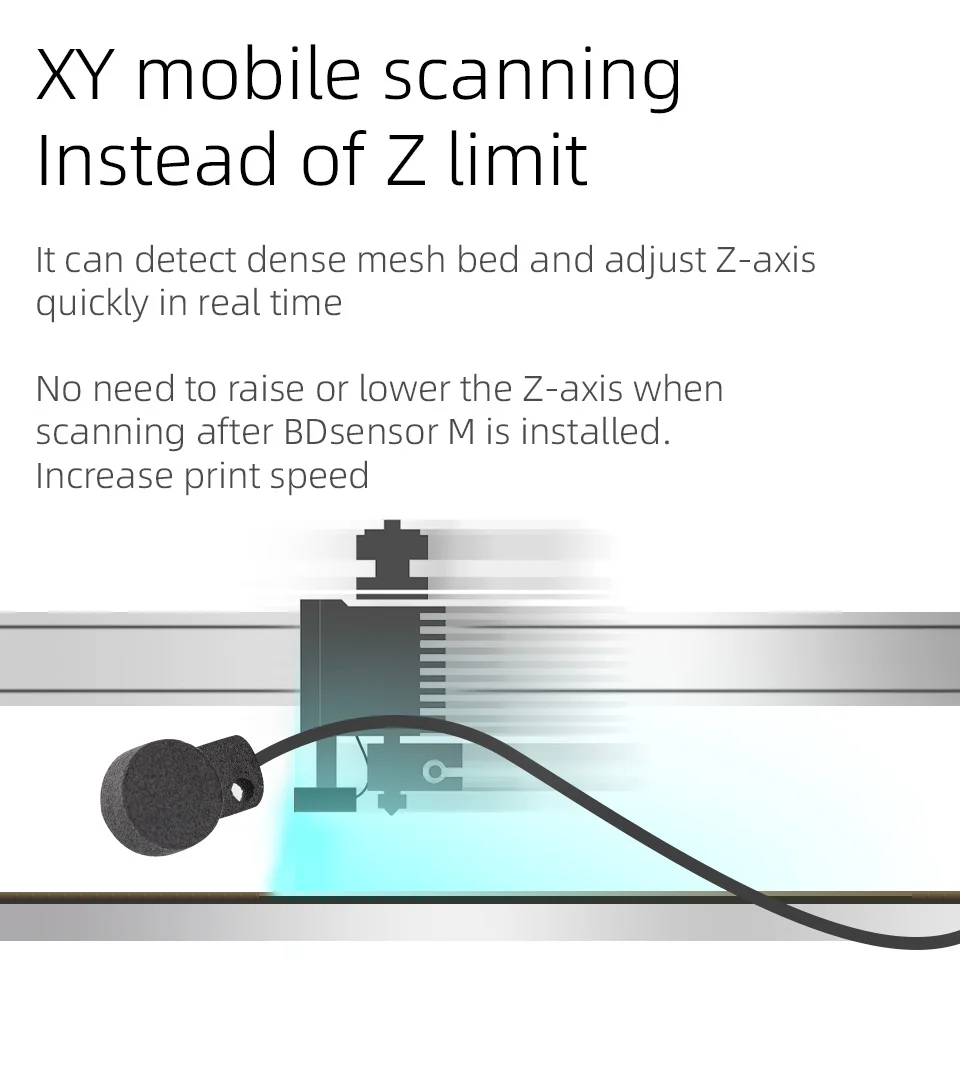

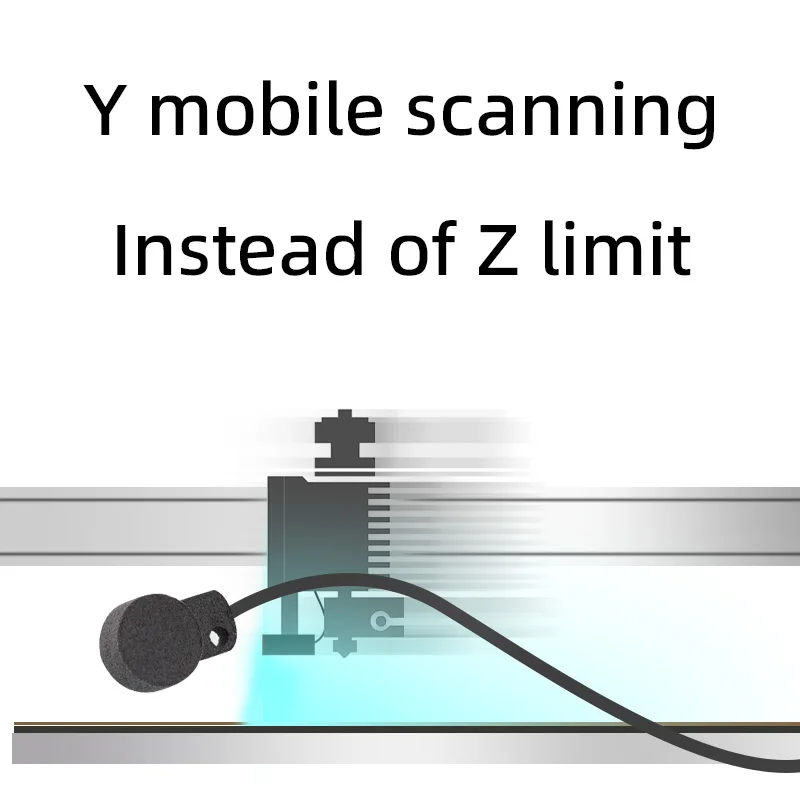

Adjust the z axis in real time atevery location,not just at probepoints.
Fast bed leveling
Because there's no z axis down andup at every probe point.10*10 probe points within 25 seconds
Easy to manual bed leveling withdistance value on the sreen
