Descrição
- Químico Hign-em causa: Nenhum
- Controlador: GRBL
- Dispositivo smart: YES
- Origem: CN (Origem)

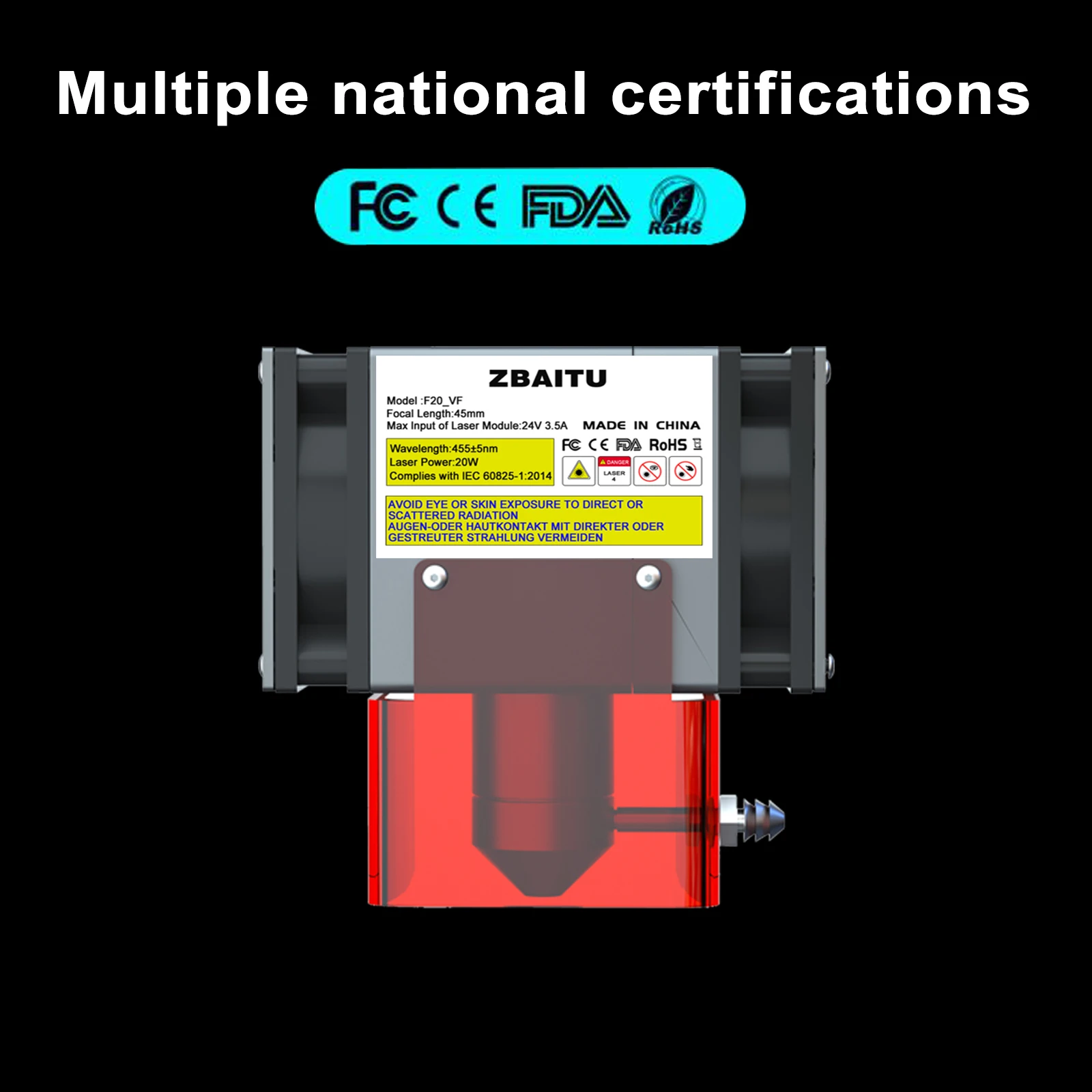

- Certificado: CE,FCC,ROHS
- Número do modelo: M81-VF20
- Condição: novo
- Nome da marca: ZBAITU
- CNC ou não: Cnc
0W+ Laser Module Laser Head Bulit In Air Assisted Dual Fans For CNC Engraver Cutting Machine Woodworking Tools Laser Potente

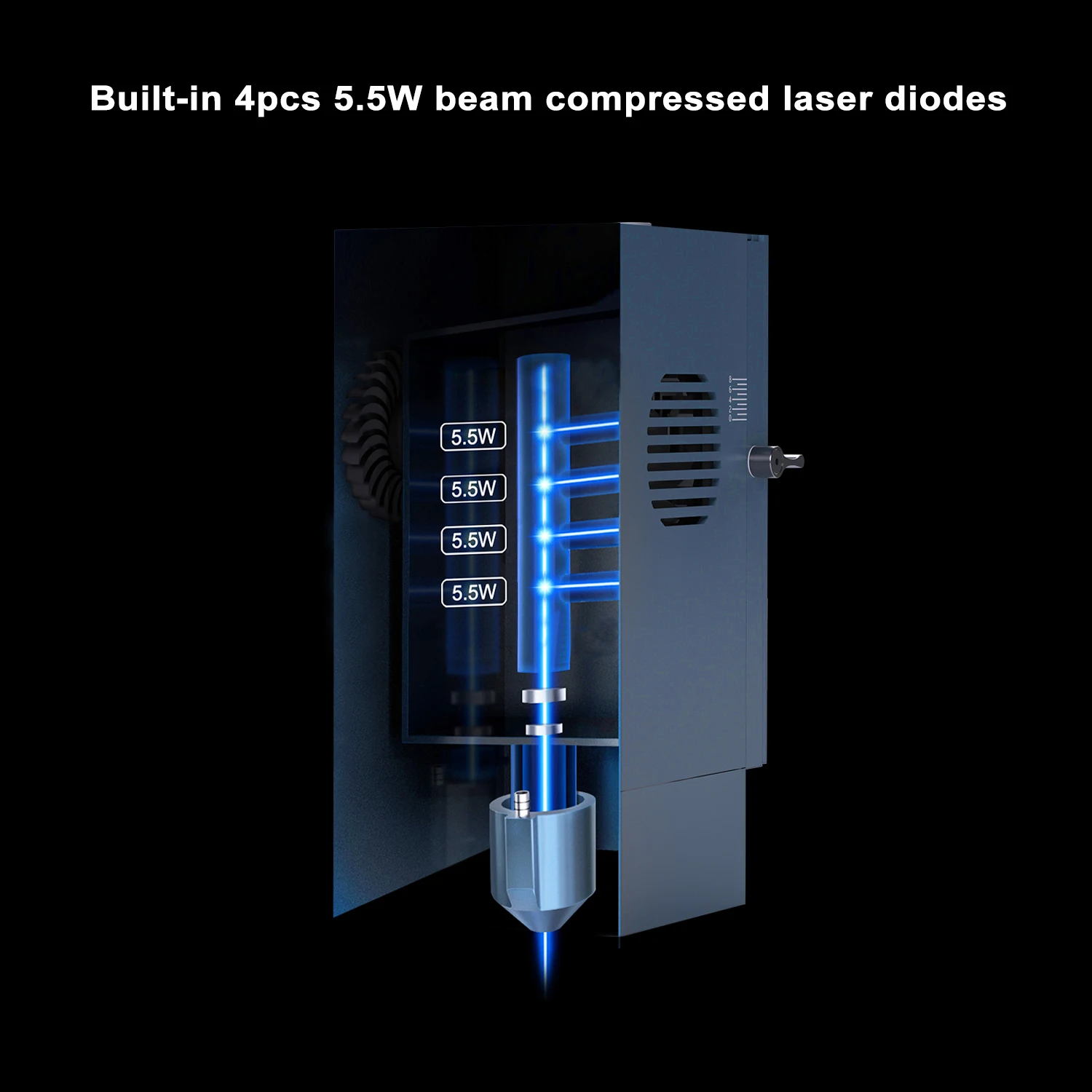

1. 4-beam Compressed Technology: 20W+ optical power laser module, increase the cutting and engraving speed.
2. New Dual Fans Cooling Design: Fan speed 12000rpm, good heat dissipation, suitable for long-term work, protect the driver of the laser, extended laser module service life.
3. With Air-assist: Blowing through the air nozzle, which improves cutting performance and reduces burn marks, make engraving and

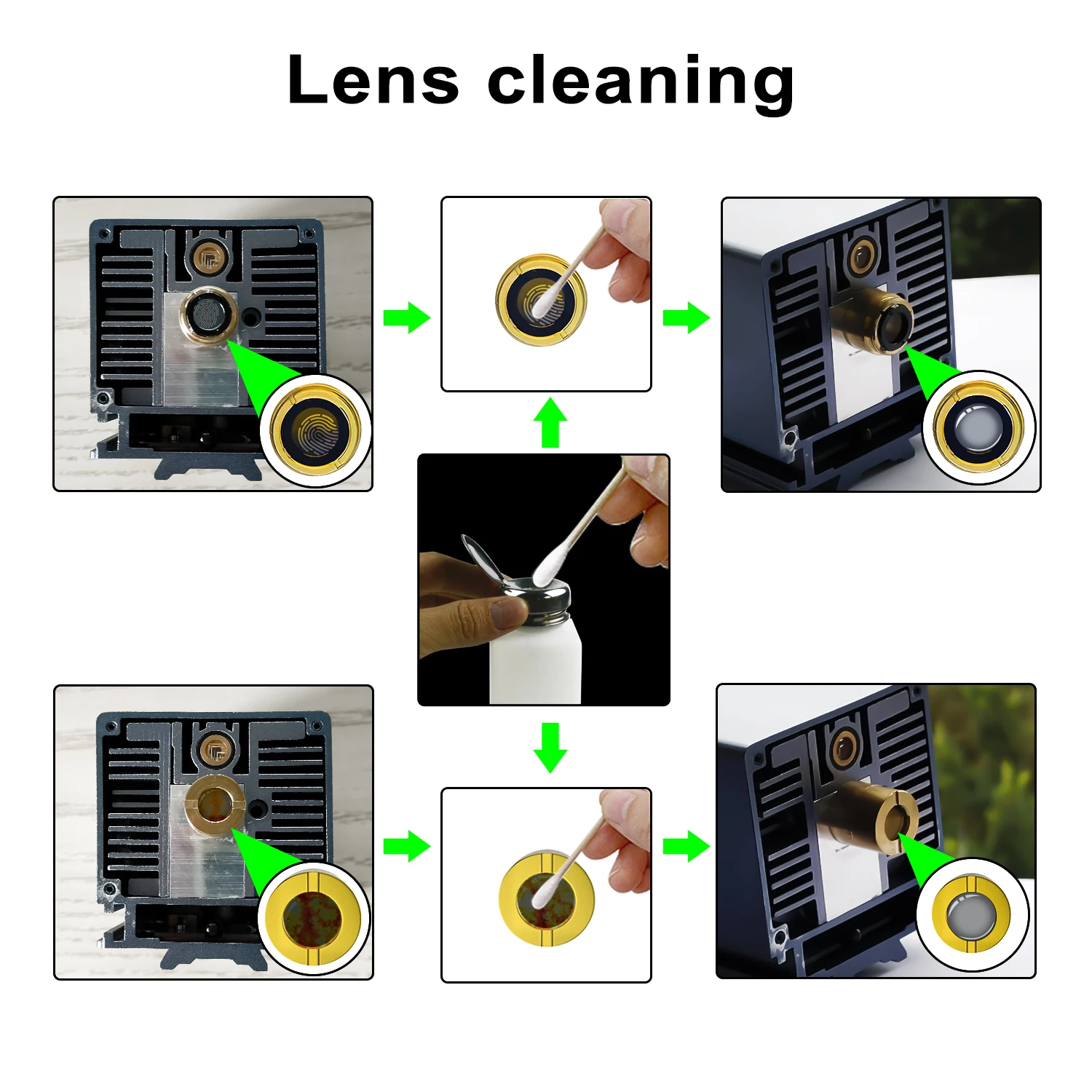

cutting more precise, protect the lens of the module.
4. 45mm Fixed Focus: upgraded high quality fixed-focus laser, no need to focus. This laser module compatible with ZBAITTU M37, M81, A40, Ortur, NEJE, Two-Trees, Xtool, Atomstack engraver etc, easy to install.
5. Widely Compatibility:24V 3.5A laser head, compatible with kinds of laser engraving machines.

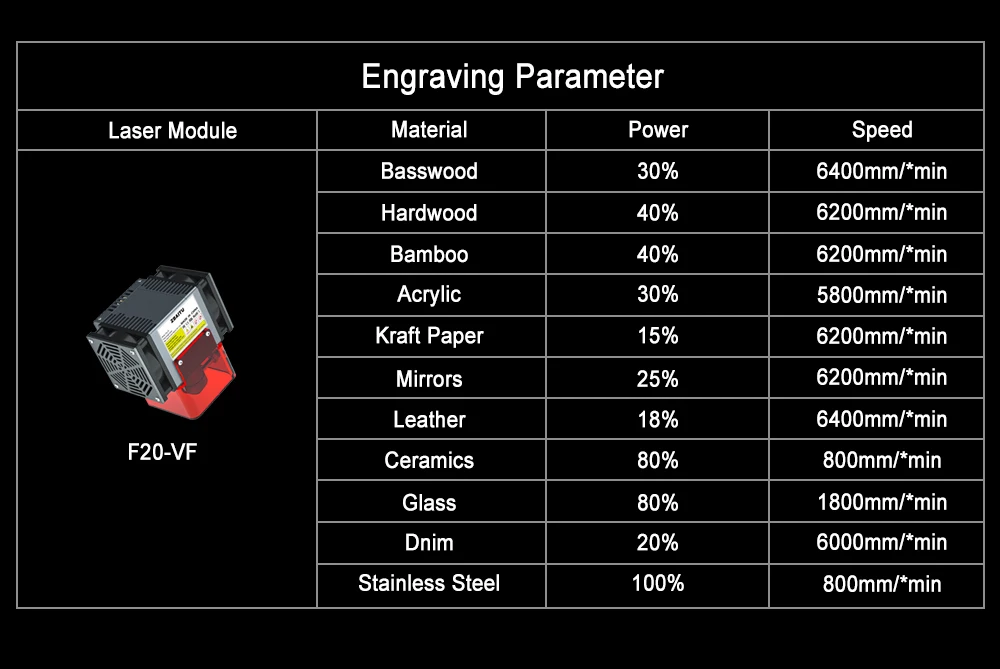

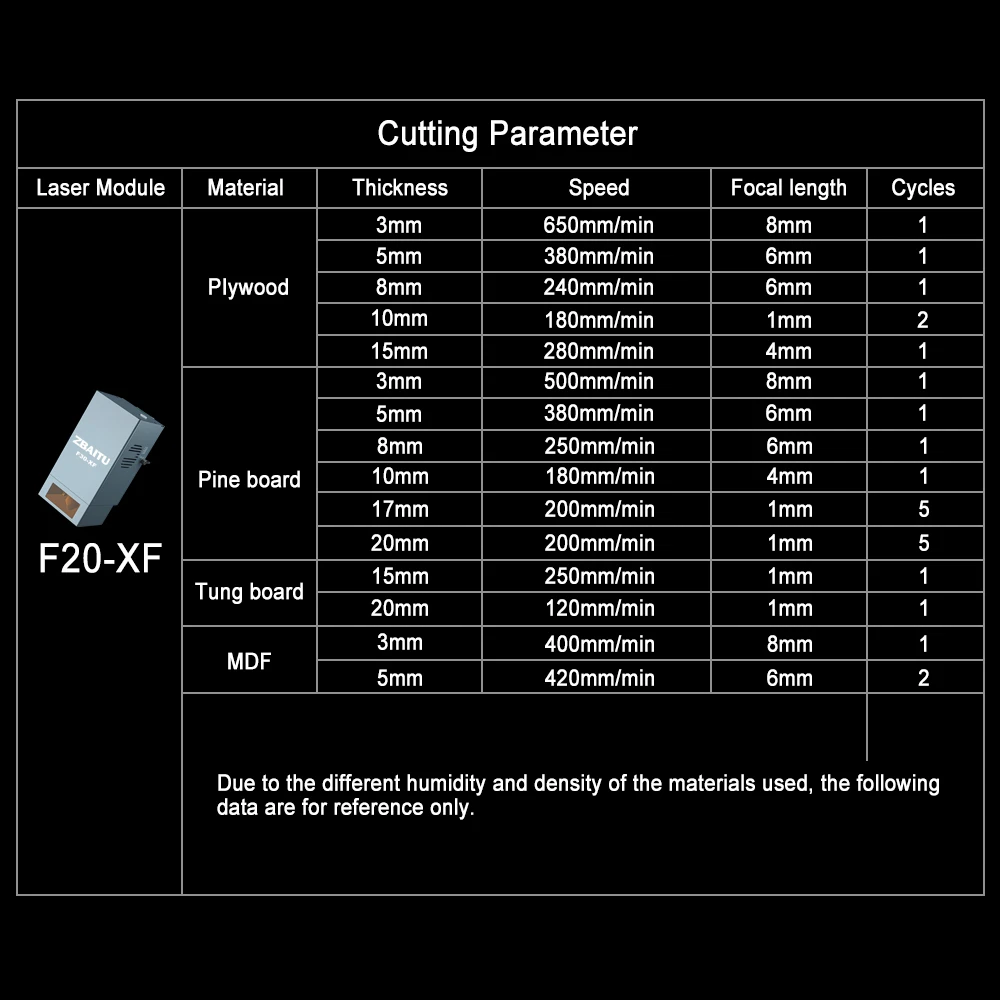

6. Super fast engraving speed: can cut 15mm plywood by one pass, 8mm black acrylic by one pass.

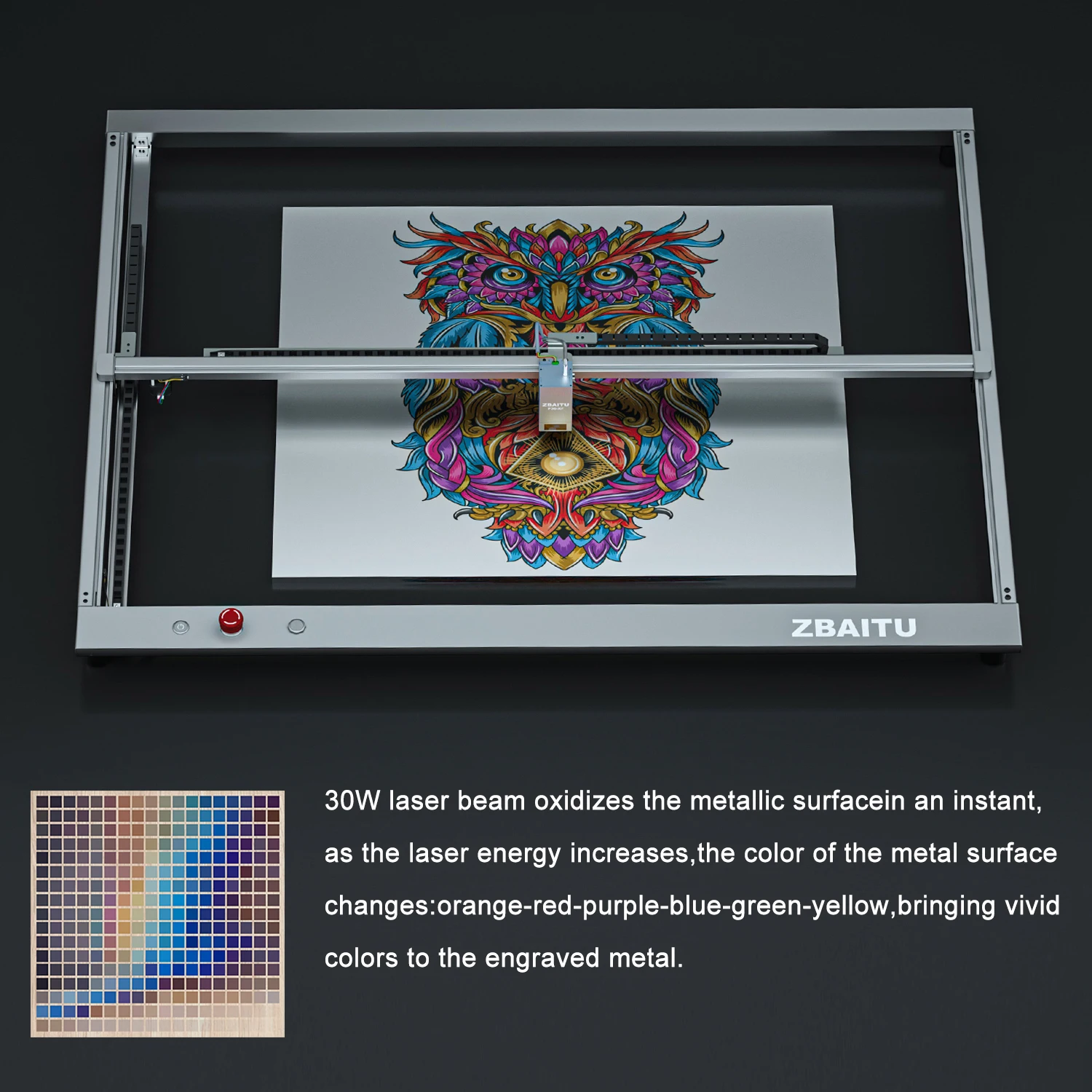

7. Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective, Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Cutting Objects:Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
Specification:
Module Model: F20-VF
Optical Output Power: 20W+
Product Material: Aluminum 6061 Anode
Housing Size: 8*8*7CM
Circuit Board Size: 44*52mm
Circuit Board: V/PWM Modulation Board
Wire Rod: 22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens: φ6/glass
Fan: 24V
Laser Beam Mode: Spot
Working Mode: Pulse Work
Light Spot Size: 0.08*0.0.08mm
Wavelength: 445±5nm
Engraving Accuracy: 0.01mm
Life Time: 10000H
Working Temperature: 0℃~70℃
Storage Temperature: 一40℃~85℃
Sintering Temperature: 2000~2400℃
Product Net Weight: 300g
