- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Origin: Mainland China
- spindle taper: BT40
- no. of spindles: 1
- type: VERTICAL
- dimension(l*w*h): 3600*2550*3050
- weight (t): 8
- table size (mm): 1300*650
- cnc control system: GSK
- table travel (x) (mm): 1200
- table travel (y) (mm): 650
- table travel (z) (mm): 800
- positioning accuracy (mm): ±0.0075
- repeatability (x/y/z) (mm): ± 0.005
- range of spindle speed(r.p.m): 1 - 8000 r.p.m
- max. table load(kg): 800
- min. time of tool change(s): 3
- tool magazine capacity: 24
- key selling points: Competitive Price
- warranty: 18 months
- place of origin: Shandong, China
- brand name: LUZHONG
- voltage: 220v/380v
- machinery test report: Provided
- video outgoing-inspection: Provided
- machining capacity: Medium Duty
- rapid feed speed(mm/min): 1 - 8000 mm/min
- Product name: LUZHONG VMC1265 5-axis Vertical CNC Milling Machine Control
- Model NO: VMC1265
- After-sales Service Provided: Video Technical Support
- Application: Metal Milling
- CNC or Not: CNC Systemn
- Keywords: vertical metal milling machine
- Precision: High Precision Vertical Milling center
- Machine Type: CNC Vertical Machine Centers
- Function: Complex Metalworking Processing
- Usage: Steel Milling Drilling Tapping Turning
If you want to know more about the product, please contact me, whatsapp: +86 18175123594 E-mail: 782569894@qq.com
Product Description
Details Display
|
SPECIFICATIONS
|
Units
|
VMC1265
|
|
Table size
|
mm
|
1300*650
|
|
X axis travel
|
mm
|
1200
|
|
Y axis travel
|
mm
|
650
|
|
Z axis travel
|
mm
|
650
|
|
Max. worktable load
|
kg
|
800
|
|
T slot(number-width*pitch)
|
-
|
5-18*120
|
|
Max. spindle speed
|
rpm
|
8000
|
|
Spindle taper
|
mm
|
BT40
|
|
Main motor power
|
kw
|
11
|
|
X/Y/Z rapid traverse speed
|
m/min
|
24/24/20
|
|
Cutting feed speed
|
mm/min
|
1-6000
|
|
Guide rail type
|
-
|
Linear rail
|
|
Distance from spindle axis to column surface
|
mm
|
670
|
|
Distance between spindle nose and table surface
|
mm
|
120-770
|
|
Positioning accuracy
|
mm
|
0.0075
|
|
Repeat positioning accuracy
|
mm
|
0.005
|
|
Tool magazine
|
-
|
Arm 24
|
|
Max. tool diameter
|
mm
|
78/120
|
|
Max. tool weight
|
kg
|
8
|
|
Machine weight
|
kg
|
7200
|
|
Overall dimension(L*W*H)
|
mm
|
3600*2550*3050
|
VMC Machine Standard Details
TAIWAN PRECISION SPINDLE
1. Spindle taper is BT40;
2. Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
3. Taiwan Spindle passed dynamic balance ISO rating test
TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 Arm tool magazine, double arm clamping to make a fast exchange.
tool change time only 3 seconds.
2. Brand: OKADA
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
2. Brand: HIWIN or PMI
SCREW AND COUPLING
1 Taiwan precision lead screw,
2. lead screw bearing using SKF or NACHI bearing,
3. coupling R+W directly connected
3. coupling R+W directly connected
CONTROL SYSTEM
Standard: GSK / KND control
Optional : Siemens , FANUC, Syntec ect.

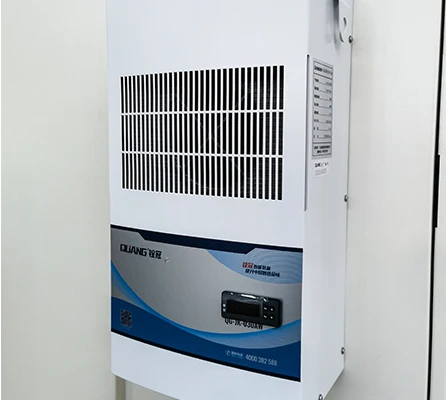

AIR CONDITIONER
Standard with Industrial electrical cabinet air conditioner.
Cooling the electric box better .
TOOL UNCLAMP CYLINDER
Taiwan spindle Tool unclamp cylinder

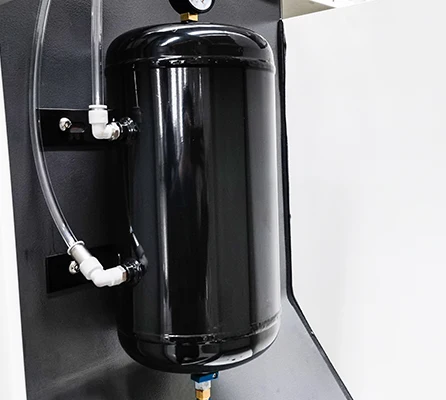

AIR STORAGE TANK
Air storage tank to ensure the stability of spindle tool change
STRONG CHIP PUNCHING
Strong chip punching as standard
AIR GUN AND WATER GUN
High-pressure air guns and high-pressure water guns

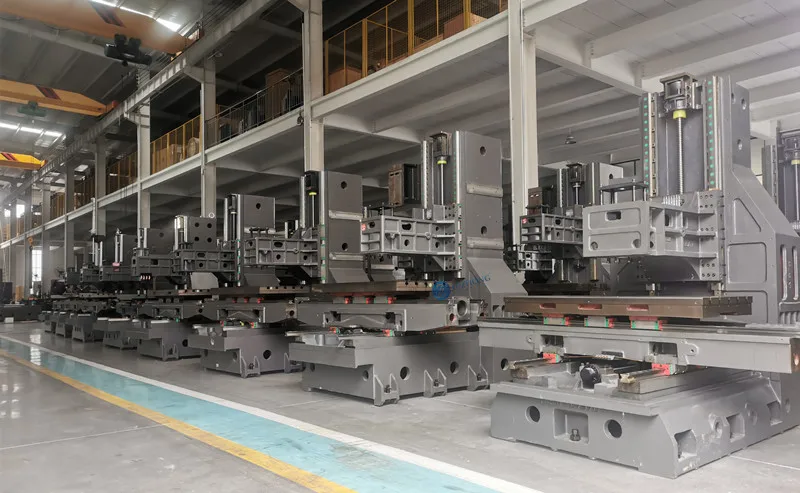

MACHINE CONSTRUCT
1. High strength high quality cast iron, 2. long span bed base and vertical column structure
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. quick plug as standard
LUBRICATION SYSTEM
Automatic centralized lubrication device .
TESTING
Each machine passed Renishaw laser interferometer testing and ballbar testing
