Yaskawa servo motor and driver
Syntec control system

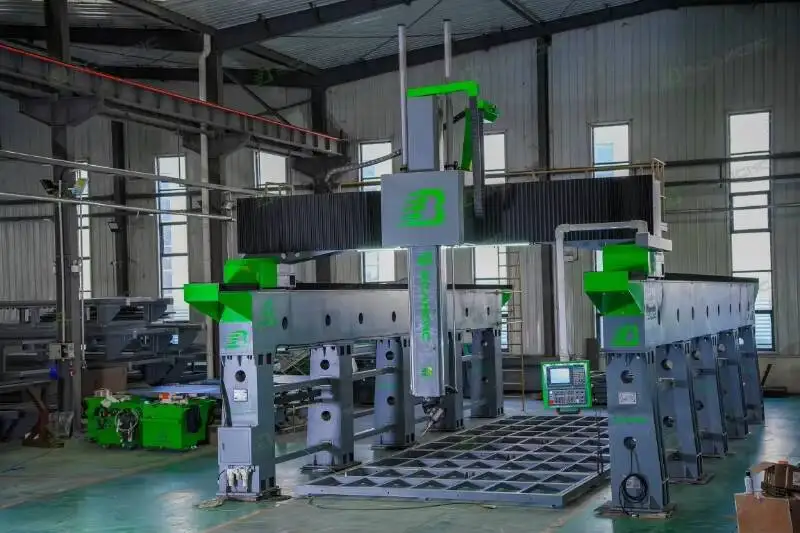

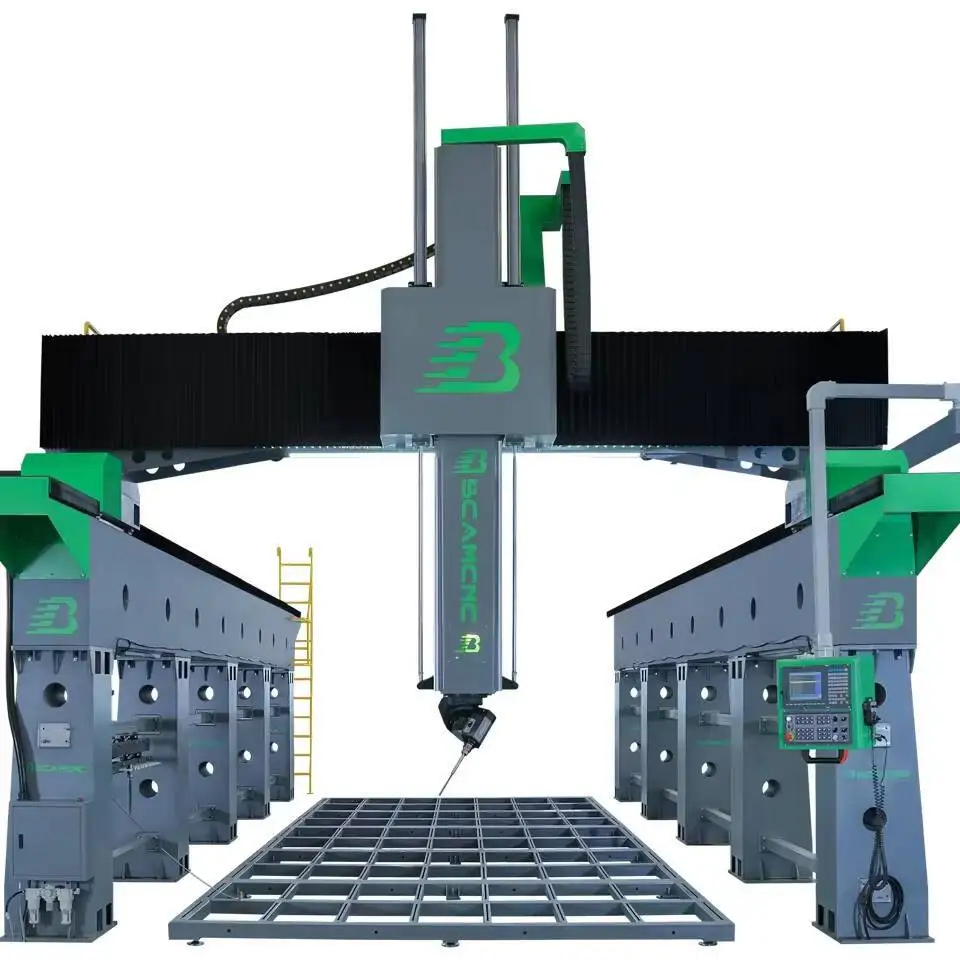

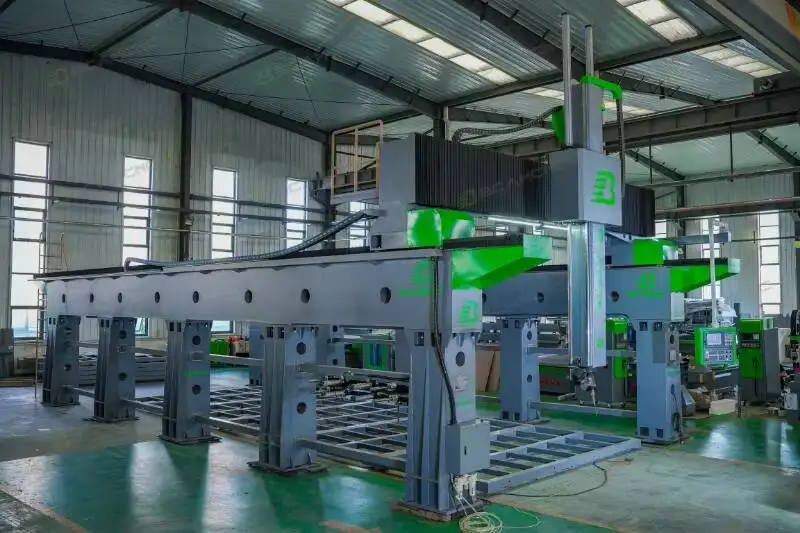

Large size Gantry moving 5 axis CNC Router machine cnc mold milling machine with Italian 5axis head
Product Description
Advanced high-end mold five-axis machining center.
Gantry movable design, suitable for ultra-large processing areas, such as 2500*5000mm, 3000*5000mm, 3000*6000mm, 4000*8000mm, 40000*10000mm, 5000*12000mm, etc. The size can be customized according to customer requirements;
Z-axis height can also be customized according to customer needs, such as 900mm, 1200mm, 1500mm, 1800mm, 2000mm, 3000mm, etc.
5-axis cnc router machine widely used in Mold industry, foam, wood, plastic, fiberglass and other soft metal material molds.
Automobile molds, ship molds, container molds, plane molds, casting molds, mold molds, track wood molds, wooden mold trains, wooden ship models, wooden models aviation, 3D surface carving and 3D shape cutting
Animal and human figure, statue processing industry.
Specification
Product Details

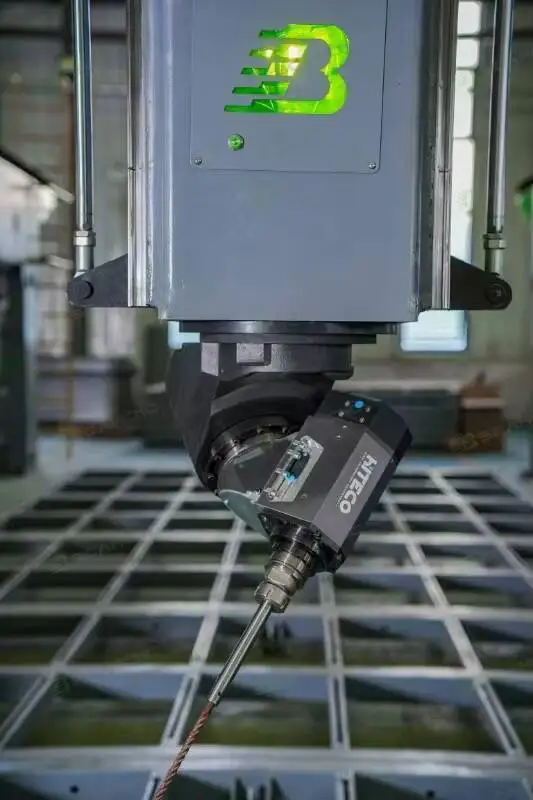

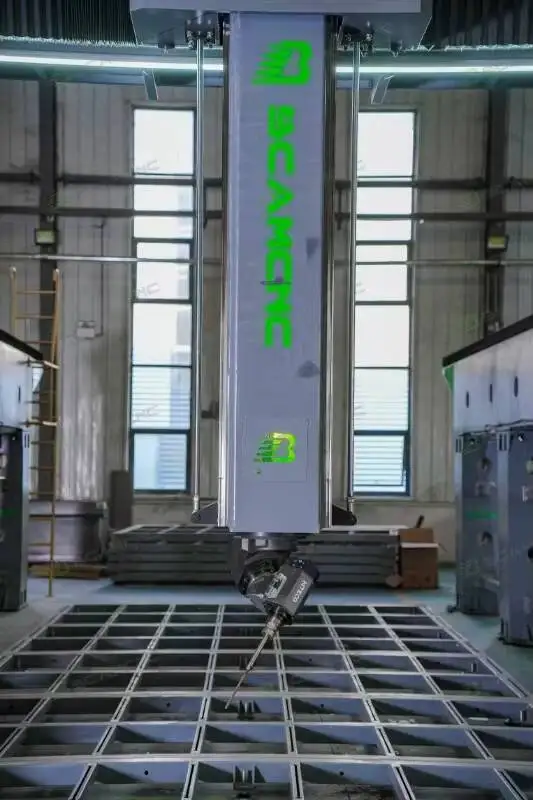

5 AXIS HEAD
Italian Hiteco 5 axis heads and spindle are used for the production of furniture, windows, roofs and wooden walls as well as in other sectors such as railways, automotive and aerospace.
Power: 13.5kw, 15kw, 18kw , 20kw, 25kw, 30kw, 35kw, etc
Spindle type: Liquid-cooled spindle
24000 RPM
HSK F63 tool holder
1.3kw/1.8kw /2.9kw Yaskawa servo motor,achieving high positioning accuracy and repeatability,
Syntec 5 axis operating system with RTCP function (tool tip point control function). It provides a three-dimensional tool length correction function. Users only need to calculate the workpiece outline coordinates on the CAM software, and the controller will automatically take the tool length and wear values into consideration. The tool tip point will always be machined on the workpiece outline.
Applications&Samples
Advanced 5 axis cnc router machine, It is good at space curved surface processing, special-shaped processing, hollow processing, punching, oblique drilling, chamfering, etc. So It is widely used in aerospace, military scientific research, precision machinery, high-precision medical equipment, normal manufacturing, etc. Used in mold industry, Large metalloid moulds, building model,automotive foam mold, wooden ship model, rail wooden mold ,wooden model aviation, and wooden mold train, etc.
Certification
Company Profile
BCAMCNC
Bcamcnc is a professional machinery manufacturing company, with 10,000 square meters factory，a highly specialized workforce and more than 20 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers..
Customer praise
Packing & Delivery
Packing Details
1. Standard plywood case/Plate, its compressive strength and bearing quality is better.
2. The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. When importing, the plywood case is with fumigation-free, the procedure is simple..
3. When importing, the plywood case is with fumigation-free, the procedure is simple..
