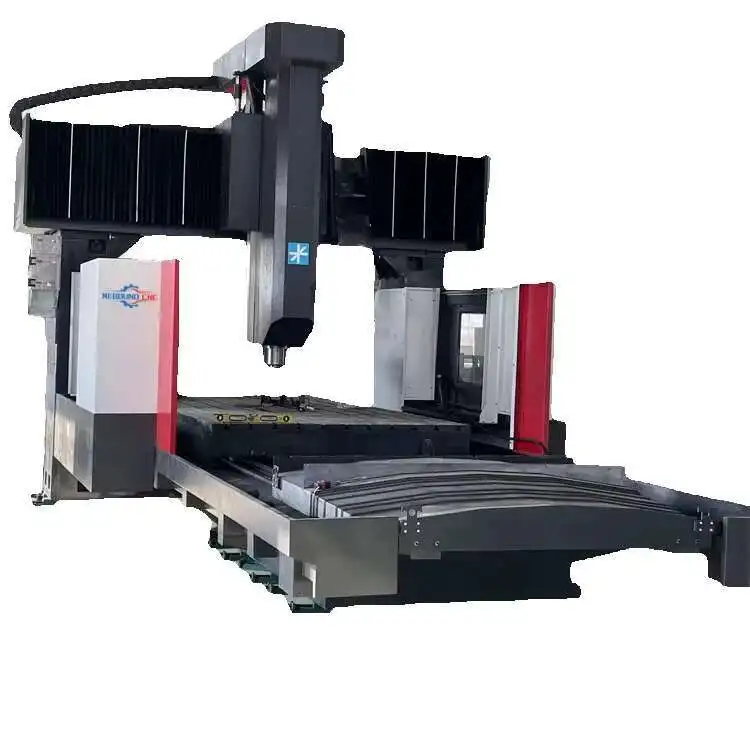

- Hign-concerned Chemical: None
- Condition: New
- Type: Vertical
- Origin: Mainland China
- Certification: CE
Parameters
type | RB-M2020 (Moving beams) | RB-G1313 (Moving beams) | RB-M3030 (Moving beams) | ||
project | unit | ||||
width | mm | 2000 | 1300 | 600 | |
width | mm | 2000 | 1300 | 5000 | |
bear the weight | T | 18 | 3.5 | 3 | |
Table stroke (X-axis) | mm | 2000 | 1450 | 650 | |
Saddle travel (Y-axis) | mm | 2000 | 1450 | 5200 | |
Stroke of ram (Z-axis) | mm | 800 | 800/1000 | 600 | |
Distance from spindle end face to workbench | mm | 200-1000 | 200-1000/1200 | 200-800 | |
Distance between beams and columns (too wide) | mm | 2300 | 1500 | 700 | |
Distance from table to lowest end of beam (too high) | mm | 1000 | 1000/1200 | 800 | |
brand | - | Dan Quan/Lien | |||
taper | BT50 | BT40/BT50 | BT40/BT50 | ||
rotation speed | r/min | 40-6000 | 40-3000/6000 | 40-3000/6000 | |
Spindle motor power | KW | 15/18.5/22 | 15/18.5/22 | 15/18.5 | |
X/Y/Z fast feed | m/min | 12/12/12 | 12/12/12 | 12/12/12 | |
X/Y/Z fastest cutting feed | m/min | 6 | 6 | 6 | |
Tool magazine | Desu | ||||
12 / 24 / 32 | 12 / 24/ 32 | 12/24/32 | |||
X/Y/Z screw specifications (optional) | Pay/model | 63/ 63/ 50 | 50/ 50/ 50 | 63/ 40/ 40 | |
Number of X-axis rails/ specifications (number of optional rails.) | Pay/model | 4-55/Roller Heavy Duty Guide/Dual Drive | 3-45/roller heavy-duty guide | 3-45/roller heavy-duty guide | |
Number of Y-axis guides/ specifications (number of optional guides) | Pay/model | 4-55/Roller Heavy Duty Guide Rail (Wrap-around Type) | 2-45/Roller Heavy Duty Guide/Dual Drive | 3-45/Roller Heavy Duty Guide/Dual Drive | |
Number of Z-axis guides/ specifications (number of optional guides) | mm | 4-55/Roller Heavy Duty Guide Rail (Wrap-around Type) | 4-35/Roller Heavy Duty Guide Rail (Wrap-around Type) | 4-55/Roller Heavy Duty Guide Rail (Wrap-around Type) | |
X-axis (positioning/repeating) | mm | 0.055/0.03 | 0.062/0.03 | 0.055/0.03 | |
Y-axis (positioning/repeating) | mm | 0.03/0.025 | 0.03/0.02 | 0.03/0.025 | |
Z-axis (positioning/repeating) | mm | 0.02/0.015 | 0.02/0.015 | 0.02/0.015 | |
KWX/Y/Z three-axis servo | KW | 4.4 / 4.4 / 4.4 | 2.4 / 2.4 / 2.4 | 2.4 / 2.4 / 2.4 | |
Numerical control system | operating system | - | |||
T | 18 | 8 | 7 | ||
M | 5*5*6 | 2.5*2.5*3 | 7*1.5*3 |
type | RB-F240120 | RB-6060 | RB-M3030 (Moving beams) | ||
project | unit | ||||
Working table | width | mm | 12000 | 6000 | 3000 |
width | mm | 24000 | 6000 | 3000 | |
bear the weight | T | 50 | 30 | 22 | |
Table stroke (X-axis) | mm | 12000 | 6000 | 3000 | |
Saddle travel (Y-axis) | mm | 24500 | 6200 | 3000 | |
Stroke of ram (Z-axis) | mm | 2000 | 2000 | 800/1000 | |
Distance from spindle end face to workbench | mm | 200-2200 | 200-2200 | 200-1000/1200 | |
Distance between beams and columns (too wide) | mm | 13200 | 7200 | 3300 | |
Distance from table to lowest end of beam (too high) | mm | 2400 | 2400 | 1000/1200 | |
brand | - | Dan Quan/Lien | |||
taper | BT-50 | BT50 | BT50 | ||
rotation speed | r/min | 40-2500 | 40-3500 | 40-3000 | |
Spindle motor power | KW | 22/30 | 15/22/30 | 15.8/22/30 | |
X/Y/Z fast feed | m/min | 8/8/10 | 10/10/10 | 10/10/10 | |
X/Y/Z fastest cutting feed | m/min | 4 | 6 | 4 | |
Desu | |||||
12/24/32 | 12/24/32 | 12/24/32 | |||
X/Y/Z screw specifications (optional) | Pay/model | 100 (Rack)/ 100 (Rack)/ 63 | 80/ 80/ 63 | 63(80)/ 63(80)/ 63 | |
Number of X-axis rails/ specifications (number of optional rails.) | Pay/model | 3-65/roller heavy-duty guide | 3-65/roller heavy-duty guide | 3-55/roller heavy-duty guide | |
Number of Y-axis guides/ specifications (number of optional guides) | Pay/model | 4-65/Roller Heavy Duty Guide/Dual Drive | 4-65/Roller Heavy Duty Guide/Dual Drive | 4-55/Roller Heavy Duty Guide/Dual Drive | |
Number of Z-axis guides/ specifications (number of optional guides) | mm | 4-55/Roller Heavy Duty Guide Rail (Wrap-around Type) | 4-55/Roller Heavy Duty Guide Rail (Wrap-around Type) | 4-55/Roller Heavy Duty Guide Rail (Wrap-around Type) | |
X-axis (positioning/repeating) | mm | 0.062/0.03 | 0.055/0.03 | 0.062/0.03 | |
Y-axis (positioning/repeating) | mm | 0.03/0.02 | 0.03/0.025 | 0.03/0.02 | |
Z-axis (positioning/repeating) | mm | 0.02/0.015 | 0.02/0.015 | 0.02/0.015 | |
KWX/Y/Z three-axis servo | KW | 9 / 7 / 7 | 9 / 7 / 7 | 4.4 / 4.4 / 4.4 | |
Numerical control system | operating system | - | |||
Other | T | 300 | 120 | 26 | |
M | 30*18*8 | 10*10*10 | 6*6*7 |
PRODUCT CONFIGURATION
Mechanical spindle: Taiwan DANQUAN
Machine table
The bed of
Machine structure
Track and slider, Lead screw
The machine adopts Taiwan HIWIN guide rails and sliders, which have high positioning accuracy, low noise, and high wear resistance. Screw auxiliary transmission, machine processing accuracy is higher.
CNC control system: KND K1000MF
speeds.Integrated flat cast aluminum panel, oil resistant and waterproof, with an 8-inch color LCD screen.The maximum fast speed is 120 meters/minute, and the maximum feed speed is 48 meters/minute.5 feed axes.
Servo driving system
SD series AC synchronous servo drives have stable performance, rich functions and strong overload capability. They are equipped with Kaindi ST series servo motors to meet market demand. SD300 can be equipped with a relative (absolute) value encoder, and SD310 is a KSSB servo bus communication method. It can be equipped with a relative (absolute) encoder and can also be connected to a grating ruler.
Hydraulic chuck table optional
High precision: The clamping force of the hydraulic chuck is stable, which can achieve high-precision processing and improve processing quality. Good stability: The hydraulic chuck uses liquid as the driving force, which has good
stability and can reduce changes in clamping force,thereby improving processing quality and stability.
Row type tool holder optional
Improve production efficiency: The row-type tool holder could quickly change tools. The robot responsible for tool replacement greatly shortens the time for changing
processed workpiece is improved.
Machine working show
FEATURES
2. The mobile gantry of
6. This machine tool is equipped with Taiwan's original volumetric pressure automatic lubrication device, which can automatically lubricate various moving pairs such as guide rails, screws, and racks without dead corners, ensuring the service life of the machine tool.
