Descrição
- Químico Hign-em causa: Nenhum
- Nome da marca: YUN DUAN
- Número do modelo: SXG5080
- Largura ou Diâmetro da Guia: 12mm
- Origem: CN (Origem)
- Certificado: CE
- Effective Stroke: 50mm-1200mm Optional
- Total length: Effective Stroke+110mm
- Ballscrew type: SFU1204/SFU1605/SFU1610
- Horizontal load: 60KG (Max)
- Vertical load: 30KG (Max)
- Module material: Industrial Aluminum Profile
- Module width: 80mm
- Repeat positioning accuracy: 0.02mm-0.03mm
- Ballscrew accuracy: C7
- product keyword 1: sliding table
- product keyword 2: sliding table linear rail stage
- product keyword 3: linear guide rail cnc motion stage
- product keyword 4: Ball Screw Module
- product keyword 5: CNC Motion Stage
- product keyword 6: Linear Guide Rail Table CNC Motion Stage
- product keyword 7: Linear Motor kit
- product keyword 8: Motorized Linear Table
- product keyword 9: z axis sliding table
- product keyword 10: ball screw linear rail with motor
- product keyword 11: z axis cnc kit
- product keyword 12: z axis nema 23
Dear friend, we will ship according to your selection.
● Slide For Nema 23:
1* SFU1204/SFU1605/SFU1610 Double Rail Slide Table
1* 8mm to 8mm Coupling for 8mm shaft Nema23 Stepper Motor
(If you need to pair with Nema17 motor, please leave a message)
● 1.2/2/3Nm Motor Slide:
1* SFU1204/SFU1605/SFU1610 Double Rail Slide Table
1* Nema 23 57mm Open-loop Stepper Motor
1* 8mm to 8mm Coupling

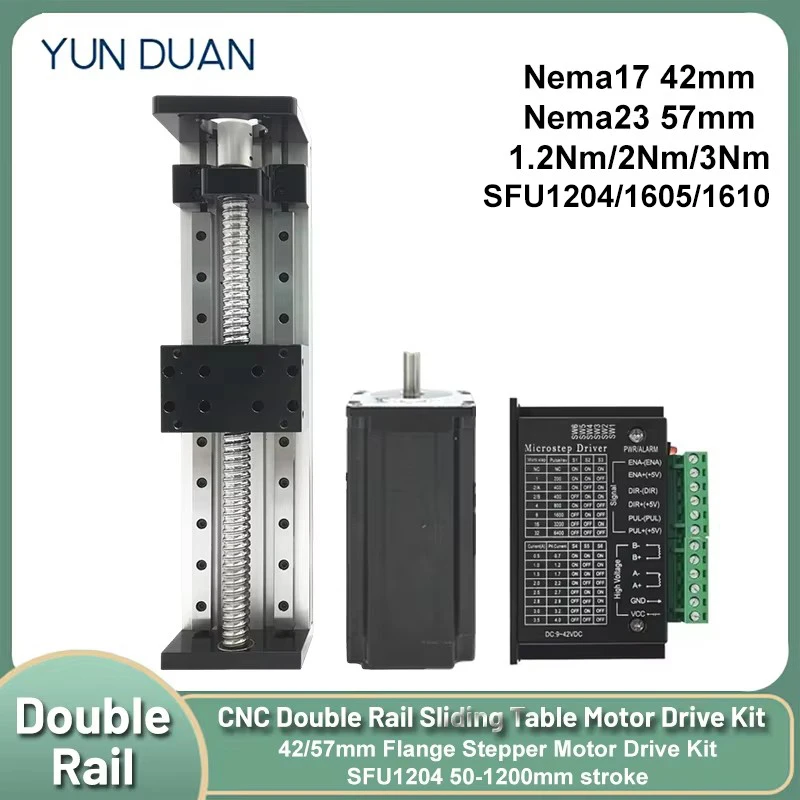

● 1.2/2/3Nm Kit:
1* SFU1204/SFU1605/SFU1610 Double Rail Slide Table
1* Nema 23 57mm Open-loop Stepper Motor
1* TB6600 Drive
1* 8mm to 8mm Coupling
● Slide For Nema 23:
1* SFU1204/SFU1605/SFU1610 Double Rail Slide Table
1* 8mm to 8mm Coupling for 8mm shaft Nema23 Stepper Motor
(If you need to pair with Nema17 motor, please leave a message)
● 1.2/2/3Nm Motor Slide:
1* SFU1204/SFU1605/SFU1610 Double Rail Slide Table
1* Nema 23 57mm Open-loop Stepper Motor
1* 8mm to 8mm Coupling
● 1.2/2/3Nm Kit:
1* SFU1204/SFU1605/SFU1610 Double Rail Slide Table
1* Nema 23 57mm Open-loop Stepper Motor
1* TB6600 Drive
1* 8mm to 8mm Coupling

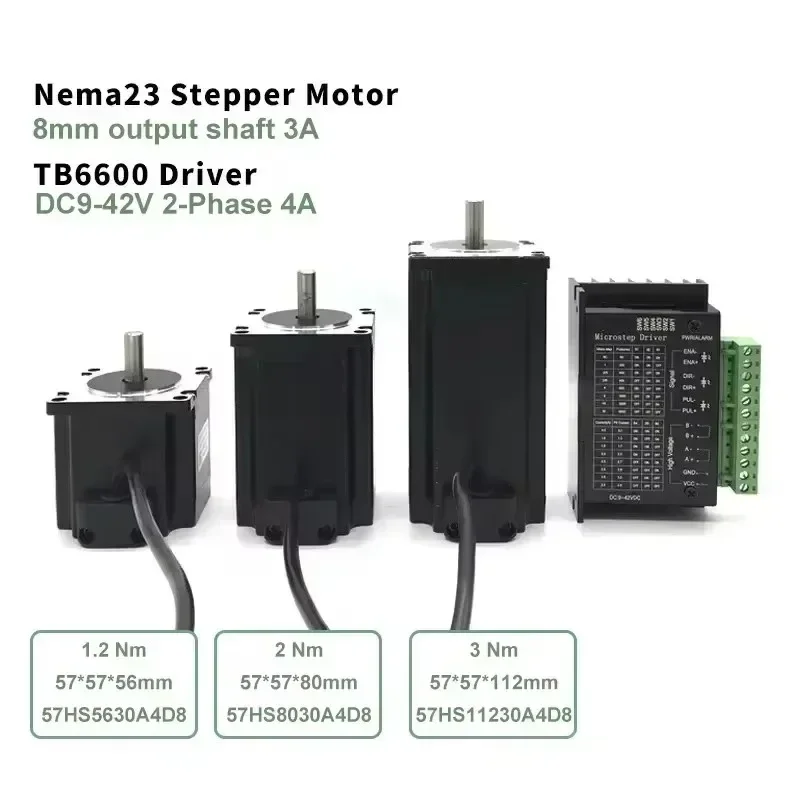

| Nema23 57mm Flange Stepper Motor Technical Parameters | ||||||||
| Model | Motor type | MAX. speed (rpm) | Holding torque (N.m) |
Body length (mm) |
Current (A) |
Phase resistance (Ω) |
Moment of inertia (g.cm²) |
Output diameter (mm) |
| 57HS5630A4 | open-loop stepper motor | 1000 | 1.2 | 56 | 3 | 0.8 | 280 | 8 |
| 57HS8030A4 | 2 | 80 | 3 | 1.2 | 580 | |||
| 57HS11230A4 | 3 | 112 | 3 | 1.6 | 800 | |||

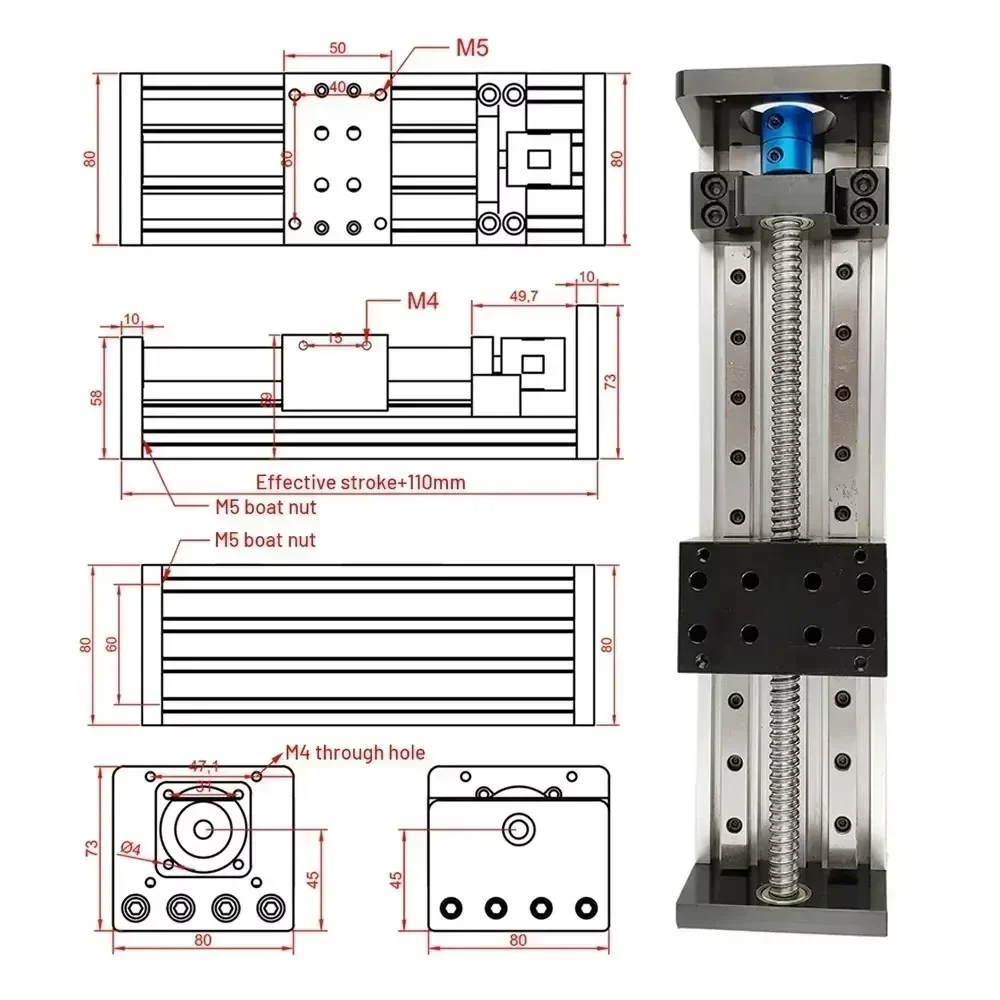

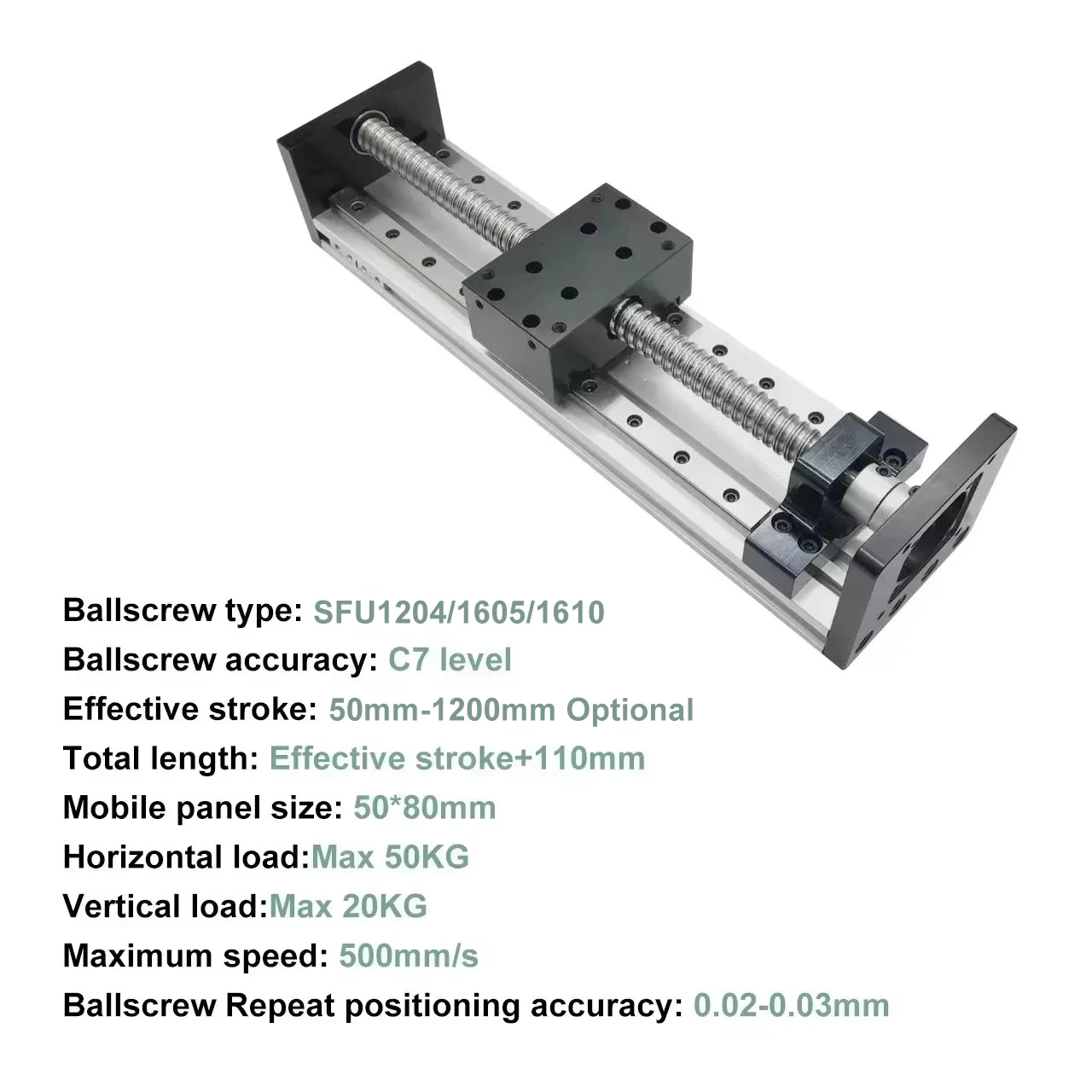

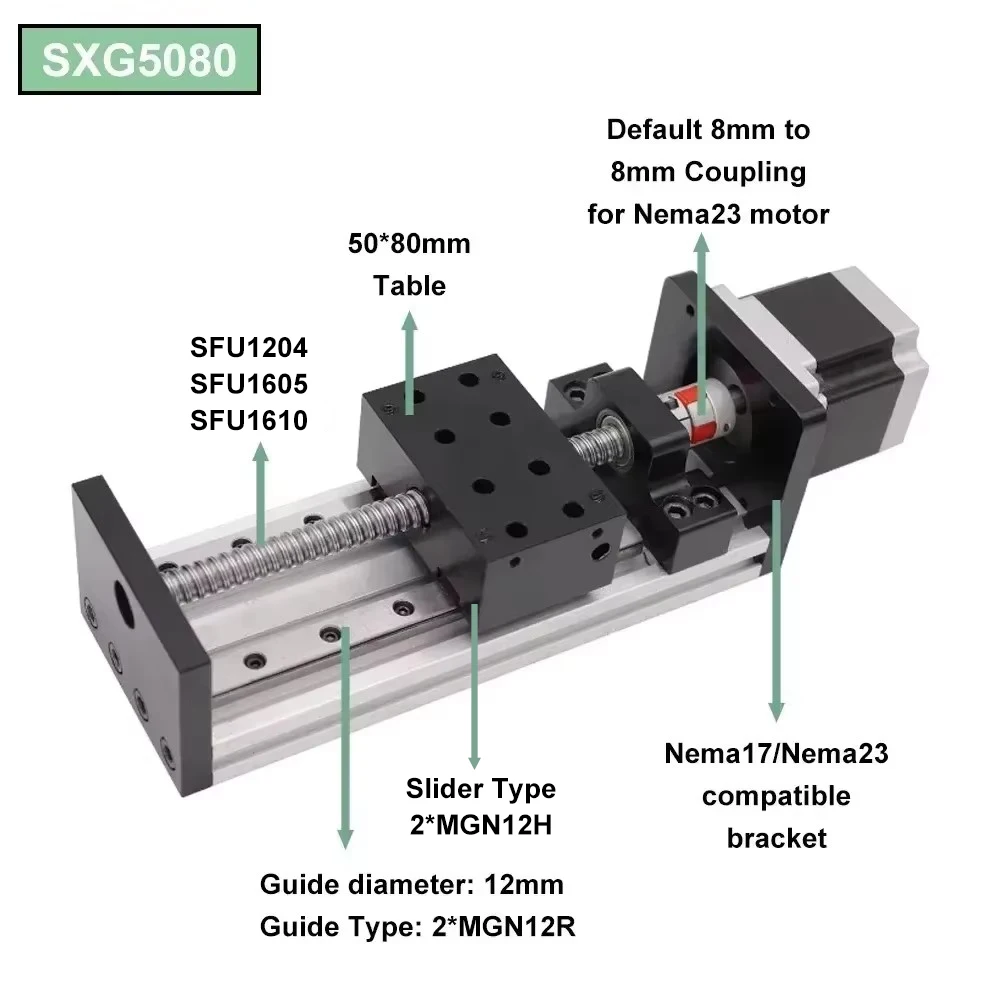

●Model: SXG5080
●Ballscrew type: SFU1204/SFU1605/SFU1610
●Ballscrew accuracy: C7 level
●Effective stroke: 50mm-1200mm Optional
●Total length: Effective stroke+110mm
●Mobile panel size: 50*80mm
●Guide diameter: 12mm
●Guide Type: 2*MGN12R
●Slider Type: 2*MGN12H
●Horizontal load:Max 60KG
●Vertical load:Max 30KG
●Maximum speed: 500mm/s
●Ballscrew Repeat positioning accuracy: 0.02-0.03mm
● Supported motor bracket (support customization): Compatible with Nema 17/ Nema 23 stepper motor
●Ballscrew and linear rail material: Carbon steel and bearing steel
●Base plate material: Aluminium alloy

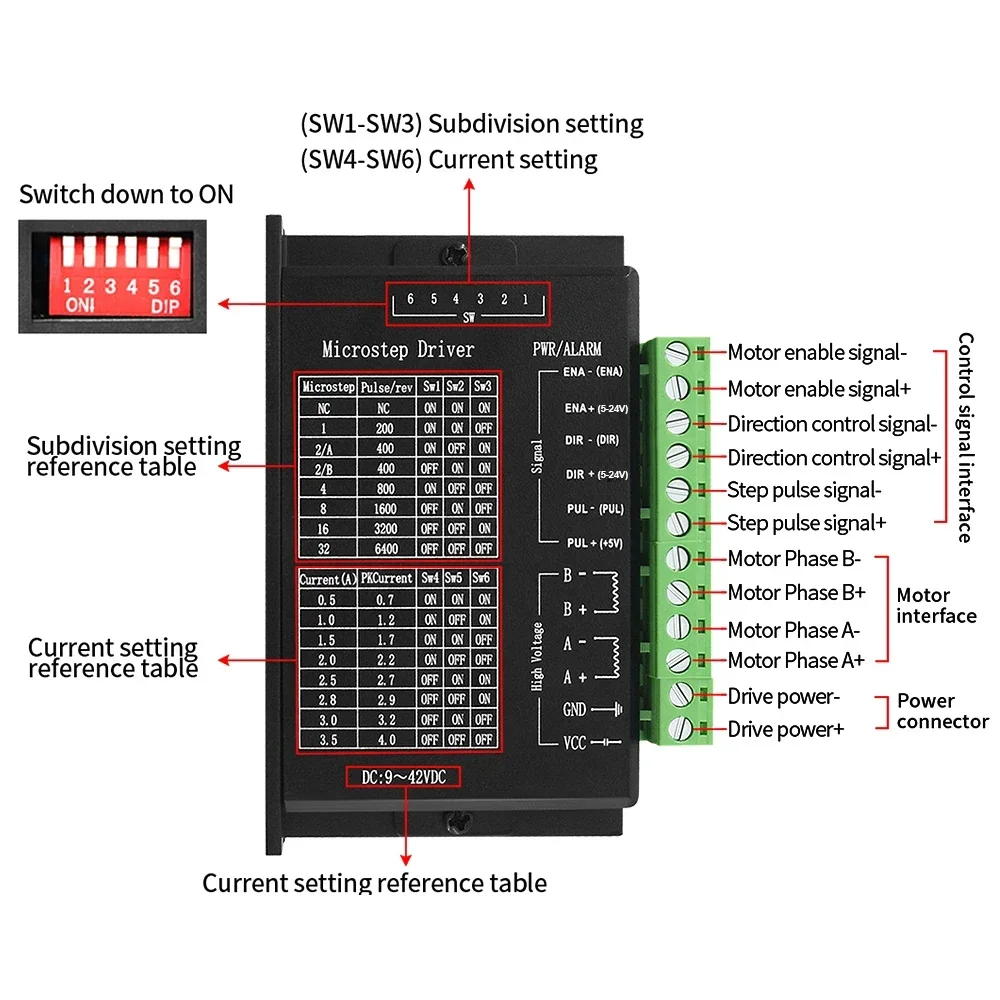

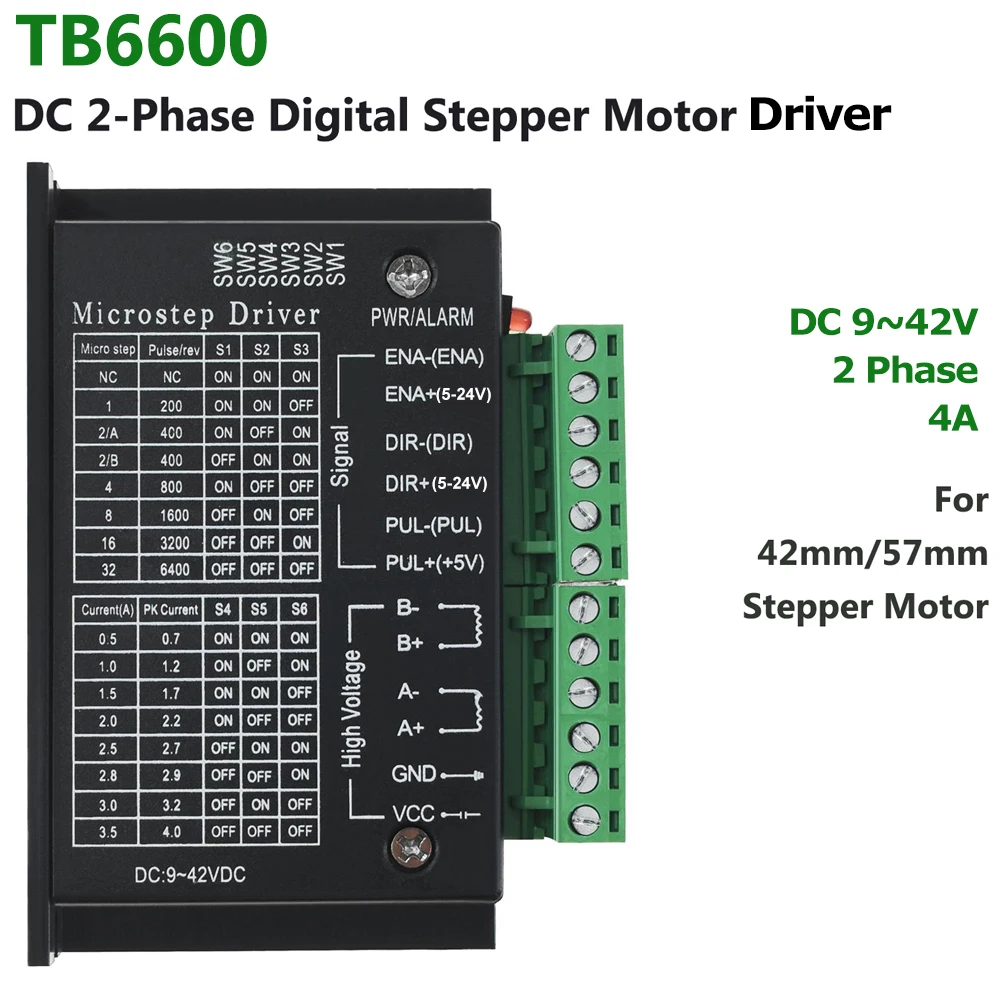

Open-loop Stepper Motor Drive Technical Parameter:
●Model: TB6600
●Manual: https://drive.google.com/open?id=1NHNwZy4P7mjvHdQcrkXWJ-gS2cBF_tMk
●Input voltage: DC 9-42V
●Input/ Output current: 0.5-3.5A
●Maximum power: 150W
●Subdivision: 1,2,4,8,16,32
●Operating environment temperature: -10～45℃
●Storage temperature: -40℃～70℃
