- Hign-concerned Chemical: None
- Origin: Mainland China
- Brand Name: KF LASER
- Certification: EMC,CE
Description
Name: Leah Wang
Email: KFlaser.Leah09@gmail.com
WhatsApp/Wechat: +86 19953103247

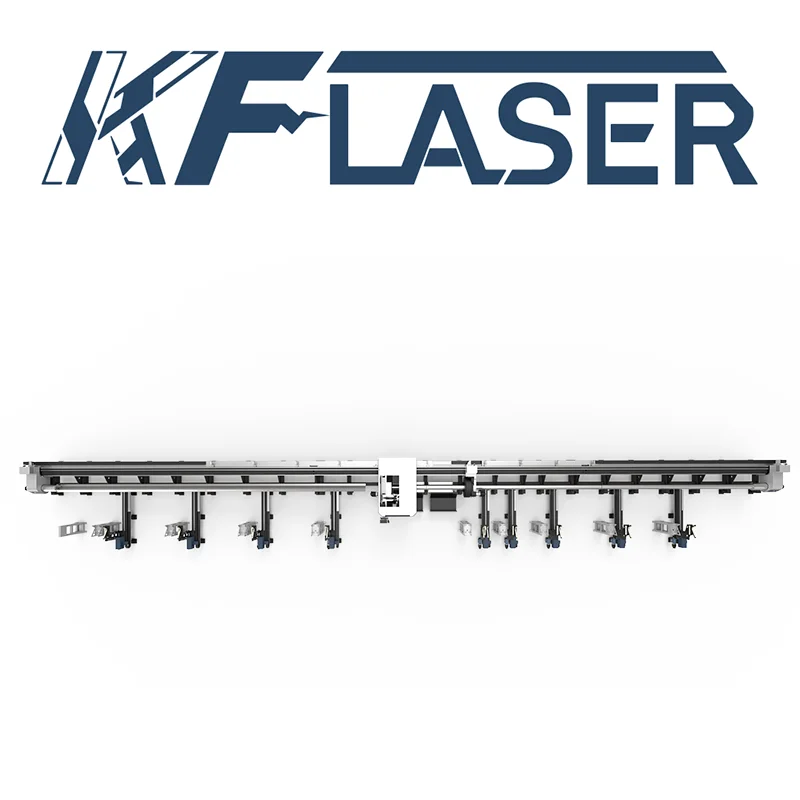

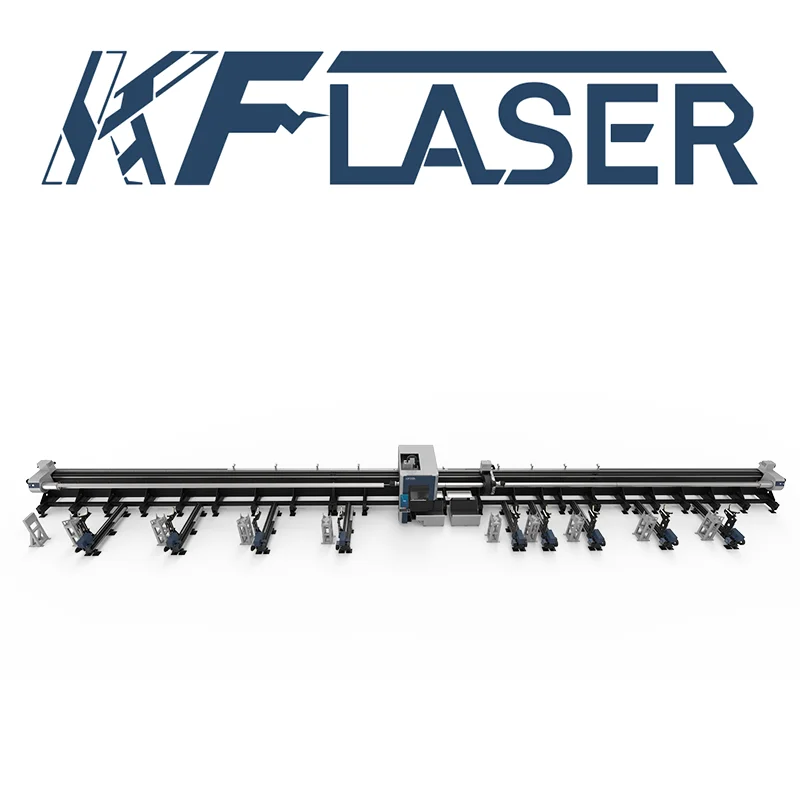

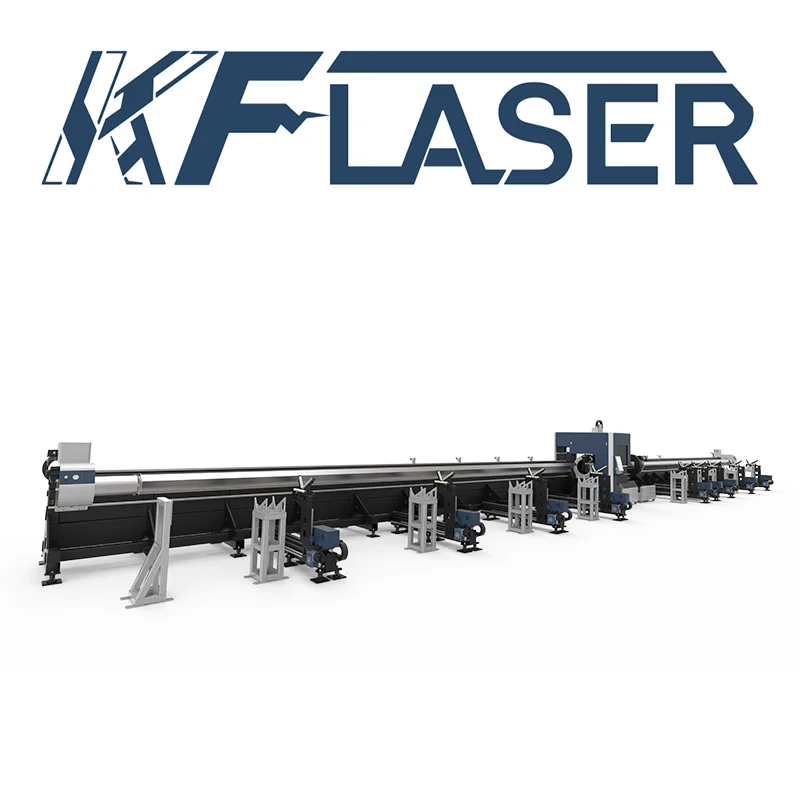

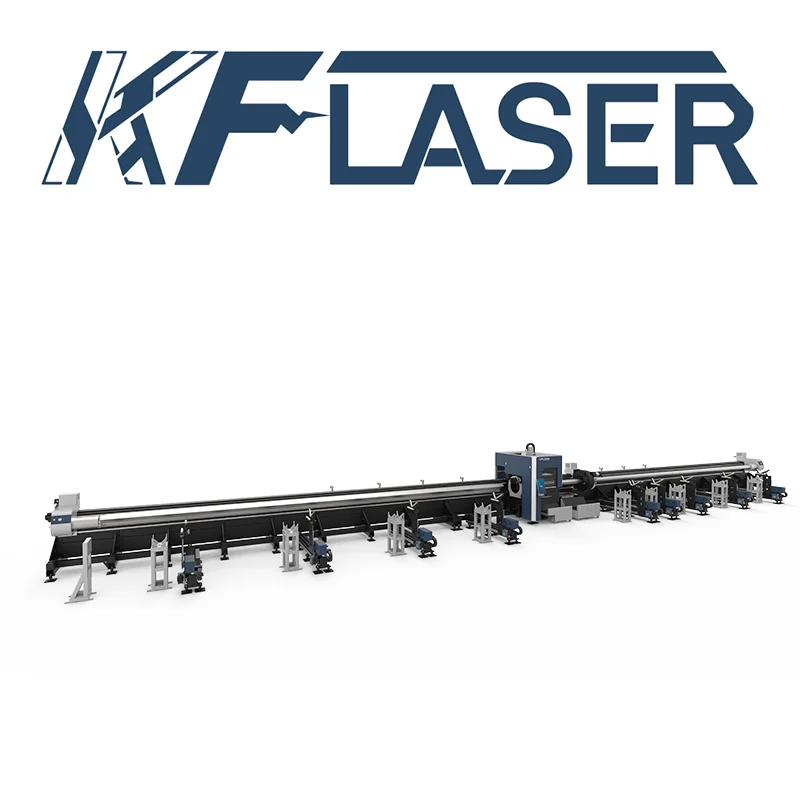

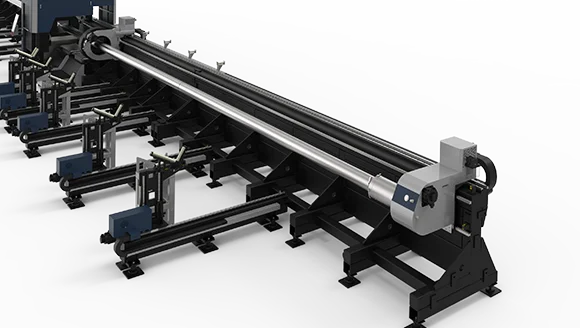

KF Laser Four Chucks 5 axis Bevelling Laser Tube Cutter Short tailing Steel Pipe Laser Cutting machine 6000W
Model Introduction |
Brand：KF Laser
Model：TIV series
Catalog: Tube laser cutting machine
Warranty:3 years
Delivery time:20 working days
Payment:Alibaba trade assurance, T/T, Western union, L/C
Machine Parts |
Laser source | Raycus-12000W |
Cutting head | Boci BLT441T |
Control system | Bochu Fscut 5000A |
Software | Tubepro-7.2 |
Computer | Industrial CPUIntel |
Linear guides rails | Hiwin |

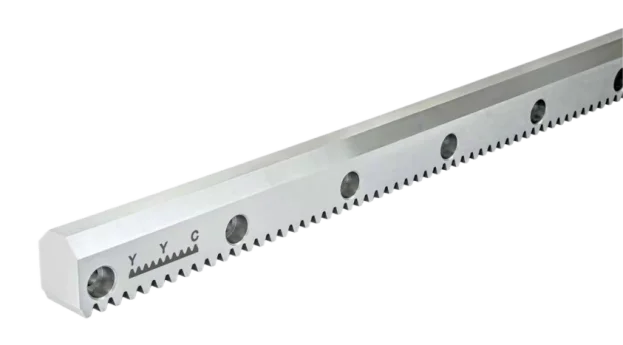

Gear transmission | YYC |
Ball screw transmission | TBI |
Servo motor | Inovance |
Reducer | Desboer |
Chuck | Cantini |

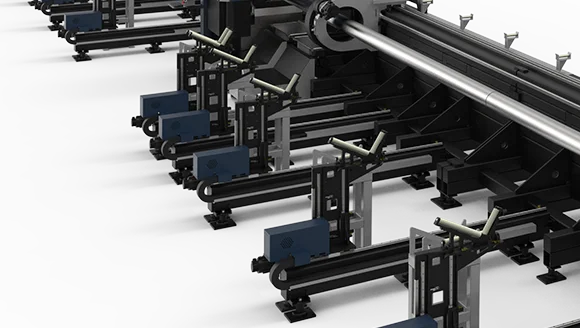

| Heavy duty four chucks ❏The middle unloading chuck is responsible for unloading, improving safety ❏Solve the problem of difficult feeding of heavy pipes ❏ Achieve 0 tailings ❏Simple operation and maintenance, stable mechanical structure |
| Heavy-duty welded bed frame: ❏Precision Carbon Dioxide Shielded Welding ❏Tempered at 600 degrees Celsius Secondary high temperature tempering treatment ❏Gantry milling machine finish machining, accuracy up to 0.02mm/3m |
| Heavy-duty welded bed frame: ❏Precision Carbon Dioxide Shielded Welding ❏Tempered at 600 degrees Celsius Secondary high temperature tempering treatment ❏Gantry milling machine finish machining, accuracy up to 0.02mm/3m |

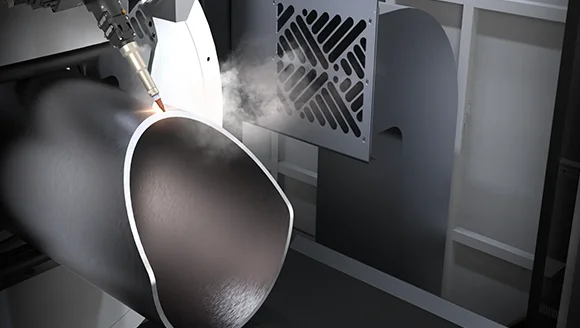

| Raytools laser head ❏Auto Focus head ❏Modular design for easy maintenance ❏Dual water cooling circuits ❏IP65 rated dustproof ❏Unique dust removal design ❏Optional bevel cutting head |

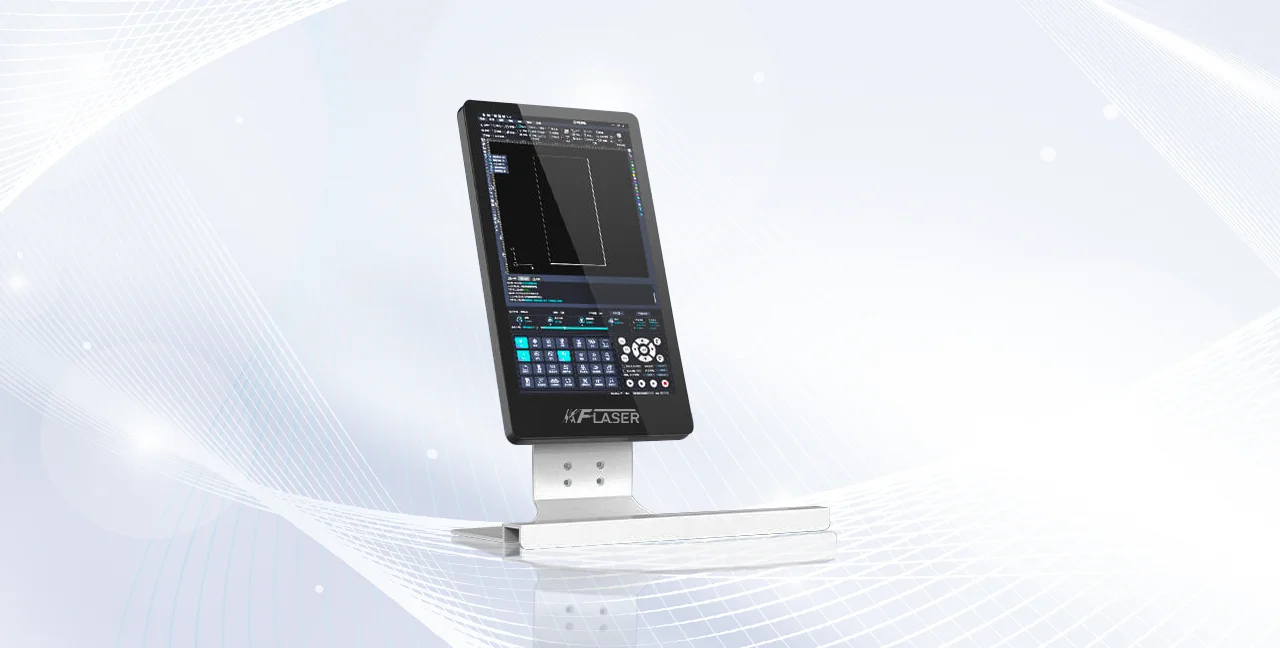

| Bochu Bus controller ❏Low and high power bus systems ❏Simple to use and easy to maintain ❏With advanced functions such as "Micro-linking without trace", "Perforation without sensation", and "Disc centering" |
| Pipe Type Square tube Round tube Rectangular tube H C L I Beam One machine in hand, worry-free pipe cutting |
| Raycus laser generator ❏High brand recognition ❏High beam quality ❏Compact construction ❏High photoelectric conversion efficiency ❏Center wavelength 1080±5 nm ❏100000 hour service life |
| Z axis ball screw transmission ❏High transmission precision, accurate position control ❏Ball drive, low friction resistance, transmission efficiency up to 95%. ❏Long service life and low maintenance costs |
| Taiwan Hiwin Linear rails ❏High durability, low wear and high precision ❏Low frictional heat for high speed ❏Shock and vibration resistant for stable operation |
| Z axis ball screw transmission ❏High transmission precision, accurate position control ❏Ball drive, low friction resistance, transmission efficiency up to 95%. ❏Long service life and low maintenance costs |

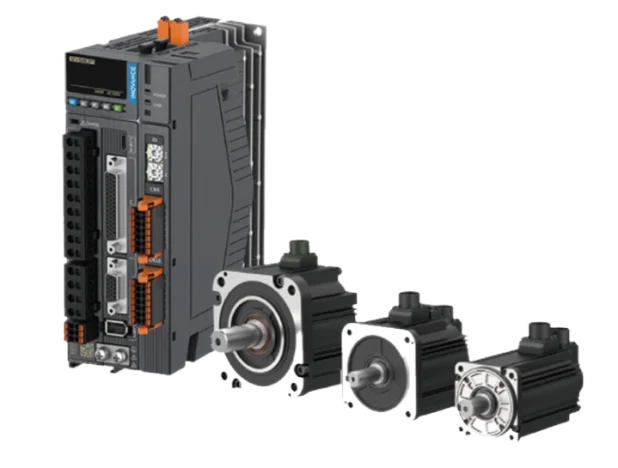

| Inovance servo motor ❏3% increase in motor energy savings ❏Frameless permanent magnet motor direct drive with 25% higher energy efficiency ❏10% volume reduction |

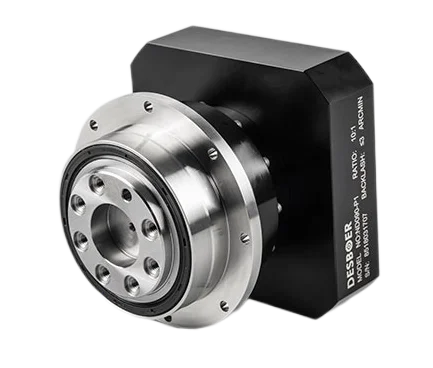

| DESBOER/Italy MOTOVARIO ❏New generation of planetary gearboxes ❏High precision and torsional stiffness ❏High reliability, low noise, long life, maintenance-free |

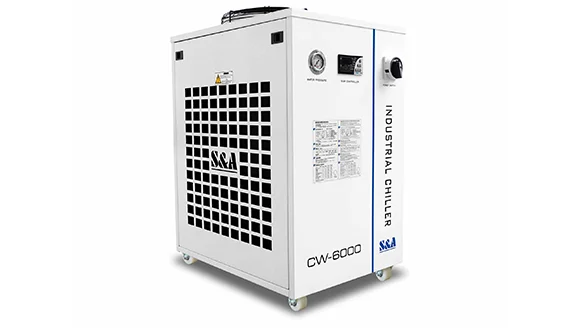

| S&A/Hanli water chiller ❏Dual cooling circuits ❏Active heat dissipation ❏Temperature stability: ±0.5°C ❏Temperature control range: 5°C ~35°C ❏Refrigerant: R-410a |

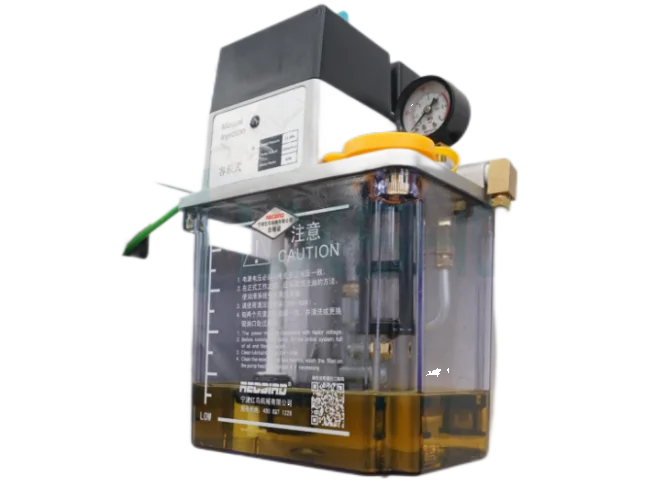

| ATC Oil lubrication ❏Automatic lubricating oil system ❏Controller for precise control of oil quantity ❏Automatic lubrication protects equipment operation |

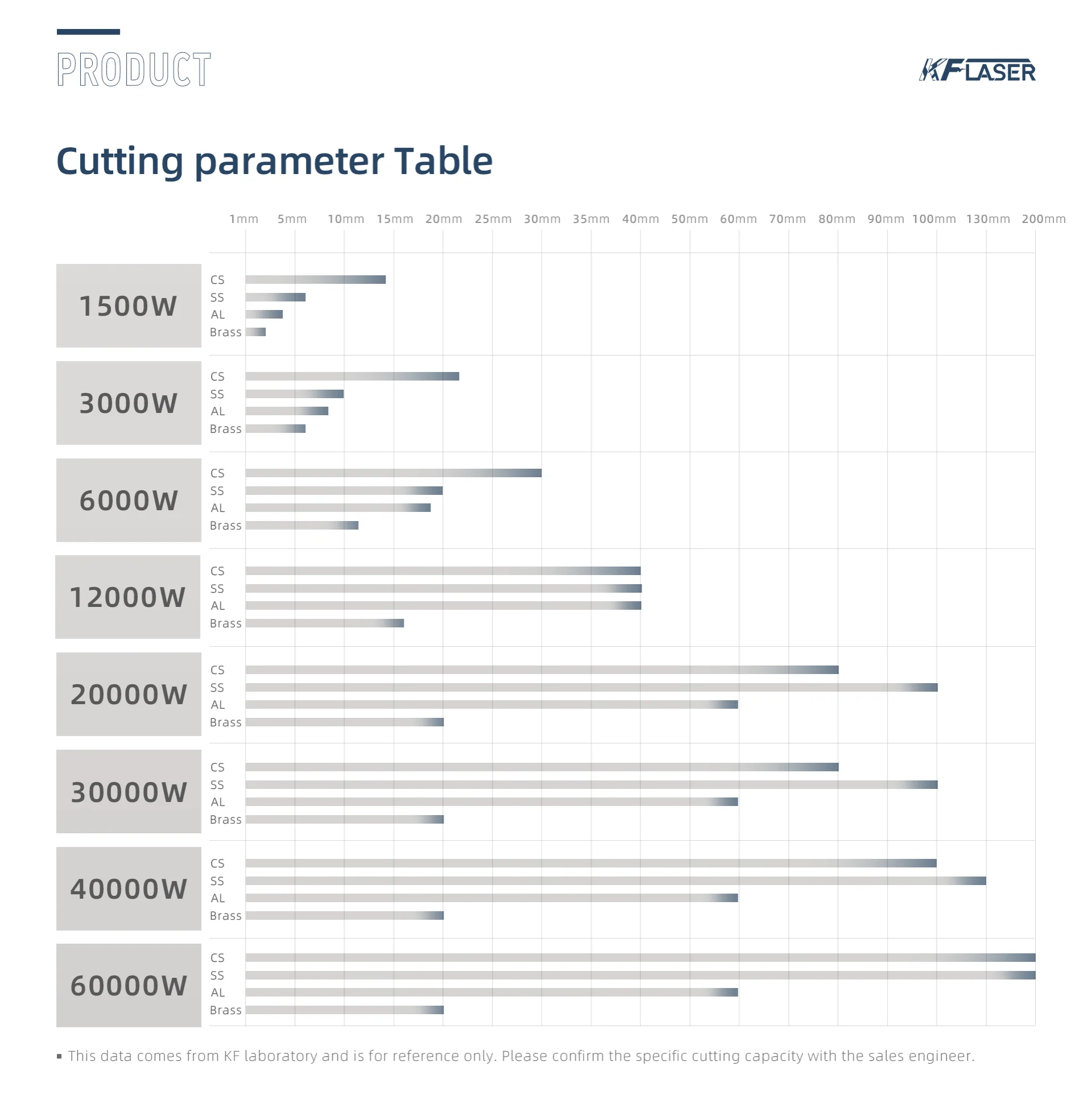

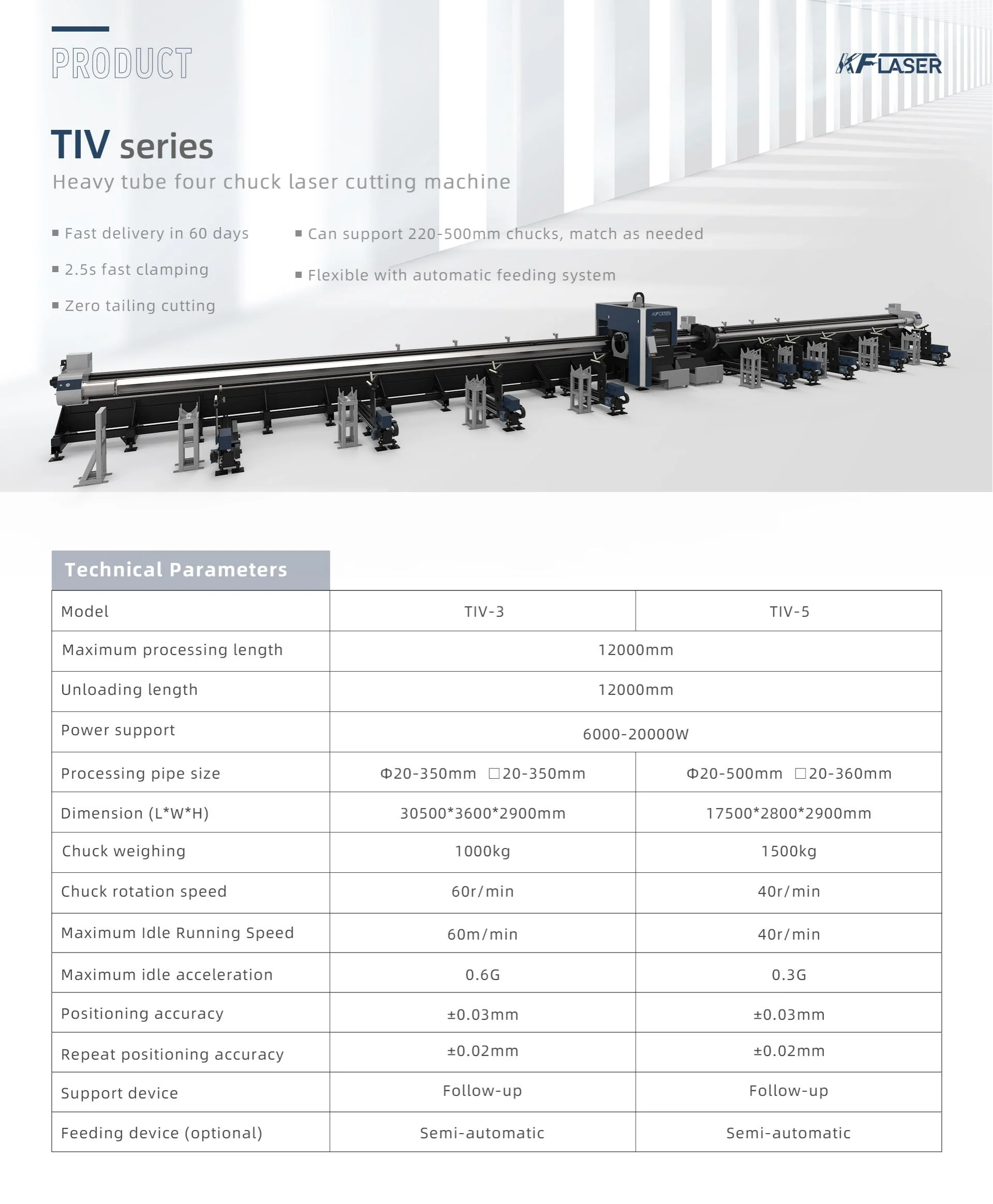

Technical Parameters |

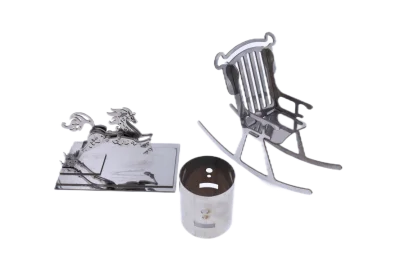

Sample Display |
|
|
|
|
|
|
FAQ |
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, just tell us below information
1)What is your material
2)The size of material
3)The thickness of material
Q: Payment terms?
A:1)Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
2)We start making standardized machines after receiving 30% of the payment, inspect the machines after completion, and finally collect the 70% balance before shipping.
Q:How to install, use and after-sales?
A:1)We provide free training in our factory
2)We provide free online after-sales service
3)We have complete installation instructions and video tutorials
4)Door-to-door service charges are based on region and aircraft model
5)Provide three-year warranty, except for consumable parts, direct replacement for non-human damage

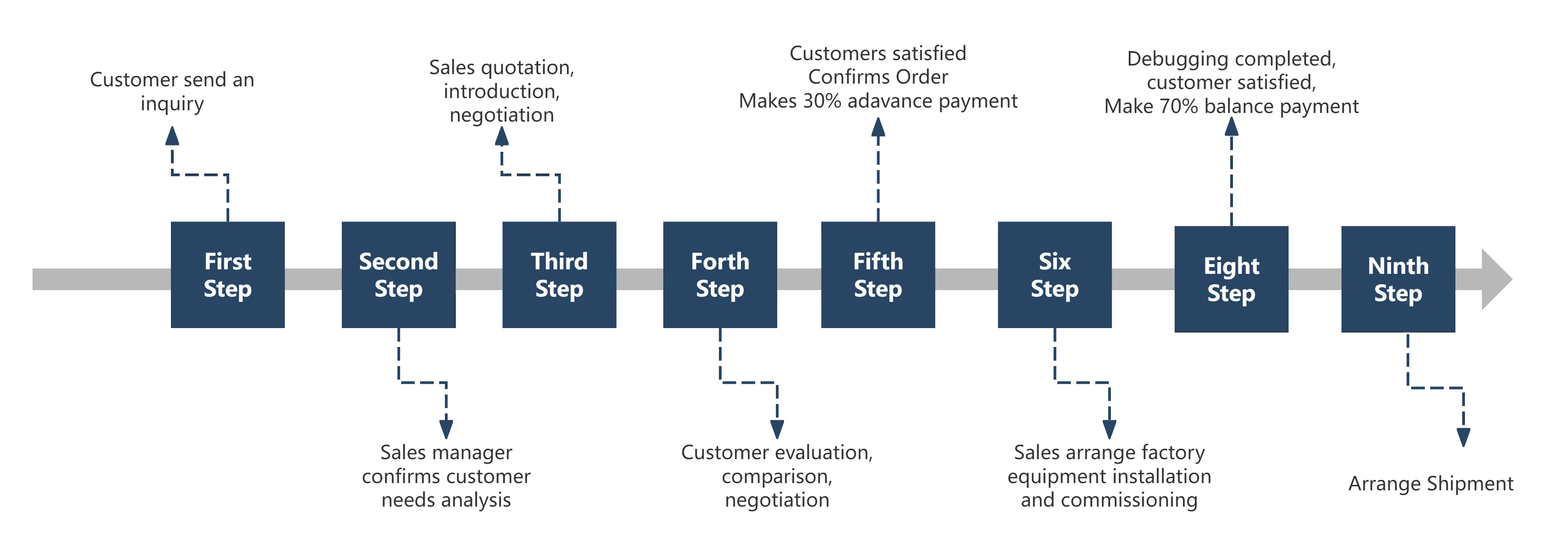

Purchase Process |

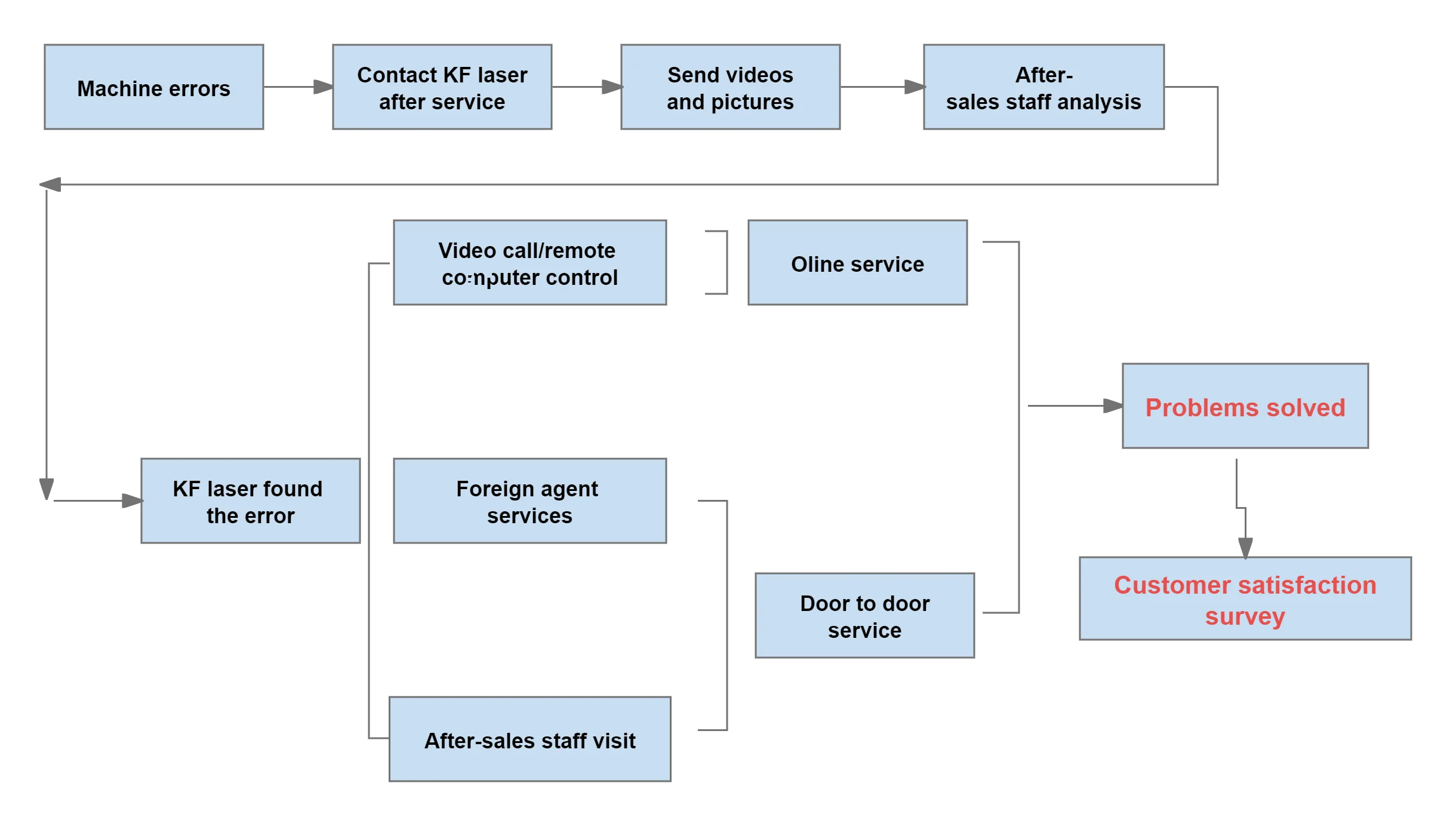

After- Service Process |
Application Industry |
|
|
|
|
|
|

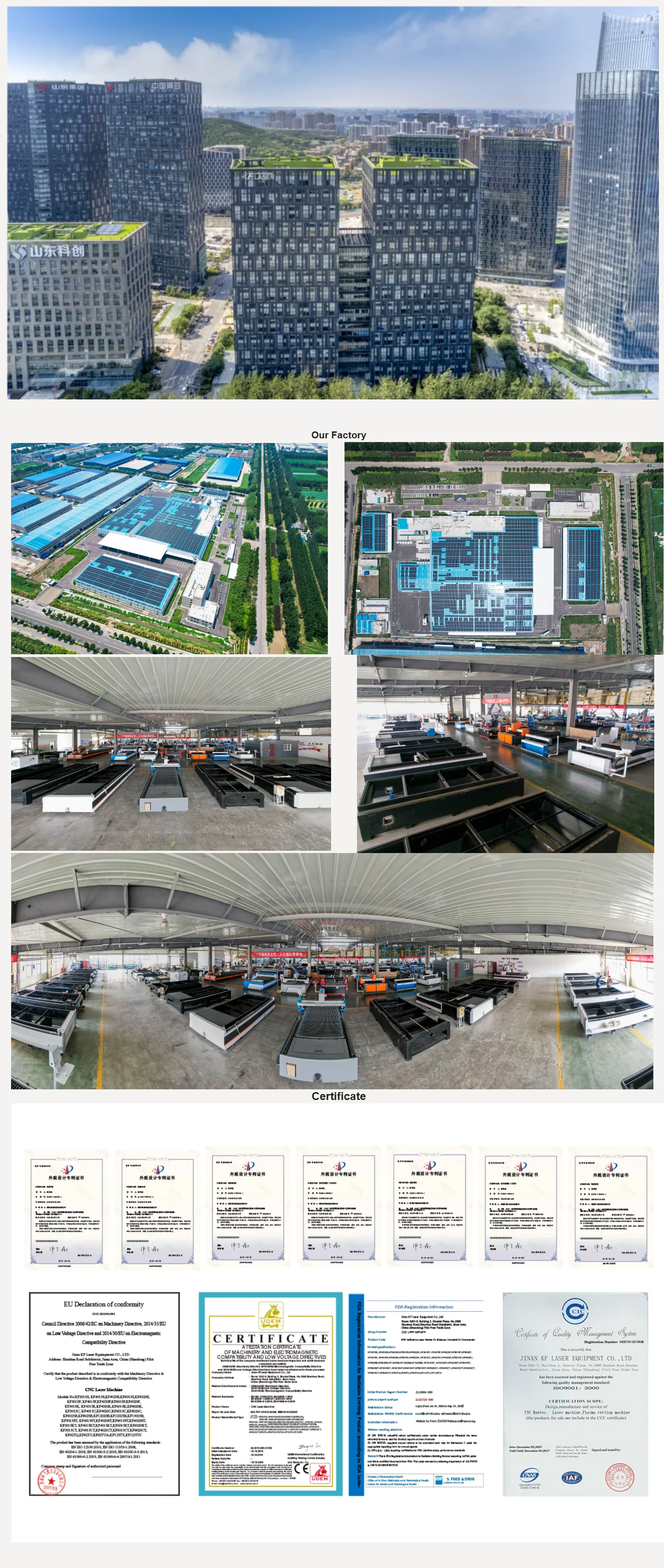

About US |
Technology leads the future, quality controls the market!
KF Laser provide one-stop service for metal processing equipment. We are a supplier of laser cutting machines, welding machines, cleaningmachines, bending machines and other equipment, we have industrial design and design team of more than 20 people,all are well-known designers in the industry.Self-developed heavy-duty plate welding bed, ultra-high power marble bed, industry-leading. The whole process factory own production, so we have shorter delivery time, standard 3015 single platform can be delivered in 7 days, such as welding machines and cleaning machines are in stock in the warehouse.and flexible production capacity, product quality with the industry leading level, has passed CE CSA ISO and other quality certification.
