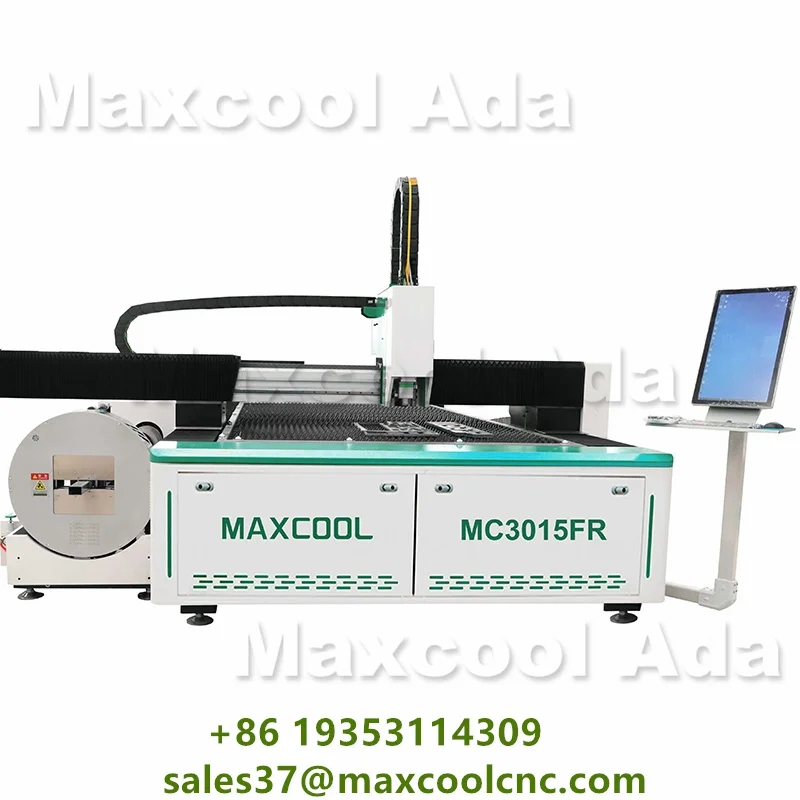

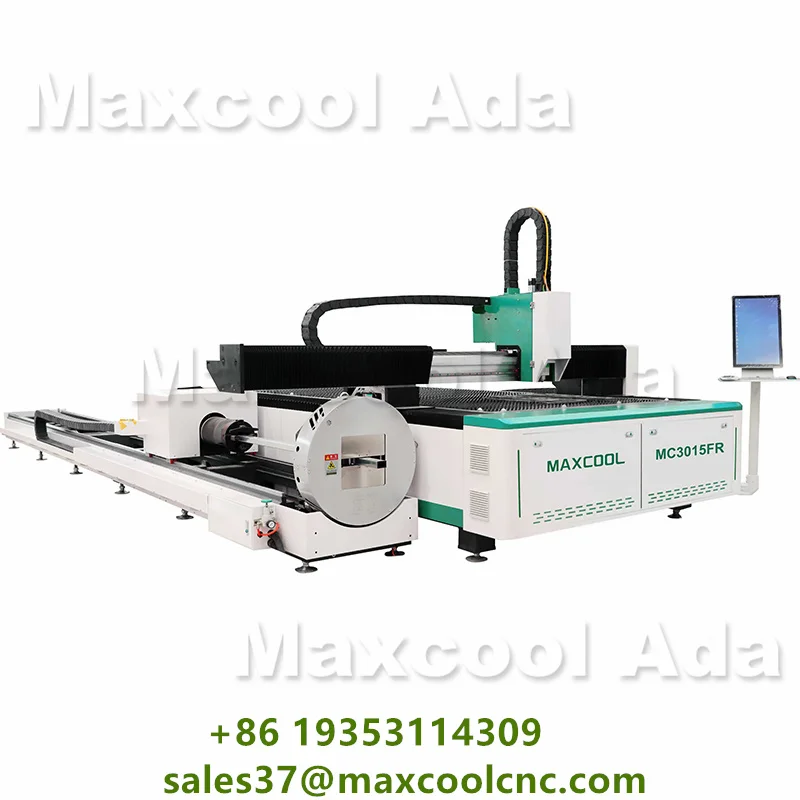

Name: Industrial Laser Equipment 1530 Metal Plate Tube Pipe CNC Fiber Laser Cutting Machine 1000w 2000w With Rotary Axis
SKU: 1005009532215518
Availability: InStock

Hign-concerned Chemical: None
Certification: ce
Origin: Mainland China
Model Number: MC3015F
Certification: CE
Working area: 3000*1500mm
Sizes: 3015/ 4515/ 4020/ 6020
Laser power: 1.5/ 2/ 3/ 6/ 12KW
Laser source: MAX/ Raycus
Controller: Raytools
Laser head: Raytools
Cooling method: S&A water chiller
Keywords: Cutting Machine 2000w With Rotary Axis

Industrial Laser Equipment 1530 Metal Plate Tube Pipe CNC Fiber Laser Cutting Machine 1000w 2000w With Rotary Axis

Please contact Ada to check your specific processing needs before you place an order:+86 19353114309

We Support FREE Testing Samples for Customers

If you want to know more about the parameters or videos of the laser cutting machine, please feel free to contact us.

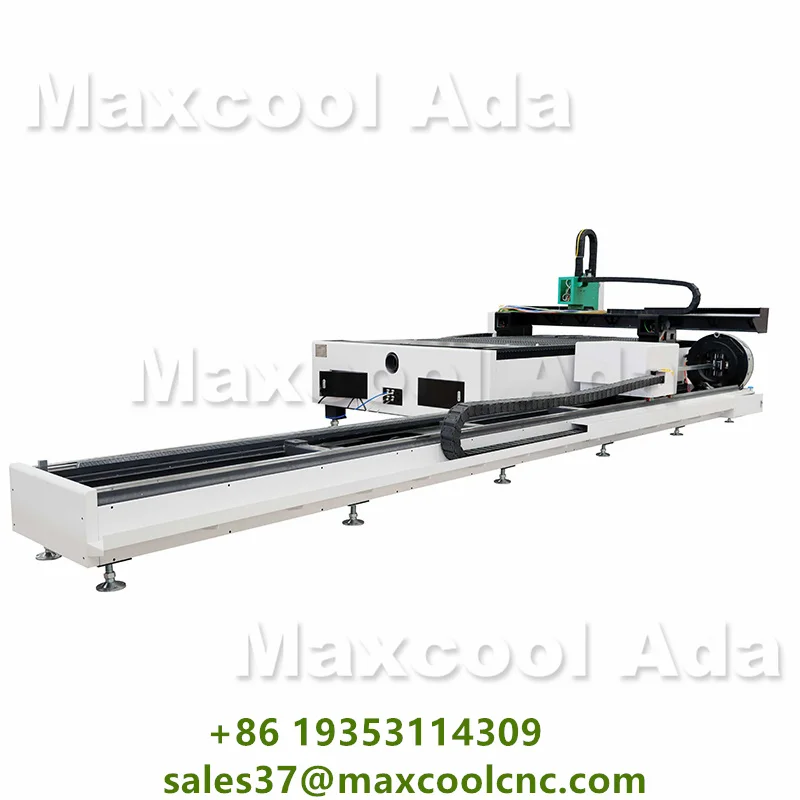

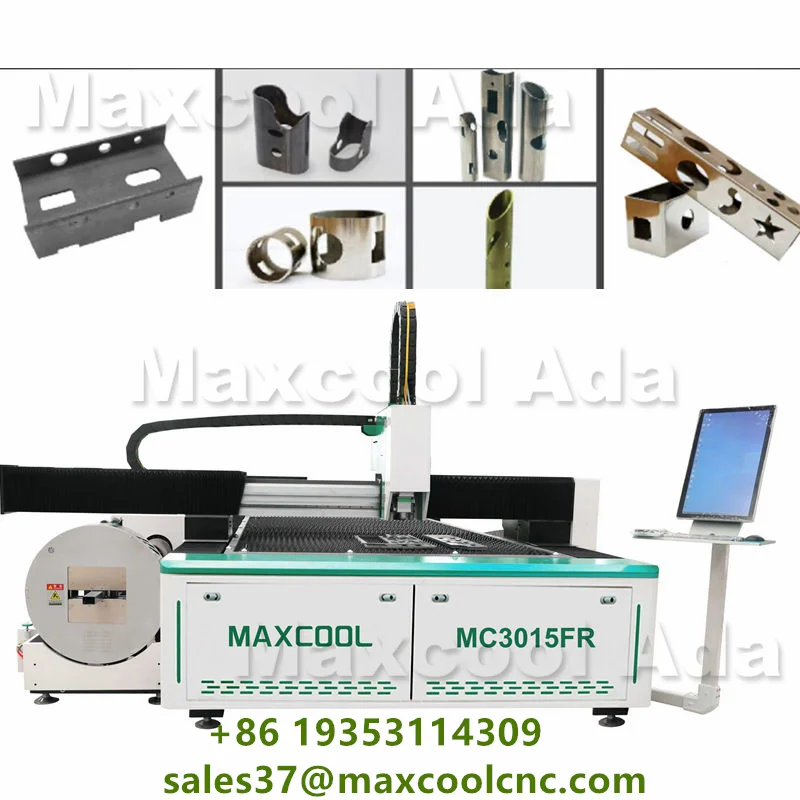

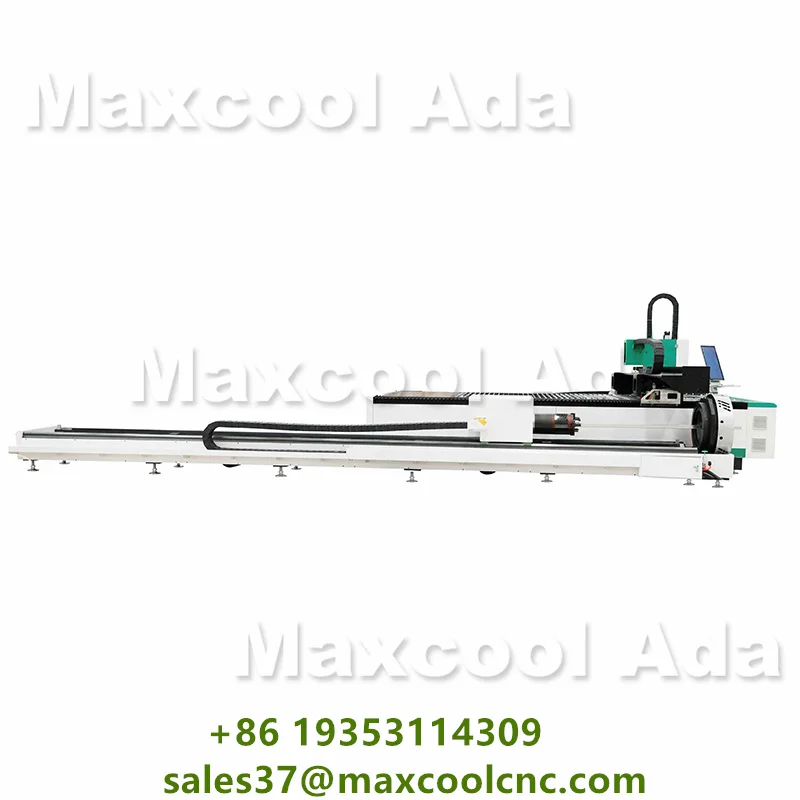

Laser Cutting Machine For tube and sheet

1. One machine with two functions, integrated tube cutting and sheet cutting

2. For various shapes within 16-165mm

3. Accurate positioning, safety and energy saving

4. Independent R&D automatic double pneumatic chuck, stable and efficient

Features

1. Factory welding machine structure, using high-precision planning machine for milling, annealing treatment after

annealing treatment, can ensure that the machine structure is firm and stable during long-term operation.

2. . Configure induction cutting head and mirror surface to make the focus as small as possible, which can cut

finer lines with higher efficiency and better processing quality.

3. Optical fiber transmission, flexible processing, can ensure the cutting quality at any point.

4. Professional laser numerical control system, computer operation, easier operation.

5. Compatible with a variety of software, can design all kinds of graphics and text instant cutting, simple operation,

flexible and convenient.

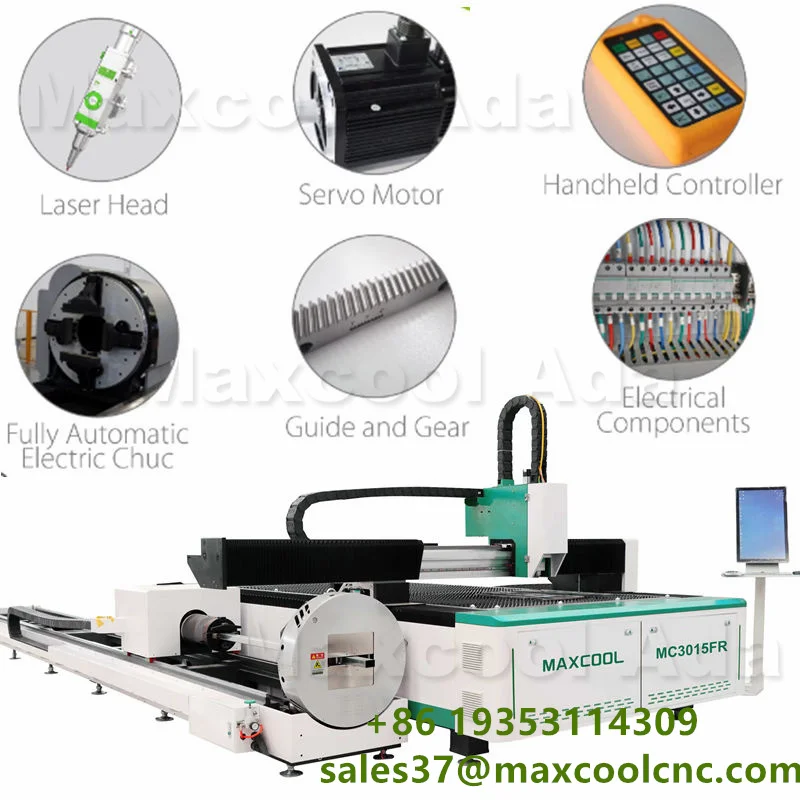

Configurations

Laser cutting head - Raytools

BM110 for 1.5KW, 2KW, 3KW.

BM06K for 6KW.

BS12K for 12KW.

Laser source - MAX/ Raycus

Fiber Laser Source. More than 100,000.00 hours life time

Laser power from 1KW to 12KW. Depend on different material thickness.

Controller - Raytools

XC3000S

Transmission - Leadshine servo motor

750W for X/Y axis.

400W for Z axis.

Cooling method - S&A water chiller

Parameters

1	Model	Laser cutting machine MC3015F
2	Laser Type	Fiber Laser
3	Laser Brand	RAYCUS/MAX
4	Laser Cutting Head	RayTools Auto-focus
5	Laser Power	1000W--6000W
6	*Sheet Cutting area / per table (mmmm)**	15003000/20004000/2500*6000 etc.
7	Position accuracy / Repeat posotion accuracy	±0.03mm / ±0.02mm
8	Max. cutting speed	132m/min
9	Chuck rotation speed	85r/min

Application

CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Material:

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet.
