- Hign-concerned Chemical: None
- Plug: EU
- Type: Horizontal
- Origin: Mainland China
- CNC or Not: CNC
- Certification: CE
- Condition: New
Features of machining center
Features of machining center

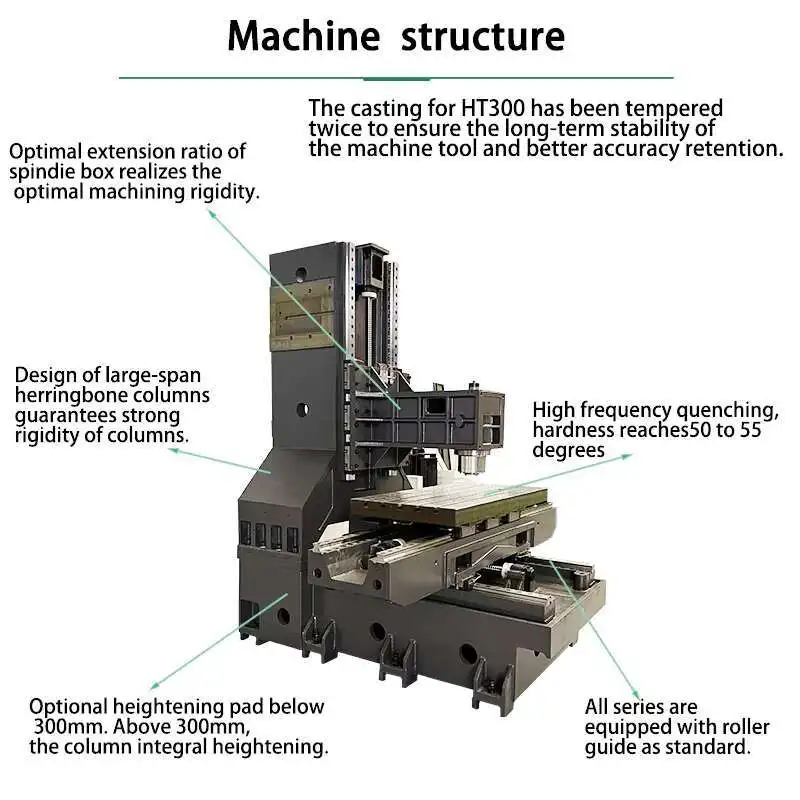

High quality resin sand cast iron
Taiwan main axis
Taiwan ball screw and lock nut
Taiwan booster cylinder
NSK bearing in Japan
German R + W couplingAutomatic lubrication system
Selection of chip conveyor
Optional configuration
4-axis machining
Optional configuration
5-axis machining
TAIWAN PRECISION LINEAR RAILS
1. Brand: HIWIN or PMI2. Taiwan high speed roller linear guide rail ,largebearing capacity, smallfriction loss, long servicelife.
ADOPTS Taiwan LINE RAIL
1. Brand: HIWIN or PMI2.It has the characteristics of good rigidity and high precision.
Each machine passed Renishaw laser interferometertesting
Quantitative manufacturing process
Carefully search for each accuracy: spindle runout, spindle verticality, workbench parallelism and verticality,
thescraping'grinding criterion, etc. The manufacturing process should be largely quantified, so as to improve product consistency
and accuracy retention.
thescraping'grinding criterion, etc. The manufacturing process should be largely quantified, so as to improve product consistency
and accuracy retention.

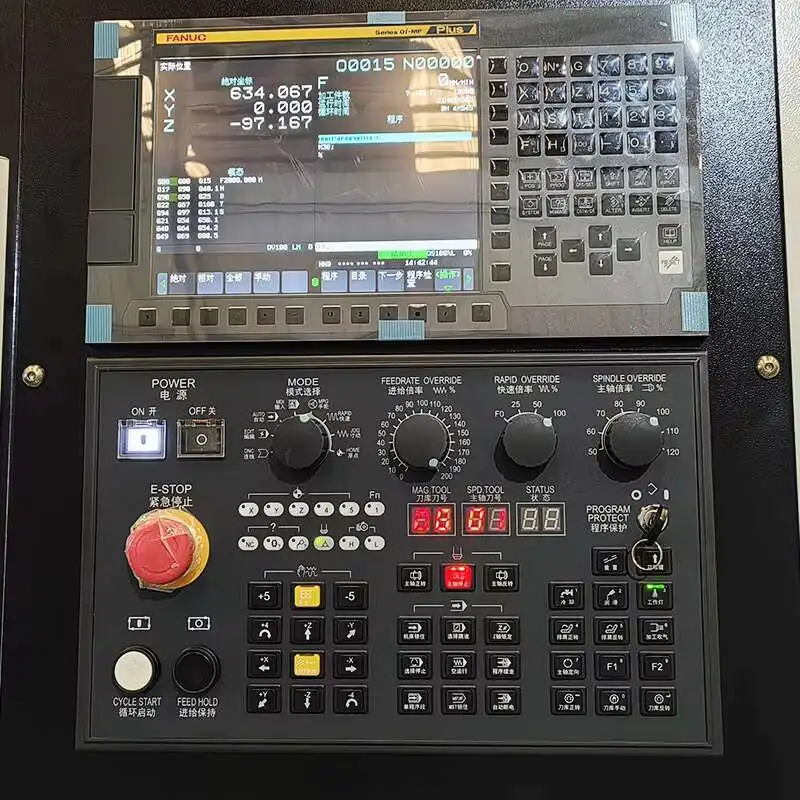

CONTROL SYSTEM
CNC control system canchoosed.
Like KND/GSK/Siemens/FANUC/MitsubishAnd other good system.

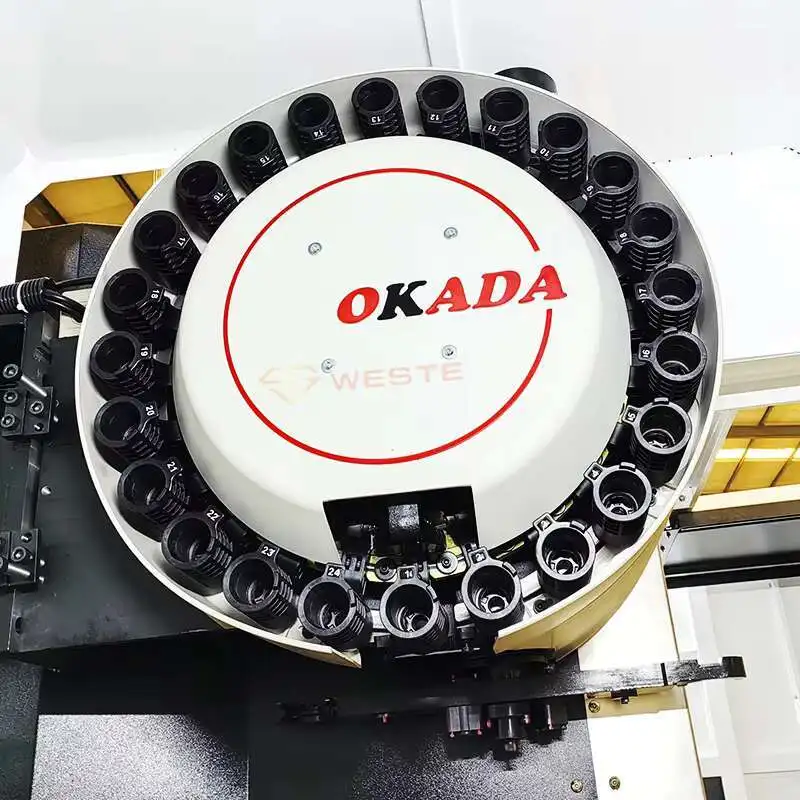

TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 Arm tool magazine, double arm clamping to make a fast exchange. tool change time only 2 seconds.
High-frequency hardening table
Wear-resistant cast iron, featuring a strong load-bearing capacity.

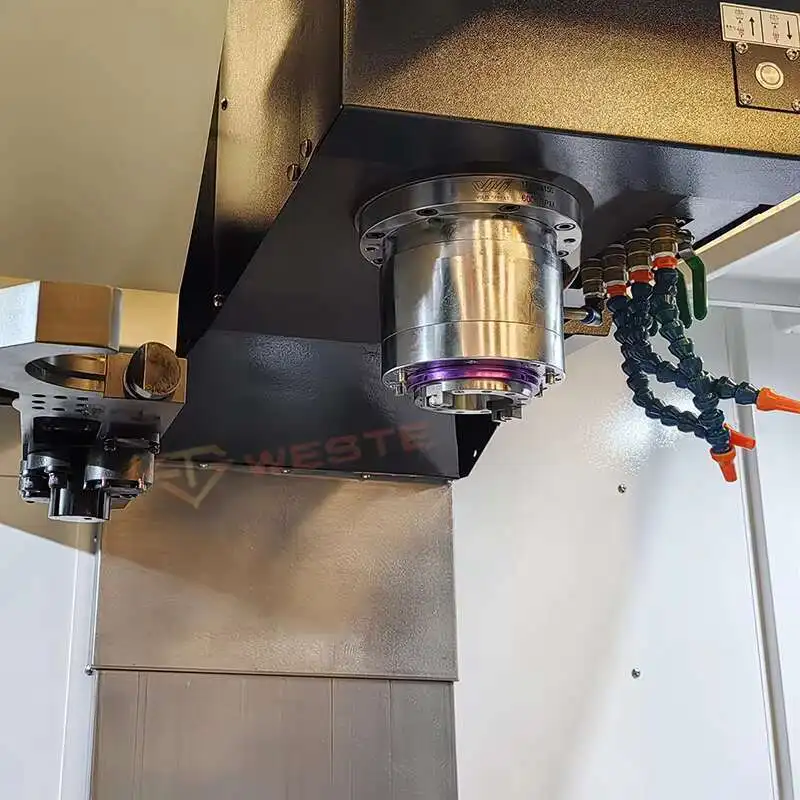

TAIWAN PRECISION SPINDLE
1. Spindle taper is BT40
2. Spindle speed 8000rpm , can enlarge to 12000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test

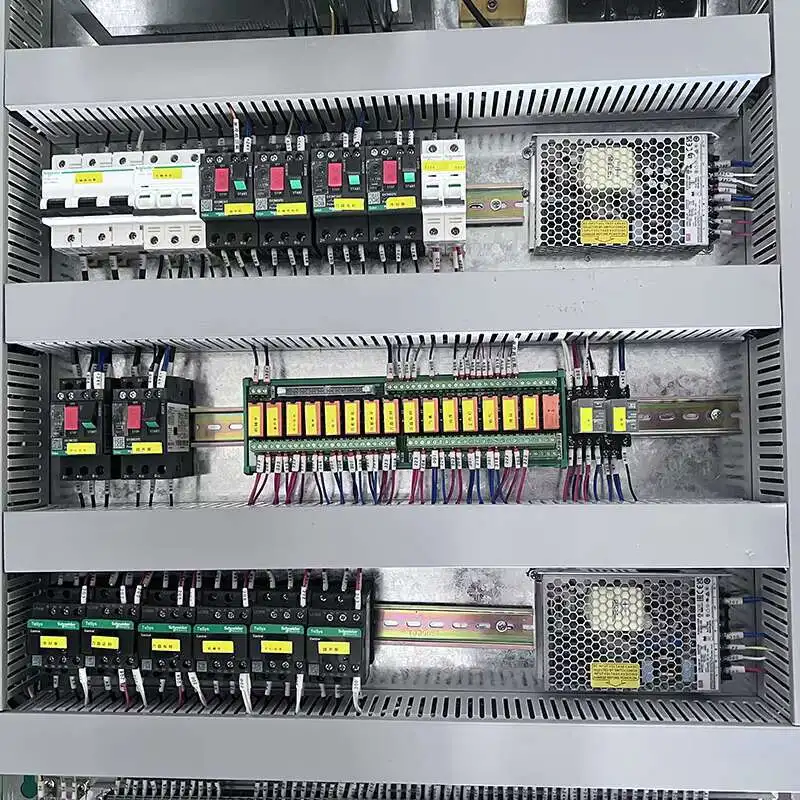

SCHNEIDER ELECTRICAL
1. with Schneider safety electrical components
2. quick plug as standard
SERVO MOTOR
The unity of the system and servo motorensures the product quality
COOLING SYSTEM:
Oil circulating oil cooler for spindle。(Optional configuration)
BALL SCREW
High movement efficiencylow fever, high speed feed.
PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components.
AIR STORAGE TANK
Air storage tank to ensure the stability of spindle tool change
Transportation
Secure delivery ：Professional goods shipping forwarder.

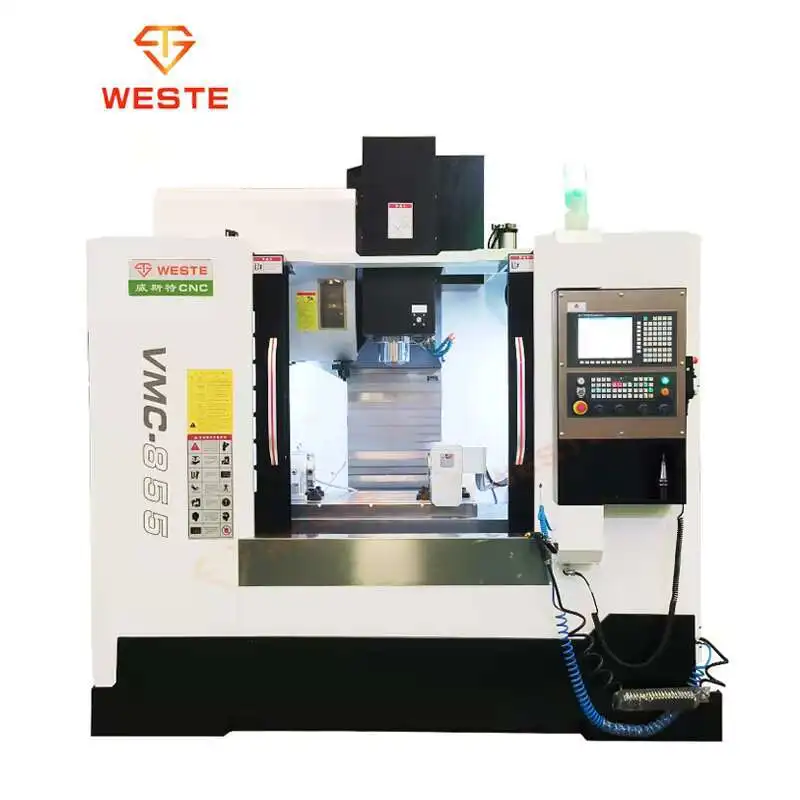

This VMC is suitable for mechanical processing and mold making ,And it can asapt to the processingrequirement from rough
Scope of application: Milling, drilling, boring, twisting, tapping and
other multi-program wage efficient processing.
Suitable for processing plates, plates, shells, abrasives, etc.
Batch processing of parts with high precision, multiple processes and
complex shapes.
It can effectively improve the processing efficiency.
