- Produto Químico de Alta Preocupação: Nenhum
- Tomada: EU
- Tipo: Horizontal
- Origem: CN (Origem)
- CNC ou não: CNC
- Certificado: CE
- Condição: novo
- High Precision, High Rigidity, Heavy Duty Sleeve Spindle
- High-rigidity, high-precision, high-speed Japanese roller guides, Japanese precision ball screws
- The tailstock is controlled by hydraulic pressure, and the mandrel is automatically extended. It has good rigidity and is easy to operate. It can process long shaft parts.
|
|
Item |
Unit |

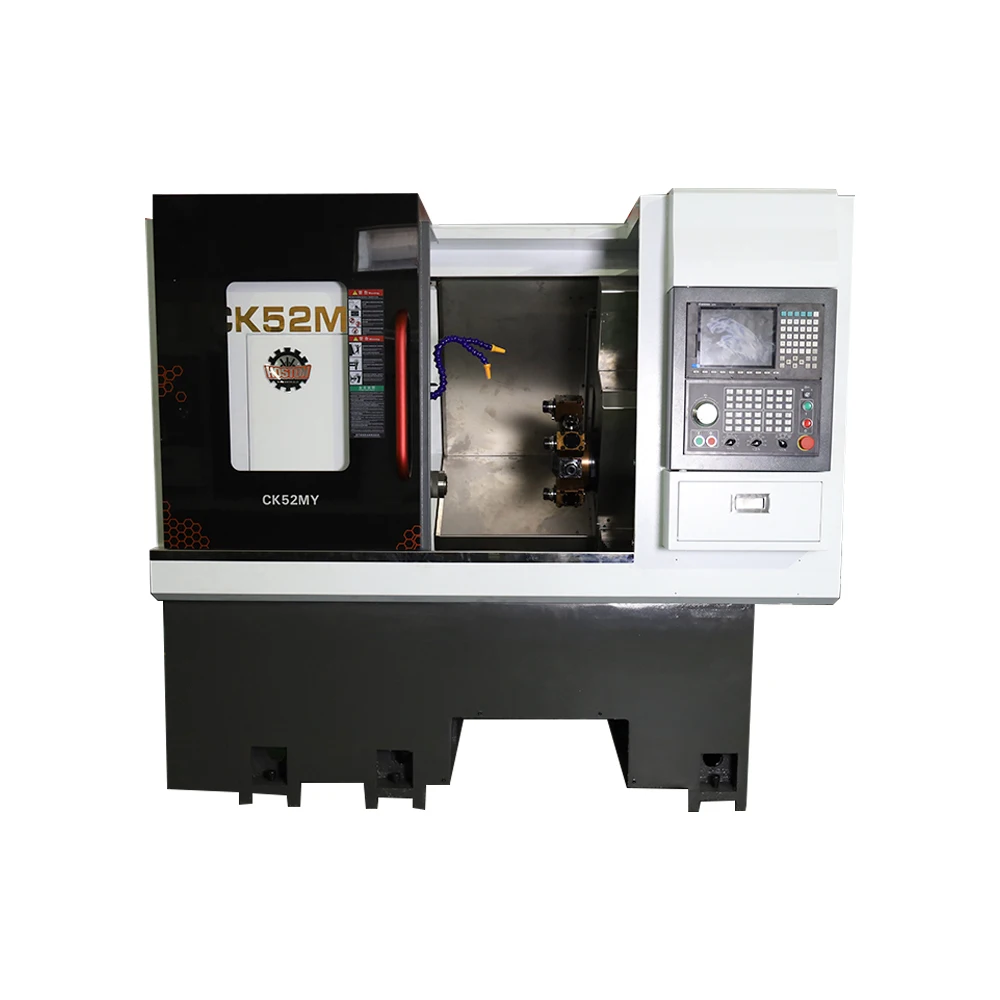

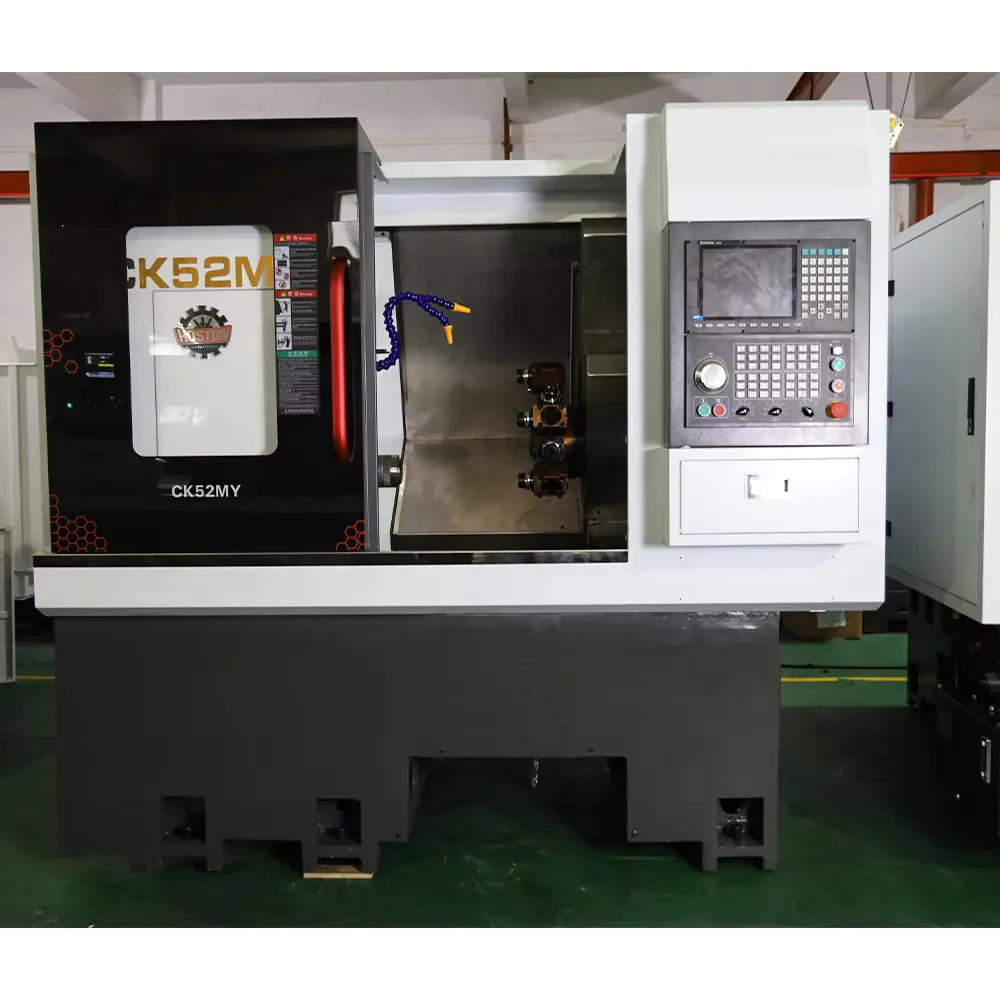

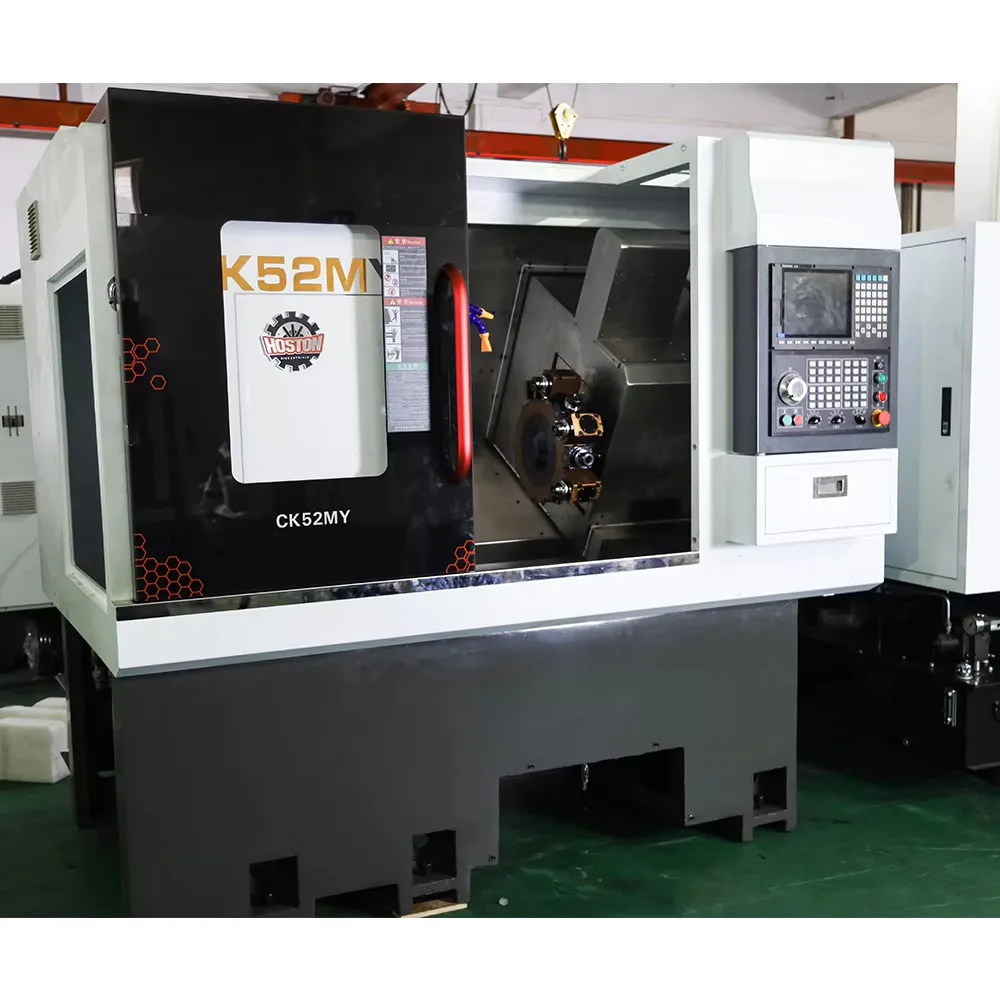

CK52MY |
CK46MY |
CK108MY |
CK106MY |
| Capacity |
Max swing over bed |
mm |
450 |
450 |
450 |
450 |
| Max cutting diameter |
mm |
450 |
450 |
450 |
450 |
|
| Max cutting length |
mm |
380 |
380 |
550 |
550 |
|
| Travel |
X axis travel |
mm |
250 |
250 |
250 |
250 |
| Y axis travel |
mm |
±50 |
±50 |
±50 |
±50 |
|
| Z axis travel |
mm |
400 |
400 |
600 |
600 |
|
| Precision |
Spindle runout |
mm |
0.004 |
0.004 |
0.004 |
0.004 |
| Spindle index position accuracy |
|
±0.002° |
±0.002° |
±0.002° |
±0.002° |
|
| X//Y/Z axis reposition precision |
mm |
0.002 |
0.002 |
0.002 |
0.002 |
|
| Spindle |
Spindle speed |
rpm |
4000 |
5000 |
4000 |
5000 |
| Chuck diameter |
inch |
8" |
6" |
8” |
6” |
|
| Spindle nose |
|
A2-6 |
A2-5 |
A2-6 |
A2-5 |
|
| Spindle bore |
mm |
63 |
56 |
63 |
56 |
|
| Max bar diameter |
mm |
52 |
45 |
52 |
45 |
|

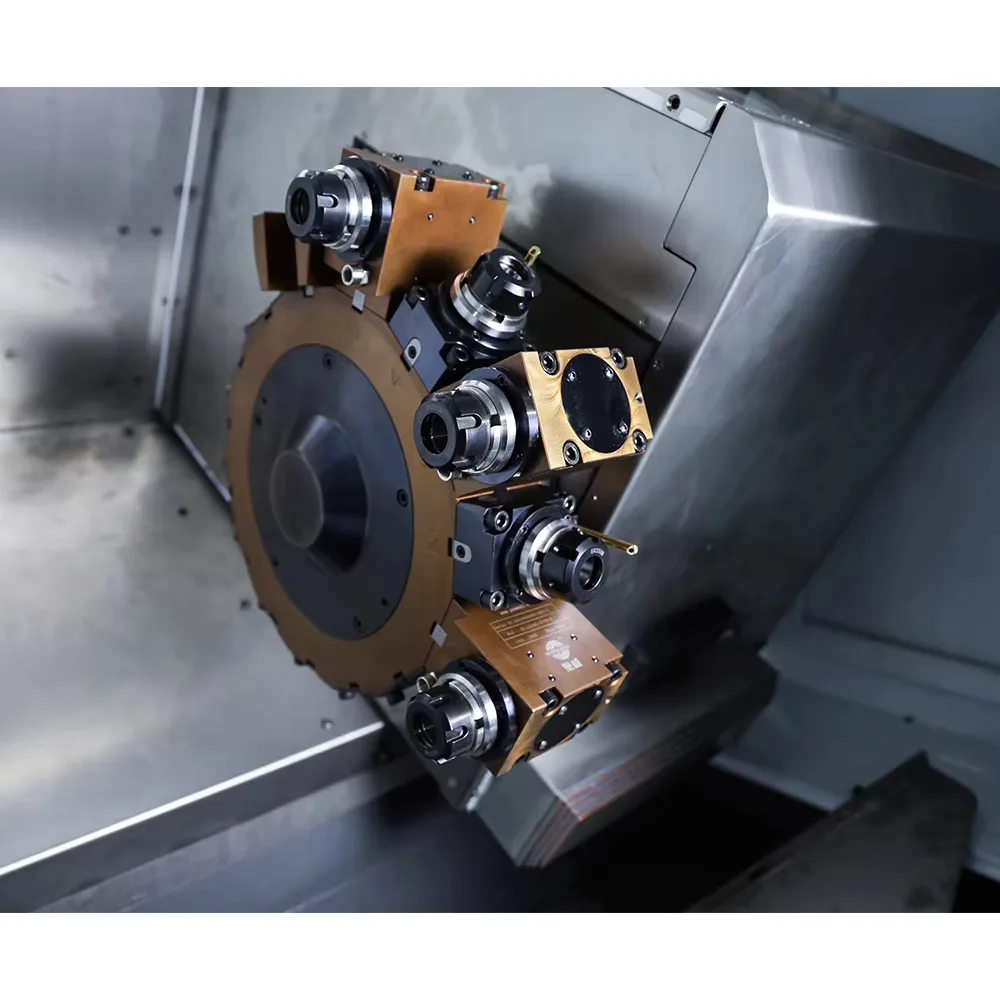

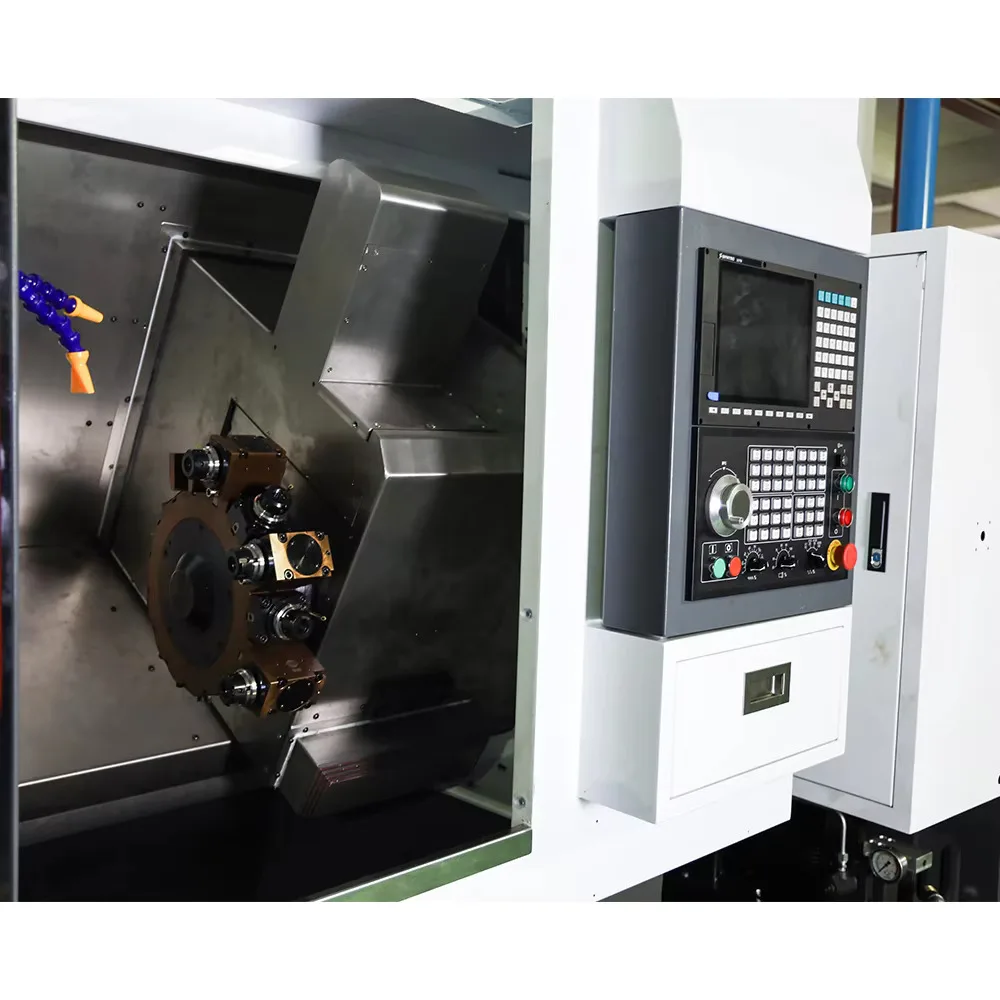

| Turret |
Type |
|
BT40 15-station powered turret with Y-axis |
BT40 15-station powered turret with Y-axis |
BT55 12-station powered turret with Y-axis |
BT55 12-station powered turret with Y-axis |
|
|
Optional BT55 12-station power turret with Y-axis |
Optional BT55 12-station power turret with Y-axis |
|
|
||
| Outer Shank dia. |
|
BT40 20 / BT55 25 |
BT40 20 / BT55 25 |
25 |
25 |
|
| Inner shank dia. |
mm |
BT40 25 / BT55 40 |
BT40 25 / BT55 40 |
40 |
40 |
|
| Rapid speed |
X axis rapid speed |
m/min |
24 |
24 |
24 |
24 |
| Y axis rapid speed |
m/min |
24 |
24 |
24 |
24 |
|
| Z axis rapid speed |
m/min |
24 |
24 |
24 |
24 |
|
| Motor power |
Spindle |
kw |
7.5 |
7.5 |
11 |
7.5 |
| X axis feed motor |
kw |
2.4 |
2.4 |
2.4 |
2.4 |
|
| Z axis feed motor |
kw |
2.4 |
2.4 |
2.4 |
2.4 |
|
| Y axis feed motor |
kw |
1.7 |
1.7 |
1.7 |
1.7 |
|
|
|
kw |
3.1 |
3.1 |
3.1 |
3.1 |
|
| Other |
Dimension |
mm |
2400×1700×1920 |
2400×1700×1920 |
2620×1700×1920 |
2620×1700×1920 |
| Weight |
kg |
3200 |
3200 |
4200 |
4200 |
|
|
|
Optional without Y-axis to retain turn-mill function |
|
CK52M |
CK46M |
CK106M |
CK108M |
