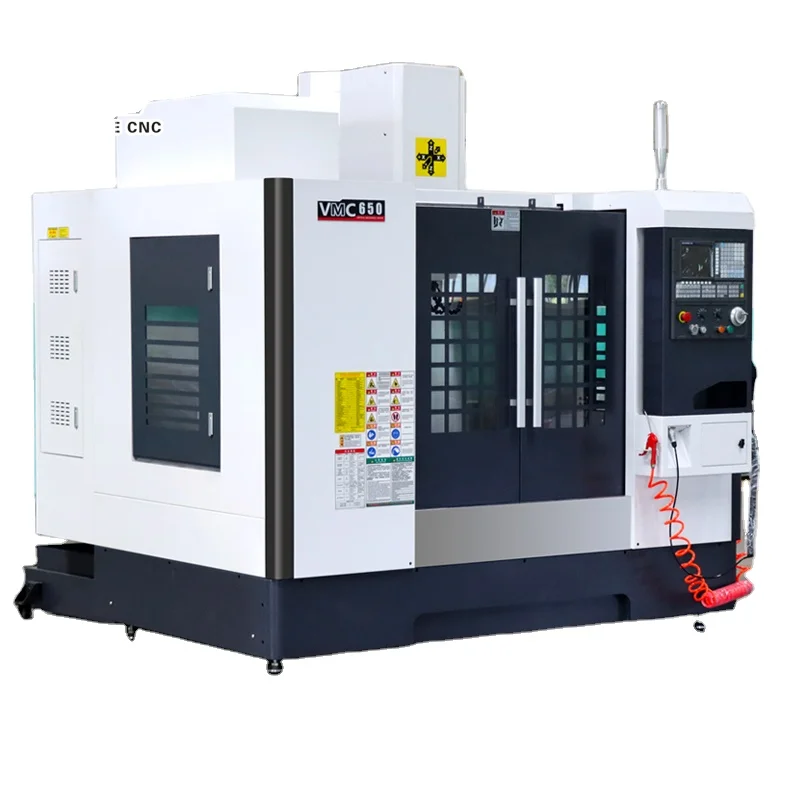

Name: High Quality Vertical Machining Center Small Milling High Precision VMC650 5 Axis
SKU: 1005009509377523
Availability: InStock

Hign-concerned Chemical: None
Origin: Mainland China
spindle taper: BT40
no. of spindles: 4
type: VERTICAL
dimension(l*w*h): 2400*2000*2550mm
weight (t): 4 T
table size (mm): 900*400
cnc control system: GSK, FANUC, KND, Siemens
number of axes: 3, 4, 5
table travel (x) (mm): 650
table travel (y) (mm): 400
table travel (z) (mm): 500
positioning accuracy (mm): ±0.01
repeatability (x/y/z) (mm): ±0.0075
range of spindle speed(r.p.m): 60 - 8000 r.p.m
spindle motor power(kw): 15
max. table load(kg): 1200 kg
min. time of tool change(s): 2
tool magazine capacity: 16, 24
key selling points: Automatic
warranty: 2 years
place of origin: Shandong, China
brand name: WOJIE
voltage: Customized Option
machinery test report: Provided
video outgoing-inspection: Provided
Guideways: Taiwan Linear Guideways
Precision: High Precision Machining Center
After Warranty Service: Video technical support
Application: General Machinery Processing
CNC system: FANUC SEIMENS KND GSK
Product name: 3-axis Vertical Cnc Machining Center
Product type: Machining Center Cnc Mill Machine
Machine Type: Vertical CNC Milling Machine
Worktable size: 900x400 Mm
X/Y/Z Axis Travel: 650x400x500mm
Condition: New
Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Turkey, United States, Italy, France, Germany, Viet Nam, Philip
Core Components: Bearing
Feed Speed(mm/min): 1 - 5000 mm/min
Rapid Feed Speed(m/min): 15/15/15
Marketing Type: New Product 2024
Warranty of core components: 13 months

Hello dear friend, welcome to my store. Have a nice day. Happy shopping. . You can find the products you need from my store. If you don't have what you need, you can tell us and we can help you find the source. If you need a faster reply, you can also add it directly (Whats App: +86 19898860521). Email 2521603408@qq.com Our working hours are 9:00-22:30 in the morning (Beijing time). When we receive your message, we will reply to you as soon as possible. I wish you a happy life!

Product Description

Product Application

This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.

Product main technical specifications

Table size	900x400mm
X axis travel	650mm
Y axis travel	400mm
Z axis travel	500mm
Max. worktable load	4000kg
T slot(number-width-pitch)	3-18x125
Max. spindle speed	8000rpm
Spindle taper	BT40
Main motor power	5.5kw
X/Y/Z rapid traverse speed	24/24/20m/min
Cutting feed speed	1-10000mm/min
Guide rail type	Linear rail
Distance from spindle axis to column surface	550mm
Distance between spindle nose and worktable surface	120-620mm
Positioning accuracy	±0.01mm
Repeat positioning accuracy	±0.0075mm
Tool magazine	Arm 16
Max. tool diameter	φ112 (Adjacent)/ φ200(Apart)
Max.tool weight	18kg
Package weight	4000kg
Overall dimension	2400x2000x2550mm

Standard Accessories: Optional Accessories:

Armless type tool magazine System:FANUC,Siemens,GS etc
Automatic lubrication system Arm type ATC
Cooling system 4axis or 5axis
Heat Exchanger Automatic chip conveyor
Pneumatic system Spindle center coolant
Full Cover machine enclosure Higher speed of Spindle
Air system/ Air gun Air conditioner

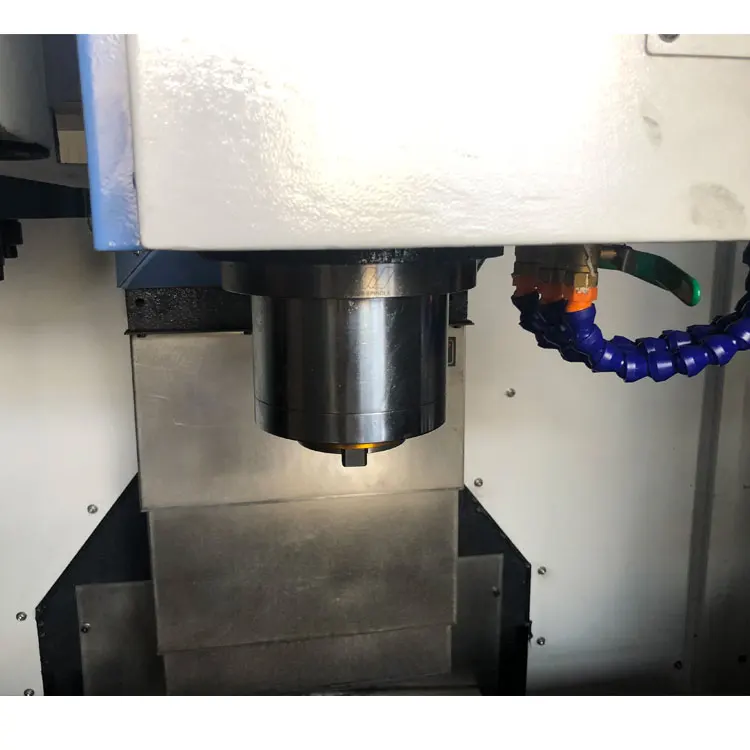

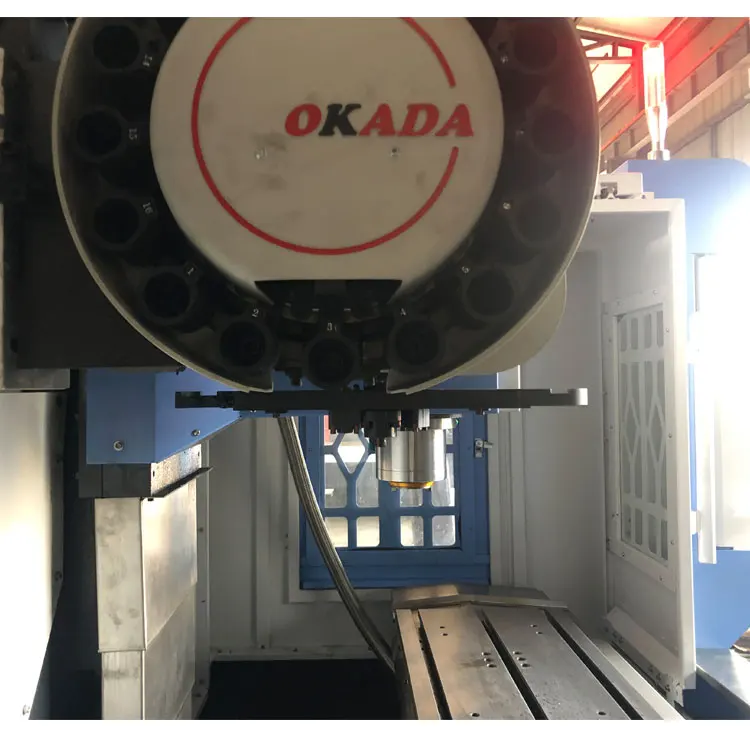

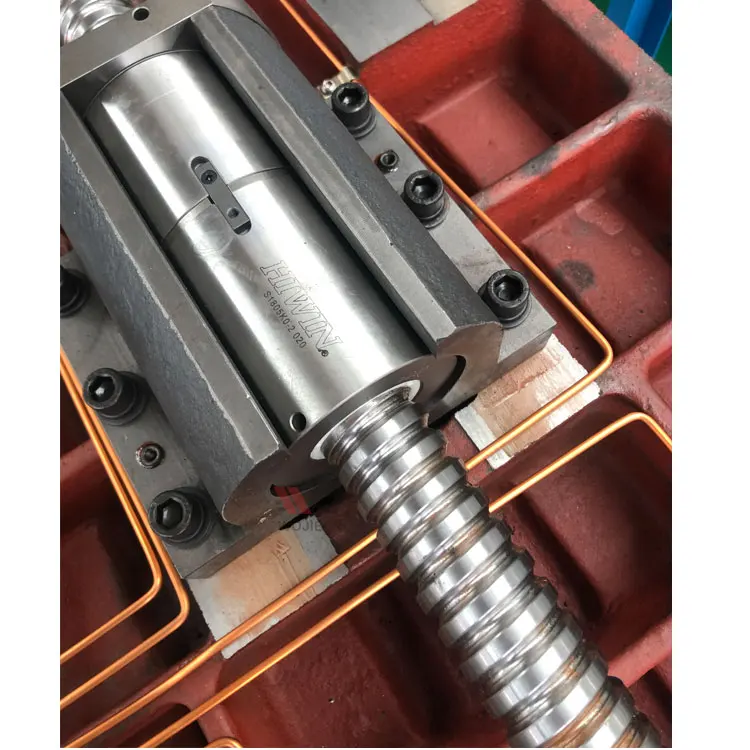

Detailed Images

Related Products

Company Introduction

Packing&Shipping

FAQ

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .

When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?

A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard will be packed in plywood case.
