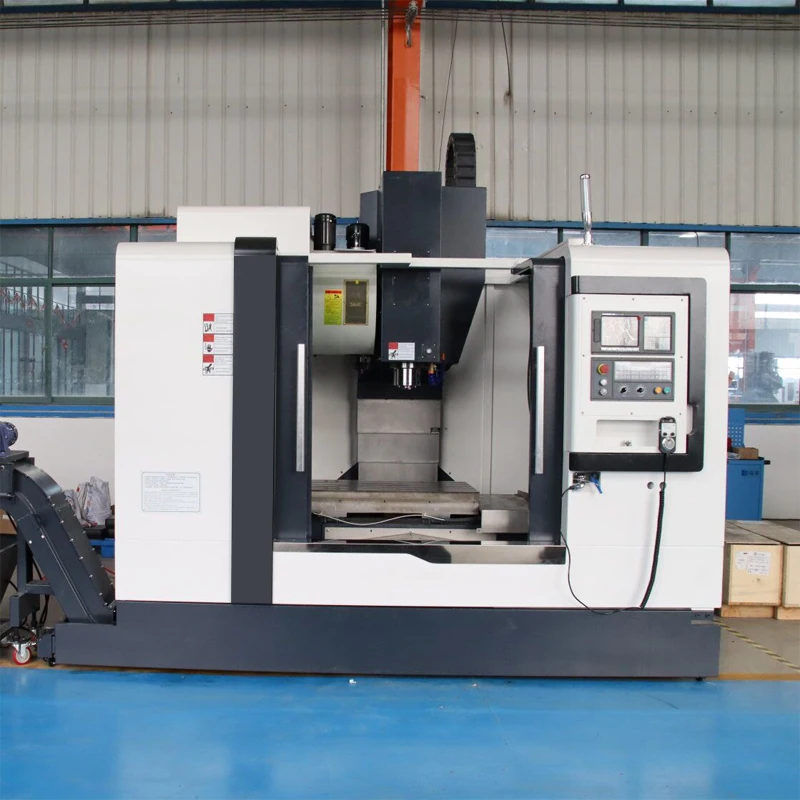

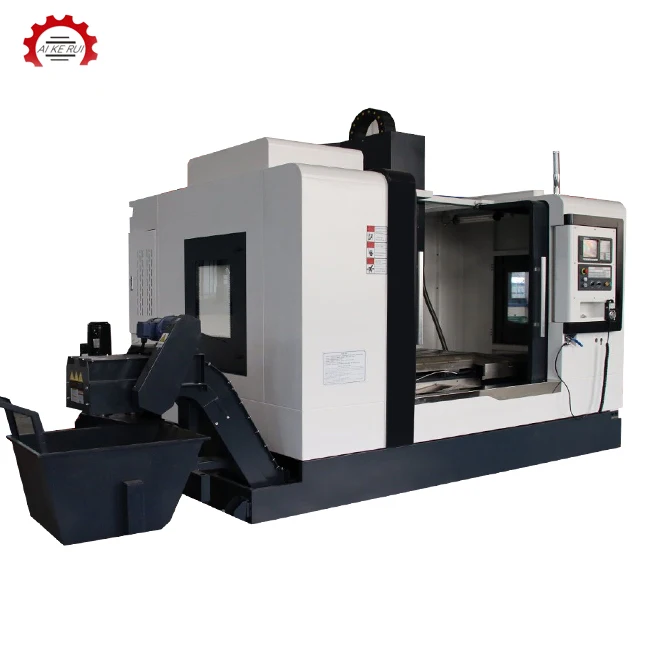

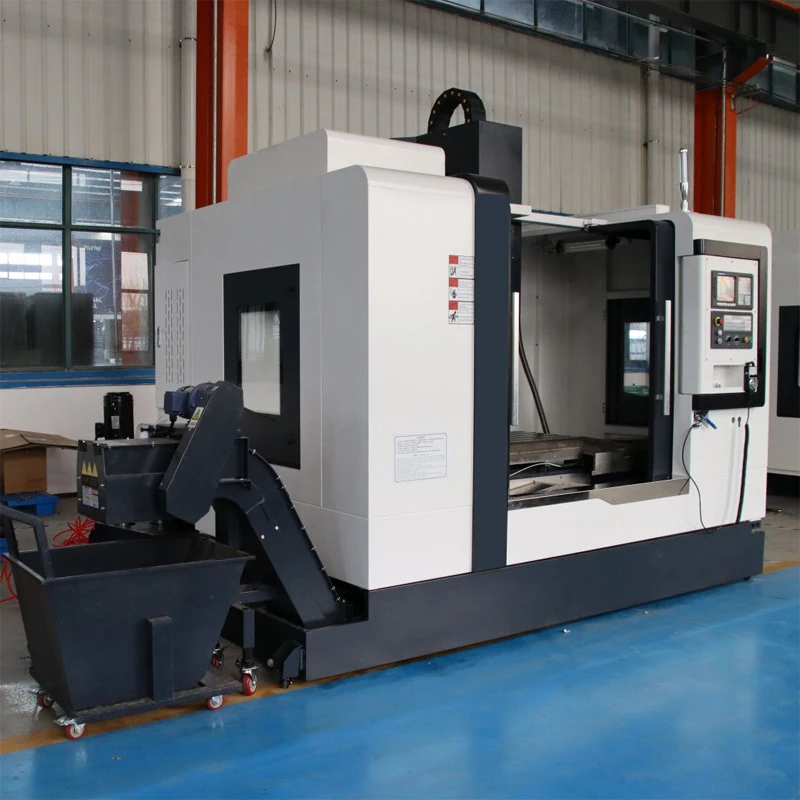

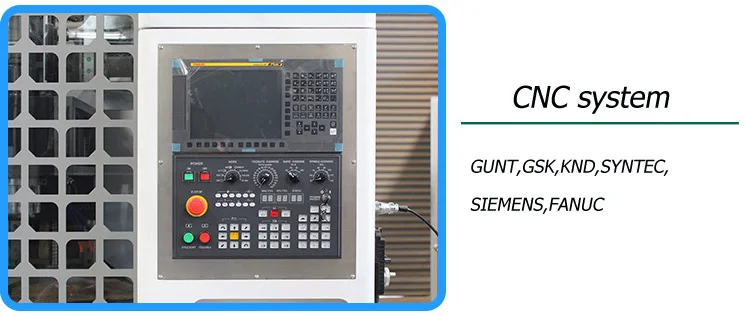

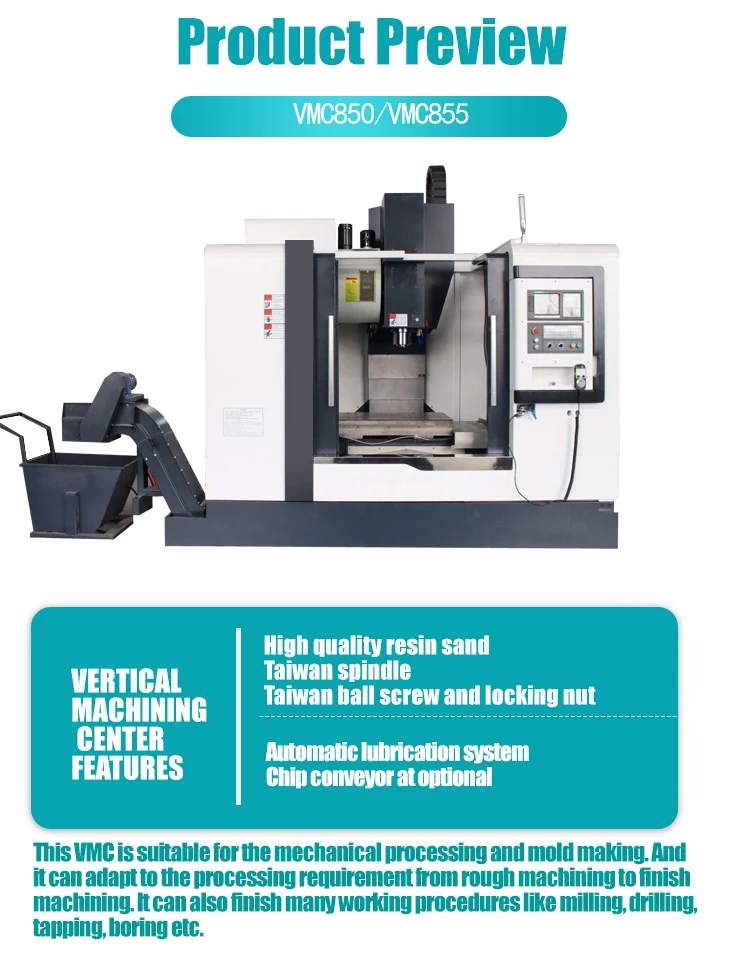

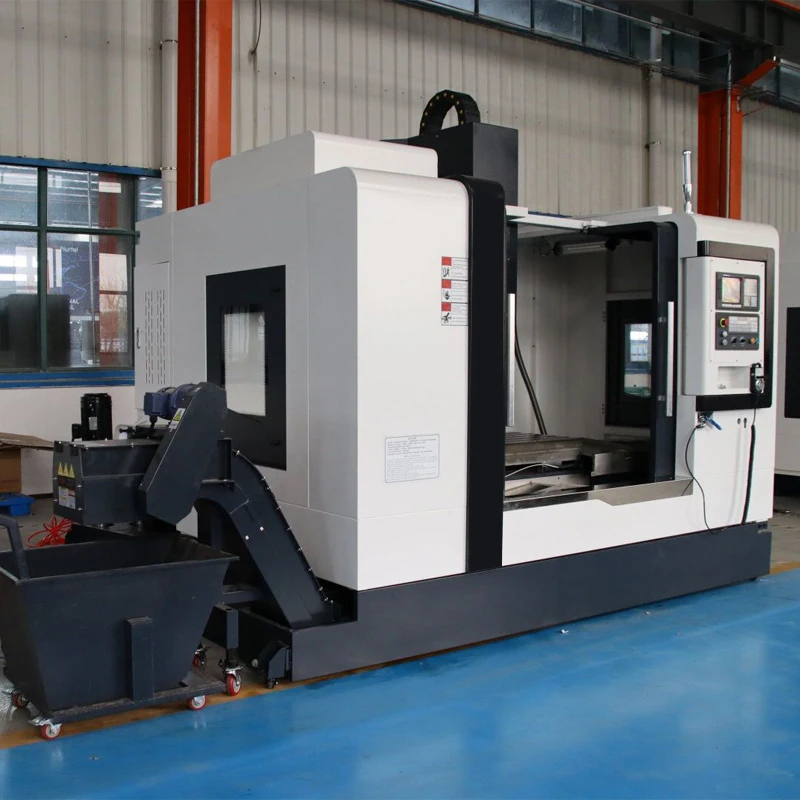

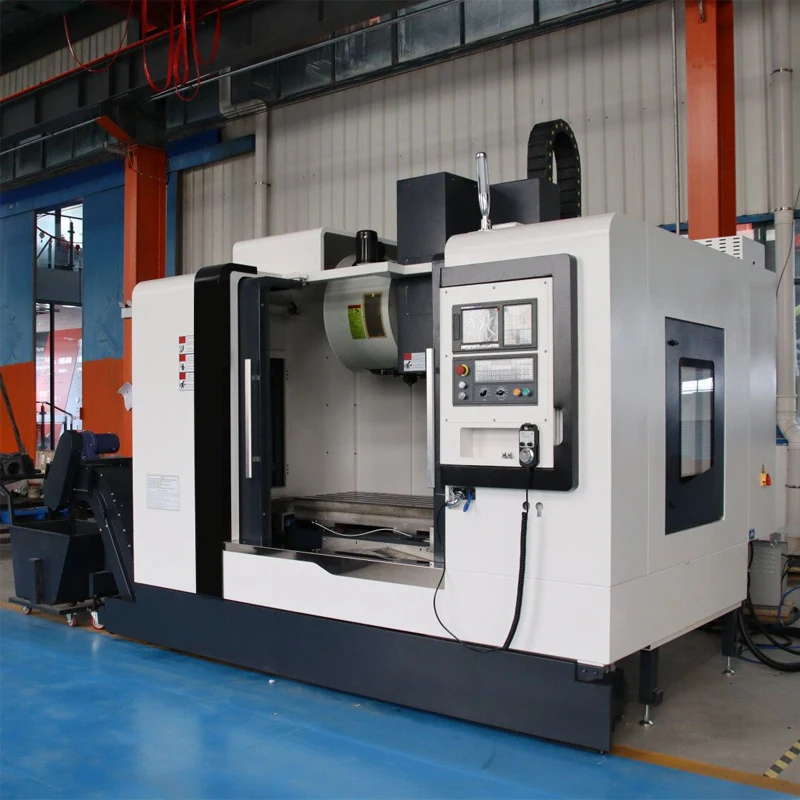

High quality and efficiency cnc vertical machining center fanuc system VMC850/VMC855 vertical cnc machining center
Specifications | Unit | VMC850/VMC855 |
Table size | mm | 1000x500(550) |
Table maximum load | kg | 600/800 |
X/Y/Z axis travel | mm | 800x500(550)x500(500) |
Distance between spindle center and column guide surface | mm | 580 |
Distance between spindle end face and worktable surface | mm | 120-670 |
X/Y/Z Max. feed speed | mm/min | 10000 |
X/Y/Z Max. Rapid traverse | m/min | 24/24/20 |

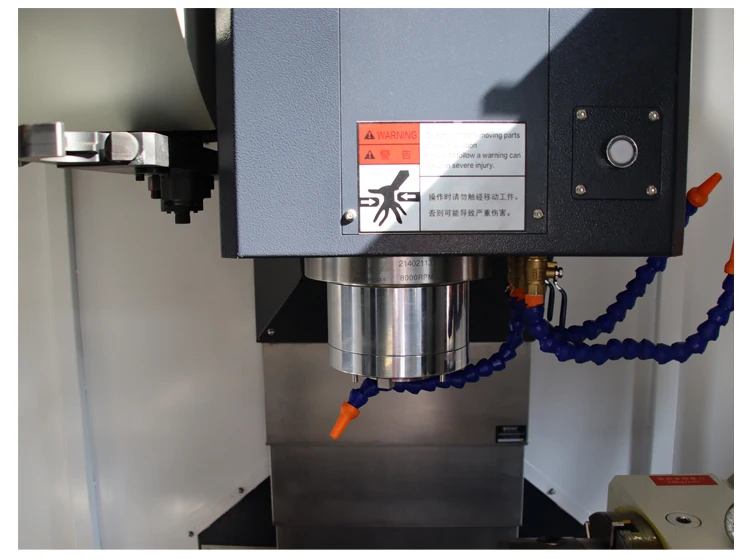

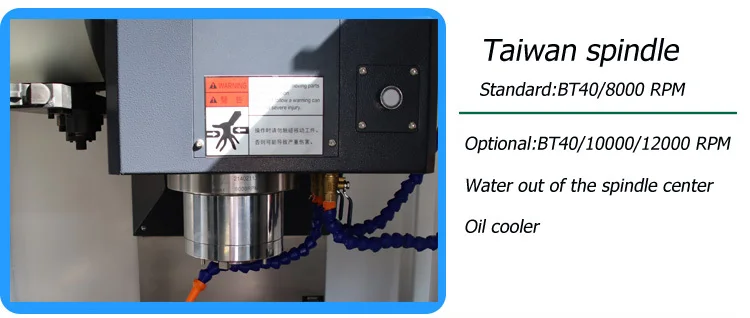

The spindle maximum speed | r/min | 8000 |
The spindle taper hole | type | BT40 |
Spindle motor | kw | 7.5/11 |
X/Y/Z axis servo motor | kw | 2.0/2.0/2.0 |

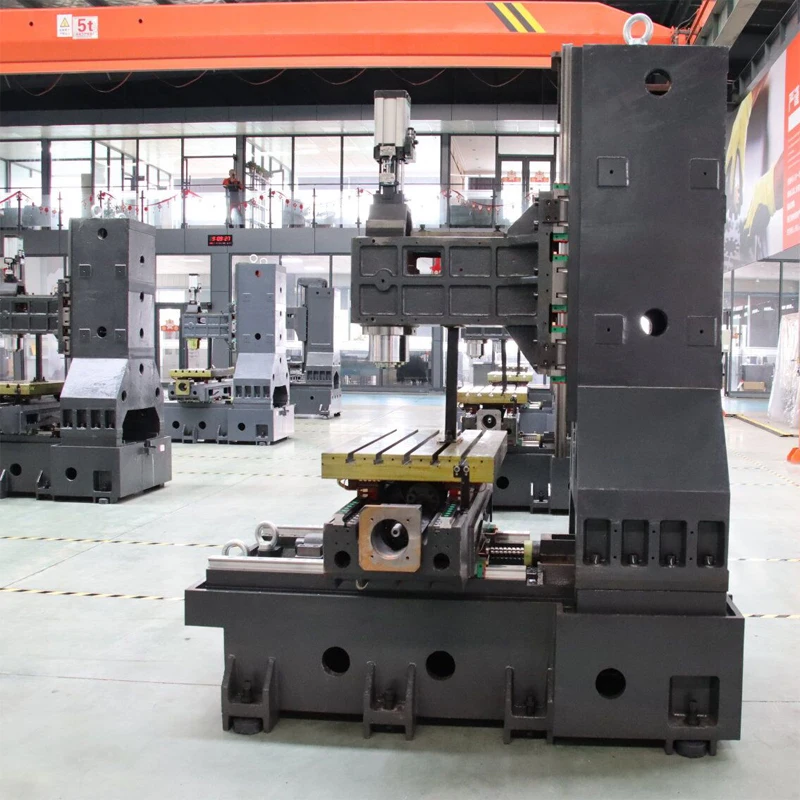

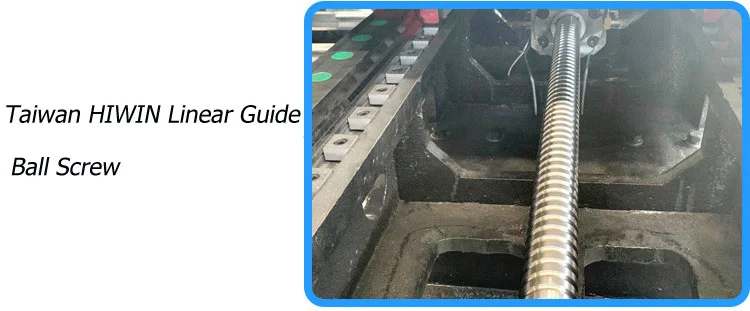

X/Y/Z Guide way type | ||
The workbench T slot | mm | 5-18x90 |
Repeat positioning accuracy | mm | ±0.004 |

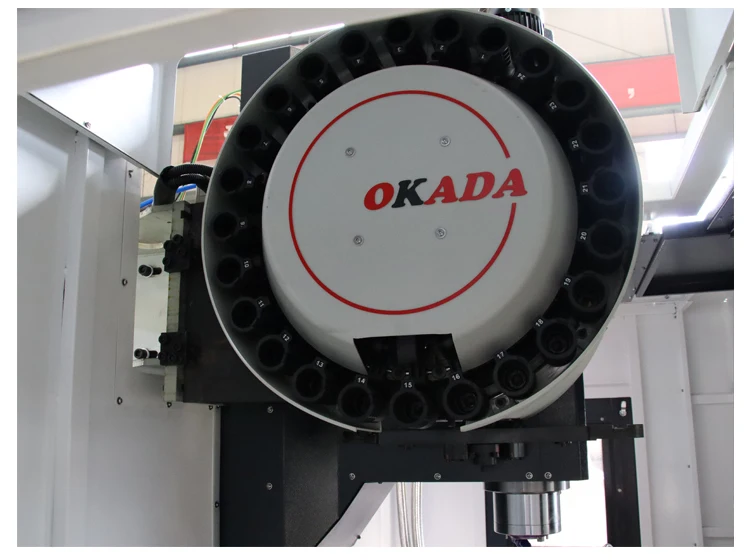

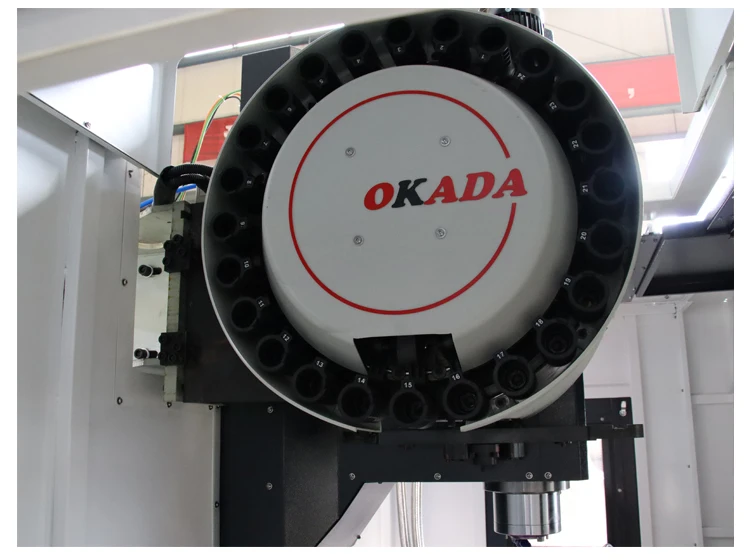

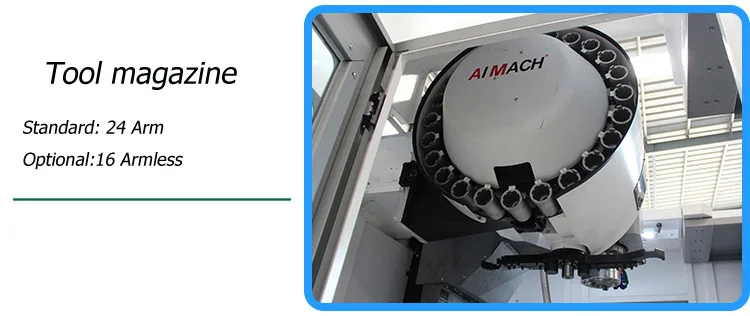

Tool capacity | 16/24 | |
Maximum tool weight | kg | 8 |
Max. tool length | mm | 250/300 |
Machine dimension(L×W×H) | mm | 2700x2400x2700 |
Net. weight (about) | kg | 5000/5500 |
FAQ
1:How can I choose the most suitable machines?
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
3: Where is our factory located? How can I visit there?
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
3: Where is our factory located? How can I visit there?
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7.If the above products do not meet your requirements, we can customize them according to customer requirements!
