PRODUCTS DESCRIPTION
PRODUCT PARAMENTERS
|
Model
|
TJ1212-5A
|
|
X/Y/Z Axis Travelling size
|
1720*1820*750mm
|
|
A/C Axis
|
A:+40°/-100°,C:+400°/-40°
|
|
Working size
|
1220*1220*500mm
|
|
Table size
|
1230*1220mm
|
|
Transmission
|
X/Z ball screw drive, Y helical rack and pinion drive
|
|
Table structure
|
T-slot or vacuum
|
|
Spindle power
|
7.0 KW
|
|
Spindle speed
|
18000r/min
|
|
Travelling speed
|
60mm/min
|
|
Working speed
|
20m/min
|
|
Driving system
|
Yaskawa servo motor 1.3KW
|
|
Voltage
|
AC380/3PH/50HZ
|
|
Controller
|
Syntec (OSAI for option)
|
MAIN FEATURES

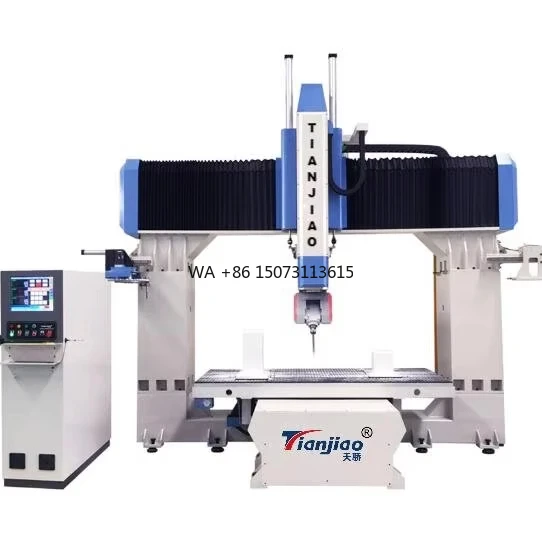

1. Small 5 axis CNC machine adopts Taiwan Syntec five axis synchronizing cnc control system, with Italy HSD imported high power 5 axis head, easily implement stereoscopic five-side processing one time.
2. The machine body of small 5 axis CNC machine is heavy duty thicken aging treatment and casting iron table, transmission adopts Japan Yaskawa servo motors and Japan SHIMPO high performance reducer.
3. High accuracy ball screw from Germany.
4. Small 5 axis CNC machine adopts Schneider electronic spare parts.
5. Drum style auto tool change with 8 positions for optional.
6. Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.
OEM service is available for you.
Small 5 axis CNC machine adopts table moving instead of gantry moving to guarantee the high accuracy.
2. The machine body of small 5 axis CNC machine is heavy duty thicken aging treatment and casting iron table, transmission adopts Japan Yaskawa servo motors and Japan SHIMPO high performance reducer.
3. High accuracy ball screw from Germany.
4. Small 5 axis CNC machine adopts Schneider electronic spare parts.
5. Drum style auto tool change with 8 positions for optional.
6. Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.
OEM service is available for you.
Small 5 axis CNC machine adopts table moving instead of gantry moving to guarantee the high accuracy.

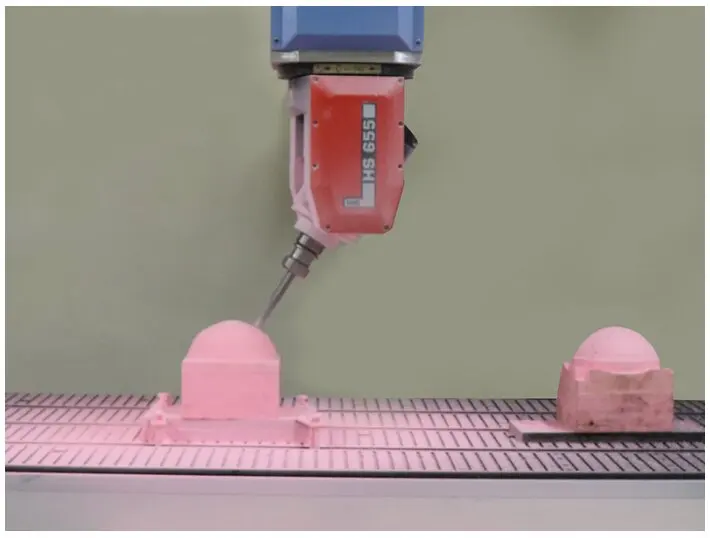

Italy 5 axis head with high power.
The top-quality machine parts, such as Schenider electronic parts, Yaskawa servo motors, Taiwan Delta inveter, Japan shipmo reducer.

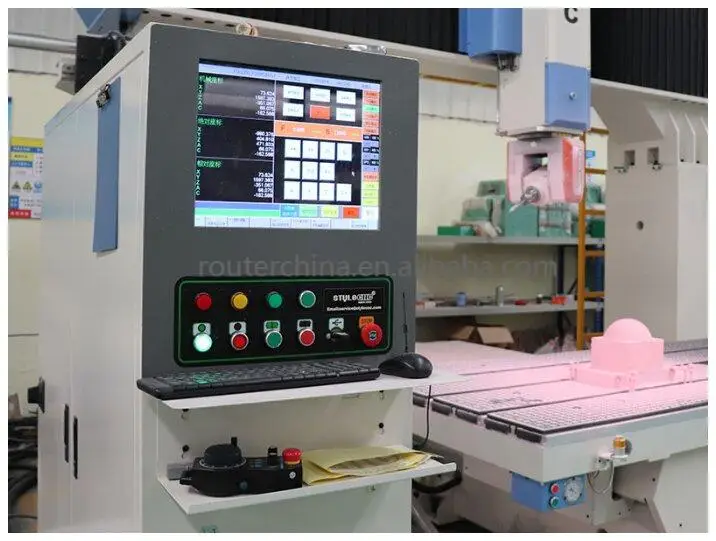

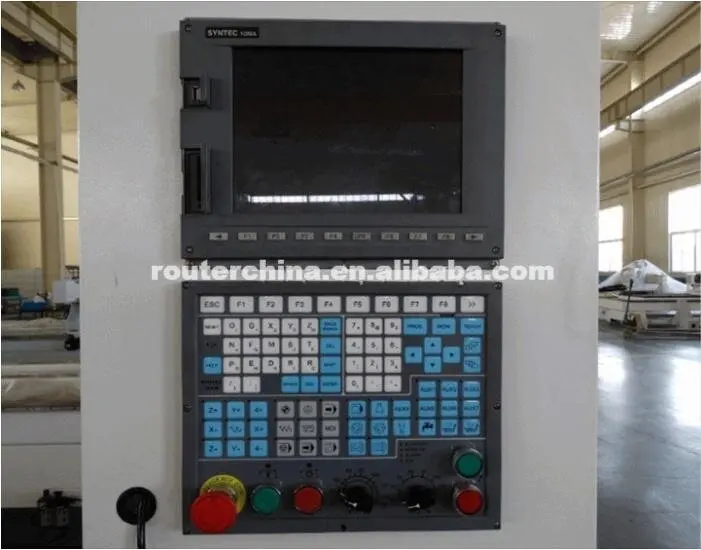

Taiwan Syntec control system.
SAM PLES

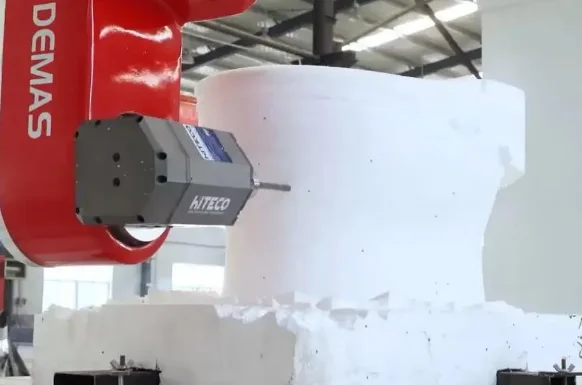

Small 5 axis CNC machine is widely used for machining aluminum alloy, long strip homeomorphism chair back, bag suitcases homeomorphism cutting, homeomorphism square tube cutting, etc.
1. Mold industry: casting mold, automobile, sanitary ware mold, ship, yacht, aviation industry, etc.
2. 3D processing: fiberglass trimming, resin and other non-metal carbon-mixed work pieces processing.
3. Furniture industry: cabinet door, wooden door, solid wood furniture, stereo box, computer desk, game cabinets, etc.
4. Decoration industry: acrylic, PVC, density board, stone, organic glass, soft metals (aluminum and copper), etc.
1. Mold industry: casting mold, automobile, sanitary ware mold, ship, yacht, aviation industry, etc.
2. 3D processing: fiberglass trimming, resin and other non-metal carbon-mixed work pieces processing.
3. Furniture industry: cabinet door, wooden door, solid wood furniture, stereo box, computer desk, game cabinets, etc.
4. Decoration industry: acrylic, PVC, density board, stone, organic glass, soft metals (aluminum and copper), etc.
