- Hign-concerned Chemical: None
- Condition: New
- Type: Vertical
- Origin: Mainland China
- Certification: CE

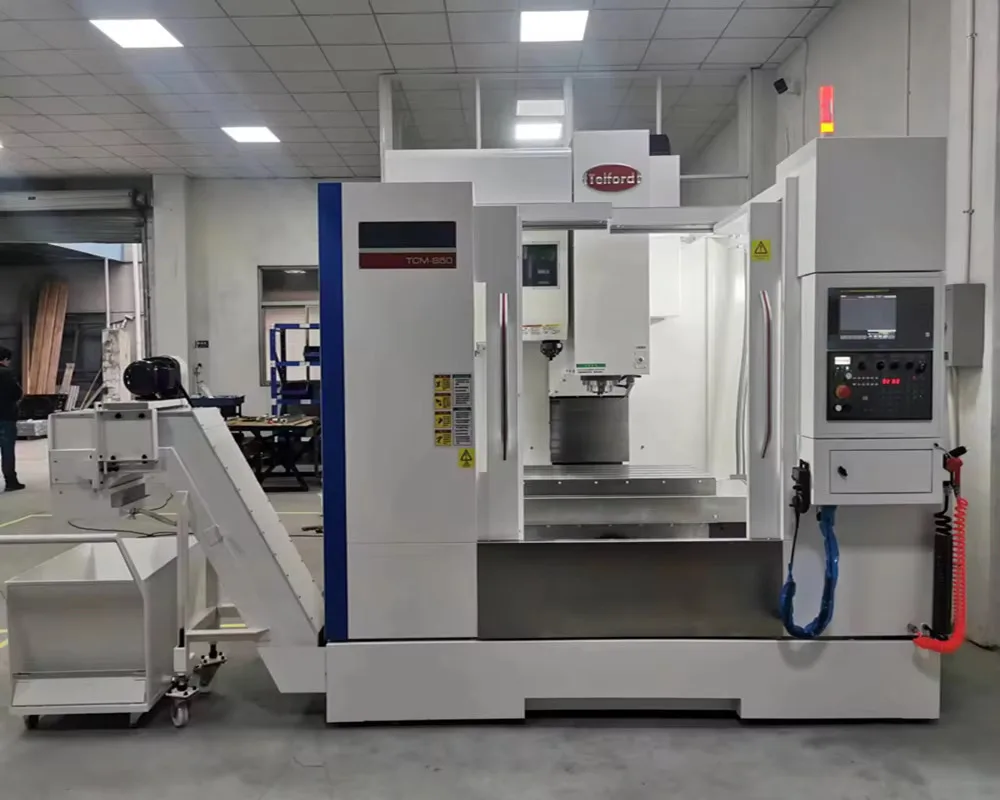

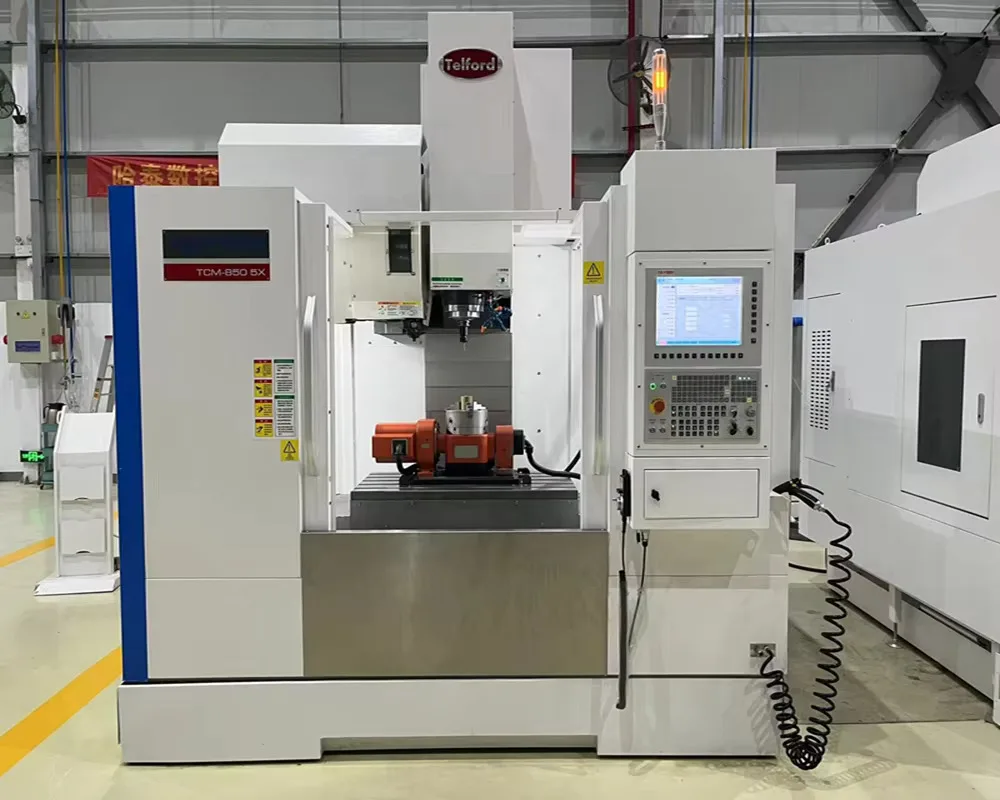

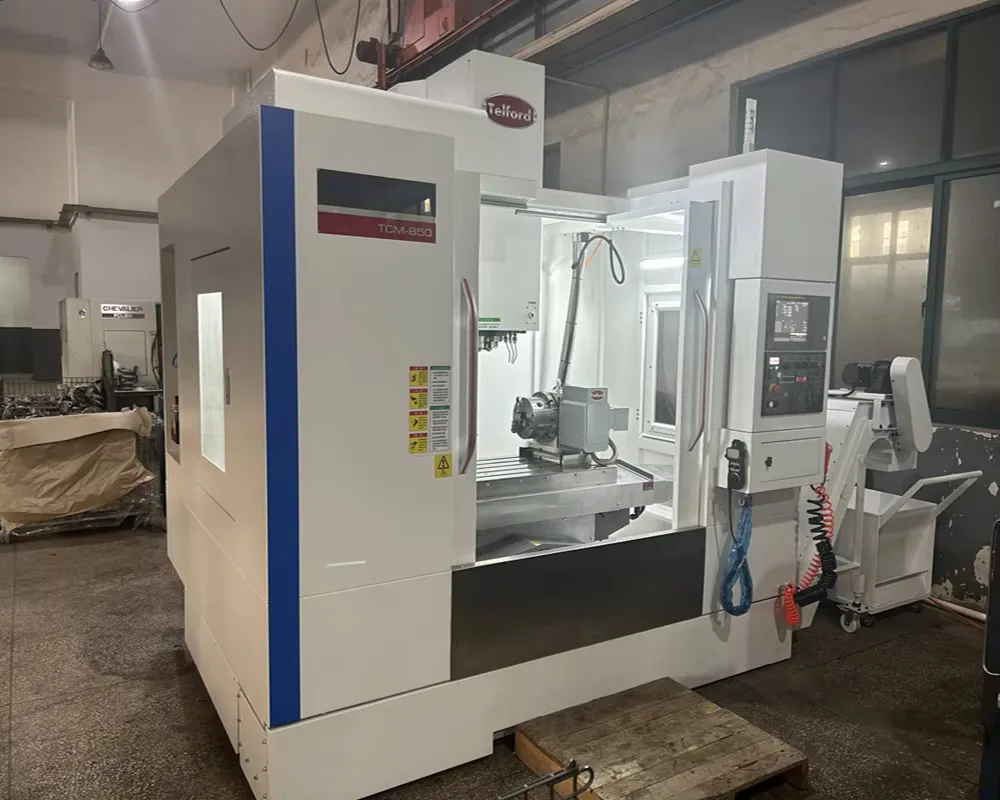

TELFORD CNC TCM-650
TELFORD CNC TCM-650
High-Performance Spindle:
* 12000rpm BT-40 spindle for powerful cutting capabilities and precision.
Stable Working Range:
* Three-axis travel of 650mm (X), 500mm (Y), and 550mm (Z) for versatile machining.
Robust Load Capacity:
* Worktable size of 800×400mm with a maximum load capacity of 450kg for heavy tasks.
Fast Tool Change System:
* 16-tool ATC system with a rapid tool change time of 1.8 seconds for improved efficiency.
* 12000rpm BT-40 spindle for powerful cutting capabilities and precision.
Stable Working Range:
* Three-axis travel of 650mm (X), 500mm (Y), and 550mm (Z) for versatile machining.
Robust Load Capacity:
* Worktable size of 800×400mm with a maximum load capacity of 450kg for heavy tasks.
Fast Tool Change System:
* 16-tool ATC system with a rapid tool change time of 1.8 seconds for improved efficiency.
Product Highlights
Quality Linear Guides and Ball Screws:
* High-precision components from HIWIN and PMI ensure accuracy and stability.
Automatic Lubrication System:
* Maintains smooth operation of moving parts, reducing maintenance costs.
* User-friendly FANUC Oi-MF controller for easy operation and programming.
* High-precision components from HIWIN and PMI ensure accuracy and stability.
Automatic Lubrication System:
* Maintains smooth operation of moving parts, reducing maintenance costs.
* User-friendly FANUC Oi-MF controller for easy operation and programming.
* Advanced coolant system for temperature control, enhancing machining quality.
Premium Materials:
* Durable machine body cast from high-quality materials for long-term stability.
Multi-Functional Design:
Product Advantages

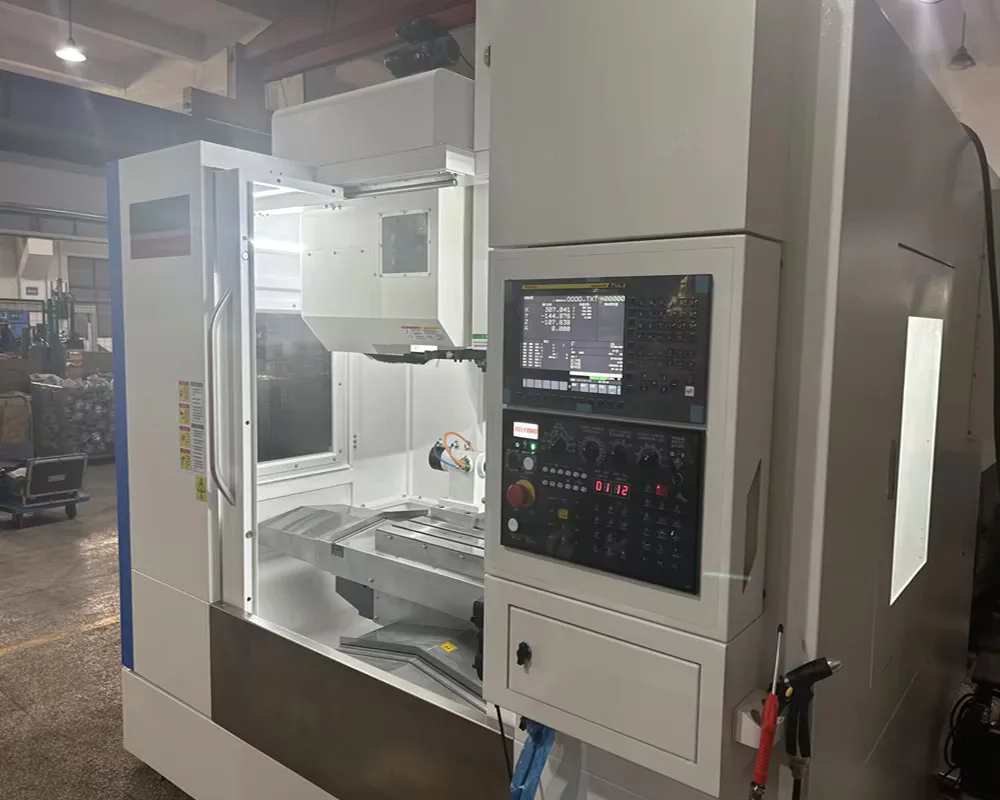

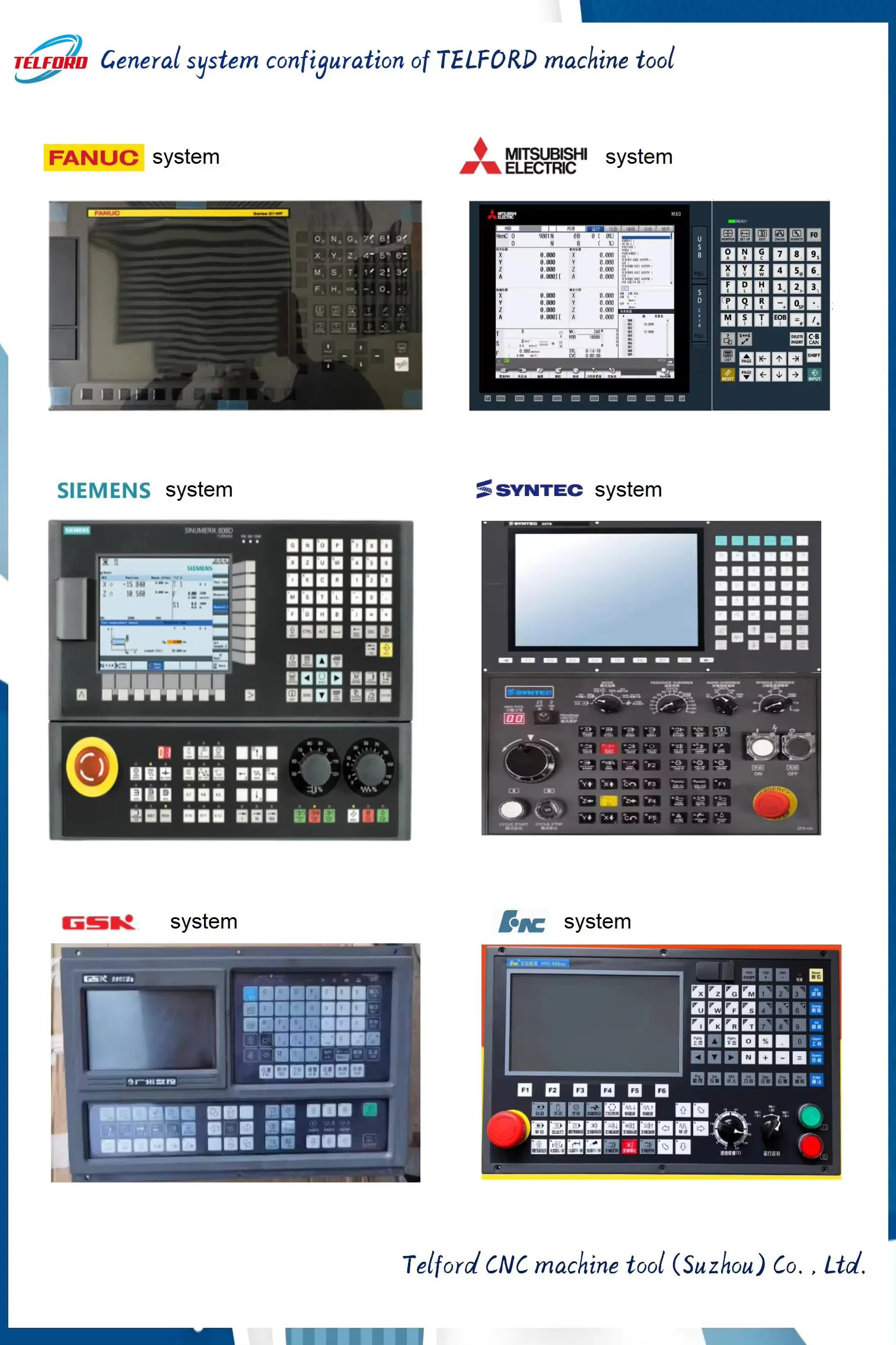

CNC Controller System
Our CNC machines feature top-brand controllers like Siemens, Fanuc, and Mitsubishi, ensuring high quality, reliability, and advanced functionality.

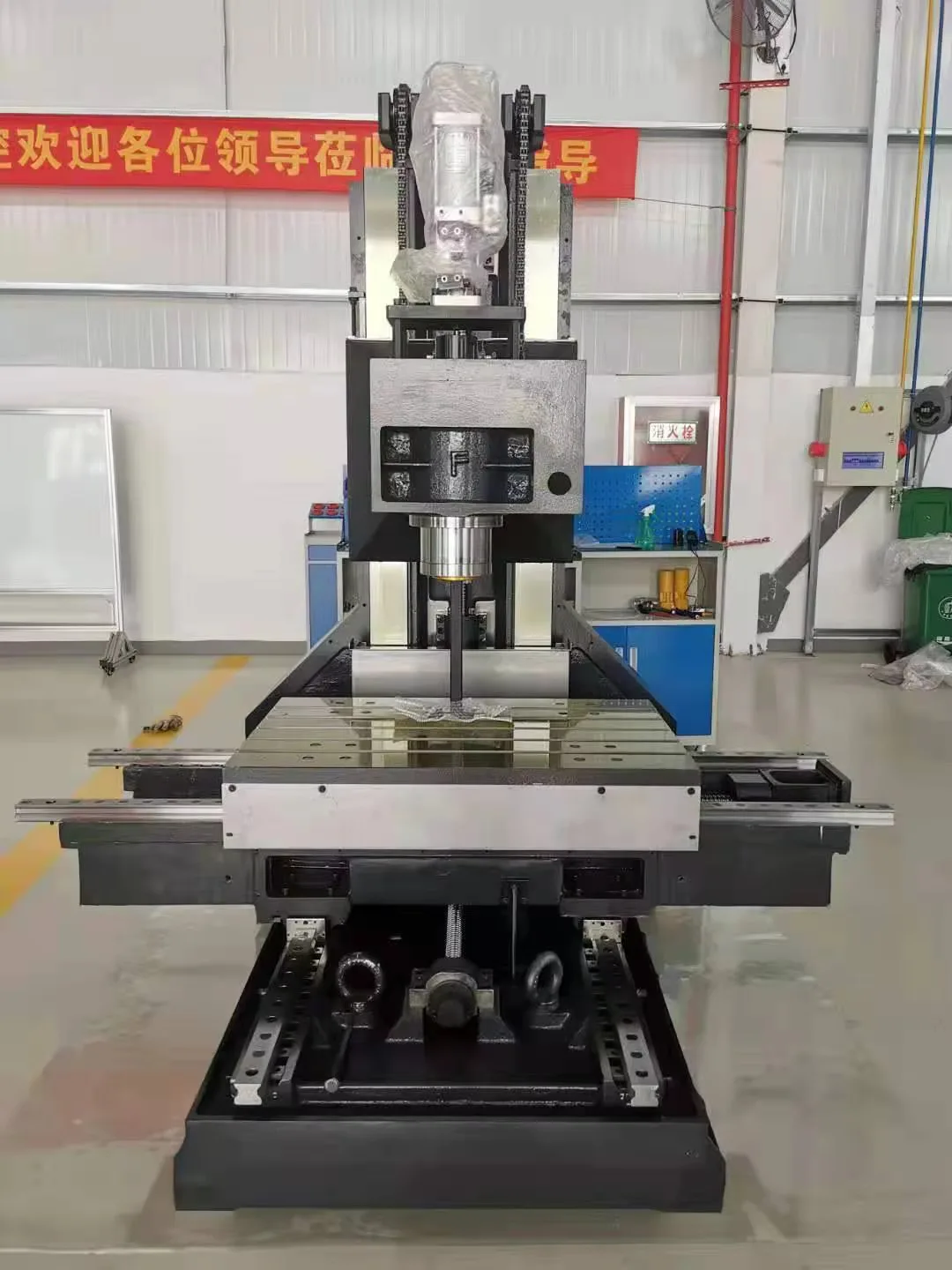

Durable Machine Bed
Constructed from high-strength cast iron, our machine bed ensures exceptional stability, precision, and vibration resistance for optimal machining performance.

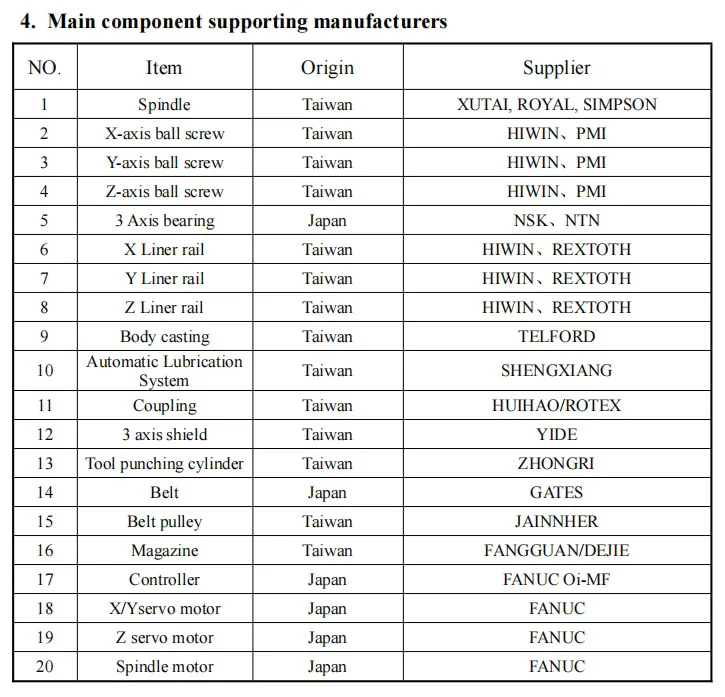

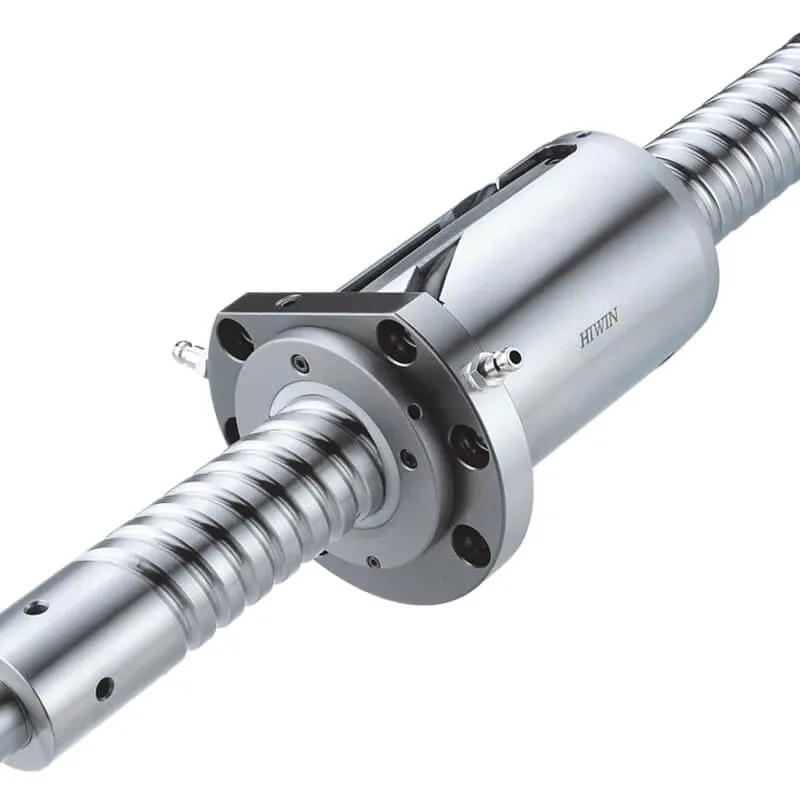

Ball screw
We use Taiwanese brands HIWIN and PMI. High precision ball screw.

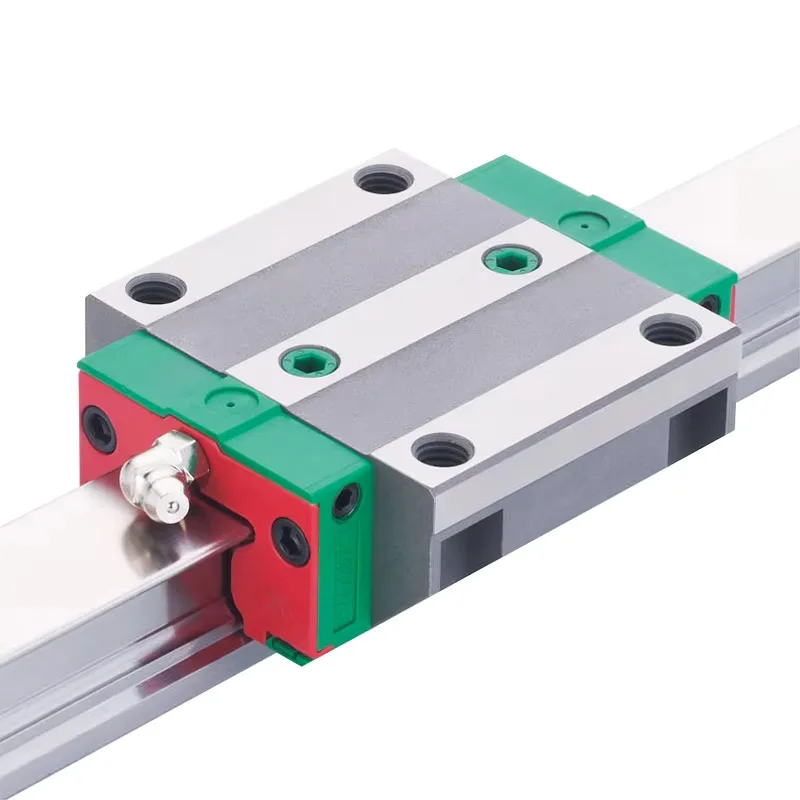

Guide rails
Taiwanese brands HIWIN, REXTOTH.
PRODUCT SPECIFICATIONS
Item | Unit | Parameter | |||
Machine range | 3 Axis travel（X/Y/Z） | mm | 650/500/550 | ||
Spindle nose to worktable distance | mm | 460 | |||
Spindle center to column shield surface distance | mm | 100~600 | |||
Work table | Work table dimension | mm | 800×400 | ||
Max. load | kg | 450 | |||
T-slot | 3×14×100 | ||||
Spindle | Spindle speed | rpm | 12000（Opt） | ||
Spindle taper | BT40 | ||||
Spindle motor | kw | 5.5/7.5 | |||
Speed | Rapid speed（X/Y/Z） | m/min | 48/48/30 | ||
Cutting speed | mm/min | 1~20000 | |||
ATC | Tool number | 16 | |||
Max.diameter/length/weight | Æ80mm/300mm/8kg | ||||
Max.tool diameter (full/empty adjacent tools) | mm | Æ150 | |||
Tool selection method | Any/Sequential Selection | ||||
Tool exchange time (tool tool) | S | 1.8 | |||
Processing | mm | Æ30 | |||
Maximum tapping diameter | mm | M16 | |||
cm³/min | 150 | ||||
Other | Dimension | mm | 2200*2100*2300 | ||
Weight | T | 4.5 | |||
You get exactly what you see, and what you receive is precisely what we've shown.
Customer Factory Visit：
Presentation to Customer: Introducing Our Factory and CNC Machines

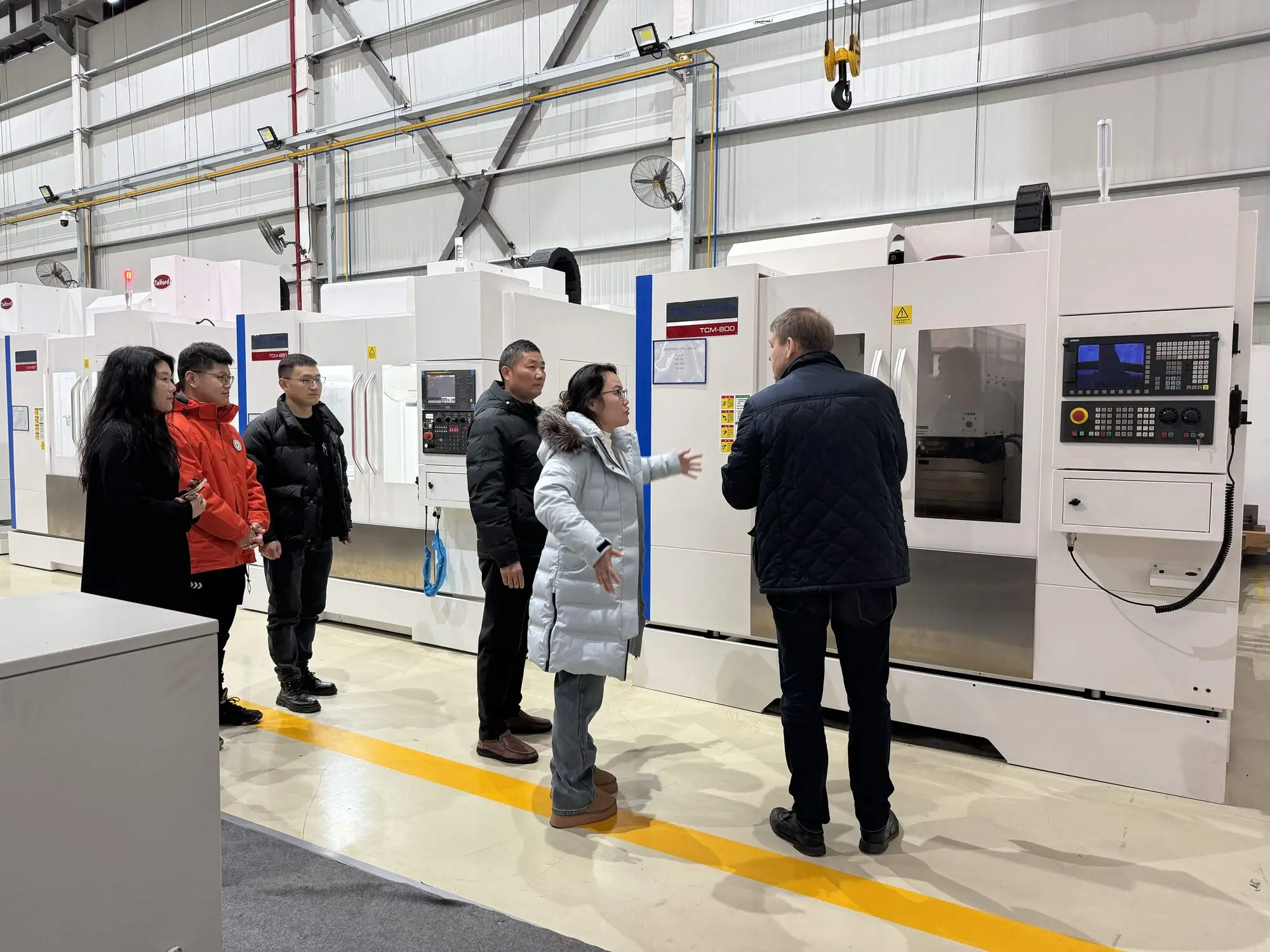

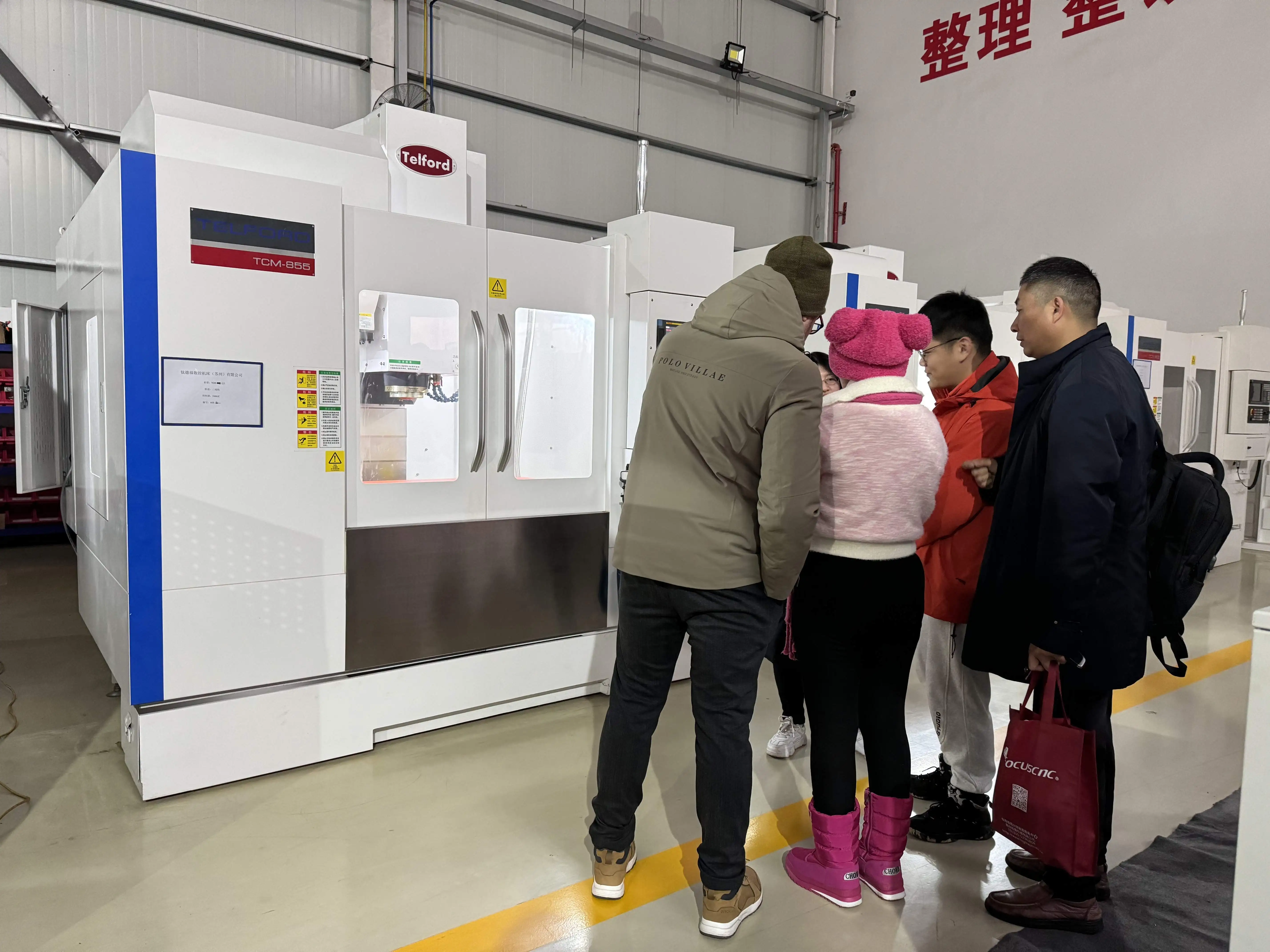

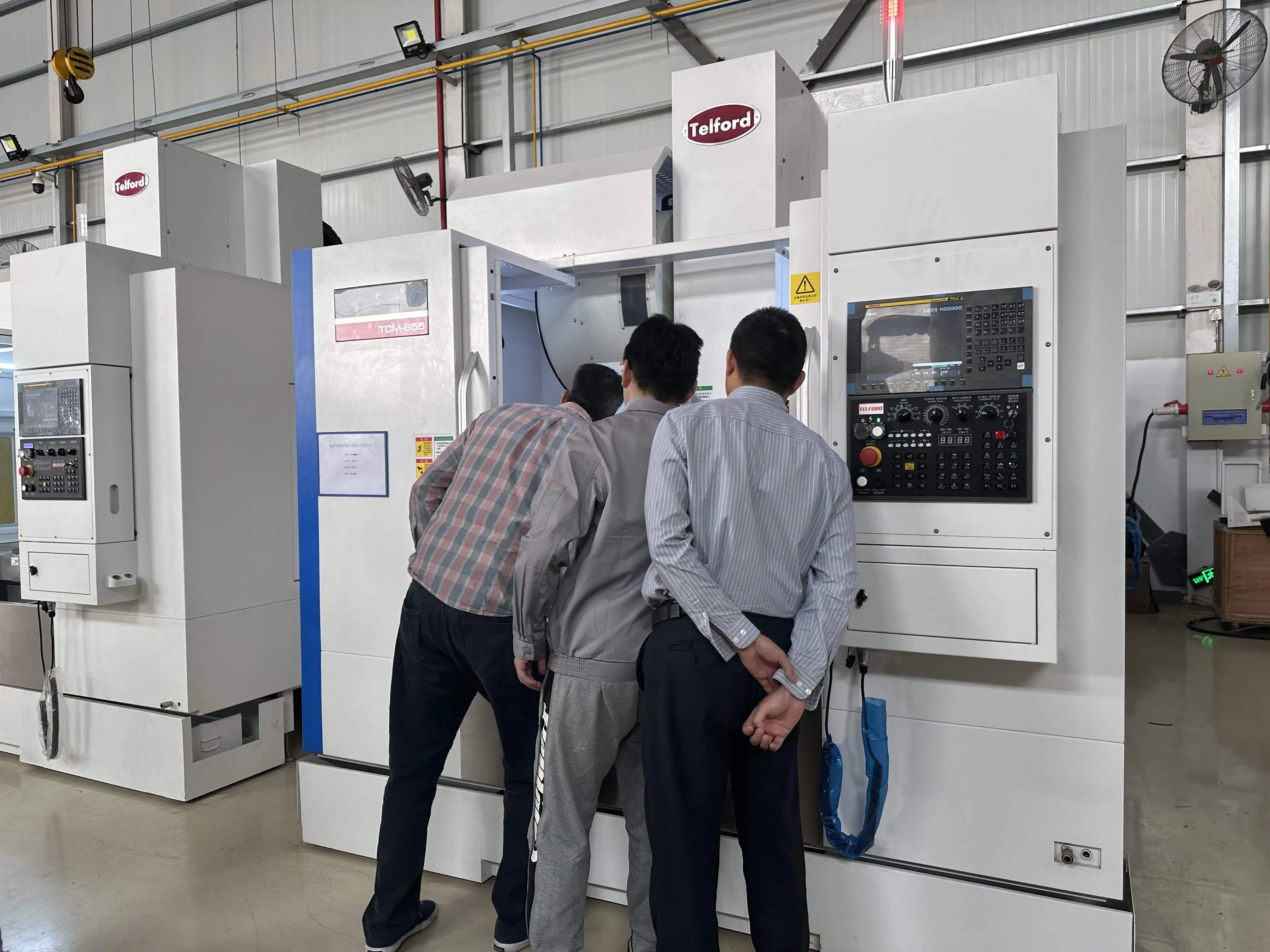

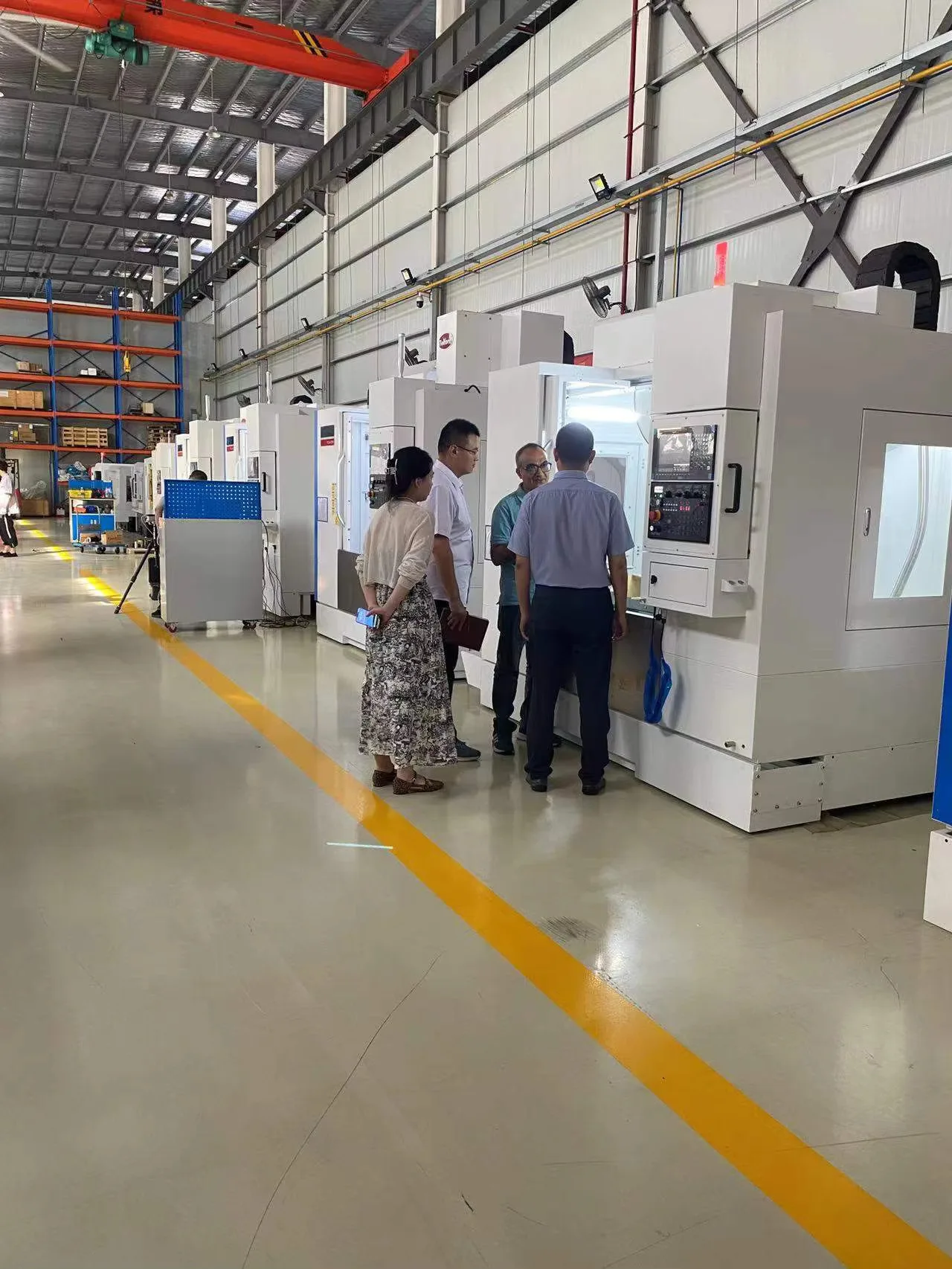

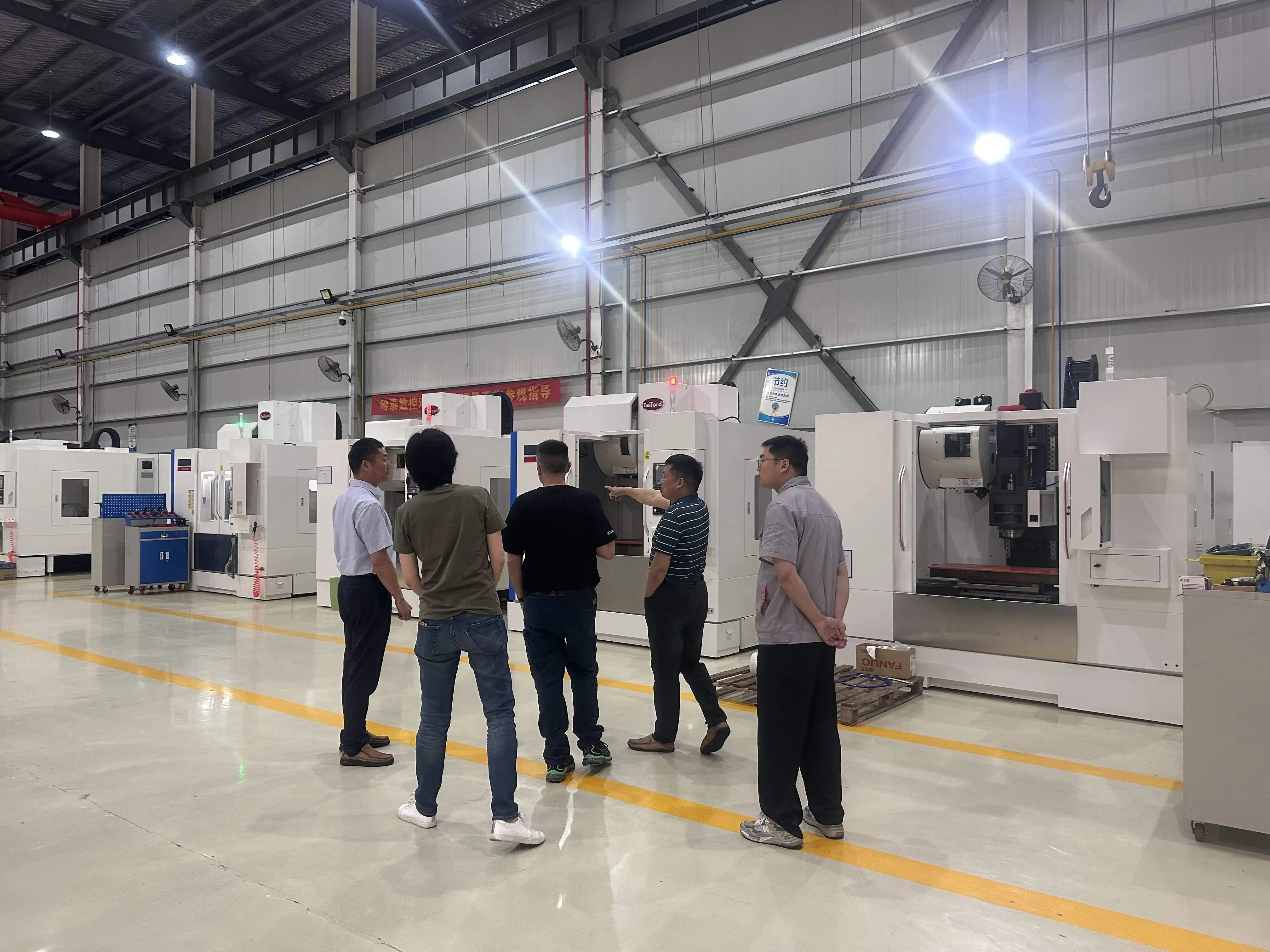

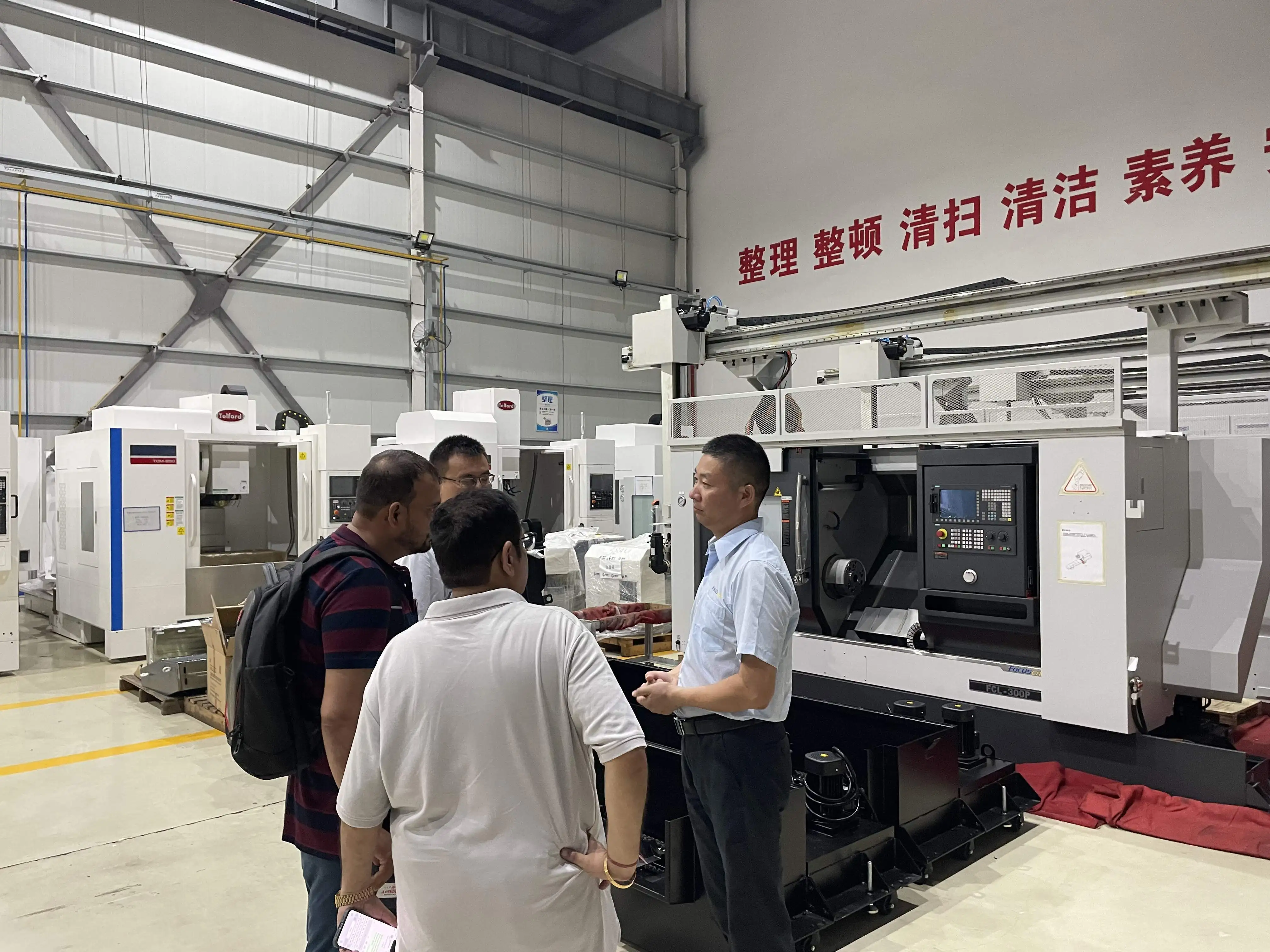

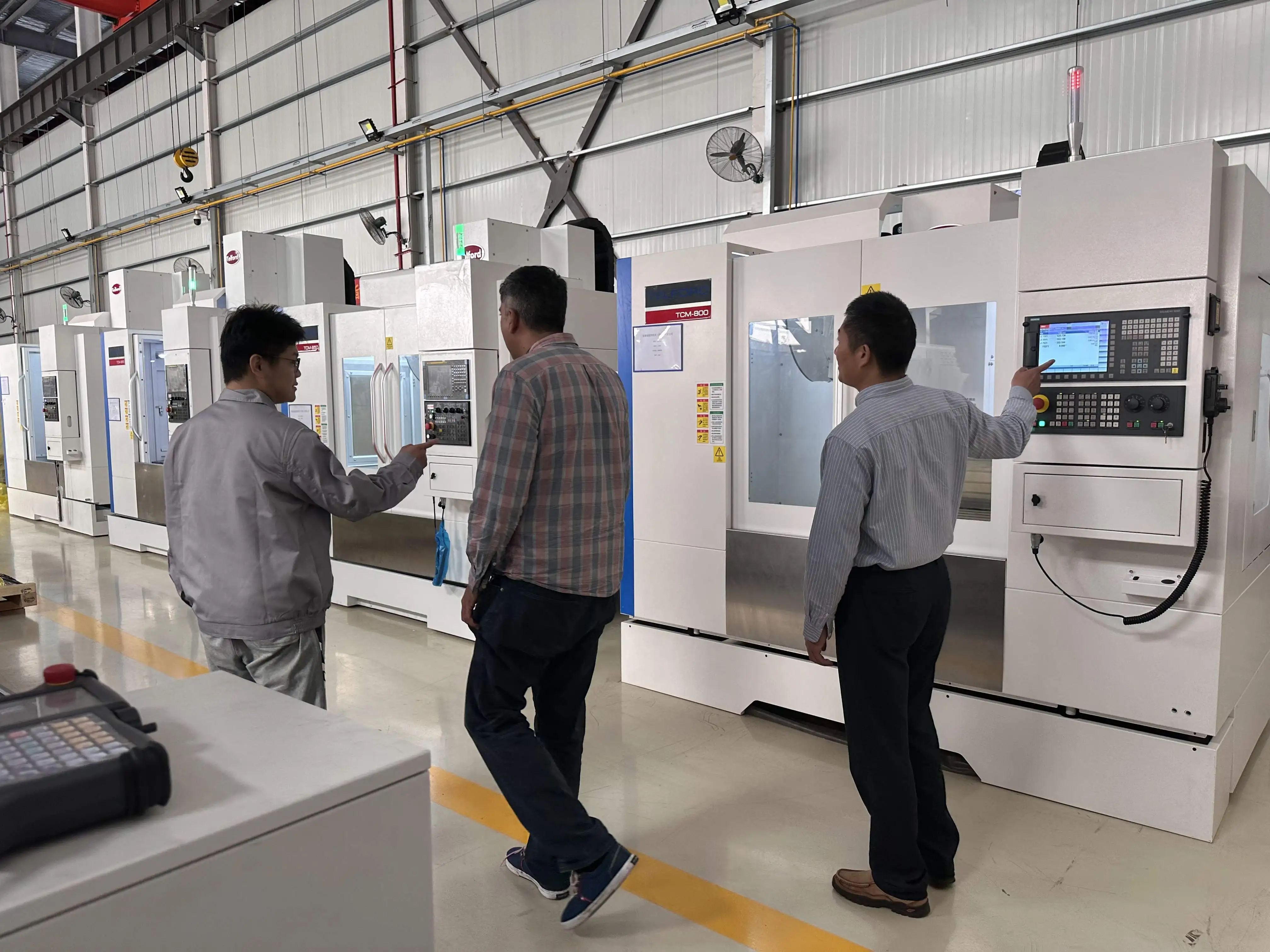

Factory Visit: Customer Inspecting Our CNC Machines
