- Hign-concerned Chemical: None
- Condition: New
- Type: Vertical
- Origin: Mainland China
- Certification: CE
Product Description
Product Application
VMC is suitable for machining complex contours of the mold, auto parts, service industries box parts, and has its superiority in the mold processing .And it is the best choice for small mold parts processing industry. With low speed high torque, it is suitable for high-strength steel, high temperature alloys and other difficult materials and complete efficient processing of steel parts.
Details Display

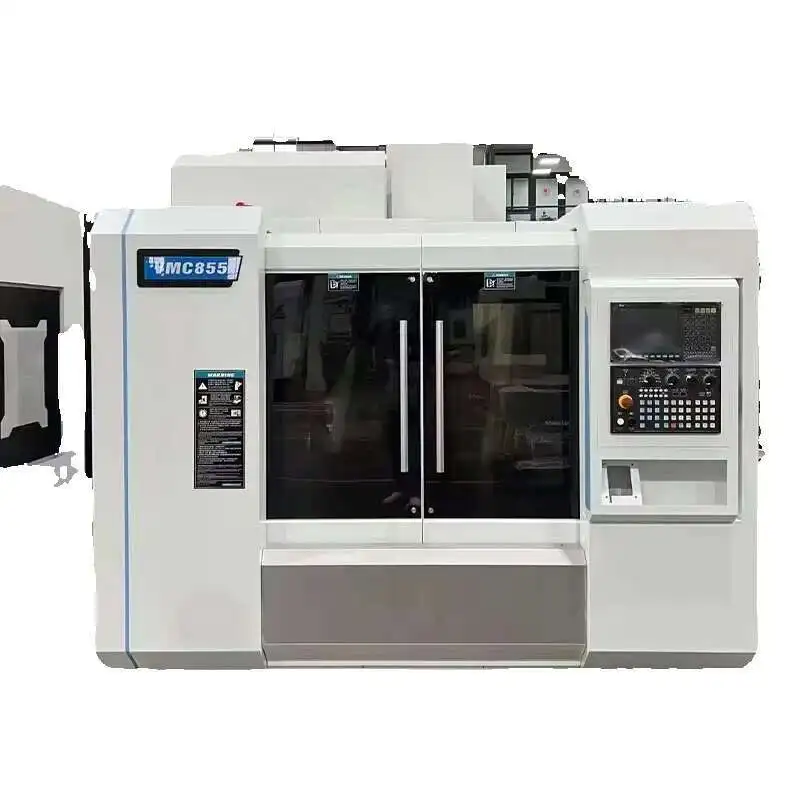

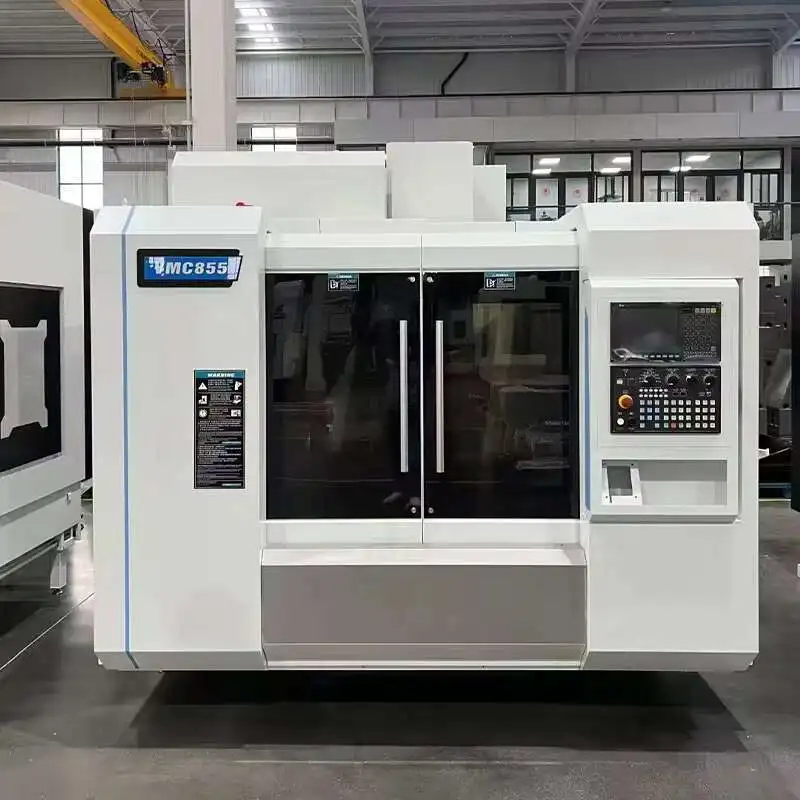

SPECIFICATIONS | Units | VMC855 |
Table size | mm | 1000*550 |
X axis travel | mm | 850 |
Y axis travel | mm | 550 |
Z axis travel | mm | 550 |
Max. worktable load | kg | 600 |
T slot(number-width*pitch) | - | 5-18*90 |
Max. spindle speed | rpm | 8000 |
Spindle taper | mm | BT40 |
Main motor power | kw | 7.5 |
X/Y/Z rapid traverse speed | m/min | 24/24/20 |
Cutting feed speed | mm/min | 1-8000 |
Guide rail type | - | Linear rail |
Distance from spindle axis to column surface | mm | 590 |
Distance between spindle nose and table surface | mm | 130-660 |
Positioning accuracy | mm | ±0.0075 |
Repeat positioning accuracy | mm | ±0.005 |
Tool magazine | - | Arm 24 |
Max. tool diameter | mm | 78/120 |
Max. tool weight | kg | 8 |
Machine weight | kg | 5600 |
Overall dimension(L*W*H) | mm | 2900*2400*2800 |

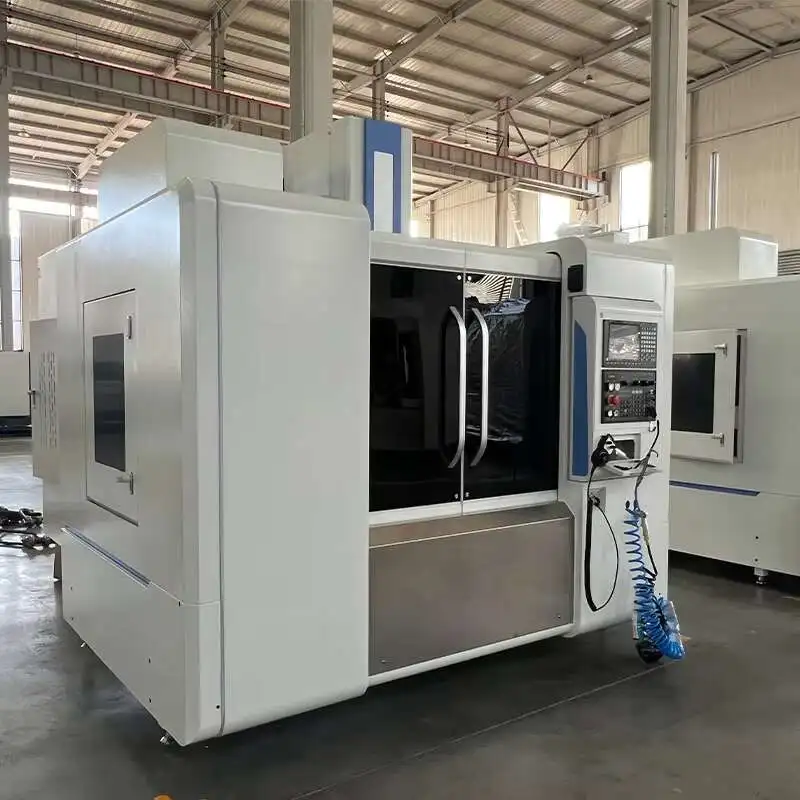

VMC Machine Standard Details

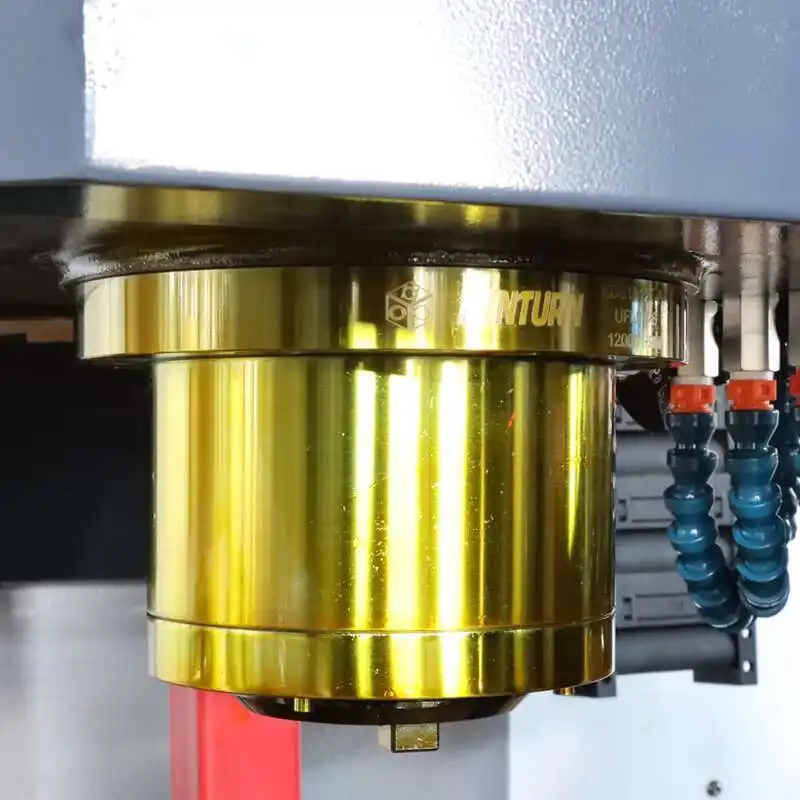

TAIWAN PRECISION SPINDLE
1. Spindle taper is BT40;
2. Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
3. Taiwan Spindle passed dynamic balance ISO rating test

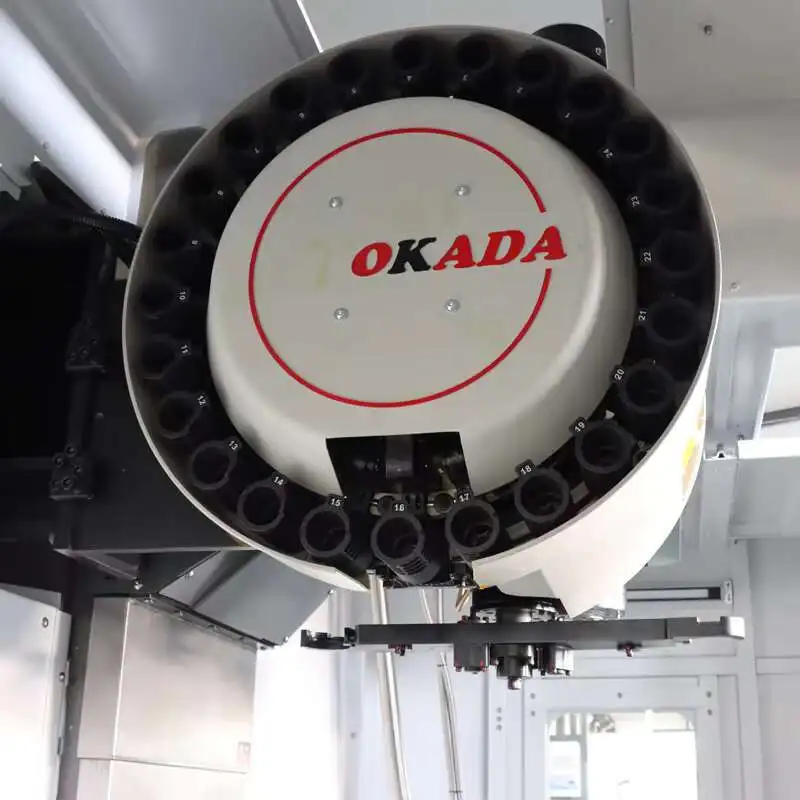

TAIWAN TOOL MAGAZINE
2. Brand: OKADA

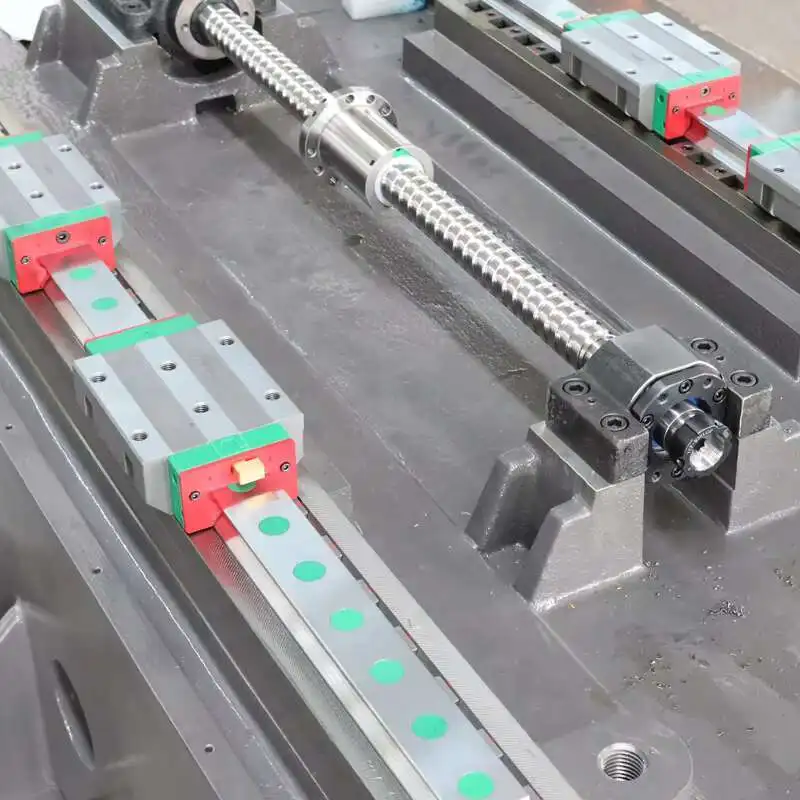

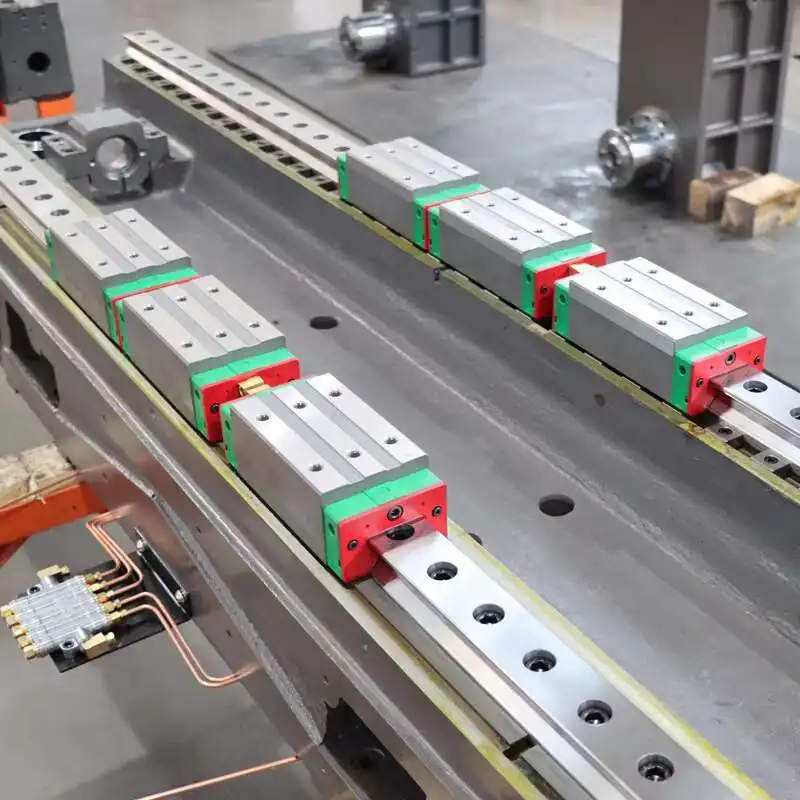

TAIWAN PRECISION LINEAR RAILS
2. Brand: HIWIN or PMI
SCREW AND COUPLING
1 Taiwan precision lead screw
2. lead screw bearing using SKF or NACHI bearing,

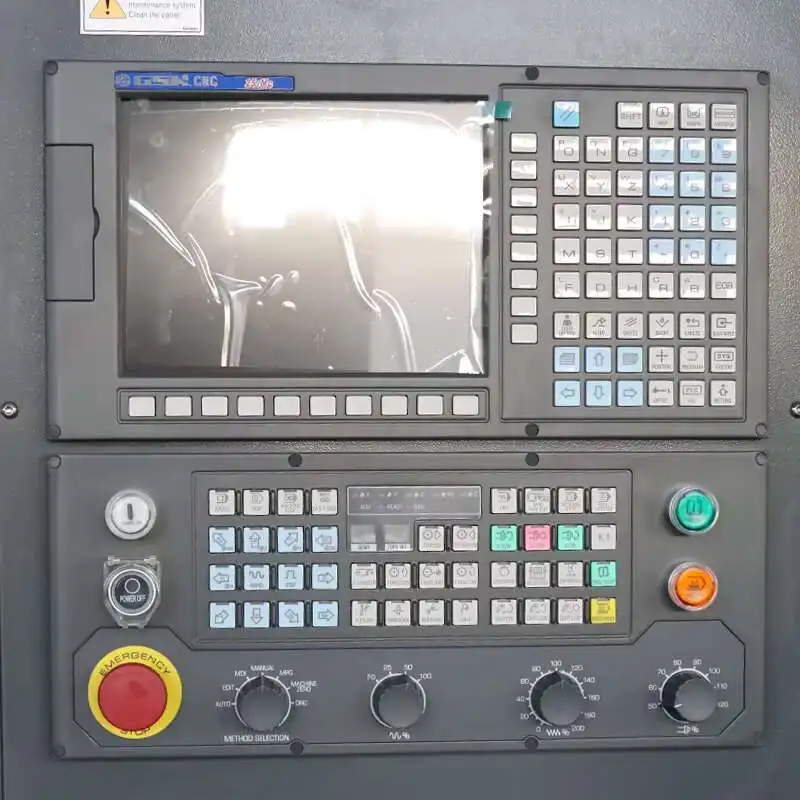

CONTROL SYSTEM
Standard: GSK / KND control
Optional : Siemens , FANUC, Syntec ect.

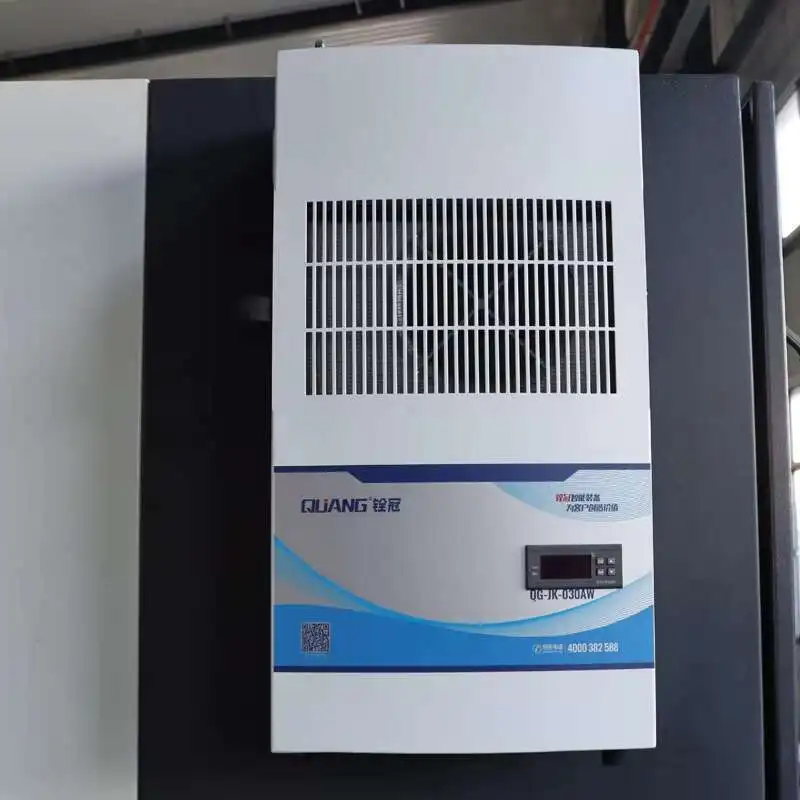

AIR CONDITIONER
TOOL UNCLAMP CYLINDER

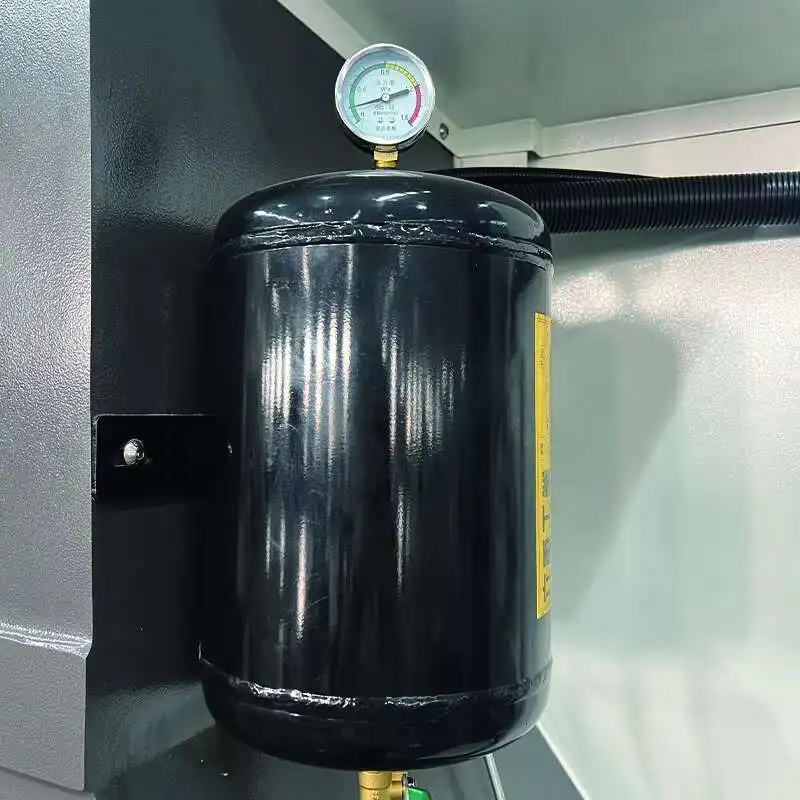

AIR STORAGE TANK
Air storage tank to ensure the stability of spindle tool change

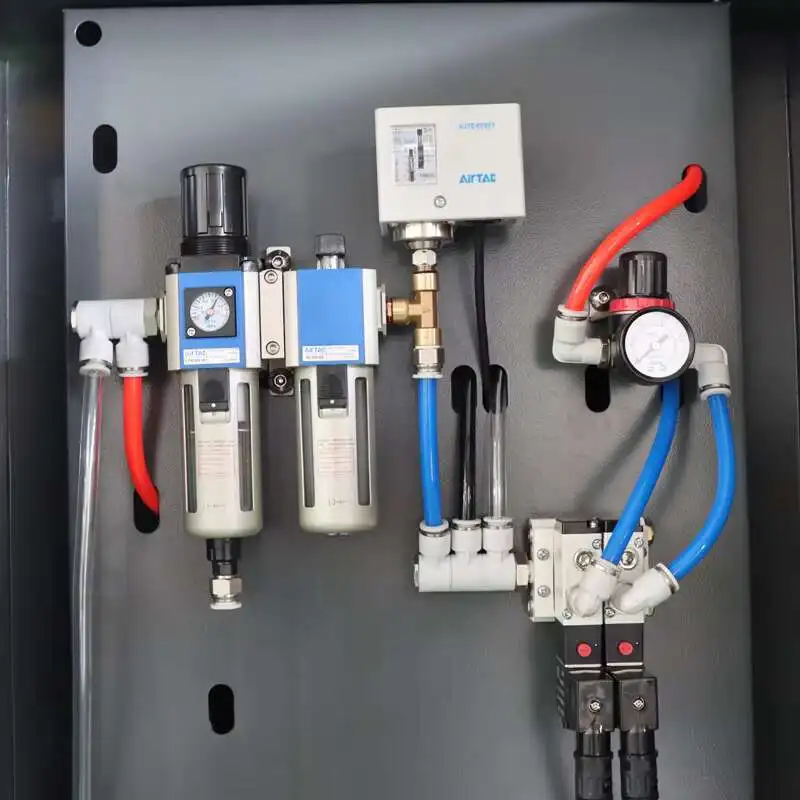

Pneumatic components
Famous Taiwanese brand AIRTAC pneumatic components

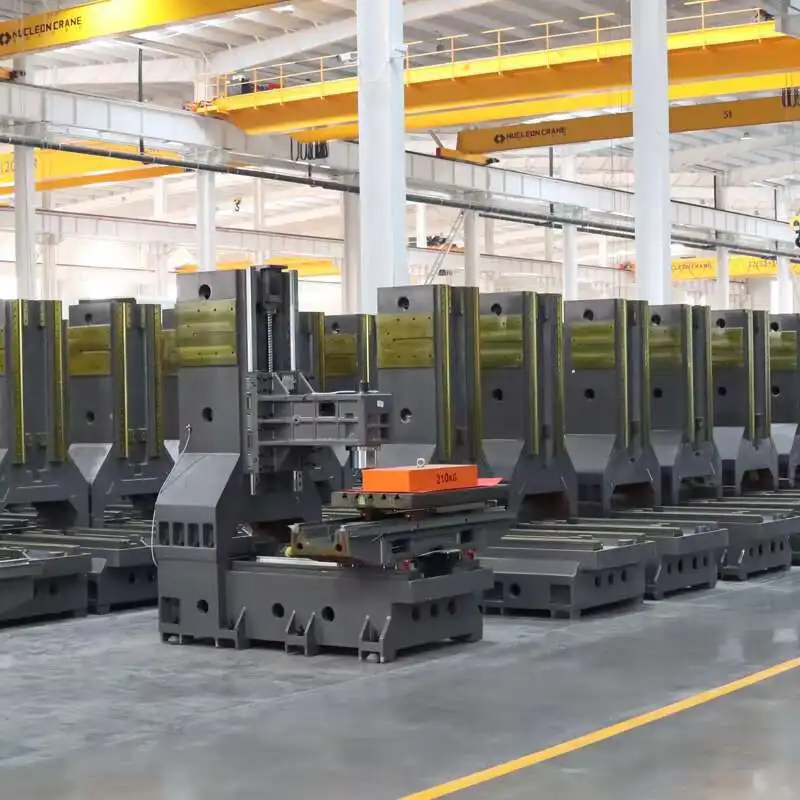

1. High strength high quality cast iron,
2. long span bed base and vertical column structure

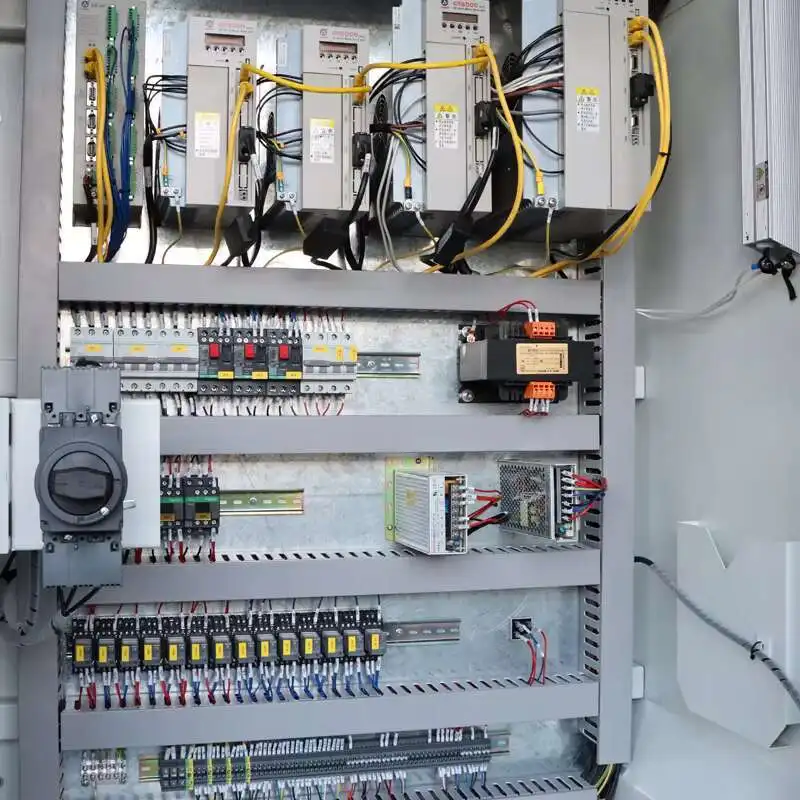

SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. quick plug as standard

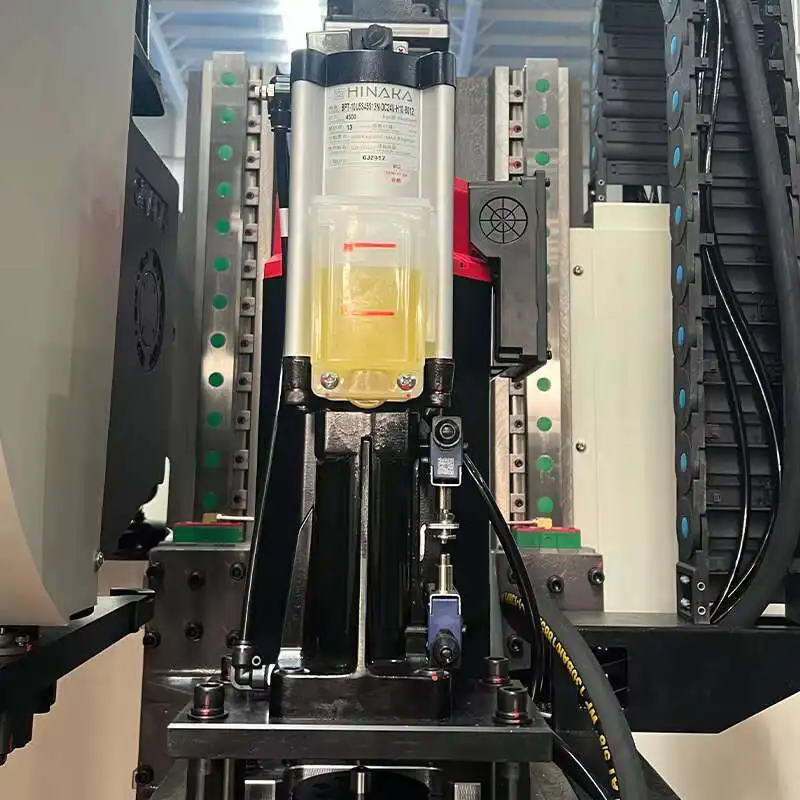

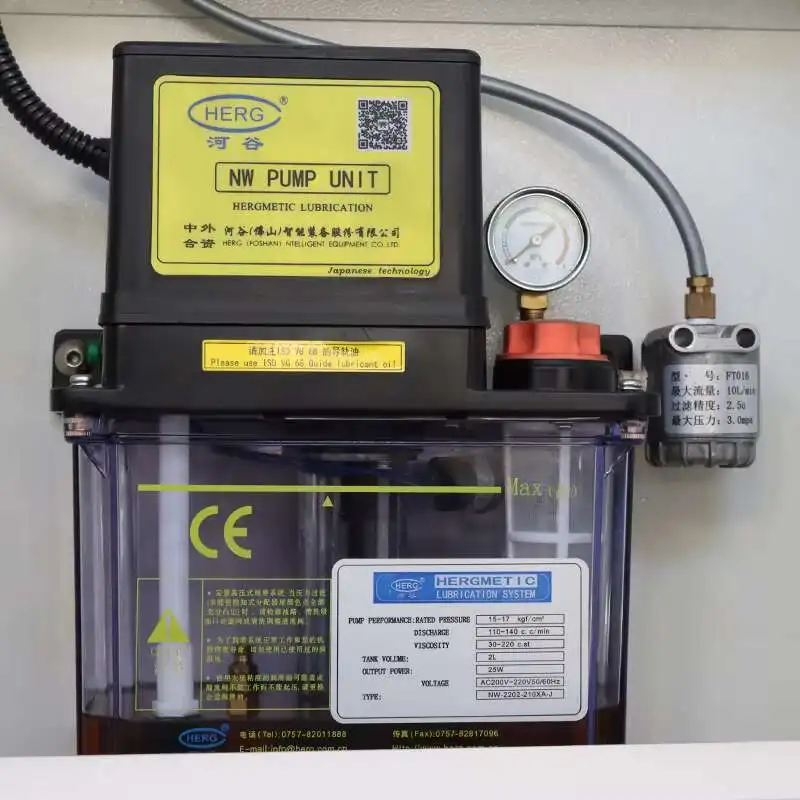

LUBRICATION SYSTEM
Automatic centralized lubrication device .
Recommend Products
Company Profile
Shandong JORSEN Machine Tool has :
● Support ODM OEM.
● 20+ years CNC machine manufacture experience factory
● More than 60,000m² of the factory with more than 200 workers.
● Strictly QC control with more than 24 steps testing processes
● Trade with customers in more than 150 countries around the word .
● Cooperate with the Famous Brand , such as FANUC , SIEMENS, SYNTECect.
● Strictly QC control with more than 24 steps testing processes
● Trade with customers in more than 150 countries around the word .
● Cooperate with the Famous Brand , such as FANUC , SIEMENS, SYNTECect.
● Support ODM OEM.

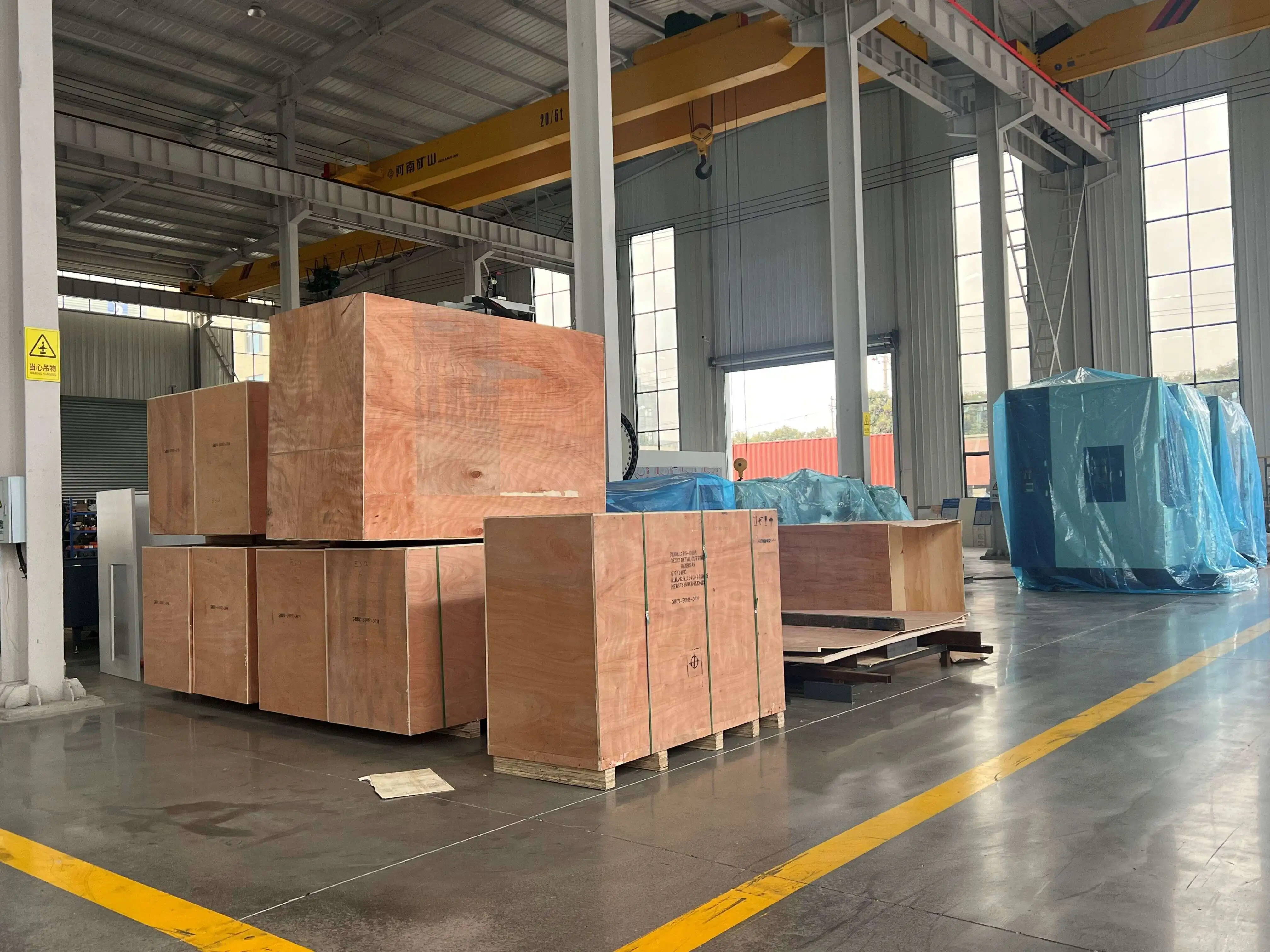

Packaging and Shipping
