- High-concerned chemical: None
- Installation Method: Assembly
- Origin: Mainland China
- Place of Origin: Henan, China
- Brand Name: LanYuXuan,wanshan
- Condition: New
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Marketing Type: New Product 2022
- Warranty of core components: 1 Year
- Core Components: Engine, Motor
- Material / Metal Processed: stainless steel, Carbon steel
- Automation: Automatic
- Weight (KG): 1680, 1350
- Key Selling Points: Automatic
- Warranty: 1 Year
- Motor Power (kW): 22
- Applicable Industries: Retail, Hotels, Manufacturing Plant, Building Material Shops
- Showroom Location: None

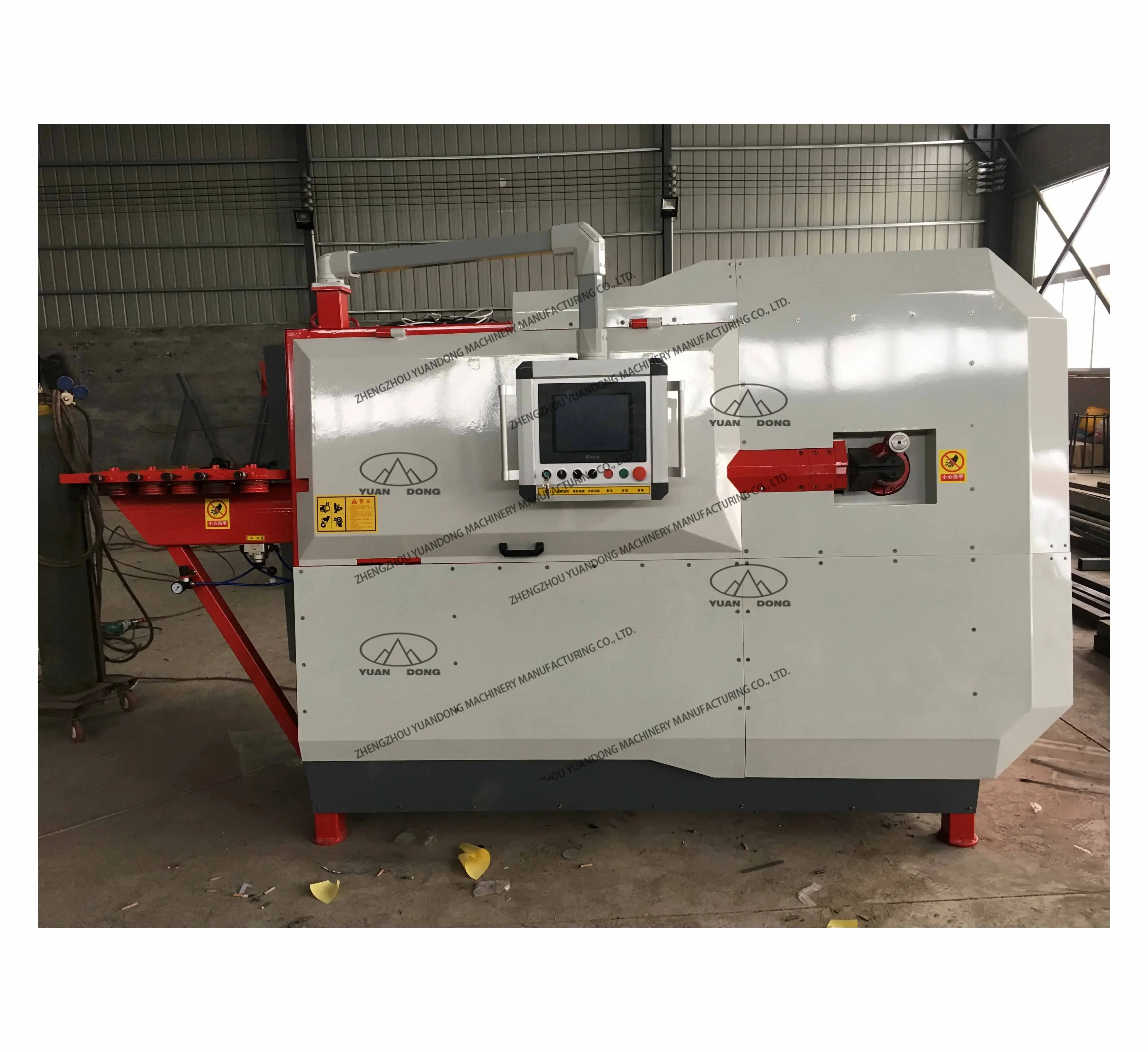

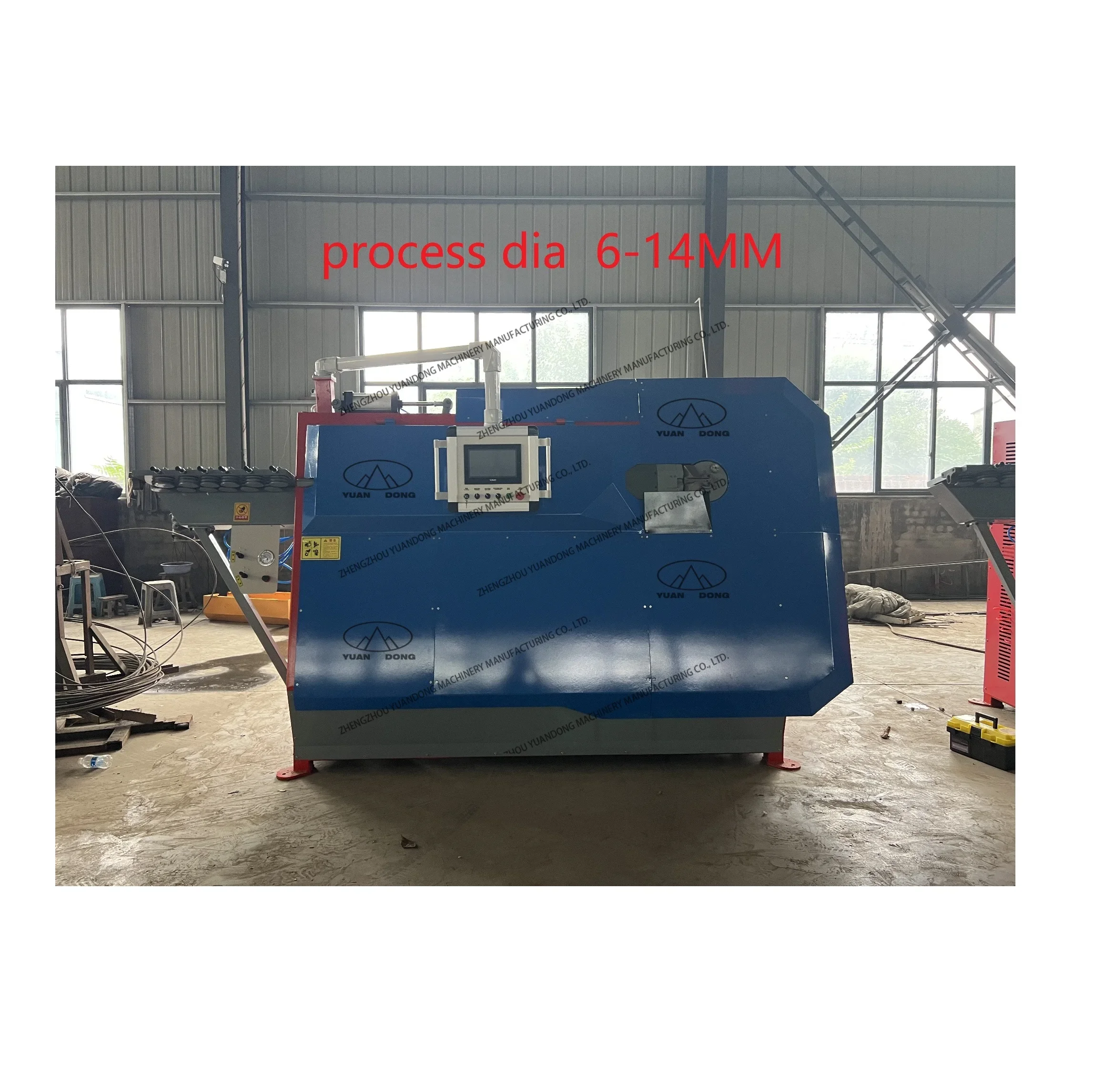

- Product name: CNC Automatic Stirrup Bending Machine
- Application: Construction Projects
- Bending material: Round Steel
- Voltage: 380V/50Hz/3phase
- Single Line: 4-14mm
- Dimension: 320*95*175cm
- Model: 6-14
- Bending speed: 3-15r/min
Product Overview
High Precision Steel Bar Bending Machine Rebar Straightening And Hoop Bending Machine For Exporting
Automatic stirrup bending machine CNC servo control system, can be done automatically reinforced straightening, cut to length,bending hoop, cutting and other process, the maximum diameter of 14mm can bend steel, continuous production of any planar shape of products, widely used in construction, a large steel plant and other fields. Further equipment since production improved after a few more perfect products and better meet the actual needs of steel processing. High Precision Steel Bar Bending Machine Rebar Straightening And Hoop Bending Machine For Exporting
Product Structure
Product Description
Product Specification
|
Model
|
RM4-12
|
RM-12B
|
RM-13S
|
|
Process single line
|
4-10mm(round bar)
4-8mm(thread bar)
|
4-12mm(round bar)
4-10mm(thread bar) |
4-14mm(round bar)
4-12mm(thread bar) |
|
Process double line
|
4-8mm(round bar)
4-6mm(thread bar)
|
4-10mm(round bar)
4-8mm(thread bar) |
4-12mm(round bar)
4-10mm(thread bar)
|
|
Bending Angle
|
180°
|
±180°
|
±180°
|
|
Overall Size
|
320*95*175cm
|
530*110*190cm
|
540*110*190cm
|
|
Total weight
|
1680kg
|
2200kg
|
2200kg
|
|
Average power consumption
|
3-5kw/h
|
5kw/h
|
5kw/h
|
Product Usage
Our Company
Zhengzhou Yuandong Machinery Manufacturing Co.Ltd Zhengzhou Yuandong Machinery Manufacturing Co.Ltd. was established in 1990 and is one of the earliest professional manufacturers in the field of construction machinery. In the spirit of professionalism and excellence, we have gradually developed into a large factory with a history of 30 years. The equipment we provide includes steel bar bending machine, steel bar cutting machine, steel bar straightening machine, concrete laser screed, concrete cutting machine, power plastering machine, roller, concrete screed,concrete mixer and so on. High Precision Steel Bar Bending Machine Rebar Straightening And Hoop Bending Machine For Exporting Has more than 100 engineering and technical experience. Construction machinery, we can meet your different orders. In addition, our professional R & D team will provide you with the most convenient service. Since your order, we can deliver within one month, and special standard products are welcome. Meet CE and ISO9001 quality regulations. Purchasing your construction machinery from us, you will get products that meet the strict requirements of CE and ISO9001. Rebars Stirrup Bender Bars Bending Hoop Machine
