Hign-concerned Chemical: None
Engraving Area: Other
Laser Power: Other
Certification: CE
Is Smart Device: Yes
Origin: Mainland China
Certification: ce
Brand Name: rakoncnc
Model Number: RCJ1610/1626
Working area: 1600*1000mm/1600*2600mm
Laser power: 80W/100W150W/180W/ 280W/ 300W
Working temperature: 5°C-40°C
Laser control system: DSP control system Ruida 6332M
Laser tube type: Sealed CO2 glass laser tube
Driving system: Stepper motor;Panasonic/ Yaskawa servo motors options
Model Number: RCJ1610/1626
Graphic format supported: BMP, PLT, DST, DXF, AI,CDR
Power supply: 220V±10% /50HZ , 110V±10%/60HZ
Software supported: CorelDraw,PhotoShop,AutoCAD,CorelDraw,PhotoShop,AutoCAD

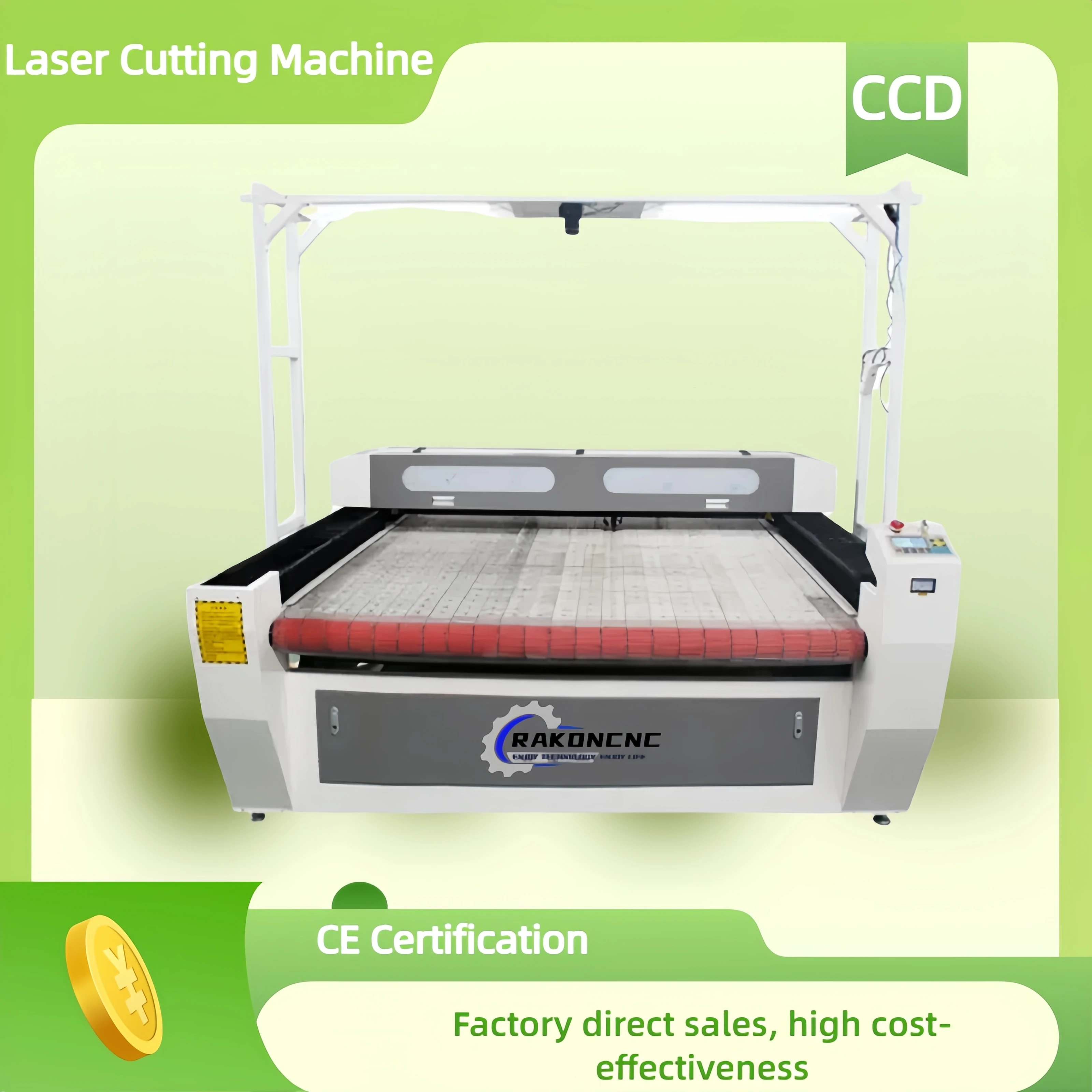

High Efficiency 1626 1610 Co2 Laser Cutting Engraving Machine with Ccd Auto Feeding Leather Textiles Clothes

Name: High Efficiency 1626 1610 Co2 Laser Cutting Engraving Machine with Ccd Auto Feeding Leather Textiles Clothes
SKU: 1005009220450380
Availability: InStock

Jinan Rakoncnc Machinery Co., Ltd

Email:export01@rakoncnc.com

www.rakoncnc.com

Advantages:

1.Fabric laser cutter adopts auto feeding system, apply netted platform with special design, very convenient for free movement of processing pieces.

2.Big table size to meet large format fabric cutting.

3.Channel feeding, the feeding can be unlimited.

4.The original binding beeline lead rail, the fabric laser cutter is running well and stable.

5.Brush roll can clean the worktable timely, without catching fire phenomenon.

6. Edge smoke outlet can protect the nets-worktable, extend the usage life of the fabric laser cutting machine .

Features:

1.Auto-Feeding Double Heads Laser Cutting Machine adopt the auto-feeding system working table, used to cut soft materials in rolls automatically, especially suitable to the mass laser cutting and engraving of applique embroidery, textile, fabric,clothing,textiles, leather and other industries.

2.To fully support design software, such as CAD, Coreldraw, Photoshop, friendly man-machine interface, live close to the industry needs.

3.Auto feeding laser cutting machine is equipped with two laser cutting heads and auto feeding system, two heads working at the same time. The feeding system can load materials automatically which can save your labor force and cut the cost. This laser cutting systems is especially suitable for the mass processing of textile and garment.Save time, improve work efficiency, it can customize according to customer’s demand level.

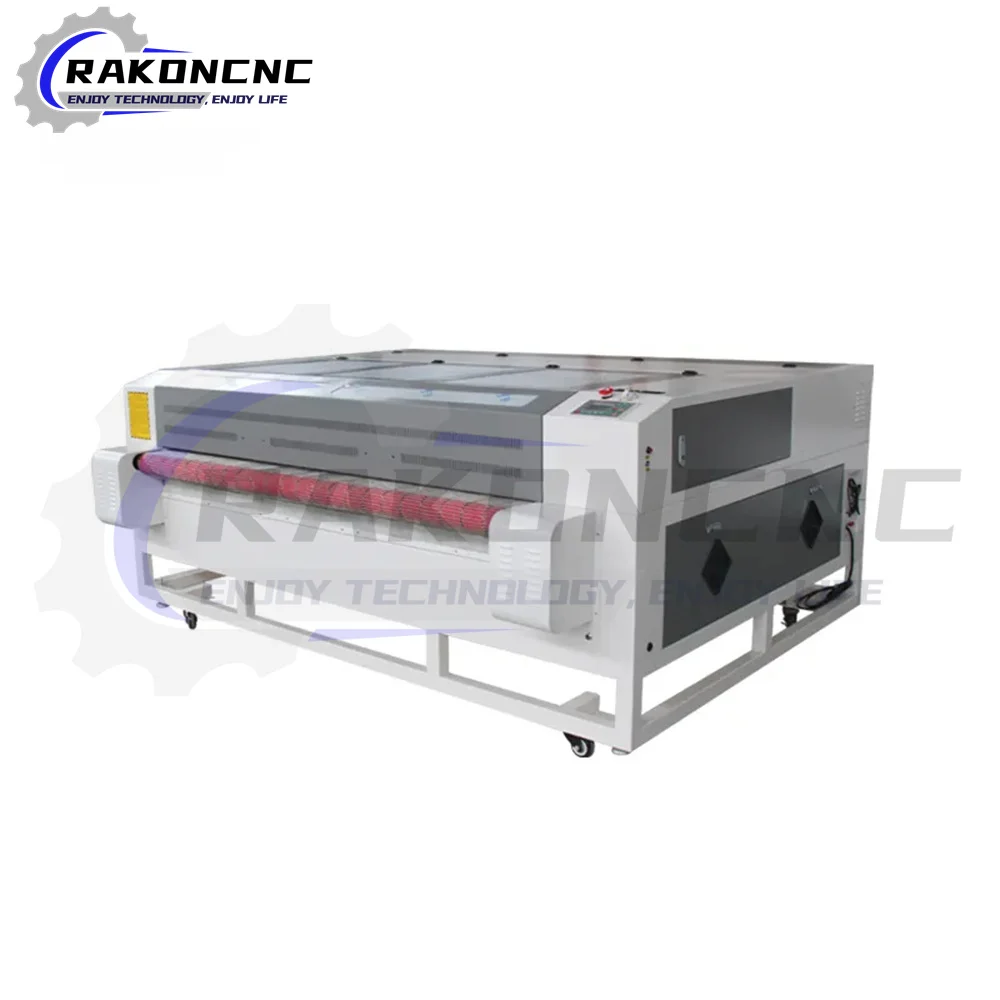

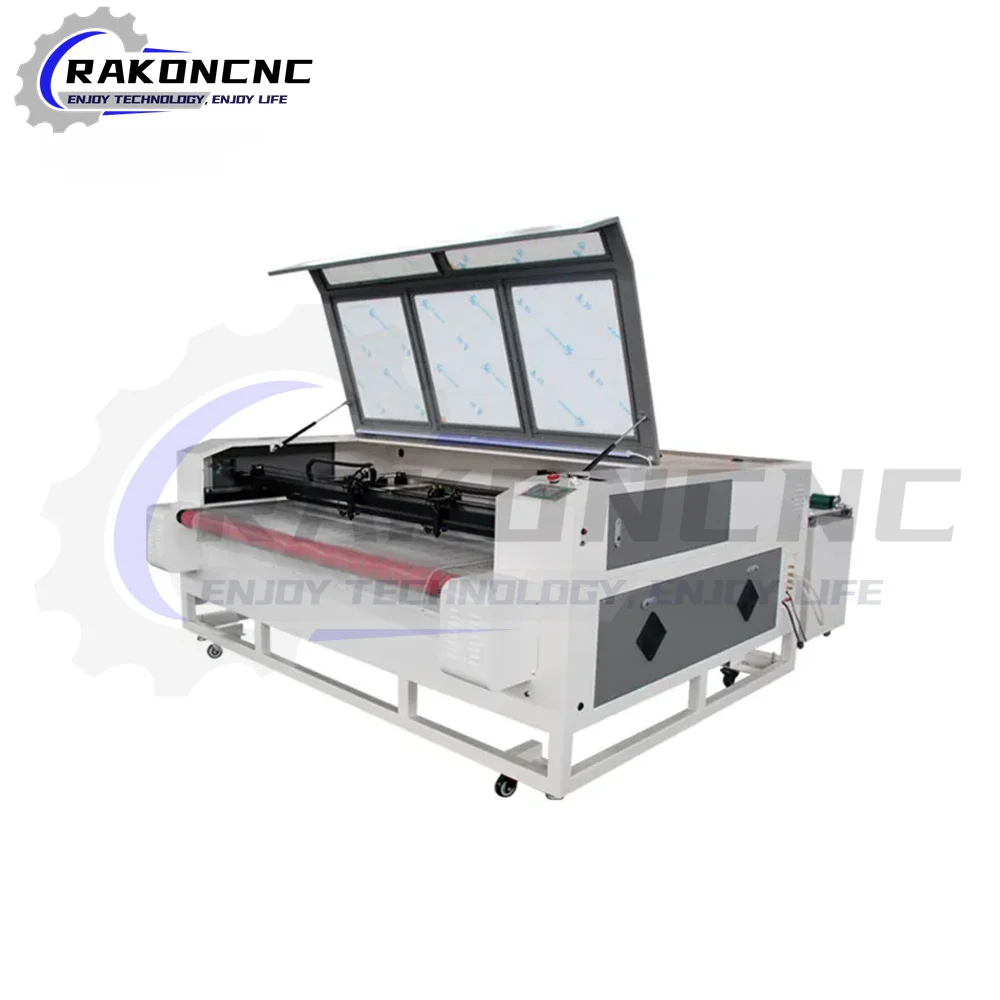

Machine details:

Technical Parameter:

Model	RCJ9060H/ RCJ1390H
Working area	900600mm/1300900mm
Laser power	150W/180W/ 280W/ 300W
Cutting speed	0-50mm/s
Repositioning accuracy	±0.05mm
Working voltage	AC110-220v ±10% 50HZ-60HZ
Consuming power	less than 1000 watt
Graphic format supported	BMP, PLT, DST, DXF, AI,CDR
Software supported	CorelDraw, PhotoShop, AutoCAD
Minimum letter size	English 1mm x1mm Chinese 2mm x 2mm
Driving system	Stepper motor;Panasonic/ Yaskawa servo motors options
laser tube cooling type	CW5200/ CW6000 industry chiller
other auxiliary equipment	Exhaust fans and air exhaust pipe
Working temperature	0-45°c
Operating humidity	8%-95% (without condensed water)
Laser control system	DSP control system Ruida 6332M
Laser tube type	Sealed CO2 glass laser tube

Production Application

Applicable Materials:

Nonmetal materials, like acrylic, wood, MDF, die board, and so on.

Metal materials, such as stainless steel, carbon steel, etc.

Applicable Industry:

Mainly used in advertising, decoration industry( stainless metal and carbon steel related products), sheet metal industry (carbon steel), packing industry(die board) and other related industry.
