FLSUN V400 firmware and software updates!

Speeds have soared, with 600 mm/s making your printing experience faster and smoother!

Get the latest upgrade file ：

https://github.com/Flsun3d/Flsun-V400

to turn on high-speed printing and put imagination at your fingertips!

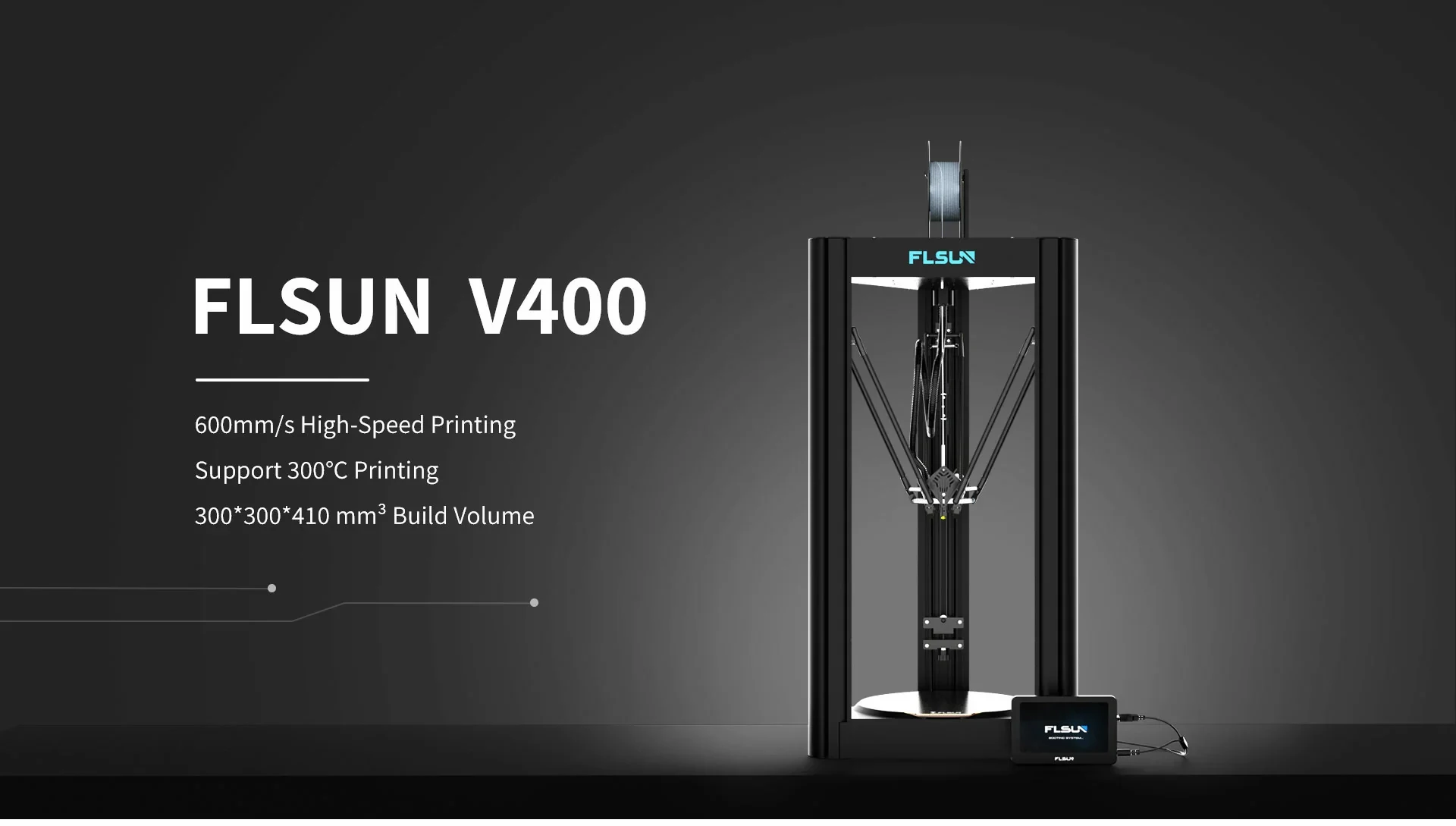

FLSUN V400 3D Printer Delta FDM 600mm/s Printing Speed Auto Leveling with Direct Drive Extruder φ300mm*300mm*410mm

Question 1：Why is the FLSUN V400 printing speed so fast?

Answer：FLSUN focuses on research and development of 3D printing speed. After seven years of technological accumulation and breakthrough, the V400 has become the fastest 3D printer on the market.

Question 2：What is the accuracy of the FLSUN V4003D printer?

Answer：The accuracy of the FLSUN V400 is ± 0.01mm, making printing more refined while using high-speed printers.

Question 3：What is the fastest printing speed of FLSUN V400 in mm/s?

Answer：Maximum moving speed 600mm/s, recommended printing speed 400-600mm/s; maximum acceleration: 25000mm/s, recommended 8000-10000mm/s

【600mm/s High-Speed Printing & 8000+ mm/s² acceleration】

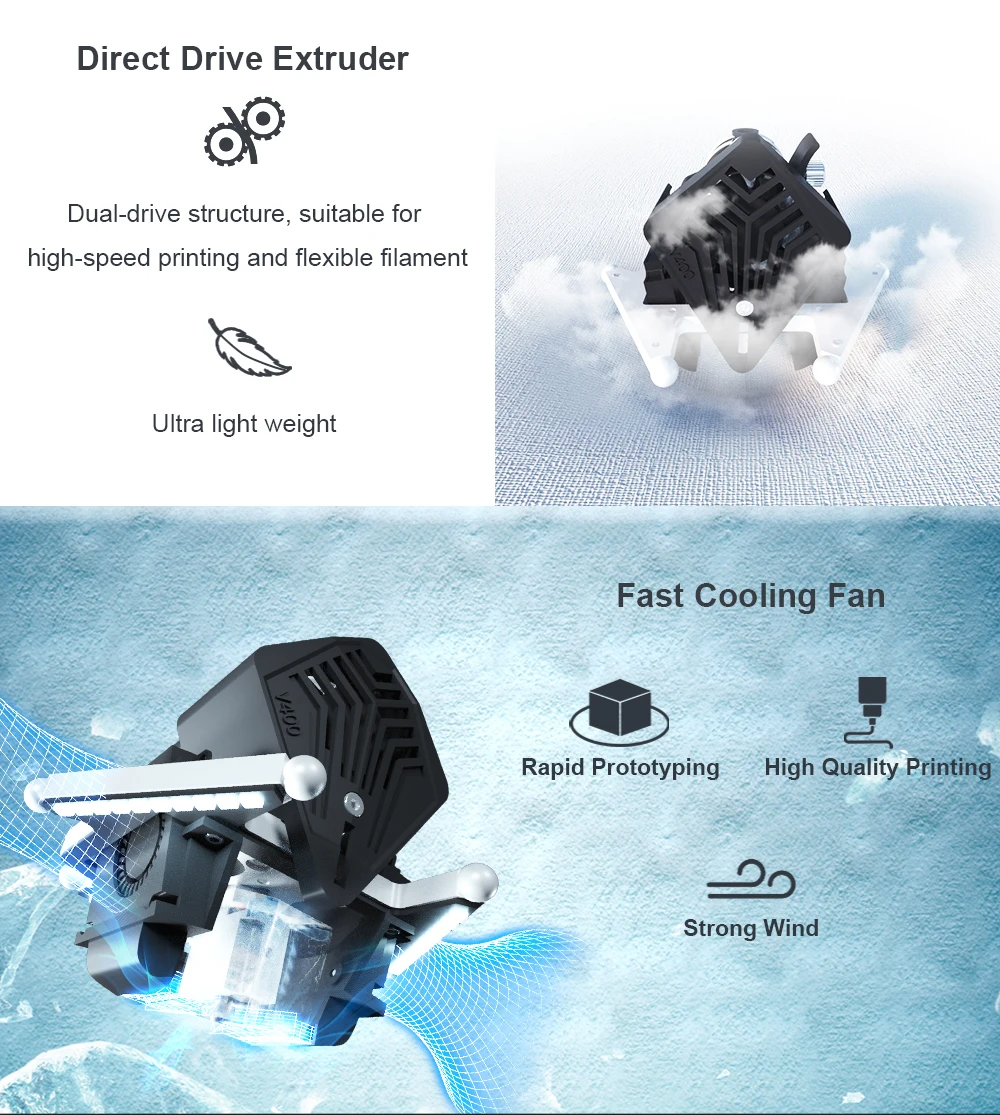

FLSUN V400 is equipped with klipper firmware and ultra-light short-range extruder design, double-drive wire feeding structure+5-1 reducer+36 high-temperature high-precision stepping motor, and the extrusion force can reach 70N, meeting the requirements of 600mm/s High-Speed Printing & 8000+ mm/s² acceleration.

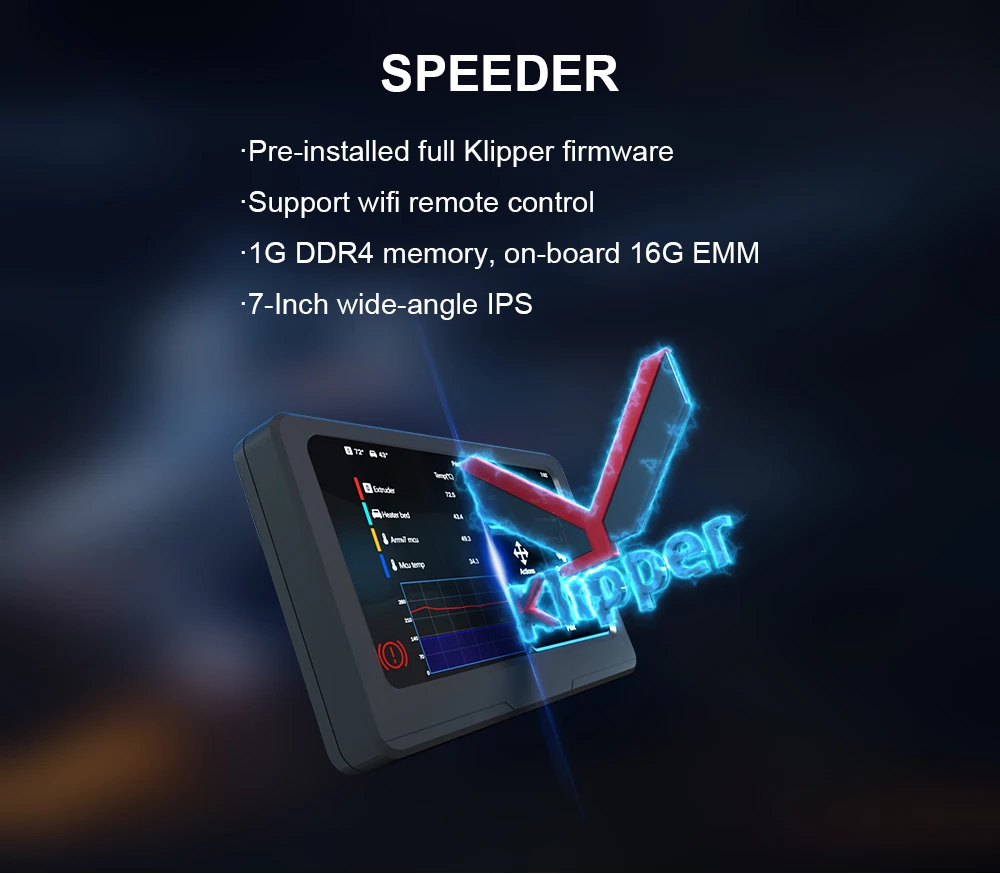

【FLSUN Speeder Pad】

7-inch wide angle IPS screen Pre-installed full Klipper firmware ( Klipper, Moonraker, Mainsail, KlipperScreen, WebCAM, etc.）, plug and play, no additional configuration is needed.

【Unique robotic arm design】

3K grade material using the same process as high-end drones. Thickened to 10mm in diameter, high strength carbon fibre rod + aerospace aluminium housing + POM bearing wear resistance. Zero clearance lightweight and high strength design, gathering structural rigidity and positioning in one.

【Self-developed levelling algorithm】

through 25 points to compensate for machining errors, easily solve the first layer problem. Supports broken material detection.

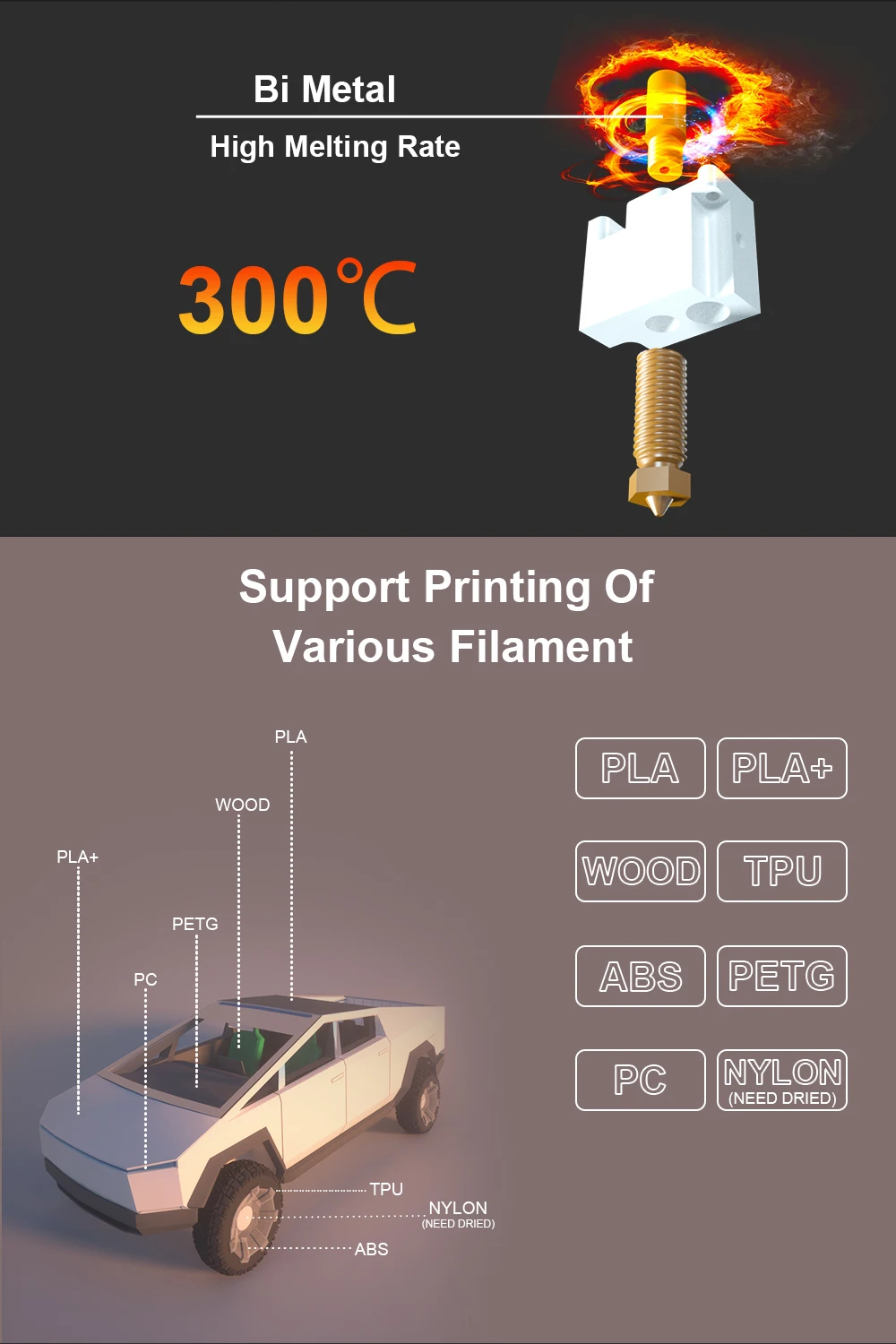

【300℃ high-temp nozzle】

Allow you to choose more kinds of filament like PLA PLA+ WOOD TPU ABS PETG PC NYLON(NEED DRIED).

Dual-Axis Linear GuideHigh-Speed Integrated Dual-Axis Linear Guide，Mute,Longevity,Stable.

Upgrade Auto LevelingFLSUN V400 upgrade automatic leveling system with a 25-point smart and precise calibration, easy to start printing.

32-Bit Motherboard with 4 x TMC 2226 Driver168M high-performance 32-bit processor, higher computing speed, and with 4 x TMC 2226 silent drive, lower noise printing.

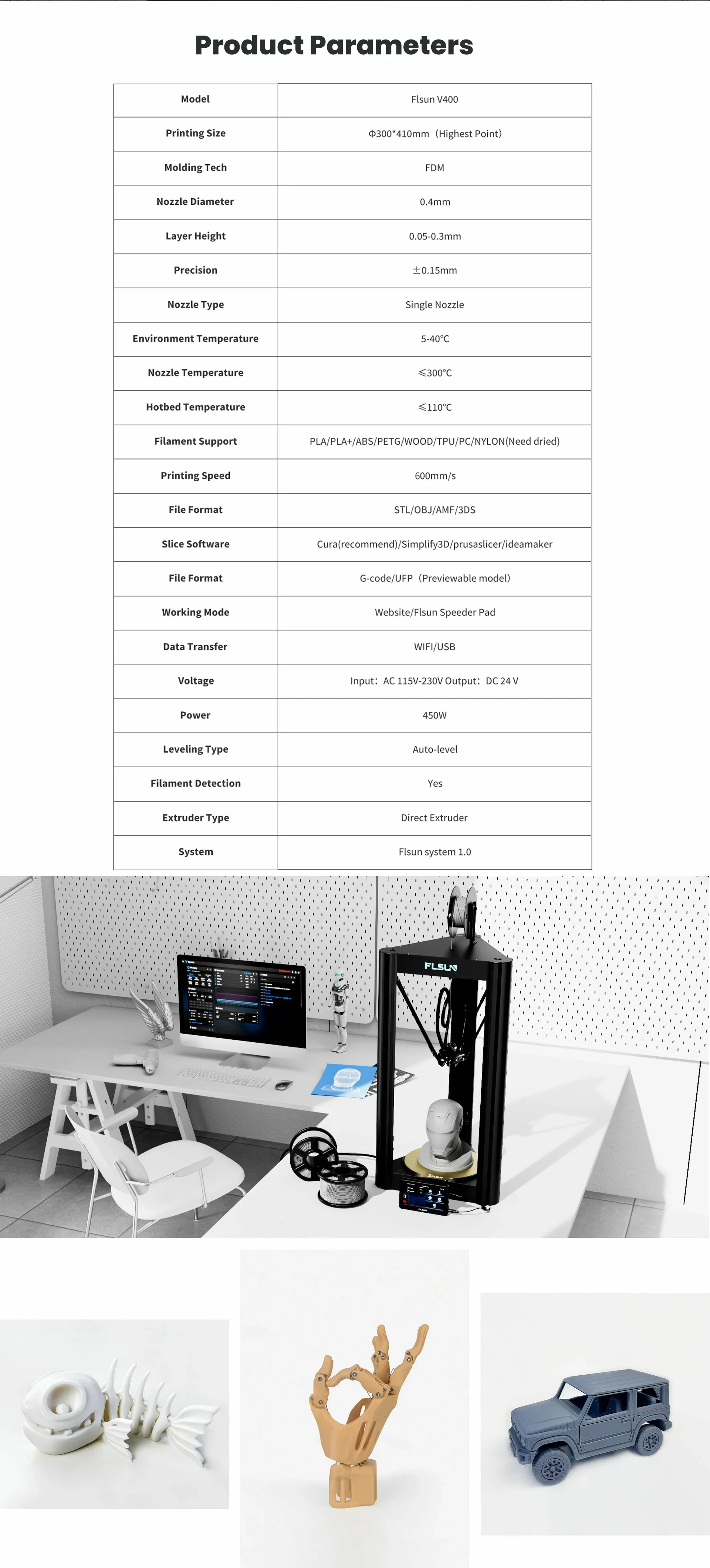

【Specification】

Material: Aluminum Alloy,

Molding Tech: FDM

Nozzle Diameter: 0.4mm

Filament Support: PLA/PLA+/ABS/PETG/WOOD/TPU/PC/NYLON(Need dried)

Precision: ±0.15mm

Nozzle Type: Single Nozzle

File Format: G-code/UFP（Previewable model）

Filament Diameter: 1.75mm

Slice Software: Cura(recommend)/Simplify3D/prusaslicer/ideamaker

Working Model: Website/Flsun Speeder Pad

Voltage: Input：AC 115-230V Output：DC 24V

Nozzle Temp: ≤300℃

Bed Temp: ≤110℃

Leveling Type: Auto-Leveling

Power: 450W

Print Accuracy: + / - 0.15 MM

Leveling Mode: Automatic Leveling

Control panel: 7-inch interactive smart screen

Printing Speed: Max 600mm/s

Maximum Idling Speed: 600mm/s

Print Model Format: STL,OBJ,AMF,3DS

Extruder: short distance extruder

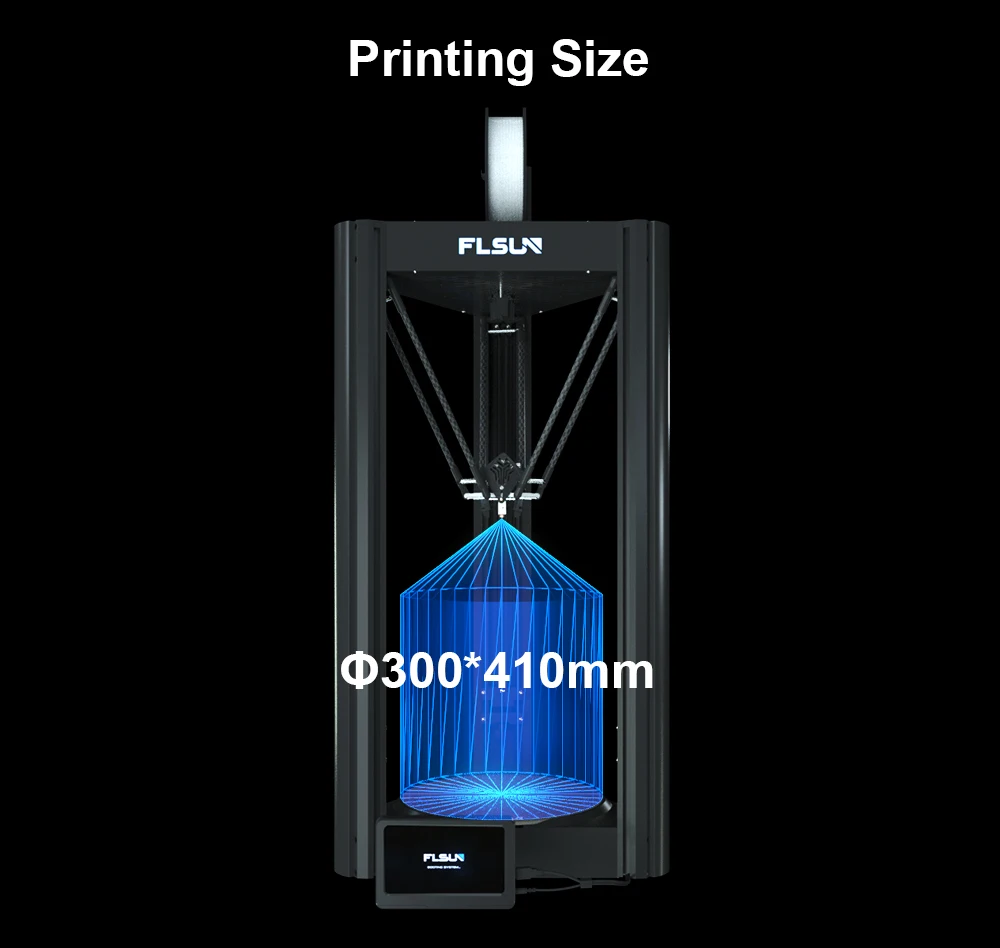

Print Size: 300 x 300 x 410mm/11.8 x 11.8 x 16.1in

Item Size: 480 x 435 x 1090mm/18.9 x 17.1 x 42.9in

Item Weight: 17kg/37.48lb
