Descrição
- Brand Name: LanYuXuan
- Origin: Mainland China
- Warranty: 12months, 12 months
- Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops,
- Place of Origin: Jiangsu, China
- Brand Name: Feco
- Gearing Arrangement: Planetary
- Output Torque: 18-19000N.m
- Input Speed: 3000-5000rpm
- Output Speed: 1.5-1000rpm(customized)
- Product name: Speed Reducer
- Ratio: 3-1000
- Certificate: ISO9001
- Mounting Position: Vertical (flange Mounted)
- Heat treatment: Gear Grinding
- Ratio L1: 3-100

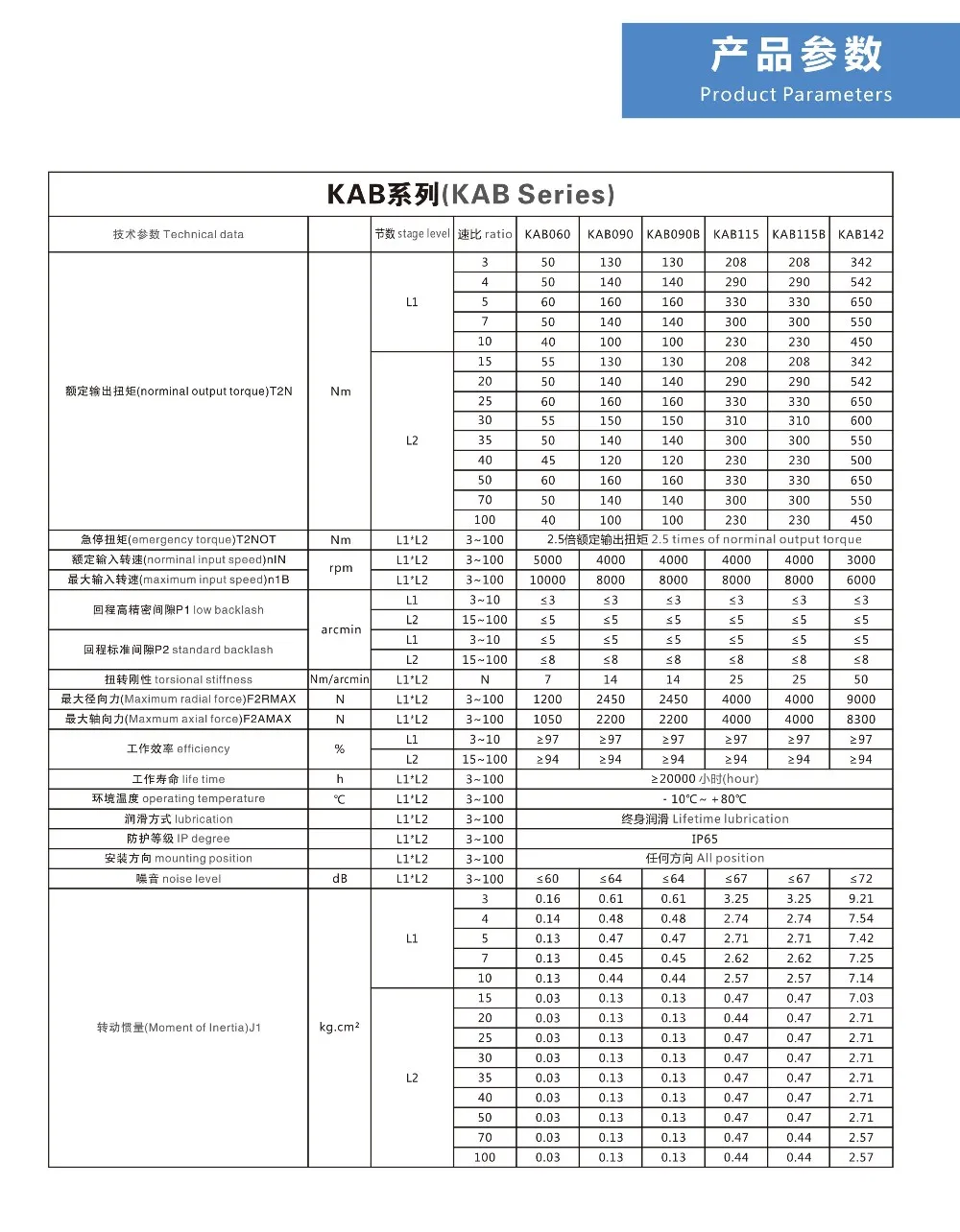

apex dynamics precision planetary gearbox
|

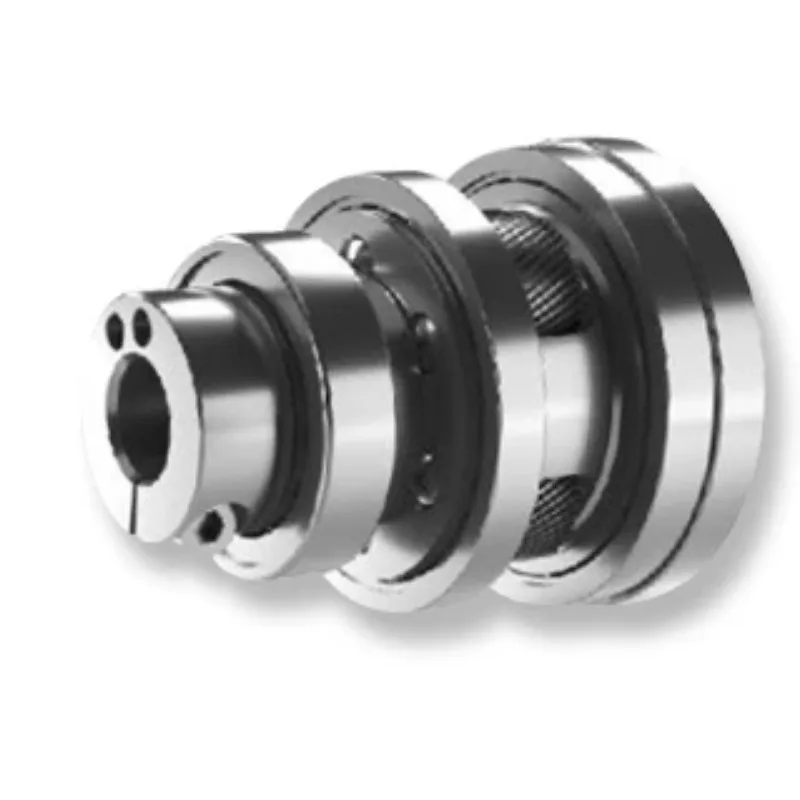

Planetary Gearbox
|
|
|
|
Efficiency
|
>=97%
|
|
|
Housing material
|
SCM415
|
|
|
Gear material
|
SCM415
|
|
|
Surface hardness of gears
|
60±2HRC
|
|
|
Input / Output shaft material
|
SCM415
|
|
|
Machining precision of gears
|
DIN6 Grade
|
|
|
Lubricating oil
|
KLUBER
|
|
|
Heat treatment
|
Carburizing, carbonitriding, brilliant quenching
|
|
|
Brand of bearings
|
NSK/NTN
|
|
|
Brand of oil seal
|
SKF/TTO
|
|
|
Noise (MAX)
|
60-70dB
|
|
|
Temp. rise (MAX)
|
70℃
|
|
|
Oil Temp. rise (MAX)
|
40℃
|
|
|
Vibration
|
≤15μm
|
|
Main Features:
High rigidity:
Carburizing, carbon nitrogen co-carburizing, brilliant quenching heat treatment, the advantages of high productivity, good quenching.SCM415 steel from Japan is used as raw material.
High precision:

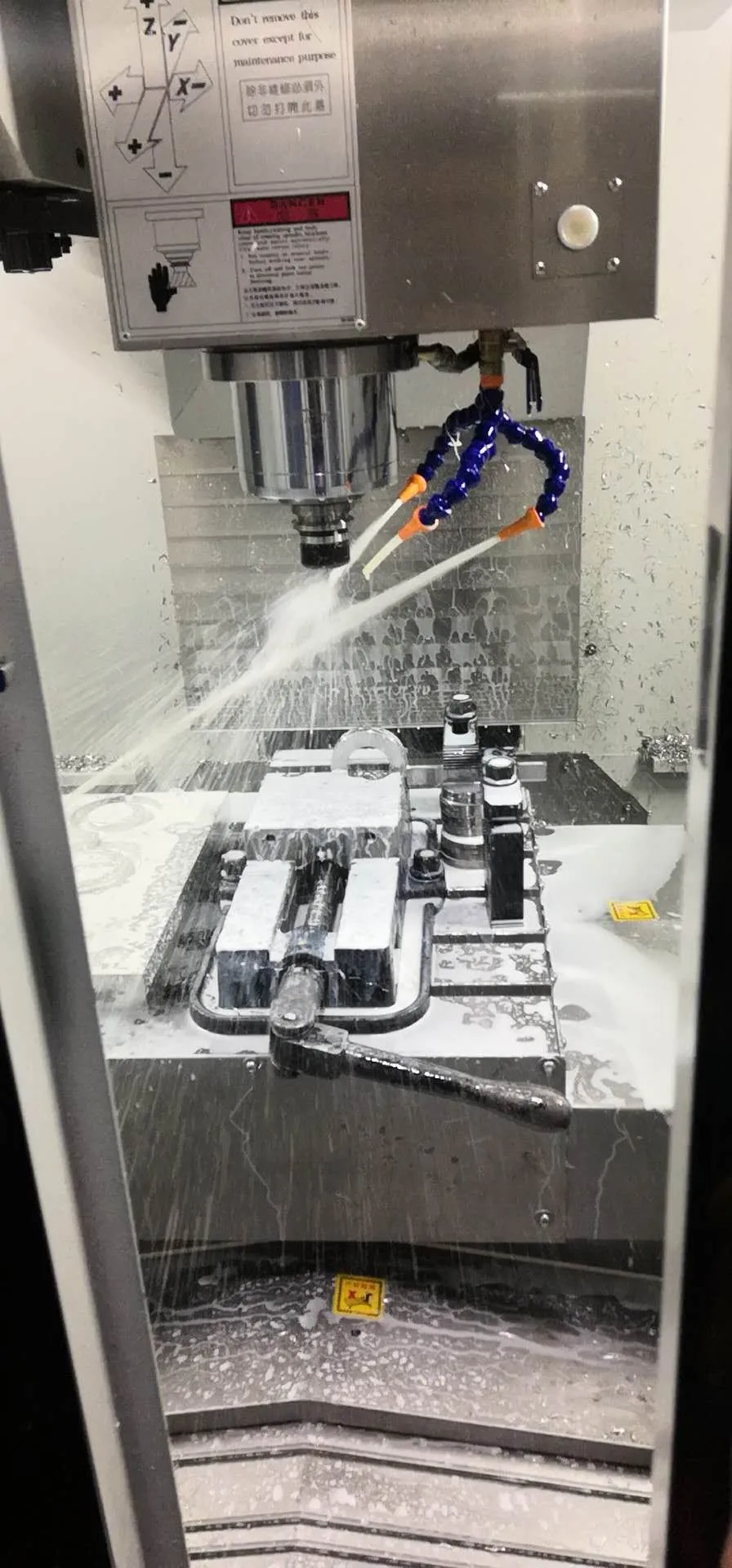

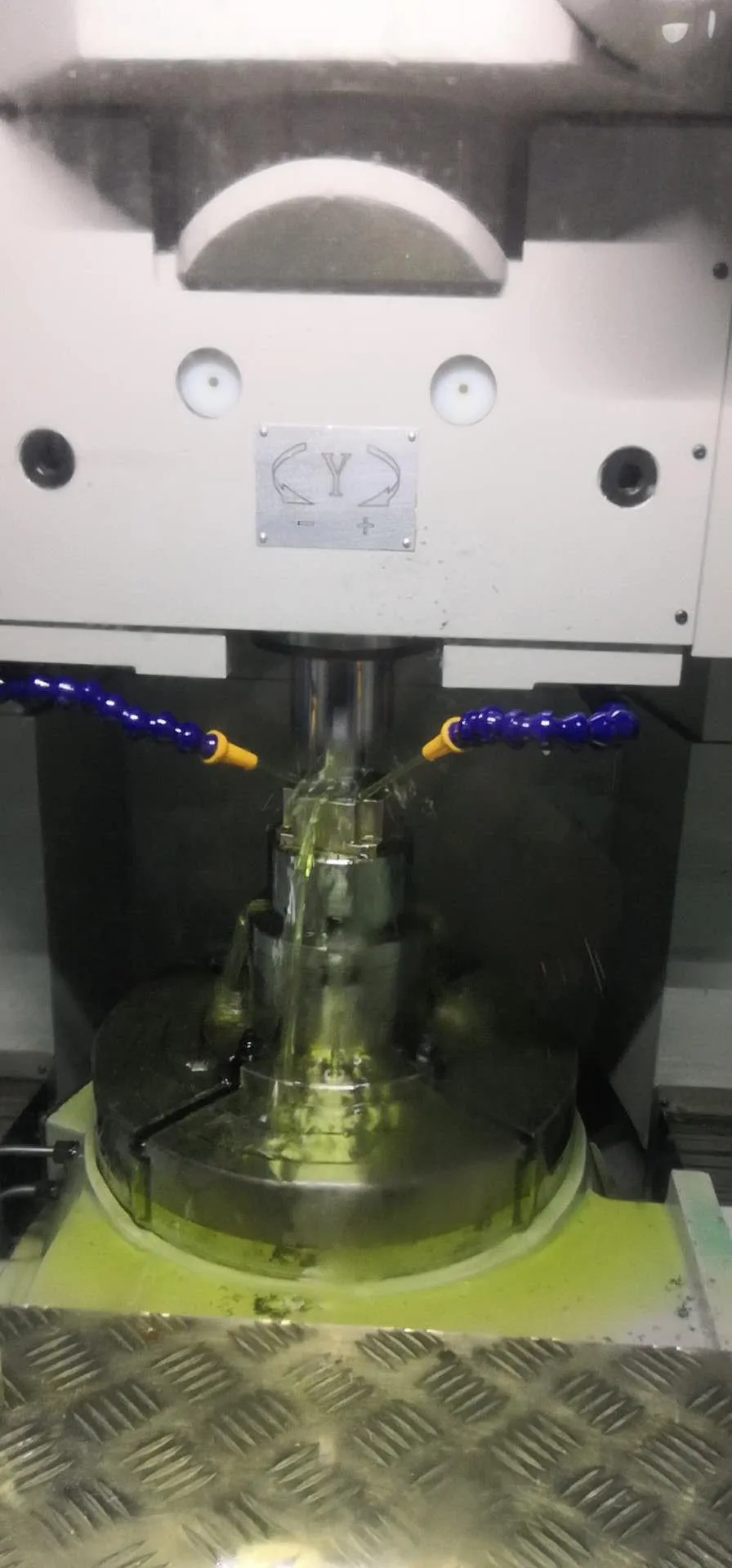

Adopt Japanese NACHI and HAMAYI advanced equipment.Quality and technology are strictly controlled.

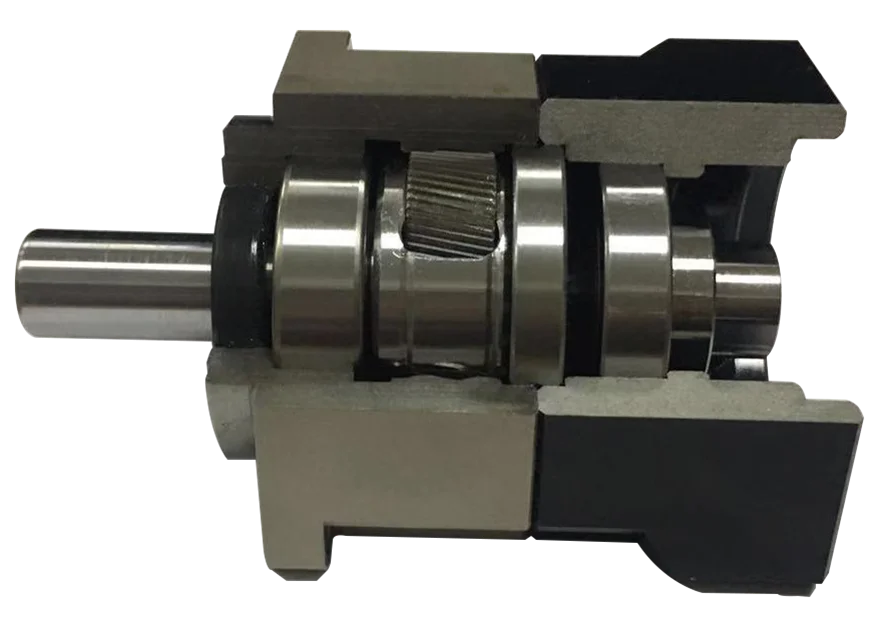

High torque:

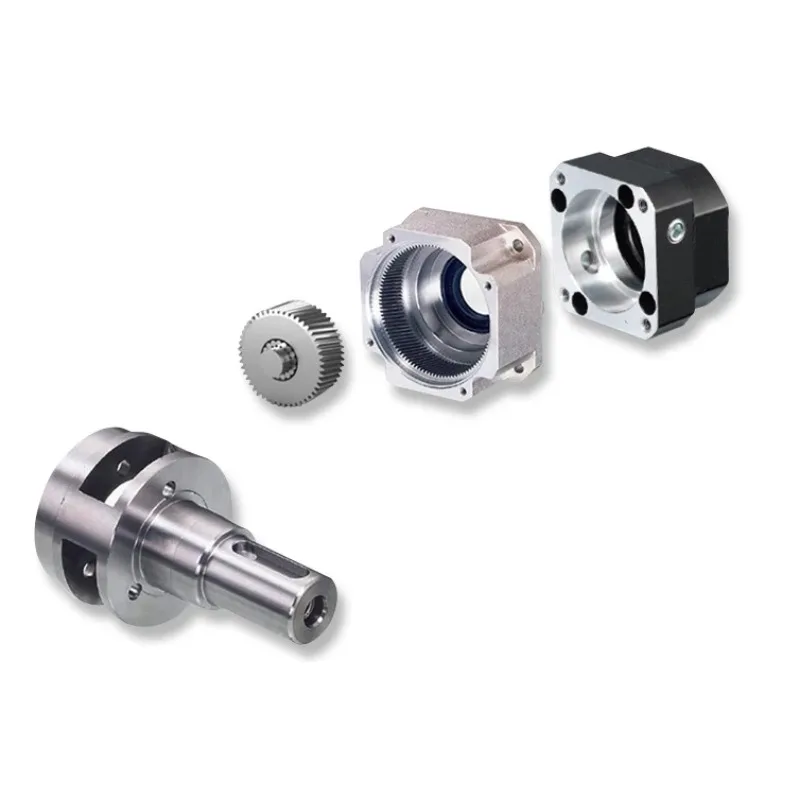

(1)Front shell and tooth ring adopt integral design
(2)Integrated design of planetary frame and output shaft
(3)Bearing long span design, ensure the output load capacity
(4) Full needle rolling, increase contact surface, increase output torque
(5)Input flange interchangeability, ensure the exchange cycle
(6) Modular design of motor connection plate and axle liner
Low noise:
The helical tooth surface is modified for tooth shape and lead
Reduce the impact and noise of gear on the input and output
Increase gear service life
Long life:
NSK/NTN bearing:
Steel: Japan steel (SCM415)
Grease: KLUBER
Oil seal: SKF/TTO
apex dynamics precision planetary gearbox

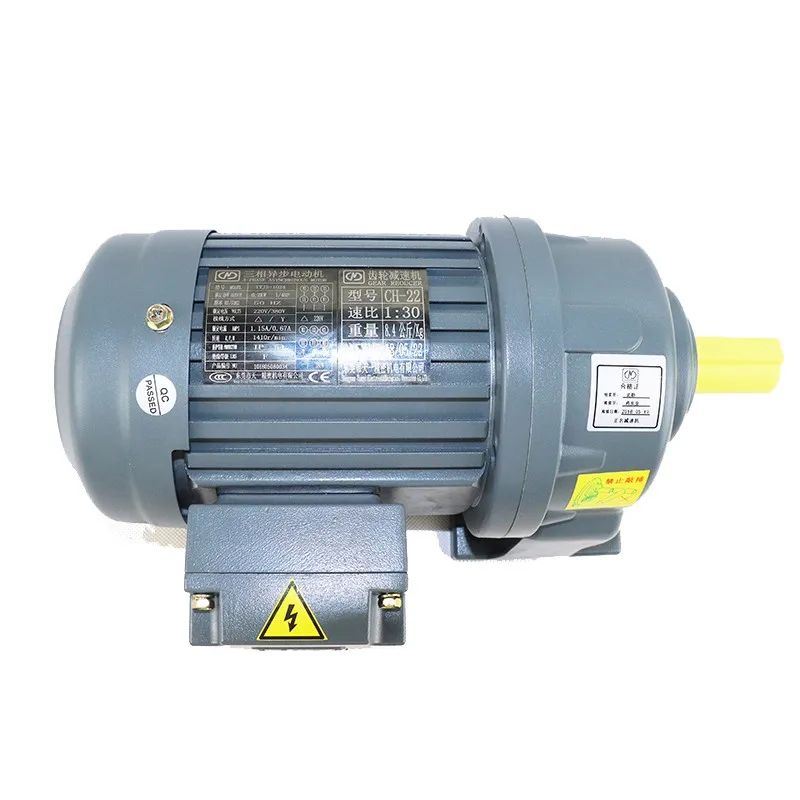

CH AC gear motor
91.8% Response Rate

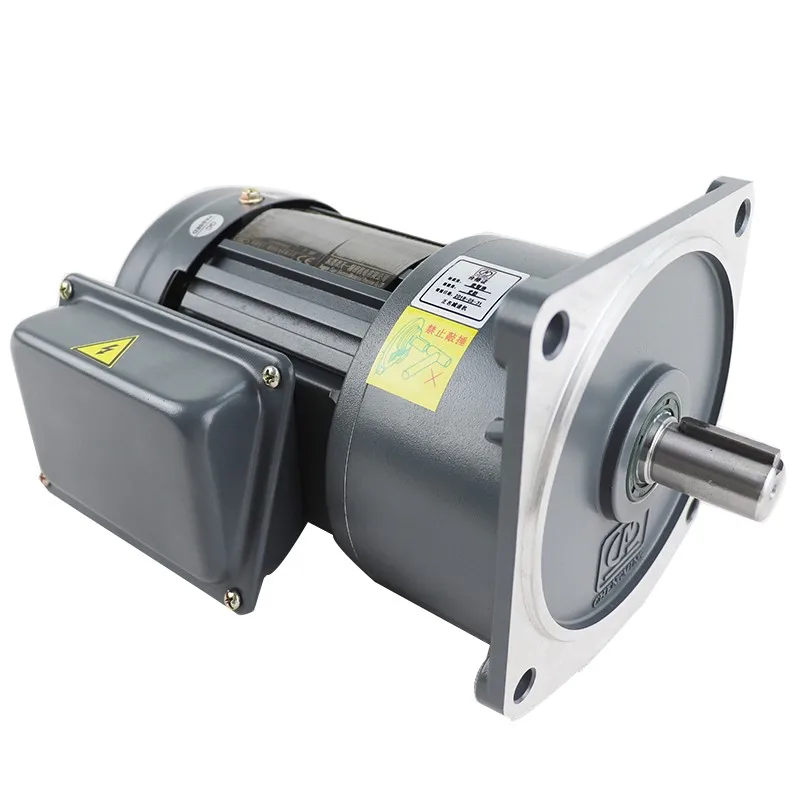

CV AC gear motor
