Descrição
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery
- Place of Origin: Jiangsu, China
- Brand Name: 3F
- Gearing Arrangement: Planetary
- Output Torque: 10-2100Nm
- Input Speed: based on motor
- Output Speed: based on ratio
- Application: Textile, Food Processing Machine, CNC, AGV, Robotic Industry
- Mounting Position: Any direction
- Gearbox Size: 42 ~ 220mm
- Color: Silver blue
- Ratio: 3 ~ 100
- Warranty: One year after the day of ex-factory
- Packing: Wooden box or carton
- Input Form: IEC Flange
- Certificate: CE & ISO
- Structures: Bearing Gear Box
My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! And welcome to add my WHATSAPP (+8618175124931)
3. OEM service is acceptable.
4. Comprehensive after-sales service and free technical support.
5. High quality at reasonable prices.
Product Description

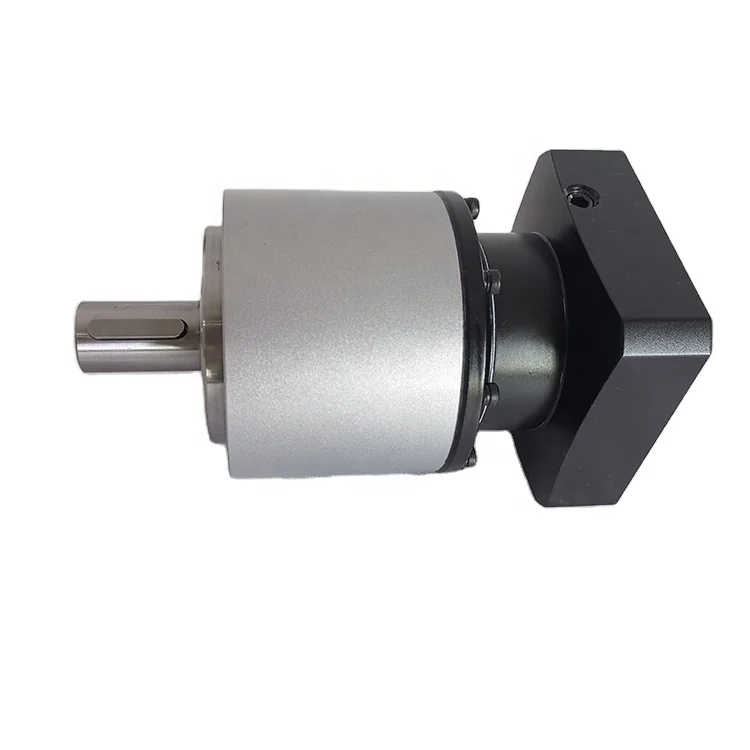

Factory Direct VRL Inline Helical Gears Nema 17 Planetary Gearbox Epicyclic Gearbox
The function and internal configuration of VRL are the same with VRB. VRB is square output, while VRL is round output, which can meet different demands of customers. The low heat generation allows VRL a continuous high speed without sacrifice performance. Helical gearing and high positional accuracy enable VRL to achieve unsurpassed smooth operation and backlash stability, making the VRL an attractive options in various noise-critical applications such as medical equipment, packaging machine, lab automation systems, and printing machinery. When low noise is a primary concern, you can often choose a helical gearbox to reach the desired torque and lifecycle requirements.
|
|
Precision Grade:
P0 ( ≤ 2 arcmin, ≤ 4 arcmin ) P1 ( ≤ 4 arcmin, ≤ 6 arcmin ) |
|
|
Service Life: 2000h
|
|
|
Operating Temperature: -15℃ ~ +90℃
|
|
|
Protection Grade: IP65
|
|
|
Mounting Position: Any Direction
|
|
|
Efficiency: ≥ 94% ~ ≥ 97%
|

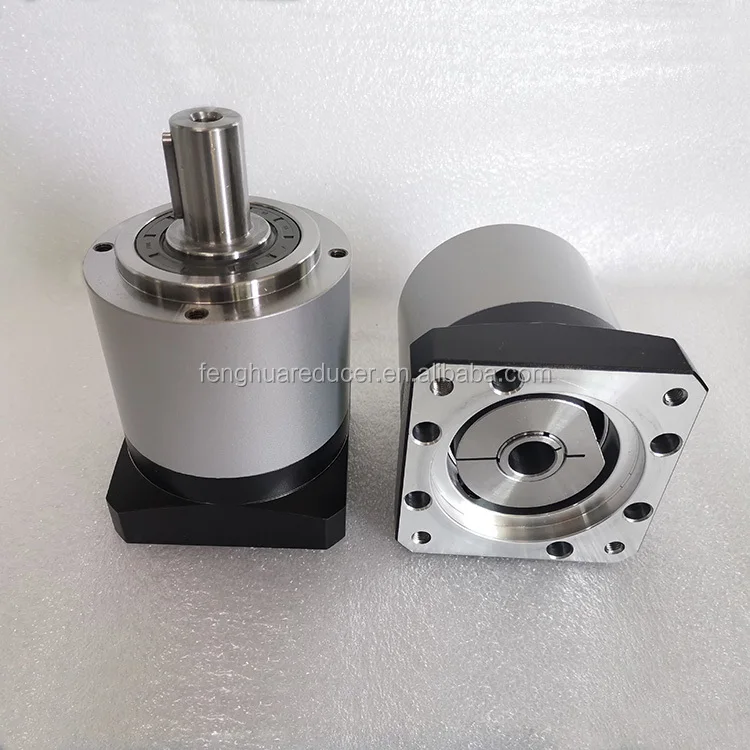

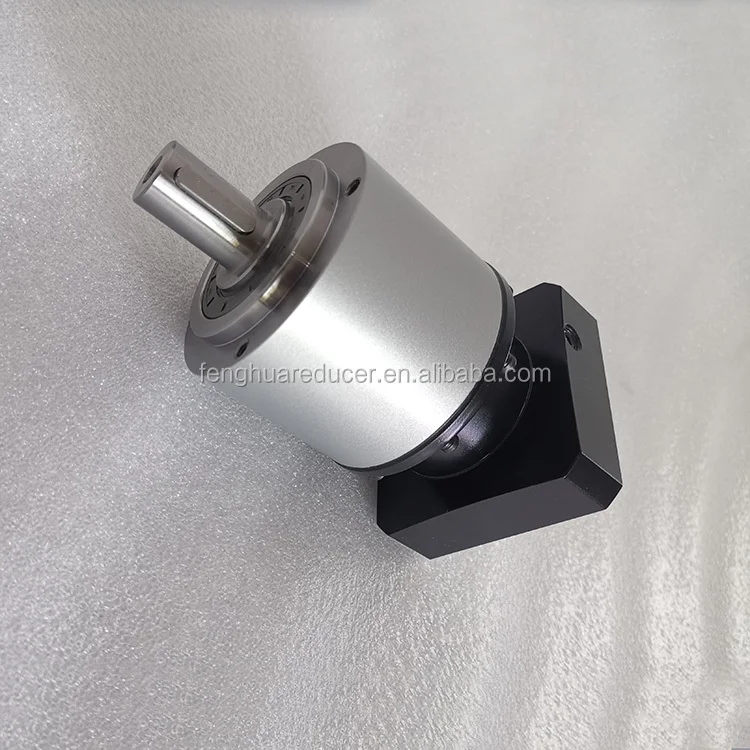

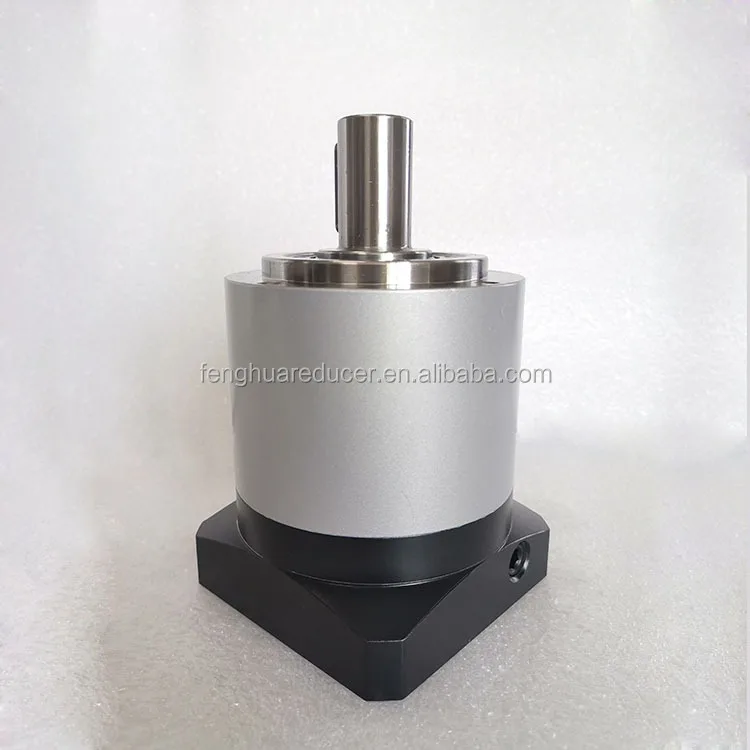

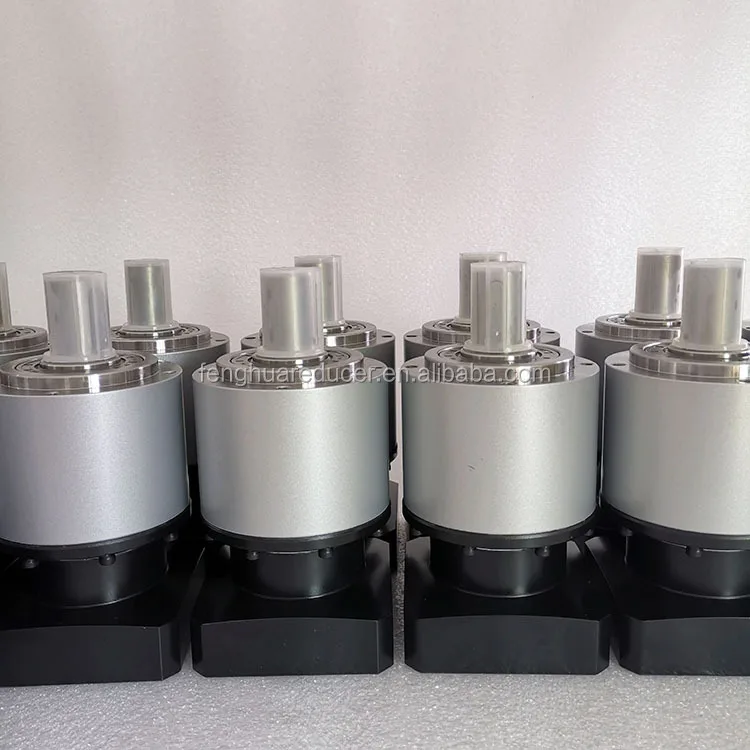

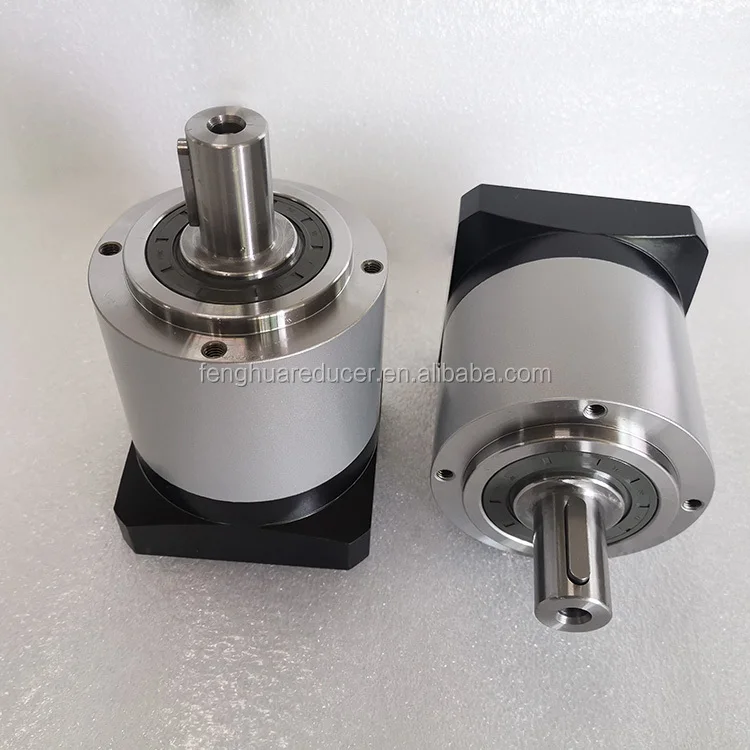

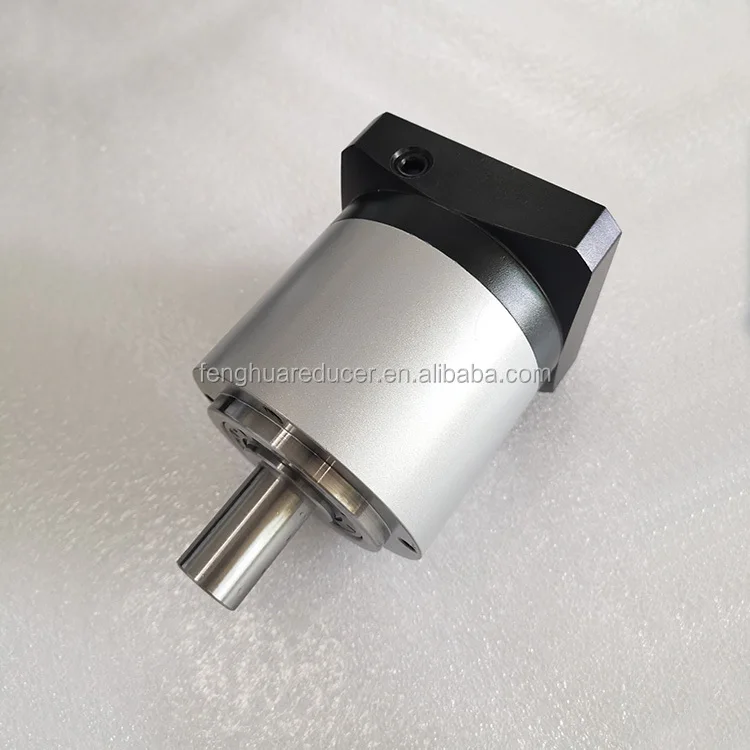

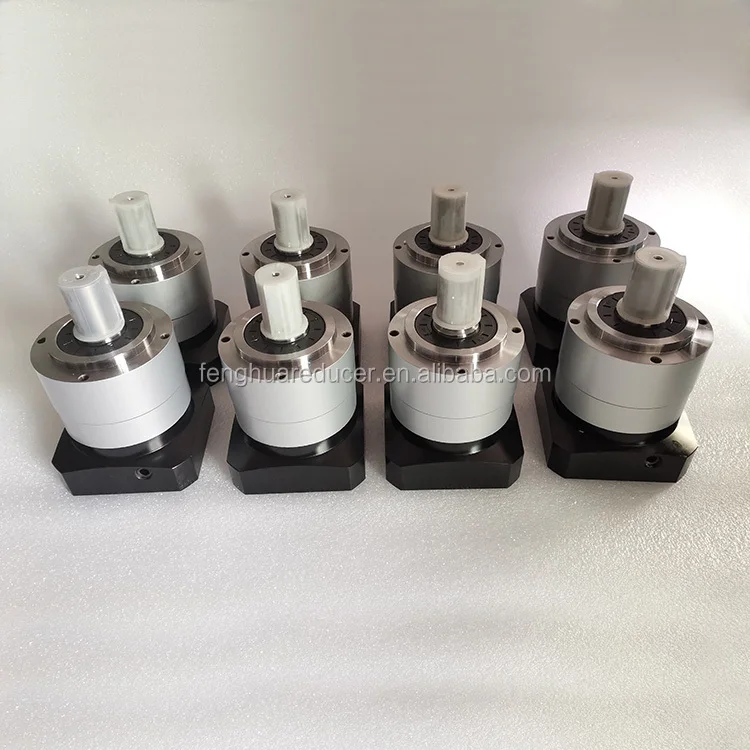

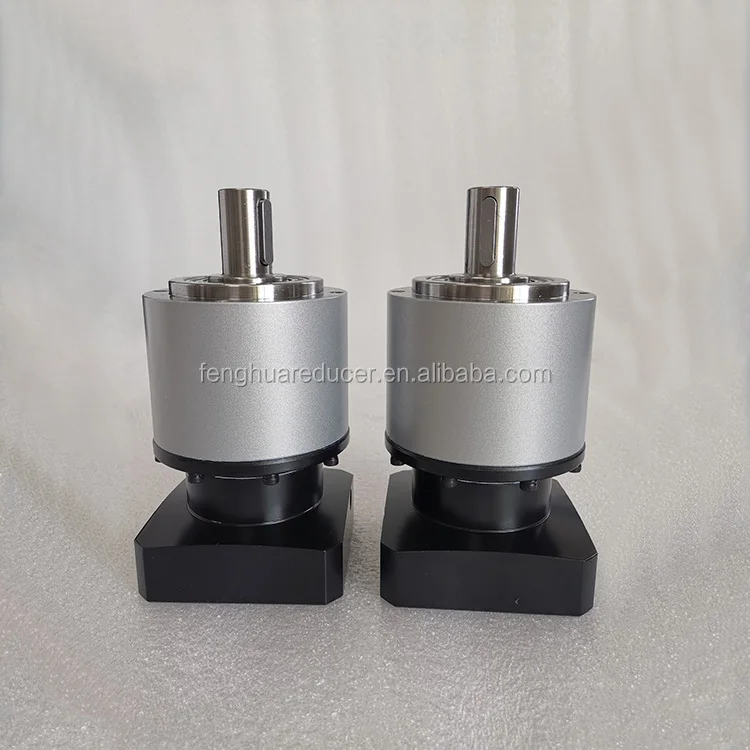

Detailed Images

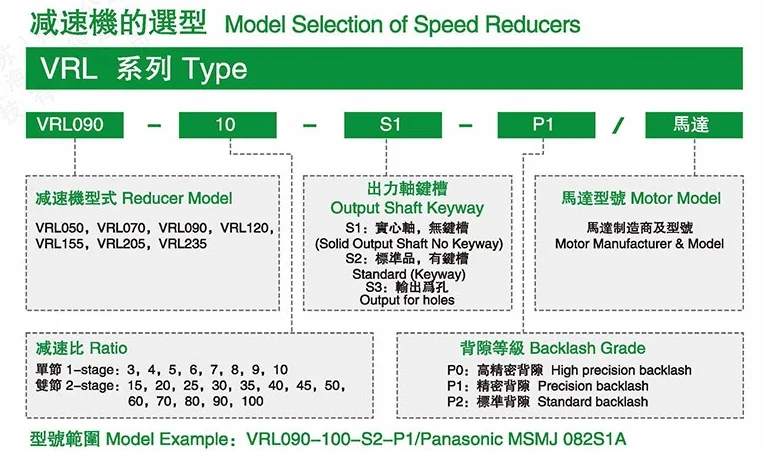

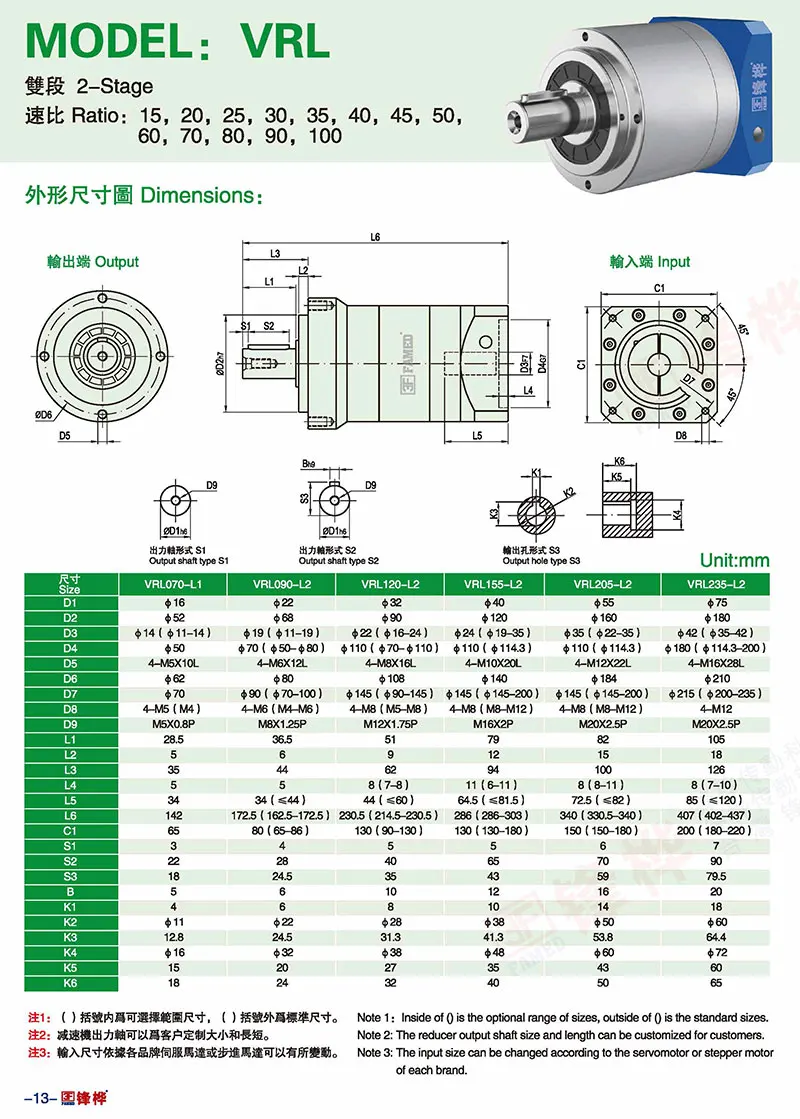

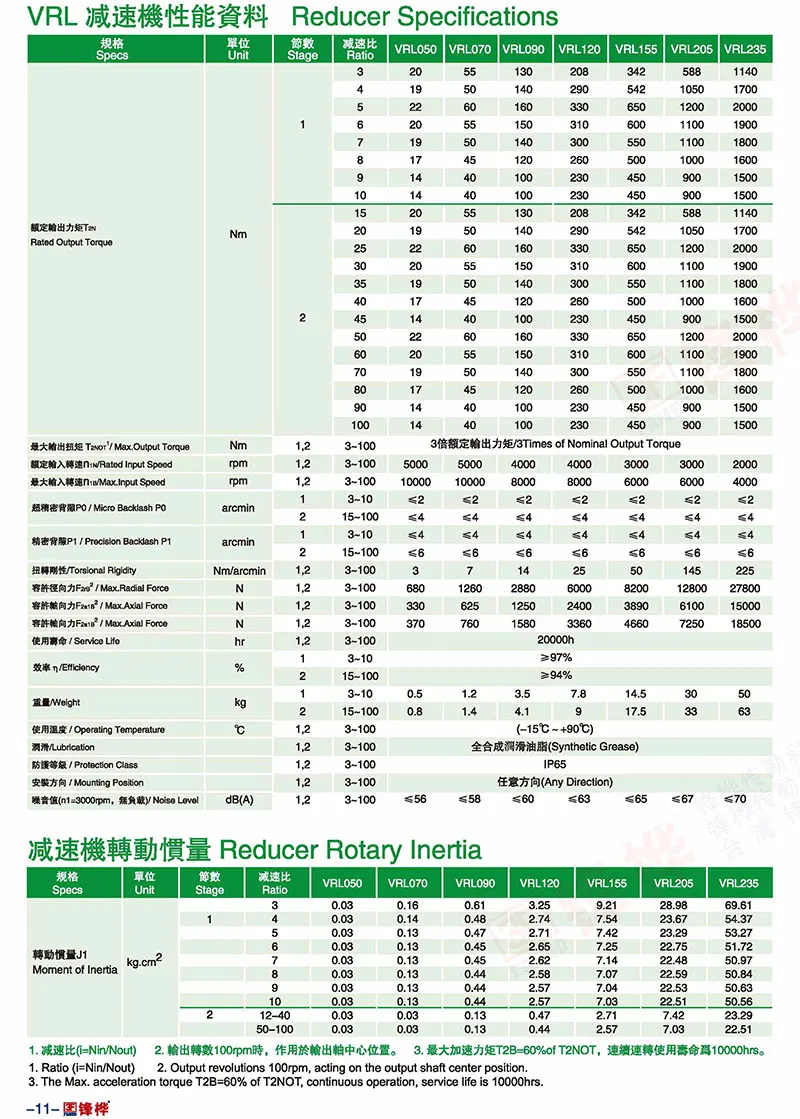

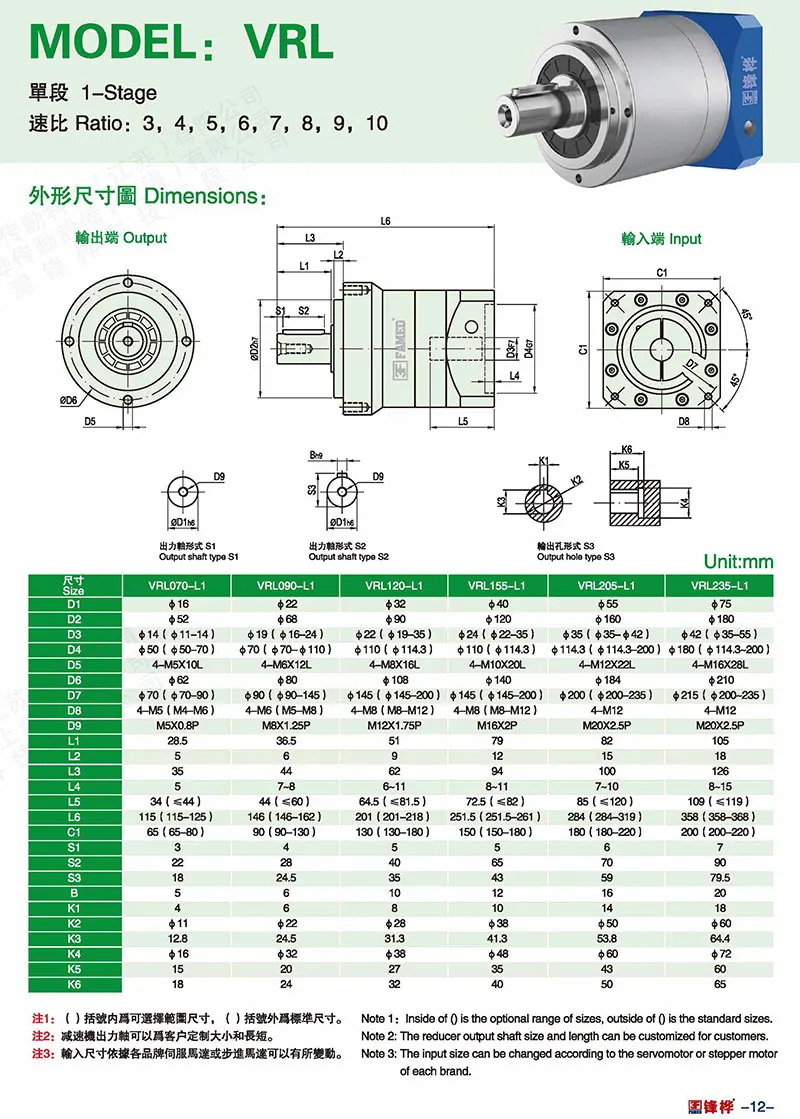

Specification
Related Products
Company Introduction
3F Famed company developed from a factory which professionally manufactures the gears. All staffs of factory and R & D team have more than 20 years' gear manufacturing and designing experience. The factory cooperated with planetary gearbox technology team in the early period, and then established business department of the planetary gearbox, and developed the design and manufacturing process of product line of planetary gearbox series. Products can be compatible with servo motors and stepper motors produced by any servo factory. High precision planetary reducers features of reducing rotating speed, increasing torque greatly, increasing inertia of the motor rotor, improving rigidity, shortening the locating time of start and stop, miniaturizing the motor power and improving the stability of the inertia load and reducing the vibration at the same time.
Our Services & Strength
1. Economical alternatives of German Alpha, Neugart, Japan Shimpo, Harmonic Drive, Taiwan Apex, etc.
2. Delivery time could be negotiated if you are urgent.3. OEM service is acceptable.
4. Comprehensive after-sales service and free technical support.
5. High quality at reasonable prices.
