Descrição
- Origin: Mainland China
- Condition: New
- Range of Spindle Speed(r.p.m): 3000 - 12000 rpm
- Positioning Accuracy (mm): 0.05 mm
- Number of Axes: 3
- No. of Spindles: Single
- Working Table Size(mm): 200*300
- Machine Type: CNC Router
- Travel (X Axis)(mm): 200 mm
- Travel (Y Axis)(mm): 300 mm
- Repeatability (X/Y/Z) (mm): 0.05 mm
- Spindle Motor Power(kW): 3
- CNC or Not: CNC
- Voltage: 220/110V
- Dimension(L*W*H): 56*45.5*43cm
- Power (kW): 3
- Weight (KG): 26
- Control System Brand: Mach3
- Warranty: 1 Year
- Key Selling Points: Easy to Operate
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year

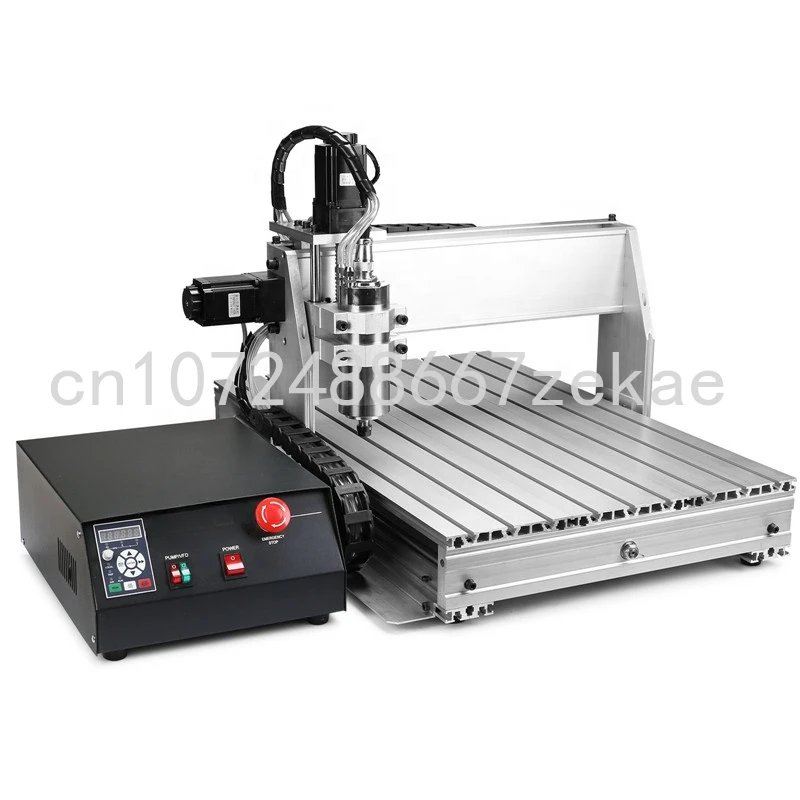

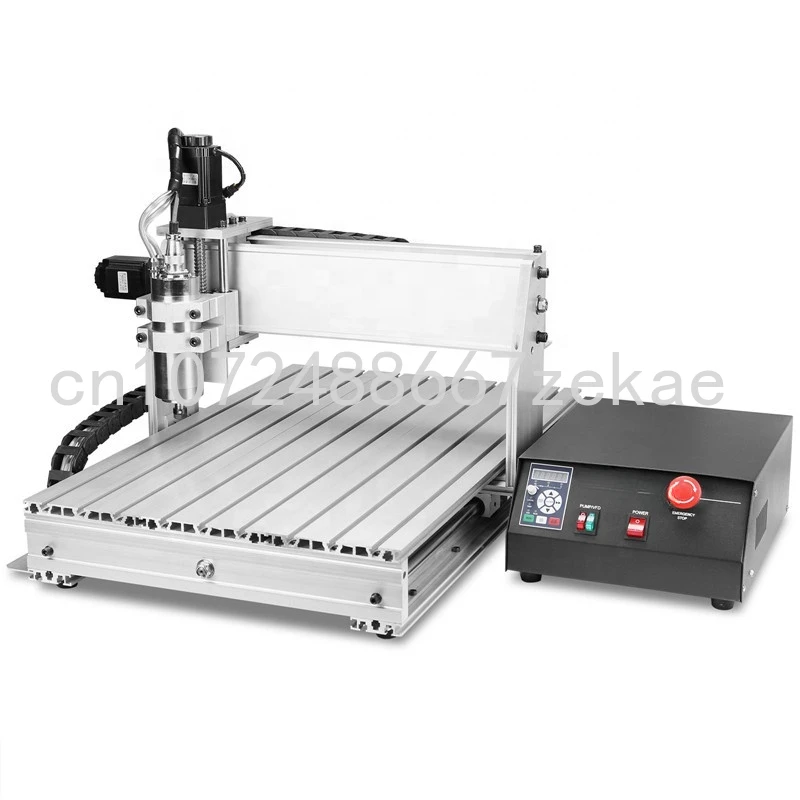

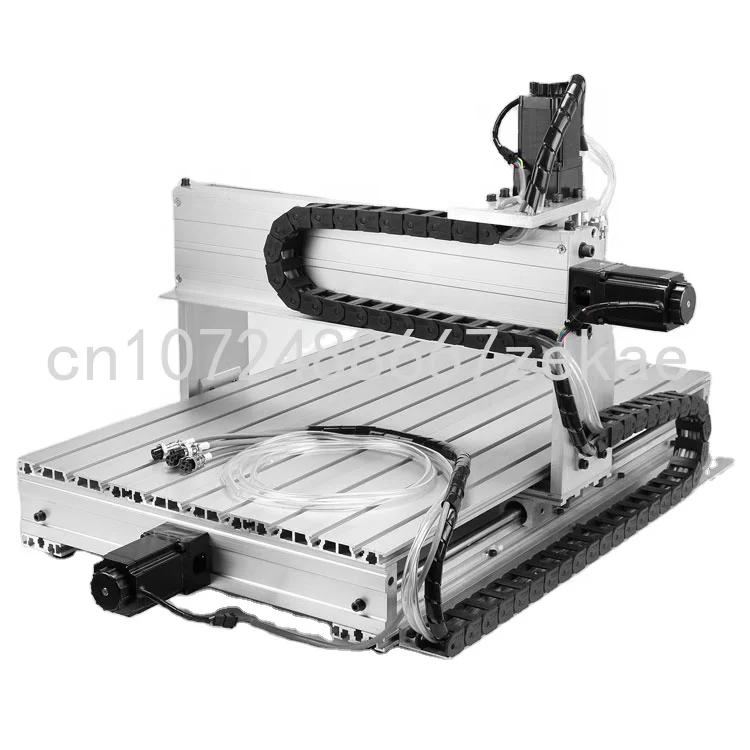

- Product name: diy cnc mini router with 3 axis all parts can be customized
- Motor: Stepper Motor
- Color: Customizable
- Key words: cnc router machine
- Control system: Mach3
- Function: Cutting Engraving Non-metal Materials
- Working Voltage: 220/110V
- Max working speed: 12000rpm
- Type: Popular Wood Cnc Router
|
Paramenters
|
|
|
|
|||
|
Model
|
CNC3020
|
CNC3040
|
CNC4060
|
|||
|
|
|
|
|
|||
|
Reset positioning accuracy
|
0.05MM
|
0.05MM
|
0.03MM
|
|||
|
|
|
|
|
|||
|
Precision
|
0.05MM
|
0.05MM
|
0.03MM
|
|||
|
|
|
|
|
|||
|
Voltage
|
220V/110V
|
220V/110V
|
220V/110V
|
|||
|
|
|
|
|
|||
|
Power
|
300W
|
300W
|
800W
|
|||
|
|
|
|
|
|||
|
Spindle motor speed
|
3000-12000rpm
|
3000-12000rpm
|
24000rpm
|
|||
|
|
|
|
|
|||
|
XYZ effective stroke
|
200*300*55MM
|
300*400*55MM
|
400*600*75MM
|
|||
|
|
|
|
|
|||
|
Transfer method
|
T12*2 Screw
|
|
605screw rod
|
|||
|
|
|
|
|
|||
|
Control System
|
MACH3
|
|
MACH3
|
|||
|
|
|
|
|
|||
|

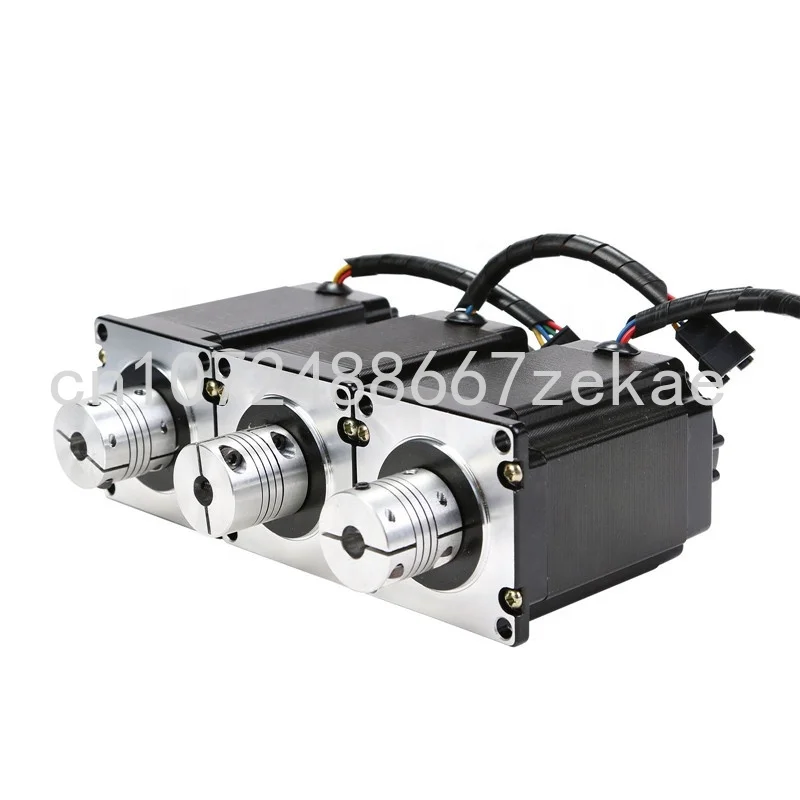

Stepper motor
|
57series stepper motor
|
|
57series stepper motor
|
|||
|
|
|
|
|
|||
|
Frame material
|
Aluminum structure,12MM aluminumplate
|
|
Aluminum structure,12MM aluminumplate
|
|||
|
|
|
|
|
|||
|
Machine dimensions
|
56*45.5*43cm
|
66*53.5*43cm
|
91*69*52cm
|
|||
|
|
|
|
|
|||
|
package size
|
54*43*43.5cm
|
65*52*44.5cm
|
90*70*52.5cm
|
|||
|
|
|
|
|
|||
|
Machinable materials
|
PVC/Wood,Plastic,Jade(customized)etc,;
|
|
PVC/Wood,Plastic,Jade(customized)etc,;
|
|||
|
|
|
|
|
|||
|
Weight
|
26Kg
|
31Kg
|
62Kg
|
|||
|
|
|
|
|
|||
Computerized CNC Engraving and Cutting Machine is suitable for various materials,such as WOOD,PMMA or other plastic,MDF
board,native wood,PVC,Acrylic,wood,composite board plywood,It can be used widely to process or make advertising signs, PCB,
nameplates,badges,seals,bronzing plate,aluminium alloy,acryl plates,ABS resin double color plate,PVC foaming board,indentation
plates,signs,construction models,instrument panels,wooden products,etc.
