Descrição
- Brand Name: Vieruodis
- Origin: Mainland China
- Place of Origin: Henan, China
- Brand Name: CreatBot
- Application: Education High School for Engineering
- Features: Faster printing
- Production Capacity: 500
- Warranty: 1 Year
- Dimension(L*W*H): 370*320*490 mm 18 kg
- Voltage: 110V/220V
- Usage: Label Printer, Tube Printer, 3d printer
- Weight: 18 KG
- Automatic Grade: Automatic
- Color & Page: single color
- Year: 2017
- Condition: New
- Molding Technology: FDM
- Forming size: 160*160*200mm
- Key Selling Points: High-accuracy
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Gearbox
- Brand: CreatBot F160
- Printing volumn: 160*160*200mm
- Nozzle Max. Temperature: 420℃
- Chamber Temperature: 70℃
- Platform Max. Temperature: 150℃
- Filaments diameter: 1.75mm
- Software: Creatware Simply3D Cura available
- Package Weight: 23kg
- After-sales Service Provided: Online support, Free spare parts, Video technical support
Product Overview
CreatBot Peek 3D Printer F160 ULTRA HIGH PRECISION/SPEED
DESKTOP 3D PRINTER
* Prints up to 420°C with single extruder
* Efficiently Platform & 150°C Hotbed
* Heated build chamber 70°C
* Consumer-grade: PLA, ABS, PET-G, HIPS, PVA, etc
*Industrial-grade: Glass/Carbon fiber, Nylon+, PC, ASA, TPU/E, PP, etc

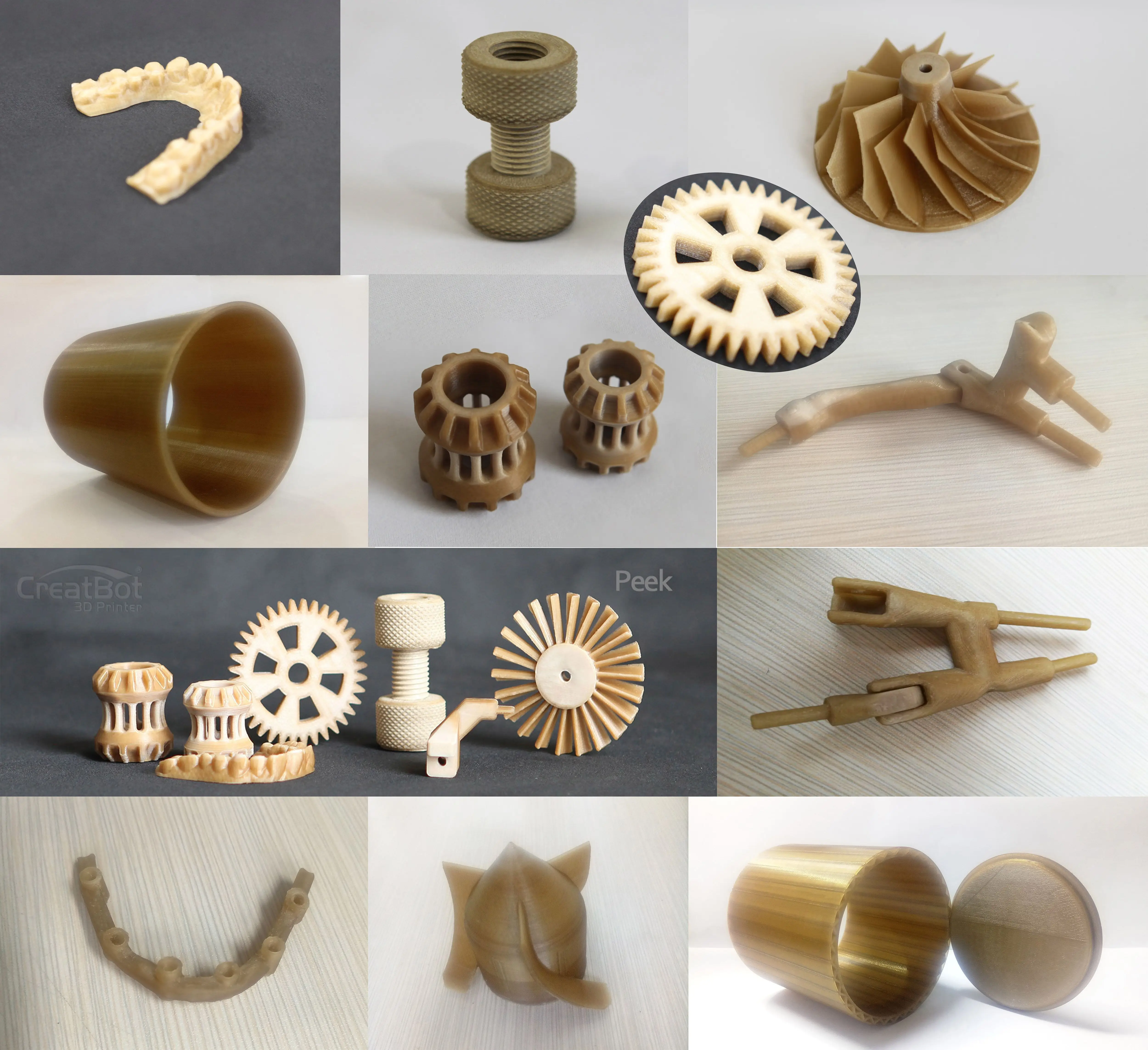

*High Performance: Metal Fill, PEEK, etc
* Fully enclosed chamber
* Automatic and manual bed levelling
* 4,3" touch screen
*Outage Restored & Filament Detection
* Efficiently Platform & 150°C Hotbed
* Heated build chamber 70°C
* Consumer-grade: PLA, ABS, PET-G, HIPS, PVA, etc
*Industrial-grade: Glass/Carbon fiber, Nylon+, PC, ASA, TPU/E, PP, etc
*High Performance: Metal Fill, PEEK, etc
* Fully enclosed chamber
* Automatic and manual bed levelling
* 4,3" touch screen
*Outage Restored & Filament Detection
* Precise high-temperature FFF 3D printer
Faster printing
Fully industrial-grade structure, using the second-generation CreatBot dual Z-axis structure, all of the original motion structure is upgraded to linear guides, with the high temp extruder, the filament extruding is faster and smoother, the printing accuracy is higher .The printing speed is increased by 20%, it is set to print easily at 100cc per hour.
Details Images
Support 420°C Hotend
CreatBot 3d printer has automatic filament feeding function: Printer will detect filament and start
loading automatically after filament has been inserted into the intake.
Filament detection function:Printing will be suspended automatically when filament is broken or used up, and printing will be
resumed after user replaces the new filament.We are the first one to publish 420°C high temperature nozzle to 3d printer market. This kind of nozzle allow to print with a
variety of filaments. The nozzle height can also be micro adjusted. (Default support 260°C, contact us for 420°C.
High Precision & High Speed
We exclusively research and develop the extruder feeding system and guide rail, which support high-speed printing. Its printing
accuracy can reach high to 0.04mm,and it allows to extrude filament steady without block.
Stability
The whole-steel body not only ensure the stability when printing, but also extend the usage period greatly. Its optimization and
cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been
working for 9 years and more than 30,000 hours.
Fully Enclosed+Hot Chamber 70°C
-Fully enclosed chamber can block all external interfernce and reduce noise.
-Hot chamber device provide constant room temperature 70°C,which is able to prevent prints from warping and deform.
Outage Restored & Filament Detection
The printer will automatically memorize the current position and save print data.
Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after
power's on.
The printer will avoid invalid printing by stoping print and warning when filament runs out.
Touch Screen
The printer have all-english-menu touch screen which is easy - -Operate and friendly use. One key to warm,one key to print as well
as many other shortcut keys.
as many other shortcut keys.
Efficiently Platform & 150°C Hotbed
The hotbed is made of heatable aluminium PCB, which can be heat up to 150°C fast. The platform is attached with 3d printing
stickers buildtak. Printed object can be stick on the buildtak tightly and won't get deformed
PRODUCT SPECIFICATIONS
|
Technical Specs
|
|
|
|
|
||||
|
Build Volume
|
160*160*200mm
|
Construction
|
Power-Coated Steel, Aluminum Casting for Motion Components, POM etc
|
|
||||
|
Print Resolution
|
0.04mm-0.4mm
|
Platform
|
Heatable Aluminium PCB with BuildTak
|
|
||||
|
Filament Diameter
|
1.75mm
|
Positioning Precision
|
X Y axis 0.01mm, Z axis 0.0025mm
|
|
||||
|
Number of Nozzles
|
Single Extruder
|
Extruder
|
Directly Drive
|
|
||||
|
Print Speed
|
10-150mm/s
|
Machine Construction
|
Fully enclosed hot chamber
|
|
||||
|
Nozzle Diameter
|
0.4mm (0.3~1.0mm optional)
|
Bed Leveling
|
Manually/Automatic
|
|
||||
|
Filament Compatibility
|
PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc.
|
Software Bundle
|
Creatware, Simplify3D, Cura, Slice3r
|
|
||||
|
Nozzle Max. Temperature
|
450℃
|
Operating Systems
|
Win7/8/10
|
|
||||
|
Chamber Temperature
|
70℃
|
Print File Type
|
STL, OBJ, AMF, Gcode
|
|
||||
|
Platform Max. Temperature
|
150℃
|
Product Dimensions & Weight
|
370*320*490 mm 18 kg
|
|
||||
|
|
|
Packing Size & Weight
|
470*420*600 mm 23 kg
|
|
||||
Installation Instructions
Customer Photos

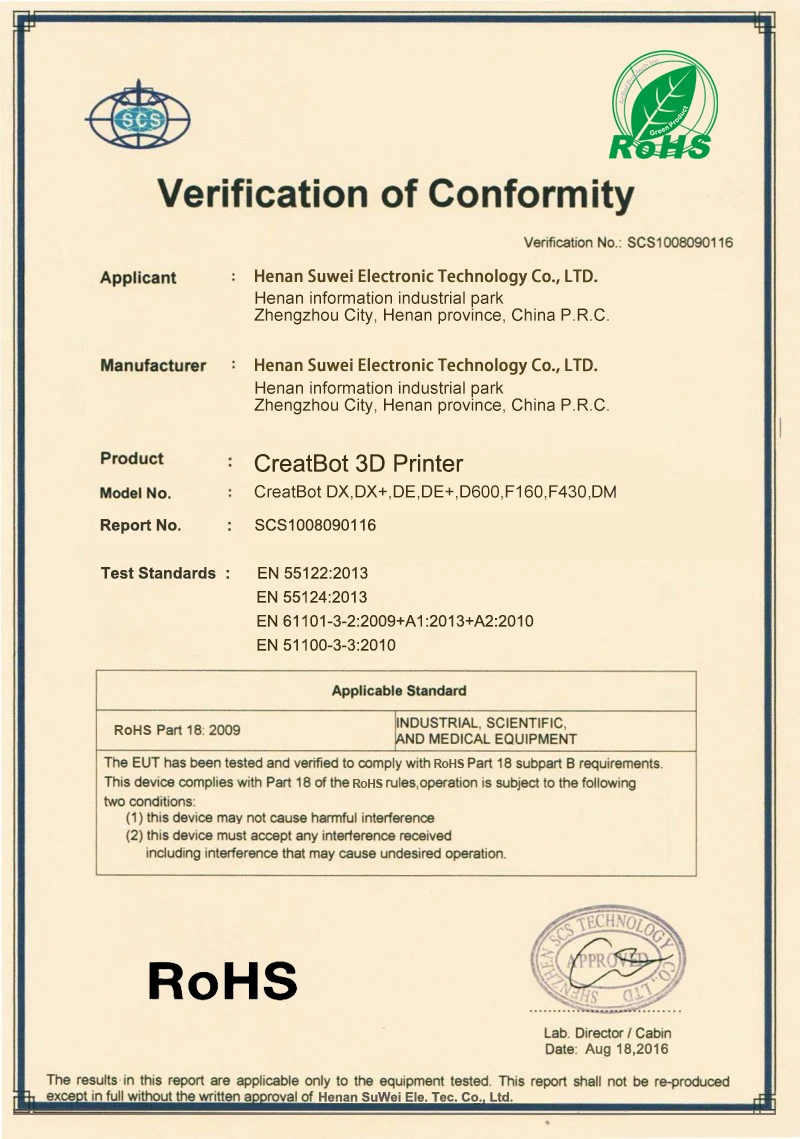

Certifications
