Descrição
- Power Supply: DC
- Model Number: DM556D
- Motor Type: Stepper Motor
- Brand Name: RATTMMOTOR
- Origin: Mainland China
- Certification: CE
- Driver current: 5.6A
- Driver microstep: 256 microstep
- Driver input voltage: 24-50VDC
- Characteristic: Low noise, low vibration, low temperature rise
- Place of Origin: Jiangsu, China (Mainland)
- is_customized: Yes
Package include:

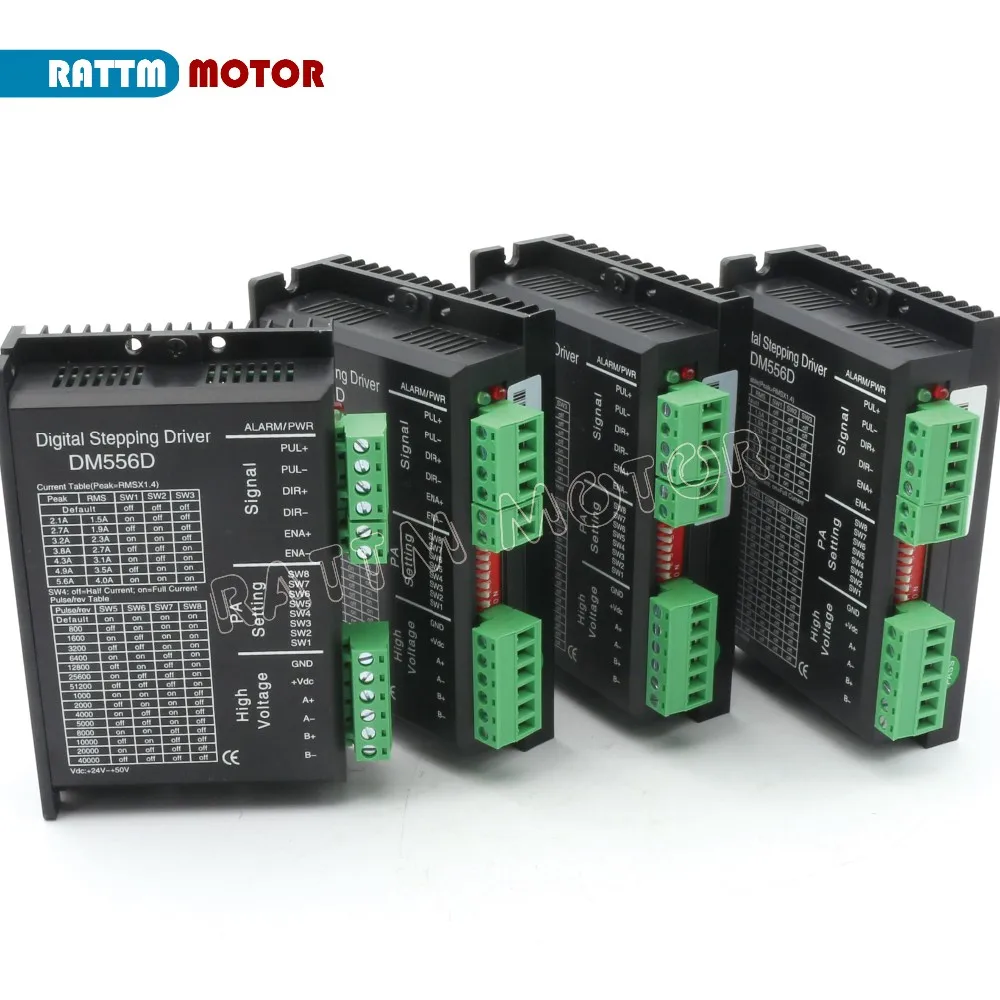

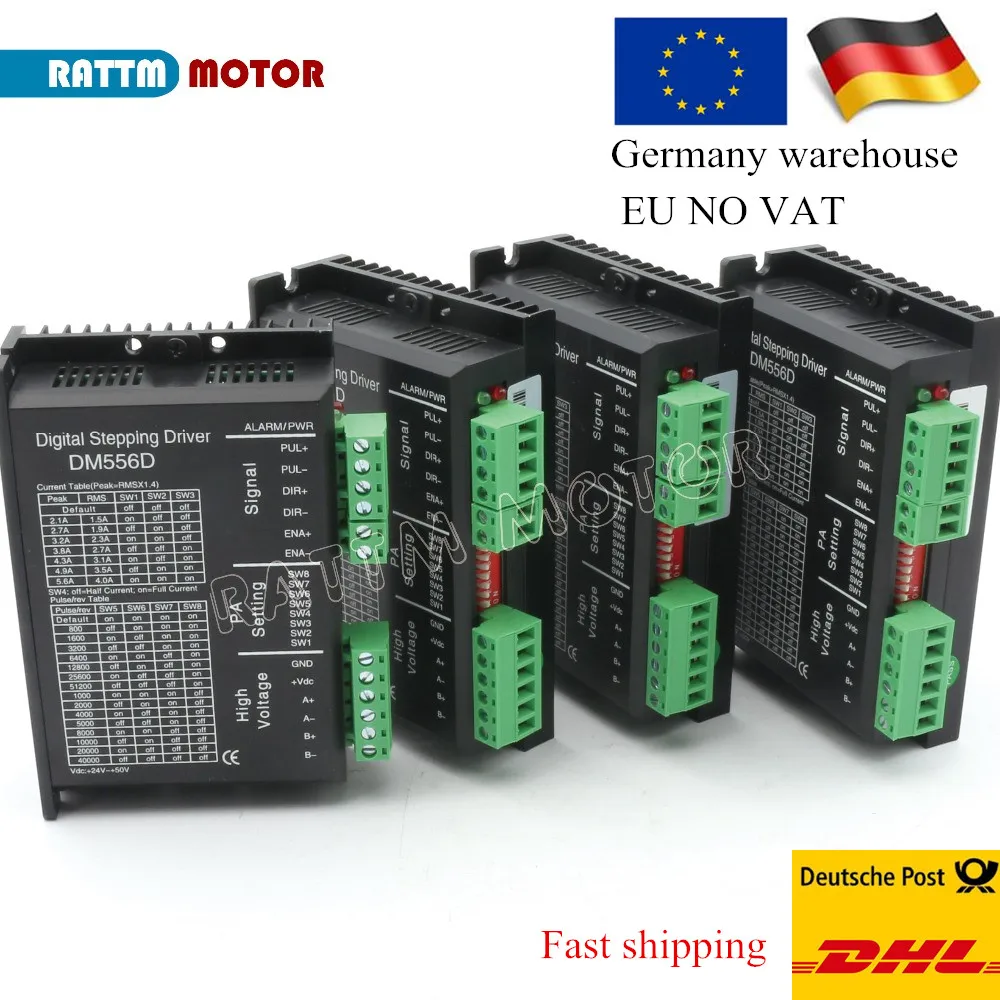

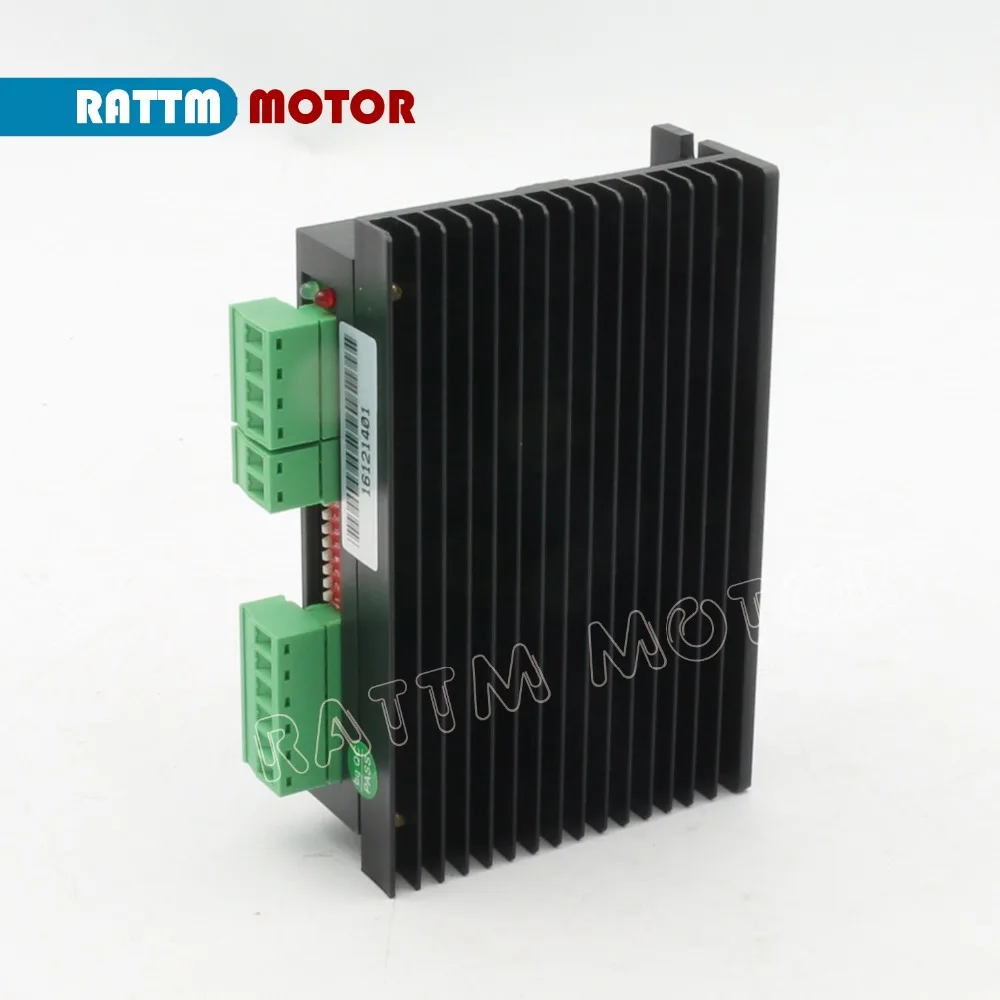

4 x DM556D Stepper Motor Driver(5.6A,50V,256microstep)
English user manual will send by mailbox.(when you received,pls give me your mailbox)

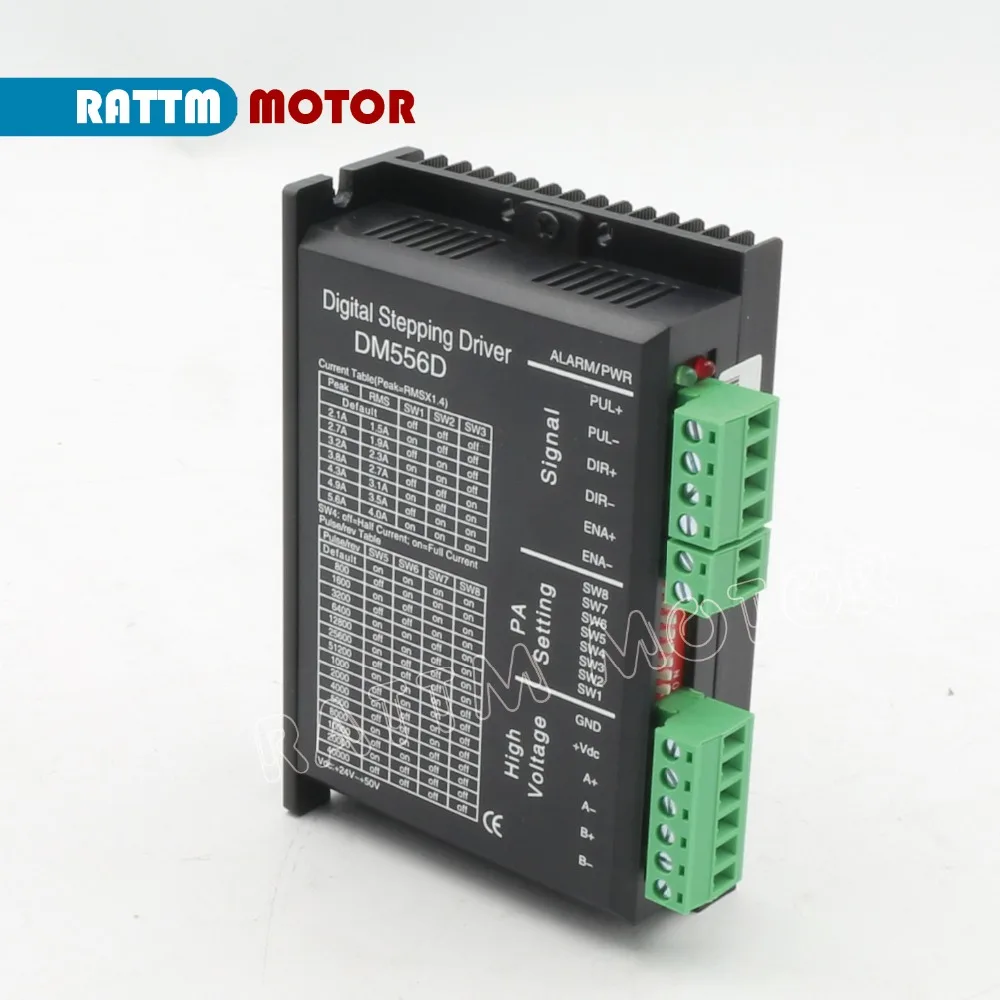

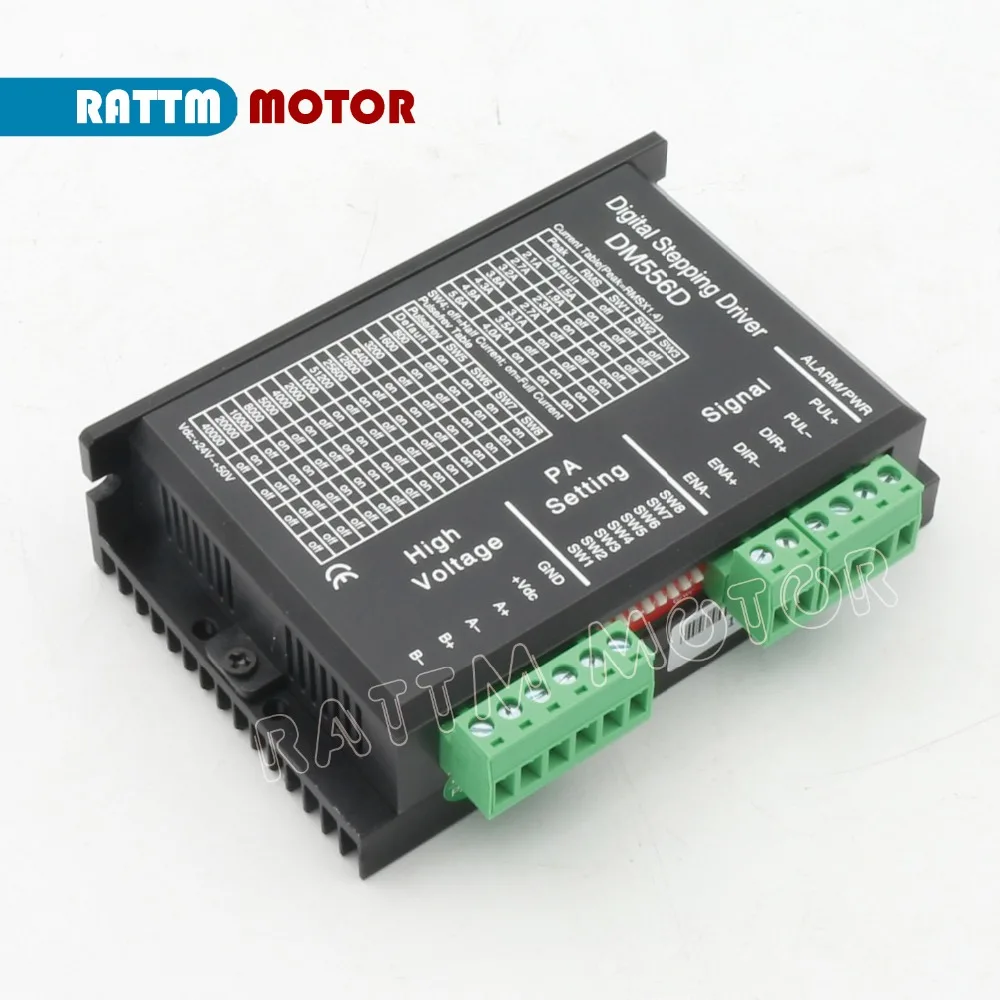

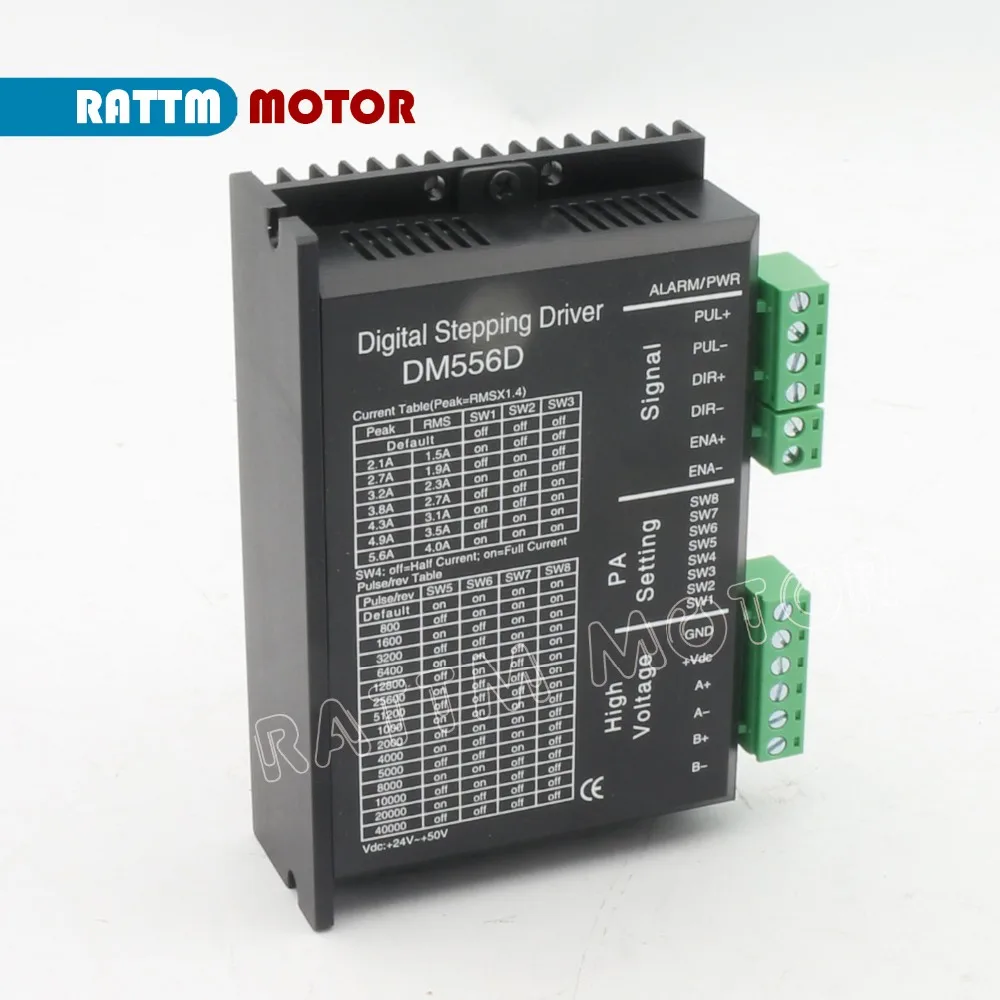

DM556D Stepper motor drive specification
Summarize
DM556D is a new generation of high performance digital stepper motor drive, adopt 32 bit DSP technology, application control of noise and vibration reduction of the motor running algorithm greatly, which has the advantages of low noise, low vibration, low temperature rise characteristics.

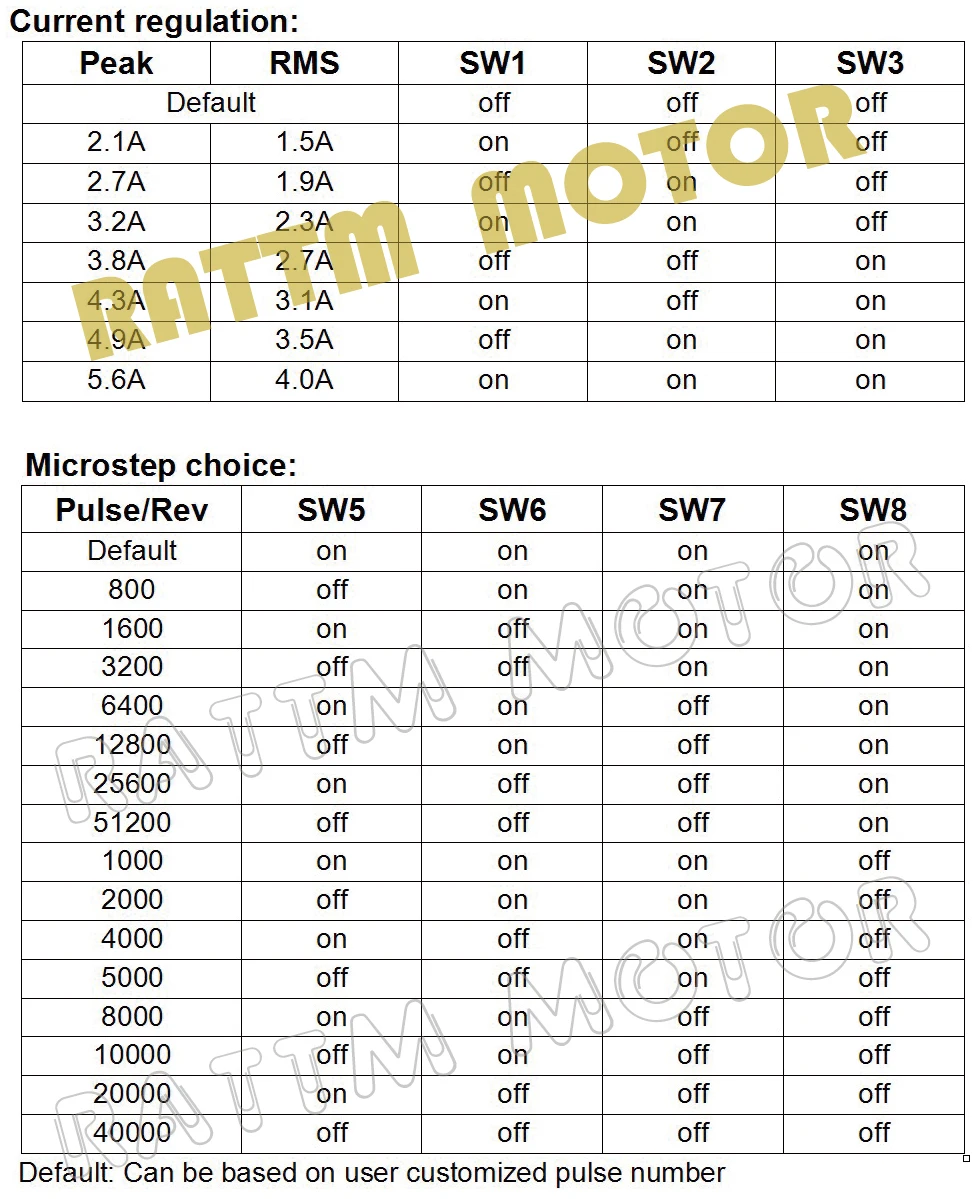

The drive voltage is DC 24V-50V, suitable for the current in the two phase hybrid step small than 5.6A various types of motor. The micro step 16, the maximum is subdivided into 51200 pulses per revolution (1/256); the peak current is in the range of 2.1A-5.6A, the output current is altogether 8 files; with automatic flow, self checking, overvoltage, undervoltage and overcurrent function
The main field of application
Suitable for all kinds of medium, small automation equipment and instrument. For example: labeling machine, cutting machine, packaging machine, plotter, engraving machine, CNC machine tools, etc.. In the user desired effect in low cost, low vibration, low noise, high precision, high speed equipment characteristics.
