Product Description

【Dual-Gear Direct Extruder】The dual-gear direct drive extruder with gears made of SUS303 stainless steel features adjustable extrusion force and a 3:1 reduction ratio, which ensures smoother filament feeding and stable & accurate printing, greatly reducing nozzle clogging and gear jumping problems. Ideal for printing PLA, PETG, ABS, and flexible filaments such as TPU.

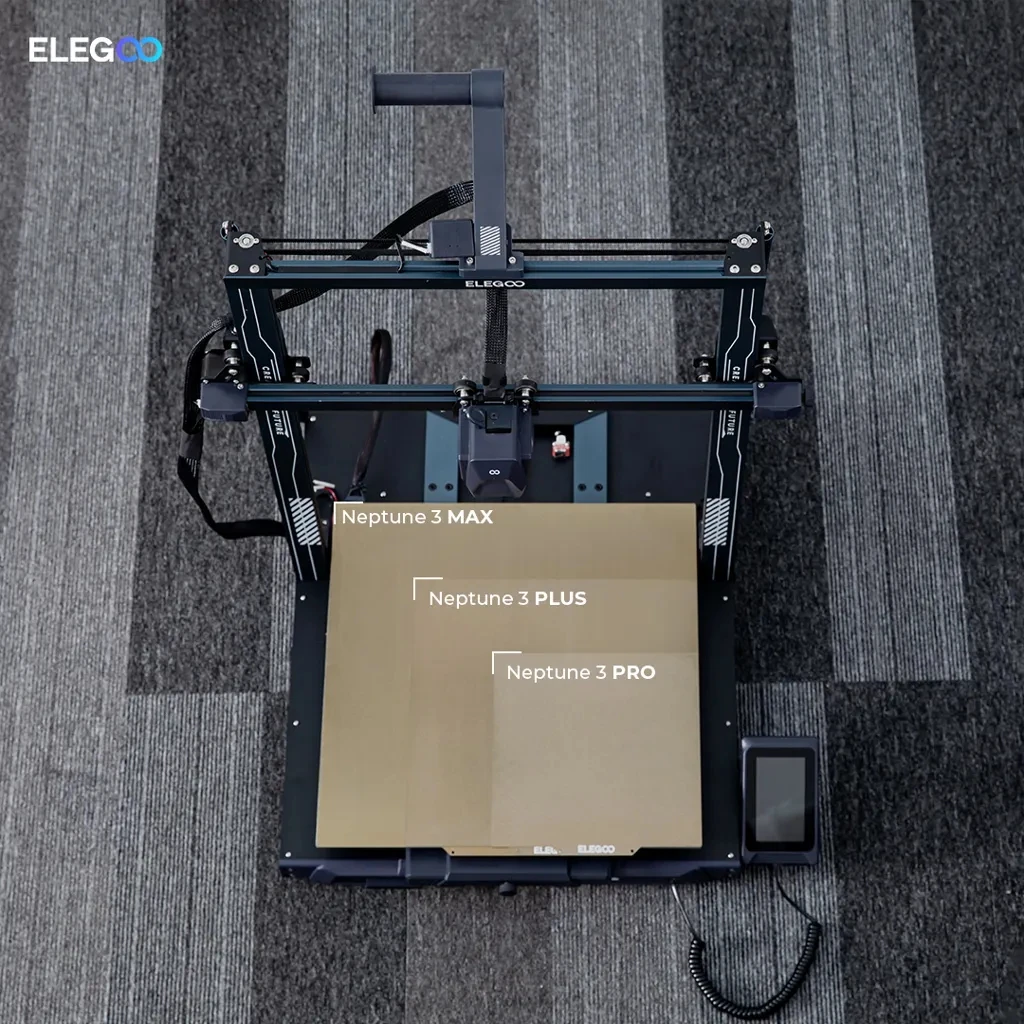

【Massive Print Volume】With the largest ever build volume of 420x420x500 mm /16.53x16.53x19.68 inches, ELEGOO Neptune 3 Max gives you generous printing space to let your creativity run wild, whether for printing larger models, or printing in batches.
【Auto Bed Leveling + Auxiliary Leveling】The non-contact high precision sensor automatically scans 63 points of the hotbed to compensate for any unevenness and inconsistencies of the printing platform. You can also use the hand-twist knobs under the build platform for auxiliary leveling to achieve a nice first layer.
【Stable & Quiet Printing】The Z-axis is designed with dual lead screws and dual-motor drive for more stable and precise movement of the print head, and the double tie rod structure enhances the stability of the Z-axis gantry.
With an STM 32-bit silent motherboard, the X/Y/Z/E axes are all driven by high-precision stepper motors to effectively reduce the printing noise under 50 dB.
【PEI Magnetic Platform】PEI magnetic platform with a special coating and spring steel sheet for strong adhesion and anti-warping, so you can easily remove or eject the print models by slightly bending the print steel sheet. The 420W high-power hotbed can quickly heat up to 100°C.
【Removable Capacitive Touchscreen】The 4.3-inch removable magnetic capacitive touch screen can be operated by hand-held or fixed on the base, with a print model preview function to preview the model image during printing and observe the printing progress, support multi-language freely switch. There also comes with a drawer tool box on the machine base to store tools used by the printer such as Allen wrench and nozzle accessories.

Technical Specifications

Product model: Neptune 3 Max
Frame material: CNC machined aluminium extrusion
Modeling technology: FDM(Fused Deposition Modeling)
Rated voltage: 100-240V 50/60Hz
Forming size: 420X420X500(mm³)
PEI area size: 430X430mm
Equipment dimensions: 658*632*740mm
MAX. nozzle temperature: 260° Celsius
MAX. hotbed temperature: 100° Celsius
File transfer: TF Card offline printing, online printing
File format: .stl, .obj, .amf
Filament compatibility: PLA, ABS, TPU, PETG, Wood, Marble, etc
UI Lanague: English, French, German, Russian, Italian, Spanish, Japanese, Chinese
Resume printing: Yes
Filament detection: Yes
Net weight: 17.7KG

One-button Auto Leveling

The 63-point leveling system adopts a non-contact sensor to automatically calibrate and compensate for any inconsistencies or unevenness. No more tedious leveling operations of the printing platform. Simply click the button on the screen to start the automatic leveling job!
There are hand-leveling knobs under the hotbed to fine-turn the build platform for a better compensation effect and final print quality.

Potent Extrusion & Efficient Heat Dissipation

The dual-gear direct extruder has powerful and adjustable extrusion force and better grip on the filament, paired with titanium alloy throat pipe to achieve a smooth & even filament feeding.

Smart Resume Printing

No worry about unexpected power failure during the printing process since the printer can resume printing after the power supply is restored. With a filament detection sensor, whenever the filament runs out or breaks, the printer will pause and alarm until you load the new filament to avoid material waste and model scrapping.

More Practical Features

The PEI magnetic platform with good adhesion and the printed models can be easily removed by flexing the print steel sheet.

Fans on both sides of the print head ensure omnidirectional heat dissipation and rapid cooling of printed layers. After printing, all fans will automatically stop working to save power, reduce noise, and prolong the fan lifespan.

The removable capacitive screen can be operated by hand or fixed on the machine base and support an 8-language free switch and previewing the printed models.

The removable capacitive screen can be operated by hand or fixed on the machine base and support an 8-language free switch and previewing the printed models.

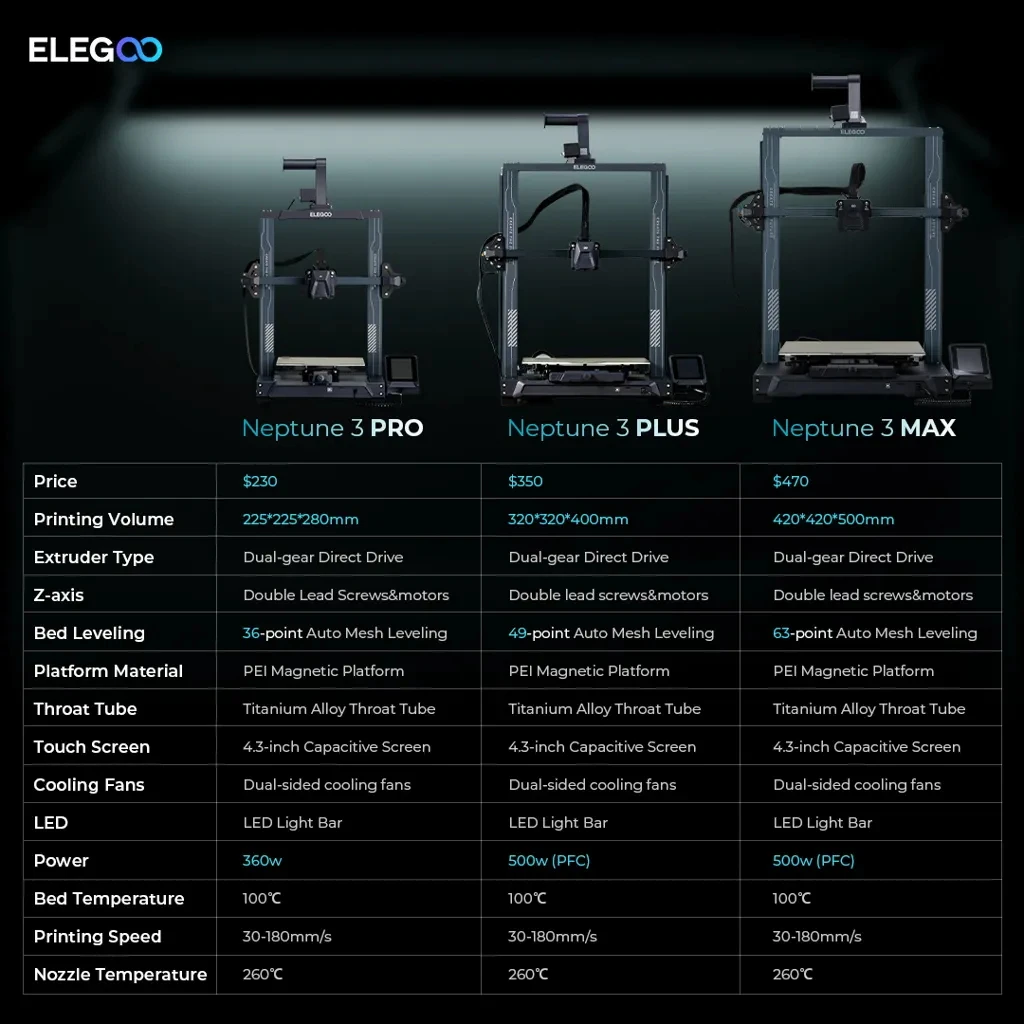

Model Comparison
