Descrição
- Químico Hign-em causa: Nenhum
- Nome da marca: YUN DUAN
- Número do modelo: QMF40
- Largura ou Diâmetro da Guia: 12mm (MGN12R)
- Origem: CN (Origem)
- Certificado: CE
- Module width: 52mm
- Ballscrew: SFU1605/SFU1610/SFU1204
- Ball screw accuracy: C7
- Horizontal Load: 50KG (Max)
- Vertical Load: 20KG(Max)
- positioning accuracy: 0.03~0.05
- Keywords 1: Single Axis Robot
- Keywords 2: CNC Workbench
- Keywords 3: XYZ Axis Linear Actuator
- Keywords 4: CNC Sliding Table
- Keywords 5: 52mm Width Module
- Keywords 6: Aluminum Sliding Table

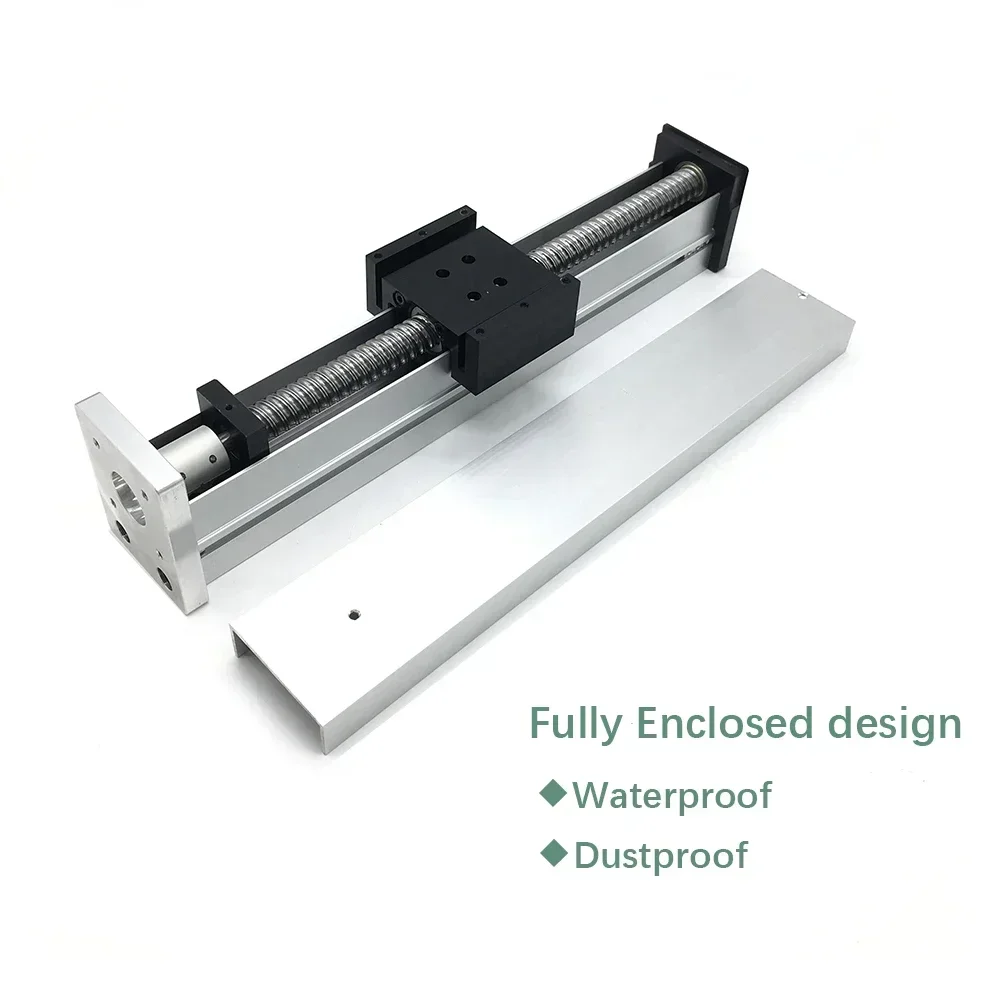

- Keywords 7: dust cover silde table
- Keywords 8: Linear Table
- Module material: Industrial Aluminum Profile
- Horizontal load: 40KG (Max)
- Vertical load: 20KG(Max)
- Compatible motors: NEMA17/23 Stepper motor Or 60mm Servo motor
- Guide: 1* MGN12R
- Block: 1* MGN12C
- Ball screw material: Bearing Steel
- SFU1204 Max.moving speed: 200mm/s
- SFU1605 Max.moving speed: 250mm/s
- SFU1610 Max.moving speed: 500mm/s
- Total slide table length: Effective Stroke+127mm

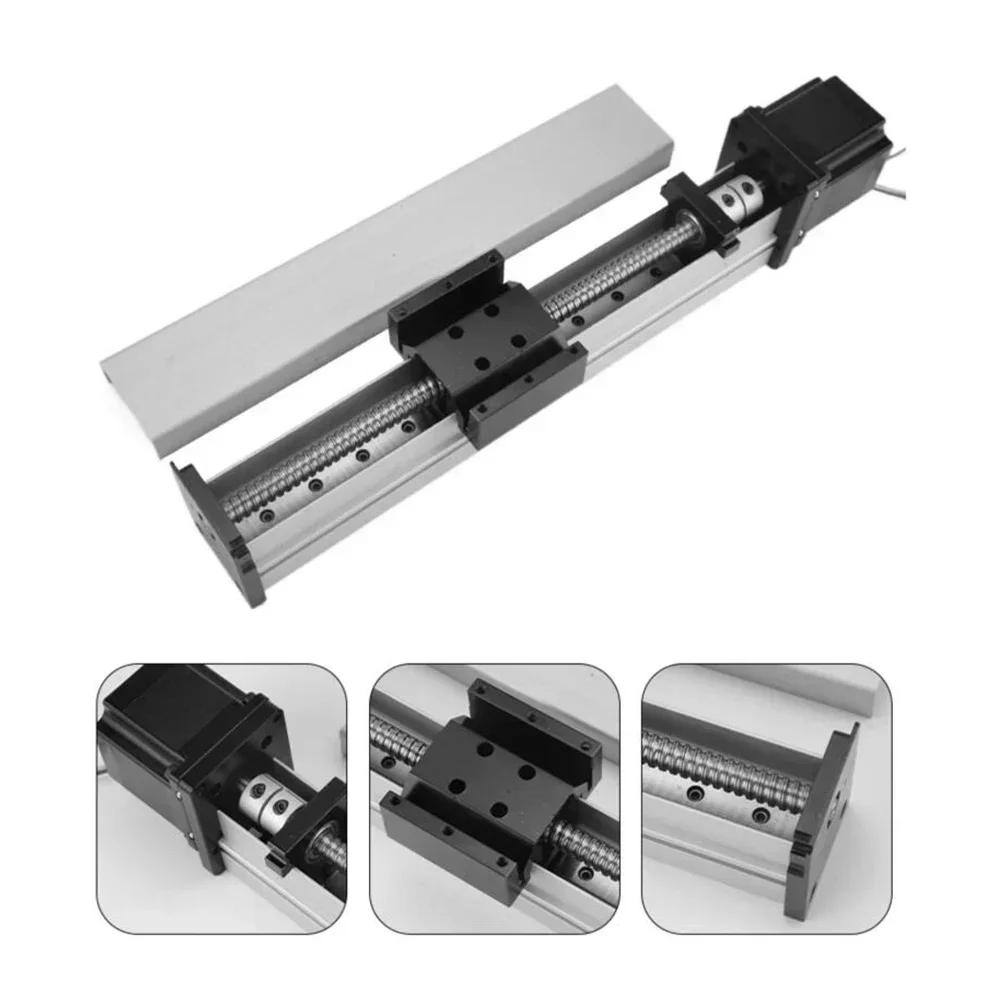

1X Sliding table
1X Coupling with 8mm or 14mm Hole

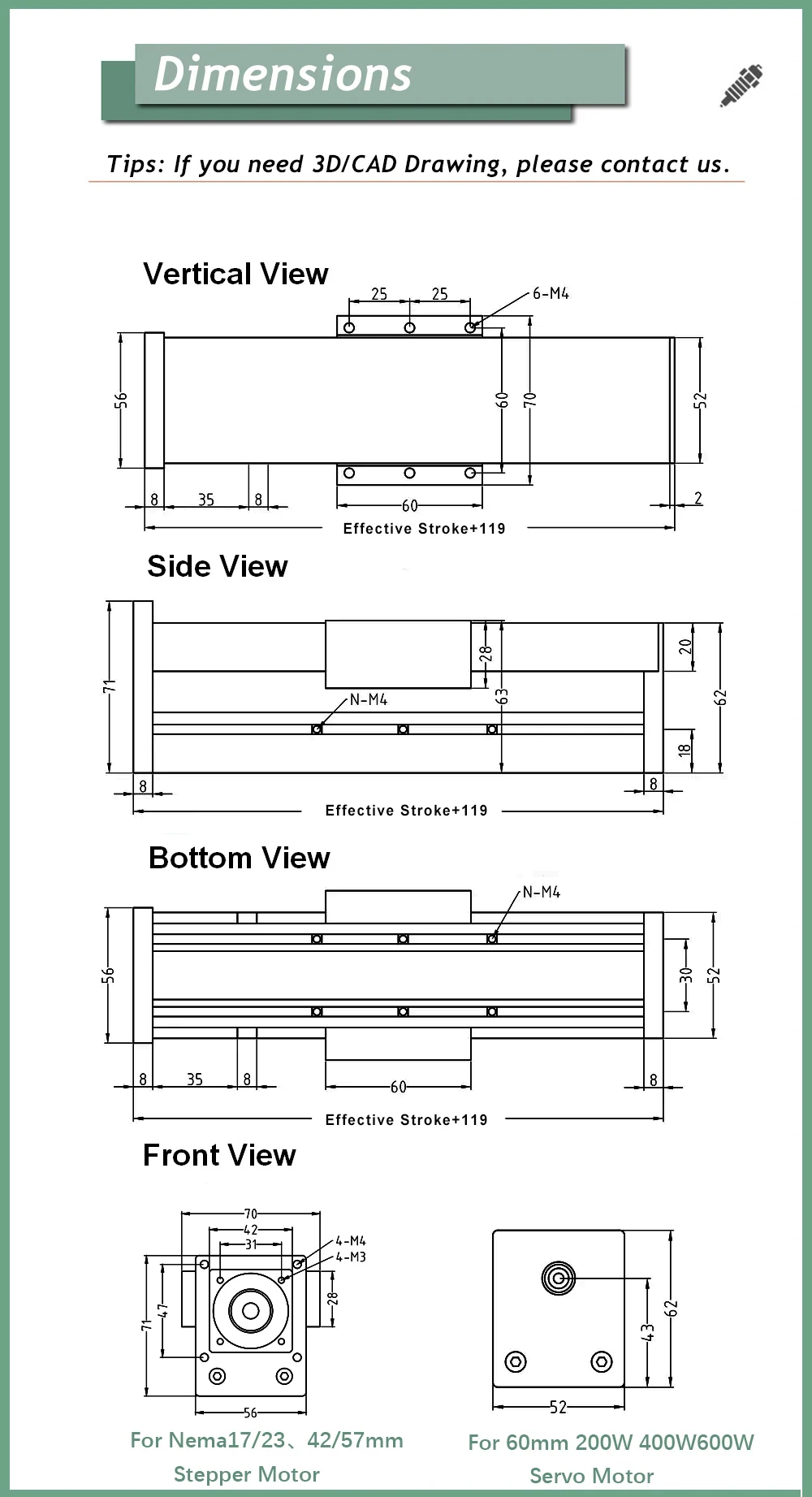

(Please choose your needs,Contact us to get CAD drawings)

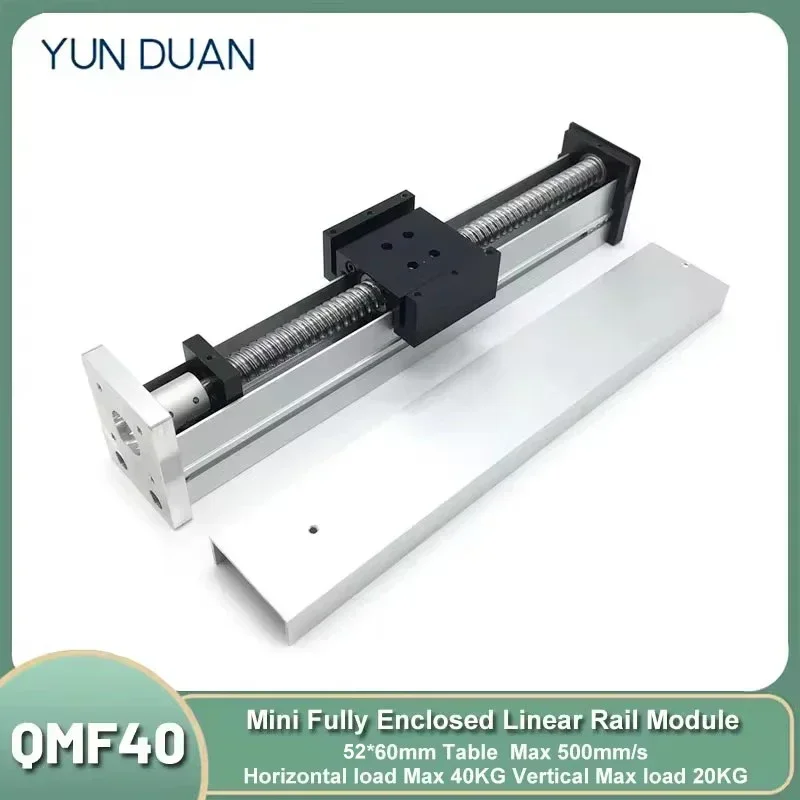

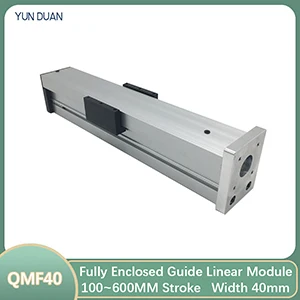

Model:QMF40
Module material: Industrial Aluminum Profile
Stroke:100MM-600MM (Choose according to your needs)
Total length: Effective Stroke+119mm
Horizontal load: 40KG (Max)
Vertical load: 20KG(Max)
Motor bracket: NEMA17/23 ,42/57mm Stepper motor Or 60mm Servo motor
(Choose according to your needs)
Module width: 52mm
Repeat positioning accuracy: 0.03mm-0.05mm

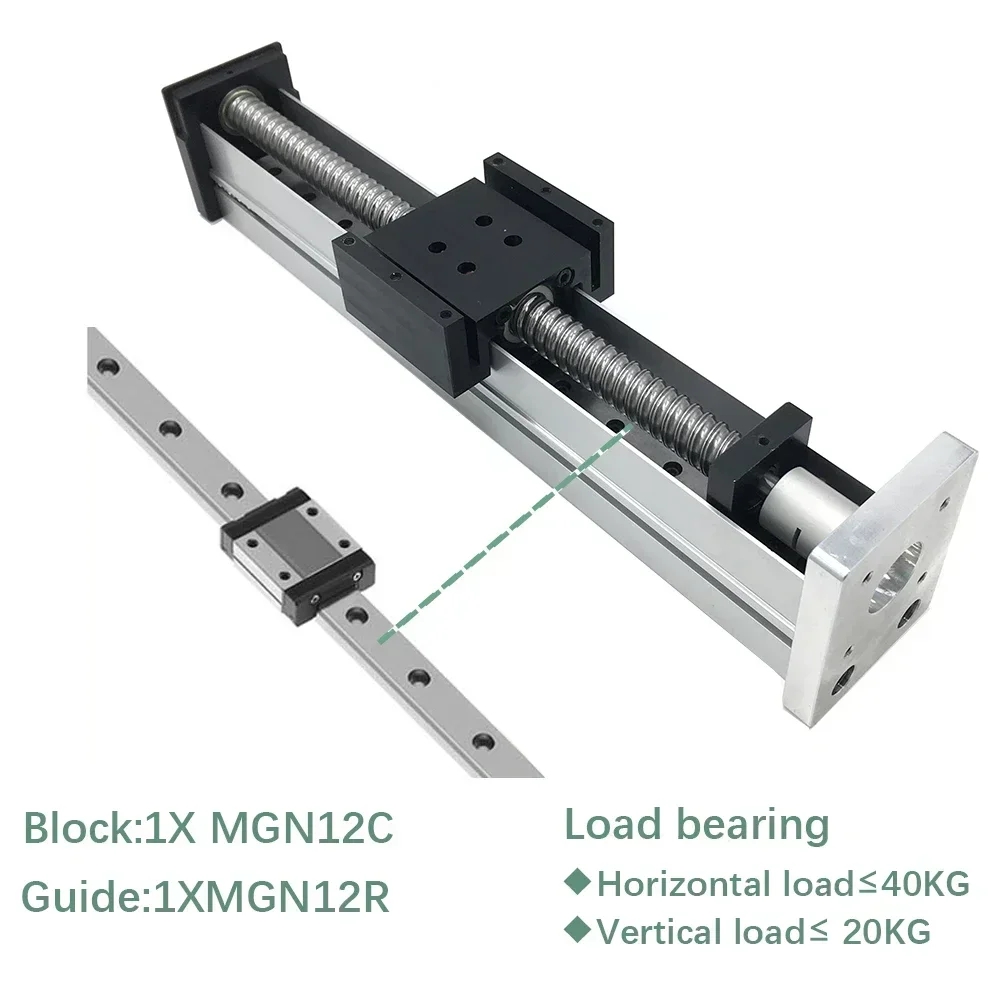

Guide:1X MGN12R (12mm width)
Block:1X MGN12C
Ball screw material:Bearing Steel

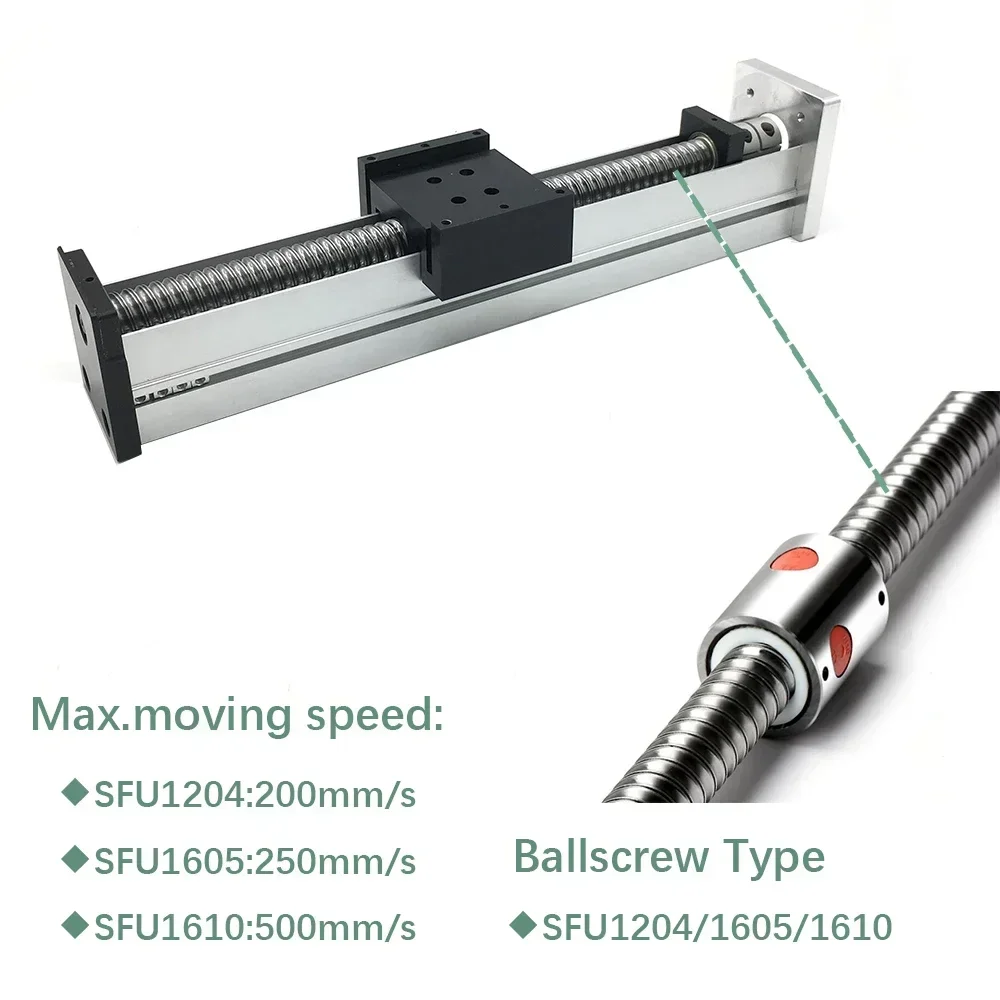

Ballscrew type: SFU1204/1605/1610
(Tips:SFU1605 means:ScrewDiameter 16mm, Pitch 5mm,The screw rotatesOnce, the slide table moves 5mm)
Please select the screw model you need.
Ball screw accuracy: C7
Max.moving speed:
SFU1204:200mm/s
SFU1605:250mm/s
SFU1610:500mm/s
