Descrição
- Condition: New
- Brand Name: GUYX
- Certification: NONE
- Origin: Mainland China

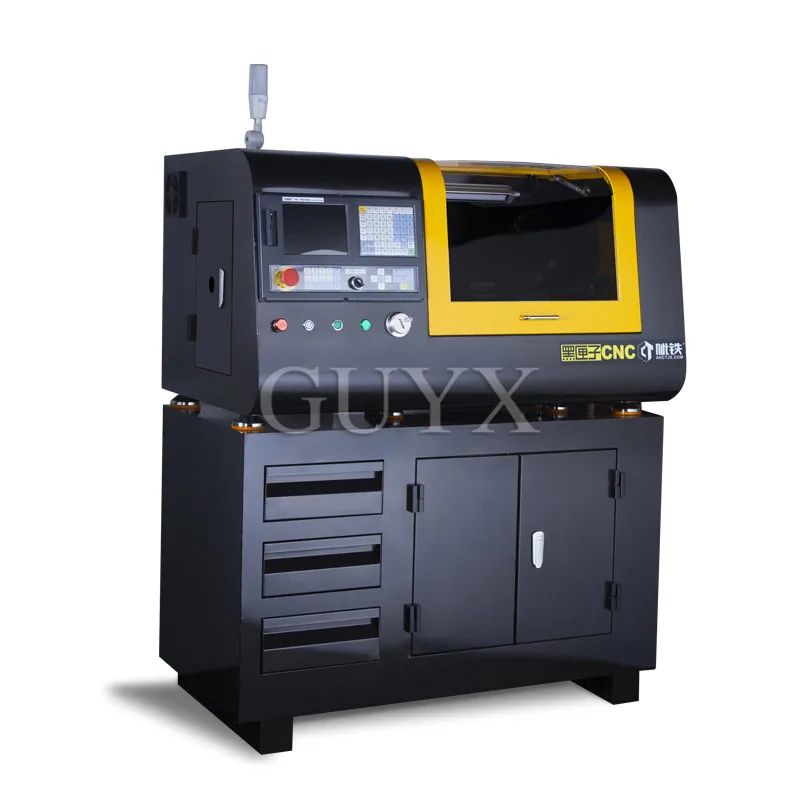

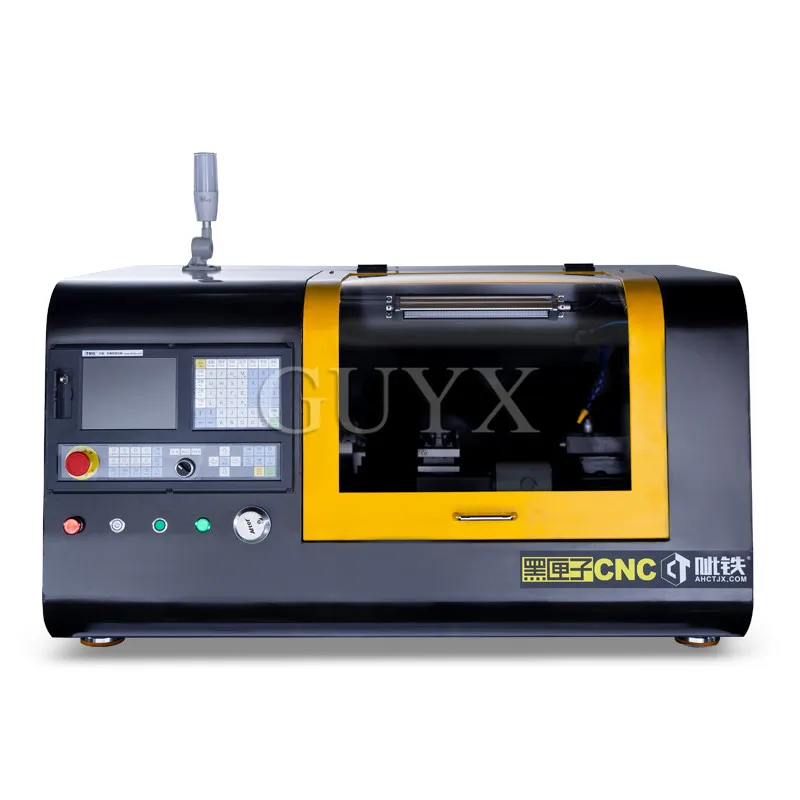

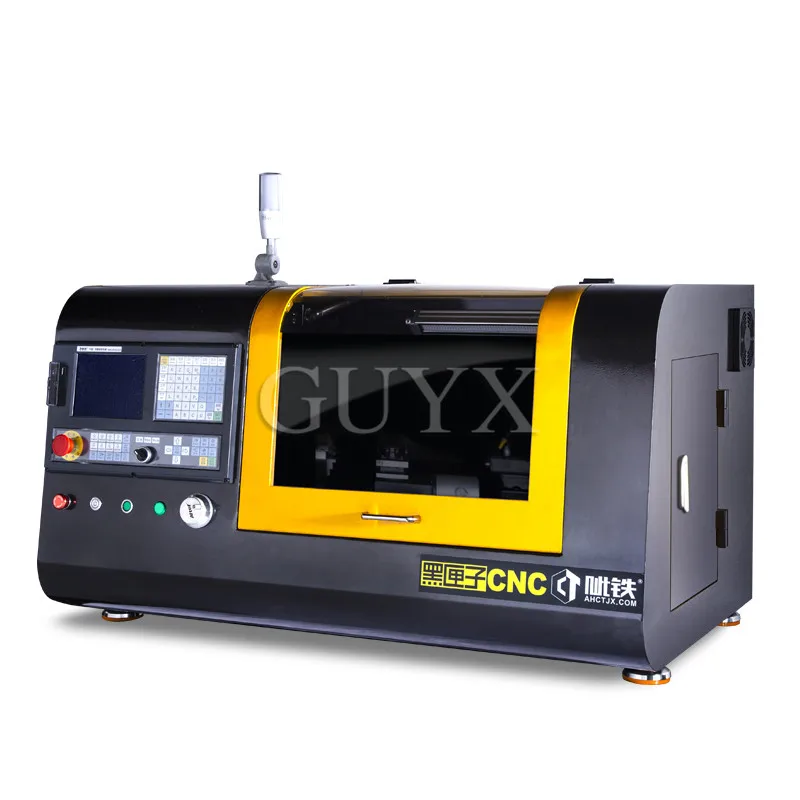

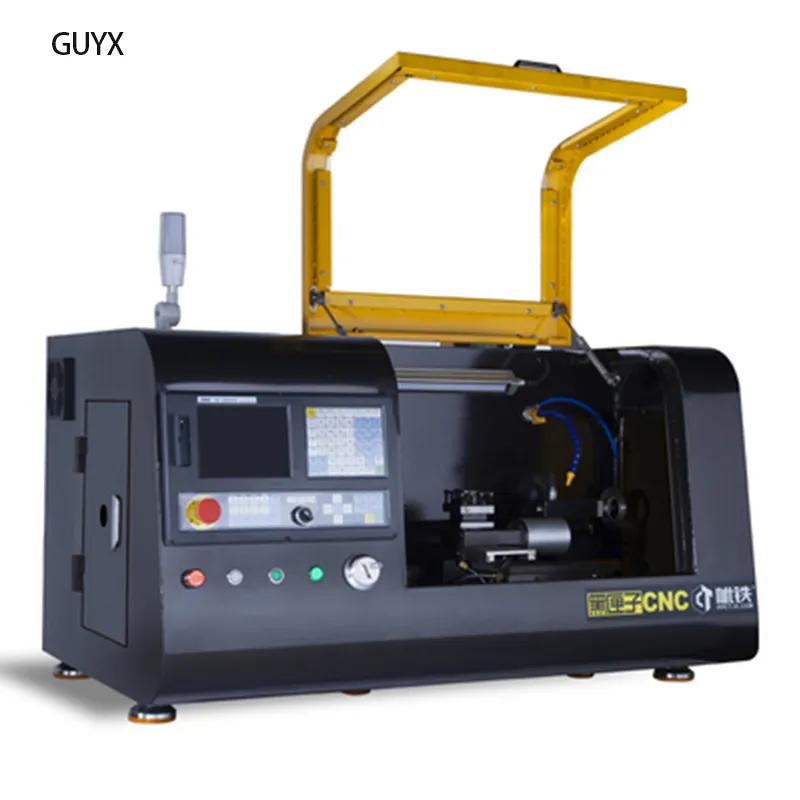

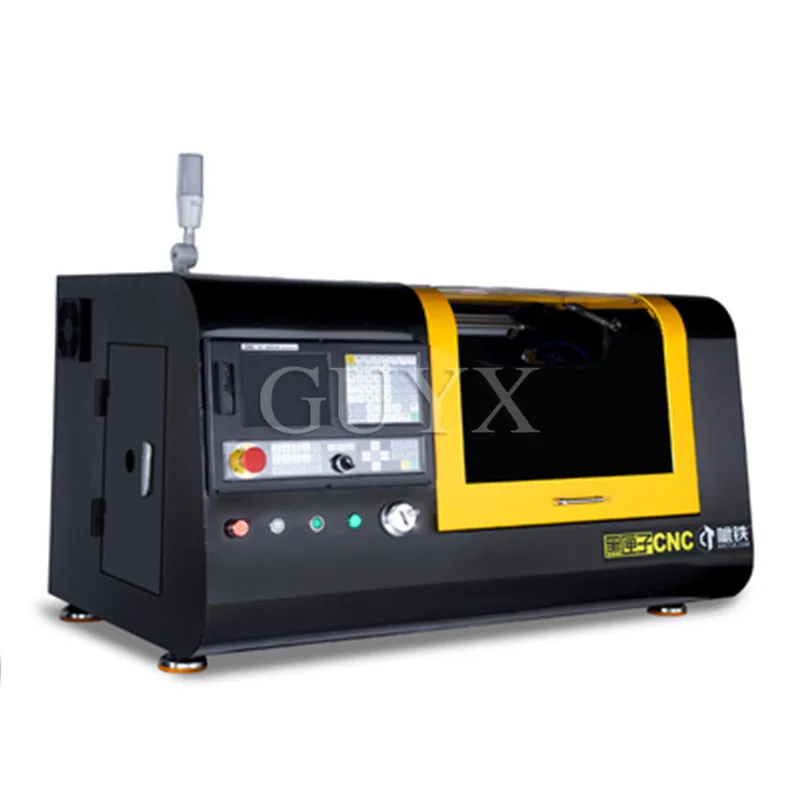

- Name: Small CNC Lathe Machine
- X-axis travel: 90mm
- Z axis travel: 300mm
- Feed motor torque: 3.0N.M
- Positioning accuracy: 0.02mm
- Tailstock sleeve taper: Mohs 2#
- Main motor power: 1.2Kw
- Cooling pump power: 40W
- Tool holder: electric four station
Product parameters
Product Name: Small CNC Lathe Maximum turning diameter of the bed: 21 0mm Maximum turning diameter on the carriage: 100mm Maximum processing length: 250mm Spindle through hole diameter: 26mm Spindle speed: 100~3000r/min X-axis travel: 90mm Z axis travel: 300mm X axis maximum moving speed (step): 2000mm/min Z axis maximum moving speed (step): 2000mm/min Feed motor torque: 3.0N.M Positioning accuracy: 0.02mm Repeat positioning accuracy: 0.02mm Spindle proximal runout: 0.01 mm Tailstock sleeve taper: Mohs 2# Tailstock sleeve diameter: 22mm Tailstock sleeve maximum stroke: 50mm Main motor power: 1.2Kw Cooling pump power: 40W Tool holder: electric four station Row knife holder specifications: 1 2mm Dimensions (length X width X height): 1170* 700* 860mm Net weight (about): 210kg
