- High-concerned chemical: None
- Model Number: MYJG-150W
- Brand Name: DIGRAY
- Certification: CE
- Origin: Mainland China
- AC frequency: 47-440HZ
- Max Output Voltage: DC 40KV
- Max Output Current: DC 38mA
- Used For Tube: For 130W 150W Co2 laser glass tube
- Cooling Methods: Forced Air Cooling (Fan Cooling)
Your Laser Power Supply Expert:
1. Zero-current half-bridge soft- switching circuit. High efficiency and fast response.Match various manufacturers of laser tubes.

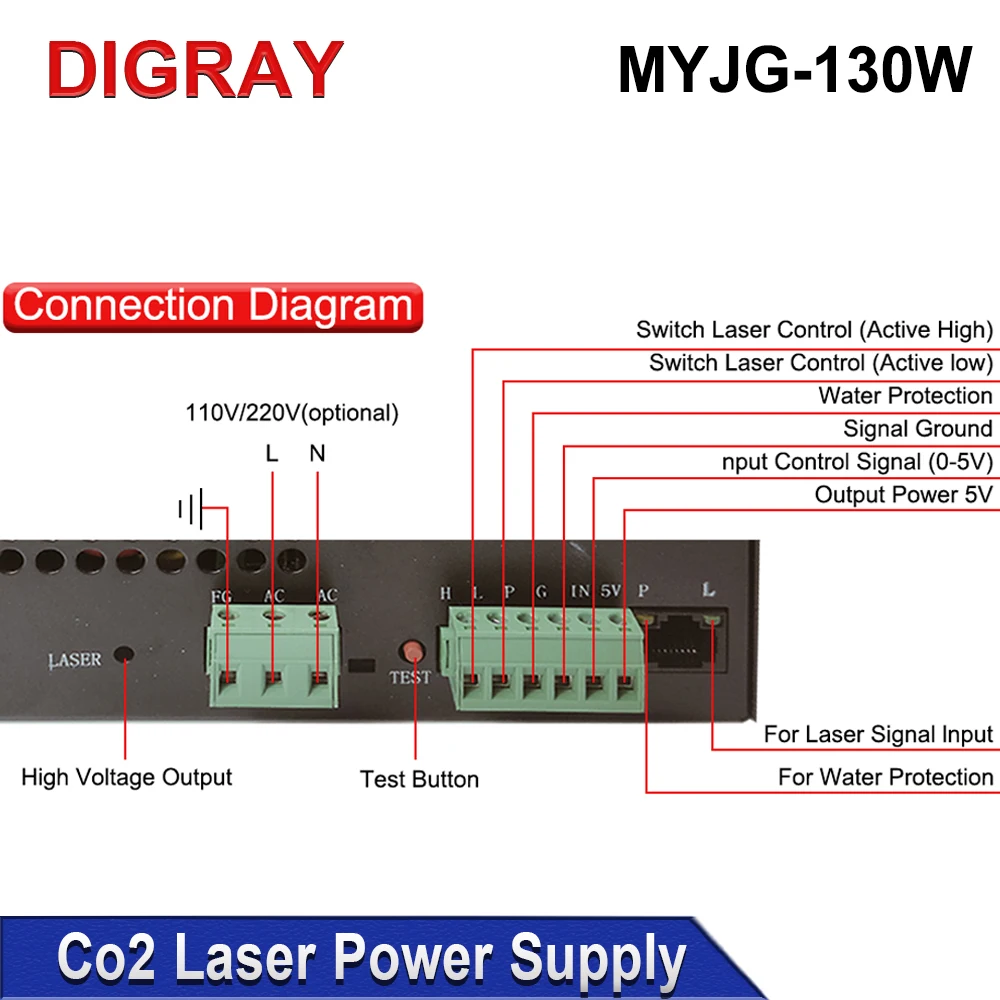

2. Simple Port Control,TTL level signals can control the laser start/stop.
3. Protection switch is to check the outside water, ventilation, etc.
4. Laser Power Adjustment: input OV to 5V analog signal, can also input PWM signal.
5. Open Circuit Protection Function: avoid the damageto laser power supply due to laser tube burst.
6. Factory Aging Test: 1.Each power supply will go through 60°C and 12 hours aging test under full load.2.500 times 7 seconds Start / Stop test.
7.DGHUNST can meet all your laser engraving needs.
