Descrição
- Type: Hand Tool Parts
- Origin: Mainland China
- Application: Filament
- Condition: New
- Screw Design: Single-screw
- Screw diameter (mm): 20 mm
- Place of Origin: Shanghai, China
- Power (kW): 0.12
- Warranty: 1 Year
- Key Selling Points: Easy to Operate
- Applicable Industries: Manufacturing Plant
- After-sales Service Provided: Online support
- Output (kg/h): 0.3 - 0.5

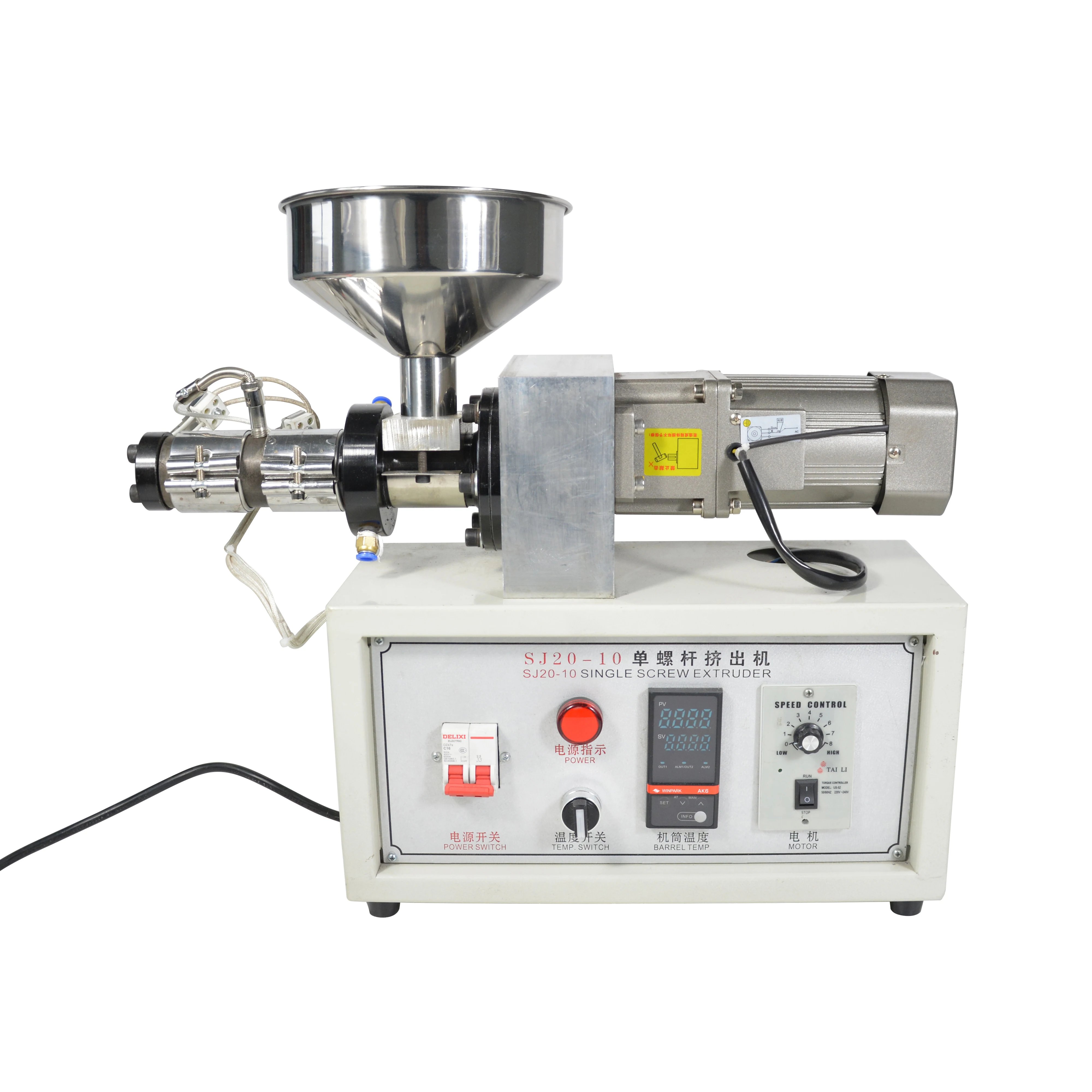

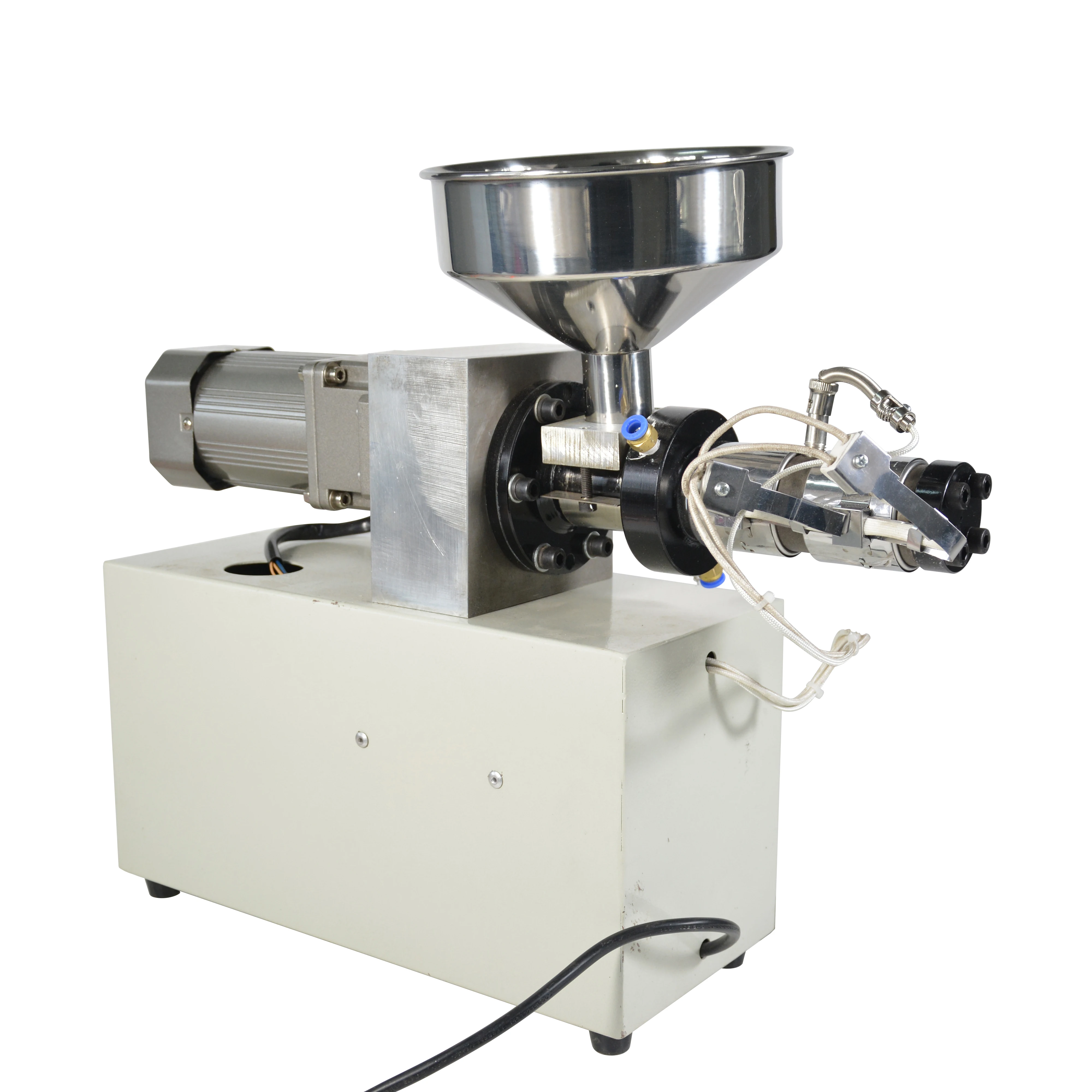

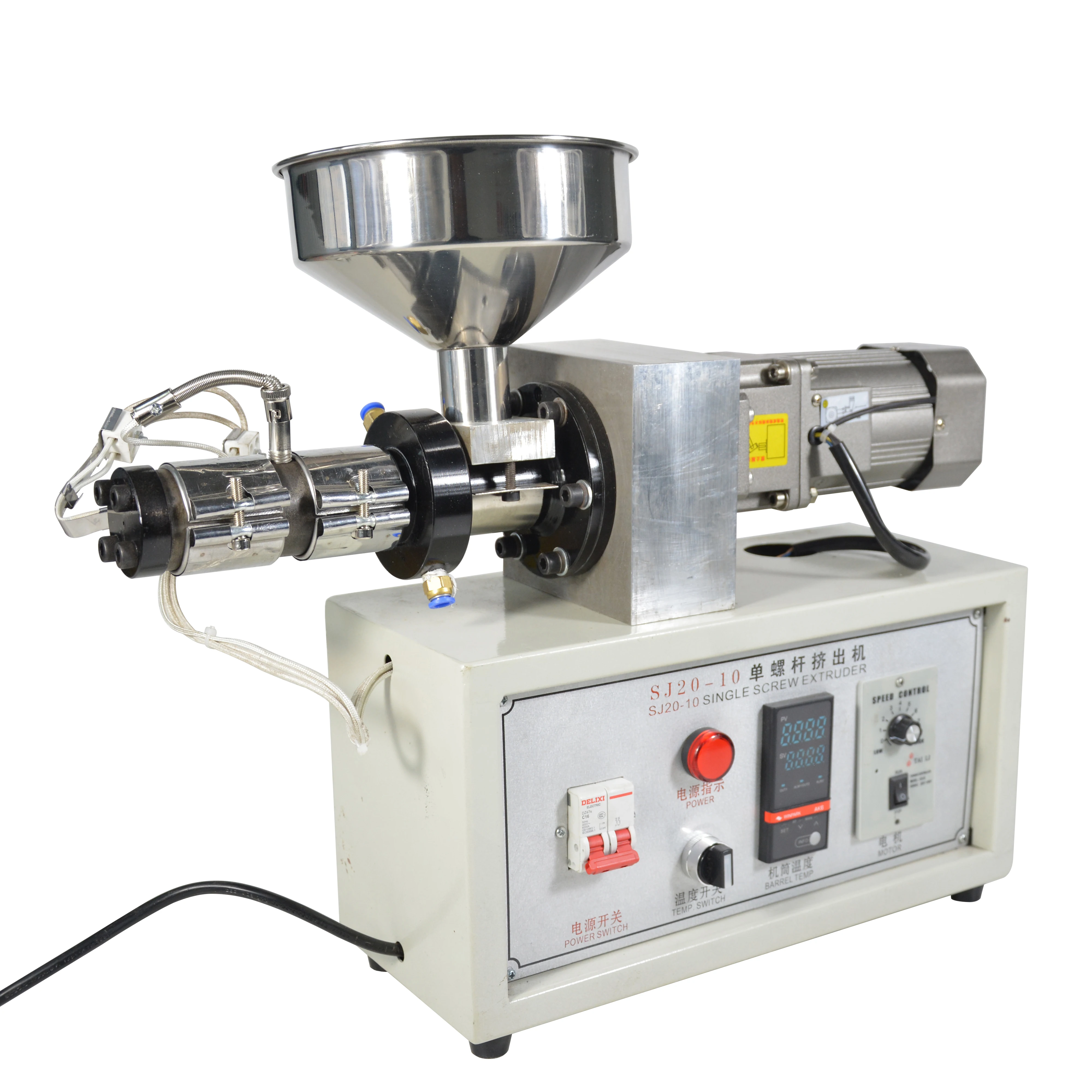

Desktop 3D Printing Filament Extruder
Extruder for 1.75mm or 3mm 3D Printing Filament which is quite suitable for experiment and small batch production from thermo plastics PLA, ABS, etc.
Screw Barrel: material 38 CrMoAlA, and quenching and nitriding treatment (the inner surface nitriding polishing HV720), shield-shaped two common screw kneading nitriding depth is 0.5-0.7mm, the surface roughness Ra0.4, Linearity of the screw: 0.015 mm, slotted barrel, enhanced cooling water jacket
Screw diameter:20mm
Screw speed:0-20 rev / min
Appliatable materials:PLA, ABS, PVC, PE, PP, PA,PC
Please note, the 20 extruder only suitable for pellets diameter under 3mm
Nozzel Diameter: 1.75mm/3mm
Speed Control: Regulatable
Highest Temparature:260℃
Screw ratio: An aspect ratio of 10: 1, screw effective length 200mm
main motor power:120w AC motor
Main motor speed:Speed governor
Barrel heating:Stainless steel housing heater
heating power:An area 800w
Dimensions:600*200*350mm
Productivity: 0.1-0.5kg/h
Gearbox:Planetary reducer (ratio based on customer requirements)
The color is only for ref.Current machine color is Silver.
Delivery Date: 20 working days after payment
