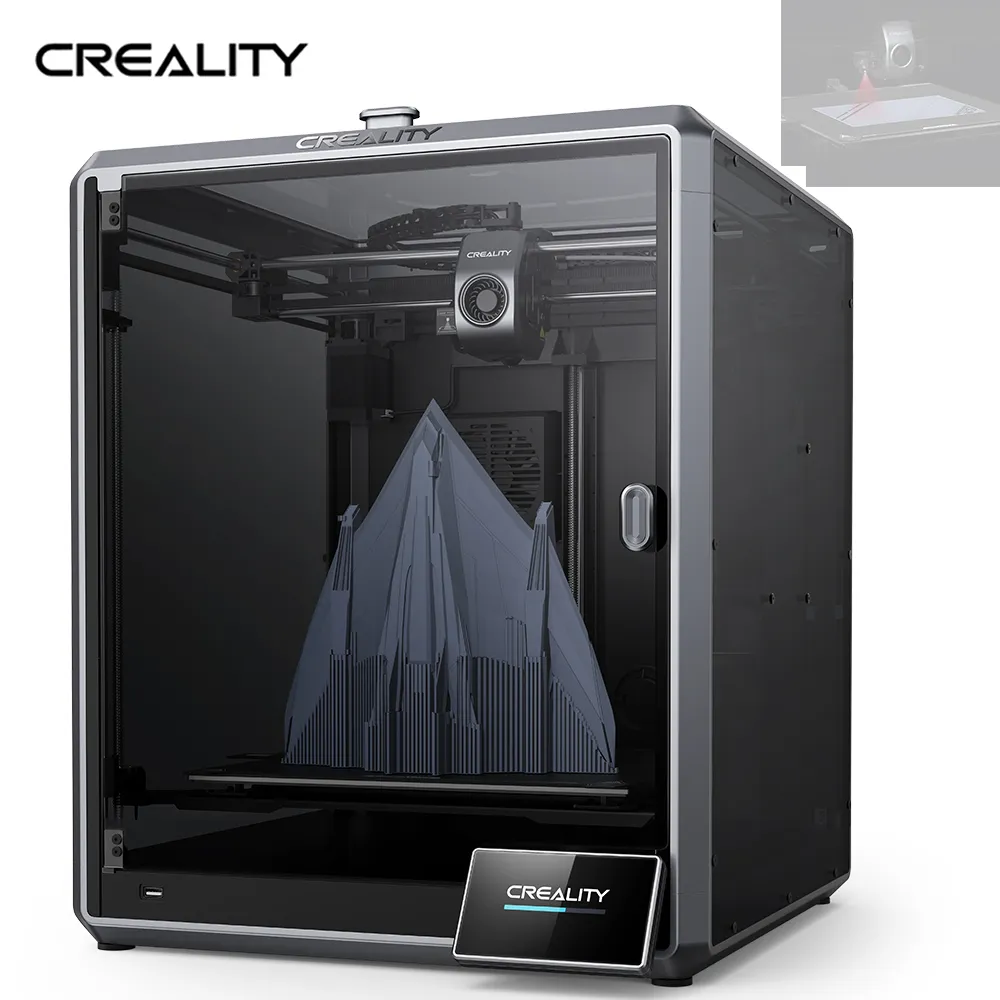

CREALITY K1 Max 3D Printer AI Camera Versatile AI LiDAR 300*300*300 Large Build Auto Leveling Dual-gear Direct Drive Extruder 32mm³/s Max Flow Hotend

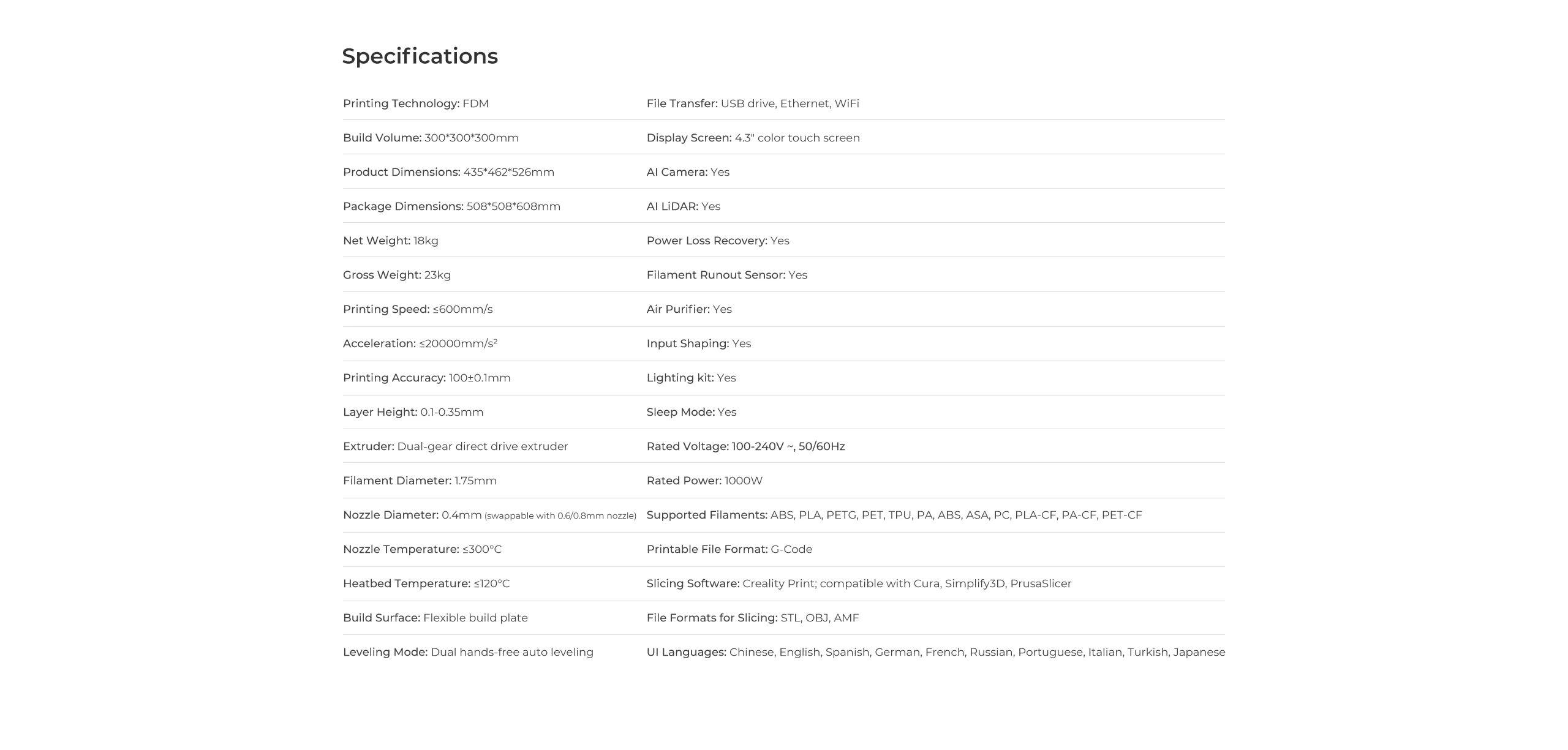

Product Description:

Printing Technology FDM

Build Volume 300*300*300mm

Product Dimensions 435*462*526mm

Package Dimensions 508*508*608mm

Net Weight 18kg

Gross Weight 23kg

Printing Speed ≤600mm/s

Acceleration ≤20000mm/s²

Printing Accuracy 100±0.1mm

Layer Height 0.1-0.35mm

Extruder Dual-gear direct drive extruder

Filament Diameter 1.75mm

Nozzle Temperature ≤300℃

Heatbed Temperature ≤120℃

Build Surface Flexible build plate

Leveling Mode Dual hands-free auto leveling

File Transfer USB drive, Ethernet, WiFi

AI Camera Yes

AI LiDAR Yes

Power Loss Recovery Yes

Filament Runout Sensor Yes

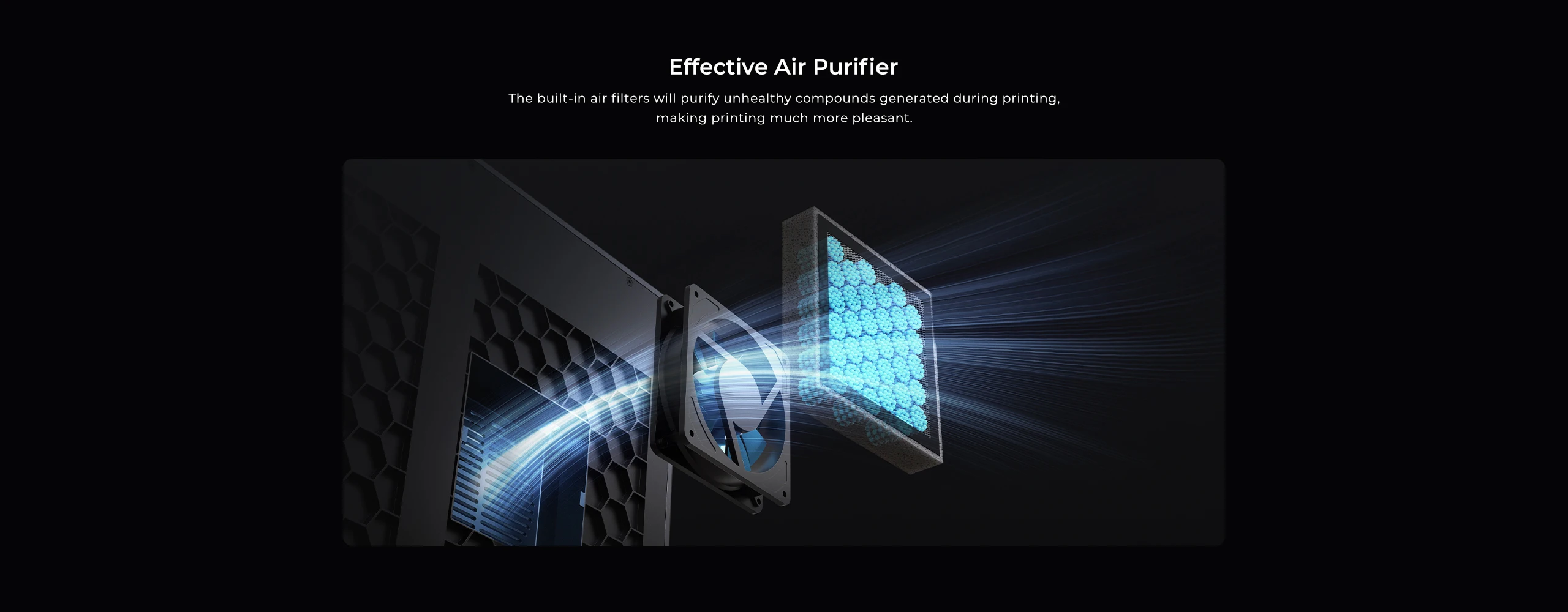

Air Purifier Yes

Input Shaping Yes

Lighting kit Yes

Sleep Mode Yes

Rated Voltage 100-240V ~, 50/60Hz

Rated Power 1000W

UI Languages Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Japanese

Features:

K1 Max Speedy. Smart. Super. 600mm/s Printing Speed    Versatile AI LiDAR Observant AI Camera 20000mm/s² Acceleration

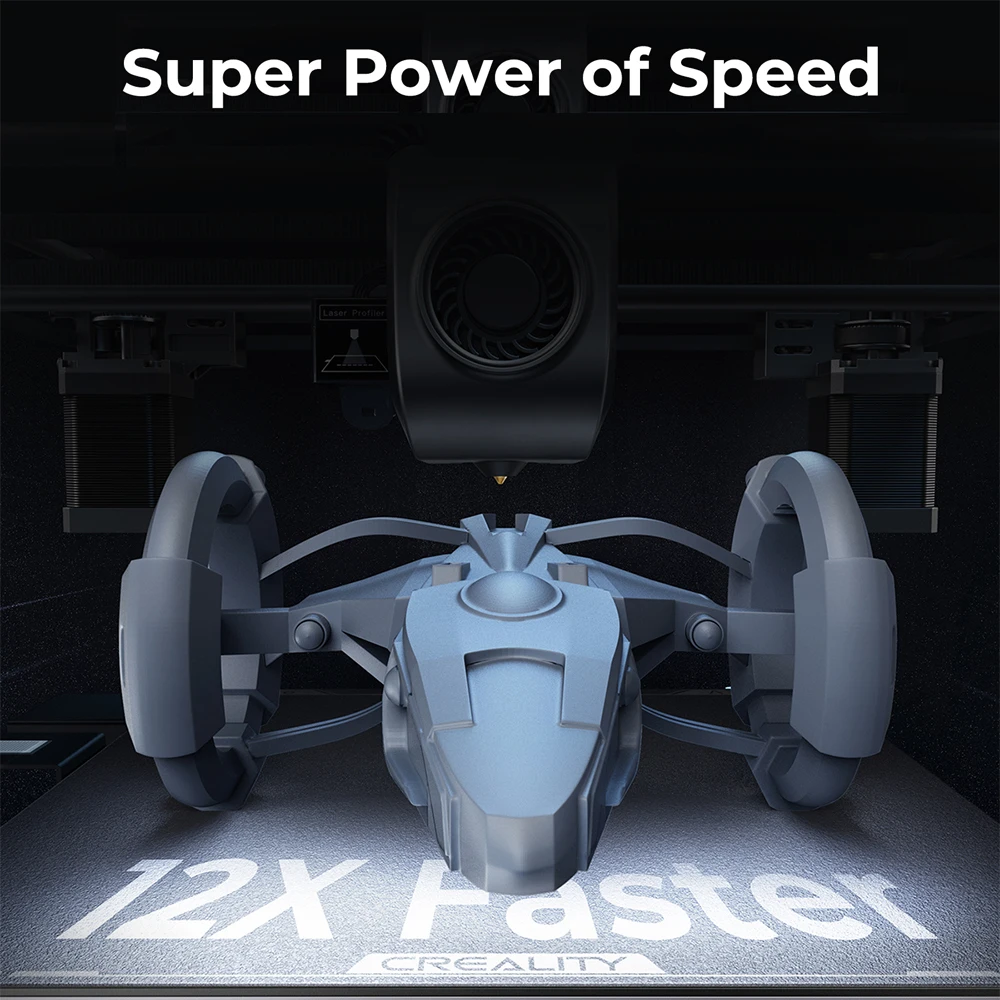

Super Power of Speed

12X Faster, Defy Limitations

Nimble Setup for Speed

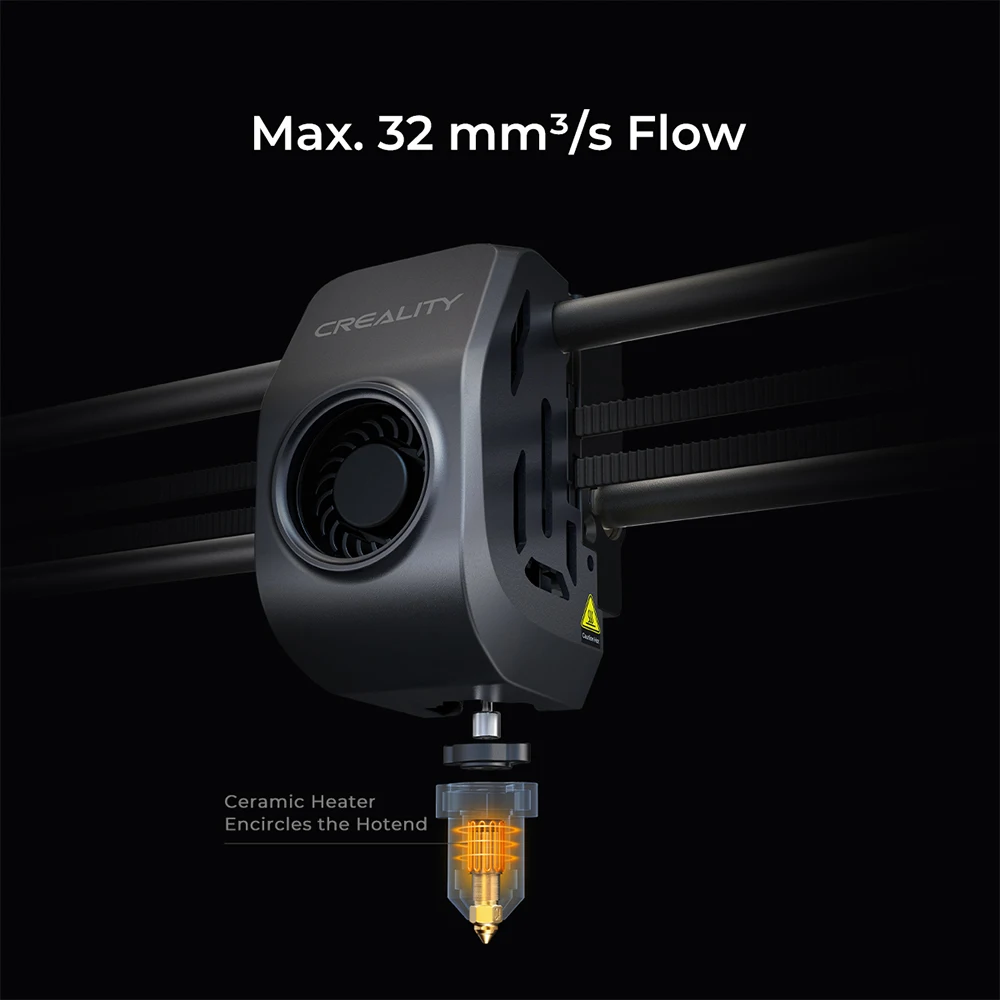

Max. 32mm³/s Flow

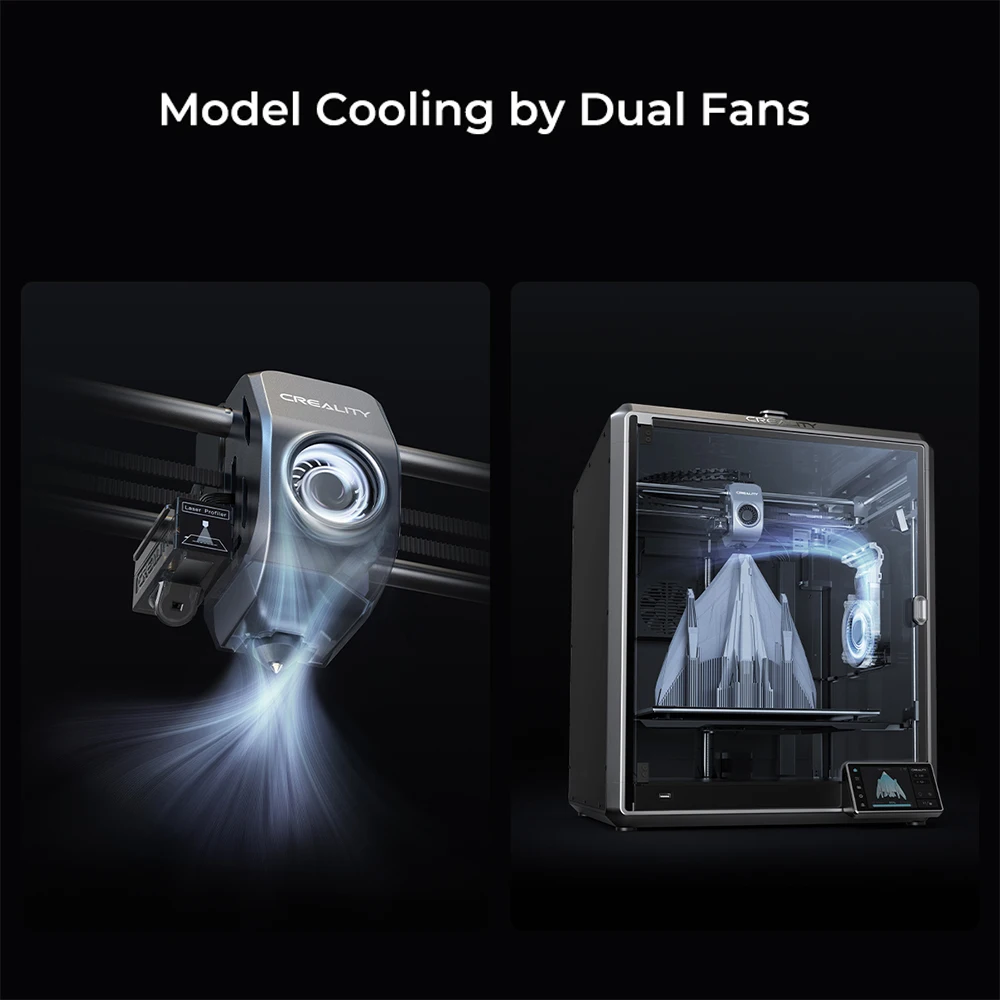

Model Cooling by Dual Fans

Creality Print 4.3 with Speed Genes

Max Capacity, Efficient Use of Space

AI-assisted Carefree Printing

AI LiDAR Takes Care of the First Layer

AI Camera Keeps a Keen Watch

Smart System, Unbridled Performance

Intelligent Aid to Your Print Farm

Rigid Frame, Stable Quality

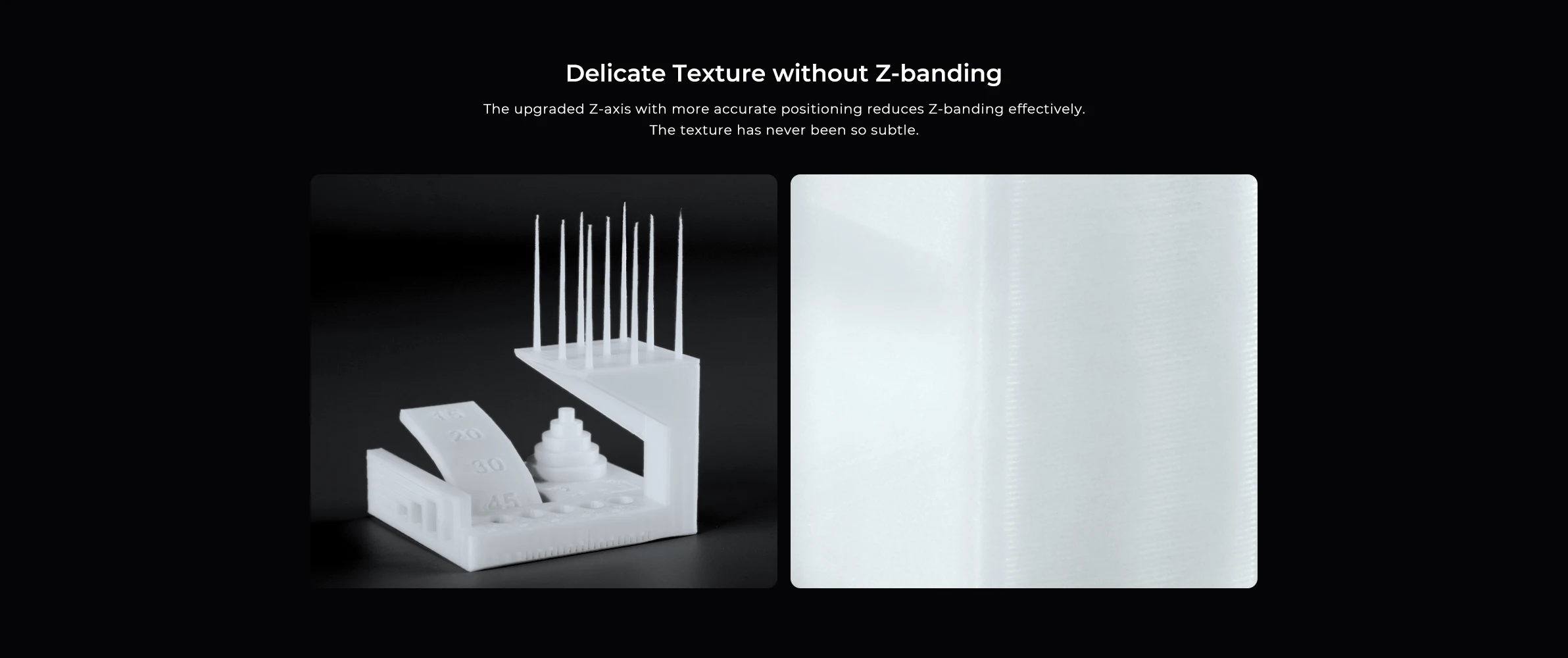

Delicate Texture without Z-banding

Dual Hands-free Auto Leveling

Product Photos:

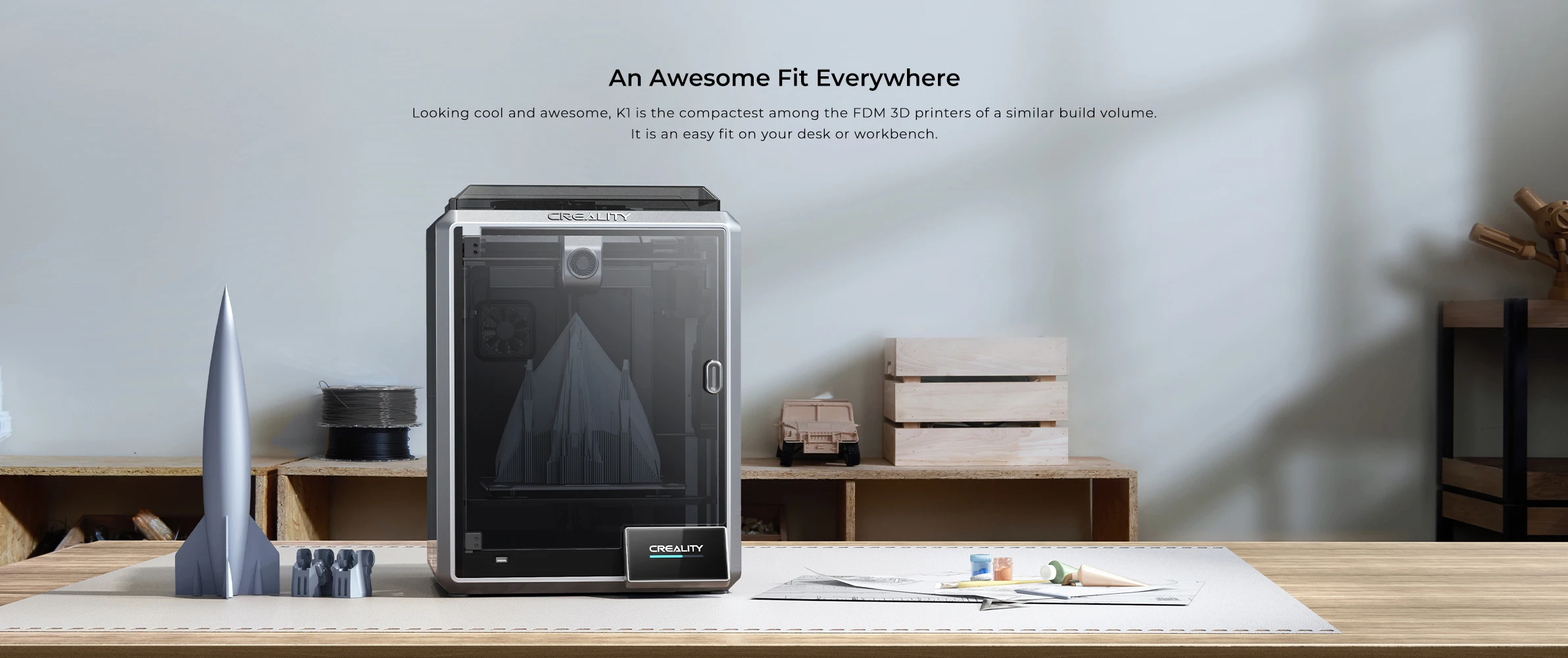

An Awesome Fit Evervwhere

Looking cool and awesome, K1 is the compactest among the FDM 3D printers of a similar build volume.    It is an easy fit on your desk or workbenchConnectedand Carefree Contro

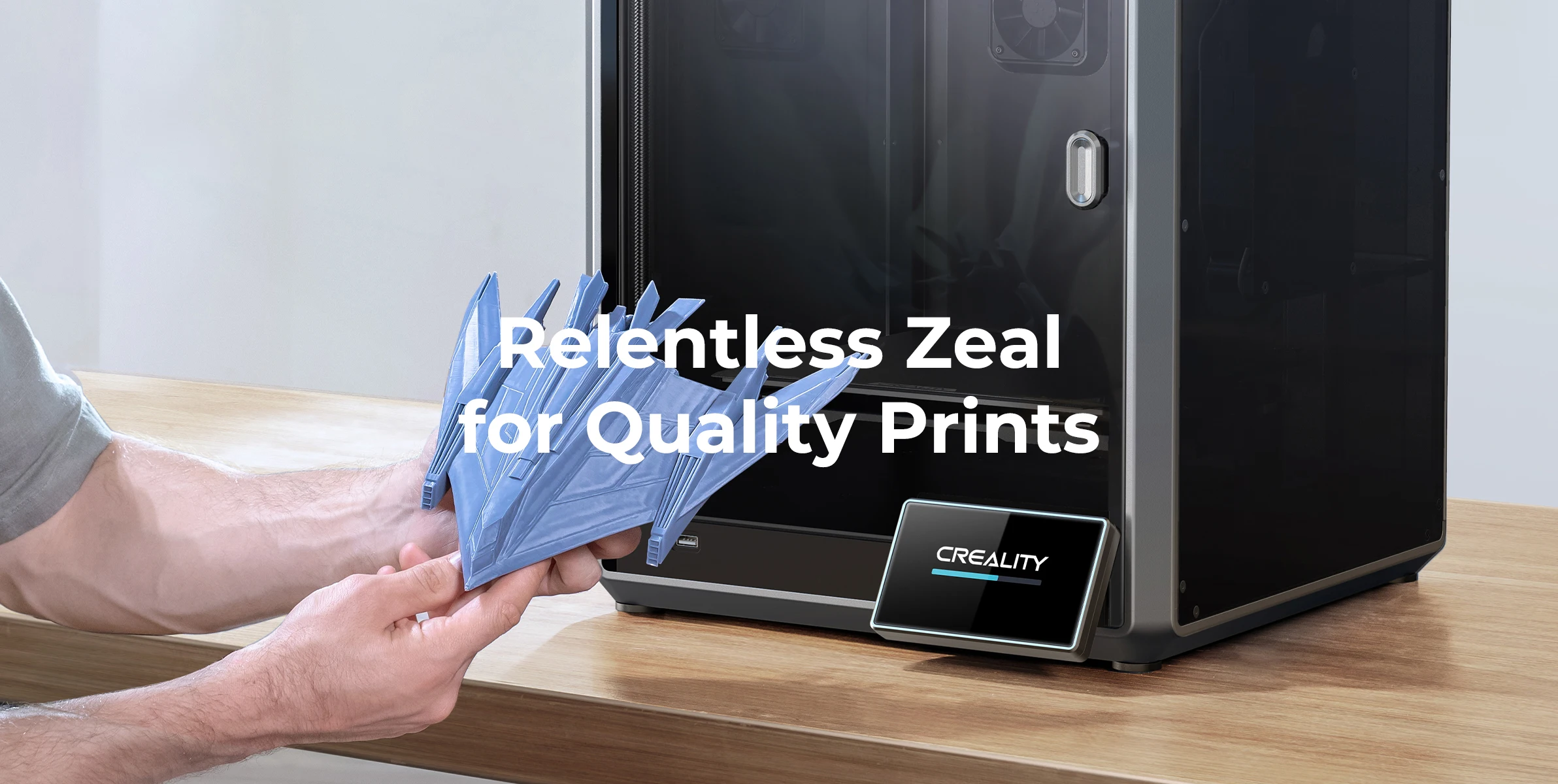

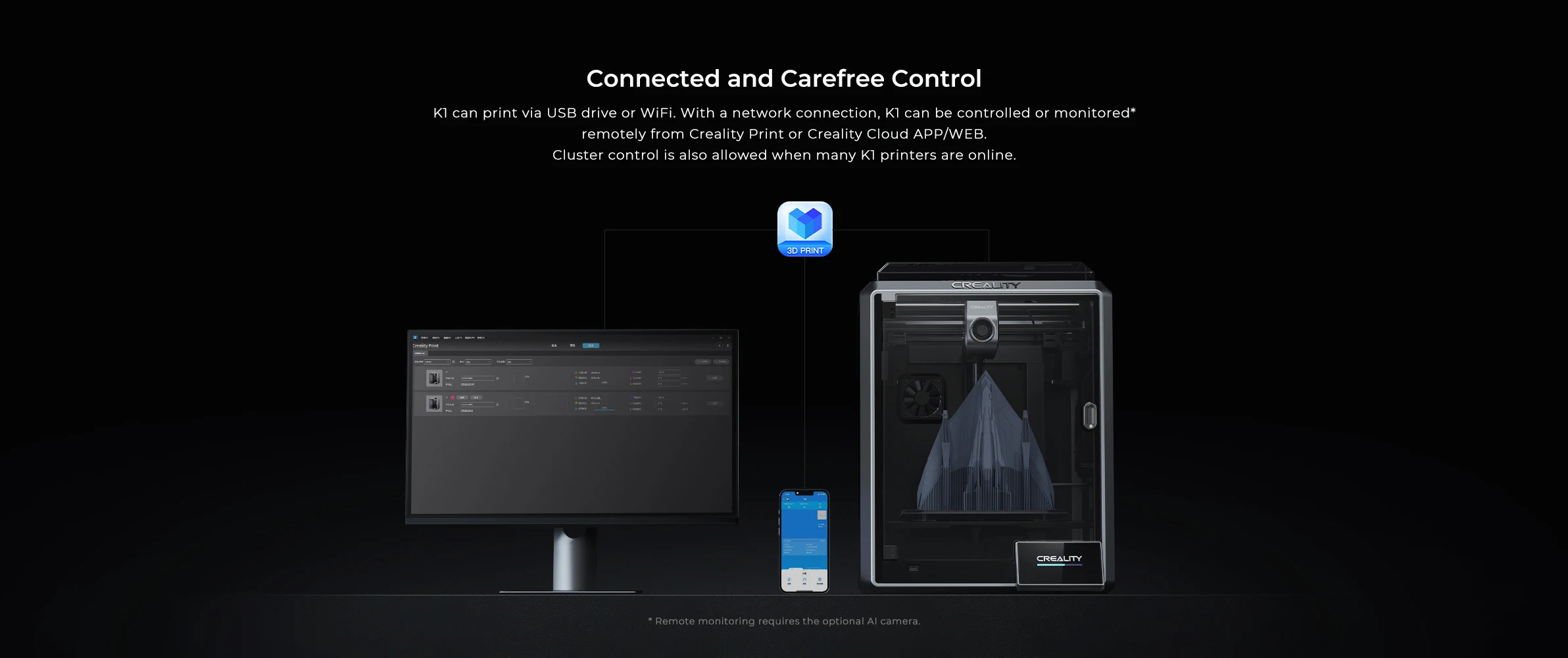

KI can print via USB drive or WiFi. With a network connection, K1 can be controlled or monitorediremotely from Creality Print or Creality Cloud APP/WEB.Cluster control is also allowed when many K1 printers are online.Relentless Zeal for Quality PrintsStand Firmly to the Speed Challenge

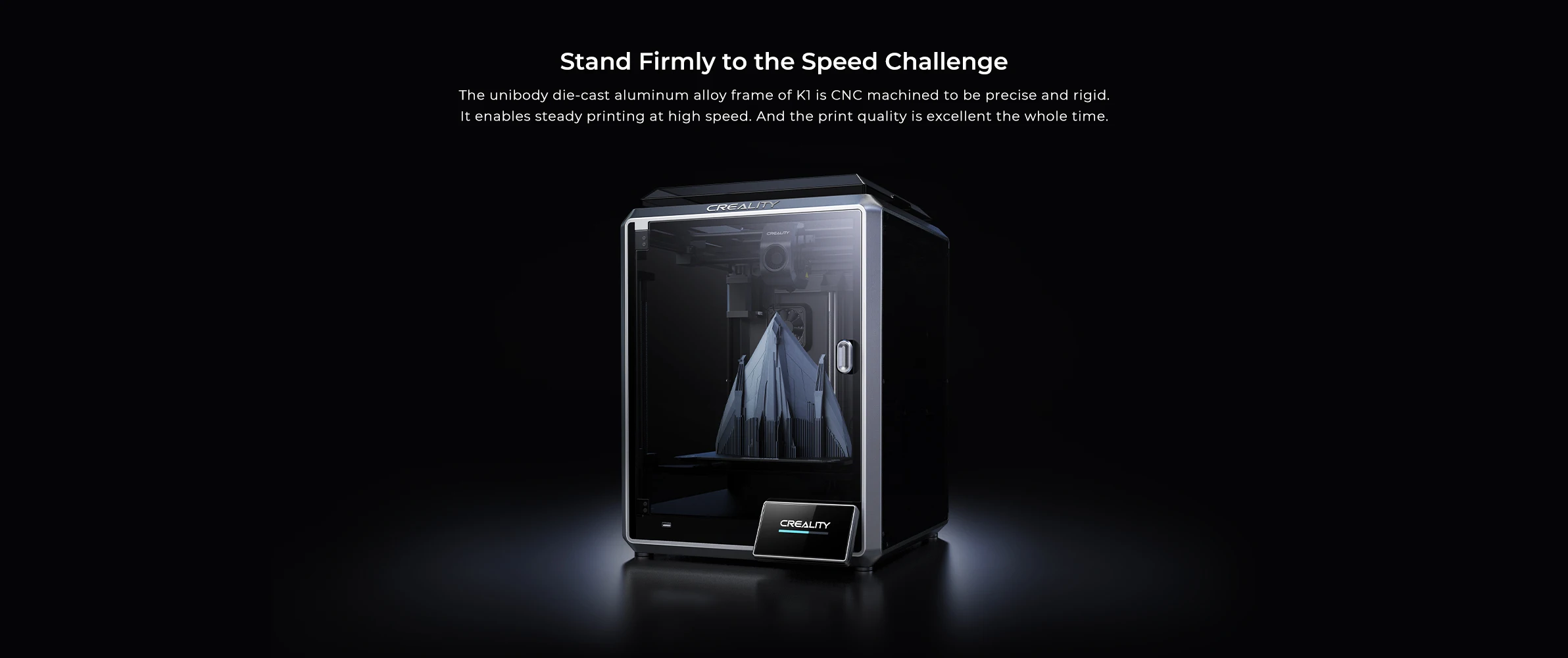

The unibody die-cast aluminum alloy frame of K1 is CNC machined to be precise and rigid.   it enables steady printing at high speed. And the print quality is excellent the whole timeNo Ringing at High Speed

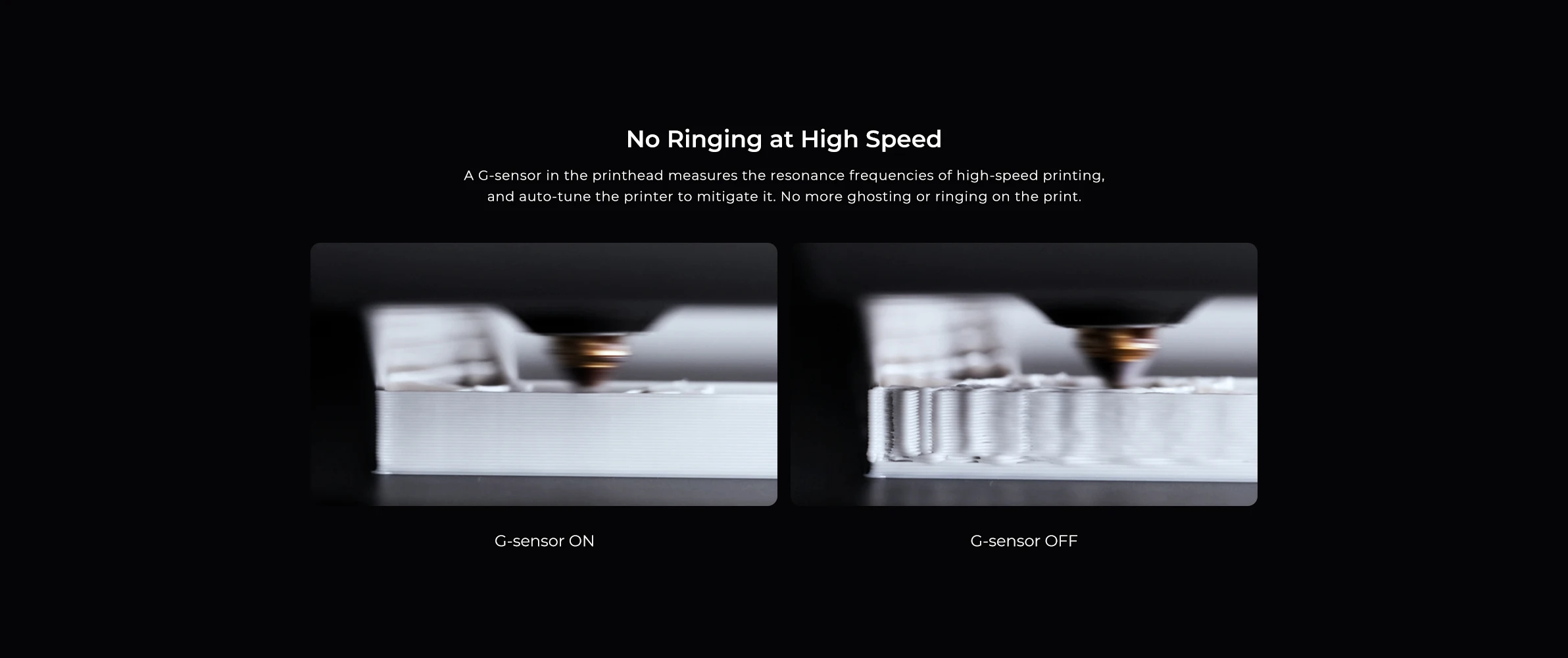

A G-sensor in the printhead measures the resonance frequencies of high-speed printing,  and auto-tune the printer to mitigate it. No more ghosting or ringing on the print.Delicate Texture without Z-banding

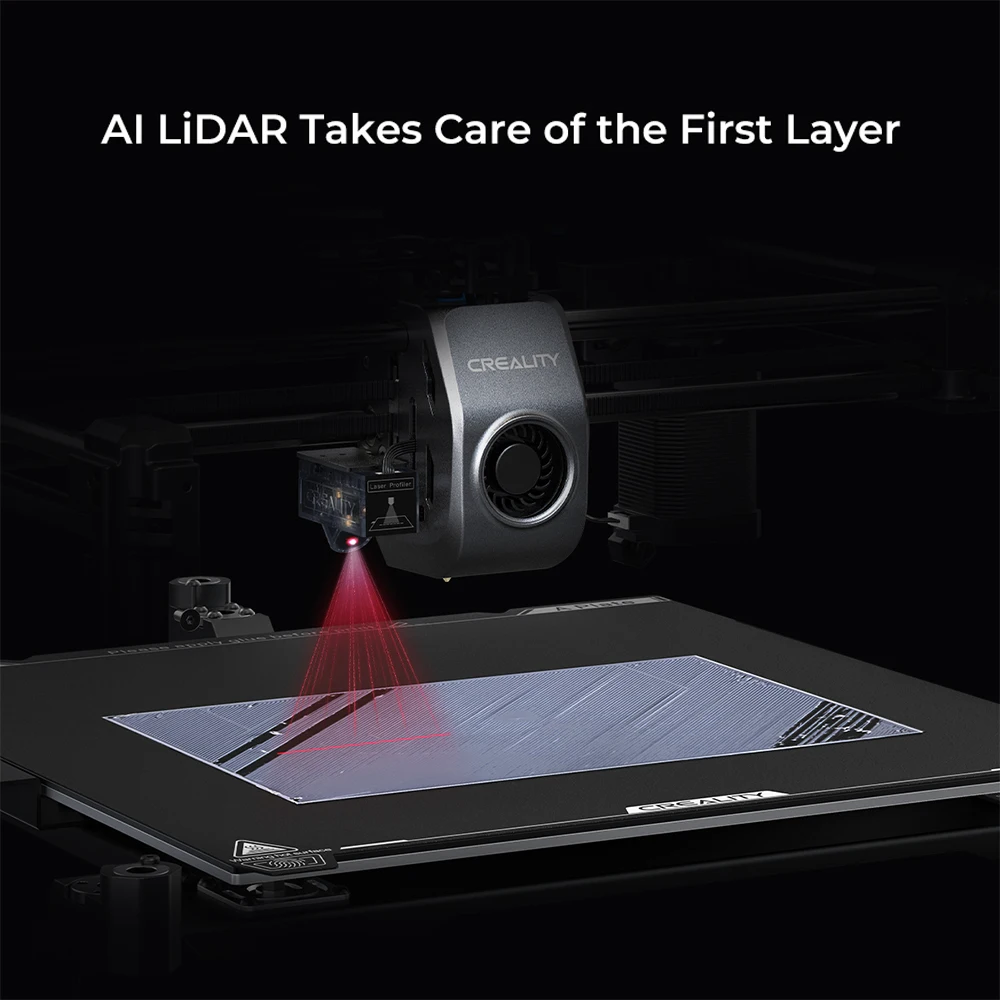

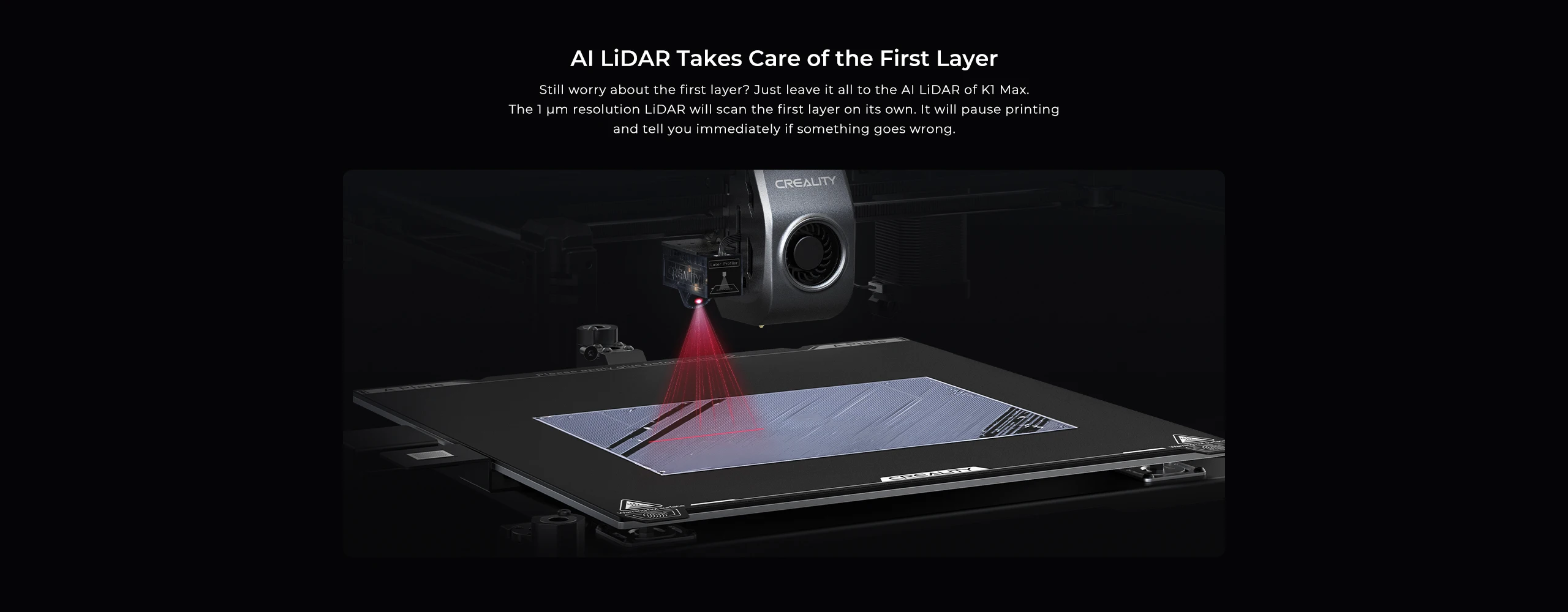

The upgraded Z-axis with more accurate positioning reduces Z-banding effectively  ；  The texture has never been so subtle.Al-assistedCcarefree PrintingAI LiDAR Takes Care of the First Layer
；   Still worry about the first layer? Just leave it all to the AI LiDAR of K1 Max.

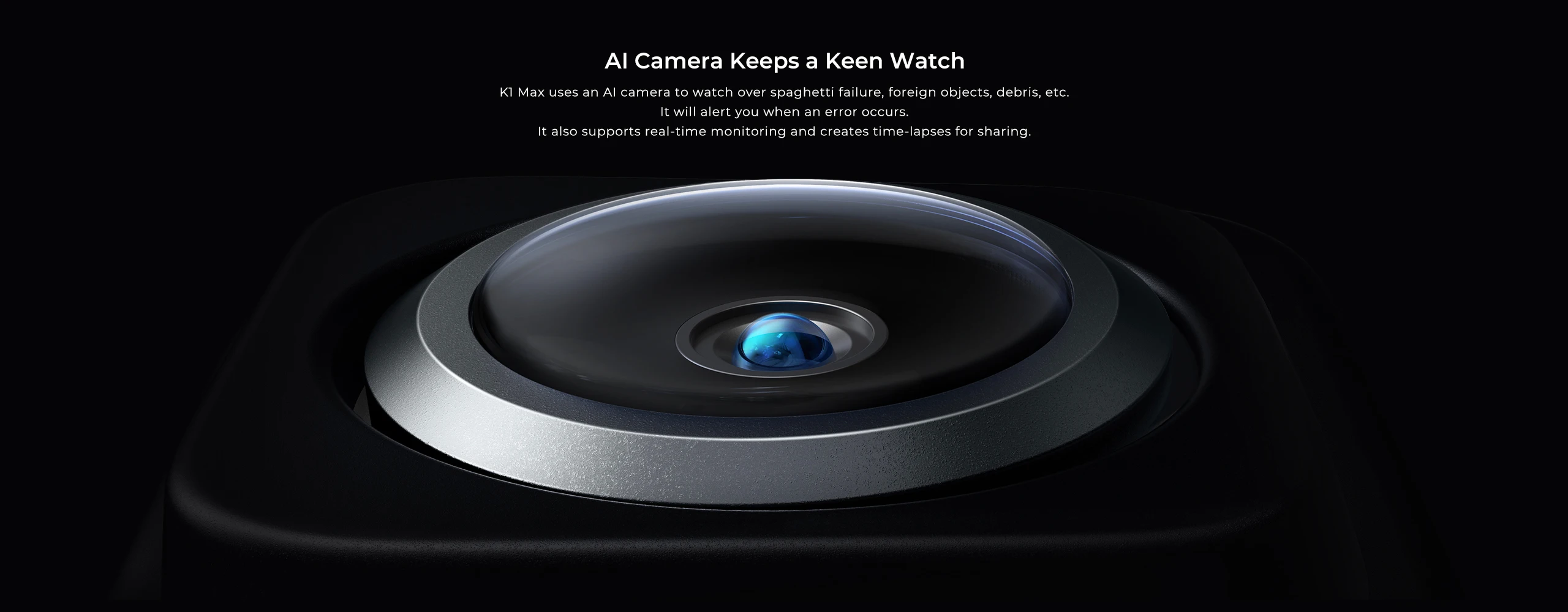

The 1 μm resolution LiDAR will scan the first layer on its own. It will pause printing and tell you immediately if something goes wrong.AI Camera Keeps a Keen Watch

K1 Max uses an AI camera to watch over spaghetti failure, foreign objects, debris, etc. It will alert you when an error occurs.

It also supports real-time monitoring and creates time-lapses for sharing.

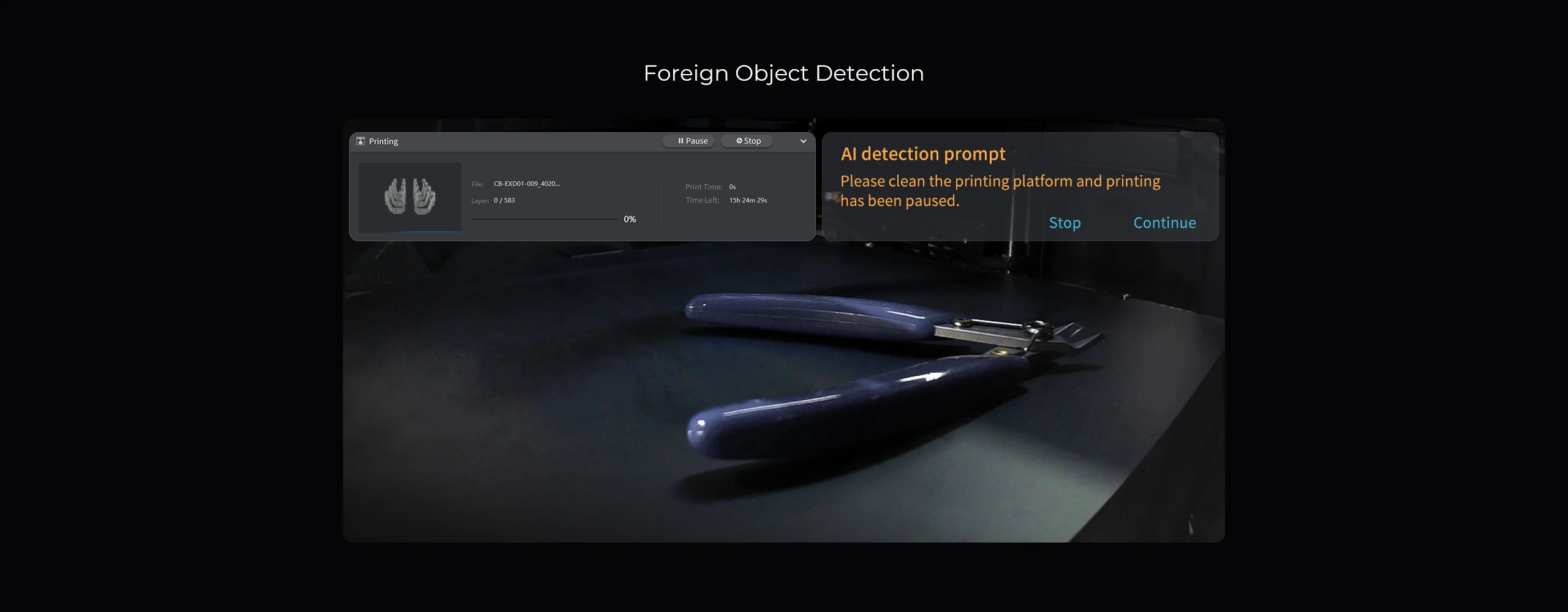

Foreign Object Detection

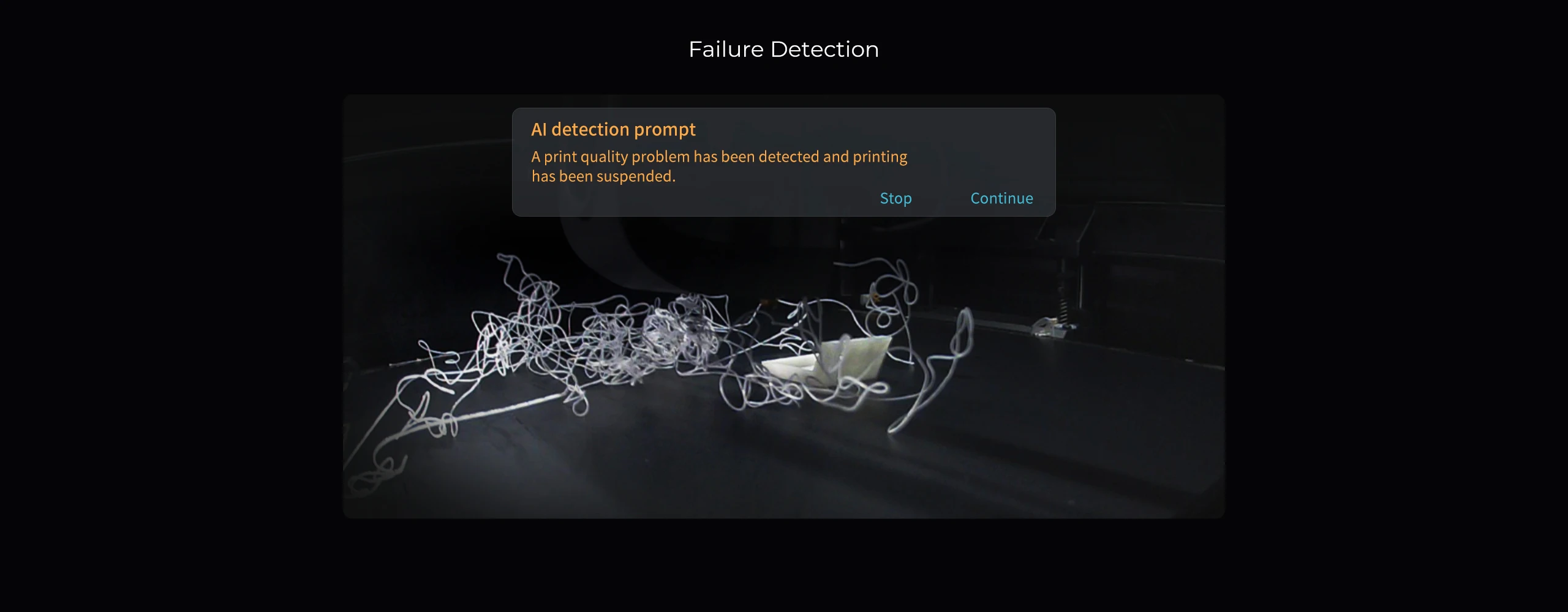

；  Failure Detection

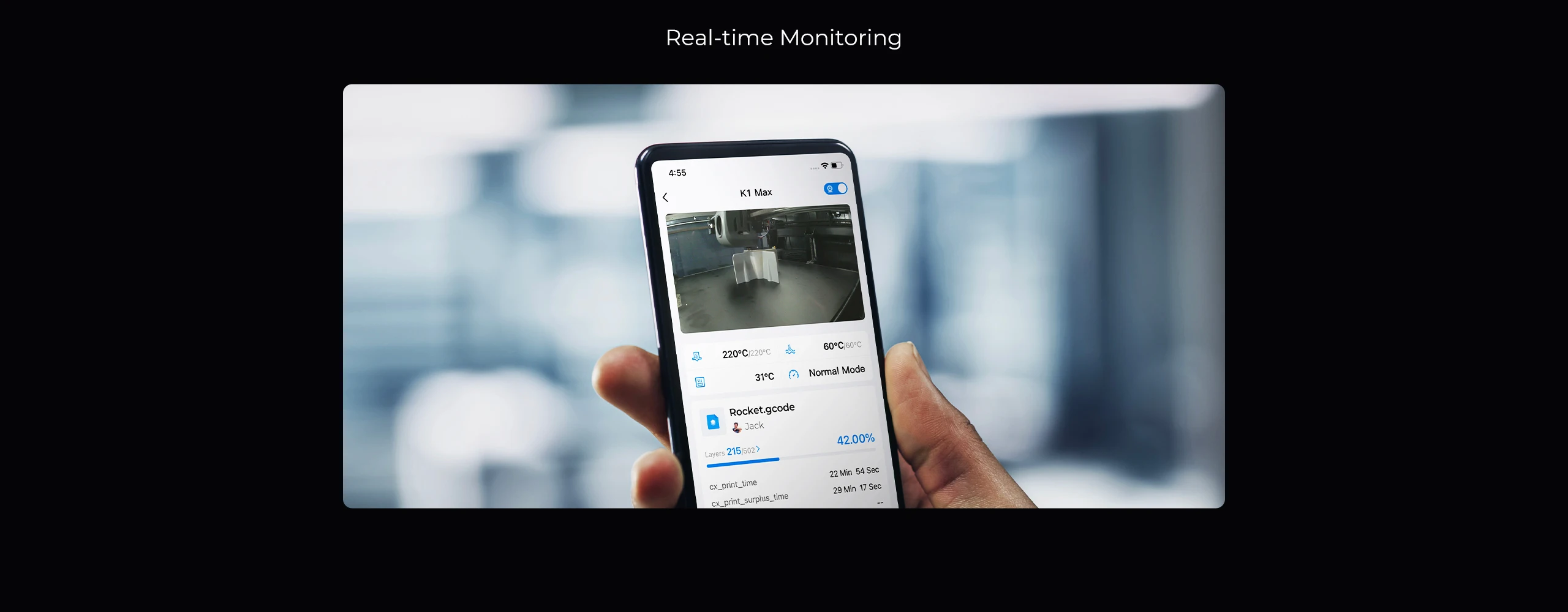

；  Real-time Monitoring

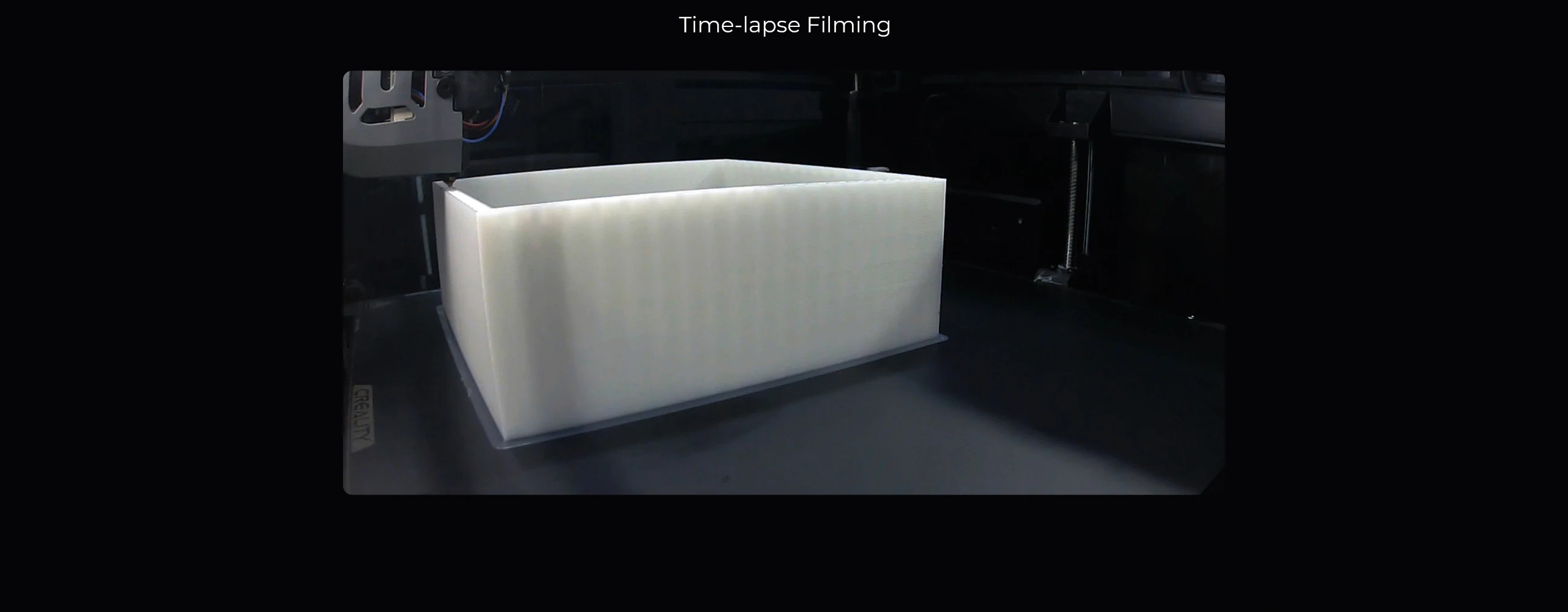

；  Time-lapse FilmingSmart System, Unbridled Performance

K1 Max adopts the smart Creality OS. It features a straightforward UI, and syncs data and commands with PC, phone, Cloud, and add-on modules.
The snappy dual-core 1.2GHz CPU powers high-speed printing with ease.

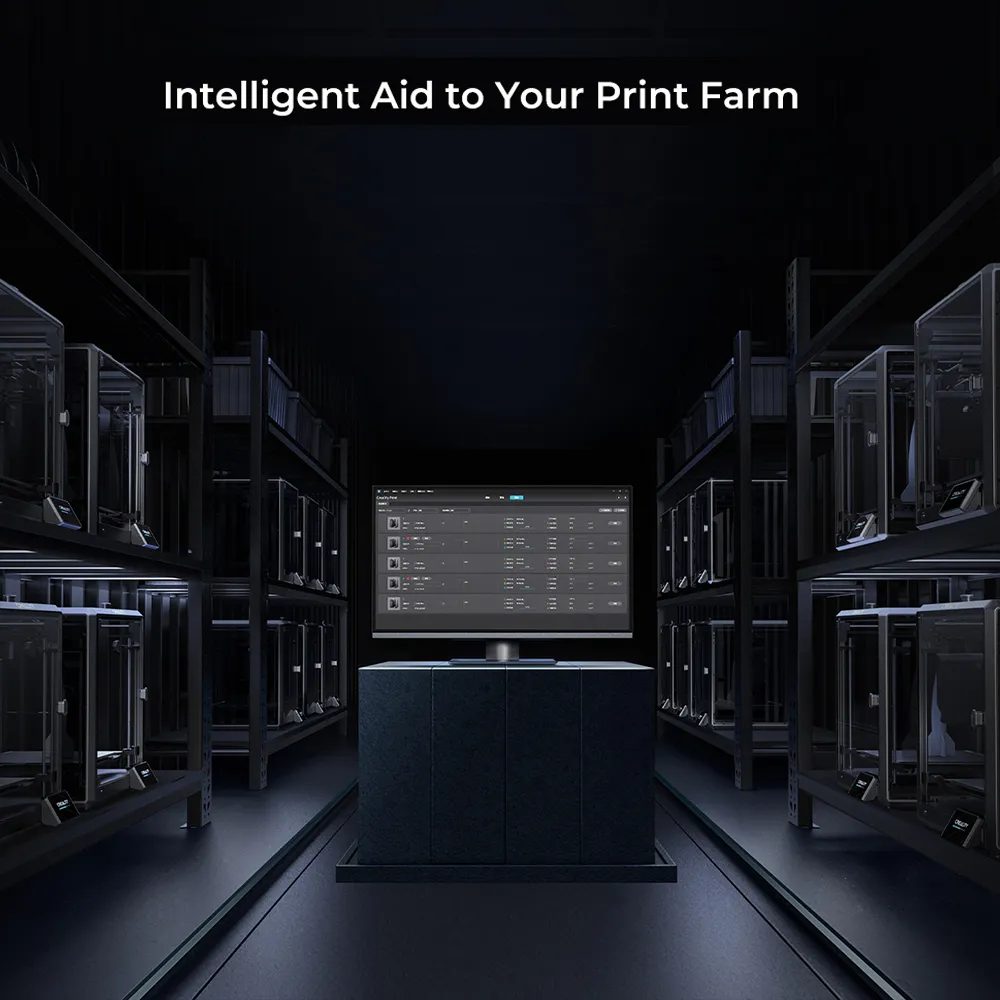

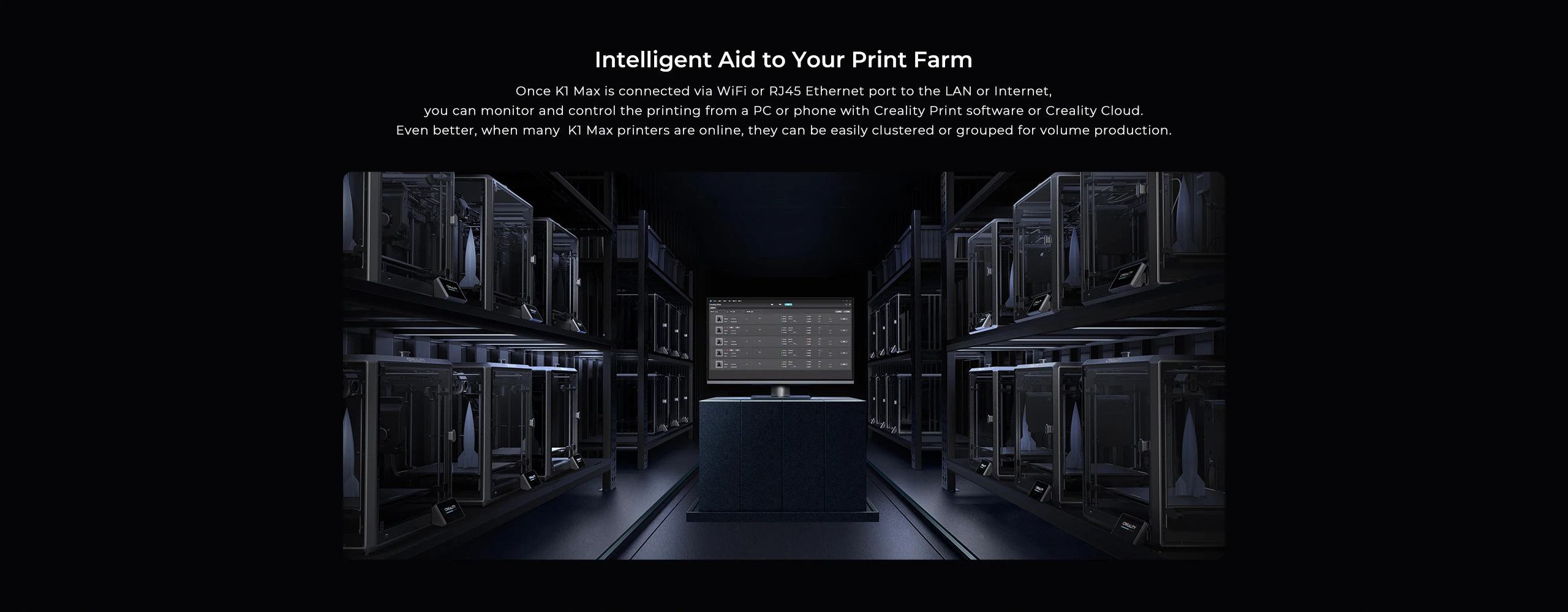

The 8G ROM stores up to 400 model files and enables quick writing and reading.Intelligent Aid to Your Print Farm

Once K1 Max is connected via WiFi or RJ45 Ethernet port to the LAN or Internet, you can monitor and control the printing from a PC or phone with Creality Print software or Creality Cloud.

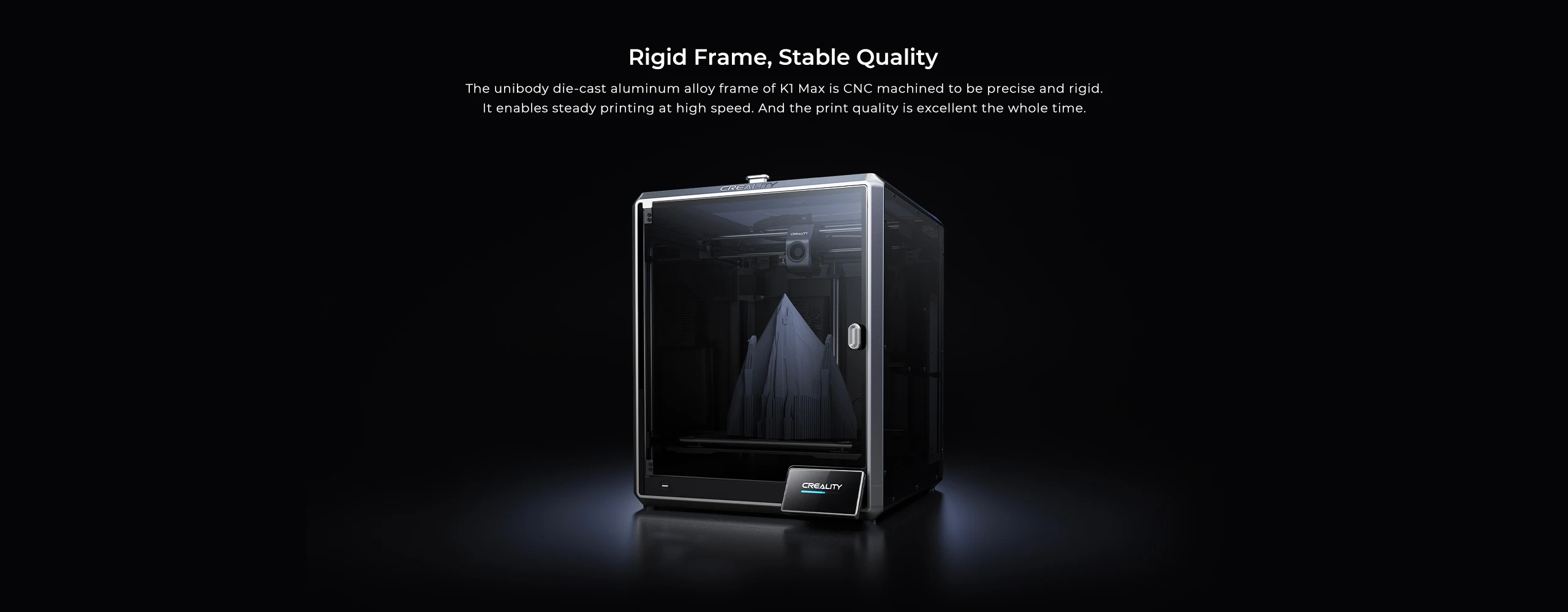

Even better, when many K1 Max printers are online, they can be easily clustered or grouped for volume production.Rigid Frame, Stable Quality

The unibody die-cast aluminum alloy frame of K1 Max is CNC machined to be precise and rigid.

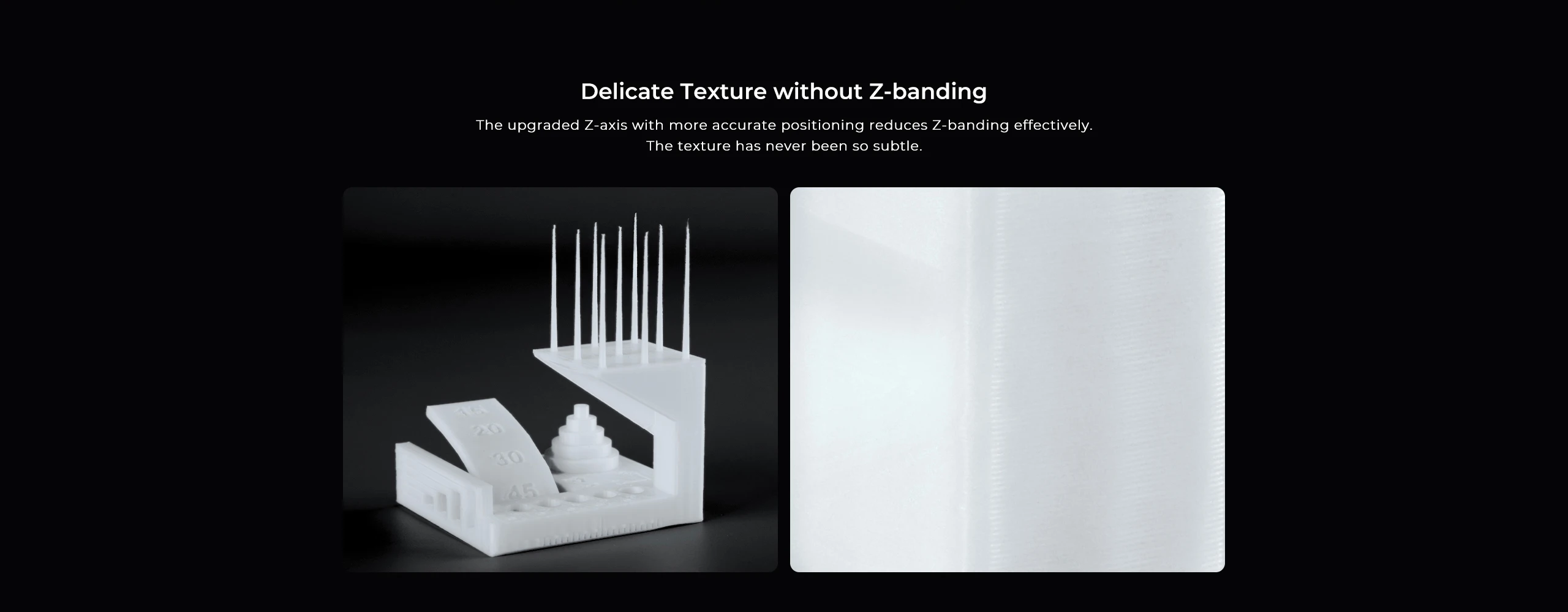

It enables steady printing at high speed. And the print quality is excellent the whole time.Delicate Texture without Z-banding

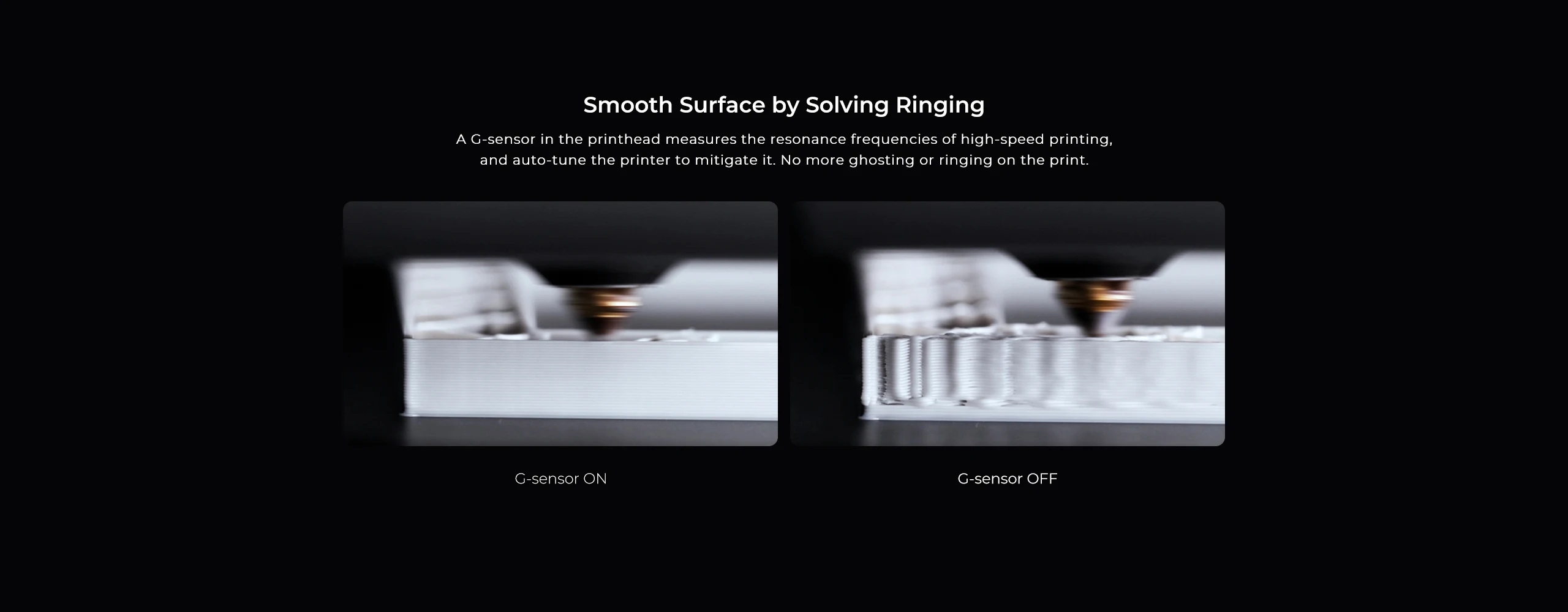

The upgraded Z-axis with more accurate positioning reduces Z-banding effectively. The texture has never been so subtle.Smooth Surface by Solving Ringing

A G-sensor in the printhead measures the resonance frequencies of high-speed printing, and auto-tune the printer to mitigate it. No more ghosting or ringing on the print.

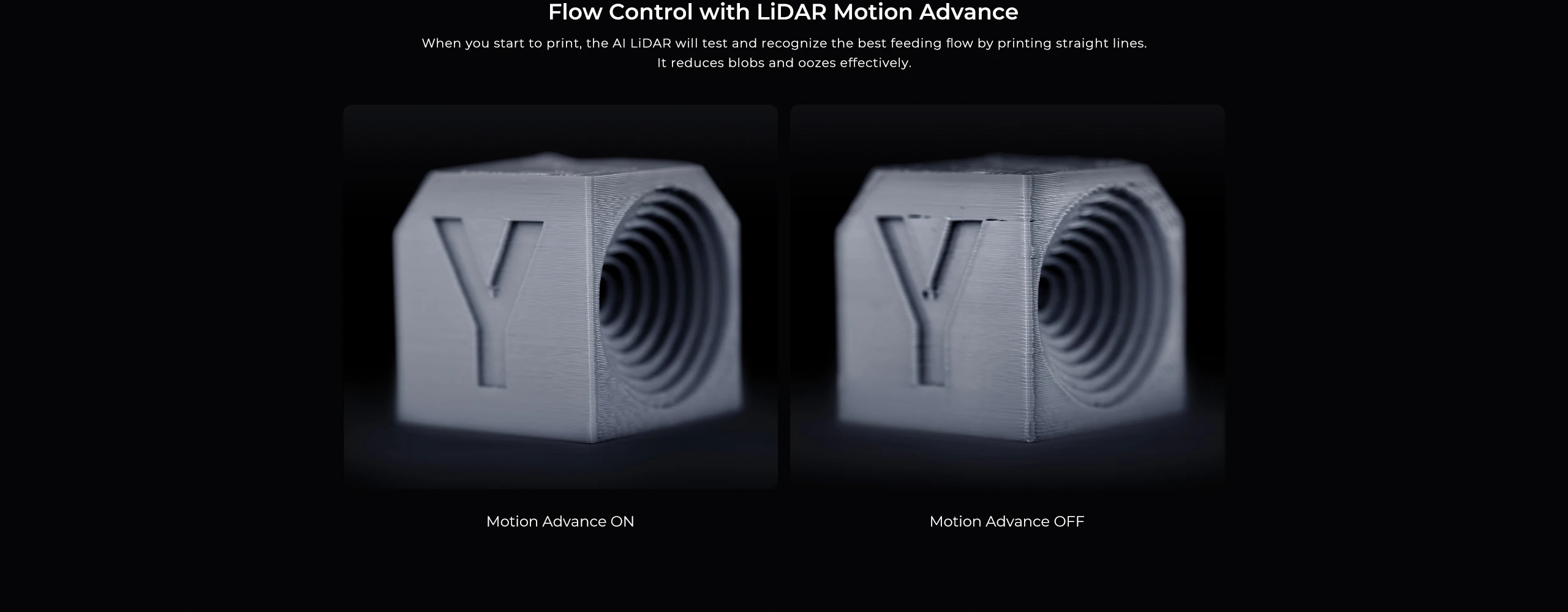

G-sensor ON        G-sensor OFFFlow Control with LiDAR Motion Advance

When you start to print, the AI LiDAR will test and recognize the best feeding flow by printing straight lines.

It reduces blobs and oozes effectively.
Motion Advance ON      Motion Advance OFFDual Hands-free Auto Leveling

First, strain sensors in the heatbed generate an accurate leveling mesh for auto compensation.
Second, AI LiDAR scans the bed tilt at million points for more precise leveling.

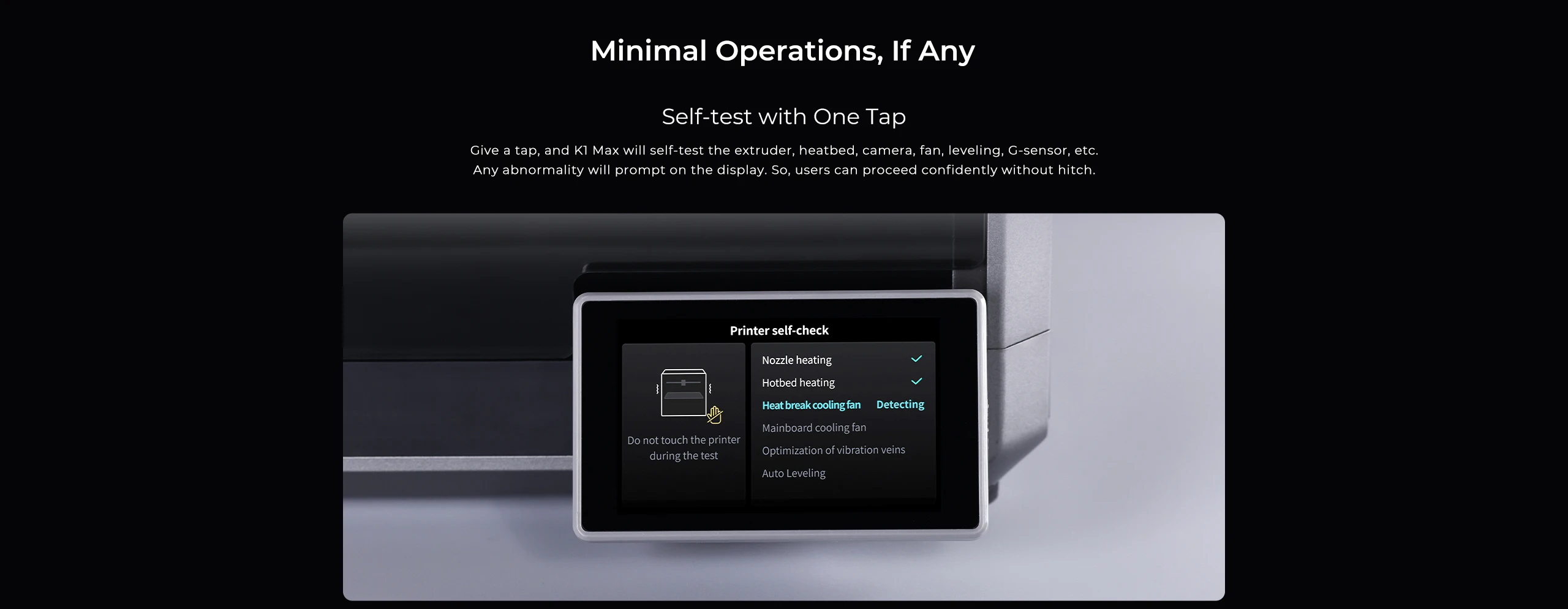

Both ways are hands-free and do not require any attention.Minimal Operations, If Any
Self-test with One Tap

Give a tap, and K1 Max will self-test the extruder, heatbed, camera, fan, leveling, G-sensor, etc.

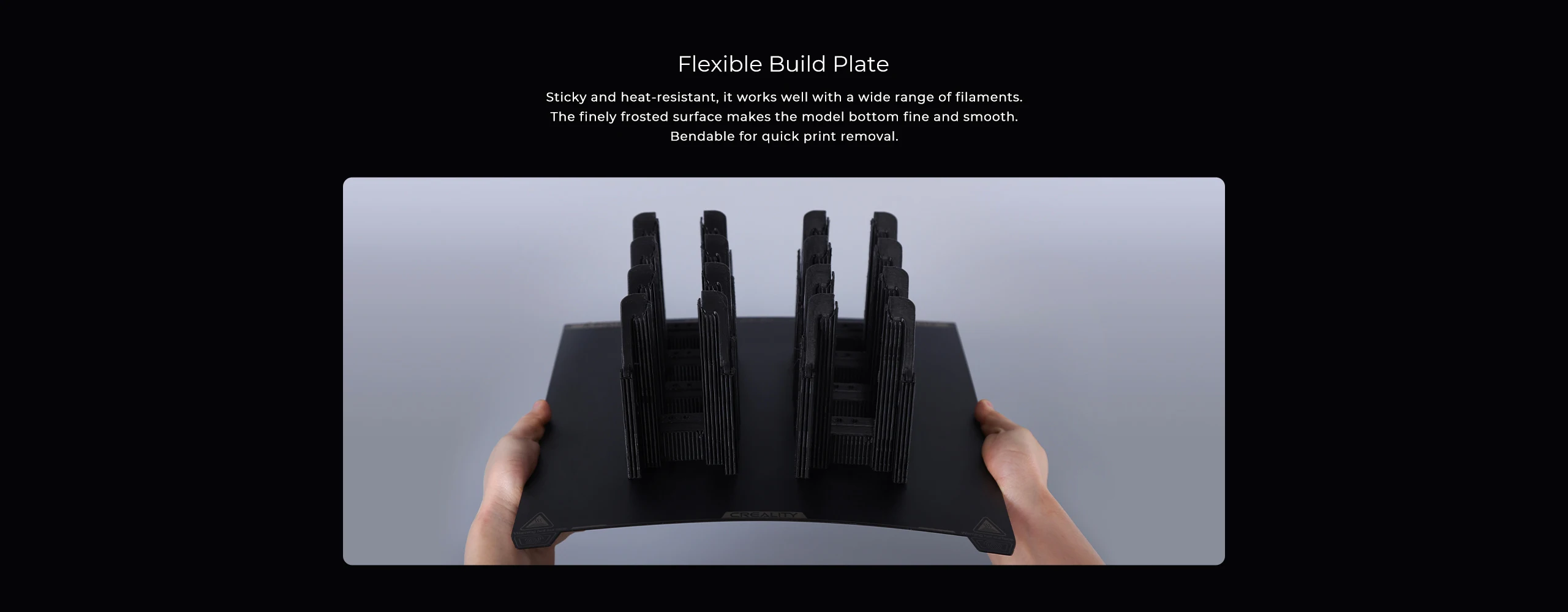

Any abnormality will prompt on the display. So, users can proceed confidently without hitch.Flexible Build Plate
