Feature:

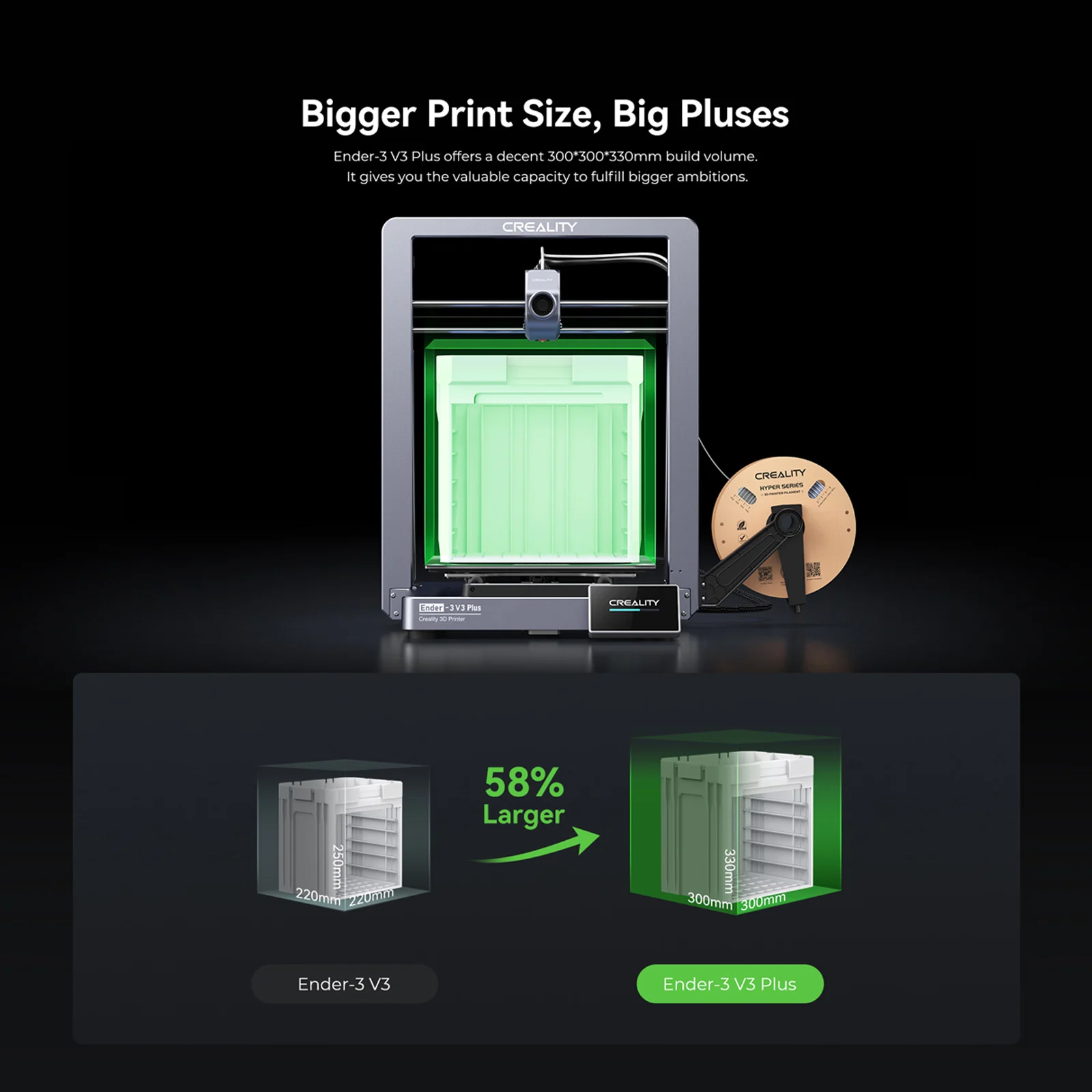

1.Larger CoreXZ 3D printer:Ender-3 V3 Plus offers a decent 300*300*330mm build volume. It gives you the valuable capacity to fulfill bigger ambitions.

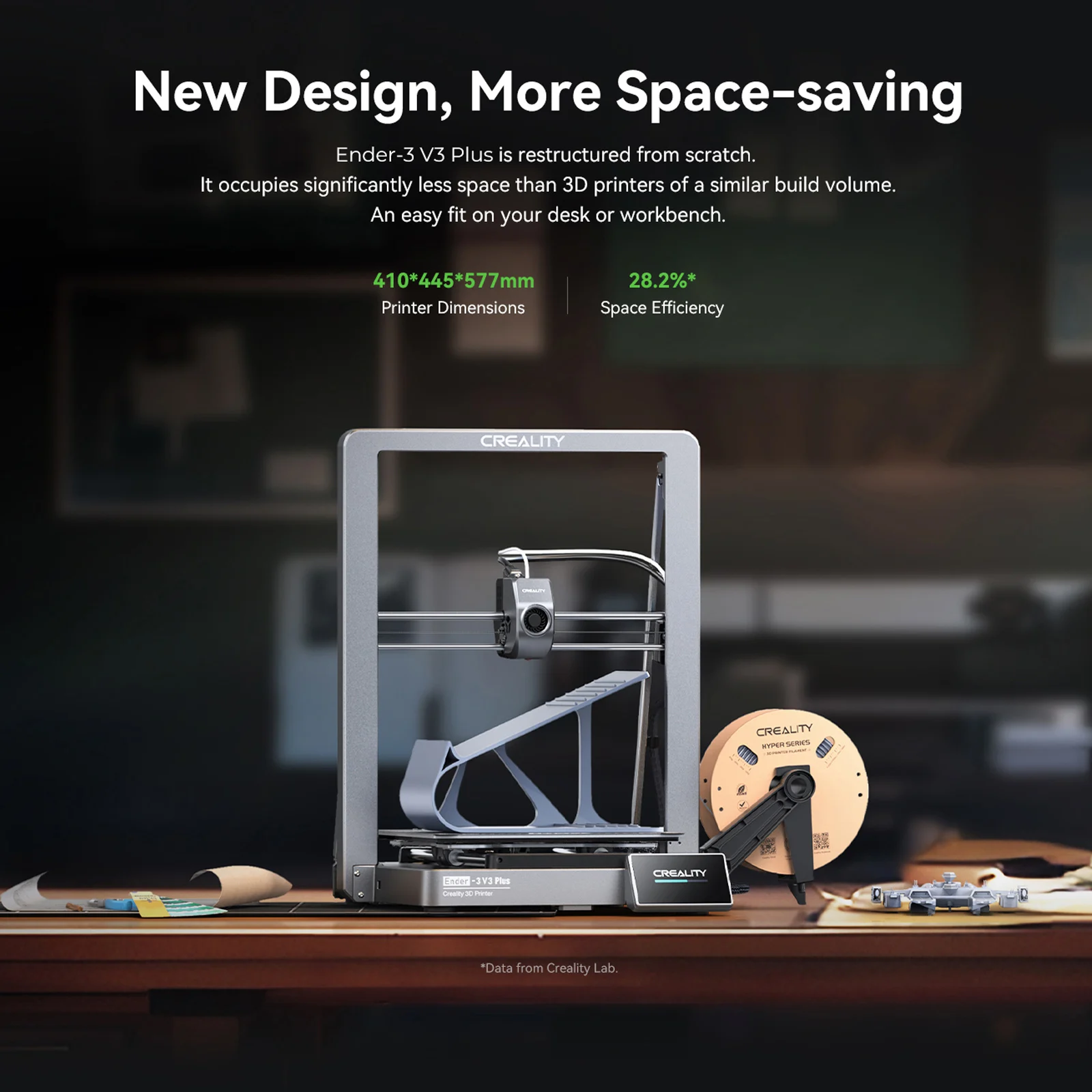

2.New Design, More Space-saving:Ender-3 V3 Plus is restructured from scratch. It occupies significantly less space
than 3D printers of a similar build volume.An easy fit on your desk or workbench.

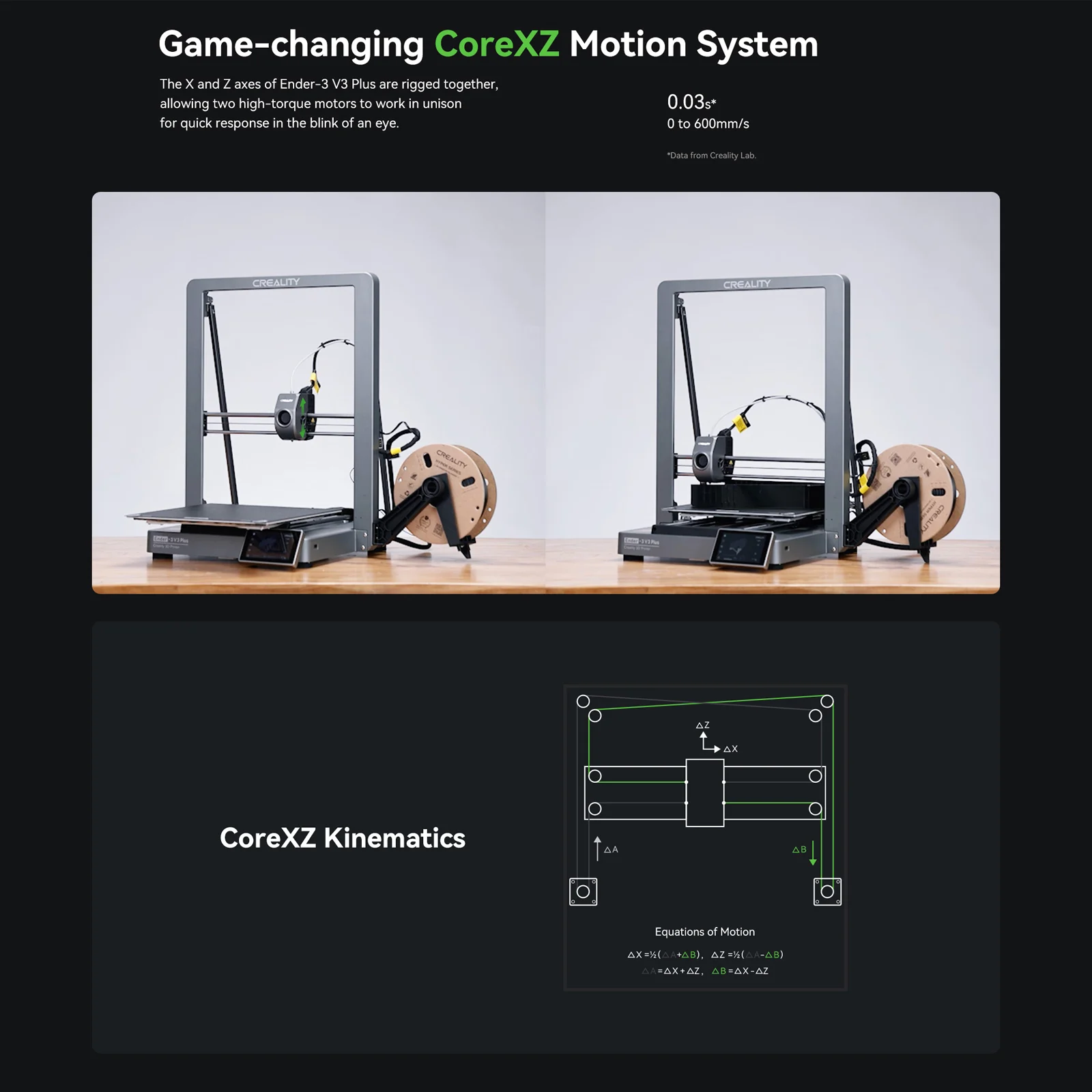

3.Game-changing CoreXZ Motion System:The X and Z-axis of Ender-3 V3 Plus are rigged together, allowing two high-torque motors to work in unison for quick response in the blink of an eye.

4.XZ Belt Tensioning, Fully Automated:The XZ timing belts of Ender-3 V3 Plus are tensioned automatically. Belt slips or jams now become a thing of the past.

5.Accurate Z-axis, Less Wobbling:Thanks to the precise linear rods and timing belts, the Z-axis can position itself more accurately than ever.It means minimal Z-banding in your 3D prints.

6.Two Powerful Motors on Y-axisTwo support rods are added to connect the base and the top of the gantry and form a rigid triangle that reduces Z-axis shaking.The print quality is ensured throughout the height of the print volume.

7.A New Benchmark of Printing Speed:With CoreXZ and Y-axis dual motors, it can print 12 times faster* than a regular 3D printer.And the print quality is just amazing. Prototyping and small-batch production can be done with a fraction of the previous time and cost.

8.Optimized for Print Farm Scenario:Ender-3 V3 Plus features a WiFi module to access the internet or data-secure LAN.With the help of Creality Print or Creality Cloud APP,you can select dozens of it to start printing at the same time.

9.Metal Frame with Die-cast Parts:The gantry and base are each a single aluminum alloy piece made by integrated die-casting. With fewer bolts and seams, Ender-3 V3 Plus is incredibly solid and stable.

10.Tough Aerospace Aluminum Alloy:Both the gantry and base use ADC12 aluminum alloy,The edges and corners are softened with minor curves,so that Ender-3 V3 Plus looks more integral and elegant.

11.Robust Extruder, Packing a Punch:The direct drive extruder of Ender-3 V3 Plus is enhanced by a bolster spring and a ball plunger. It grips the filament tightly without slackening off.

12.60W Hotend Heater, Delivering Full Power:A powerful ceramic heater surrounds the hotend.It can fully melt ABS, PETG and other high-temp filaments on the fly. 75s Heating from 0 to 300℃

13.Tri-metal "Unicorn" Nozzle, Quick to Swap:The durable steel-tipped copper nozzle is integrated with a titanium alloy heatbreak.It blocks heatcreep and can be swapped super easily.

14.Plus Quality With Two Part Cooling Fans:Two fans, front and back on the printhead, cool the freshly printed section rapidly and evenly.Gone with the wind is any drooping, warping, or stringing.Moreover, dynamic balancing is adopted for printhead fans for reduced vibrations Rationale of Dynamic Balancing.

15.Materialize All Your Creative Sparks:In addition to PLA and flexible TPU(95A), Ender-3 V3 Plus also supports engineering filaments such as ABS* and PETG. Easy to produce models for different purposes.Additional enclosure is required when printing with ABS and other high-temp filaments.

16.Quick Assembly Like a Breeze:
Ender-3 V3 Plus comes to you in highly pre-assembled modules.
Even a first-time 3D printer user can put it together quickly with ease.

17.Auto Calibration, No More Paper Test
Give it a tap and walk away. The auto calibration gets everything ready for you.
No need to pull a paper or turn any screws.
One-tap Calibration Auto Z Offset & Leveling Auto Input Shaping Test.

18.Quick Switch to Silent Mode:The printer can switch between different speed modes while printing.
In silent mode, the printing noise is greatly reduced.
Much less distraction from work or rest.

19.Nifty HD Touch Screen
A 4.3-inch screen delivers seamless touch response.
With HD resolution*, it displays the leveling process, model preview
and temperatures vividly with motion graphics.
So, you can see what is going on with a glance.

Parameter:

Printing Technology FDM

Build Volume 300*300*330mm

Product Dimensions 410*445*577mm

Package Dimensions 623*503*245mm

Net Weight 11.5kg

Printing Speed ≤600mm/s

Acceleration ≤20000mm/s²

Printing Accuracy ±0.2mm

Layer Height 0.1-0.35mm

Filament Diameter 1.75mm

File Transfer USB drive, WLAN, Creality Cloud

Nozzle Diameter 0.4mm

Build Plate Flexible build plate

Nozzle Kit Quick-swap nozzle (hardened steel tip) integrated with heatbreak

Extruder New high-speed direct drive extruder

Nozzle Temperature ≤300°C

Heatbed Temperature ≤100°C

Input Shaping Yes (G-sensor included)

Leveling Mode Auto Leveling

Display Screen 4.3" HD color touch screen

Mainboard 32-bit

Connectivity WiFi

Printable File Format G-code

Power Loss Recovery Yes

Filament Run-out Sensor Yes

Nebula Camera Optional

Rated Voltage 100-120V~, 200-240V~, 50/60Hz

Rated Power 350W

Slicing Software Creality Print

File Formats for Slicing STL, OBJ, 3MF

Supported Filaments PLA, TPU, PETG, ABS, PLA-CF, PETG-CF, CR-carbon

UI Languages English/Español/Deutsche/Français/Pусский/Português/Italiano/Türk/中文/日本語/한국인

APP for Cloud Printing Creality Cloud
