- Origin: Mainland China
- Certification: CE
- Applicable industries: Repair shop, production workshop
- state: New
- Origin: Shanghai, China
- brand: Maxloadc&h
- purpose: Building use
- Power source: Electric
- Cable type: chain
- Lifting speed: 7.2 m/min
- Warranty period: 1 year
- Mechanical test report: Available
- Video factory inspection: Available
- Type of marketing: Top selling products in 2019
- Core component warranty: 1 year
- Core components: Motor, gearbox
- Weight (KG): 150 kg
- name: electric chain hoist
- Test load: 1250 kg
- Standard lifting height: 3 Hong Kong Railway Corporation Limited
- Lifting motor: 1.5 kW
- Travel speed: 10/12 m/min
- Travel motor: 0.4kW
- working voltage: 3P/ 200V-600V
My friend, welcome to our store. Please consult me before placing an order, maybe you can get a discount! If you need other models of this product, please contact me and I will send you a link to the purchased product! For more detailed information, please contact me: Mobile:+86 15973186480 Whatsapp/WeChat:+86 15973186480
Welcome to Shanghai Maxload Cranes & Hoists Co.,Ltd
Product Description

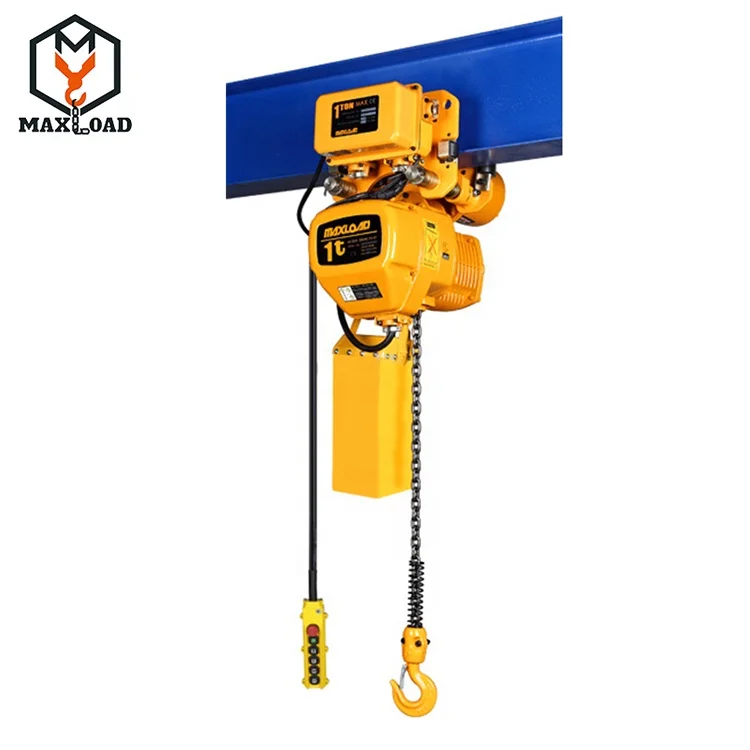

Construction Hoist 1 ton Chain Electric Crane Winch

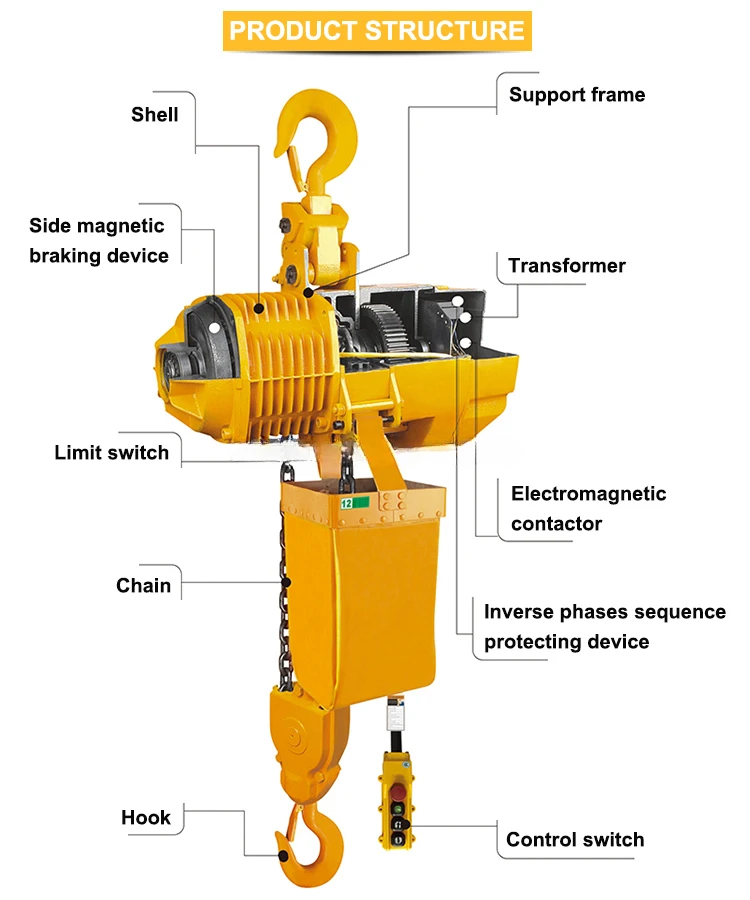

Maxload Electric Chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system.
| Model | Capacity (kg) | Test Load (kg) | Standard Lifting Height (m) | Lifting Motor | Travelling Motor | Load Chain | Flange Width (mm) | Voltage (v) | |||||
| Lifting Speed(m/min) | Output (kw) | Traversing Speed(m/min) | Output (kw) | Diameter (mm) | Falls | ||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | ||||||||||
| 0.5-01SM | 500kg | 750kg | 3m | 7.2 | 8.6 | 0.75 | 20(10) | 24(12) | 0.4 | Ø 6.3 | 1 | 70-130 | 3(phase) 220-440(v) 50/60(Hz) |
| 01-01SM | 1000kg | 1250kg | 6.8 | 8.2 | 1.5 | Ø 7.1 | 1 | 80-160 | |||||
| 01-02SM | 3.6 | 4.3 | 0.75 | Ø 6.3 | 2 | ||||||||
| 02-01SM | 2000kg | 2500kg | 6.6 | 7.9 | 3 | Ø 10.0 | 1 | 82-178 | |||||
| 02-02SM | 3.4 | 4.1 | 1.5 | Ø 7.1 | 2 | ||||||||
| 03-01SM | 3000kg | 3750kg | 5.4 | 6.5 | 3 | Ø 11.2 | 1 | 100-180 | |||||
| 03-02SM | 3.4 | 4.1 | 3 | Ø 10.0 | 2 | ||||||||
| 03-03SM | 2.3 | 2.7 | 1.5 | Ø 7.1 | 3 | ||||||||
| 05-02SM | 5000kg | 6250kg | 2.7 | 3.2 | 3 | 0.75 | Ø 11.2 | 2 | 110-180 | ||||
| 7.5-03SM | 7500kg | 9375kg | 1.8 | 2.2 | 3 | 10 | 12 | Ø 11.2 | 3 | 120-180 | |||

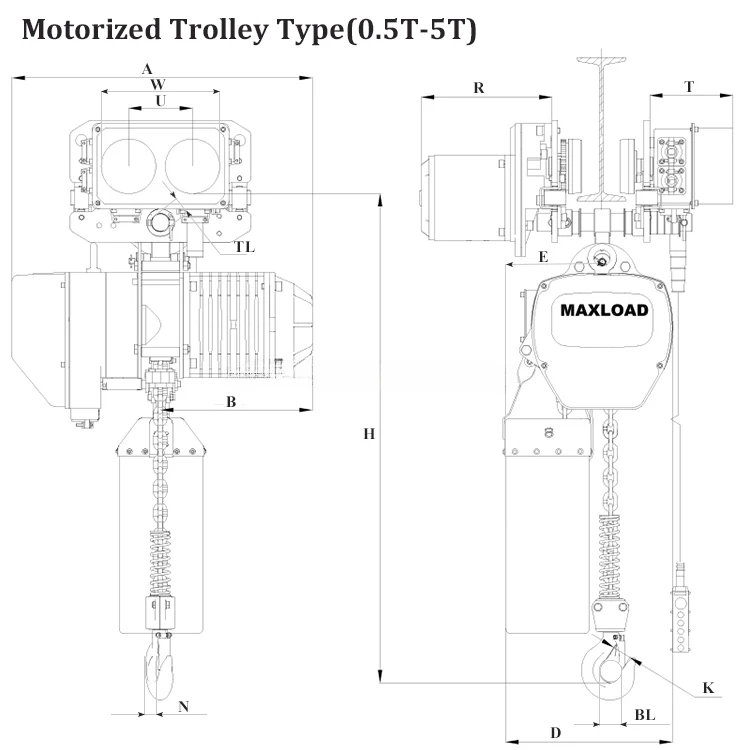

Dimensional Drawing:
| Model | Capacity (kg) | H | A | B | D | E | TL | BL | K | N | W | U | R | T |
| HHBB0.5-01SM | 500kg | 630 | 460 | 230 | 280 | 160 | Ø 35 | Ø 35 | 25 | 17 | 162 | 100 | 142 | 150 |
| HHBB01-01SM | 1000kg | 650 | 520 | 260 | 300 | 176 | Ø 40 | Ø 40 | 31 | 22 | 206 | 111 | 231 | |
| HHBB01-02SM | 695 | 460 | 230 | 280 | 205 | 230 | ||||||||
| HHBB02-01SM | 2000kg | 770 | 615 | 295 | 430 | 265 | Ø 47 | Ø 47 | 38 | 30 | 237 | 127 | 231 | |
| HHBB02-02SM | 815 | 520 | 260 | 300 | 236 | |||||||||
| HHBB03-01SM | 3000kg | 830 | 615 | 295 | 430 | 265 | Ø 58 | Ø 58 | 47 | 36 | 265 | 140 | ||
| HHBB03-02SM | 930 | 615 | 295 | 430 | 320 | |||||||||
| HHBB03-03SM | 940 | 520 | 260 | 350 | 205 | |||||||||
| HHBB05-02SM | 5000kg | 1015 | 615 | 295 | 430 | 325 | Ø 60 | Ø 60 | 48 | 43 | 296 | 156 | ||
| HHBB7.5-03SM | 7500kg | 1200 | 615 | 295 | 505 | 320 | Ø 54 | Ø 85 | 80 | 55 | 295 | 156 |

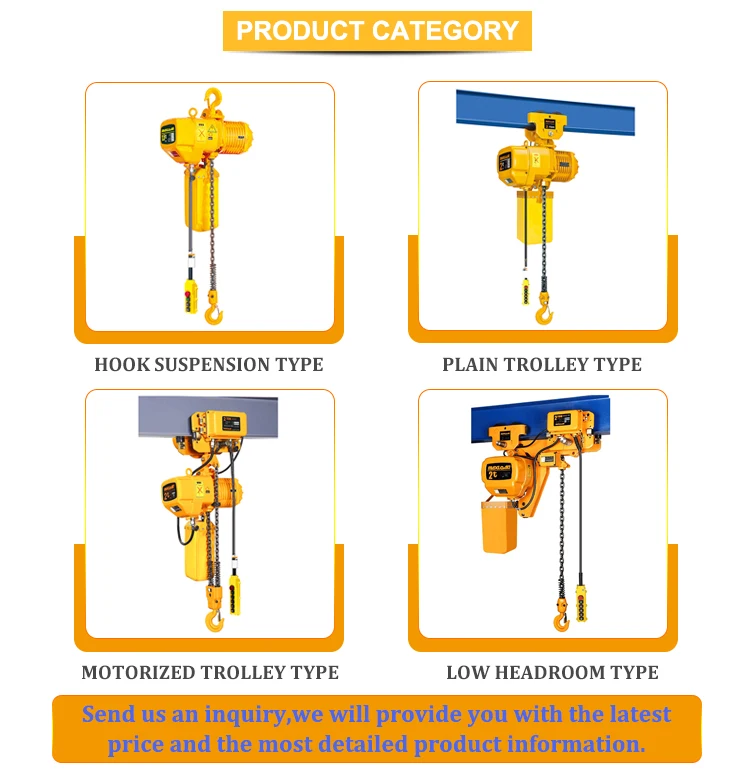

Product Category
