Talha eletrica de corrente 1.000 kg – Cap. 1 tonelada Hoist 1-ton Chain Electric Crane Winch

, Author

Promoção!

O preço original era: R$ 13.604,17.O preço atual é: R$ 13.562,28.

Up to 12 installments without cards through Mercado Pago. Learn more
Buy through Mercado Pago without cards and pay month by month
1
Add your product to the cart and, for the payment, select “Meses sin Tarjeta” or “Cuotas sin Tarjeta”.
2
Log in to Mercado Pago.
3
Choose the amount of installments that best suit you and you’re all set!

Credit subject to approval.

Any Questions? Check our Help.

REF: 1005006159476283 Categoria:

Descrição

  • Origin: Mainland China
  • Certification: CE
  • Applicable industries: Repair shop, production workshop
  • state: New
  • Origin: Shanghai, China
  • brand: Maxloadc&h
  • purpose: Building use
  • Power source: Electric
  • Cable type: chain
  • Lifting speed: 7.2 m/min
  • Warranty period: 1 year
  • Mechanical test report: Available
  • Video factory inspection: Available
  • Type of marketing: Top selling products in 2019
  • Core component warranty: 1 year
  • Core components: Motor, gearbox
  • Weight (KG): 150 kg
  • name: electric chain hoist
  • Test load: 1250 kg
  • Standard lifting height: 3 Hong Kong Railway Corporation Limited
  • Lifting motor: 1.5 kW
  • Travel speed: 10/12 m/min
  • Travel motor: 0.4kW
  • working voltage: 3P/ 200V-600V
My friend, welcome to our store. Please consult me before placing an order, maybe you can get a discount! If you need other models of this product, please contact me and I will send you a link to the purchased product! For more detailed information, please contact me: Mobile:+86 15973186480 Whatsapp/WeChat:+86 15973186480

Welcome to Shanghai Maxload Cranes & Hoists Co.,Ltd

Product Description

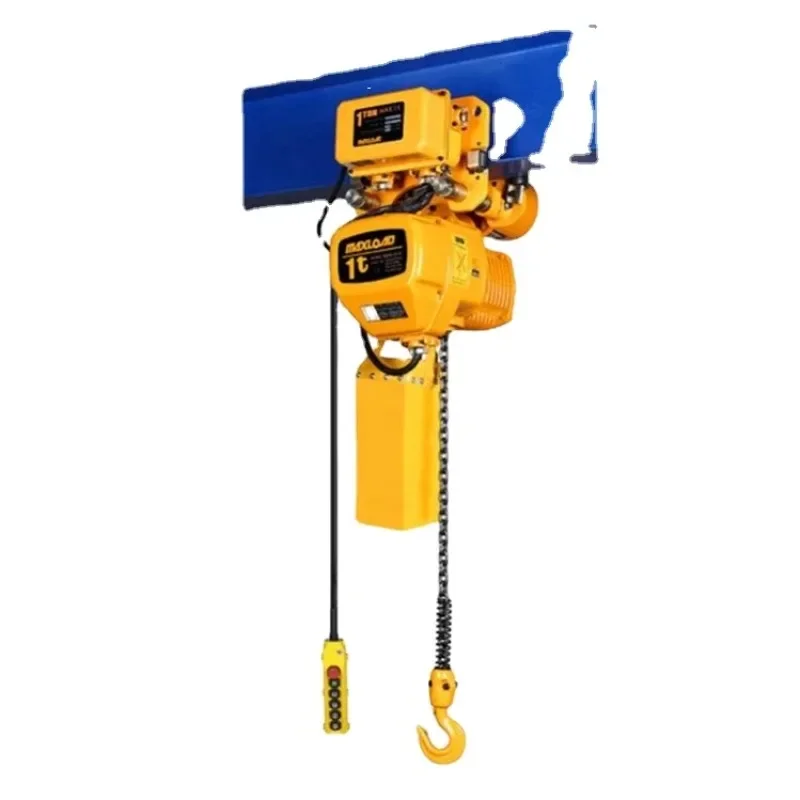

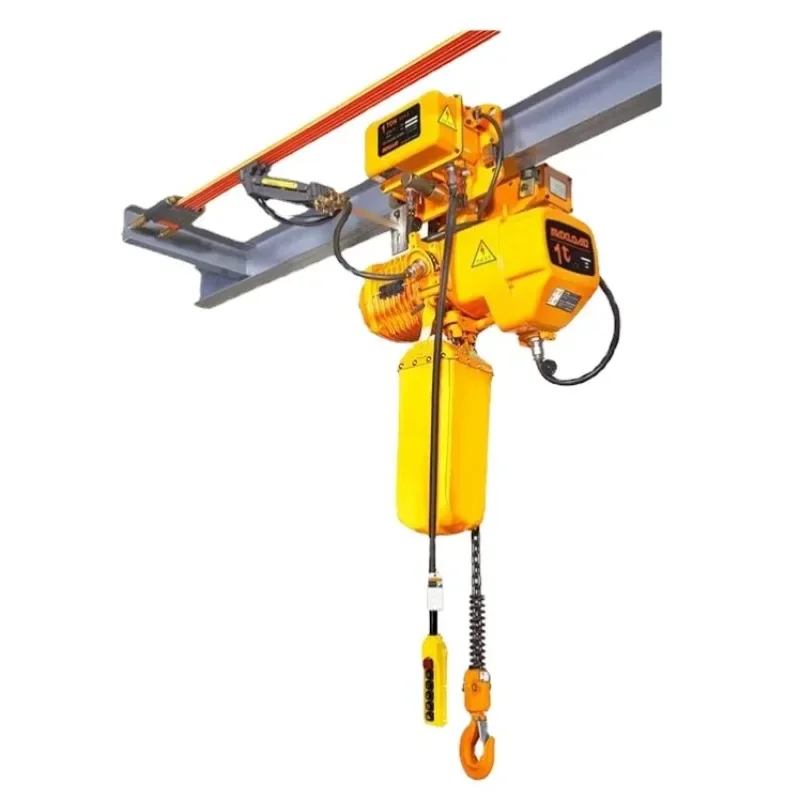

Construction Hoist 1 ton Chain Electric Crane Winch

Maxload Electric Chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system.

Model Capacity (kg) Test Load (kg) Standard Lifting Height (m) Lifting Motor Travelling Motor Load Chain Flange Width (mm) Voltage (v)
Lifting Speed(m/min) Output (kw) Traversing Speed(m/min) Output (kw) Diameter (mm) Falls
50Hz 60Hz 50Hz 60Hz
0.5-01SM 500kg 750kg 3m 7.2 8.6 0.75 20(10) 24(12) 0.4 Ø 6.3 1 70-130 3(phase)

220-440(v)

50/60(Hz)
01-01SM 1000kg 1250kg 6.8 8.2 1.5 Ø 7.1 1 80-160
01-02SM 3.6 4.3 0.75 Ø 6.3 2
02-01SM 2000kg 2500kg 6.6 7.9 3 Ø 10.0 1 82-178
02-02SM 3.4 4.1 1.5 Ø 7.1 2
03-01SM 3000kg 3750kg 5.4 6.5 3 Ø 11.2 1 100-180
03-02SM 3.4 4.1 3 Ø 10.0 2
03-03SM 2.3 2.7 1.5 Ø 7.1 3
05-02SM 5000kg 6250kg 2.7 3.2 3 0.75 Ø 11.2 2 110-180
7.5-03SM 7500kg 9375kg 1.8 2.2 3 10 12 Ø 11.2 3 120-180

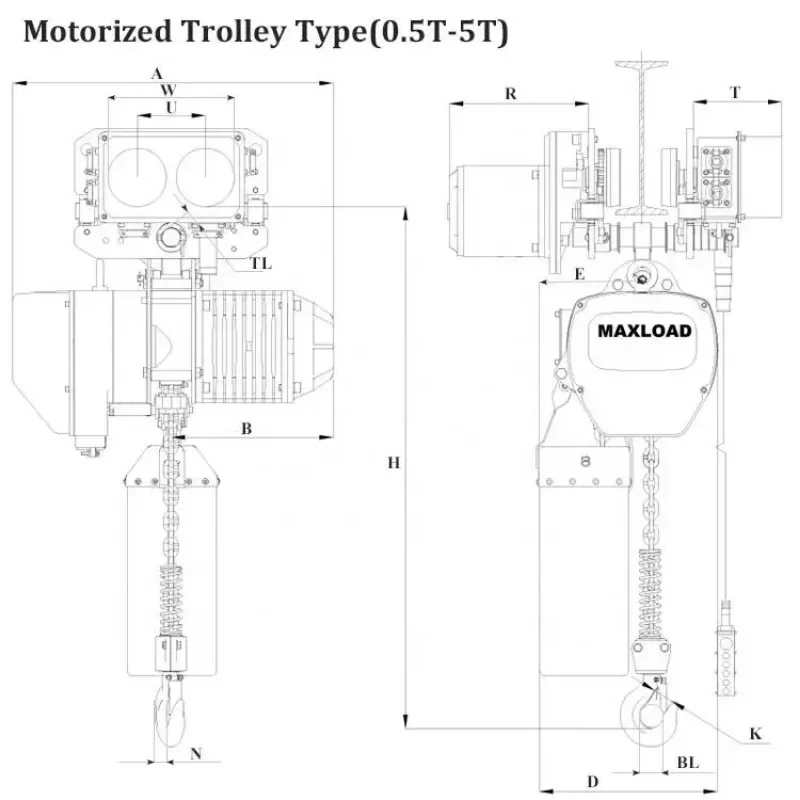

Dimensional Drawing:

Model Capacity (kg) H A B D E TL BL K N W U R T
HHBB0.5-01SM 500kg 630 460 230 280 160 Ø 35 Ø 35 25 17 162 100 142 150
HHBB01-01SM 1000kg 650 520 260 300 176 Ø 40 Ø 40 31 22 206 111 231
HHBB01-02SM 695 460 230 280 205 230
HHBB02-01SM 2000kg 770 615 295 430 265 Ø 47 Ø 47 38 30 237 127 231
HHBB02-02SM 815 520 260 300 236
HHBB03-01SM 3000kg 830 615 295 430 265 Ø 58 Ø 58 47 36 265 140
HHBB03-02SM 930 615 295 430 320
HHBB03-03SM 940 520 260 350 205
HHBB05-02SM 5000kg 1015 615 295 430 325 Ø 60 Ø 60 48 43 296 156
HHBB7.5-03SM 7500kg 1200 615 295 505 320 Ø 54 Ø 85 80 55 295 156
