- High-concerned chemical: None
- Engraving Area: Other
- Laser Power: Other
- Certification: CE
- Is Smart Device: Yes
- Origin: Mainland China
- Certification: ce
- Brand Name: ACCTEK
- Model Number: AKJ60F
- Keyword: pipe fiber laser cutting machine
- Cutting materials: Stainless Steel Carbon Steel Aluminum
- Working area: 220*6000MM
- Working table: Sawteeth Working Table
- Fiber Laser Source: IPG Max Raycus RECI JPT
- Cooling system: Industrial Water Chiller
- Working Voltage: 380V 3 PHASE 50hz/60hz
- Positioning Accuracy: 0.01mm
- Laser wavelength: 1064nm
- Transmission: Double Drive Gear Rack
Cnc Fiber Stainless Steel Pipe Profile Laser Cutting Machine 6M 9M 12M Laser Tube Cutter With Three Chuck
Anni Tian
Wechat: anni-unique
mob&whatsapp:+86-18364199099
Email:export17@acctekgroup.com
Product Description

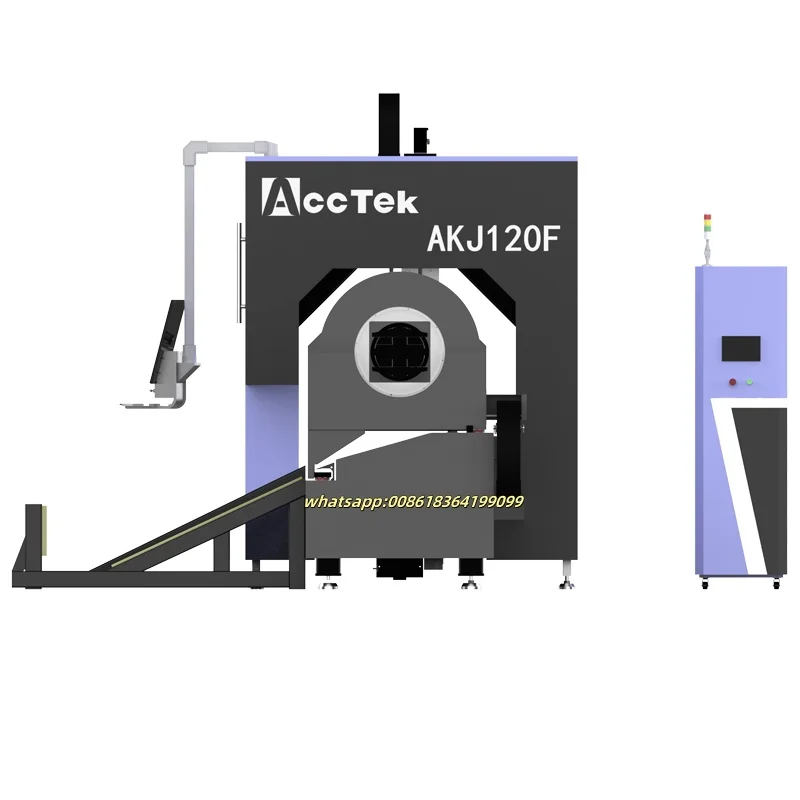

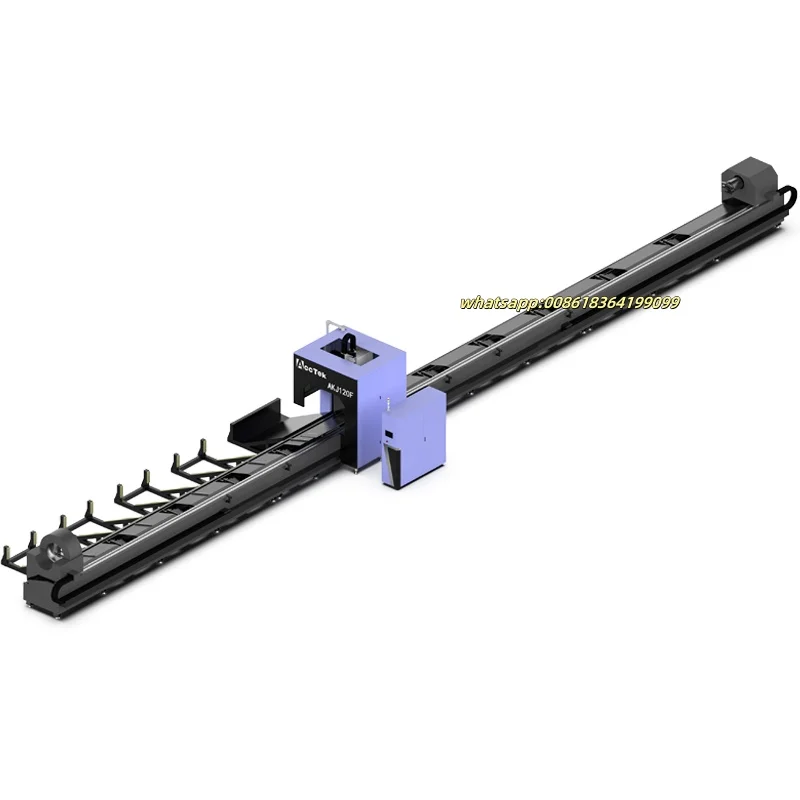

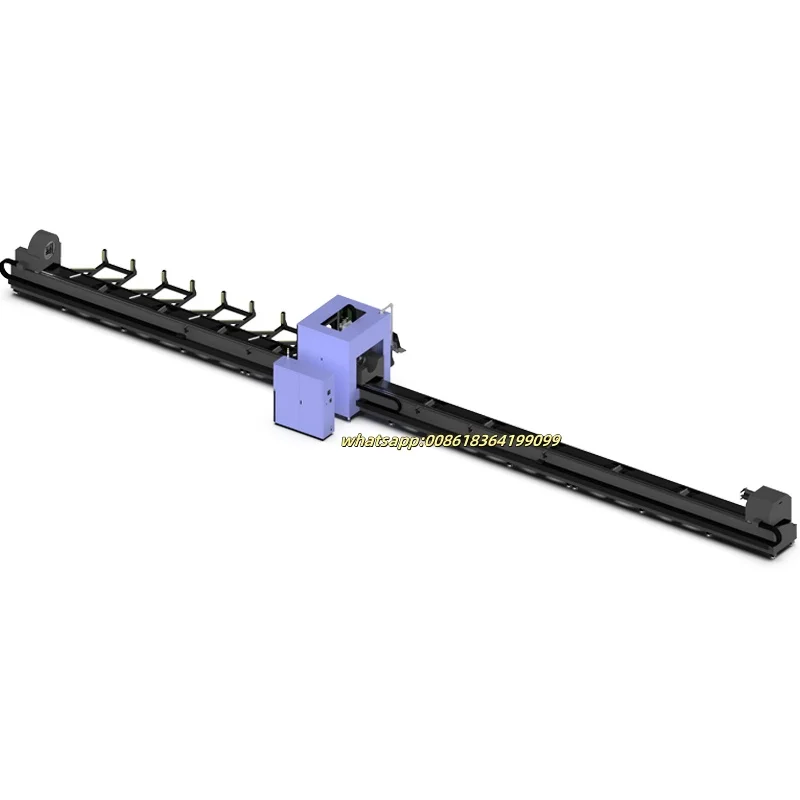

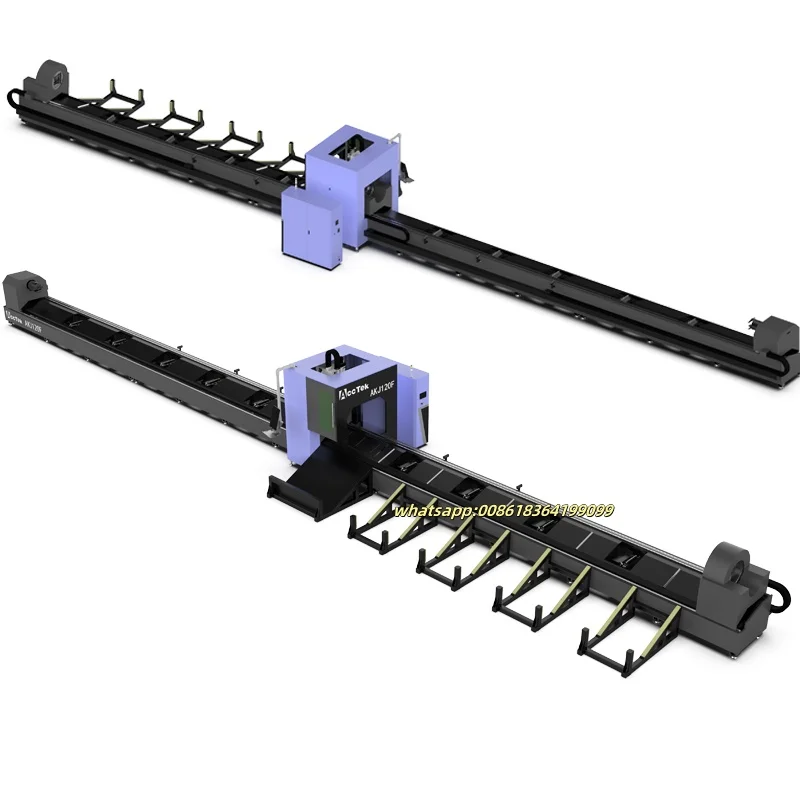

AKJ120F is a high speed and high efficiency fiber laser pipe cutting machine High-rigidity machine bed, exclusive high-temperature numerical control furnace annealing process, can guarantee the stability of the machine tool for a long time.
Machine Advantages
1. Professional H shaped cutting machine, L shaped, H shaped and more.
2. Excellent Path Quality: Smaller laser dot and high work efficiency,
3. High Cutting Speed: cutting speed is 2-3 times than same power Plasma cutting machine.
4. Stable Running: adopt top world fiber lasers generator, stable performance, key parts can reach 100,000 hours.
5. Low Maintenance: fiber line transmission no need reflect lens, save maintenance cost;
6. Easy Operations: fiber line transmission, no adjustment of optical path.
Specification
|
NO.
|
Item
|
Parameter
|
Unit
|
|
1
|
Cut pipe diameter
|
10~220（external circle of workpiece）
|
mm
|
|
2
|
X, Y, Z axis positioning accuracy
|
±0.03/1000mm
|
mm
|
|
3
|
X, Y, Z axis repeat positioning accuracy |
±0.05/1000mm
|
mm
|
|
4
|
Acceleration speed
|
1.5g |
m/s²
|
|
5
|
Y-axis maximum running speed
|
150 |
m/min
|
|
6
|
Chuck load weight
|
100
|
kg |
|
7
|
Max. speed of chuck
|
150
|
rpm
|
|
8
|
Weight of loading machine |
Approx. 3000
|
Kg |
|
9
|
Main machine shape (length, width and height)
|
Approx. 9300×2150×2150
|
mm
|
|
10
|
Laser power
|
1500w/2000w/3000w/6000w Optional
|
w
|
Main configurations
Laser head
1. The cutting laser head has great advantages in medium power large platform cutting applications
2. laser head is completely sealed which avoiding optical parts polluted by dust
3. The laser head adopts two-point centering adjustment, focusing adopting imported motor drive, which improves the punching efficiency
4. professional sharp shape metal profile cutting laser head
Fiber Laser Source
Raycus/MAX/IPG, multiple choice different brands, different laser power are available. The higher power, the thicker cutting thickness. Supply laser power from1kw to 12kw, and more higher 15kw, 20kw, 30kw.
Stable support system
Assists in loading and supporting materials to prevent large deflection and sagging deformation of the pipe and improve cutting accuracy
Packing & Delivery

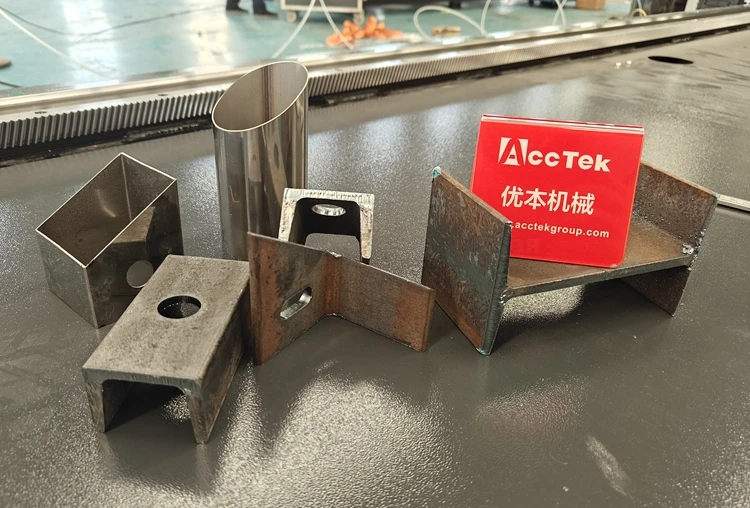

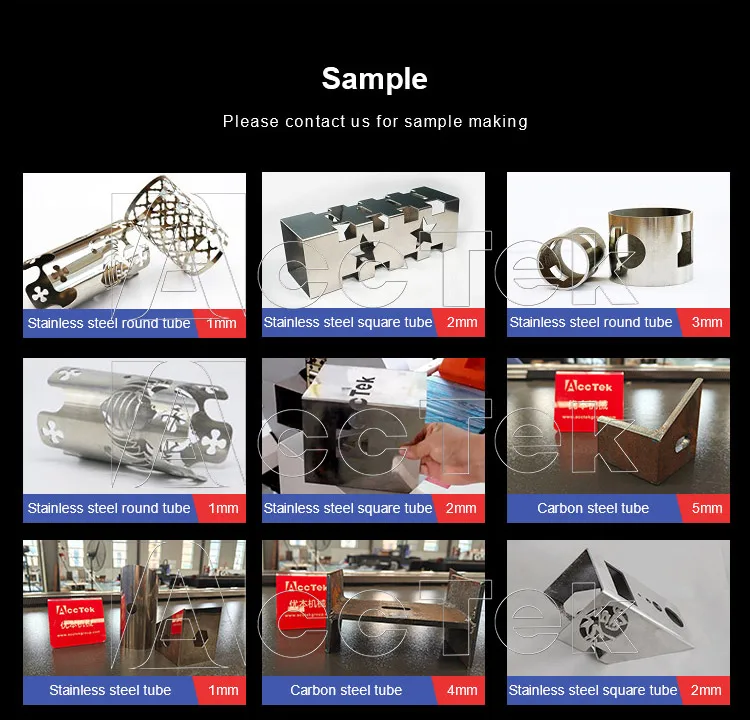

Samples
Anni Tian
Wechat: anni-unique
mob&whatsapp:+86-18364199099
Email:export17@acctekgroup.com
