Descrição
- Controller: DSP
- Is Smart Device: YES
- Model Number: TE6060H
- Condition: New
- CNC or Not: CNC
- Brand Name: TEKAI
- Origin: Mainland China
- Certification: CE

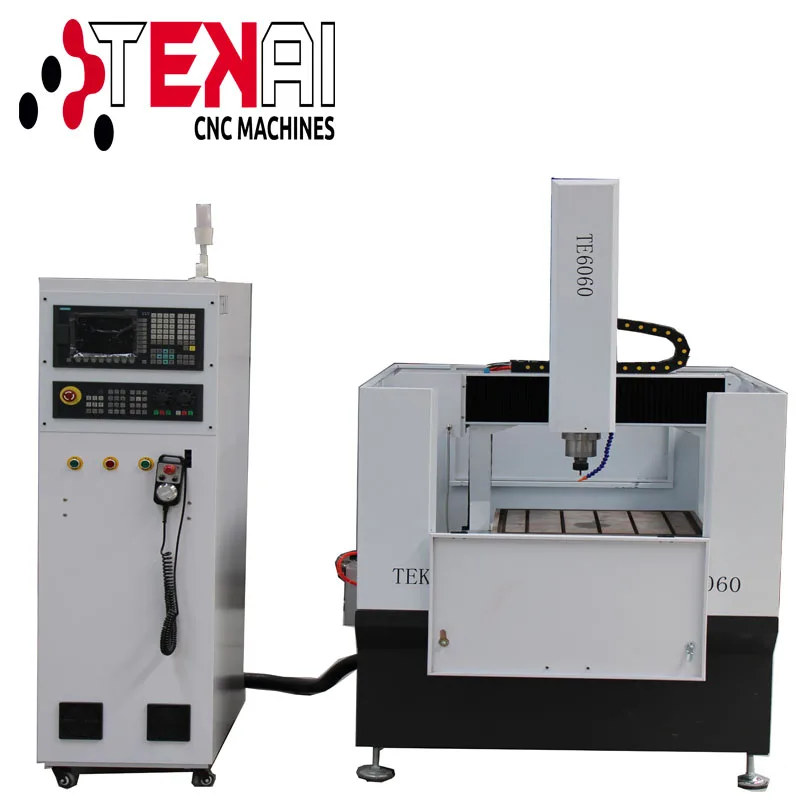

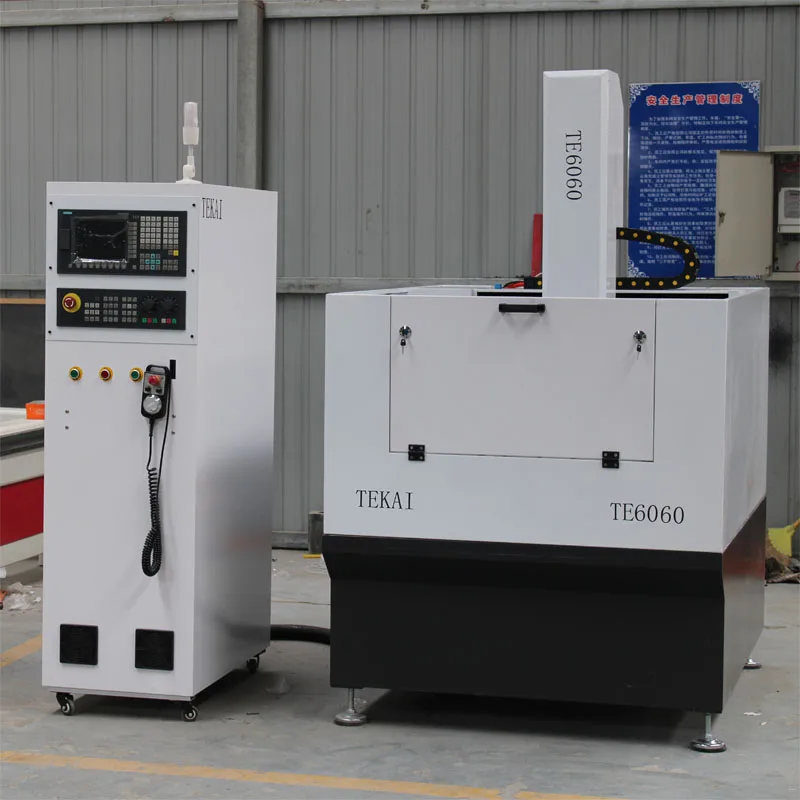

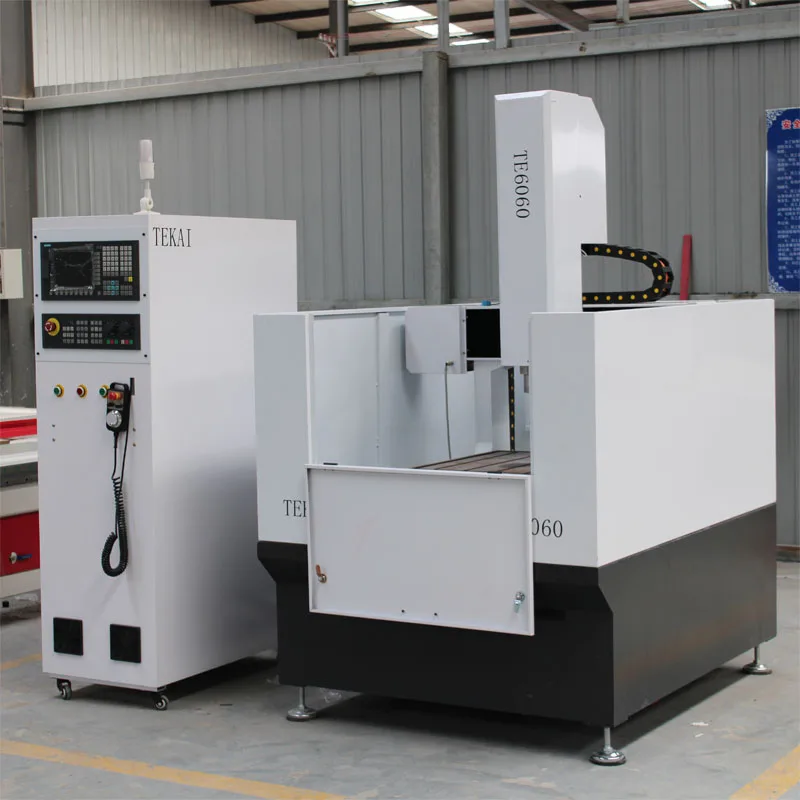

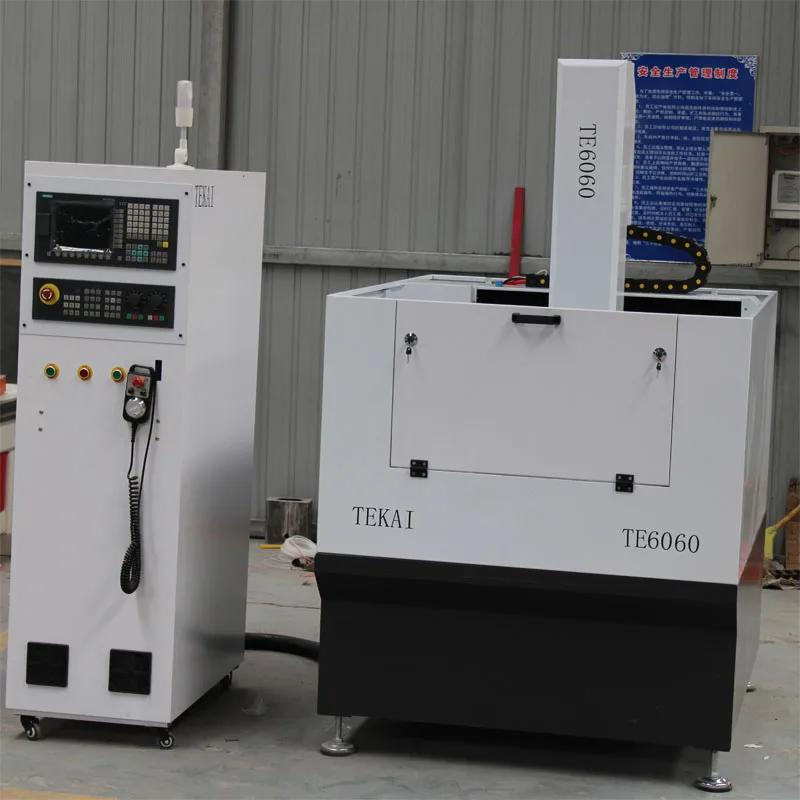

- product name: TE6060
- colour: white
- Spindle: 1.5kw water cooling spindle
- Transmission in X, Y axis: Transmission in X, Y axis
- Motor: Stepper motor
- Driver: Leadshine driver
- Engraving speed: 8000mm/min
- Cutting speed: 6000mm/min
- Working precision: 0.01mm
- power: 2.2kw
- Colour: can be customerized
cnc 6040 cnc milling machine price kit cnc kit cnc woodworking machine diy cnc cnc router china price for low price
Feature
1. The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.
2. Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc
3. Heavy loading, non deformation, adopting imported double nut screw to ensure the engraving speed.
4. Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.
5. Adopt high speed water cooling motor with invariably power, big torque, strong cutting, high-frequency and long-life
6. Available for continuous work for a long time.
Technical Parameter
o | Description | Parameter |
1 | Model | TE6060H |
2 | Working Area | 600*600*200mm(x*y*z) |
3 | Lathe Structure | Steel Structure, table moving |
4 | Spindle Motor | 1.5kw water cooling spindle |
5 | Rotating Speed of Spindle | 24,000rpm |
6 | Collect | ER16 |
7 | Working Mode | Stepper motor and Leadshine driver |
8 | Control System | Mach3 control system, Ethernet interface (USB optional) |
9 | Drive Mechanism | All axis Taiwan TBI ball screw |
Taiwan 20mm square guide rails | ||
10 | Table Surface | Cast iron T-slot table, table moving |
11 | Max Motion Speed | 8,000mm/min |
12 | Max Engraving Speed | 6,000mm/min |
13 | Motion Positioning Accuracy | ± 0.03/300mm |
14 | Re positioning Accuracy | ± 0.01mm |
15 | Working Delicacy | <0.01mm |
16 | Z-axis setting | Auto Z origin tool sensor |
17 | Lubrication System | Oil lubrication system |
18 | Graphic Format Supported | G Code, *uoo, *mmg, *plt |
19 | Software | Artcam, Type3 |
20 | Working Voltage | AC220 1PH/380V 3PH, 50/60Hz |
21 | Max. Consume power | 4.5kw |
22 | Operating Temperature | 0-45°C |
23 | Operating Humidity | 30%~75% |
24 | Packing Size | 1820*1790*1800mm |
25 | Net weight | 500kg |
26 | Gross Weight | 650kg |
Details
Sample
RFQ:
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router,then
let us give you perfect solutions and suggestions.
Q2: How can operate this machine first time?
We will send video and english manual with the machine.If you still have some
doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what shouldi do?
We will supply free parts in machine warranty period if machine have some
problem.While we also supply free after-service forever,so any doubts,just us
know,we will give you solutions in 30 minuts.
