- Hign-concerned Chemical: Wood dust
- Origin: Mainland China
- Application: LASER CUTTING
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500mm*3000mm
- Cutting Speed: 0-60000mm/min
- Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
- Cutting Thickness: according to materials
- CNC or Not: Yes
- Control Software: fiber laser cutting machine
- Place of Origin: Shandong, China
- Laser Source Brand: IPG
- Laser Head Brand: WSX
- Servo Motor Brand: Yaskawa
- Guiderail Brand: HIWIN
- Control System Brand: Cypcut
- Weight (KG): 4000 KG
- Warranty: 2 years
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Motor
- Mode of Operation: continuous wave
- Configuration: 3-axis
- Products handled: Sheet Metal and Tube
- Feature: Automated Loading
- keywords: laser cutting machine
- Laser power: fiber laser cutting machine 1000w
- Gantry: Aviation aluminum beam
- Servo motor: Japan Yaskawa
- Taiwan HIWIN: Taiwan HIWIN /T-WIN
- Reducer: MOTOVARIO/SHIMPO
- Voltage: Three-phase 380V 50/60Hz
- Product name: Fiber Laser Metal Cutting Machine
- Function: Cutting Metal Materials
- Working area: 3000*1500mm
Product Description

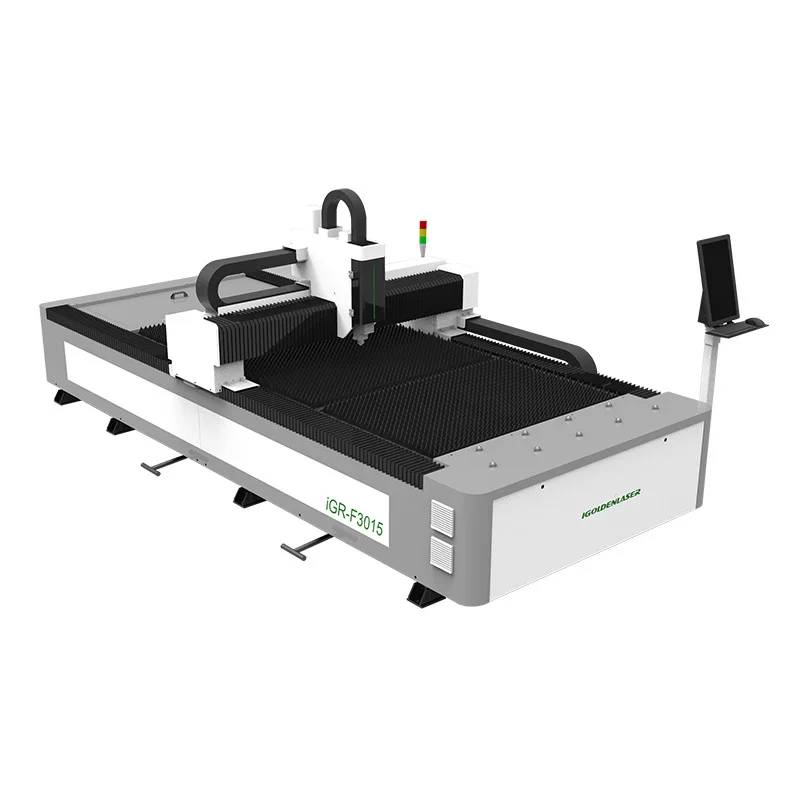

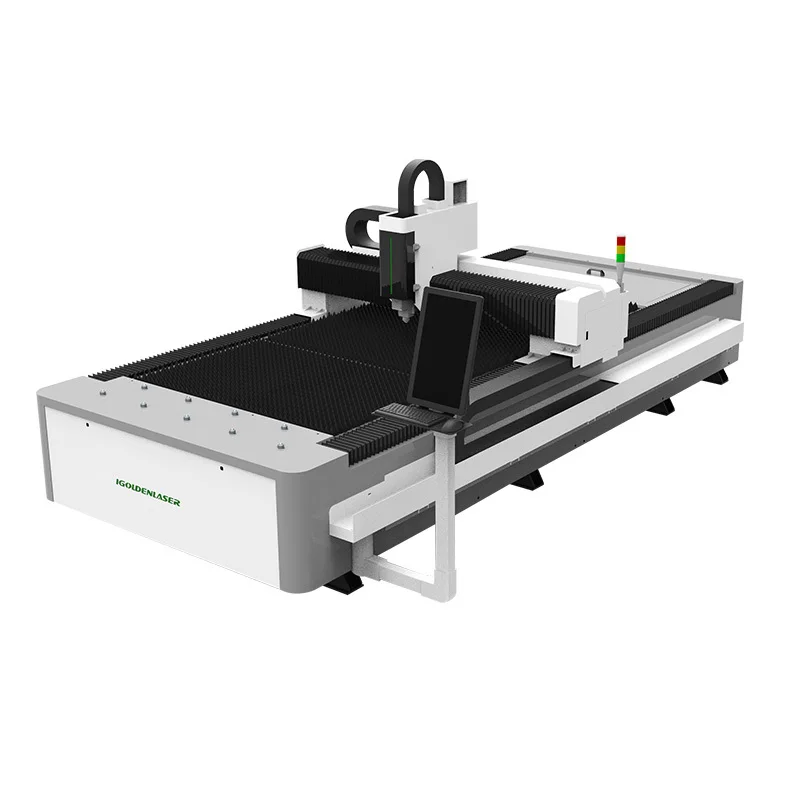

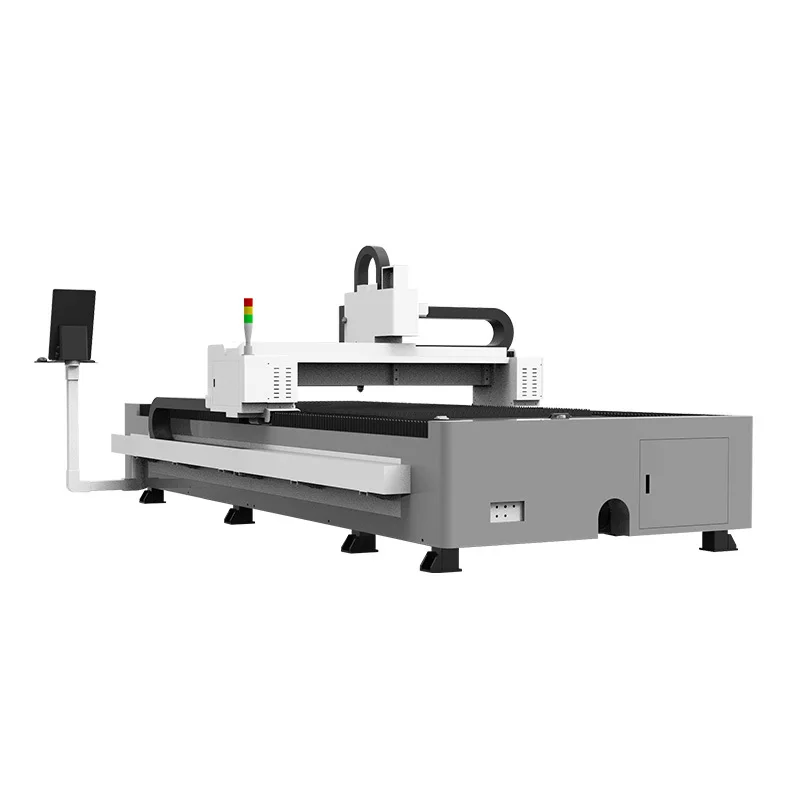

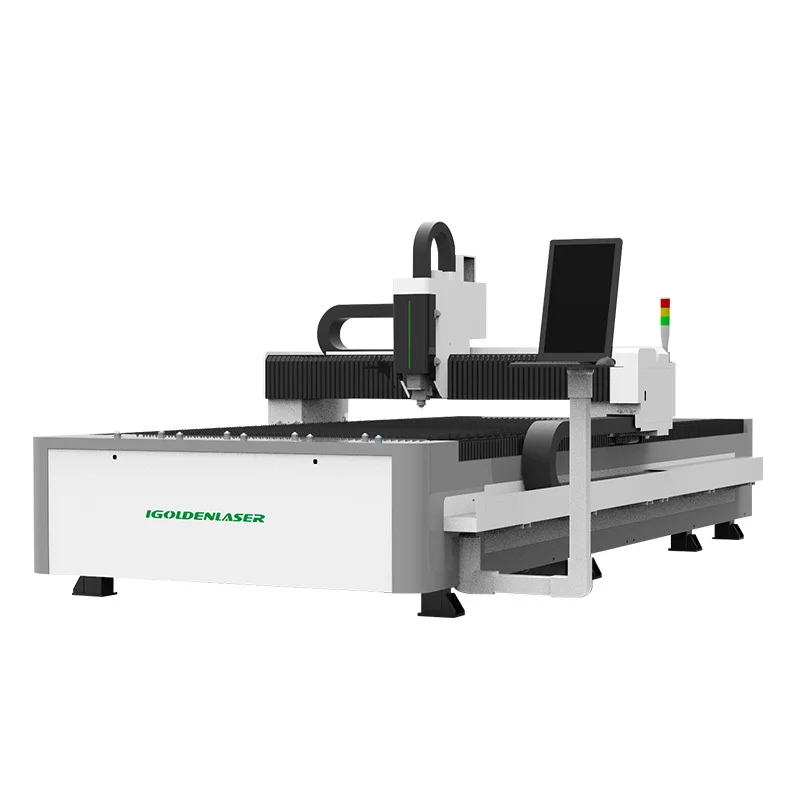

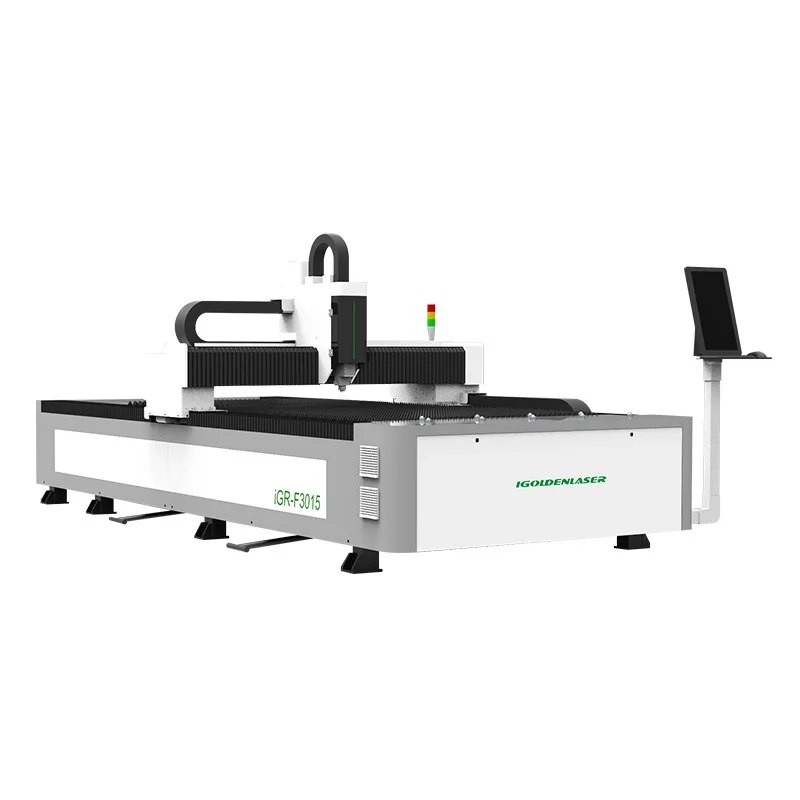

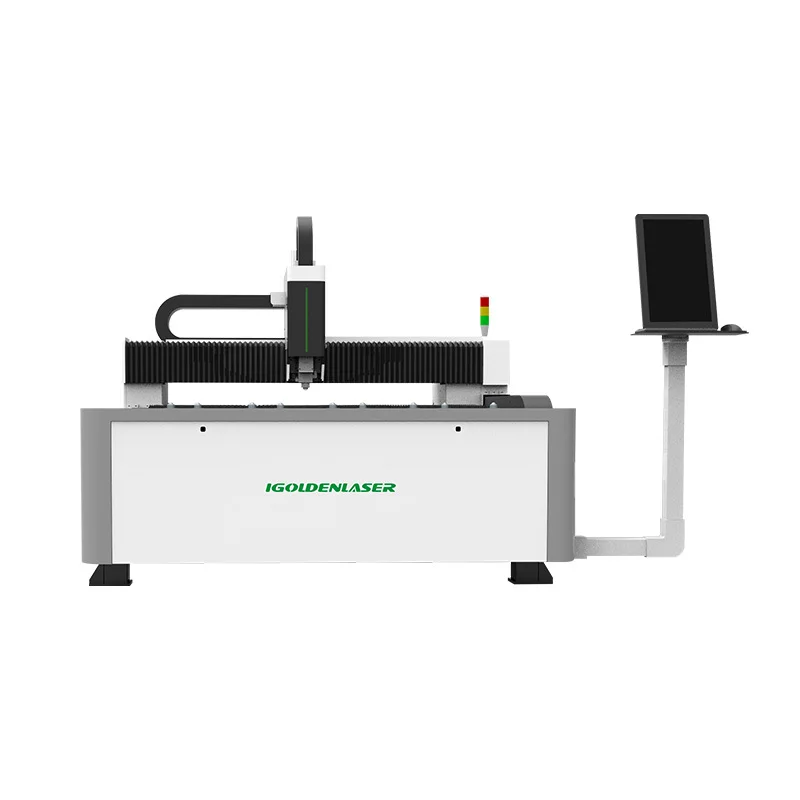

igoldencnc 3015 cnc fiber laser cutting machine fiber laser cutter sheet metal
Flatbed fiber laser cutting machine, equipped with 1000w-12000w fiber laser, can cut 0-25mm thick carbon steel plate, 0-20mm thick stainless steel plate, aluminum plate, 0-12mm thick copper plate, standard working area is 1500*3000mm, can be upgraded It is an independent cabinet with built-in air conditioner for 1500*4500mm, 2000w and above power, and can be installed with a side rotation device to upgrade to a dual-use fiber laser cutting machine.
Specification
Model | IGR-F-3015 |
Working area (L*W) | 3000*1500mm |
X/Y axis Repeated Position Precision | ±0.02mm |
Laser Generator | Germany-IPG / MAX |
Control System | Shanghai Cypcut |
Servo motor | Japan Yaskawa |
Cutting head | Shenzhen WSX/RayTools |
Gantry | Aviation aluminum beam |
Guide rail | Taiwan HIWIN /T-WIN |
Rack | Taiwan HIWIN /VASTUN |
Speed Reducer | MOTOVARIO/SHIMPO |
Water chiller | Tongfei / Hanli |
Proportional valve | Japan SMC |
Electronics | France Schneider |
Voltage | Three-phase 380V 50/60Hz |
Function | Cutting Metal Materials |
Working area | 3000*1500mm |
Details Images
Aero-aluminum Integrated Beam
* High precision. After manual aging, solution treatment and finishing, the beam has good integrity, rigidity, toughness and
ductility.
* Fast speed. Aluminum alloy has the features of lightweight and strong rigidity, which is conducive to high-speed movement during processing, and high flexibility is conducive to the high-speed cutting of various graphics on the basis of high precision.
* High efficiency. The lighter weight beam can ensure the rapid operation of the equipment, improve the processing efficiency, and at the same time ensure the processing quality.
Not only can the high-speed operation of the laser cutting machine be guaranteed, but also the accuracy and efficiency of the cutting processing.
Effectively improve the service life and accuracy of the laser cutting machine, reduce time cost and reduce time loss. And after using the same time limit, the aluminum beam can ensure the cutting accuracy to the greatest extent, and at the same time, it can alleviate the kinetic energy of laser head during high-speed movement.
* High precision. After manual aging, solution treatment and finishing, the beam has good integrity, rigidity, toughness and
ductility.
* Fast speed. Aluminum alloy has the features of lightweight and strong rigidity, which is conducive to high-speed movement during processing, and high flexibility is conducive to the high-speed cutting of various graphics on the basis of high precision.
* High efficiency. The lighter weight beam can ensure the rapid operation of the equipment, improve the processing efficiency, and at the same time ensure the processing quality.
Not only can the high-speed operation of the laser cutting machine be guaranteed, but also the accuracy and efficiency of the cutting processing.
Effectively improve the service life and accuracy of the laser cutting machine, reduce time cost and reduce time loss. And after using the same time limit, the aluminum beam can ensure the cutting accuracy to the greatest extent, and at the same time, it can alleviate the kinetic energy of laser head during high-speed movement.
Auto -Focus Laser Cutting Head
* Auto focus range +10~-10mm, adjustment accuracy 0.01mm, adjustment speed 100mmms;
* Collimation protection lens dust protection design, effectively protect the internal optical components;
* Extend the distance between the protection lens and the nozzle to increase the life of the lens;
* Drawer-type lens holder is adopted to make the protection lens replacement fast and simple;
* QBH connector is not limited, it can be equipped with various lasers with QBH connector.
Autofocus saves focusing time and improves work efficiency by 10 times.
Extend service life, by optimizing the structural design of the cutting head, extend its service life.
* Auto focus range +10~-10mm, adjustment accuracy 0.01mm, adjustment speed 100mmms;
* Collimation protection lens dust protection design, effectively protect the internal optical components;
* Extend the distance between the protection lens and the nozzle to increase the life of the lens;
* Drawer-type lens holder is adopted to make the protection lens replacement fast and simple;
* QBH connector is not limited, it can be equipped with various lasers with QBH connector.
Autofocus saves focusing time and improves work efficiency by 10 times.
Extend service life, by optimizing the structural design of the cutting head, extend its service life.
High-Precision Transmission System
Taiwan T-win double drive rack guide, Japan Panasonic drive motor, Japan Shimpo reducer
The positioning accuracy of the affordable laser cutter is 0.02mm, and the repeated positioning accuracy is 0.02mm.
Taiwan T-win double drive rack guide, Japan Panasonic drive motor, Japan Shimpo reducer
The positioning accuracy of the affordable laser cutter is 0.02mm, and the repeated positioning accuracy is 0.02mm.
Optional Side Potation Axis
The standard length is 3000mm/ 6000mm/ 9000m side rotation axis device, which can process square tubes, round tubes, oval tube, rectangular tube, irregular tube and other metal tube.
* Clamp design: The electric clamp design is used on both sides, which can automatically adjust the center. The adjustable range of the diagonal is 20-220mm.
It can process both metal plates and metal pipes, one affordable laser cutter for two purposes, saving space and cost, and improving production efficiency.
The standard length is 3000mm/ 6000mm/ 9000m side rotation axis device, which can process square tubes, round tubes, oval tube, rectangular tube, irregular tube and other metal tube.
* Clamp design: The electric clamp design is used on both sides, which can automatically adjust the center. The adjustable range of the diagonal is 20-220mm.
It can process both metal plates and metal pipes, one affordable laser cutter for two purposes, saving space and cost, and improving production efficiency.
Optional Floor Standing Independent Control Cabinet
Dustproof All electrical components and laser sources are built into a separate control cabinet and have a dustproof design to extend the life of the electrical components. The automatic thermostat control cabinet is equipped with air conditioning to achieve automatic constant temperature. This can prevent summer temperatures excessive damage to components.
* More professional electrical device assembly, strong electricity separation and weak electricity separation.
* Simpler dustproof, anti-static interference, good heat dissipation, easy to maintain.
* More convenient and easy to detect circuit faults and maintenance.
* Safer and independent of machine equipment, reduce equipment operation interference..
Dustproof All electrical components and laser sources are built into a separate control cabinet and have a dustproof design to extend the life of the electrical components. The automatic thermostat control cabinet is equipped with air conditioning to achieve automatic constant temperature. This can prevent summer temperatures excessive damage to components.
* More professional electrical device assembly, strong electricity separation and weak electricity separation.
* Simpler dustproof, anti-static interference, good heat dissipation, easy to maintain.
* More convenient and easy to detect circuit faults and maintenance.
* Safer and independent of machine equipment, reduce equipment operation interference..
Samples
Cutting different thickness metal sheets/plates and metal tubes/pipes, such as carbon steel(C.S.), stainless steel(S.S.), electrical steel, aluminum, aluminum alloy, titanium alloy, galvanized steel, aluminum zinc plate, copper, brass, iron and other metal materials.
What is fiber laser cutting machine ?
CNC fiber laser cutting machine widely used for carbon steel(C.S.), stainless steel(S.S.), electrical steel, aluminum, aluminum alloy, titanium alloy, galvanized steel, aluminum zinc plate, copper, brass, iron and other metal materials. its mainly including: Flatbed fiber laser cutting machine; Dual-use cnc fiber laser cutter machine with rotary device for metal plate and tube pipe cutting; Exchange platform laser cutter machine; Full cover protective fiber laser cutting machine AND Tube laser cutting machine etc,. all the fiber cnc machine specification can customized as customers need.
We also provide fiber laser cleaning machine, handheld fiber laser welding machine, and fiber marking machine.
