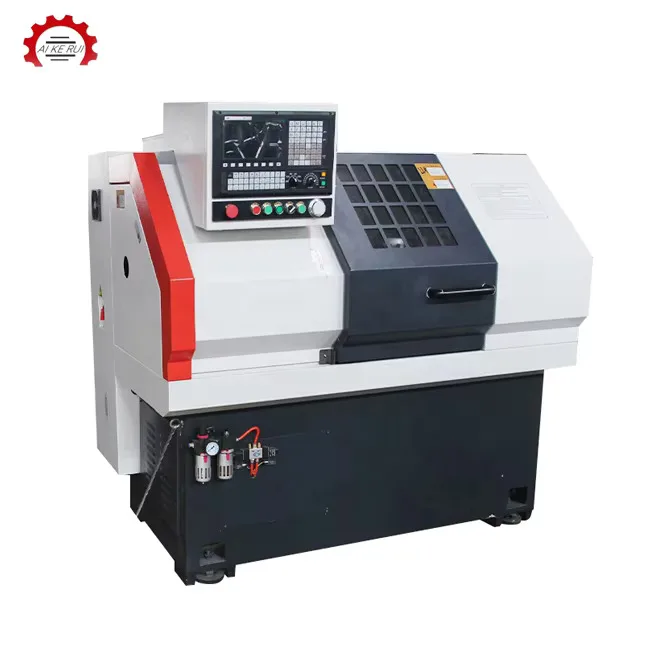

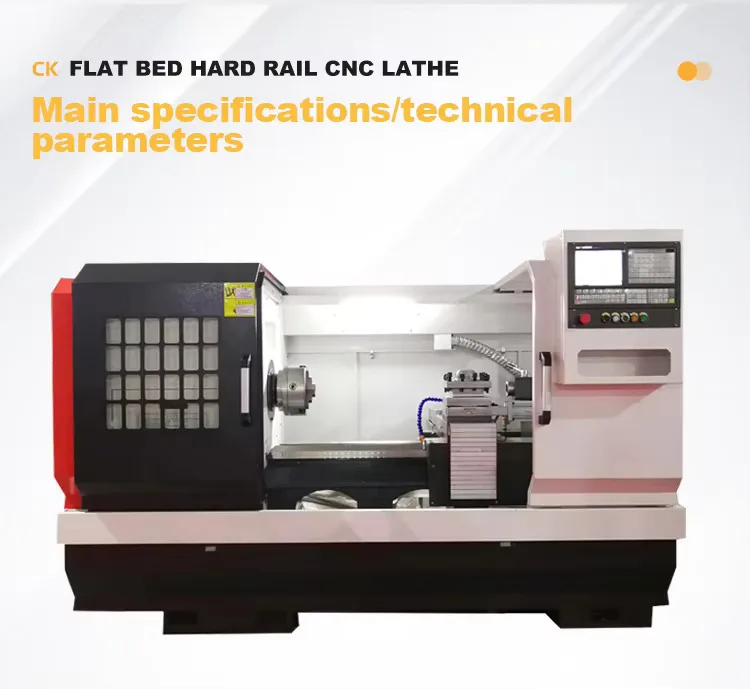

Specifications | Unit | CK6130 |
Max. swing over bed | mm | 300 |
Max. swing over cross slide | mm | 100 |
Max. processing length | mm | Chuck 200 / clamping head 320 |
X/Z axis travel | mm | 300/350 |
Spindle nose | A2-5 | |
Spindle bore | mm | 48 |
Bar capacity | mm | 40 |
Max. spindle speed | rpm | 2500 |
Chuck size | mm | 160 |
Spindle motor | kw | 4 |
X/Z axis repeatability | mm | ±0.005 |
X/Z axis feed motor torque | N.m | X:4 Z:4 |
X/Z Rapid traverse | m/min | X:6 Z:8 |
Tailstock quill dia. | mm | 52 |
Quill traverse | mm | 90 |
Quill taper | MT4# | |

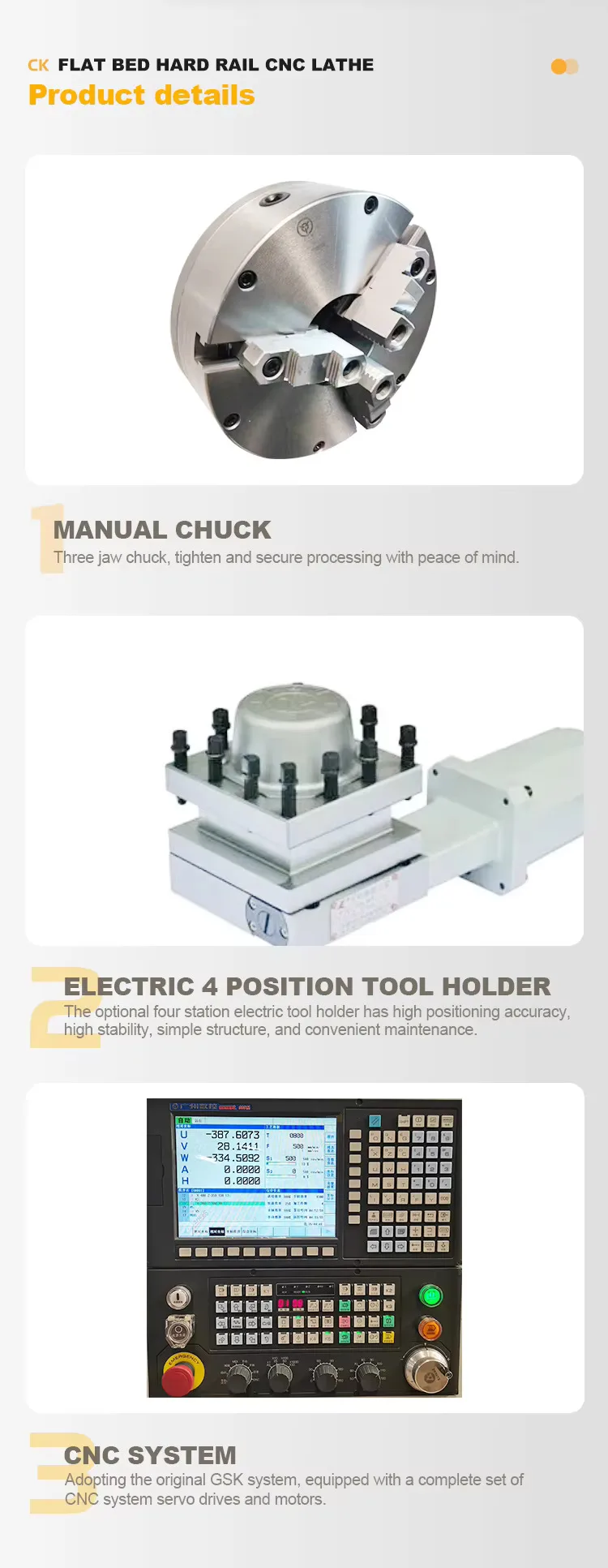

Turret type | 4 station | |
Cutting tool size | mm | 20x20 |
Total power capacity | KVA | 7 |
Machine dimension (L×W×H) | mm | 1600×1100×1650 |
Net. weight (about) | kg | 950 |
The company's products have covered all parts of the country, and have been exported to North Korea, Angola, Kenya, South America, Southeast Asia, Russia, the Middle East and other countries and regions, the products have been praised by domestic and foreign customers.
In recent years, the company in the continuous innovation and development, has launched a number of special CNC machine tool products, and has been recognized by the market.
We always insist on good products, good services and good reputation.
We have a high-quality team, as always to serve you!
Shandong ACR Machine Tool Co., Ltd. welcomes friends from all over the world to visit and guide us!
FAQ
1:How can I choose the most suitable machines?
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
3: Where is our factory located? How can I visit there?
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
3: Where is our factory located? How can I visit there?
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7.If the above products do not meet your requirements, we can customize them according to customer requirements!
