- Hign-concerned Chemical: None
- Plug: EU
- Type: Horizontal
- Origin: Mainland China
- CNC or Not: CNC
- Certification: CE
- Condition: New
Products Description
Details Images
LINEARGUIDES
AND BALL SCREWS
High precision screw.
long-life bearing, heavy cutting.
high-speed cutting guide rail.
SPINDLE
The spindle manufactured by OKADA(Taiwan)is characterized
by high precision andincreased
rigidity.

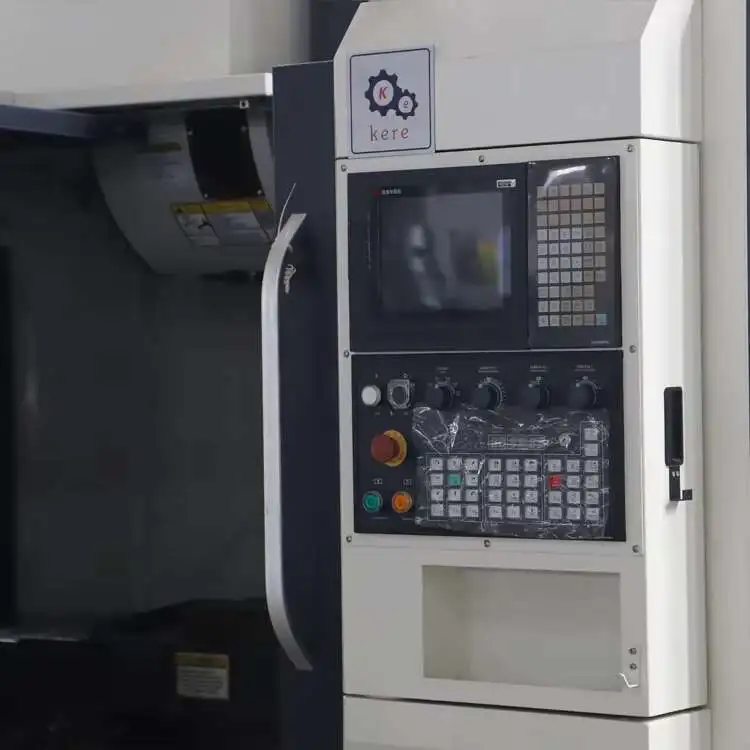

Multiple CNC system options
OPTIONAL DISC
CUTTER LIBRARY
Ensure the rigidity of the tool holder
and the stability of long-term
tool replacement.
Product Paramenters

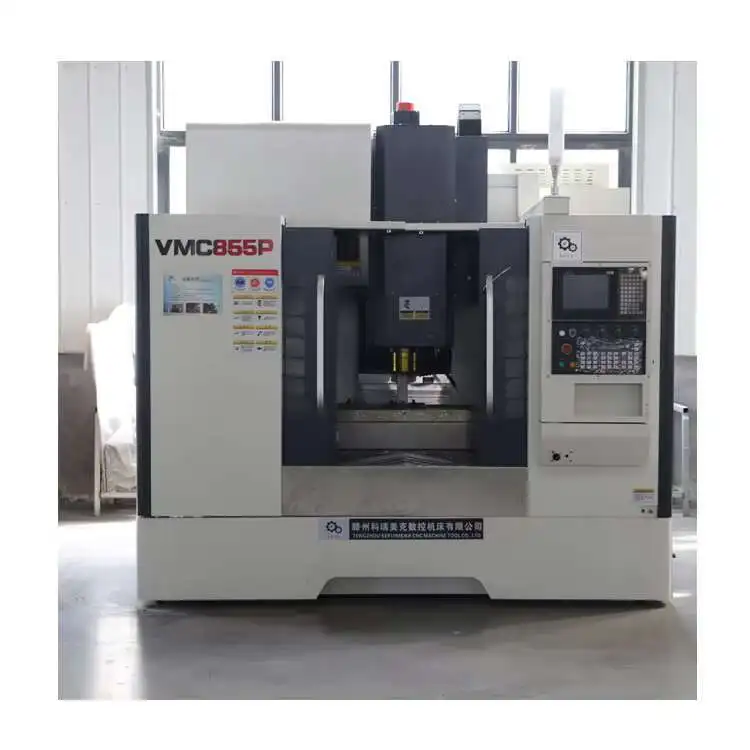

specifications | unit | VMC855 |
Table size | mm | 1000x550 |
Max.table load | mm | 500 |
X axis travel | mm | 850 |
Y axis travel | mm | 550 |
Z axis travel | mm | 550 |
Distance between spindle center and column surface | mm | 571 |
Distance between spindle nose and table surface | mm | 100-650 |
T slot | 3-18*90 | |
Spindle taper | mm | BT40 |
Max. spindle speed | r/min | 8000(10000 optional) |
Main motor power | kw | 7.5 |
X/Y/Z axis servo motor torque | N.M | 15/15/23 |
X/Y/Z motor connection | direct | |
X/Y/Z guide rail form | ||
Automatic tools changer | 24 arm type | |
X/Y/Z axis rapid traverse | M/min | 32/32/32 |
Cutting feed speed | M/min | 10 |
Position accuracy | mm | ±0.005 |
Repeat positioning accuracy | mm | ±0.003 |
Machine dimension | mm | 2600x2000x2200 |
Machine weight | kg | 4800 |
Company Profile
Certifications
FAQ
1:How can I choose the most suitable machines ?
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
3: Where is our factory located? How can I visit there?
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
3: Where is our factory located? How can I visit there?
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
