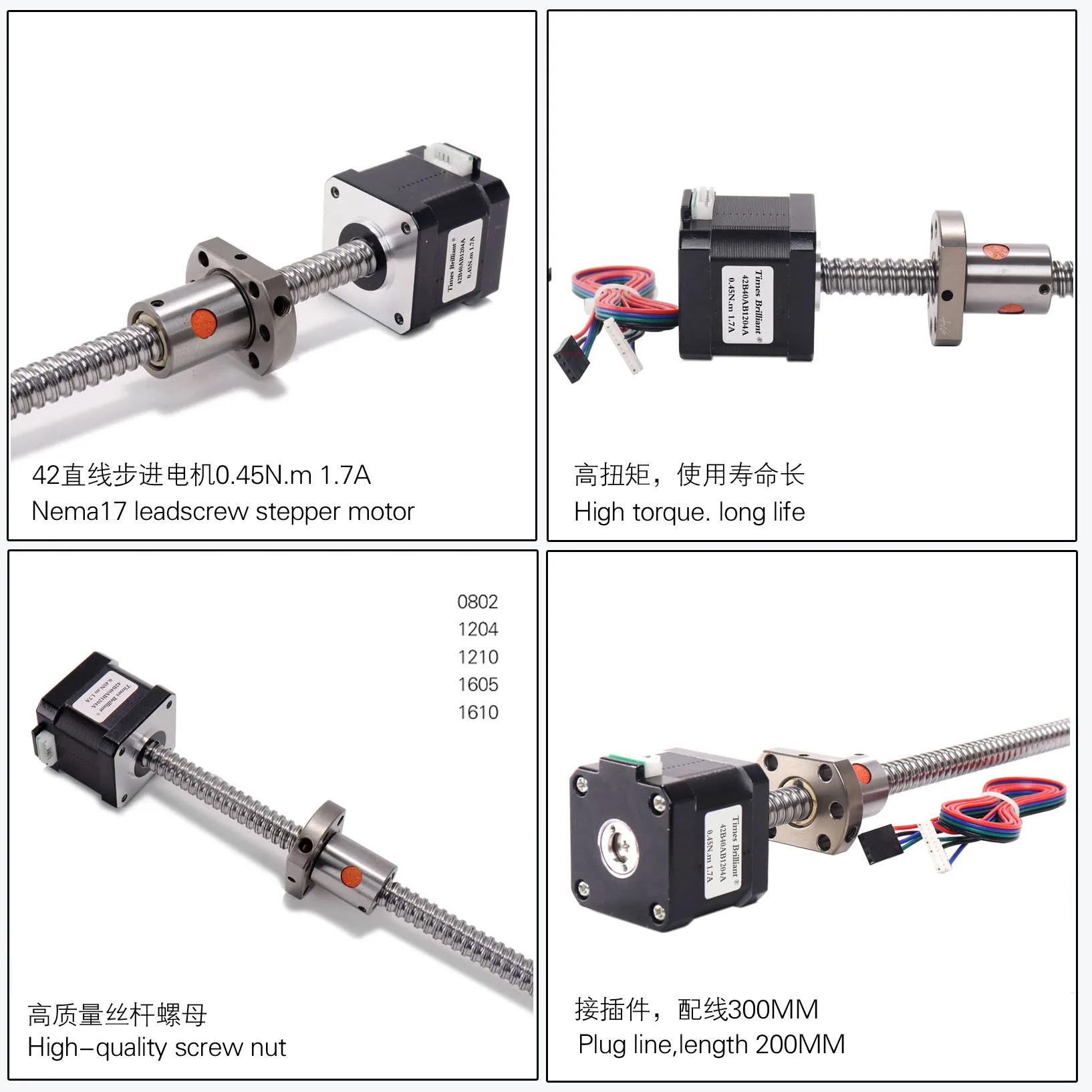

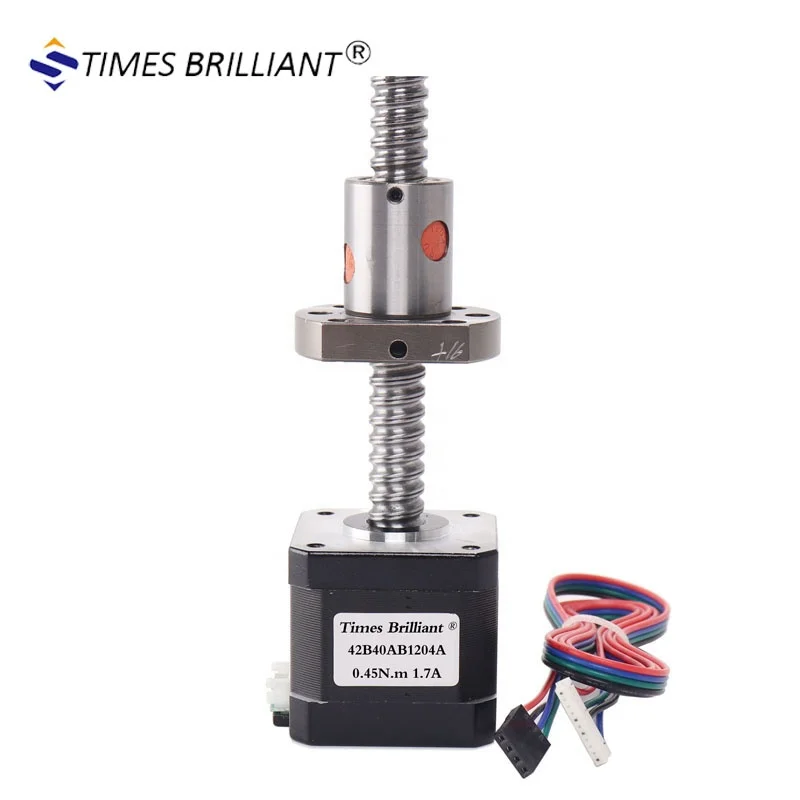

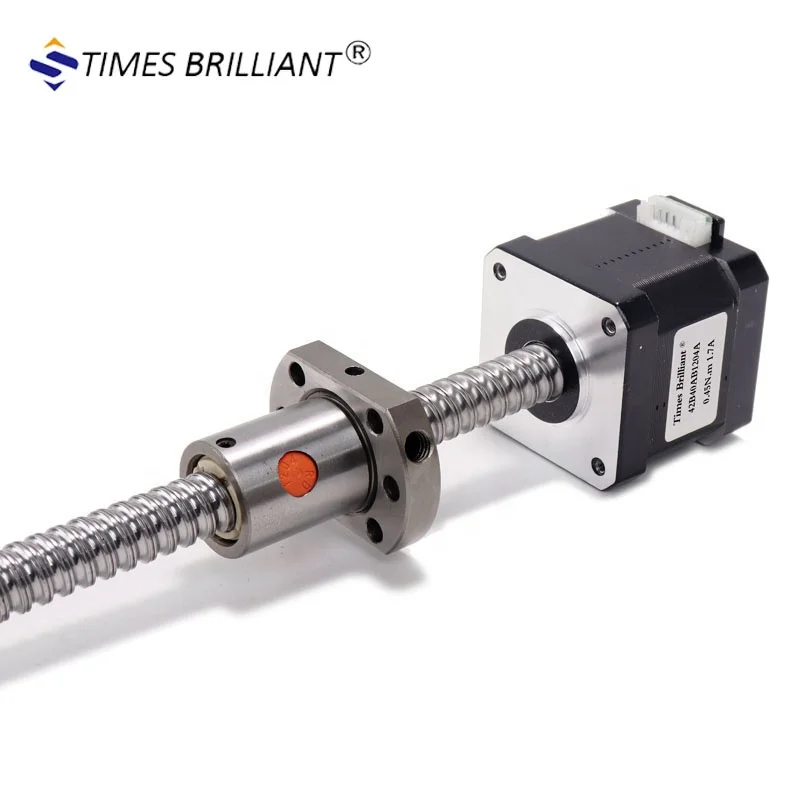

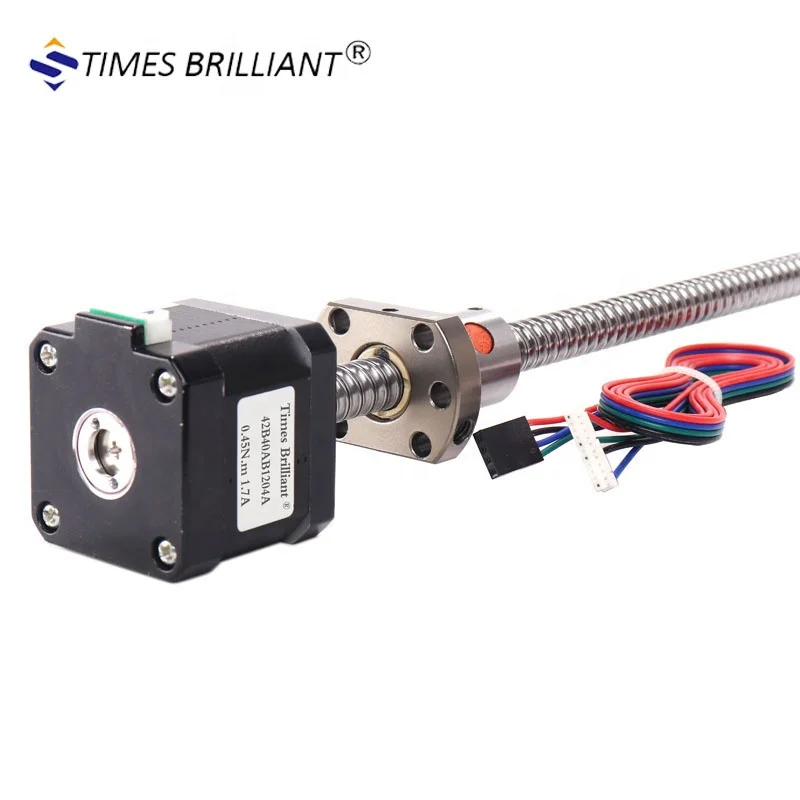

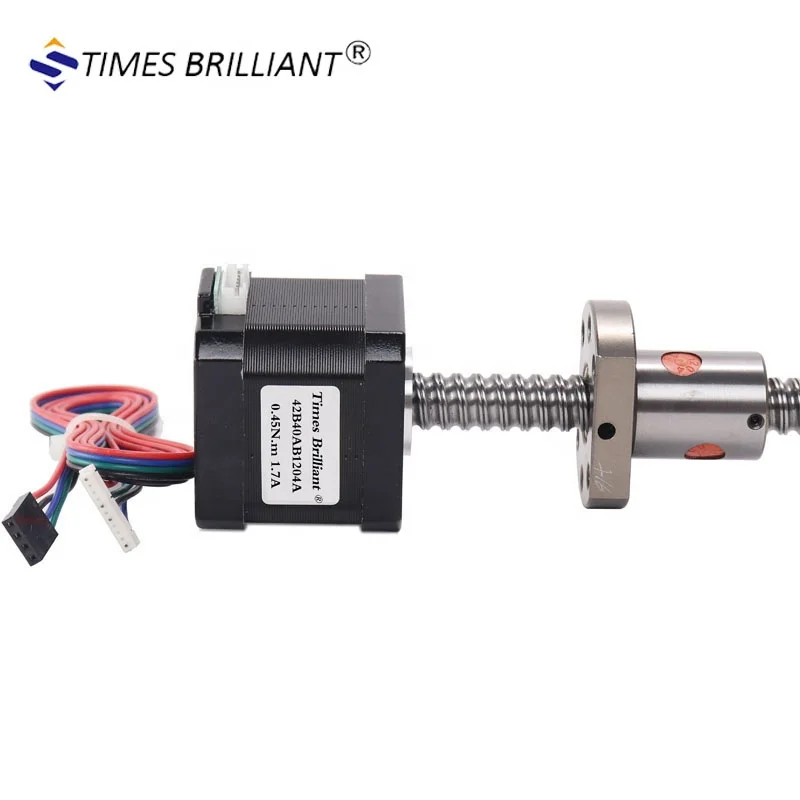

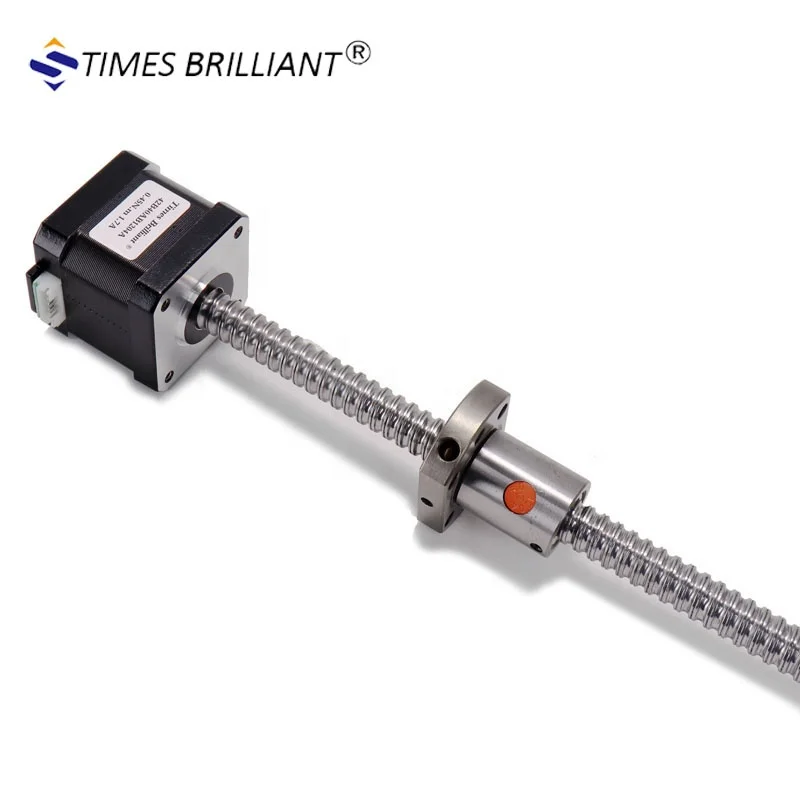

China suppliers 1204/1605 Ball Screw linear stepper motor 0.45NM Nema 17 Leadscrew Stepper Motor For 3D Print



1. Nema17 Linear stepper motor, same price in 300mm inner length, lead screw length can be customized,Each additional 100mm of screw length increases the price by $ 8.5



2. Ball screw default 1204 (screw diameter 12MM, lead 4MM) / 1605, In addition, customized screw specifications are 0802/1210/1610/1620



3. Motor body is 40mm long, static torque is 0.45Nm, 1.7A



4. The linear motor is a plug line connector by default, and the standard line length is 300mm.

Phase	Voltage	Current	Inductance	Holding	Rotor	Weight	Wire
No.				Torque	Inertia		No.
	V	A	mh ±20%	N.m	g.cm ²	kg
2	24	1.7	1.7	0.45	57	0.5	4

Note: the motor with magnetic ,so magnetic inspection fee will be incurred during transportation. Please contact shop assistant to supplement it.large quantities can dispense with it
